USER MANUAL ARMDUALWALL StarTech.com

Dual-Monitor Wall Mount

ARMDUALWALL

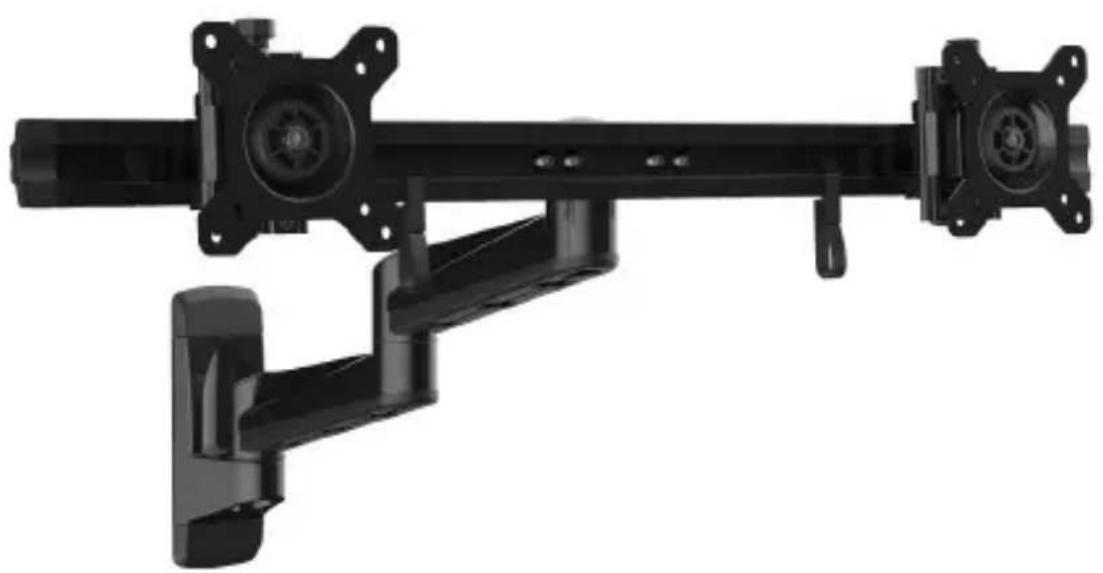

Black mechanical device with articulated arms and mounting flanges (no visible text or symbols)

*actual product may vary from photos

For the latest information, technical specifications, and support for this product, please visit www.StarTech.com/ARMDUALWALL.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries.

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Warning statements

Make sure that you assemble this product according to the instructions.

Read the entire manual and make sure that you understand the instructions before you start to assemble and use this product.

Do not exceed the weight capacity of this product. Overloading this product might result in injury or property damage. This product can support the following weight: Up to 5 kg (11 lb.) per monitor mount.

When you assemble this product, do not over-tighten the screws. If you encounter resistance while you are tightening the screws, stop tightening.

Wall structures vary, and it is important to make sure that the type of wall structure and mounting hardware that you are using will properly support the mounted equipment. Failure to do so might result in personal injury and/or equipment damage. The wall structure should be capable of supporting at least four times the weight of the mounted equipment.

The mounting hardware included with this product might not be adequate for some wall structures. If you lack the necessary expertise to attach this product to the wall structure that you're using, contact a construction professional to install the wall mount or to provide specific mounting instructions for your wall structure.

Warnhinweise

Product diagram ......1

Product dimensions....1

Technical specifications ....2

Package contents....3

Requirements 6

Installation 7

Attach the wall plate to the wall....7

Attach the mounting arms 9

Attach the crossbar 12

Mount the monitors....14

Attach the VESA monitor mounts to the crossbar 15

Adjust the ARMDUALWALL....16

Organize your cables 17

Technical support....18

Warranty information....18

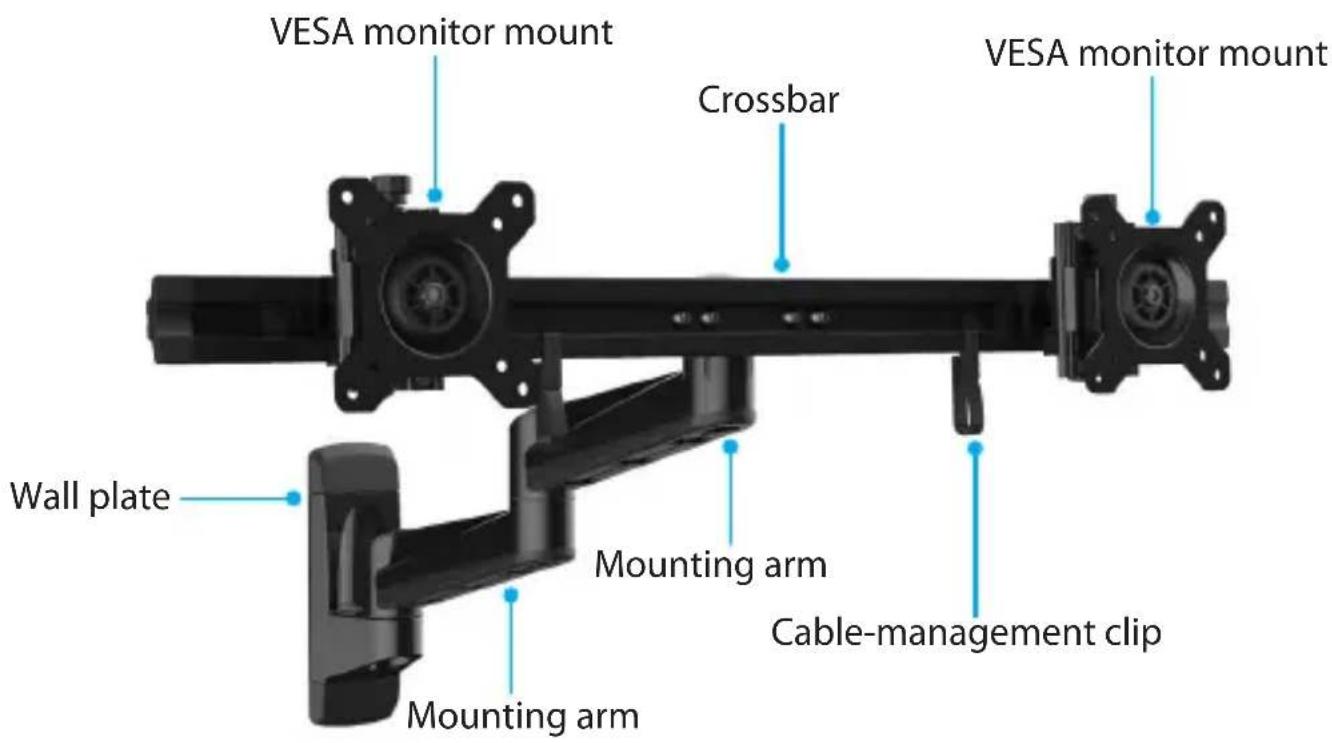

Product diagram

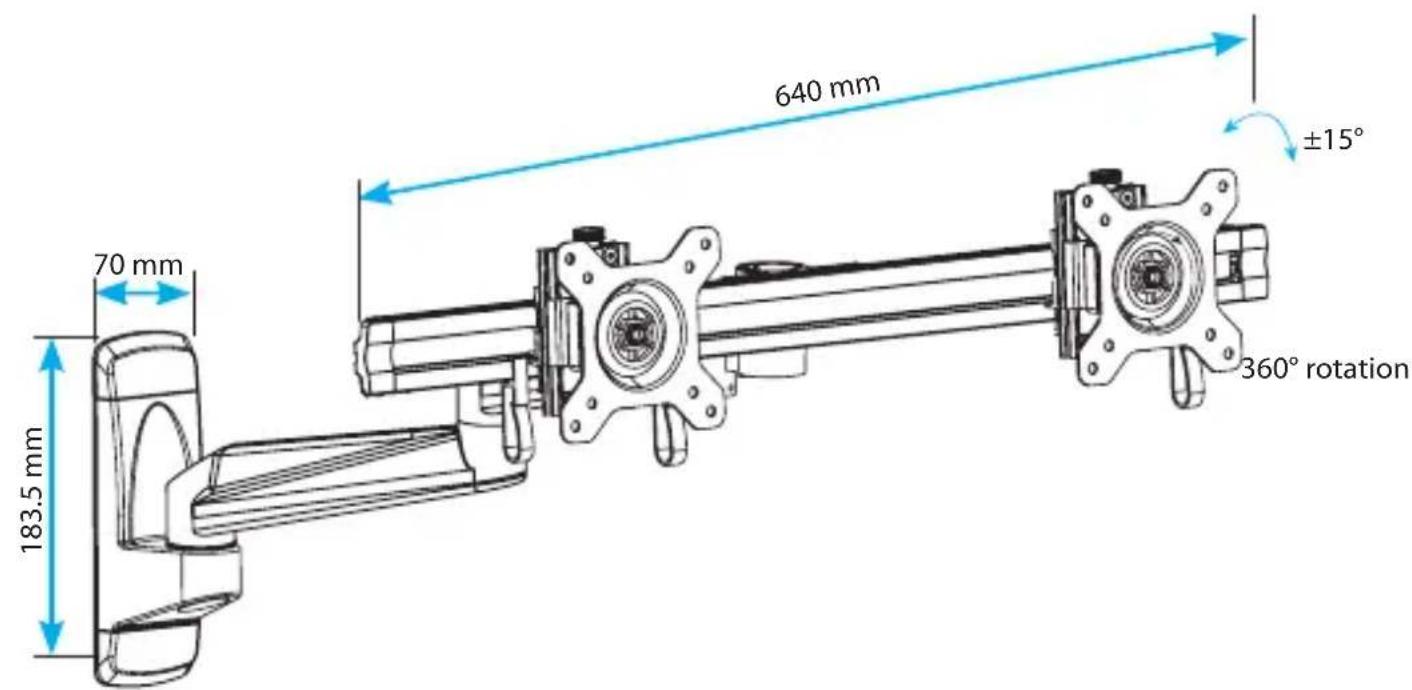

Product dimensions

Technical specifications

Type of measurement Measurement

VESA

75×75

100x100

RATED LOAD

5 kg (11 lb.) per monitor mount

ROTATION

360^

TILT

-15^ to +15^

SCREEN

Between 381 mm and 610 mm (15 in. and 24 in.)

SWIVEL

180^

Package contents

1

Pure mechanical assembly diagram without any text, numbers, or symbols

Wall plate

Qty: One

2

Plastic covers

Qty: Two

3

Technical line drawing of a mechanical component with a cylindrical protrusion (no text or symbols)

Mounting arms

Qty: Two

4

Symmetrical mechanical component with concentric circles and bolt holes (no text or symbols)

VESA monitor mounts

Qty: Two

5

Pure mechanical assembly diagram showing two shafts with mounting flanges and housing (no text or symbols)

Crossbar

Qty: One

6

Crossbar cap

Qty: One

7		8
	M4x12 mm screwsQty: Eight		M4x30 mm screwsQty: Eight
9		10
	SpacersQty: Eight		Cable-management clipsQty: Two
11		12
	Hex keyQty: One

13

M8x16 mm screws

Qty: Three

Mounting-arm washers

Qty: Three

15

Mounting-arm caps

Qty: Two

Wall-plate retainer

Qty: One

17

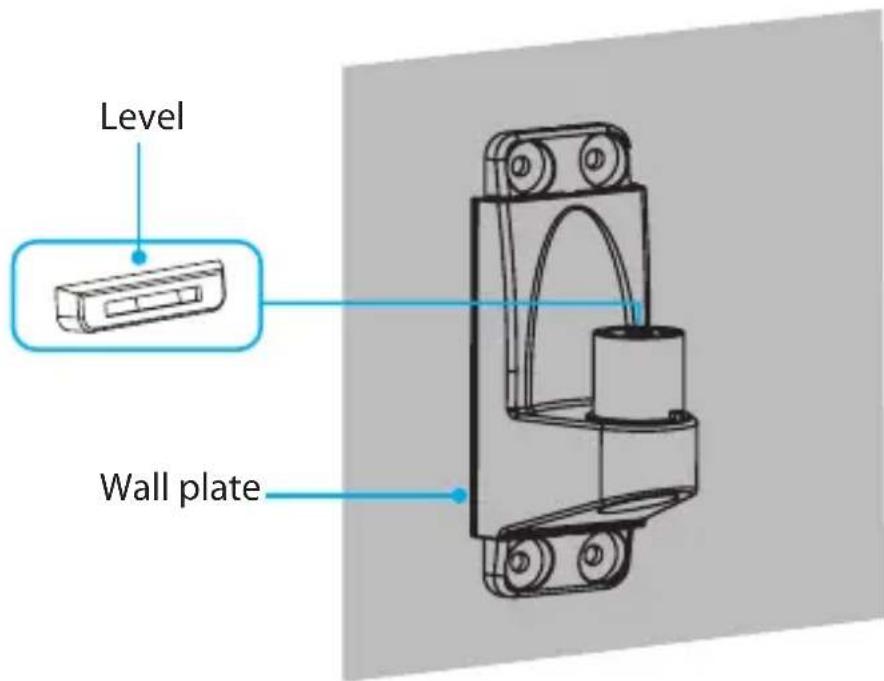

Level

Qty: One

M8x60 mm screws

Qty: Four

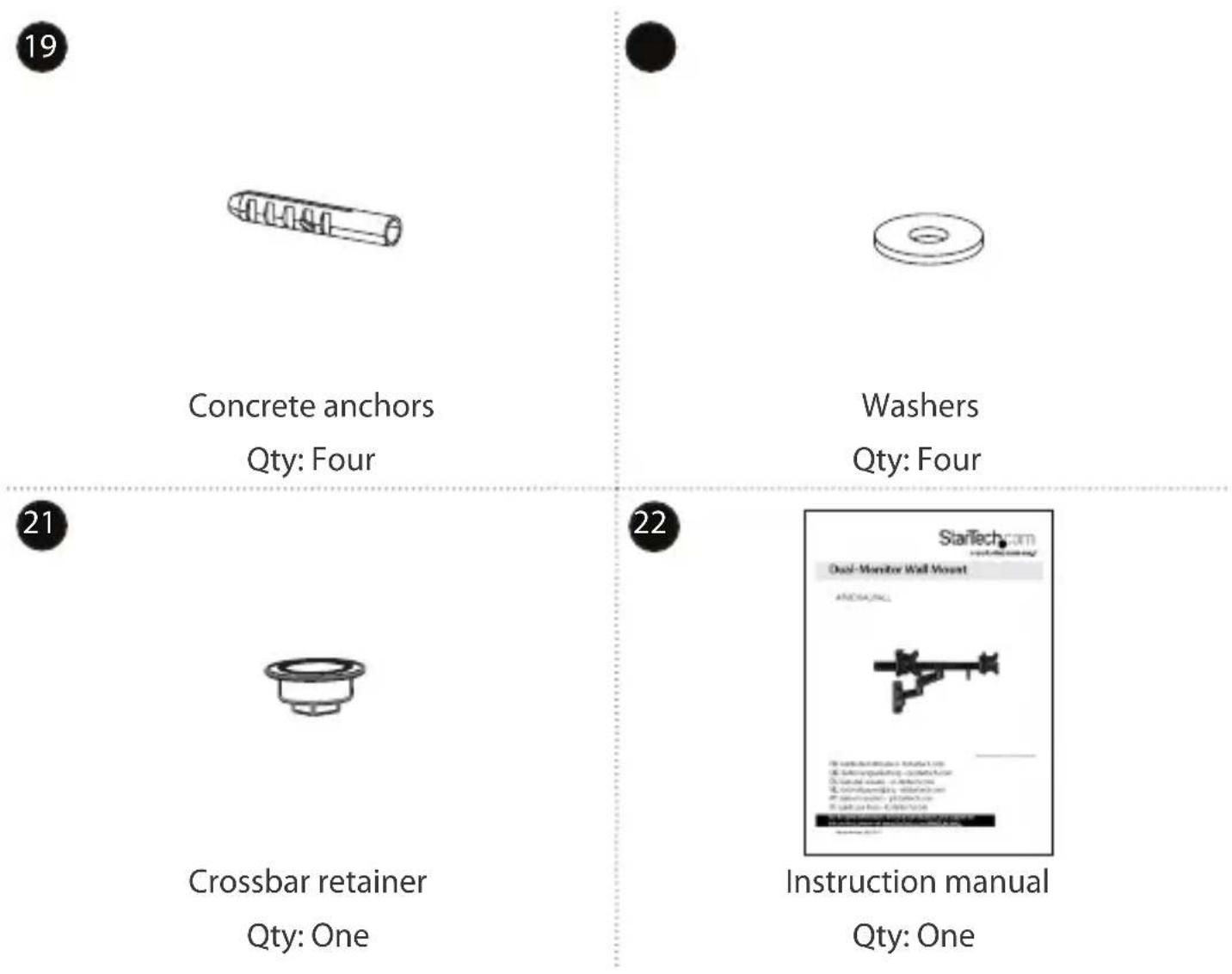

Concrete anchors

Qty: Four

Washers

Qty: Four

Crossbar retainer

Qty: One

Instruction manual

Qty: One

Requirements

• Two monitors that are compatible with one of the VESA mounting hole patterns that ARMDUALWALL supports
  • A Phillips type screwdriver

Requirements are subject to change. For the latest requirements, please visit www.StarTech.com/ARMDUALWALL.

Installation

Warning! Make sure that the weight of the monitors doesn't exceed the weight capacity of this product. If you exceed the weight capacity, you might experience personal injury or damage to the product. This product can support up to 5 kg (11 lb.) per monitor mount.

Attach the wall plate to the wall

Warning! Wall structures vary, and it is important to make sure that the type of structure and mounting hardware that you are using will properly support the mounted equipment. Failure to do so may result in personal injury and/or equipment damage. The wall should be capable of supporting at least four times the weight of the mounted equipment.

Warning! The mounting hardware included with this product might not be adequate for some wall structures. If you lack the necessary expertise to attach this product to the wall that you are using, contact a construction professional to install the ARMDUALWALL or to provide specific mounting instructions for your wall.

Note: It may require two people to attach the wall plate to the wall.

1. Position the wall plate where you want to hang the ARMDUALWALL and use the provided level to make sure that the wall plate is vertical. (figure 1)

figure 1

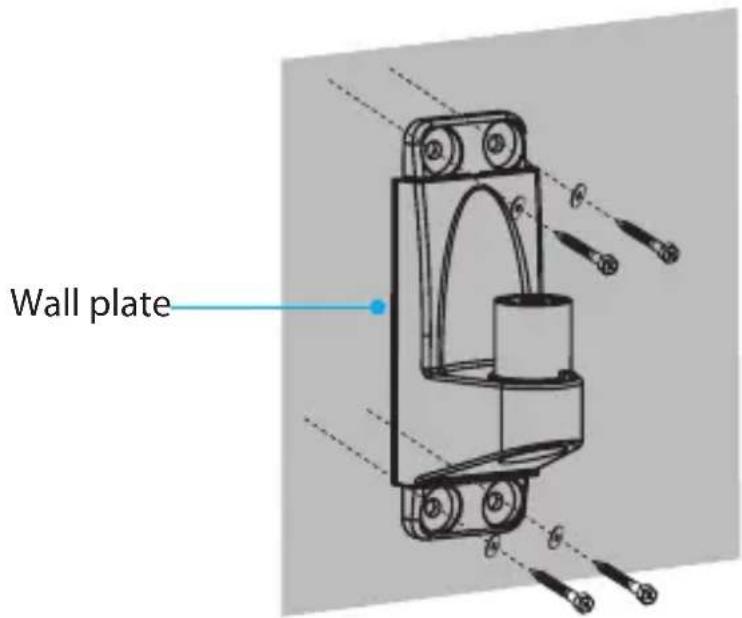

1. Use the four holes in the wall plate as a template to mark the wall.
2. Follow the appropriate steps for the type of wall that you're attaching the wall plate to and attach the wall plate to the wall. (figure 2)

figure 2

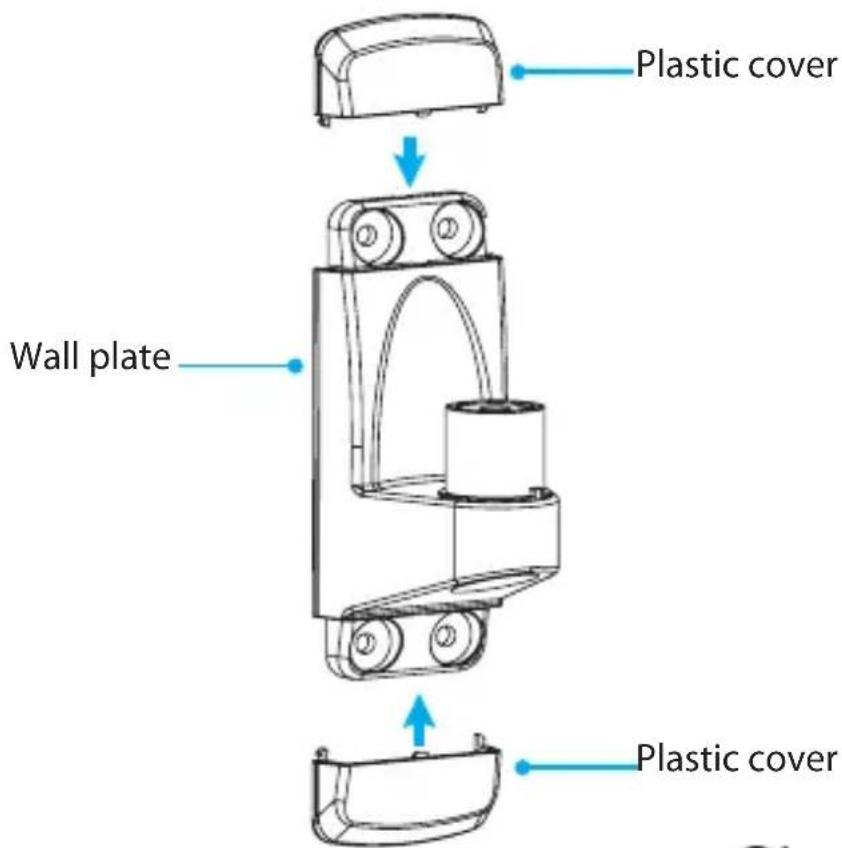

1. Slide the plastic covers over the ends of the wall plate. (figure 3)

figure 3

Attach the mounting arms

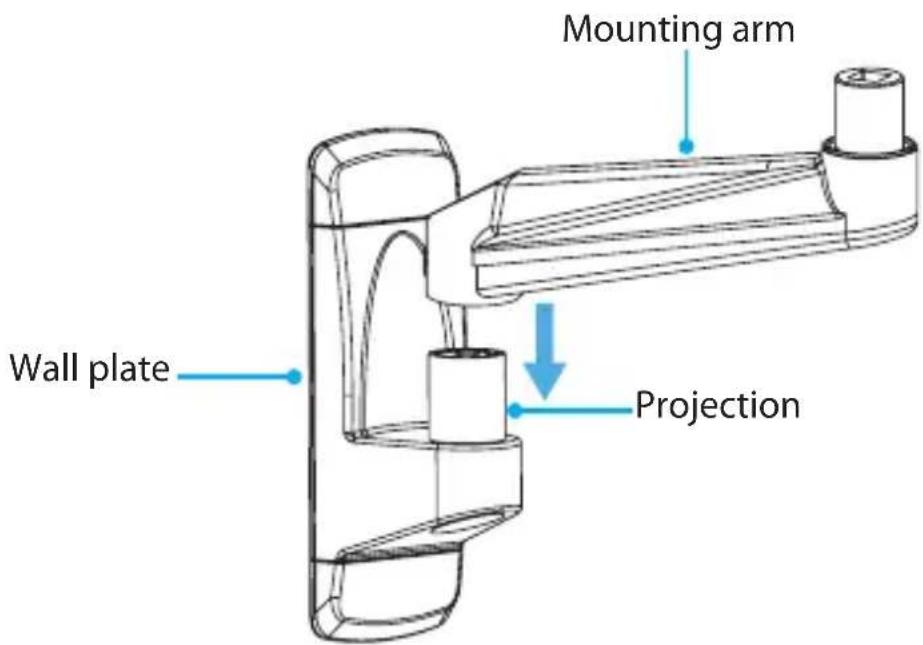

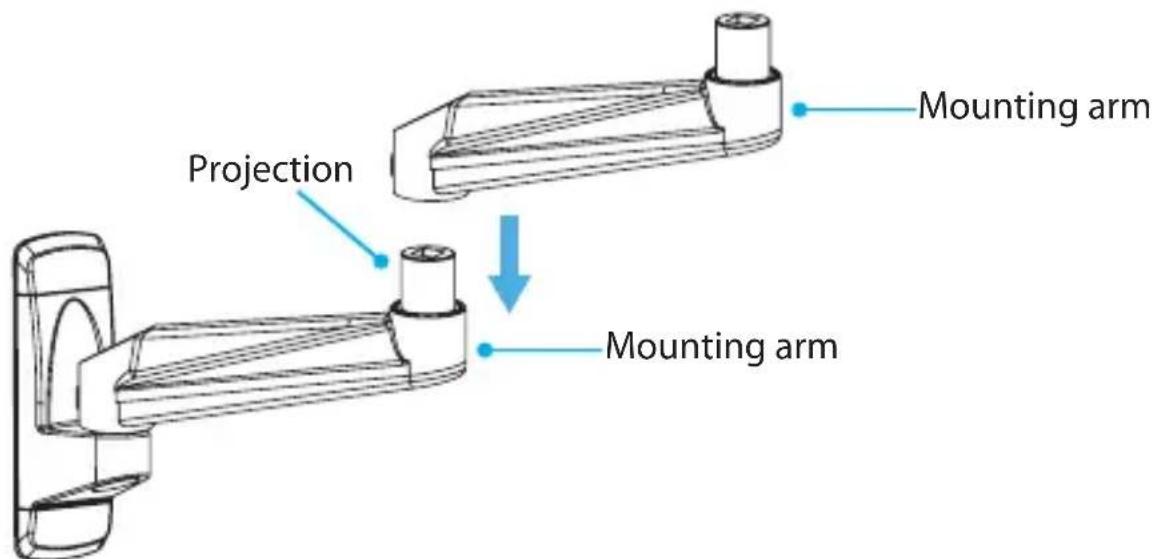

1. Place one of the mounting arms over the projection on the wall plate. (figure 4)

figure 4

1. Place a mounting-arm washer into the joint in the mounting arm.
2. Place the wall-plate retainer onto the mounting-arm washer.

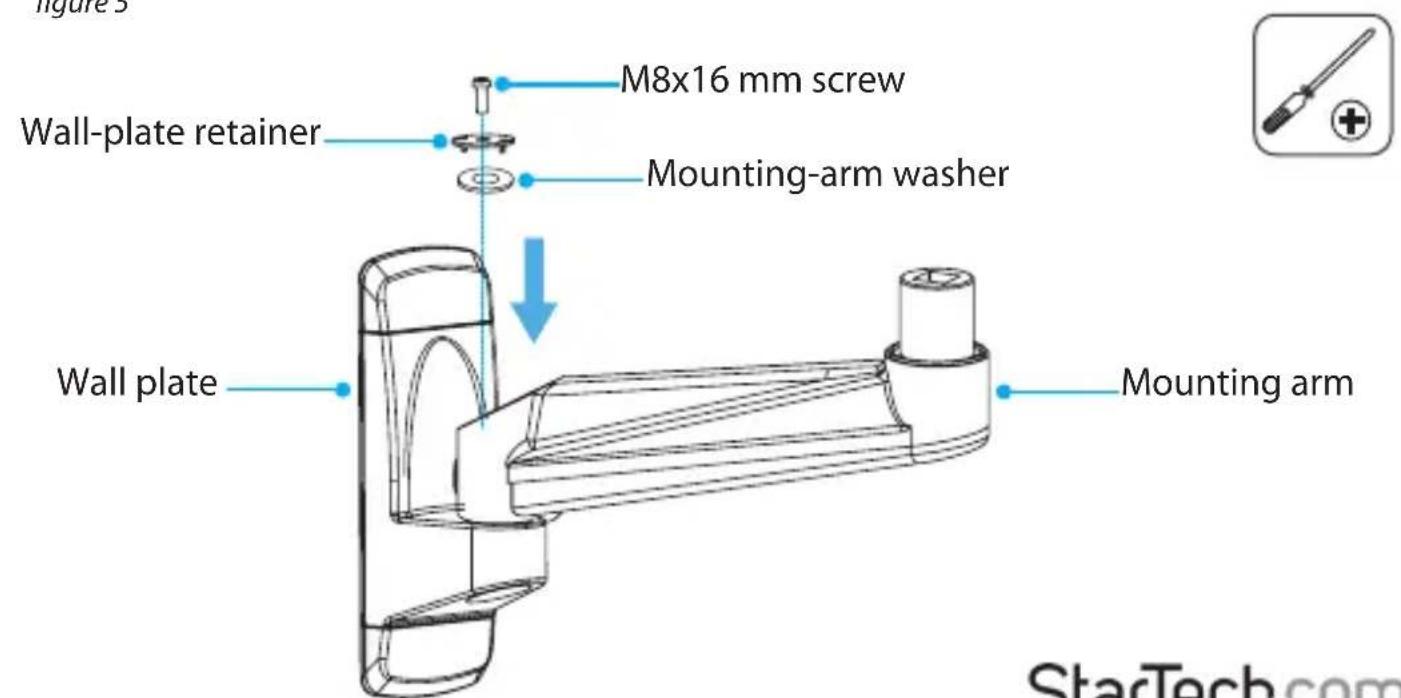

3. Insert an M8x16 mm screw through the wall-plate retainer, mounting-arm washer, and into the mounting arm. (figure 5)
4. Use a Phillips type screwdriver to tighten the screw into place.

Warning! Do not over-tighten the screw. If you encounter resistance while you're tightening the screw, stop tightening.

figure 5

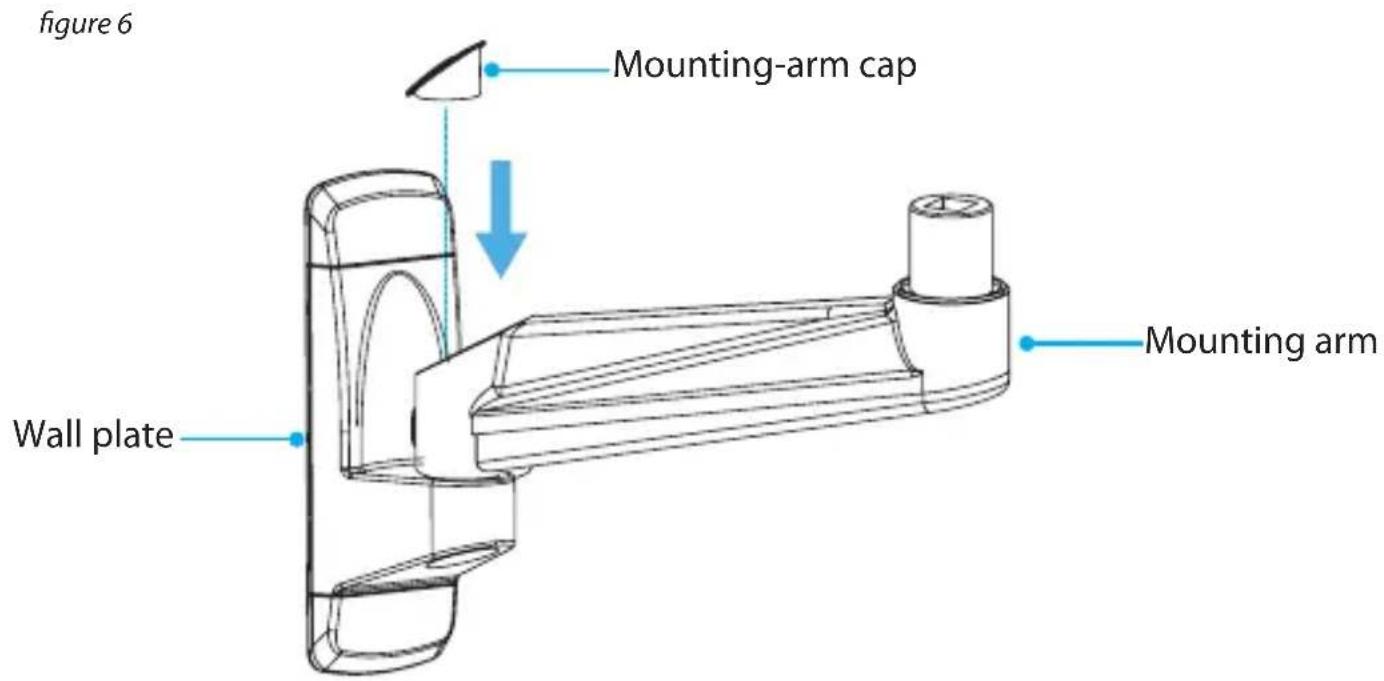

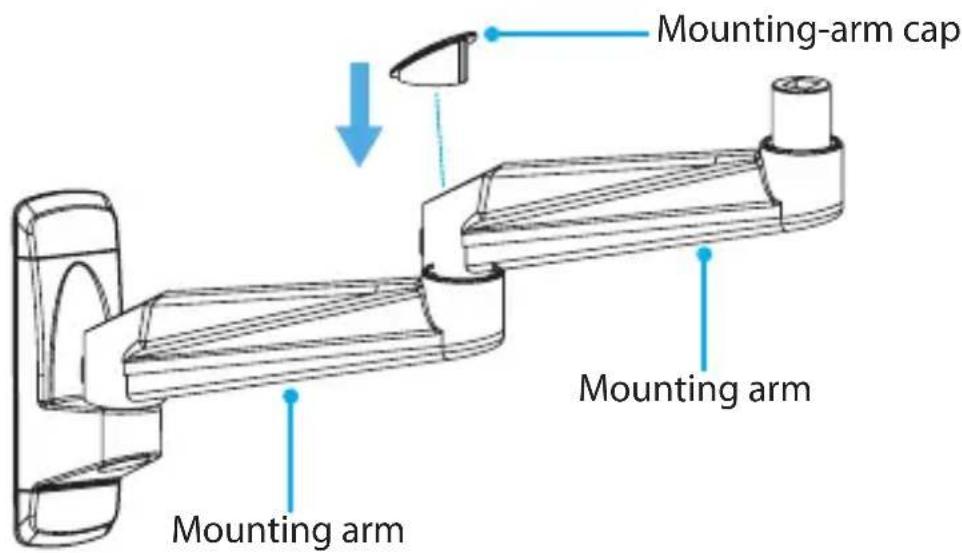

1. Snap one of the mounting-arm caps over the joint in the mounting arm. (figure 6)

1. Place the second mounting arm over the projection in the other mounting arm. (figure 7)

figure 7

1. Place a mounting-arm washer into the joint in the mounting arm.
2. Place the mounting-arm retainer over the mounting-arm washer.
3. Insert an M8x16 mm screw through the mounting-arm retainer, mounting-arm washer, and into the mounting arm. (figure 8)
4. Use a Phillips type screwdriver to tighten the screw into place.

Warning! Do not over-tighten the screw. If you encounter resistance while you're tightening the screw, stop tightening.

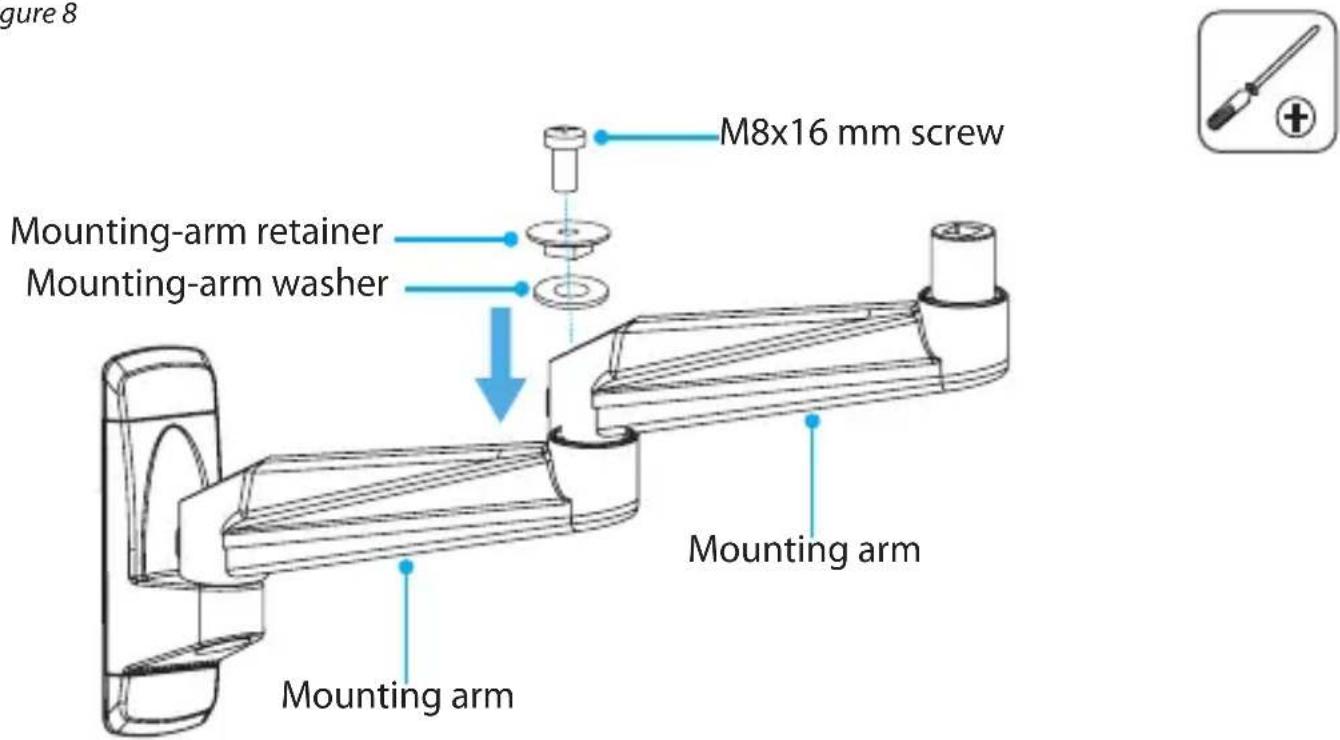

figure 8

1. Snap the other mounting-arm cap over the joint in the mounting arm. (figure 9)

figure 9

Attach the crossbar

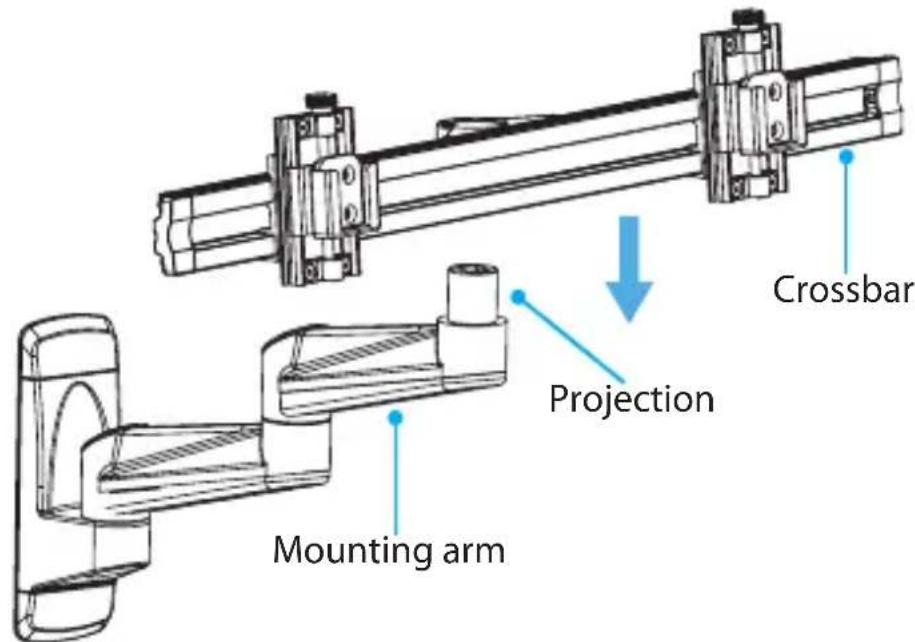

1. Place the crossbar over the projection on the mounting arm. (figure 10)

figure 10

1. Place the crossbar retainer into the crossbar.
2. Place a mounting-arm washer onto the crossbar retainer.
3. Insert an M8x16 mm screw through the washer, crossbar retainer, and into the crossbar. (figure 11)
4. Use a Phillips type screwdriver to tighten the screw into place.

Warning! Do not over-tighten the screw. If you encounter resistance while you're tightening the screw, stop tightening.

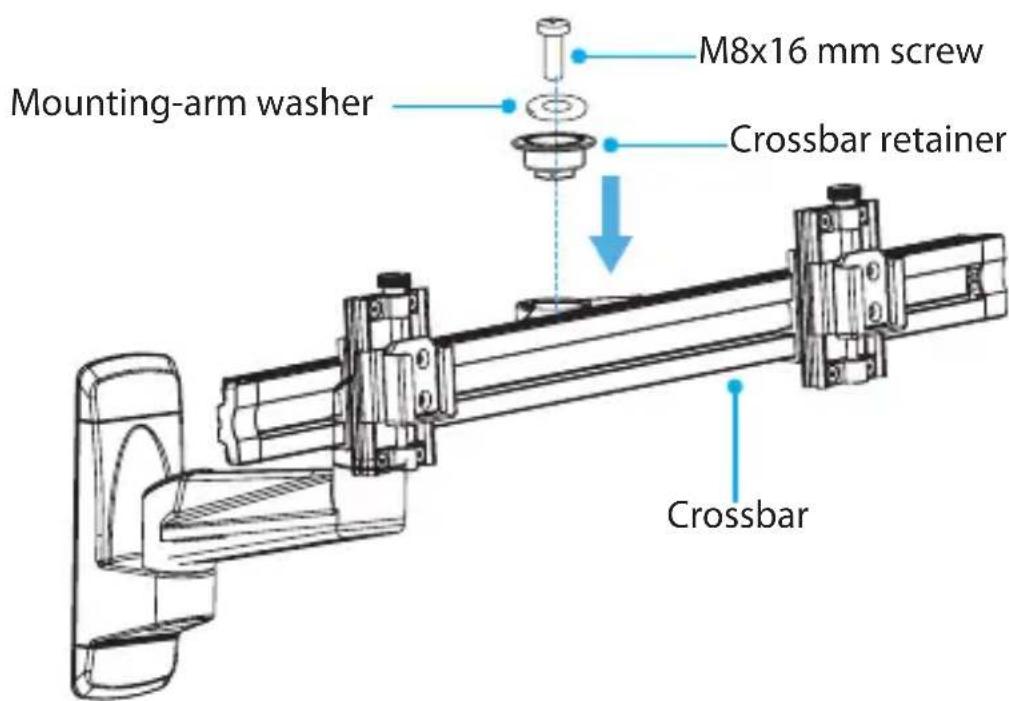

figure 11

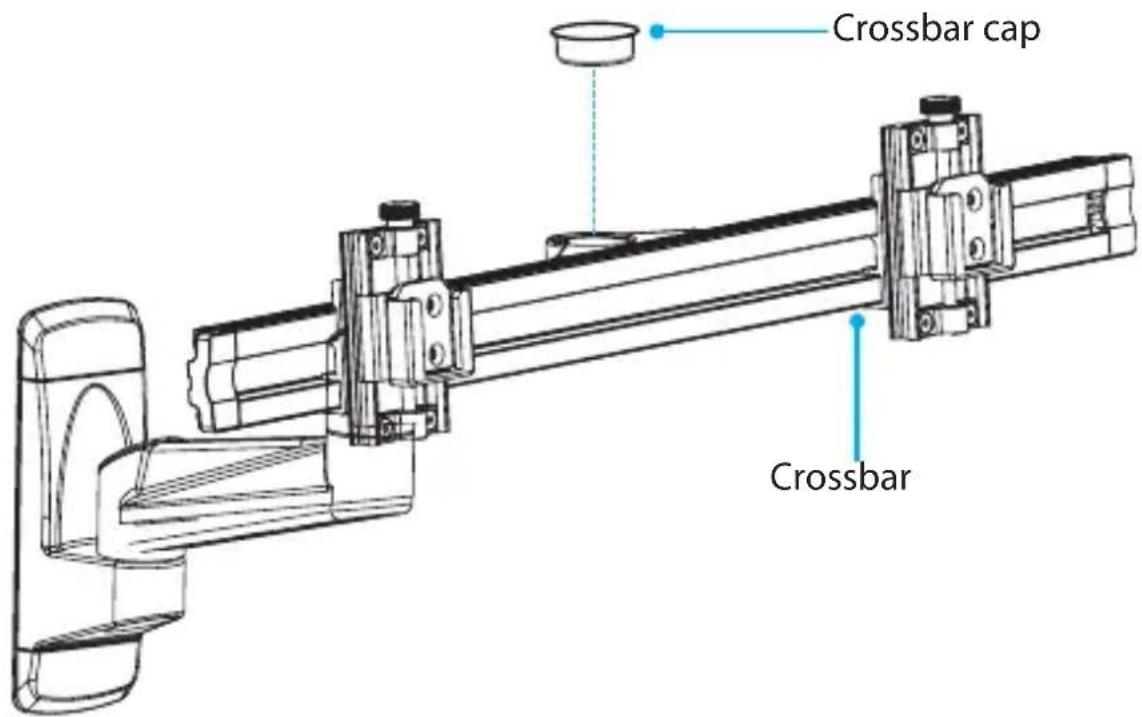

4. Snap the crossbar cap into the crossbar. (figure 12)

figure 12

Mount the monitors

To accommodate different monitor designs, the ARMDUALWALL comes with two sets of screws of different lengths and diameters, and spacers.

1. To select the combination of mounting hardware to attach the VESA monitor mounts to the monitors, complete the following:

• Determine the depth of the mounting holes on the monitor.
- Determine the diameter of the mounting holes on the monitor.

1. If necessary, place the spacers over the mounting holes on the back of the monitor.
2. Line up the VESA monitor mount with the spacers or the mounting holes on the back of the monitor.
3. Insert the M4x12 mm screws or the M4x30 mm screws through the VESA monitor mount, the spacers, and into the back of the monitor. (figure 13)
4. Use a Phillips type screwdriver to tighten the screws.

Warning! Do not over-tighten the screws. If you encounter resistance while you're tightening the screws, stop tightening. Failure to do so could result in damage to the monitor.

1. Complete steps 1 to 5 to attach the second monitor.

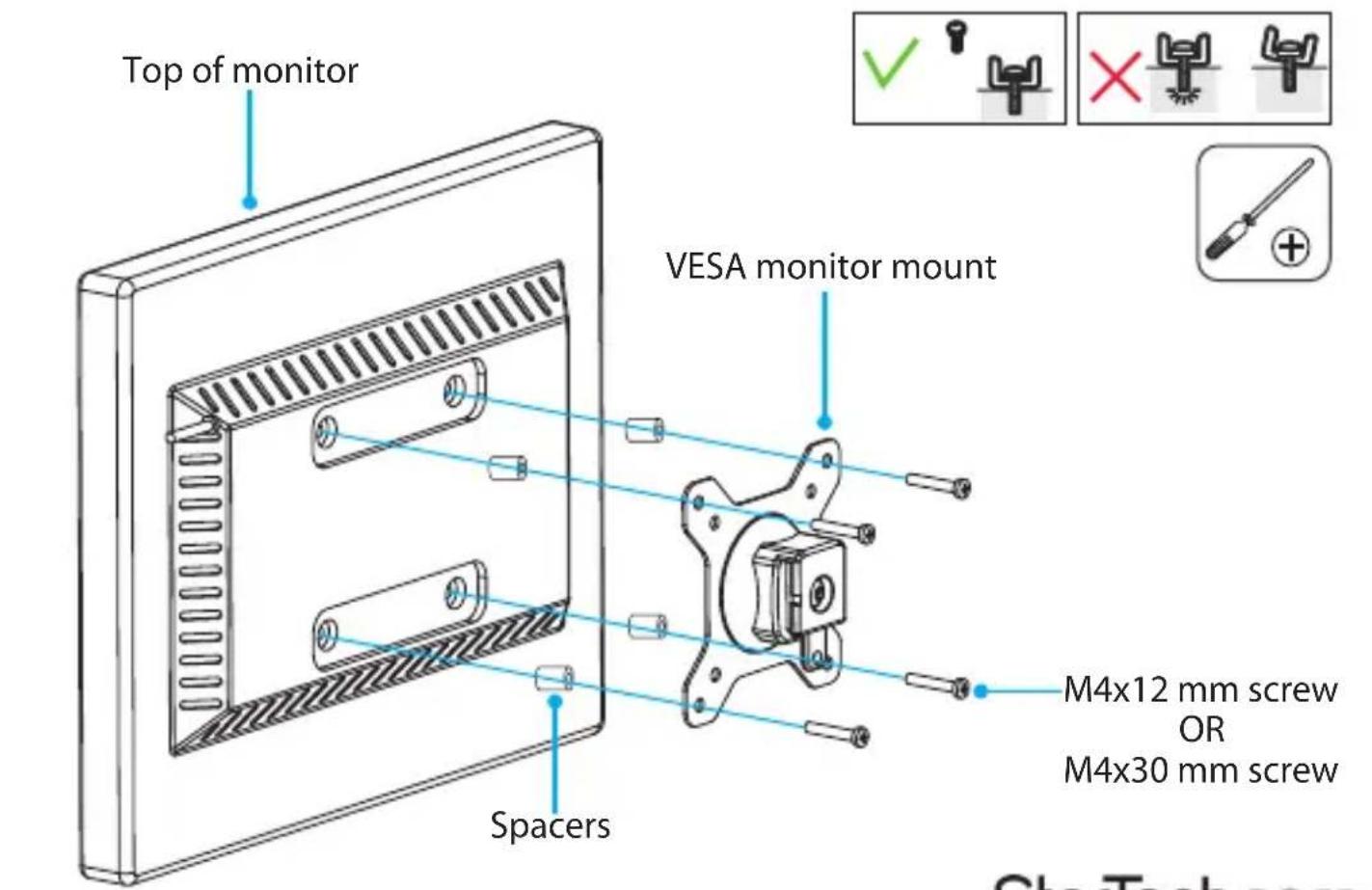

figure 13

Attach the VESA monitor mounts to the crossbar

Warning! Make sure that the weight of the monitors doesn't exceed the weight capacity of this product. If you exceed the weight capacity, you might experience personal injury or damage to the product. This product can support up to 5 kg (11 lb.) per monitor mount.

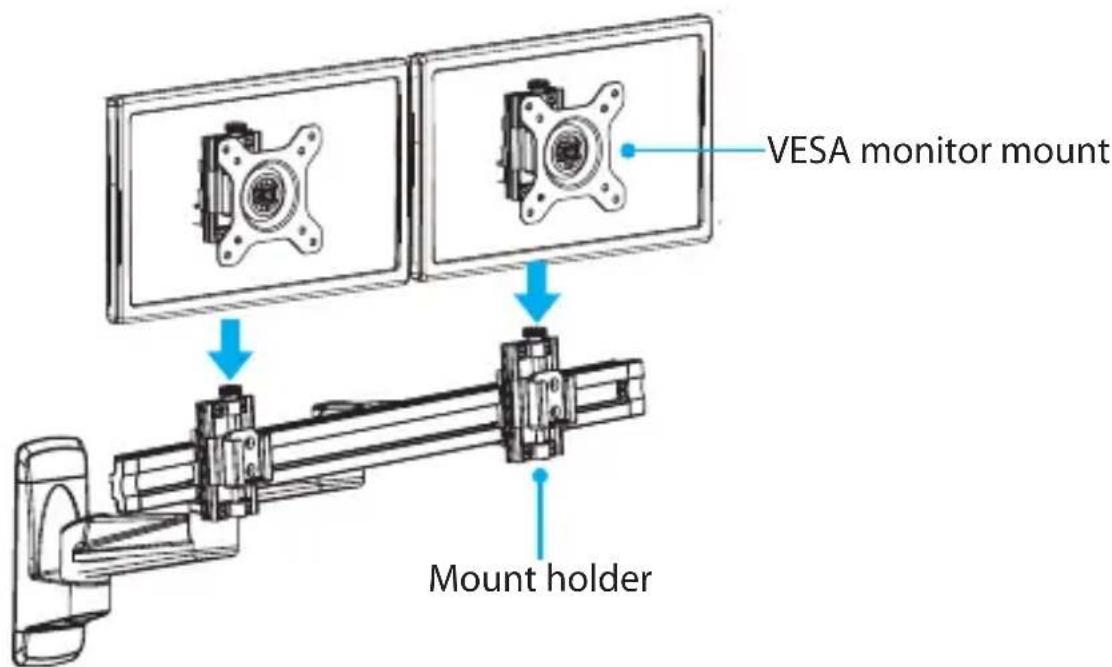

1. Carefully slide one of the VESA monitor mounts and monitors into a mount holder on the crossbar. (figure 14)

Note: If you encounter resistance as you slide the VESA monitor mount into a mount holder, remove the VESA monitor mount from the mount holder and look to see if either of the screws in the sides of the monitor holders are in the way. If they are, use a Phillips type screwdriver to retract the screws in the sides of the mount holder on the crossbar. (figure 15)

figure 14

1. Repeat step 1 to attach the second VESA monitor mount and monitor.

2. Use a Phillips type screwdriver to tighten the screws in each of the the mount holders. (figure 15)

figure 15

Adjusting the VESA Mount

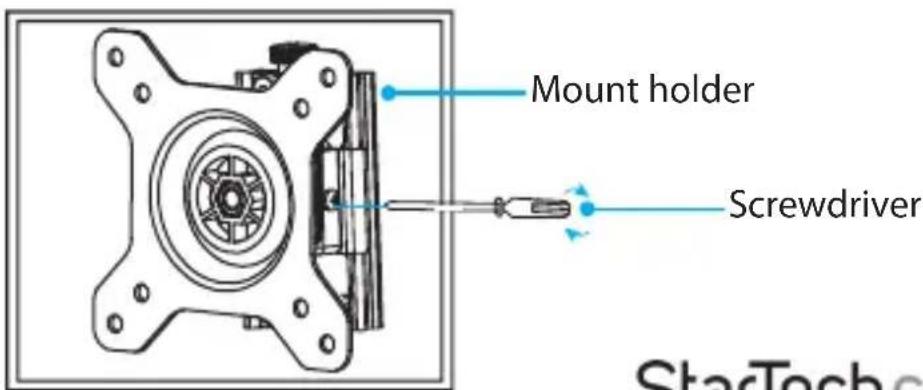

If the Monitors are not staying in place, the Hex Screw on the back of the VESA Monitor Mount will need to be tightened. This Hex Screw may also need to be loosened in order to readjust the position of the Monitors.

1. Remove the VESA Monitor Mount from the Plate by turning the Screw on the side of each of the VESA Monitor Mounts counterclockwise to loosen the VESA Monitor Mounts.
2. Lift the Monitors straight up and out of the Plates.
3. Place the Monitors screen side down on a scratch-free surface.
4. Remove the Monitors from the VESA Monitor Mounts by loosening all four Screws on each of the VESA Monitor Mounts, using a Phillips Head Screwdriver. Remove the Screws, the VESA Monitor Mounts, the Washers and any Spacers that may have been used for the installation.

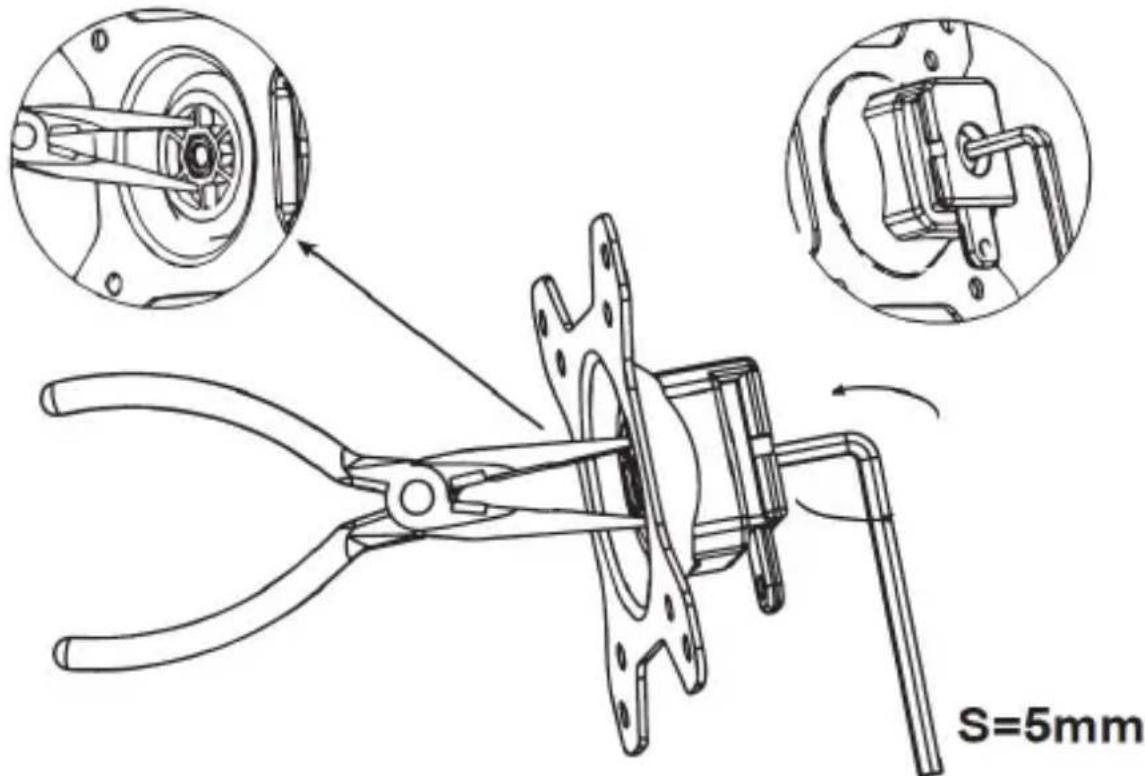

5. Hold the Plastic Disc (located on the front of the VESA Monitor Mount) in place using Needle-nose Pliers. While holding the Plastic Disc, tighten the Hex Screw, located on the back of the VESA Monitor Mount, using the M5 Hex Key. (Figure 10)

Note: These Hex Screws can be loosened in order to adjust the position of the Monitors. Always tighten these Hex Screws immediately after adjusting the position of the Monitors. A second person may be required to hold the Monitor after adjusting its position.

1. Once the Hex Screw is tightened, re-attach the VESA Monitor Mount:

figure 16

Adjust the ARMDUALWALL

1. To adjust the position of your monitors, do any of the following:

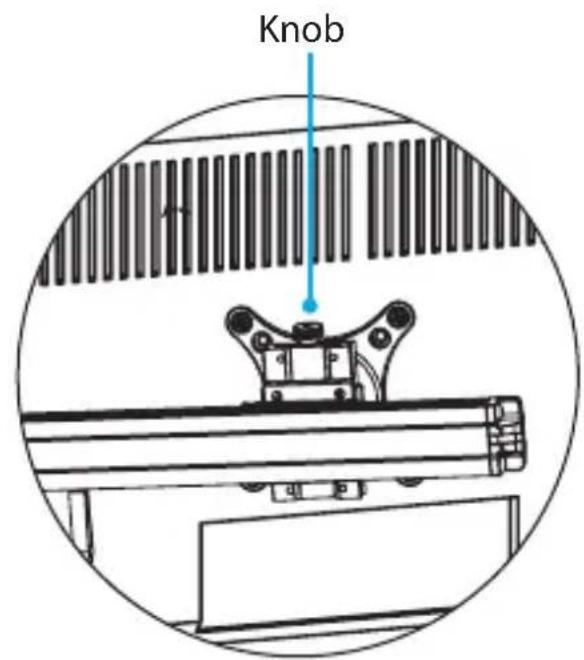

• To move the monitors up or down in small increments, turn the knobs at the top of each of the VESA monitor mounts. (figure 15)

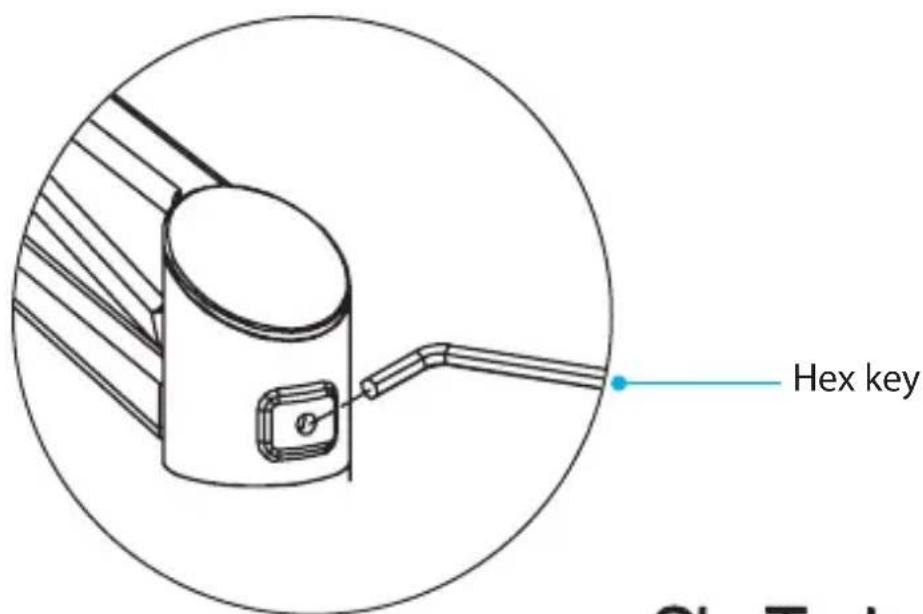

• To lock the mounting arms in place, use the hex key to turn the screw in each of the mounting arms clockwise. (figure 17)

• To increase or decrease the swivel tension, use the hex key to turn the screw in each of the mounting arms clockwise or counterclockwise. (figure 18)

figure 17

figure 18

Organize your cables

1. Attach the cable-management clips to the crossbar.

2. Route the cables along the crossbar.

3. Snap the cables into the cable-management clips. (figure 19)

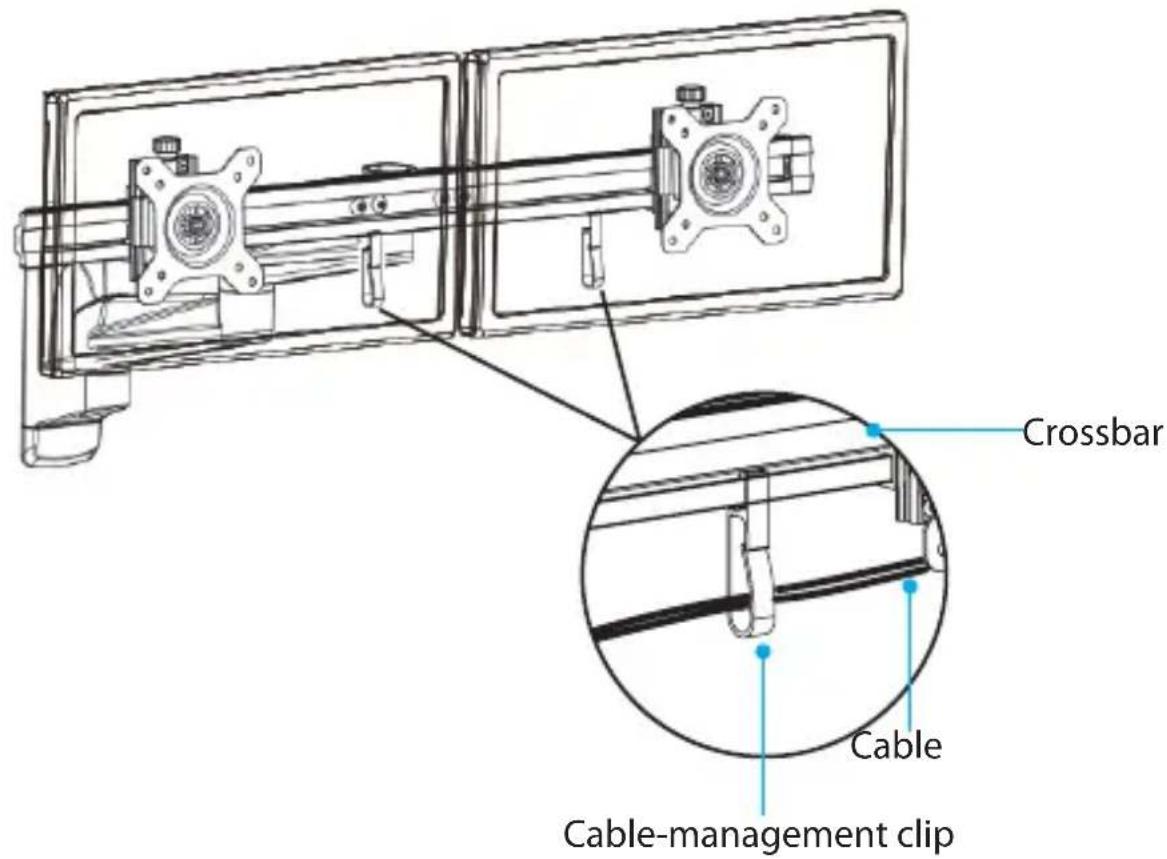

figure 19

Technical support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty information

This product is backed by a five-year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

StarTech.com Ltd. StarTech.com LLP
