ARMDUAL3 - Support pour écran plat StarTech.com - Free user manual and instructions

Product Type	Desk Mount Dual Monitor Arm
Brand	StarTech.com
Model	ARMDUAL3
Maximum Weight Capacity (per monitor)	8 kg (17.6 lb)
Total Weight Capacity	35.2 lb (2 x 8 kg)
VESA Compatibility	75 x 75 mm, 100 x 100 mm
Maximum Screen Size	32 inches
Rotation	360°
Tilt Range	-90° to +90°
Swivel Range	-30° to +30°
Mounting Surface Thickness (C-Clamp)	10-50 mm or 40-85 mm (depending on configuration)
Materials	Steel, aluminum
Cable Management	Integrated cable clips along arm and pole
Included Accessories	Upper/lower desk clamp, swivel arm assembly, pole, screws (M4 and M5), washers, hex keys (4 mm and 6 mm), cable management clip
Warranty	5 years
Indoor Use Only	Yes
Easy Assembling	Requires Phillips screwdriver and included hex keys
Note	Do not exceed weight limit; assemble per instructions

Frequently Asked Questions - ARMDUAL3 StarTech.com

What is the maximum weight capacity of the ARMDUAL3?

The total weight capacity is 35.2 lb (16 kg) for two monitors, with a maximum of 8 kg (17.6 lb) per monitor.

What VESA sizes does this mount support?

It supports VESA patterns 75×75 mm and 100×100 mm.

Can I use this mount for a single monitor?

Yes, you can mount just one monitor. The arm is designed for dual monitors but can hold a single monitor up to 32 inches and 8 kg.

How do I adjust the tilt of the monitors?

Loosen the Adjustment Screw on the side of the monitor mount with the 6 mm hex key, tilt the monitor to the desired angle, then retighten the screw.

Is the mount suitable for curved monitors?

Yes, as long as the monitor meets the VESA pattern and weight requirements (up to 8 kg and 32 inches). Curved monitors are typically compatible.

How do I route cables?

Use the Cable Management Clips along the swivel arm and the clip on the pole. Simply press cables into the clips to keep them organized.

Can I mount this on a glass desk?

It is not recommended as the clamp may concentrate pressure. For glass desks, consult the manufacturer or use a weight-distributing plate. The mount is designed for solid surfaces.

What tools are required for assembly?

You will need a Phillips head screwdriver (not included) and the included 4 mm and 6 mm hex keys.

How do I install the C-Clamp for a thick desk?

For desk thickness 40-85 mm, use the lower screw holes on the upper clamp. For 10-50 mm, use the upper holes. Insert the two screws and tighten with the 4 mm hex key.

What is the warranty period?

StarTech.com offers a 5-year warranty for this product. See startech.com/warranty for details.

USER MANUAL ARMDUAL3 StarTech.com

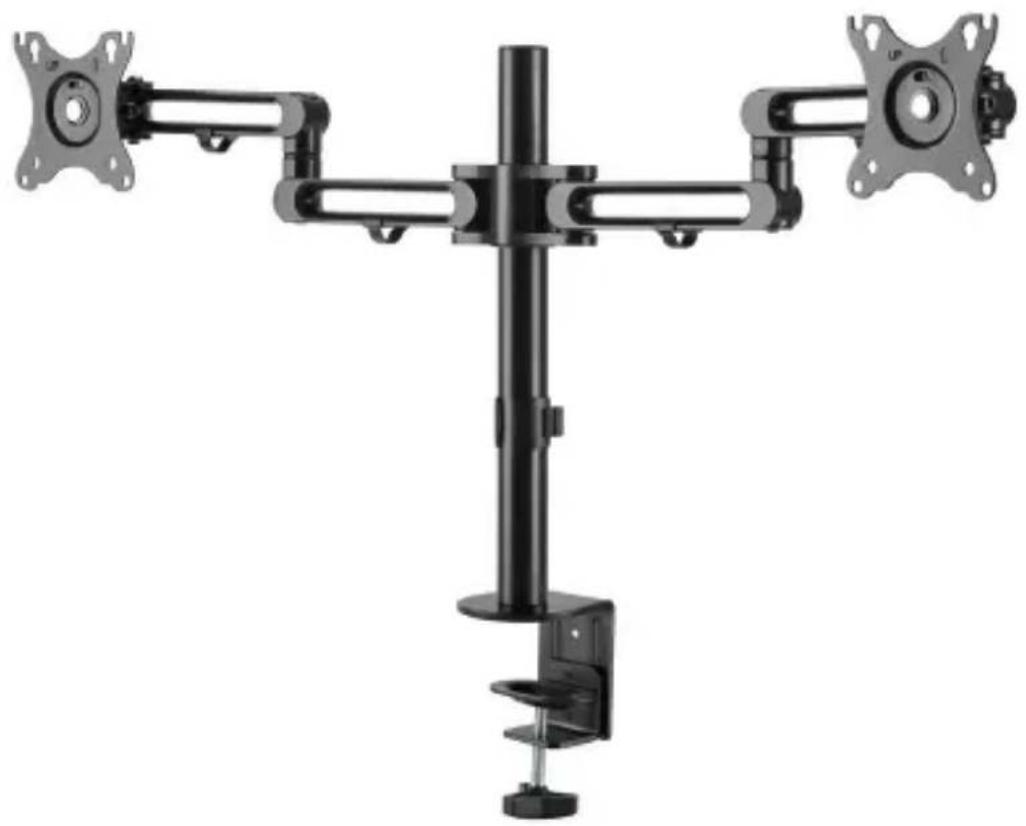

Desk Mount Dual Monitor Arm | Articulating

Mechanical device with three articulated arms and a central vertical shaft, no visible text or symbols

Actual product may vary from photos

User Manual

SKU#: ARMDUAL3

For the latest information and specifications visit

www.startech.com/ARMDUAL3

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Warning Statements

• Make sure that you assemble this product according to the instructions.
• Do not exceed the weight capacity of this product. Overloading this product might result in injury or property damage. This product can support the following weight: 35.2 lb. (2 x 8 kg).
• This product is intended for indoor use only and should not be used outdoors.

Varningsmeddelanden

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Mensagens de aviso

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Table of Contents

Warning Statements....2

Product Diagram....5

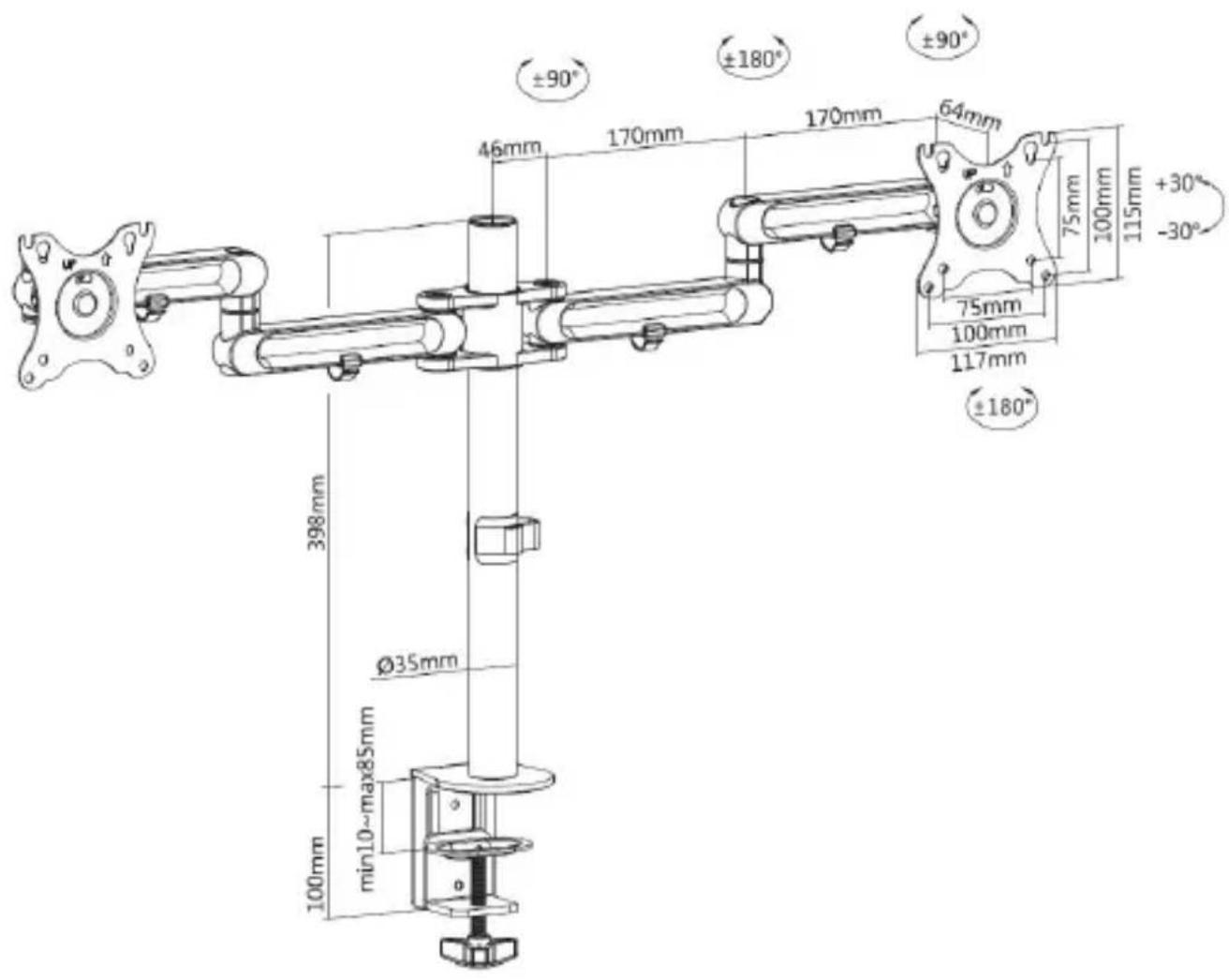

Product Dimensions....6

Product Information....7

Package Contents 7

Product Specifications....10

Requirements 11

Assembling the C-Clamp 12

Assembling the Monitor Arm....14

Mounting the Monitors....16

Adjusting the Monitors....19

Routing the Cables....20

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Diagram

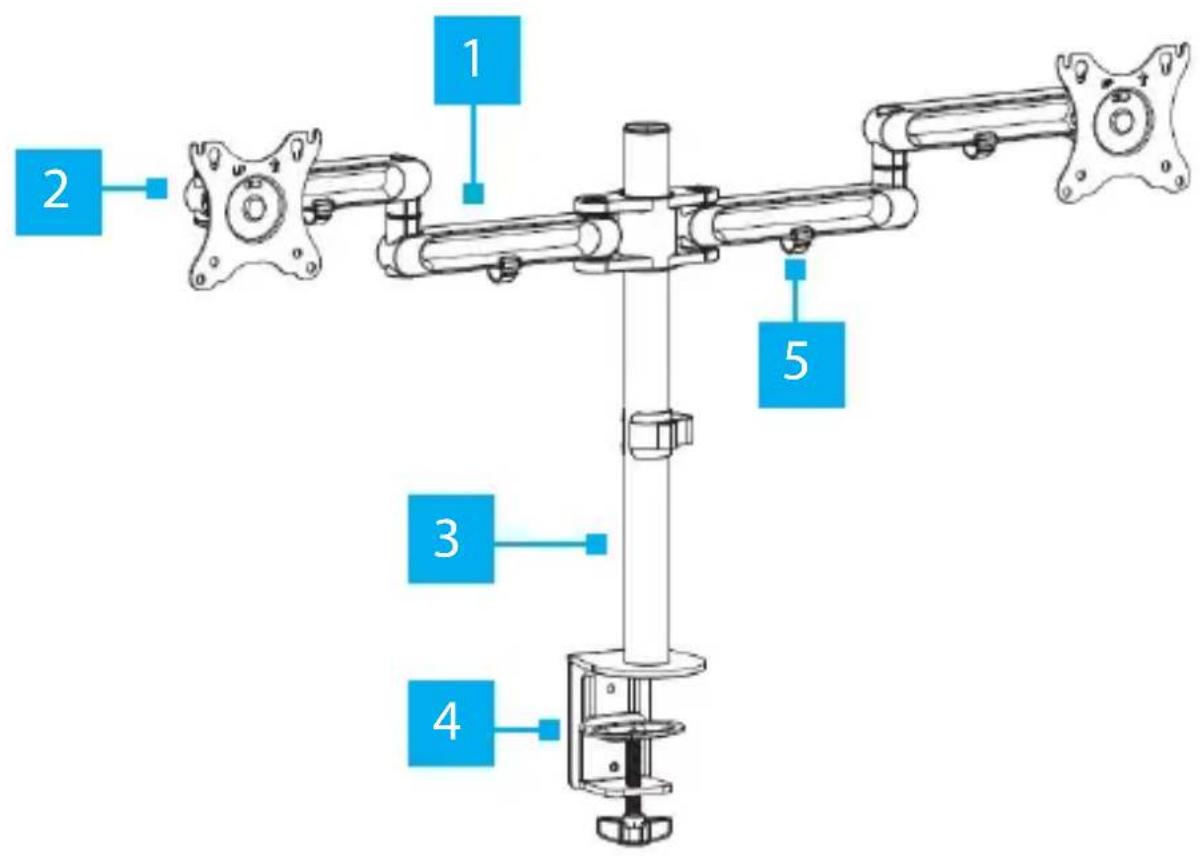

1	Swivel Arm Assembly
2	Monitor Mounts x 2
3	Pole
4	C-Clamp
5	Cable Management Clips x 5 (installed)

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Dimensions

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Information

Package Contents

Upper Desk ClampQty: One	Lower Desk ClampQty: One
Swivel Arm AssemblyQty: One	PoleQty: One

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Simple black-and-white icon of a flashlight (no text or symbols)

Desk Clamp Screws Qty: Two

Simple line drawing of a screw (no text or symbols)

Pole Assembly Screws Qty: Three

Simple black L-shaped line drawing on white background (no text or symbols)

4 mm Hex Key Qty: One

Simple black L-shaped line drawing on white background (no text or symbols)

6 mm Hex Key Qty: One

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical line drawing of a hexagonal bolt (no text or symbols)

M4 x 12 mm Screws Qty: Eight

Technical line drawing of a bolt (no text or symbols)

M5 x 12 mm Screws Qty: Eight

Simple concentric circle diagram with no text or symbols

Washers Qty: Eight

Pure technical line drawing of a mechanical component (no text or symbols)

Cable Management Clip Qty: One

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Specifications

VESA	75 x 75100 x 100
Total Weight (two monitors)	35.2 lb. (2 x 8 kg)
Screen Size	Max. 32 "
Rotation	360°

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

	-30 ^o to+30 ^o
Tilt
	-90 ^o to+90 ^o
Swivel

Requirements

• Phillips Head Screwdriver x 1
- Monitors x 2
- Mounting Surface x 1

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Assembling the C-Clamp

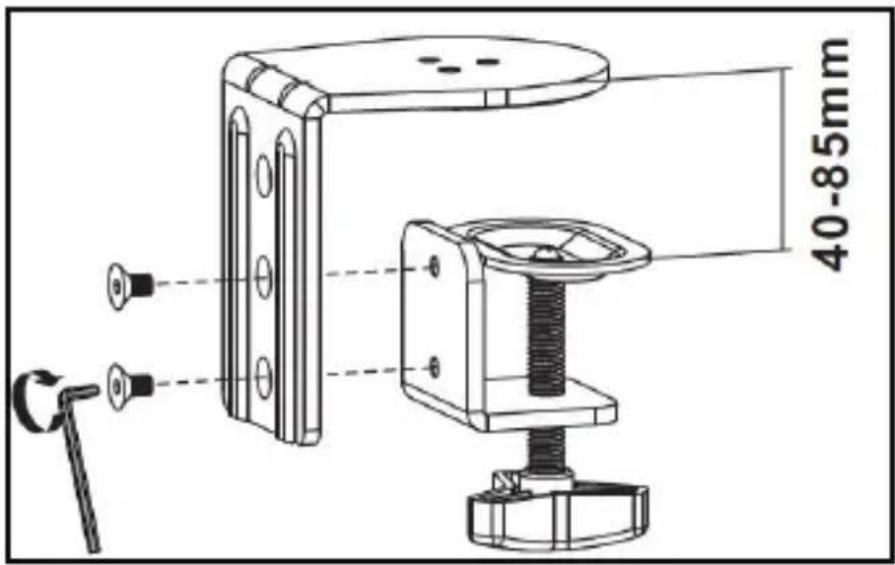

If the Mounting Surface's thickness is between 40 mm - 85 mm:

1. Align the two lower Screw Holes on the Upper Desk Clamp with the two Screw Holes on the Lower Desk Clamp.
2. Insert the two Desk Clamp Screws through the Screw Holes on the Upper Desk Clamp and into the Screw Holes on the Lower Desk Clamp.
3. Using the 4 mm Hex Key tighten the two Desk Clamp Screws. Being careful not to over-tighten the Desk Clamp Screws.

C-Clamp Assembly

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

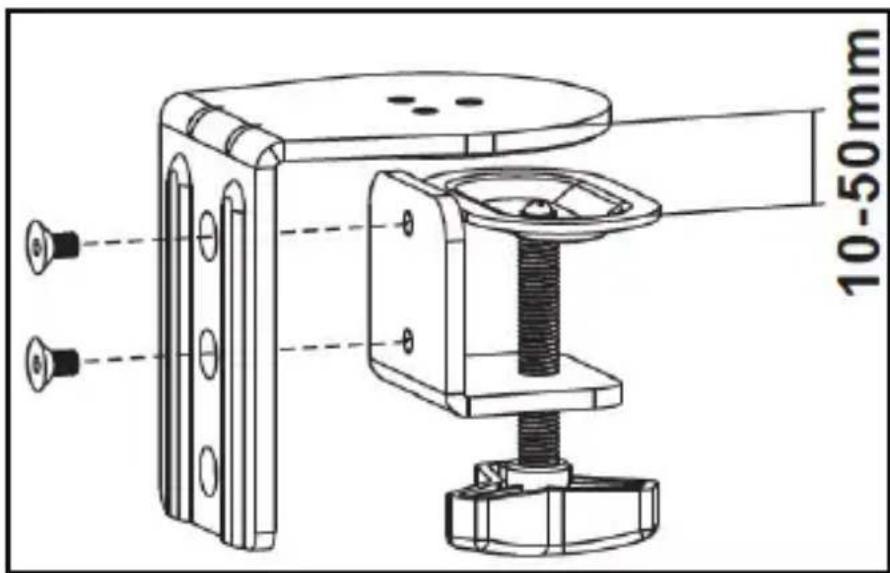

If the Mounting Surface's thickness is between 10 mm - 50 mm:

1. Align the two upper Screw Holes on the Upper Desk Clamp with the two Screw Holes on the Lower Desk Clamp.

2. Insert the two Desk Clamp Screws through the Screw Holes on the Upper Desk Clamp and into the Screw Holes on the Lower Desk Clamp.

3. Using the 4 mm Hex Key, tighten the two Desk Clamp Screws. Being careful not to over-tighten the Desk Clamp Screws.

C-Clamp Assembly

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Assembling the Monitor Arm

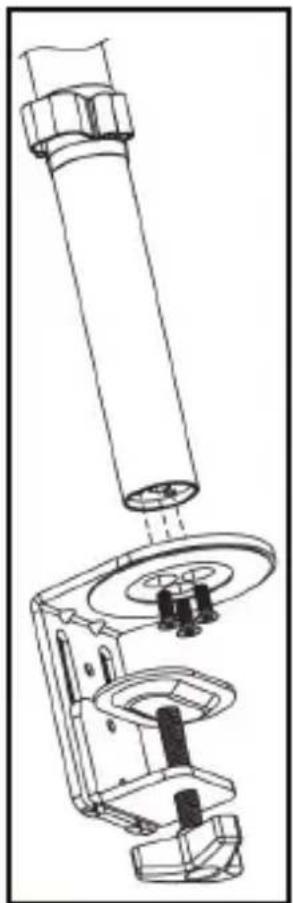

1. Align the three Screw Holes on the top of the C-Clamp with the three Screw Holes on the bottom of the Pole.
2. Insert the three Pole Assembly Screws through the Screw Holes on the top of the C-Clamp and into the Screw Holes on the bottom of the Pole.
3. Using the 4 mm Hex Key, tighten the three Pole Assembly Screws. Being careful not to over-tighten the Pole Assembly Screws.

Technical line drawing of a mechanical device with internal components (no text or symbols)

Attaching the C-Clamp to the Pole

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

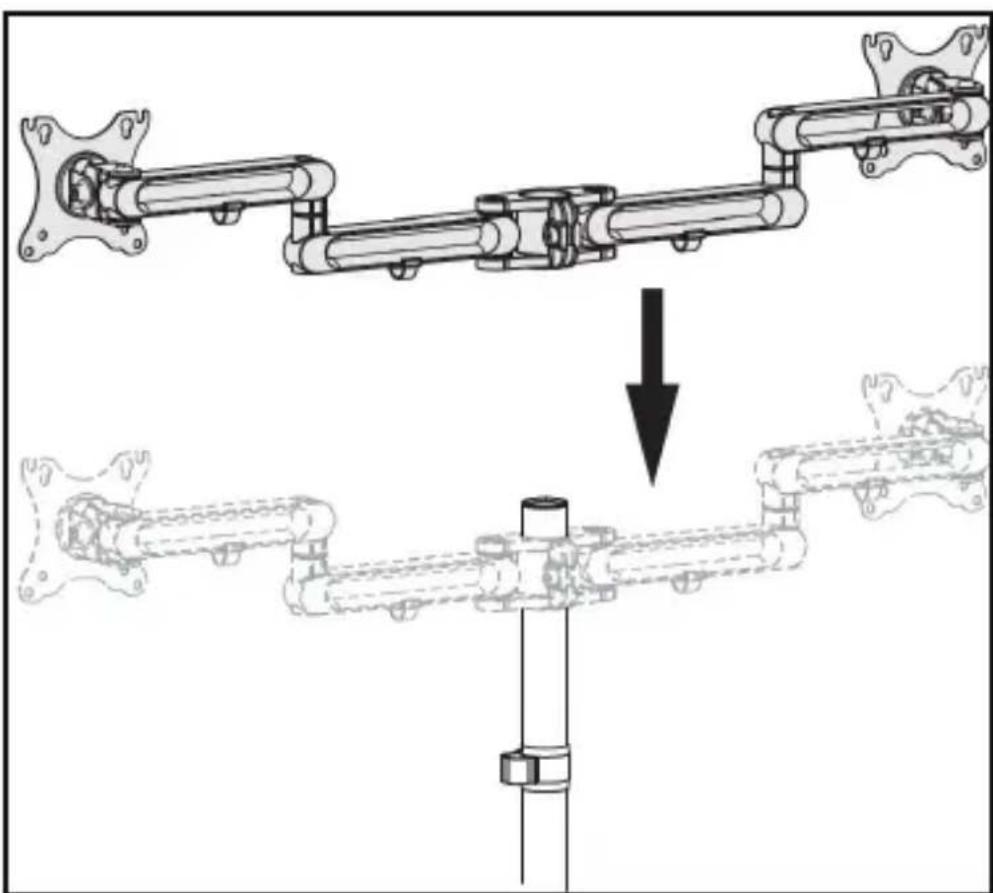

1. Slide the Swivel Arm Assembly over-top of the Pole.

Mechanical assembly diagram showing a chain with two connected components and a downward arrow indicating motion (no text or symbols)

Installing the Swivel Arm Assembly

1. Adjust the Swivel Arm Assembly up or down until it is at the desired height.

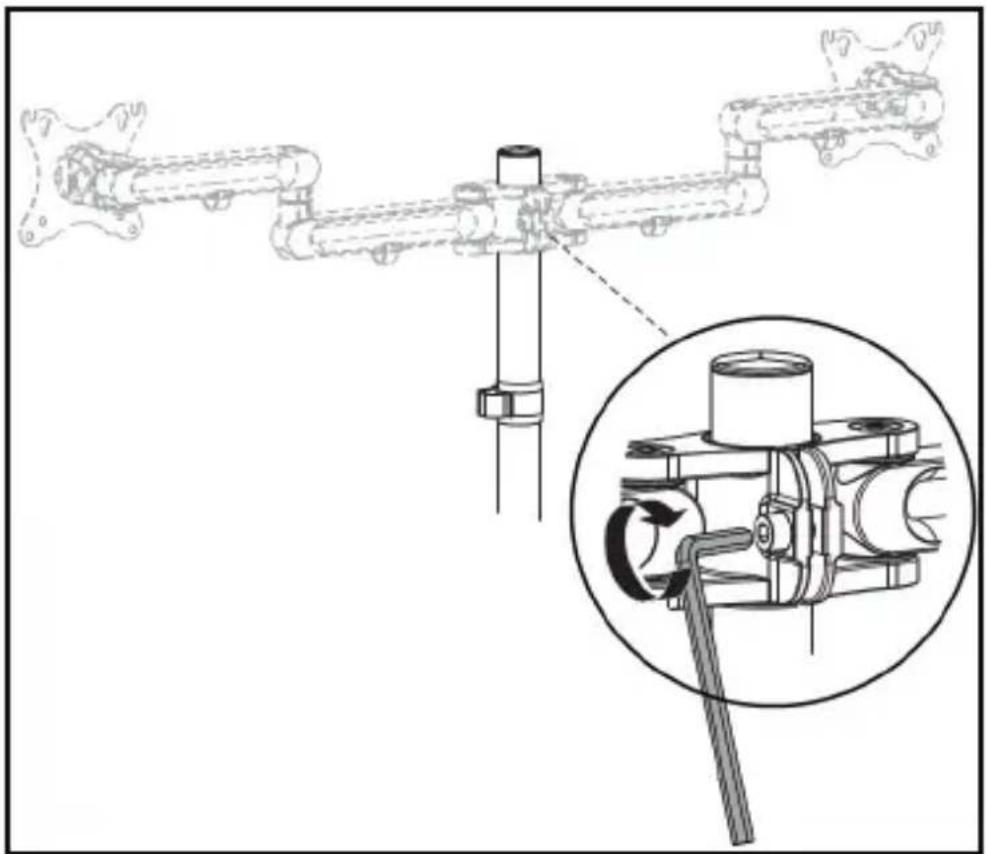

2. While holding the weight of the Swivel Arm Assembly, use the 6 mm Hex Key to tighten the Adjustment Screw on the Swivel Arm Assembly to secure the Swivel Arm Assembly in place.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical line drawing of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

Tightening the Adjustment Screw

1. While supporting the weight of the Monitor Arm, slide the C-Clamp over the edge of the Mounting Surface.

2. Using your hand, tighten the Thumb Screw until the C-Clamp is pressed tightly against the Mounting Surface.

Mounting the Monitors

Note: It is recommend that two people are used to mount the Monitors to the Monitor Mounts.

1. Determine the size of screw to use to mount the Monitors to the Monitor Mounts (M4 x 12 mm or M5 x 12 mm).

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

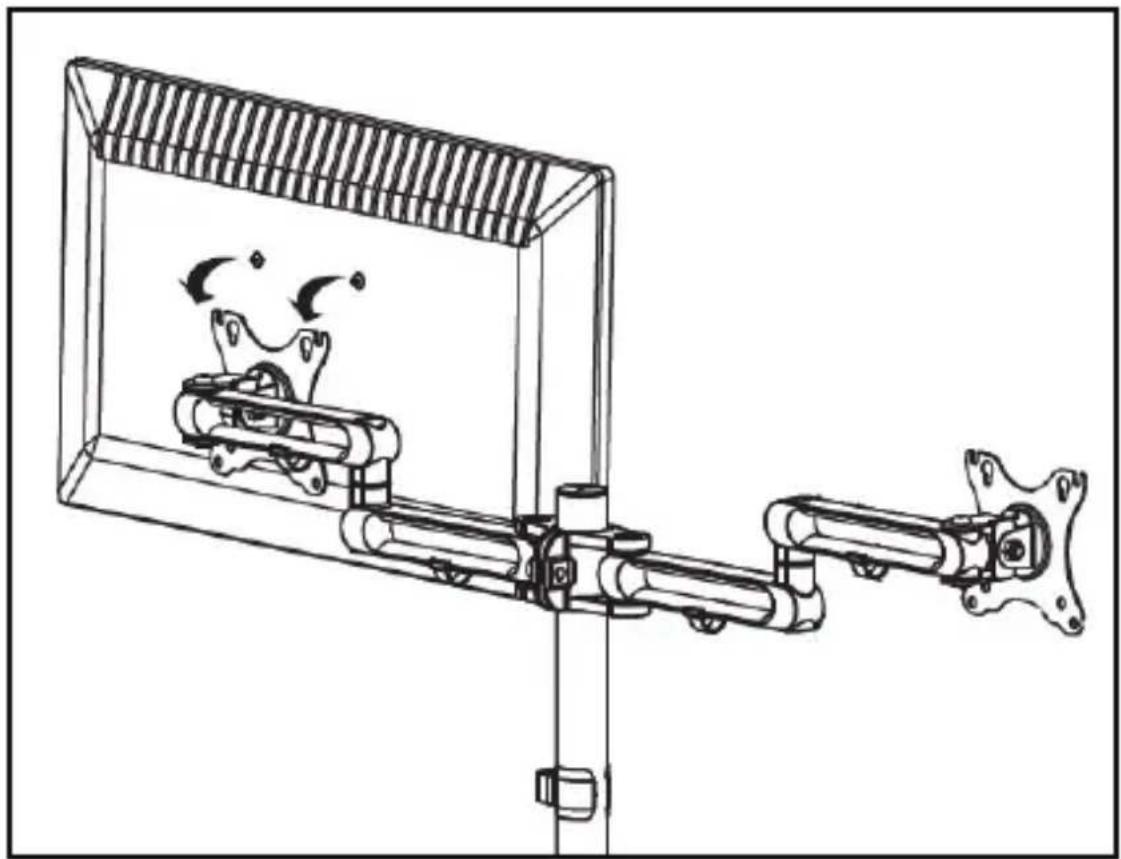

1. While supporting the weight of the Monitor, align the Screw Holes on the back of the Monitor with the Screw Holes on the Monitor Mount.

Technical line drawing of a mechanical assembly with rotating components and a transparent enclosure (no text or symbols)

Aligning the Monitor with the Monitor Mount

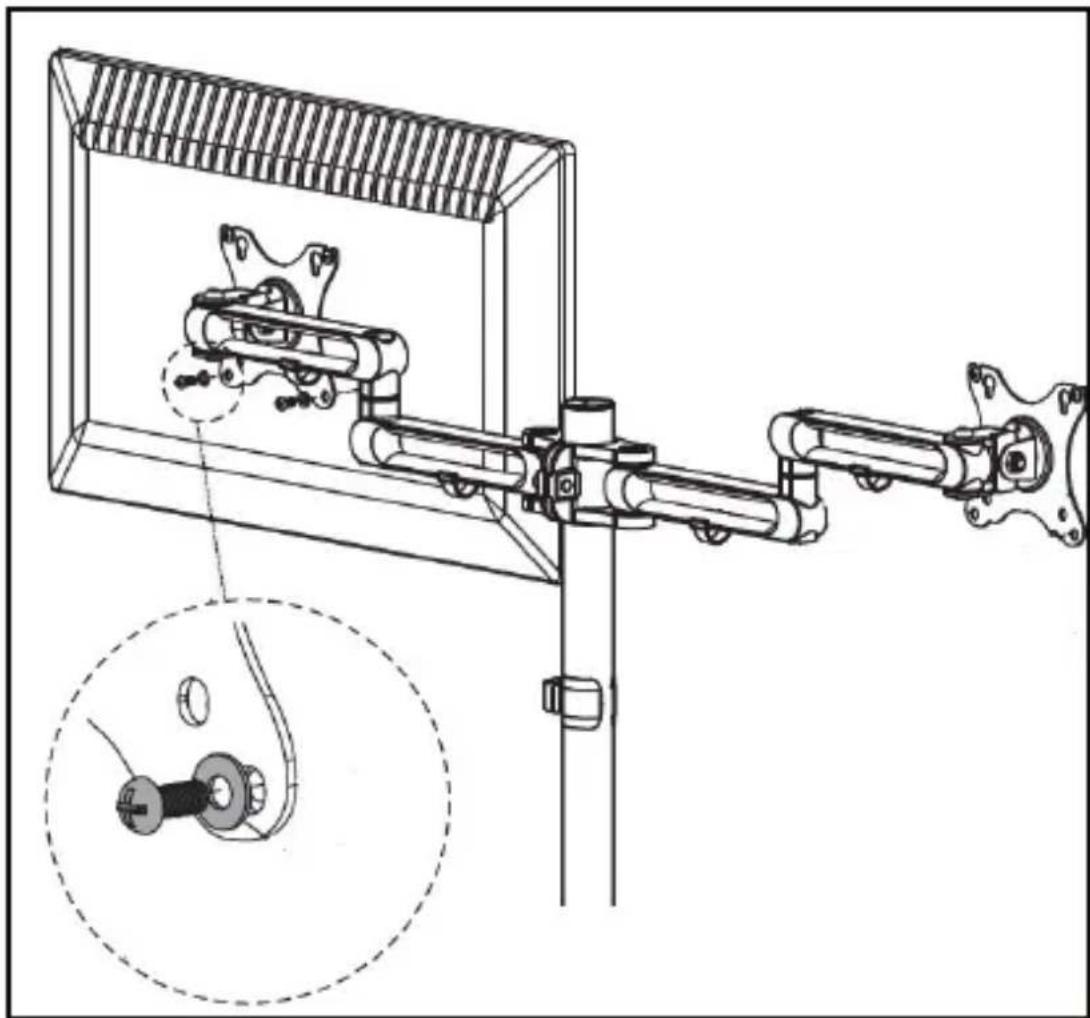

1. Align a Washers (x 4), with a Screw Hole on the Monitor Mount.

2. Insert a Screw x 4 (M4 x 12 mm or M5 x 12 mm) through the Washer and Screw Hole on the Monitor Mount and into the Screw Holes on the back of the Monitor.

3. Using a Phillips Head Screwdriver (sold separately) tighten the Screws, being careful not to over-tighten.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Note: Do not over-tighten the Thumb Screws. If you encounter resistance while you're tightening the Thumb Screws, stop tightening. Failure to do so could result in damage to the monitor.

Technical line drawing of a mechanical assembly with a magnified inset showing a close-up detail (no text or symbols)

Attaching a Monitor to the Monitor Mount

1. Repeat steps 1 - 5 to mount the second Monitor.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Adjusting the Monitors

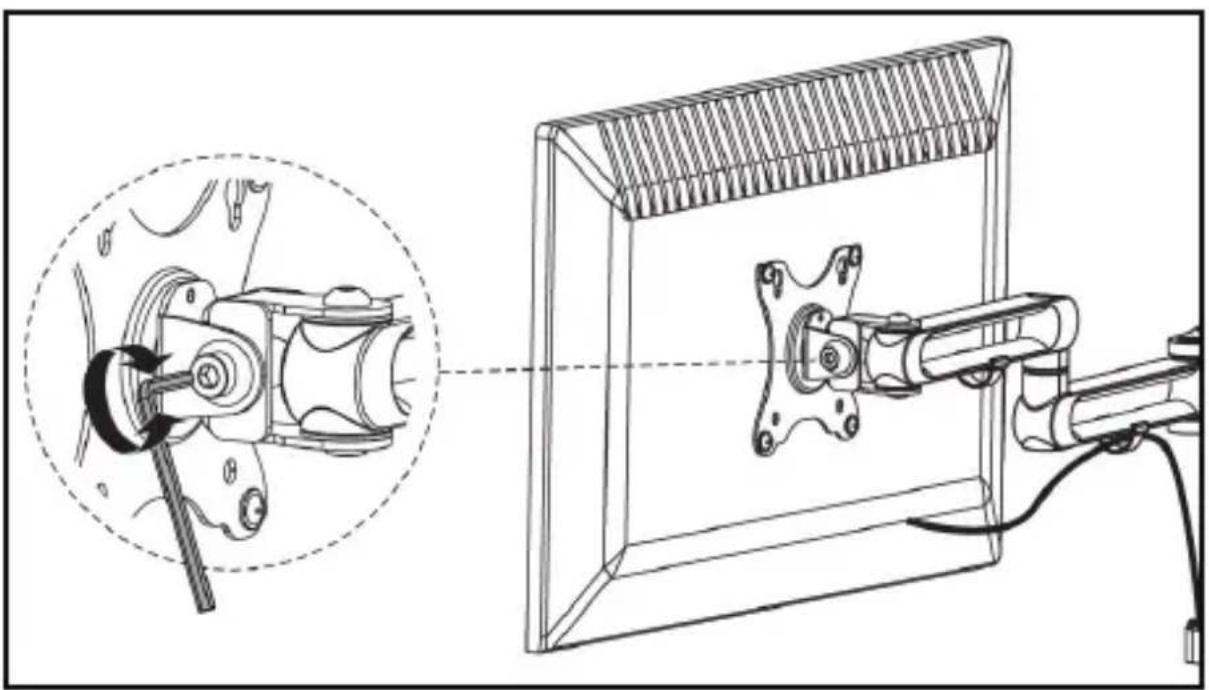

1. Using the 6 mm Hex Key, loosen the Adjustment Screw that is located on the side of the Monitor Mount.

Technical line drawing of a mechanical assembly with a magnified inset showing a rotating component (no text or symbols present)

Adjusting the Monitor Tilt

1. Adjust the tilt of the Monitor.

2. Once the Monitor is in the desired position, tighten the Adjustment Screw, securing the Monitor in place.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Routing the Cables

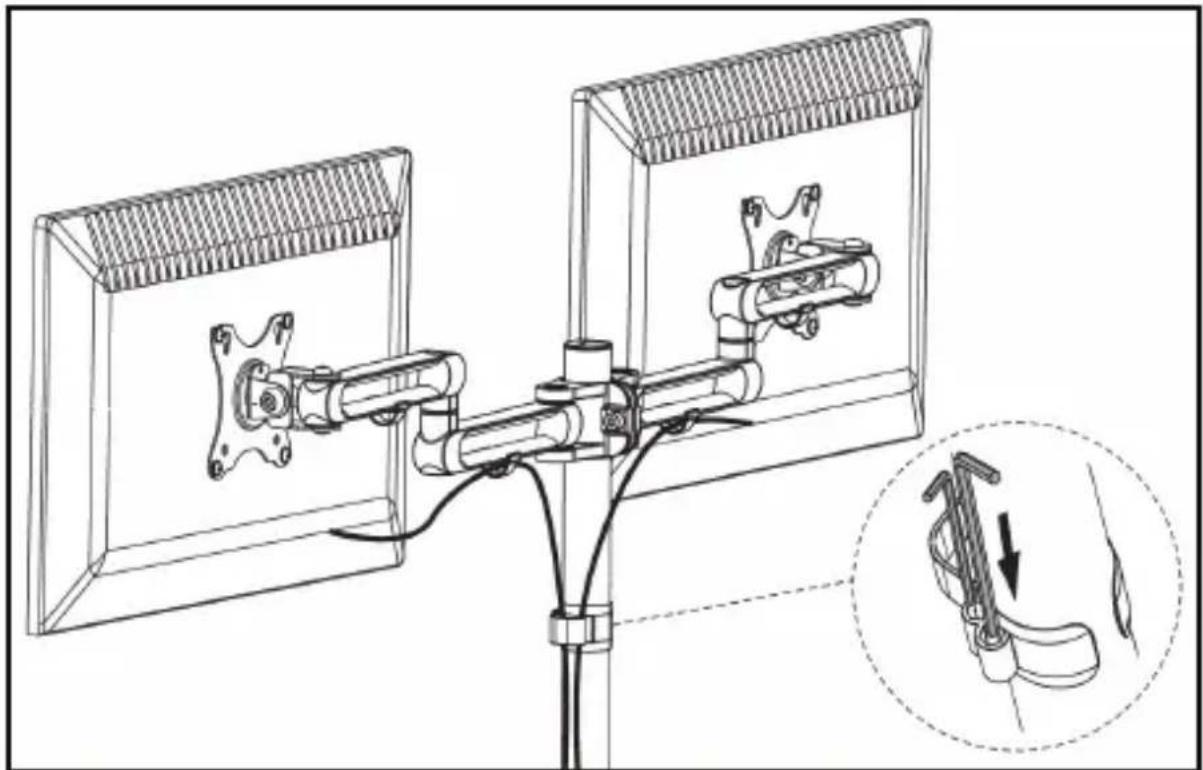

• Monitor Cables can be routed along the Swivel Arm Assembly through the Cable Management Clips along the Swivel Arm Assembly and down along the Pole through the Cable Management Clip.

- Once the Monitor Arm is assembled the Hex Keys can be placed in the front of the Cable Management Clip on the Pole.

Technical line drawing of a mechanical device with attached components and a magnified inset showing a close-up of the component (no text or symbols present)

Routing Cables

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Warranty Information

This product is backed by a five-year warranty.

For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.
