FZ100 - Freezer Khind - Free user manual and instructions

Product Type	Chest Freezer
Capacity	100 Liters
Climate Class	N, ST
Energy Efficiency Class	F (EU 2019)
Annual Energy Consumption	175 kWh
Power Supply	220-240 V ~ 50 Hz
Power Consumption	80 W
Temperature Range	-18°C to -24°C
Defrost Type	Manual (drain plug)
Refrigerant	R600a (isobutane)
Noise Level	41 dB(A)
Dimensions (W x D x H)	560 x 540 x 850 mm
Net Weight	25 kg
Freezing Capacity	4 kg/24h
Storage Time in Power Failure	12 hours
Interior Light	No
Adjustable Thermostat	Yes, mechanical dial
Door Type	Lid, lockable
Defrost Drain	Yes, with plug
Compressor Type	Reciprocating, hermetically sealed
Wheels/Casters	No (feet adjustable)
Warranty	1 year parts and labor

Frequently Asked Questions - FZ100 Khind

How do I adjust the temperature on the Khind FZ100 freezer?

The Khind FZ100 has a mechanical thermostat dial inside. Turn the dial clockwise to lower the temperature (colder) and counterclockwise to raise it (warmer). Wait 24 hours for the temperature to stabilize.

What is the recommended temperature setting for the freezer?

The recommended temperature is -18°C (0°F) for long-term food storage. Adjust the dial to the middle setting for this temperature.

How do I defrost the Khind FZ100 freezer?

Unplug the freezer and remove all food. Leave the lid open. To speed up defrosting, you can place bowls of warm water inside. Do not use sharp tools to remove ice. Once defrosted, clean and dry the interior, then plug it back in.

Why is my freezer not freezing properly?

Check that the thermostat is set correctly and the lid is completely closed. Ensure the vents are not blocked. If the problem persists, the compressor or refrigerant may be faulty; contact a technician.

How do I clean the Khind FZ100 freezer?

Unplug the freezer and remove food. Wipe the interior with a mild detergent and warm water. Rinse and dry thoroughly. Do not use abrasive cleaners. Clean the condenser coils (back/bottom) every six months with a vacuum.

What should I do during a power failure?

Keep the lid closed. The Khind FZ100 can maintain freezing temperature for up to 12 hours if unopened. After power returns, check food. Partially thawed food should be cooked and refrozen.

How do I replace the interior light bulb?

The Khind FZ100 does not have an interior light. No bulb replacement is needed.

What type of refrigerant does the FZ100 use?

It uses R600a (isobutane), a flammable but environmentally friendly refrigerant. Dispose of it properly according to local regulations.

Can I lock the freezer lid?

Yes, the lid has a lock. Use the supplied key to lock/unlock. Keep the key in a safe place away from children.

How do I level the Khind FZ100 freezer?

Adjust the two front feet (turn clockwise to lower, counterclockwise to raise) until the freezer is stable and level. A spirit level is recommended.

USER MANUAL FZ100 Khind

Abstract grayscale graphic with white silhouettes of a globe and a human figure, no text or symbols present.

- Chest Freezer/冷冻柜/Peti Dingin Sejuk

Instruction Manual / 说明指示书 / Buku Panduan

Please read this manual carefully before operating this product. Keep this manual handy for further reference. 请在使用此产品前，详读此说明书，并将之收藏以作日后参考。

This manual is also available online.

Safety Precaution Information

Safety and warning information

1. In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its lifespan will be properly informed on appliance use and safety.
2. For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
2. Cleaning and user maintenance shall not be made by children unless they are supervised.
3. Keep all packaging well away from children. There is risk of suffocation.
4. If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
5. If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General Safety

⚠ WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
⚠ WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING! Do not damaged the refrigerant circuit.
⚠ WARNING! Do not use other electrical appliances (such as ice cream makers) inside of food storage compartment of the appliances, unless they are of the type recommended by the manufacturer.
a. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
b. The refrigerant isobutane (R600a/R290) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
c. During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.
- Avoid open flames and sources of ignition.
- Thoroughly ventilate the room in which the appliances is situated.
d. It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and or electric shock.

Safety Precaution Information

e. This appliance is intended to be used in household and similar applications such as
- Staff kitchen areas in shops, offices and other working environments;
- Farm houses and by clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments;
- Catering and similar non-retail applications.

WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

⚠ WARNING! Do not locate multiple portable socket outlet or portable power supplies at the rear of the appliance.

WARNING! Any electrical components (plug, power, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.

⚠ WARNING! If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Power cord must not be lengthened.

- Make sure that the power plug is not squashed or damaged power plug may overheat and cause a fire.

- make sure that you can come to the mains plug of the appliance. Do not pull the mains cable.

- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

- This appliance is heavy. Care should be taken when moving it.

- Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer bums.

- Avoid prolonged exposure of the appliance to direct sunlight.

Daily Use

1. Do not put hot on the plastic parts in the appliance.
2. Frozen food must not be re-frozen once it has been thawed out.
3. Store pre-packed frozen food in accordance with the frozen food manufactures instructions.
4. Appliances manufacturer's storage recommendations should be strictly adhered to. Refer to relevant instructions.
5. Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
6. Ice lollies can cause frost burns if consumed straight from the appliance.

Care and Cleaning

1. Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
2. Do not clean the appliance with metal objects.
3. Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
4. Regularly examine the drain in the chest freezer for defrosted water. If necessary, clean the drain.

Safety Precaution Information

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

1. Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
2. It is advisable to wait at least 4 hours before connecting the appliance to allow the oil to flow back in the compressor.
3. Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation.
4. Wherever possible, the spacer of the products should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn. The appliance must not be located to radiators or cookers. Make sure that the mains plug is accessible after the installation of the appliance.

Service

Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person. This product must be serviced by an authorized service center and only genuine spare parts must be used.

Energy Saving

1. Don't put hot food in the appliance.
2. Don't pack food close together as this prevents air circulating.
3. Make sure food don't touch back of the compartments.
4. If electricity goes off, don't open the door
5. Don't open the doors frequently.
6. Don't keep the doors open for too long time.
7. Don't set the thermostat on exceeding cold temperatures.
8. Some accessories, such as drawers, can be removed to get larger storage volume and lower energy consumption.

Environment Protection

This appliance does not contain gases which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish.

The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities.

Avoid damaging the cooling unit, especially the heat exchanger. The materials used on this appliance marked by the symbol ☐ are recyclable.

Safety Precaution Information

The symbol ✉ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging Materials

The materials with the symbol 📊 are recyclable. Dispose the packaging in a suitable collection containers to recycle it.

Disposal of the Appliance

1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning, switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapours can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice from orange peel, butyric acid, cleanser that contain acetic acid.

a. Do not allow such substance to come into contact the appliance parts.
b. Do not use any abrasive cleaners
c. Remove the food from the freezer. Store them in a cool place, well covered.
d. Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
e. Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning, wipe with fresh water and rub dry.
f. Accumulation of dust condenser increases energy consumption. For this reason, carefully clean the condenser at the back of the appliance once a year with a soft brush or a vacuum cleaner.
g. After everything is dry, place appliance back into service.

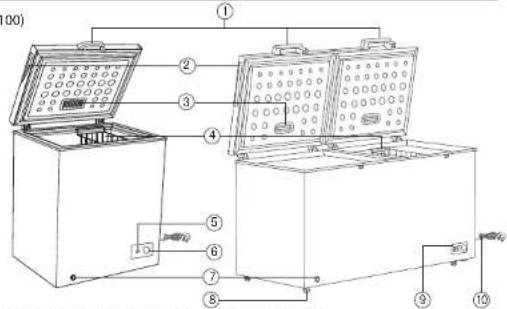

Parts identification

1. External Handle (except FZ100)
2. Recessed handle
3. LED Lamp (except FZ100)
4. Basket
5. Indicator Light
6. Thermostat Knob
7. Drain Hole
8. Wheel
9. Thermostat Control
   Panel
10. Power Cord

(FZ100, FZ251 Mechanical type) (FZ508 Mechanical type)

*Pictures are for illustration purpose only.

(FZ708 Electronic type)

Specifications

Model	FZ100	FZ251	FZ508	FZ708
Voltage	220-240V~ 50Hz	220-240V~ 50Hz	220-240V~ 50Hz	220-240V~ 50Hz
Rated Power Input (Watt)	100W	140W	230W	305W
Rated Lamp Power Input	-	1W	2W	2W
Rated Current (Ampere)	0.95A	1.35A	1.8A	2.25A
Net Capacity	100L	251L	508L	708L
Refrigerant	R600a/36g	R600a/56g	R290/65g	R290/83g
Condenser	Hidden	Hidden	Hidden	Hidden
Compressor Fan	No	No	No	No
Handle	Recessed	External	External	External
LED Lamp	No	Yes	Yes	Yes
Wheel	2	2	4	4
Temperature	T<-18°C	T<-18°C	T<-18°C	T<-18°C
Temperature Control	Mechanical	Mechanical	Mechanical	Electronic
Door Quantity	1	1	2	2
Door Lock & Key	No	Yes	Yes	Yes
Sliding Glass	No	No	No	No
Basket Quantity	1	1	1	1
Net Weight	24kg	34kg	60kg	72kg
Gross Weight	27kg	38kg	68kg	82kg
Product Dimension (LxWxH)	545 x 545 x 845mm	954 x 616 x 845mm	1640 x 700 x 865mm	1905 x 820 x 865mm
Box Dimension (LxWxH)	570 x 575 x 885mm	990 x 640 x 885mm	1680 x 748 x 890mm	1956 x 888 x 890mm

*Specifications are subject to change without prior notice.

Installation

FZ251 & FZ508 Install door external handle (if external is present)

Step 1

Take out 4 screw ① and handle base ② from accessory bag.

Then fix the handle base ② with door by ④ screw ①

Step 2

Insert handle cover ③ in the handle base ② until a click.

Step 3

Screw lock catch ④ on the freezer cabinet by another ② screw.

Technical line drawing of two rectangular mechanical components with mounting holes and a labeled component (no text or symbols present)

Note:

If the lock ring failed to hold the lock when installing handle, please unscrew the round head screw ⑤ on the back of door and adjust the position of door upper and lower.

Then drive the screw to fix the handle.

FZ708 Install door external handle (if external is present)

Step 1

Pick out the screw ② on the freezer door by tools, and pick out the handle base with lock ① handle cover ③

Step 2

Fix the handle base ① on the door by driving 4 pieces of screws picked.

Installation

Step 3 Fix the handle cover ③ in the way of handle orbit ①

Technical line drawing of two rectangular panels with internal components and mounting holes, no text or symbols present

Step 4 Fix the lock ring ④ on the freezer cabinet using the balanced 2 screws ⑤

Note:
If the lock ring failed to hold the lock when installing handle, please unscrew the round head screws 6 on the back of door and adjust the position of door upper and lower. Then drive the screw to fix the handle.

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjust-able feet at the base of the cabinet.

Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical Connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. the power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician. The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.C. Directives.

Installation

Space Requirement

The following are recommended.

Clearances around the chest freezer

Sides 10cm

Back 10cm

Top 70cm

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class	Ambient temperature
SN +10°C to +32°C
N +16°C to +32°C
ST +16°C to +38°C
T +16°C to +43°C

Daily Use

First use, cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly. Important! Do not use detergents or abrasive powders, as there will damage the finish.

Temperature Setting (FZ100, FZ251 & FZ508)

1) Set the temperature, on the temperature control knob.

Position 1 - Cold position

Position 5 - Colder, Normally setting at this position

Position 7 - Coldest

Position Max - To fast freeze much hot food, after using the freezer for 24 hours reset the freezer to your desired setting.

2) The appliance may not operate at the correct temperature if it is in a particularly hot or if you open the door often.

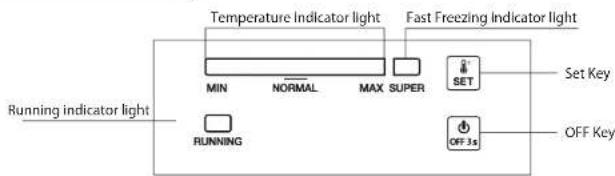

Temperature Setting (FZ708)

Daily Use

1) Electrical connection

When the appliance is plugged in, all LED indicator lights will flash once. Then the appliance will resume the mode previously set before the electrical outage.

2) Temperature setting

Setting: press "SET" button, enter the temperature setting mode. The temperature indicator bar of temperature goes up a scale by each press. This setting runs in cycles. The temperature is automatically set in 5 seconds after last press.

Super Freezing - Press "SET" button consecutively to enter "SUPER" freezing mode from scale MAX, the indicator light of "SUPER" turns on. This mode is automatically set in 5 seconds after last press. - The compressor keeps working in "SUPER" freezing mode. - If the "SUPER" mode keeps running for 52 hours and not stopped manually, the system will automatically cut out this mode, with the temperature back at scale 5.

3) Power On & Power Off

If the appliance is working, press "ON/OFF" for 3 seconds to turn off. If the appliance is off, press "ON/OFF" for 3 seconds to turn on.

4) Indicator Lights

Temperature indicator light ( bright blue) to adjust the temperature from scale MIN to scale MAX. MAX is the coldest. Super freezing indicator light ( bright blue ) light on = in "SUPER" mode light off = exit "SUPER" mode. Running indicator light ( bright green ) light on = compressor in work light off = compressor stops. 30 minutes after the last operation, the indicator light will be on in half luminance.

5) Resumption function

The appliance will automatically resume the mode previously set before the electrical outage.

6) Temperature sensor fault alarm

When there is a disconnection or short out the temperature sensor, as a fault alarm, the temperature indicator bar will flash from left to right every 0.5 second.

Freezing fresh food

a. The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
b. Place the fresh food to be frozen in the bottom compartment.
c. The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
d. The freezing process lasts 24 hours during this period do not add other food to be frozen.

Daily Use

Storing frozen food

When first starting-up or after a period out of use. Before putting the product in the compartment, let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

Thawing

Deep frozen of frozen food, prior to be used, can be thawed in a fridge compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Helpful hints and tips

Hints for freezing

To help you make the most of the freezing process, here are some important hints.

1) The maximum quantity of food which can be frozen in 24 hours, is shown on the rating plate.
2) The freezing process takes 24 hours. No further food to be frozen should be added during this period.
3) Only freeze top quality, fresh and thoroughly cleaned, foodstuffs.

4) Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required.

5) Wrap up the food in aluminium foil or polythene and make sure that the packages are airtight.

6) Do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter.

7) Lean foods store better and longer than fatty ones salt reduces the storage life of food.

8) Water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burn.

9) It is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food.

To obtain the best performance from this appliance, you should:

• Make sure that the commercially frozen foodstuff were adequately stored by the retailer.
• Be sure that frozen foodstuffs are transferred from the food store to the freezer in the shotest possible time.
• Not open the door frequently or leave it open longer than absolutely necessary.
• Once defrosted, food deteriorates rapidly and cannot be refrozen.
• Do not exceed the storage period indicated by the food manufacturer.

Daily Use

Defrosting of the freezer

The freezer, however, will become progressively covered with frost. This should be removed.

Never use sharp metal tools to scape off frost from the evaporator as you could damaged it.

However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out as follows:

a) Unplug the unit, remove the drain plug from the inside of the freezer. Defrosting usually takes few hours. To defrost faster keep the freezer door open.

b) For dining, place a tray beneath the outer drain plug. Pull out the drain dial.

c) Rotate the drain dial 180 degree. This will let the water flow out in the tray. When done, push the drain dial in. Replug the drain plug inside the freezer compartment. Note: monitor the container under the drain to avoid overflow.

d) Wipe the interior of the freezer and replace the electrical plug in the electrical outlet.

e) Reset the temperature control to the desired setting.

Replace the lamp (For FZ251, FZ508 & FZ708)

The switch of LED lamp is gravity controlled, when the angle of door opening is bigger than 30 degree, light will switch on and switch off when the angle is smaller than 30 degree

Notice:

-Firstly, loosen screw on the lamp cover

- Secondly, loosen the screw fixed on the lamp electrical parts.

- Thirdly, check the cable terminals of electronic parts and terminals of contacting lines for door lamp is loosening or not. Please fix them if they are not fixed. Then, check the light is on or not. If the lamp is switch on please install the lamp cover, if not, please further check the electronic part is intact or not. If necessary, please replace the electronic part to check the lamp is on or not. If the lamp still does not work. Please contact with staff of after sale service assistance.

- The steps of led lamp installing

Fix the cable terminals of electronic parts and contacting lines in the door liner. Install LED electronic part in the door liner and fix on by screws. Install lamp cover on the holder and fix to finish all process.

Daily Use

Troubleshooting

Caution! before troubleshooting, disconnect the power supply. Only qualified electrician of competent person must do the troubleshooting that is not in this manual.

Important! there are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause Solution
Appliance does not work	Mains plug is not plugged in or is loose	insert main plug
	Fuse has blown or is defective Check fuse, replace if necessary
	Socket is defective Mains malfunctions are to be corrected by an electrician.
Appliance freezes too much	Temperature is set too cold or the appliance runs at MAX setting.	Turn the temperature regularly to a warmer setting temporarily.
The food is not frozen enough	Temperature is not properly adjusted P	Please look in the initial temperature setting section.
	Door was open for an extended period	Open the door only as long as necessary
	A large quantity of warm food was placed in the appliance within the last 24 hours	Turn the temperature regulation to a colder setting temporarily
	The appliance is near a heat source.	Please look in the installation location section
Heavy build-up of frost on the door seal	Door seal is not air-tight Carefully warm	the leaking section of the door seal with a hair dryer (on a cool settling). At the same time shape the warmed door seal by hand such that it sits correctly
Unusual noises	The appliance is touching the wall or other objects.	Move the appliance slightly
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	Necessary, carefully bend the component out of the way.

安全和警告信息

安全和警告信息

步骤3

在手柄轨道①的方式固定手柄套③

Technical line drawing of a two-view mechanical assembly (no text or symbols)

注：

Technical line drawing of a two-part mechanical assembly with mounting holes and a labeled component (no text or symbols present)

注

(FZ100, FZ251 Jenis Mekanikal) (FZ508 Jenis Mekanikal)

Langkah 3

Technical line drawing of two rectangular frame structures with mounting holes and a labeled component (no text or symbols present)

Nota :

Technical line drawing of two rectangular panels with mounting holes and a small black component, no text or symbols present.

Rlim Kelas		Suhu
SN	+10°C to +32°C
N	+16°C to +32°C
ST	+16°C to +38°C
T	+16°C to +43°C
