UF225 - Freezer Khind - Free user manual and instructions
Find the device manual for free UF225 Khind in PDF.
| Product Type | Freezer (Upright) |
| Brand | Khind |
| Model | UF225 |
| Net Capacity | 225 L |
| Voltage | 220-240 V ~ 50 Hz |
| Rated Power | 95 W |
| Rated Current | 0.95 A |
| Refrigerant | R600a (88 g) |
| Climate Class | SN (+10°C to +32°C), N (+16°C to +32°C), ST (+16°C to +38°C), T (+16°C to +43°C) |
| Temperature Control | Mechanical thermostat (MIN, NORMAL, MAX) |
| Door Type | Reversible door, 1 door |
| Number of Drawers | 7 |
| Adjustable Feet | Yes (2 leveling feet) |
| Wheels | 2 (front wheels) |
| Defrosting Method | Manual defrost (defrost water collected) |
| Net Weight | 59 kg |
| Gross Weight | 64 kg |
| Product Dimensions (L x W x H) | 600 x 600 x 1700 mm |
| Box Dimensions (L x W x H) | 650 x 635 x 1783 mm |
| Minimum Clearance Above | 100 mm |
| Initial Standby Time | At least 4 hours before first use |
| Cleaning Instructions | Clean interior with lukewarm water and neutral soap |
| Condenser Cleaning | Annually with soft brush or vacuum cleaner |
| Safety Features | Keep ventilation clear; do not damage refrigerant circuit; child supervision required |
Frequently Asked Questions - UF225 Khind
User questions about UF225 Khind
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Freezer in PDF format for free! Find your manual UF225 - Khind and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. UF225 by Khind.
USER MANUAL UF225 Khind
Please read this manual carefully before operating this product. Keep this manual handy for further reference.
This manual is also available online.
⚠ Safety Precaution Information
Safety and warning information
- In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its lifespan will be properly informed on appliance use and safety.
- For the safety of life and property, keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.
Children and vulnerable people safety
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance. - Cleaning and user maintenance shall not be made by children unless they are supervised.
- Keep all packaging well away from children. There is risk of suffocation.
- If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
- If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.
General Safety
⚠ WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
⚠ WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING! Do not damaged the refrigerant circuit.
⚠ WARNING! Do not use other electrical appliances (such as ice cream makers) inside of food storage compartment of the appliances, unless they are of the type recommended by the manufacturer.
⚠ WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot.
a. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
b. The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
c. During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.
- Avoid open flames and sources of ignition.
- Throughly ventilate the room in which the appliances is situated.
d. It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and or electric shock.
⚠ Safety Precaution Information
e. This appliance is intended to be used in household and similar applications such as
- Staff kitchen areas in shops, offices and other working environments;
- Farm houses and by clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments;
- Catering and similar non-retail applications.
⚠ WARNING! Any electrical components (plug, power cord, compressor and etc) must be replaced by a certified service agent or qualified service personnel.
⚠ WARNING! The light bulb supplied with this appliance is a "special use lamp bulb" usable only with the appliance supplied. This "Special use lamp" is not usable for domestic lighting.
- Power cord must not be lengthened.
- Make sure that the power plug is not squashed or damaged power plug may overheat and cause a fire.
- Make sure that you can come to the mains plug of the appliance. Do not pull the mains cable.
- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
- You must not operate the appliance without the lamp.
- This appliance is heavy. Care should be taken when moving it.
- Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
- Avoid prolonged exposure of the appliance to direct sunlight.
Dally Use
- Do not put hot on the plastic parts in the appliance.
- Do not place food products directly against the rear wall.
- Frozen food must not be re-frozen once it has been thawed out.
- Store pre-packed frozen food in accordance with the frozen food manufactures instructions.
- Appliances manufacturer's storage recommendations should be strictly adhered to. Refer to relevant instructions.
- Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
- Ice lollies can cause frost burns if consumed straight from the appliance.
Care and Cleaning
- Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
- Do not clean the appliance with metal objects.
- Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
- Regularly examine the drain in the chest freezer for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance.
Safety Precaution Information
Installation
Important! For electrical connection carefully follow the instructions given in specific paragraphs.
- Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
- It is advisable to wait at least 4 hours before connecting the appliance to allow the oil to flow back in the compressor.
- Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation.
- Wherever possible, the spacer of the products should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn. The appliance must not be located to radiators or cookers. Make sure that the mains plug is accessible after the installation of the appliance.
- The appliance must not be located to radiators or cookers.
- Make sure that the mains plug is accessible after the installation of the appliance.
Service
Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person. This product must be serviced by an authorized service center and only genuine spare parts must be used.
Energy Saving
- Don't put hot food in the appliance.
- Don't pack food close together as this prevents air circulating.
- Make sure food don't touch back of the compartments.
- If electricity goes off, don't open the door
- Don't open the doors frequently.
- Don't keep the doors open for too long time.
- Don't set the thermostat on exceeding cold temperatures.
- Some accessories, such as drawers, can be removed to get larger storage volume and lower energy consumption.
Environment Protection
This appliance does not contain gases which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish.
The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities.
Avoid damaging the cooling unit, especially the heat exchanger. The materials used on this appliance marked by the symbol ⚙ are recyclable.
Safety Precaution Information
The symbol ✗ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.
Packaging Materials
The materials with the symbol 📁 are recyclable. Dispose the packaging in a suitable collection containers to recycle it.
Disposal of the Appliance
- Disconnect the mains plug from the mains socket.
- Cut off the mains cable and discard it.
Cleaning
For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.
Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning, switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapours can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.
Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice from orange peel, butyric acid, cleanser that contain acetic acid.
a. Do not allow such substance to come into contact the appliance parts.
b. Do not use any abrasive cleaners
c. Remove the food from the freezer. Store them in a cool place, well covered.
d. Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
e. Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning, wipe with fresh water and rub dry.
f. Accumulation of dust condenser increases energy consumption. For this reason, carefully clean the condenser at the back of the appliance once a year with a soft brush or a vacuum cleaner.
g. After everything is dry, place appliance back into service.

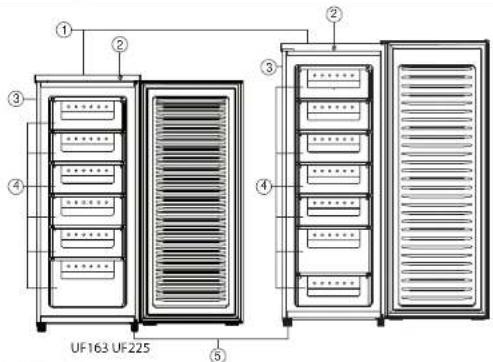

Parts identification
- Worktop
- Thermostat Knob
- Cabinet
- Drawer
- Adjustable Feet
*Pictures are for illustration purpose only.
Specifications
| Model | UF163 | UF225 |
| Voltage | 220-240V~50Hz | 220-240V~50Hz |
| Rated Power Input (Watt) | 95W | 95W |
| Rated Lamp Power Input | No | No |
| Rated Current (Ampere) | 0.95A | 0.95A |
| Net Capacity | 163L | 225L |
| Refrigerant | R600a/65g | R600a/88g |
| Condenser | Hidden | Hidden |
| Compressor Fan | No | No |
| Drawer Quantity | 6 | 7 |
| Handle | Recessed | Recessed |
| LED Lamp | No | No |
| Wheel | 2 | 2 |
| Temperature | T<-18°C | T<-18°C |
| Temperature Control | Mechanical | Mechanical |
| Door Quantity | 1 | 1 |
| Key & Lock | No | No |
| Sliding Glass | No | No |
| Net Weight | 45kg | 59kg |
| Gross Weight | 49kg | 64kg |
| Product Dimension (LxWxH) | 550 x 580 x 1420mm | 600 x 600 x 1700mm |
| Box Dimension (LxWxH) | 575 x 605 x 1473mm | 650 x 635 x 1783mm |
*Specifications are subject to change without prior notice.
Installation
Reverse Door
Tool requires: Philips screwdriver, flat bladed screwdriver, hexagonal spanner
- Ensure the unit is unplugged and empty.
- To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
- All part removed must be saved to do the reinstallation of the door.
- Do not lay the unit flat as this may damaged the coolant system.
- It's better that 2 people handle the unit during assembly.
UF163
Remove 2 screws at rear of top cover
Remove top cover & thermostat knob, then place it aside.
Unscrew top hinge & then remove door & place it on a soft pad to avoid scratch.
Unscrew bottom hinge. Then remove the adjustable feet from both side.
Unscrew & remove the bottom hinge pin, turn the bracket over & replace it.
Refit the bracket fitting the bottom hinge pin. Replace both adjustable.
Place the door back on. Ensure the door is aligned horizontally & vertically, so that the seals are close on all sides before finally tightening the top hinge.
Put the top cover & fix it with 2 screws on the back.
Fix the thermostat knob.
Installation
Levelling the unit
- To do this adjust the 2 leveling feet at front of the unit.
- If the unit is not level, the doors & magnetic seal alignments will not be covered properly.
UF225
Unscrew hinge cover Open the door & unscrew the top hinge. Then take the door from the cabinet and place it on a soft pad to avoid damage.
Remove the cover & screws at left side & fit them to right side.
Carefully lie down the rear of cabinet on a soft pad. Remove two leveling feet first. Then unscrew the door hinge and left foot base.
Caution! If there is a screw at left front corner, remove it before install hinge.
Unscrew & remove the bottom hinge pin, turn the bracket over & replace it.
Install the hinge at left side and foot base at right side. Then screw two leveling feet with their original parts.
Unscrew top hinge pin and mounte it to left hole.
Stand up the unit and put the door on the bottom hinge. Make sure the bottom hinge core is inserted in the door hole. Then fit upper hinge with the door. Before tightly fix the upper hinge, try to open the door to check whether the cabinet is sealed well. Finally, screw the hinge cover with hinge.
Installation
Positioning
Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:
| Climate class | Ambient temperature |
| SN +10°C to +32°C | |
| N +16°C to +32°C | |
| ST +16°C to +38°C | |
| T +16°C to +43°C |
Location
The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100mm . Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjust-able feet at the base of the cabinet.
Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.
Electrical Connection
Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. the power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician. The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives.
Daily Use
First use - Cleaning the interior
Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.
Important! Do not use setergents or abrasive powders, as these will damage the finish.
Temperature setting
- Plug on your appliance. The internal temperature is controlled by a thermostat. These are 3 MIN, NORMAL and MAX. MIN is warmest setting and MAX is coldest setting.
- The appliance may not operate at the correct temperature if it is in a particularly hot or if you open the door often.
Daily Use
Freezing fresh food
a. The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
b. Place the fresh food to be frozen in the bottom compartment.
c. The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
d. The freezing process lasts 24 hours during this period do not add other food to be frozen.
Storing frozen food
When first starting-up or after a period out of use. Before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.
Important! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).
Thawing
Deep-frozen of frozen food, prior to be used, can be thawed in a fridge compartment or at room temperature, depending on the time available for this operation.
Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.
Ice-cube
This appliance may be equipped with one or more trays for the production of ice-cubes.
Helpful hints and tips
Hints for freezing
To help you make the most of the freezing process, here are some important hints.
1) The maximum quantity of food which can be frozen in 24 hours, is shown on the rating plate.
2) The freezing process takes 24 hours. No further food to be frozen should be added during this period.
3) Only freeze top quality, fresh and thoroughly cleaned, foodstuffs.
4) Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required.
5) Wrap up the food in aluminium foil or polythene and make sure that the packages are airtight.
6) Do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter.
7) Lean foods store better and longer than fatty ones salt reduces the storage life of food.
Daily Use
8) Water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burn.
9) It is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.
Hints for storage of frozen food.
To obtain the best performance from this appliance, you should:
- Make sure that the commercially frozen foodstuff were adequately stored by the retailer.
- Be sure that frozen foodstuffs are transferred from the food store to the freezer in the shotest possible time. - Not open the door frequently or leave it open longer than absolutely necessary.
- Once defrosted, food deteriorates rapidly and cannot be refrozen.
- Do not exceed the storage period indicated by the food manufacturer.
Defrosting of the freezer
The freezer compartment, however, will become progressively covered with frost. This should be removed.
Never use sharp metal tools to scape off frost from the evaporator as you could damaged it.
However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out as
fellows:
a) Pull out the plug from socket
b) Remove all stored food, wrap it in several layers of newspaper and put it in a cool place
c) Keep the door open, and placing a basin underneath of the appliance to collect the defroast water
d) When defrosting is completed, dry the interior thotoughly
e) Replace the plug in the power socket to run the appliance again
Daily Use
Troubleshooting
Caution! before troubleshooting, disconnect the power supply. Only qualified electrician of competent person must do the troubleshooting that is not in this manual.
Important! there are some sounds during normal use (compressor, refrigerant circulation).
| Problem | Possible cause Solution | |
| Appliance does not work | Mains plug is not plugged in or is loose | Insert main plug |
| Fuse has blown or is defective Check fuse, replace if necessary | ||
| Socket Is defective Mains malfunctions are to be corrected by an electrician. | ||
| Appliance freezes too much | Temperature is set too cold or the appliance runs at MAX setting. | Turn the temperature regularly to a warmer setting temporarily. |
| The food is not frozen enough | Temperature is not properly adjusted Please look in the initial temperature setting section. | |
| Door was open for an extended period Open the door only as long as necessary | ||
| A large quantity of warm food was placed in the appliance within the last 24 hours | Turn the temperature regulation to a colder setting temporarily | |
| The appliance is near a heat source. | Please look in the installation location section | |
| Heavy build-up of frost on the door seal | Door seal is not air-tight Carefully warm the leaking section of the door seal with a hair dryer (on a cool setting). At the same time shape the warmed door seal by hand such that it sits correctly | |
| Unusual noises | The appliance is not level Re-adjust the feet | |
| The appliance is touching the wall or other objects. | Move the appliance slightly | |
| A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall. | Necessary, carefully bend the component out of the way. | |
If the malfunction shows again, contact the service center.
These data are necessary to help you quickly and correctly. Write the necessary data here, refer to the rating plate.
⚠️ 安全注意事项
安全和警告信息
| Iklim Kelas | Suhu |
| SN +10°C to +32°C | |
| N +16°C to +32°C | |
| ST +16°C to +38°C | |
| T +16°C to +43°C |
Lokasi
- ⚠ Safety Precaution Information
- Safety and warning information
- Children and vulnerable people safety
- General Safety
- Dally Use
- Care and Cleaning
- Safety Precaution Information
- Installation
- Service
- Energy Saving
- Environment Protection
- Packaging Materials
- Disposal of the Appliance
- Cleaning
- Parts identification
- Reverse Door
- Levelling the unit
- Positioning
- Location
- Electrical Connection
- Daily Use
- First use - Cleaning the interior
- Temperature setting
- Freezing fresh food
- Storing frozen food
- Thawing
- Ice-cube
- Helpful hints and tips
- Hints for freezing
- Hints for storage of frozen food.
- Defrosting of the freezer
- Troubleshooting
- ⚠️ 安全注意事项
- 安全和警告信息
- Lokasi
Brand : Khind
Model : UF225
Category : Freezer
