FZ200U - Freezer Khind - Free user manual and instructions

Product Type	Freezer
Brand	Khind
Model	FZ200U
Capacity	200 liters (approx.)
Dimensions (HxWxD)	85 x 60 x 60 cm (approx.)
Weight	35 kg (approx.)
Power Supply	220-240V ~ 50Hz
Power Consumption	0.8 kWh/24h (approx.)
Climate Class	N (16°C to 32°C)
Noise Level	≤ 42 dB(A)
Refrigerant	R600a
Temperature Range	-18°C to -24°C (adjustable)
Defrost Type	Manual defrost
Shelves/Drawers	3 wire shelves (or 2 baskets)
Door Alarm	No
Lock	Yes, with key
Energy Efficiency Class	A+ (approx.)
Cleaning	Unplug before cleaning. Use damp cloth. Do not use abrasive cleaners.
Spare Parts Availability	Contact Khind service center for genuine parts.
Repair Service	Authorized service centers; refer to warranty card.
Warranty	1 year (standard)

Frequently Asked Questions - FZ200U Khind

What is the ideal temperature setting for my Khind FZ200U freezer?

The recommended temperature is -18°C for optimal food preservation. Use the thermostat dial to adjust.

How do I defrost the freezer?

Unplug the freezer, remove all food, and leave the door open to allow ice to melt. Do not use sharp tools to scrape ice. Clean and dry the interior before restarting.

Why is my freezer not cooling properly?

Check if the power cord is plugged in, the thermostat is set correctly, and the door is sealing properly. Ensure proper ventilation around the freezer.

Can I change the door opening direction?

This model typically has a reversible door. Refer to the user manual for step-by-step instructions on reversing the door hinge.

How often should I clean the condenser coils?

Clean the condenser coils at least once a year to maintain efficiency. Use a vacuum or soft brush. Always unplug the freezer first.

What is the energy consumption of the FZ200U?

The estimated energy consumption is 0.8 kWh per 24 hours, which is typical for a 200-liter freezer. Actual consumption varies based on usage and environment.

Is the freezer noisy?

The noise level is approximately 42 dB(A), which is quiet. Some sounds from the compressor and refrigerant are normal.

How long can food be stored in case of a power outage?

A full freezer can keep food frozen for about 24 hours if the door remains closed. A half-full freezer may last about 12 hours.

What type of refrigerant does the FZ200U use?

It uses R600a (isobutane), an environmentally friendly refrigerant. Disposal must comply with local regulations.

Where can I find spare parts or service?

Contact Khind's authorized service centers listed in the warranty card or on their website. Use only genuine parts for repairs.

USER MANUAL FZ200U Khind

Abstract graphic with teal and light green geometric shapes, no text or symbols present

••• Upright Freezer / 立式冰柜/Peti Dingin Beku

Instruction Manual / 说明指示书/Buku Panduan

Please read this manual carefully before operating this product. Keep this manual handy for further reference. 请在使用此产品前，详读此说明书，并将之收藏以作日后参考。

This manual is also available online

P/N: 40-50530-00

Table of content

Freezer safety	Freezer safety......1
Introduction instruction	Product features......2Parts identification......2Specifications......3Safety and warning information......4Carrying and installing the appliance......4
Freezer use	Preparation before using......5Thermostat......5Switching on and temperature control......5Freezer compartment......6
Freezer care	Defrosting......6Cleaning the appliance......7Ways to save power consumption......7Other notices......7
Common sign and trouble shooting	Common Sign......7Trouble shooting......8
General knowledge for the appliance	General knowledge (I)......8General knowledge (II)......9

Freezer Safety

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word DANGER or WARNING.

These words mean:

DANGER

WARNING

All safety messages will tell you what the potential hazzard is, tell you how to reduce the chance of injury, and tell you what can happen if the instruction are not followed.

Important safety instructions

WARNING: To reduce the risk of fire, electric shock or injury when using your freezer, follow these basic precautions:

• Plug into a grounded 3 prong outlet.
  ■ Do not remove ground prog.

• Do not use an adapter.
  ■ Do not use an extension cord.
  ■ Disconnect power before cleaning.
  ■ Use nonflammable cleaner.

• Keep flammable materials and vapors, such as gasoline,
  away from freezer.
  ■ Use two or more people to move and install freezer.

• Keep key away from children.

Save these instructions

The upright freezer has the following characteristics:-

1. Plate type evaporator, featuring good-looking and luxury, fast and power saving

2. Streamline coping and arc door, symbolizing beauty and elegance

3. Low energy consumption

4. Corrosion resistant cabinet

5. Concealed high efficiency compression

6. Double door gasket

7. Thick foam layer

8.6 drawers

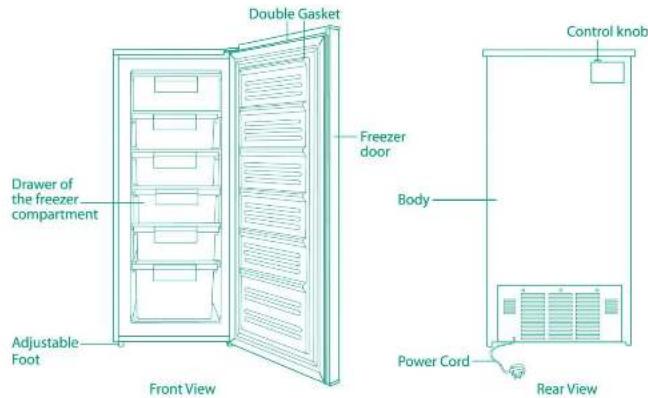

Parts identification

The below picture is for your reference. There maybe some differences from your appliance.

Specifications

Product External dimension (mm)	L x W x H :	540x 620 x 1300mm
Product Internal dimension (mm)	L x W x H :	390 x 435 x 1094mm
Net capacity :		180 Liters
Gross capacity :		200 Liters
Power consumption kWh/24h at 30°C ambient :		0.85kWh/24h
Temperature control :		Mechanical
Cooling system :		Direct
Temperature range at ambient temperature of 30°C :		≤-18°C
Compressor:Type-Hermetic :		1/4 HP
Drawer quantity :		6
Net weight :		46 kg
Gross weight :		50 kg
Carton dimension (mm)	L x W x H :	580 x 650 x 1330mm
Rated voltage :		220-240V
Rated frequency :		50Hz
Rated current :		0.8A
Rated power :		115W
Refrigerant :		R134a

* Specifications are subject to change without prior notice.

Penjagaan Pendingin Beku

Safety and warning information

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

3. Must use separate, well-earthed and 3 core cable & plug top.

4. Do not squeeze, fold, knot or damage the cord.

5. Keep children away from package and its parts. Danger of suffocation from folding cartons and plastic film.

6. Do not climb, sit, stand or lean on the unit.

7. When repairing or cleaning the appliance, pull out the plug.

8. When pulling out the plug, do not pull cord to avoid cord damage.

9. The appliance should be recycled by appointed institutions. Personal handling may cause danger. Please follow according to local regulations regarding the disposal of the appliance for its flammable blowing gas.

10. This appliance is intended for household used only, do not use outdoors. Commercial use will void warranty.

DANGER

1. Do not put inside flammable & explosive material (e.g. alcohol, gasoline etc). Risk of explosion and fire!

2. Do not store bottled or canned drinks (especially carbonated drinks) in the freezer compartment. Risk of explosion!

3. Do not touch food or metal container in the freezer compartment with wet hands. Do not put frozen food straight from the freezer compartment into your mouth. Risk of low-temperature burns!

WARNING

1. Do not damage the refrigerant circuit. Refrigerant leakage may ignite or cause eye injuries. Wash the eyes at once and see a doctor.

2. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. (e.g. heaters, electric ice maker, etc.) Do not use microwave oven, rice cooker and voltage regulator on the top of the appliance.

3. Keep ventilation holes, in the appliance enclosure or in the built-in structure, clear of obstruction.

4. To avoid hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

Carrying and installing the appliance

Carrying

- Carry the appliance by touching the bottom.

■ Do not carry by touching the door or door handle.

- Do not carry the appliance transversely or reversely.

■ The appliance has 2 castor wheels at the back.

Uplift side and move the appliance by 2 wheels on the back during moving.

■ The incline angle should be less than 45^ .

Introduction instruction

Installing

- Install the appliance in a dry and ventilated room. The below distances should be required.

■ From the side panels to wall : minimum 10cm.
■ From the side back wall : minimum 10cm.
■ From the top to wall or ceiling : minimum 30cm.

The air at the back of the appliance will heat up.

• This warm air must be allowed to circulate freely, otherwise the refrigerating machine must perform more. This will cause an increase in power consumption.
• Do not cover or block off the ventilation holes of the compressor.
• Do not put any heat sources near the ventilation holes.

Adjust the feet

■ There are 2 inch on the front bottom.
Put the appliance on sturdy & horizontal ground.
- Adjust the feet screws by wrench (see the picture) to vertical and stable position.
■ Make sure the feet screws touch ground wholly to avoid shock and noise.

Freezer use

Preparation before using

1. Remove all the packing material include polyform and tapes.
2. Check the accessories and documents according to the packing unit.
3. Clean the interior before switching on the appliance for the FIRST time.
4. After installing the appliance, wait for at least 2 hours and max 12 hours BEFORE switching on the appliance.

(Alert: During transportation, the oil in the compressor may have flowed into the refrigeration system)

Operation of thermostat

Thermostat

1. Thermostat Knob

2. There are position from 0 - 7

3. Position "0" = Stop. Means that the compressor stop working.
4. Position "1" = highest temperature setting.

- Position "7" = Quick Freezer. Lowest temperature setting (keeps cooling all the time)

(Alert: It is not suggested to use the quick freezing for a long period of time.)

Switching ON

1. DO NOT switch on the freezer for at least 2 hours, max 12 hours after receiving it.
   It would be better to switch the thermostat knob to "0" position.
2. At the first time of switching on, rotate the thermostat knob to position "1-4" and close the door. 30 minutes

later, the condenser will be heating up and there will be thin frozen the pipes inside the freezer, which

indicate the upright freezer are in normal operation.

Alert:

• DO NOT frequently power ON / OFF the freezer.
• If there is an electricity cut-off, please wait for 5 minutes before operating the appliance again to avoid damage

to the compressor.

5

Arahan Pengenalan

1. Do not put the food stuff for 4-5 hours.

2. From the position 1 to 7, the compartment temperature is from high to low.

Temperature Control

1. For normal working, set position "4"
2. For fast freezing, set position "7".
3. For stop working, set position "0".

Freezer compartment / Drawer

The freezer compartment is for long time stored food, freezing food and ice making. The freezer drawer can be taken out by lifting up.

Making Ice Cubes

- Set the freezer at any temperature (e.g. Position 1-7) for making ice cubes - Fill in the ice tray with pure water and place in the freezer compartment - To loose the ice cubes, hold the tray briefly under running water or twist the tray slightly. Alert: Never use sharp instruments to scrape off frost or ice.

Freezer care

Packing food before freezing

- Recommended to pack food before freezing to avoid putrefaction and mixing smells. - If packing food in a bag, squeeze out the air in the bag and then seal the bag. - Recommend to put one label with marked time on the package before freezing. Alert:- - DO NOT keep the carbonated, cans drinks/stuffs and bottle glass inside the freezer. - Leave warm food to cool down first before placing them in the freezer.

Defreezing frozen food

Frozen food can be defrosted under room temperature in the lowest drawer compartments, in electrical ovens or in microwave ovens.

Defrosting the freezer compartment

1. Frost that accumulated on the refrigerant tube will decrease the freezing efficiency and increase power consumption.
2. Perform defrosting once or twice per year in the freezer compartment. If frost is too heavy, perform defrosting for several times.
3. Switch off the appliance and pull out the plug before defrosting.
4. If the freezer compartment stores some food, set the temperature control at position 5 \~ 7 and freeze the food for 4 hours at very low temperature.
5. Before defrosting, all the drawers should be taken out and put in cool place.
6. During defrosting, keep the freezer compartment door open. Frost is changed into water by room temperature. To accelerate defrosting, one container full of hot water can be put into the freezer compartment. Wipe off frost water and clean the freezer compartment.
7. Do not defrost by steel brush or knife to avoid damage on the refrigerant tube. (Warning: leaking refrigerant may ignite or cause eye injuries.)

Alert: This appliance should not be left unused for a long period. To stop using the appliance, disconnect the main power. Clean the interior and dry it completely. Open the door for 2-3 days to ensure it is dry completely.

Freezer care

Cleaning and Maintenance the appliance

1. Always ensure that the electrical mains is turned off and unplug before cleaning the appliance.
2. Do not open the door frequently and too long to save energy. Opening the door for prolonged period may cause the freezer unable to perform optimum cooling.
3. Do not use chemical, steel, wooden or abrasive cleaners to clean the appliance.
4. Never use sharp instruments to scrape off frost or ice.
5. After cleaning, wipe the appliance until it is completely dry.
6. Use warm water to clean the oil and stains on the door gasket in order to keeps its elasticity.
7. the product should be serviced by authorised service agent.
8. Under no circumstances should you attempt to repair the appliance by yourself
9. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning.

Way to save the power consumption

1. Install the appliance in a cool, well ventilated room, but not exposed under direct sunlight and not near a heat source (radiator, cooker & etc). Otherwise, use an insulating plate.
2. Always store the hot food after it is completely cold. Never store hot items into the appliance.
3. Open the appliance door as briefly as possible.
4. Defrost and clean the appliance when too much frost (5cm thick) is on the refrigerant tube.
5. Occasionally clean the rear of the appliance with a vacuum cleaner or paint brush to prevent an increase in power consumption.
   Alert: When there is a power outage
6. Open the appliance door as briefly as possible
   • Do not put food stuff inside to avoid temperature increase inside compartments

Common sign and trouble shooting

1. The upright freezer will be of plastic smell when first time open the door.
2. High temperature on the door frame of the freezer compartment. It is a special measure to prevent sweating around the door.
3. High temperature at the lateral sides. The condenser is inside the upper surface of the lateral sides. The condenser emits heat when the appliance works.
4. High temperature on the compressor. When the appliance works, the temperature on the compressor is about 80^ C.

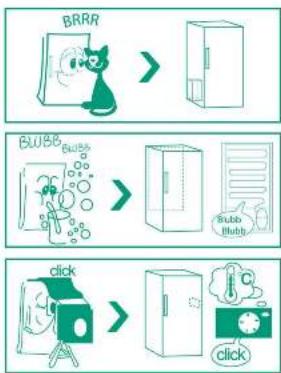

5. Sounds like water current in the appliance. The refrigerant goes through the refrigerant tube when the appliance works.
6. Sounds like click in the appliance. There is shrinkage and expanding between the interior body and the refrigerant tube.
7. Sounds like buzz. The compressor makes buzz sounds when working. If the feet are not adjusted on a vertical and stable position, there are shocks and noises. Adjust the feet on a vertical and stable position.
8. Higher power consumption than the rating parameter. The rating parameter is from the test. Test condition are on 25°C ambient temperature, -18°C in the freezer compartment, without opening the door and keeps working 24 hours. If with more food inside, on a higher ambient temperature or open the doors frequently, the actual power consumption is higher.

Spesifikasi

Dimensi Produk Luaran (mm)	L × W × H	540x 620 x 1300mm
Dimensi Produk Dalaman (mm)	L × W × H	390 x 435 x 1094mm
Kapasiti bersih		180 Liter
Kapasiti kasar		200 Liter
Penggunaan kuasa pada ambient 30°C ambient		0.85kWh/24h
Kawalan suhu		Mechanical
Sistem penyejukan		Terus
Julat suhu pada suhu ambient 30°C		≤ 18^
Jenis Pemampat: Hermatik		1/4 HP
Bilangan Laci		6
Berat Bersih		46 kg
Berat Kasar		50 kg
Dimensi kotak (mm)	L × W × H	580 x 650 x 1330mm
Kadar Voltan		220-240V
Kadar Frekuensi		50Hz
Kadar Arus		0.8A
Kadar Kuasa		115W
Jenis Penyejukan		R134a

Common sign and trouble shooting

Trouble shooting

Try the solution suggested here first to avoid the cost of an unnecessary service call.

Symptom	Possible reasons	Handlings
Not cooling	The plug is not inserted properlyThe fuse is blown offThere is a power cut	Check the plugCheck the fusePlease check if power is off
The temperature in the compartments is high	Opening the doors for long timePutting too much food insideThe thermostat control is not properly set or the ambient temperature is high	Close the doorPut food less than the appliance capacityAdjust the thermostat control

Note: If the above special instances can not be handled, please contact the service department.

Circuit Diagram

General knowledge for the appliance

■ Adjusting the feet and make sure the appliance is in vertical and stable position.

■ Install the appliance separately and avoid resonances between the appliance and other furniture.

General knowledge for the appliance

The compressor and refrigerant decreases the compartment temperature of the appliance and keeps food fresh and nutritious. During working, there is some slight sounds. It is normal and no damage to the appliance. Do not worry.

■ Slight sound like buzz. The compressor makes buzz sound when working. The buzz sound will be louder when the compressor starts.
Sound's like water current and air current. The refrigerant goes through the pipe to decrease the compartment temperature. The refrigerant can be gas or liquid in the pipe. During the flow of the refrigerant, there is sound like water current or air current.
■ Sound's like click. The sound comes from the on/off switching of the compressor by the thermostat.

Isi Kandungan
