Health Grill GL-2100 - Grill Imarflex - Free user manual and instructions

Product Type	Indoor Health Grill
Brand	Imarflex
Model	Health Grill GL-2100
Dimensions (L x W x H)	Approx. 40 x 30 x 15 cm
Weight	Approx. 3 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	1500 W
Cooking Surface	Non-stick coated, 30 x 20 cm
Temperature Control	Adjustable thermostat with indicator light
Drip Tray	Removable, dishwasher-safe
Main Functions	Grilling, searing, roasting; healthy low-fat cooking
Safety Features	Cool-touch handles, automatic shut-off, non-slip feet
Cleaning & Maintenance	Wipe with damp cloth; drip tray and grill plate dishwasher-safe
Spare Parts & Repairability	Replaceable power cord; spare grill plates available
Additional Information	Includes user manual with recipes

Frequently Asked Questions - Health Grill GL-2100 Imarflex

How do I preheat the Health Grill GL-2100?

Turn the temperature dial to your desired setting and wait for the indicator light to turn off, signaling the grill is ready.

Can I use metal utensils on the non-stick surface?

No, use wooden or silicone utensils to avoid scratching the non-stick coating.

How do I clean the drip tray?

Remove the drip tray and wash it with warm soapy water or place it in the dishwasher (top rack).

Is the grill plate removable for cleaning?

Yes, the grill plate is detachable and can be washed with a soft sponge or in the dishwasher.

What should I do if the grill doesn't heat up?

Check that the power cord is properly plugged in and the temperature dial is set. If still not heating, contact customer service.

Can I use the grill for vegetables?

Absolutely! The Health Grill GL-2100 is perfect for grilling vegetables like peppers, zucchini, and mushrooms.

How do I store the grill after use?

Allow it to cool completely, clean all parts, and store in a dry place with the cord wrapped loosely.

Is the grill suitable for outdoor use?

No, this is an indoor appliance. Do not use outdoors or near water.

Does it have an automatic shut-off feature?

Yes, the grill will automatically shut off after a period of inactivity or if it overheats for safety.

Where can I find the user manual?

The manual is included in the box and can also be downloaded from the Imarflex website in PDF format.

USER MANUAL Health Grill GL-2100 Imarflex

SPECIFICATION

MODEL NO. : GL-2100

RATED VOLTAGE : 230 Va.c. \~ 60HZ

POWER CONSUMPTION : 1200watts

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230 Va.c.)
3. Before using the unit, move it two to four inches away from the wall. Remove any object that may have been on top of the unit.
4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.
5. Do not use two-way socket with another appliance.
6. Do not touch hot surfaces, use handles or knobs.
7. Close supervision is necessary when any appliance is used by or near children.
8. Do not use accessories not recommended or sold with this unit.
9. Do not place on or near gas stove, electric burner or in a heated oven.
10. Keep curtains, furniture, flammable materials, etc. away from the unit and from the convenience outlet where the unit is plugged.
11. Extreme caution must be taken in moving an appliance containing hot oil or liquids.
12. Do not use this unit for other than intended use.
13. Do not use metal scouring in cleaning the unit.
14. CAUTION: Never leave the unit unattended while cooking.
15. To protect against electric shock, do not immerse the unit in water.
16. Save this instruction for future reference.

For household use only, not for industrial use.

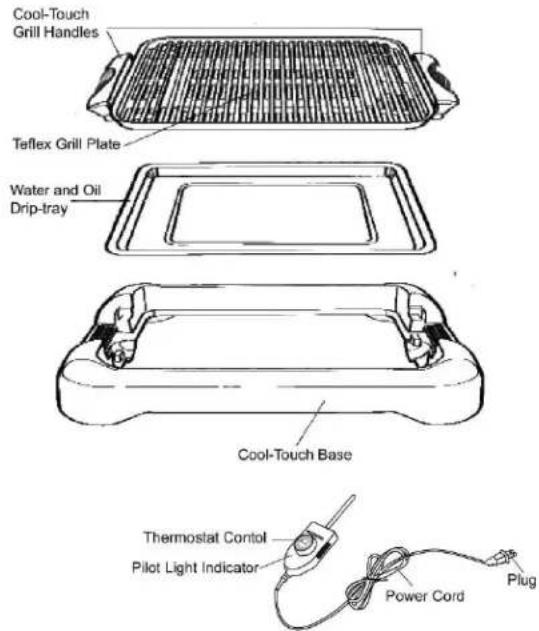

DESCRIPTION OF PARTS

ASSEMBLY

1. Place the unit on a flat stable surface.
2. Place the Water & Oil Drip Tray on the bottom of the Cool Touch Base.
3. Place the Teflex Grill Plate on top of the Cool Touch Base. Be sure that the Teflex Grill Plate is properly fixed on the Cool Touch Base so that the power will go on when the unit is turned ON.
4. Insert the Thermostat Control on the Teflex Grill Plate.

HOW TO USE

1. Plug into the convenience outlet.
2. Pour water on the Water & Oil Drip Tray to reduce smoke while cooking. Do not pour water on the heating element.
3. Adjust the Thermostat Control for different type of cooking requirements.

NOTE: For initial use, some smoke may be observed when the unit is turned ON, this is normal.

1. Cooking time depends on type and the amount of food that is going to cook.

FOOD	APPROX COOKING TIME	TEMP
Fish/Salmon	10-15 minutes	300°F
Bacon	10-15 minutes	275°F
Sausage Links	20 minutes	275°F
Hamburgers	15-20 minutes	325°F
Hot Dogs	15 minutes	300°F
Chicken Breast	15-20 minutes each side	325°F
Bone in Pork Chops	10-12 minutes each side	300°F
Steak (rate)	4-6 minutes each side (depending in thickness)	300°F
Steak (well done)	7-9 minutes each side (depending on thickness)	325°F
Lamb Cutlets	6-7 minutes each side	325°F

RECIPES

Herb-Rubbed Steak

SEASONING

3 garlic cloves, finely chopped
12 cup finely dried, crushed herbs (basil, oregano, rosemary, or thyme leaves)
14 teaspoon ground black pepper

Meat:

1-2 lbs. Boneless beef sirloin steak

DIRECTIONS:

1. Mix seasoning in a small bowl.
2. Evenly rub the seasoning mixture onto both sides of meat.
3. Place steak on preheated grill, at 350F. Cook for approximately 5-10 minutes on each side.

Teriyaki Chicken Kabobs

MARINADE:

12 cup soy sauce
14 cup sherry
^3/_4 cup brown sugar
2 tablespoons vegetable oil

1 garlic clove, pressed

12 teaspoon chopped green onions

Meat and Vegetables:

Approximately 2 lbs. Boneless, skinless chicken breasts

1 red breast

1 red bell pepper

1 green bell pepper

1 red onion

1 Can pineapple chunks

DIRECTIONS:

Mix ingredients for marinade together.

Cut chicken, red onion and bell peppers into approximately 1-inch squares.

Marinade chicken for at least 30 minutes.

Soak bamboo or wooden skewers in water at least 30 minutes before using to prevent burning.

Place chicken and vegetables on skewers.

Place skewers on preheated grill, at 350F. Cook for approximately 25 minutes, rotating frequently.

Salmon with Herbs

SEASONING:

2 tablespoons finely chopped shallots

1 tablespoon chopped parsley

1 / 4 teaspoon thyme

12 teaspoon tarragon

14 tablespoon basil

1 tablespoon lemon juice

6 tablespoons butter salt and pepper

Meat:

2 Salmon steaks

DIRECTIONS:

1. Melt the butter and sauce the shallots until tender.
2. Add thyme, tarragon, basil, and lemon juice.
3. Brush the steaks with the herb butter and sprinkle with parsley.
4. Place salmon steaks on preheated grill, at 300F. Cook for approximately 5-7 minutes each side.

CLEANING AND MAINTENANCE

1. Turn OFF the Thermostat Control and unplug from the convenience outlet.
2. Allow the unit to cool before putting ON or taking OFF parts and before cleaning.
3. Remove the Thermostat Control from the unit.
4. Teflex Grill Plate, Water & Oil Drip Tray and Cool Touch Base are washable with soap and water.
5. Do not use abrasive materials to avoid scratches.
6. Do not immerse the Thermostat Control in water.

For household use only, not for industrial use.
