Brand	Imarflex
Model	GL-3400
Product Type	Grill
Power Consumption	1100 W
Rated Voltage	230 V a.c. ~ 60 Hz
Frequency	60 Hz
Timer	Yes, adjustable cooking timer
Cooking Surface	Non-stick rack
Oil Drip Tray	Removable for easy cleaning
Smoke Filter	Includes filter and filter cover
Cover Assembly	Top heating element with cover
Base with Heating Element	Fixed base (do not immerse)
Water Addition	Pour water in oil drip tray to reduce smoke
Cooking Table	Time guide for squid, fish, meat, shrimp, chicken, potato
Cleaning	Washable parts: cover, racks, filter, filter cover, oil drip tray. Wipe base with damp cloth.
Safety	Do not immerse base; keep away from flammable materials; supervise children
Usage	Household use only
Warranty	Warranty card provided

Frequently Asked Questions - GL-3400 Imarflex

What is the power consumption of the Imarflex GL-3400?

The power consumption is 1100 watts, and it operates at 230 V a.c. ~ 60 Hz.

How do I assemble the grill?

Place the unit on a flat stable surface. Insert the Oil Drip Tray on the Base with Heating Element. Place the Filter on the Cover smoke vent, put the Filter Cover on top, and slide it right until it clicks. Insert the Cover Assembly on the Top Heating Element.

Can I immerse the grill in water for cleaning?

No, do not immerse the Base with Heating Element in water. Wipe it with a damp cloth. Other parts like the Cover, Racks, Filter, Filter Cover, and Oil Drip Tray are washable with soap and water.

What cooking times are recommended?

Cooking times vary by food: Squid 7-10 min, Fish 9-12 min, Meat 10-15 min, Shrimp 12-15 min, Chicken 20-25 min, Potato 27-30 min. Times may vary based on type and amount.

How do I reduce smoke while cooking?

Pull out the Oil Drip Tray and pour water into it to reduce smoke. Do not pour water directly on the Heating Element.

Is the grill suitable for industrial use?

No, it is for household use only, not for industrial use.

What should I do if the cord is damaged?

If the cord is damaged, it should be replaced with the same type and size, or bring the unit to the nearest authorized service center. Do not use the appliance with a damaged cord.

Can I use metal scouring pads for cleaning?

No, do not use metal scouring pads or abrasive materials to avoid scratches. Use a damp cloth and mild soap.

How do I install the filter?

Place the Filter on the Cover smoke vent, then put the Filter Cover on top of the Filter and slide it to the right until you hear a click sound.

What safety precautions should I take?

Never leave the unit unattended while cooking. Do not use near gas/electric stove or heated oven. Keep away from curtains and flammable materials. Do not touch hot surfaces; use handles or knobs. Close supervision is needed when used by or near children.

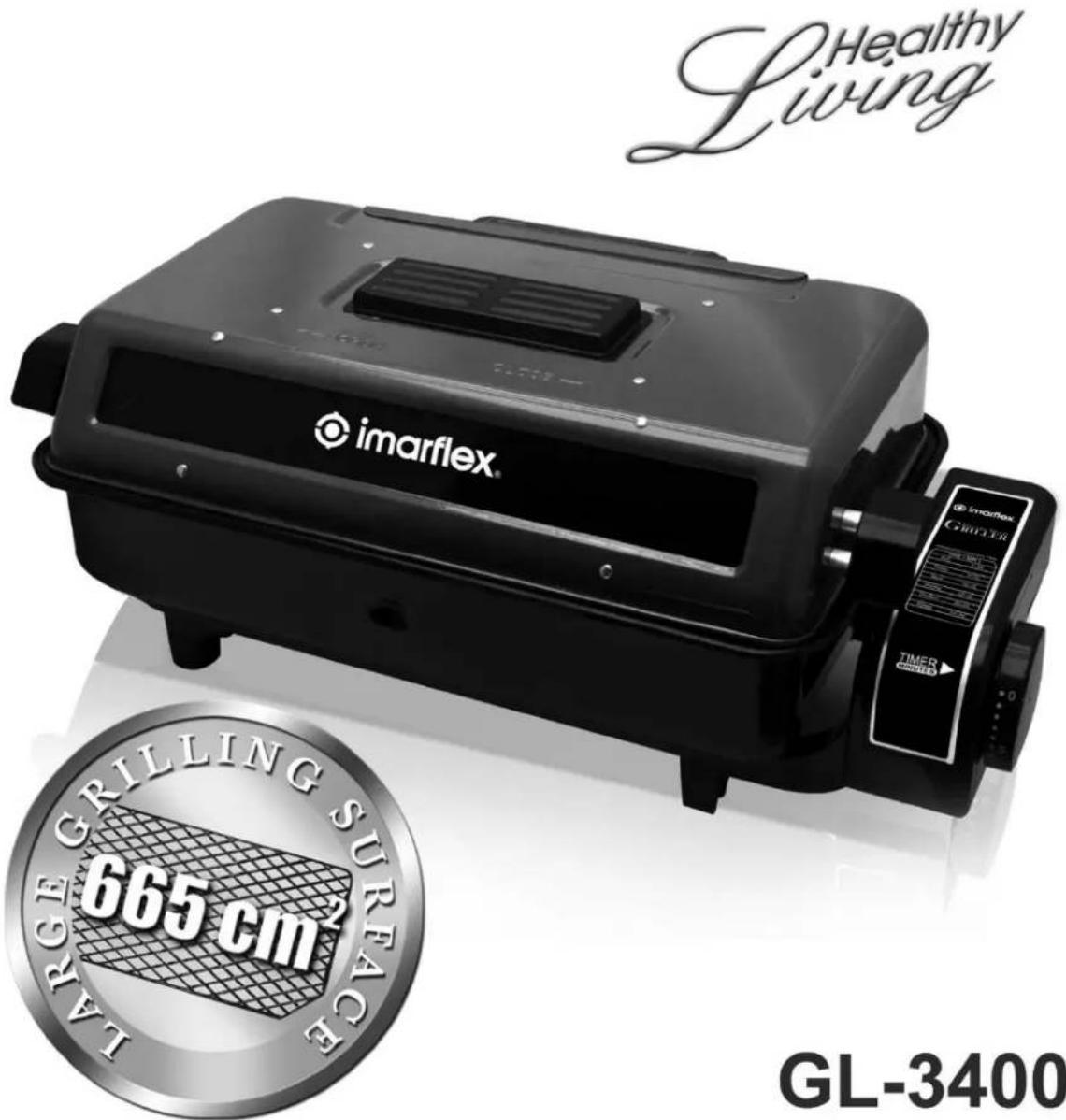

USER MANUAL GL-3400 Imarflex

www.imarflex.com

SPECIFICATION

MODEL NO. : GL-3400

RATED VOLTAGE : 230Va.c. \~ 60Hz

POWER CONSUMPTION : 1100 watts

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.)
3. Before using the unit, move it two to four inches away from the wall. Remove any object that may have been on top of the unit.

4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.

5. Do not use two-way socket with another appliance.

6. Do not place on or near gas stove, electric stove or in a heated oven.

7. Do not touch hot surfaces, use handles or knobs.

8. Close supervision is necessary when any appliance is used by or near children.

9. Do not use accessories not recommended or sold with this unit.

10. Keep curtains, furniture, flammable materials, etc. away from the unit and from the convenience outlet where the unit is plugged.

11. Extreme caution must be taken in moving an appliance containing hot oil or liquids.

12. Do not use this unit other than its intended use.

13. Do not use metal scouring in cleaning the unit.

14. CAUTION: Never leave the unit unattended while cooking.

15. To protect against electric shock, do not immerse the unit in water.

16. Save this instruction for future reference.

17. For household use only, not for industrial use.

ASSEMBLY

1. Place the unit on a flat stable surface.
2. Insert the Oil Drip Tray on the Base with Heating Element. Be sure that it is properly fixed.
3. Place the Filter on the Cover smoke vent.
4. Put the Filter Cover on top of the Filter and slide it to the right until you heard a click sound.
5. Insert the Cover Assembly on Top Heating Element. Be sure that it is properly fixed.

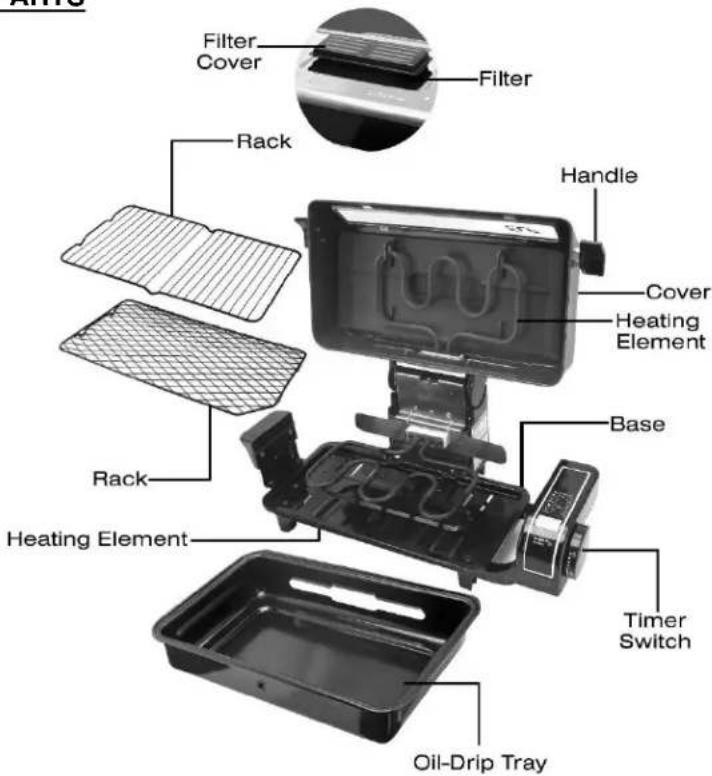

DESCRIPTION OF PARTS

HOW TO USE

1. Plug the unit into the convenience outlet.
2. Pull Oil Drip Tray and pour water to reduce smoke while cooking. Do not pour water on the Heating Element.
3. Set the Timer to desired cooking time.

NOTE: For initial use, some smoke may be observed when the unit is turned ON, this is normal.

1. Put the food on the Non-stick rack.
2. Turn OFF after use.

COOKING TABLE

Squid	7-10 min
Fish	9-12 min
Meat	10-15 min
Shrimp	12-15 min
Chicken	20-25 min
Potato	27-30 min

Note: Cooking time may vary on type and the amount of food to be cooked.

CLEANING AND MAINTENANCE

1. Turn OFF and unplug the unit from the convenience outlet.
2. Allow the unit to cool before putting ON or taking OFF parts and before cleaning.
3. Cover, Racks, Filter, Filter Cover, and Oil Drip Tray are washable with soap and water.
4. Do not immerse the Base with Heating Element in water. Wipe it with damp cloth.
5. Do not use abrasive materials to avoid scratches.

REMINDER: Please do not forget to fill up and send the warranty card
