Product Type	Electric Grill
Model	TY-3400
Brand	Imarflex
Dimensions (L x W x H)	Approx. 40 x 30 x 10 cm
Weight	Approx. 3.0 kg
Power Supply	220-240 V ~ 50/60 Hz, 1500-2000 W
Cooking Surface	Non-stick coated, approx. 30 x 20 cm
Temperature Control	Adjustable thermostat with indicator light
Main Functions	Grilling, searing, indoor barbecuing
Detachable Plates	Yes, for easy cleaning
Safety Features	Auto shut-off, cool-touch handle, non-slip feet
Cleaning Instructions	Wipe with damp cloth; plates dishwasher safe
Spare Parts Availability	Replacement plates and accessories available
Repairability	Repairable by qualified technician; parts accessible
Warranty	1 year limited warranty

Frequently Asked Questions - TY-3400 Imarflex

How do I use the Imarflex TY-3400 Grill for the first time?

Before first use, remove all packaging and wash the non-stick plates with warm soapy water. Dry thoroughly, then lightly coat the plates with oil. Plug in and preheat for 5-10 minutes until the indicator light turns off.

Can I adjust the temperature on the TY-3400?

Yes, the grill features an adjustable thermostat. Turn the knob to your desired temperature (usually low to high). The indicator light will cycle on and off to maintain the set temperature.

Are the grill plates removable for cleaning?

Yes, the TY-3400 has detachable non-stick plates. After cooking and cooling, remove them and wash with a soft sponge and mild detergent. They are also dishwasher safe for convenience.

What is the recommended cooking temperature for chicken?

For chicken, set the thermostat to medium-high (around 190-210°C). Cook until the internal temperature reaches 74°C. Always ensure proper cooking to avoid foodborne illness.

Does the grill have an automatic shut-off feature?

Yes, the TY-3400 is equipped with an auto shut-off function that turns off the grill after a prolonged period of inactivity or overheating to ensure safety.

Can I use metal utensils on the non-stick surface?

Avoid using metal utensils as they can scratch the non-stick coating. Instead, use silicone, wood, or plastic utensils to prolong the life of the plates.

How do I prevent smoke while grilling?

To reduce smoke, trim excess fat from meats and avoid cooking at very high temperatures. Ensure the grill’s drip tray is empty and properly positioned. If smoke persists, lower the temperature slightly.

What should I do if the grill doesn't heat up?

First check that the power cord is securely plugged in and the outlet is working. Ensure the thermostat knob is turned to a setting above off. If still not heating, consult a qualified technician; do not attempt to disassemble the unit yourself.

Is the Imarflex TY-3400 suitable for outdoor use?

No, this grill is designed for indoor use only. Keep it away from water and moisture to avoid electric shock. Use on a stable, heat-resistant surface.

Where can I find replacement plates for the TY-3400?

Replacement plates can be ordered from the Imarflex official website or authorized retailers. Contact customer support for part numbers and availability. Always use genuine parts for best performance and safety.

USER MANUAL TY-3400 Imarflex

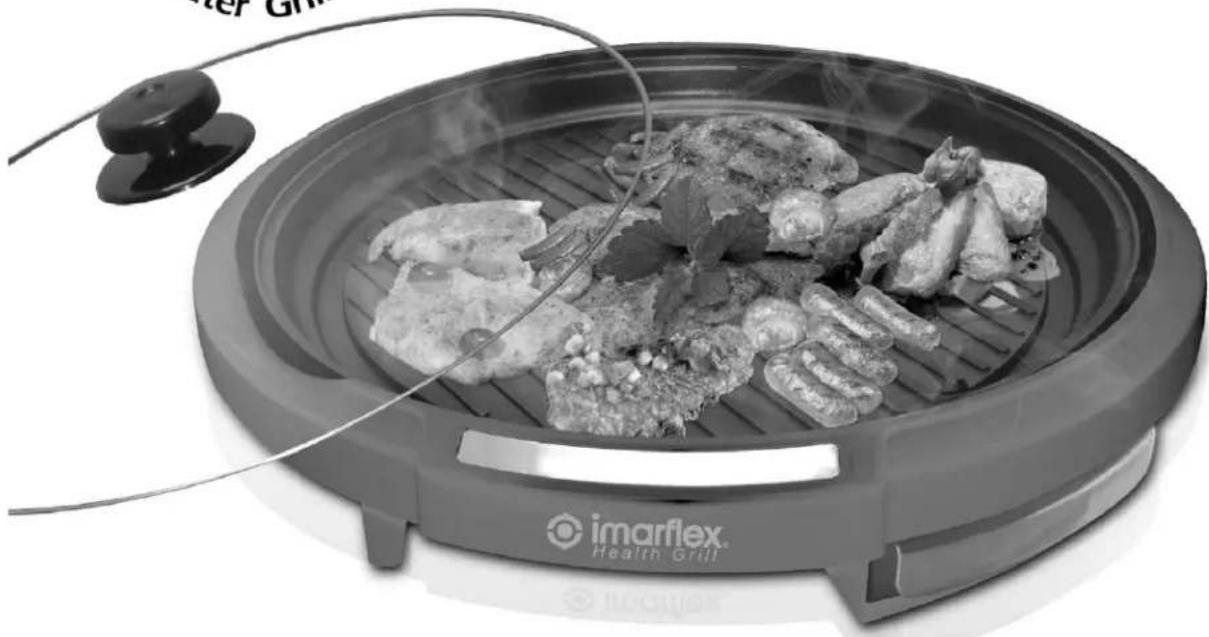

Steaming grater setup with meat and vegetables, no visible text or symbols on the main subject

imarflex®

In Every Home.

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Do not use the griller on any metal table.
3. Do not use the griller next to devices, which react sensitively to magnet (e.g., radios, TV, cassette recorders, etc.).

4. Keep curtains, furniture, flammable materials, etc. away from the griller and from the convenience outlet where the griller is plugged.

5. Before using the griller, check if the voltage indicated corresponds with the convenience outlet (230Va.c.)

6. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the griller to the nearest Authorized Service Center.

7. Do not use the two-way socket with another appliance.

8. Do not place the unit near gas stove, an electric burner, in heated oven or near any hot surface.

9. Do not touch the griller and the power plug with wet hands.

10. Do not insert objects like wires or tools into the plate socket, this may cause electric shocks.

11. Do not allow the cord to touch the hot surface of the unit.

12. Do not place any metal kitchen utensils, knives or other metal objects on the griller. These may heat up when the griller is turned on.

13. Do not place any magnetic objects on the griller plate while the griller is in use.

14. To protect against electric shock, do not immerse the grill plate and the thermostat control in water or any other liquids.

15. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

16. Extreme caution must be taken in moving an appliance containing hot oil or liquids.

17. Do not touch the Grill Plate while cooking is in progress.

18. Do not use the griller for other than intended use.

19. Use of accessories or equipment not supplied by the manufacturer may cause damage or malfunctioning of your appliance or result in injuries.

20. CAUTION: Never leave the unit unattended while cooking.

21. Not intended for outdoor use.

22. For household use only, not intended for any business purposes.

23. Save this instruction for future references.

Cartoon illustration of a steaming bowl with a hand holding a knife (no text or symbols)

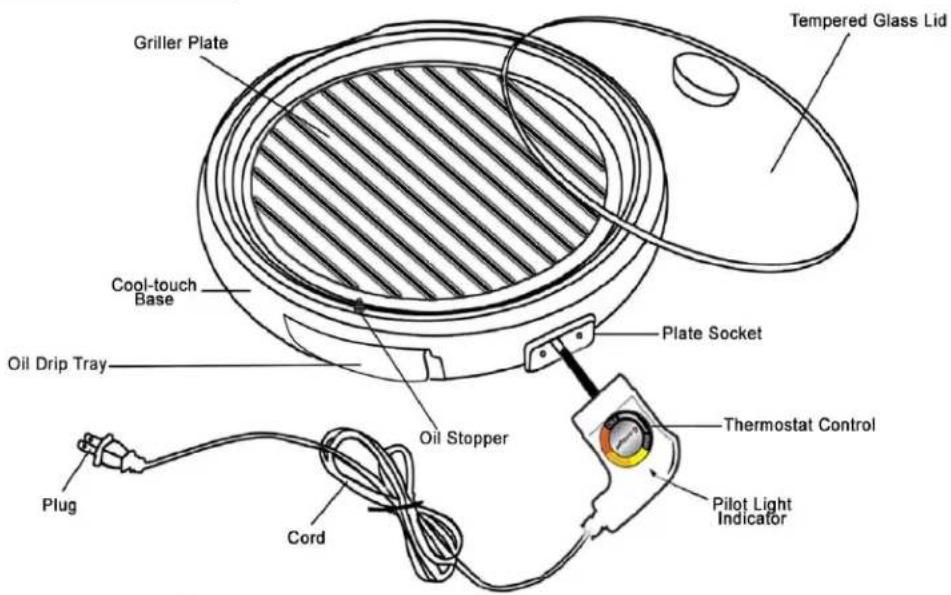

DESCRIPTION OF PARTS

HOW TO USE

1. Insert the grill plate into the cool-touch base by aligning the Plate Socket into the base hole and push down the Grill Plate.
2. Insert the thermostat on the plate socket, ensuring that it is set to "OFF" position then plug the unit into the convenience outlet.

Illustration of two hands inserting a plug into an electrical outlet, with arrows indicating direction (no text or symbols)

1. Adjust the Thermostat Control according to your cooking requirement (Note: Use medium

to low heat for best cooking result, very high temperatures can cause discoloration and shorten the life span of any non-stick surface. If higher temperatures are necessary, preheat on medium heat for a few minutes).

1. When the Grill Plate reaches the required temperature, the power light indicator will turn off.
2. Put the food in Grill Plate.

Note: 1. The unit comes with a rubber stopper that can be removed if you wish to grill with less oil

1. Make sure that the oil drip tray is in proper place before grilling.

2. Once the food is cooked, remove it from the Grill Plate.

3. Turn OFF and unplug after use.

CLEANING AND MAINTENANCE

1. Always unplug the unit from the convenience outlet and allow to cool before putting ON or taking OFF parts and before cleaning.
   Note: Make sure to remove the thermostat control before cleaning.
2. Wash the Grill Plate with soap and water using sponge (Do not allow bottom part to get wet). Wipe it dry.
3. Do not use abrasive materials to avoid scratches.
4. Do not immerse the Grill Plate and Thermostat Control in water or any other liquids.
5. Base is washable with soap and water.

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address [e-mail]

Distributed By: Evergood Unlimited Corp. Manila

901 G. Masangkay St., Manila

Made in China
