USER MANUAL LS-555H CANON

Portable/Palm Printers 14

P23-DH V 15
P1-DH V 16

Portable Displays 17

WS-1400H 18
TX-220TS 19
HS-1200TS 20
LS-100TS 21
TS-10TS 22
LS-85H 23
TS-83H 24

Handheld Displays 25

TS-82H 26
LS-555H 27
LS-82Z 28
LS-QT 29
LS-390H 30
LS-330H 31
LS-270H 32
LS-716H 33
KC-30 34

USB Compatible 35

DK-10i 36
DK-100i 37
DK-1000i 38

Scientific 39

F-766S 40
F-716S 41
F-710 42
F-604 43
F-502 44

Commercial Calculators 45

CP1460D 46
CP1260D 47
CP1213D II 48
CP1013D II 49
CP1250D 50
CP1200D 51
L1255 52

How To Buy A Printing Calculator 53

Product Configuration/Dimension Charts 54

Model Comparison Charts 58

Scientific Calculator Tables 62

CANON CALCULATORS... CANON'S GOT YOUR NUMBER.

Canon, the company that has pioneered much of the calculator technology that is considered standard today, has once again added enhanced features to many of our new calculators.

The time calculation feature simplifies any calculation where time-based fee structures are needed. The battery strength indicator alerts you to low battery power which may cause printing problems. The power save feature reduces power consumption while the calculator is idle. Check out the calculators that have these and other new features.

You can expect Canon's high standard for innovation and quality no matter which model suits your calculating application.

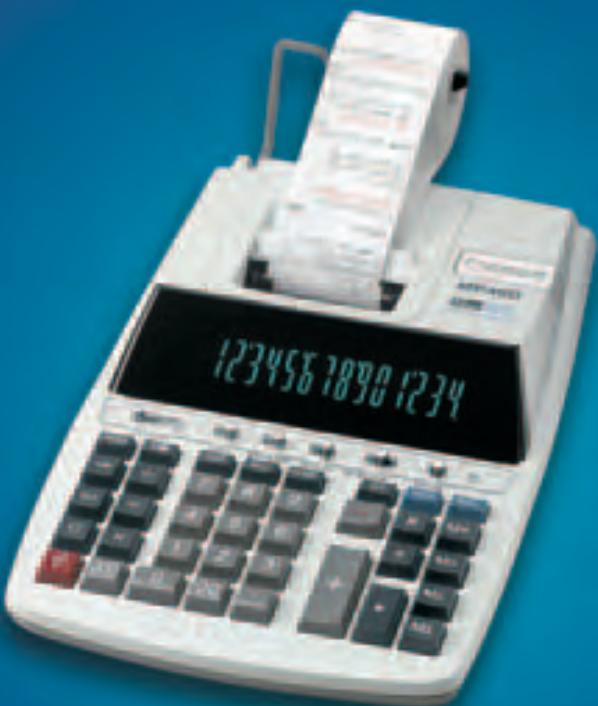

Desktop Printers

Canon's DESKTOP PRINTING calculators incorporate high-speed, two-color printing and easy-to-use keys that automatically perform complicated applications, in an attractive design.

14 digits
- Heavy duty, high-speed ink ribbon printer (5.2 Lines-per-second)
Profit margin calculation
- Currency Conversion
- Clock and calendar function
- Decimal positions: +, 0, 2, 3, 4, 6, F
Power save mode

14digits

Features

Type	Desktop Printing Calculator
Printing System	Ink Ribbon
Calculation Capacity	14 Digits for all calculations
Display	Extra-large Fluorescent Tube Display
Decimal Point System	Leftmost digit priority with floating decimal point. Results fixed at + (Add mode), 0, 2, 3, 4, 6, F (Floating position)
Rounding	↑5/4↓ selection switch for rounding up/off/down
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	5.2 Lines-per-second
Printing Paper	Standard plain paper roll width: 2-1/4" (57mm)
Types of Calculations	Profit margin calculation. Currency conversion. Tax calculation. Memory calculation. Mixed calculations. Addition, subtraction, multiplication and division. Chain multiplication and division. Constant multiplication, division and percentage calculation. Percentage add-on/discount calculation. Item count. Grand total. Sign change. Round up/off/down.
Power Source	AC
Auto Power Off	Approx. 7 minutes
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	8.9" (W) x 13.2" (L) x 3.0" (H) (225mm x 336mm x 76mm)
Weight	4 lbs. (1.8 kg)

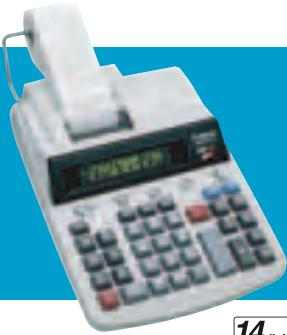

SOLUTIONS YOU CAN COUNT ON! MP41DHII

14 digits
- 2-color illuminated display
High-speed ink ribbon printer
-Prints black and red
- Decimal positions: +, 0, 2, 3, 4, 6, F
Profit margin calculation
- Double and triple zero

14digits

Features

Type	Desktop Printing Calculator
Printing System	Ink Ribbon
Calculation Capacity	14 Digits for all calculations
Display	Extra-large 2-color Illuminated Display
Decimal Point System	Leftmost digit priority with floating decimal point. Results fixed at + (Add mode), 0, 2, 3, 4, 6, F (Floating position)
Rounding	↑5/4↓ selection switch for rounding up/off/down
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	4.1 Lines-per-second
Printing Paper	Standard plain paper roll width 2-1/4" (57mm)
Types of Calculations	Profit Margin calculation. Tax calculation. Memory calculation. Mixed calculations. Addition, subtraction, multiplication, and division. Chain multiplication and division. Constant multiplication, division and percentage calculation. Item count. Grand Total. Sign change. Round up/off/down.
Power Source	AC
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	8.9" (W) x 14.0" (L) x 3.2" (H) (227mm x 355.5mm x 82mm)
Weight	3.5 lbs. (1.6 kg)

• Easy-to-read, extra-large fluorescent display
• Heavy-duty, high-speed ink ribbon printer (4.8 Lines-per-second)
  Profit margin calculation
• Clock and calendar function
• Quick reference guide
• Decimal positions: +, 0, 2, 3, 4, 6, F
  Power save mode

12digits

TAX

Features

Type	Desktop Printing Calculator
Printing System	Ink Ribbon
Calculation Capacity	12 Digits for all calculations
Display	Extra-large Fluorescent Tube Display
Decimal Point System	Leftmost digit priority with floating decimal point. Results fixed at + (Add mode), 0, 2, 3, 4, 6, F (Floating position)
Rounding	↑5/4↓ selection switch for rounding up/off /down
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	4.8 Lines-per-second
Printing Paper	Standard plain paper roll width: 2-1/4" (57mm)
Types of Calculations	Profit Margin calculation. Tax calculation. Memory calculation. Mixed calculations. Addition, subtraction, multiplication and division. Chain multi-lication and division. Constant multiplication, division and percentage calculation. Percentage add-on/discount calculation. Item count. Grand total. Sign change. Round up/off/down.
Power Source	AC
Auto Power Off	Approx. 7 minutes
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	8.9" (W) x 13.1" (L) x 3.0" (H) (227.5mm x 334mm x 76.8mm)
Weight	3.9 lbs. (1.8 kg)

• Easy-to-read, extra-large fluorescent display
• Heavy-duty, high-speed ink ribbon printer (4.3 Lines-per-second)
  Profit margin calculation
• Clock and calendar function
• Quick reference guide
• Decimal positions: +, 0, 2, 3, 4, 6, F
  -Prints black and red

Features

Type	Desktop Printing Calculator
Printing System	Ink Ribbon
Calculation Capacity	12 Digits for all calculations
Display	Fluorescent Tube Display
Decimal Point System	Leftmost digit priority with floating decimal point. Results fixed at + (Add mode), 0, 2, 3, 4, 6, F (Floating position)
Rounding	↑5/4↓ selection switch for rounding up/off/down
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	4.3 Lines-per-second
Printing Paper	Standard plain paper roll width: 2-1/4" (57mm)
Types of Calculations	Profit margin calculation. Tax calculation. Mixed calculations. Addition, subtraction, multiplication and division. Chain multiplication and division. Constant multiplication, division and percentage calculation. Percentage add-on/discount calculation. Add mode. Memory calculation. Item count. Grand total. Sign change. Round up/off/down.
Power Source	AC
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	8.8" (W) x 12.6" (L) x 3.6" (H) (224mm x 320mm x 98mm)
Weight	3.7 lbs. (1.7 kg)

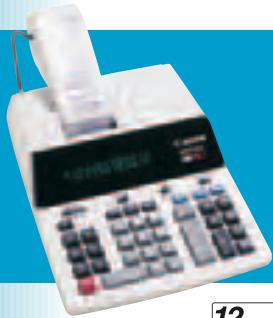

MP21DX

TWO-COLOR PRINTING, EXTRA-LARGE DISPLAY

• Easy-to-read, extra-large fluorescent display
• Heavy-duty, high-speed ink ribbon printer (3.5 Lines-per-second)
• Quick and easy tax calculations
• Decimal positions: +, 0, 2, 3, 4, 6, F
• Mark-up/down and delta percent
  -Prints black and red

12digits

TAX

Features

Type	Desktop Printing Calculator
Printing system	Ink Ribbon
Calculation Capacity	12 Digits for all calculations
Display	Fluorescent Tube Display
Decimal Point System	Leftmost digit priority with floating decimal point. Results Fixed at + (Add mode), 0, 2, 3, 4, 6, F (Floating position)
Rounding	↑5/4↓ selection switch for rounding up/off/down
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	3.5 Lines-per-second
Printing Paper	Standard plain paper roll width: 2-1/4" (57mm)
Types of Calculations	Mark-up/down calculation. Tax calculation. Memory calculation. Increase/decrease ratio calculation (Δ%). Mixed calculations. Addition, subtraction, multiplication and division. Chain multi-lication and division. Constant multiplication, division and percentage calculation. Percentage add-on and discount calculation. Add mode. Item count. Grand total. Sign change.
Power Source	AC
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	9" (W) x 12.2" (L) x 3.7" (H) (230mm x 308mm x 93mm)
Weight	4.0 lbs. (1.8 kg)

PRINTING CALCULATOR FOR MAXIMUM EFFICIENCY MP11DX

• Easy-to-read fluorescent display
  High-speed printer (3.7 Lines-per-second)
  Profit margin calculation
• Clock and calendar function
• Quick and easy tax calculations
• Decimal positions: +, 0, 2, 3, 4, 6, F
  -Prints black and red

12digits

TAX

Features

Type	Desktop Printing Calculator
Printing System	Ink Ribbon
Calculation Capacity	12 Digits for all calculations
Display	Fluorescent Tube Display
Decimal Point System	Leftmost digit priority with floating decimal point. Results fixed at + (Add mode), 0, 2, 3, 4, 6, F (Floating position)
Rounding	↑5/4↓ selection switch for rounding up/off/down
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	3.7 Lines-per-second
Printing Paper	Standard plain paper roll width: 2-1/4" (57mm)
Types of Calculations	Profit margin calculation. Tax calculation. Memory calculation. Mixed calculations. Addition, subtraction, multiplication and division. Chain multiplication and division. Constant multiplication, division and percentage calculation. Percentage add-on/ discount calculation. Add mode. Item count. Grand total. Sign change. Round up/off/down.
Power Source	AC
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	8.9" (W) x 13.1" (L) x 2.9" (H) (225mm x 332mm x 73mm)
Weight	3.9 lbs. (1.8 kg)

• Easy-to-read fluorescent display
• Quiet, serial impact printer with ink roller (2.3 Lines-per-second)
  Profit margin calculation
• Clock and calendar function
• Quick and easy tax calculations
• Decimal positions: +, 0, 1, 2, 3, 4, F

12digits

TAX

Features

Type	Desktop Printing Calculator
Printing System	Ink Roller
Calculation Capacity	12 Digits for all calculations
Display	Fluorescent Tube Display
Decimal Point System	Leftmost digit priority with floating decimal point. Results are fixed at + (Add mode), 0, 1, 2, 3, 4, F
Rounding	↑5/4↓ selection switch for rounding up/off/down
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	2.3 Lines-per-second
Printing Paper	Standard plain paper roll width: 2-1/4" (57mm)
Ink Roller	CP-13
Types of Calculations	Profit margin calculation. Tax calculation. Memory calculation. Mixed calculations. Addition, subtraction, multiplication, division. Chain multiplication and division. Constant multiplication, division and percentage calculation. Percentage add-on/discount calculation. Add mode calculation. Grand total. Sign change. Round up/off/down. Item count.
Power Source	AC
Usable Temperature	32°F – 104°F (0°C – 40°C)
Dimensions	7.8" (W) x 10.7" (L) x 2.5" (H) (197mm x 272mm x 63mm)
Weight	2.0 lbs. (890 g)

QUALITY & AFFORDABILITY THAT ADDS UP P160-DH

Easy-to-read fluorescent display
- Quiet, serial impact printer with ink roller (2.3 Lines-per-second)
Profit margin calculation
- Clock and calendar function
- Quick and easy tax calculations
- Decimal positions: +, 0, 1, 2, 3, 4, F

12digits

Features

Type	Desktop Printing Calculator
Printing System	Ink Roller
Calculation Capacity	12 Digits for all calculations
Display	Fluorescent Tube Display
Decimal Point System	+ (Add mode), 0, 1, 2, 3, 4, F
Rounding	↑5/4↓ selection switch for rounding up/off/down
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	2.3 Lines-per-second
Printing Paper	Standard plain paper roll width: 2-1/4" (57mm)
Ink Roller	CP-13
Types of Calculations	Profit margin calculation. Tax calculation. Memory calculation. Addition, subtraction, multiplication, division. Chain multiplication and division. Constant multiplication, division and percentage calculation. Percentage add-on/discount calculation. Add mode calculation. Grand total. Mixed calculations. Sign change. Round up/off/down. Item count.
Power Source	AC
Usable Temperature	32°F – 104°F (0°C – 40°C)
Dimensions	7.4" (W) x 10.4" (L) x 2.4" (H) (188mm x 265mm x 60mm)
Weight	1.9 lbs. (868 g)

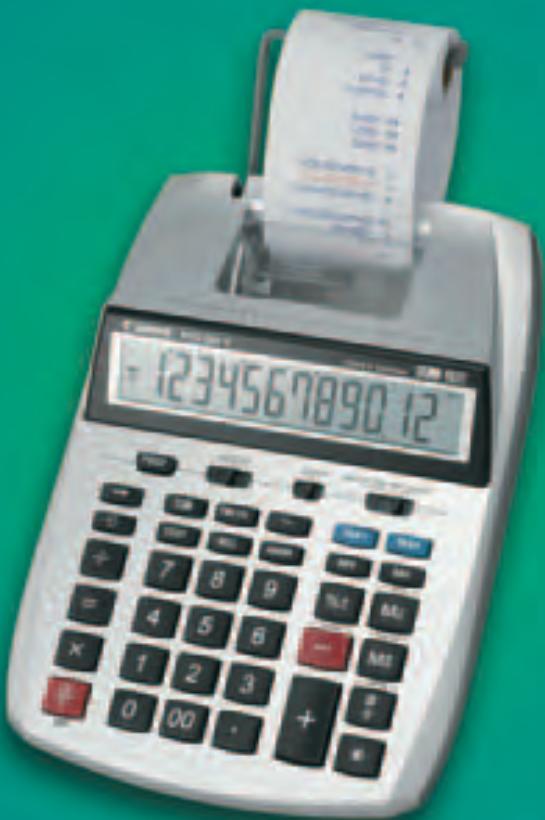

Portable/Palm Printers

Canon's PORTABLE/PALM PRINTING calculators provide advanced features with dual power in a convenient size for calculations on the go, anywhere!

• Extra-large liquid crystal display
• Two-color ink roller printer
  Profit margin calculation
• Clock and calendar function
  Time calculation function
• Quick and easy tax calculations
• Decimal positions: +, 0, 2, 3, F
  -Prints purple and red
  Automatic power-off function
• AC/DC power (AC adapter included)
• Battery strength indicator

12digits

TAX

Features

Type	Mini Desktop Printing Calculator
Printing System	Ink Roller
Calculation Capacity	12 Digits for all calculations
Display	Extra-large Liquid Crystal Display
Decimal Point System	Leftmost digit priority with floating decimal point. Results fixed at + (Add mode), 0, 2, 3, F (Floating position)
Rounding	↑5/4↓ selection switch for rounding up/off/down
Printing Color	Positive numbers are printed in purple and negative numbers in red
Printing Speed	2.3 Lines-per-second
Printing Paper	Roll width: 2-1/4" (57mm)
Ink Roller	CP-13
Types of Calculations	Profit margin calculation. Tax calculation. Clock and calendar function. Time calculation. Memory calculation. Mixed calculations. Power and reciprocal calculation. Repeat calculation. Addition, subtraction, multiplication and division. Constant multiplication, division and percentage calculation. Percentage add-on/discount calculation. Item count. Sign change. Round up/off/down.
Power Source	AC Adapter AC-380II (included) 4 AA size batteries (optional)
Auto Power Off	Approx. 7 minutes
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	6.4" (W) x 9.1" (L) x 2.2" (H) (163.5mm x 231.5mm x 55.5mm)
Weight	1.1 lbs. (510 g) with batteries

Large, liquid crystal display
- Ink roller printing
Time calculation function
Profit margin calculation
- Quick and easy tax calculations
- Decimal positions: 0, 2, 3, 4, A, F
-Prints purple
Automatic power-off function
- AC/DC power (AC adapter included)
- Battery strength indicator

12digits

TAX

Features

Type	Palm Printing Calculator
Printing System	Ink Roller
Calculation Capacity	12 Digits for all calculations
Display	Liquid Crystal Display
Decimal Point System	F (Floating Position) 0, 2, 3, 4, A (Add Mode)
Rounding	↑5/4↓ for round off
Printing Color	Purple
Printing Speed	2.0 Lines-per-second
Printing Paper	Standard plain paper roll width: 2-1/4" (57mm)Max. diameter: 3-3/8" (86mm)
Ink Roller	CP-16
Types of Calculations	Profit margin calculation. Time calculation. Tax function. Memory calculation. Percentage calculation. Percentage add-on/discount calculation.Mixed calculations. Addition, subtraction, multi- plication and division. Constant calculations. Sign change. Round off.
Power Source	AC Adapter AC-380II (included)4 AA size batteries (optional)
Auto Power Off	Approx. 7 minutes
Usable Temperature	32°F – 104°F (0°C – 40°C)
Dimensions	4.0" (W) x 8.1" (L) x 1.9" (H)(102mm x 205mm x 47mm)
Weight	9.6 oz. (272 g)11.6 oz. (330 g) with batteries

Portable Displays

Perfect for home, school or on a desktop, Canon's PORTABLE DISPLAY calculators have a variety of features with angled displays for a clear view of your calculations.

14 digits
Large, adjustable tilt display
- Decimal positions: A, 4, 3, 2, 0, F
Automatic power-off function
- Double and triple zero
Sign change key

14digits

Features

Type	Desktop Display Calculator
Display	Liquid Crystal Display
Display Screen Size	77.5mm (W) x 19.5mm (L)
Calculation Capacity	14 Digits for all calculations
Decimal Point System	A (Add mode), 4, 3, 2, 0, and F (Floating)
Rounding	↑5/4↓ selection switch for rounding up/off/down
Types of Calculations	Addition, subtraction, multiplication, and division. Constant calculations. Raising to powers. Percentage and Add-on/Discount calculations. Extraction of Square Roots. Mark-up calculation. Add-mode calculation. Memory calculation. Various mixed calculations. Grand Total calculation.
Indication Functions	Memory sign (MEMORY). Overflow indication (ERROR). Minus sign (- MINUS). Punctuation after every 3 digits. Grand Total sign (GT).
Power Source	Solar cell and alkaline battery (1 x LR-1130)
Usable Temperature	32°F-104°F (0°C-40°C)
Dimensions	5.9" (W) x 7.9" (L) x 1" (H) (150mm x 201mm x 25mm)
Weight	8.6 oz. (245 g)

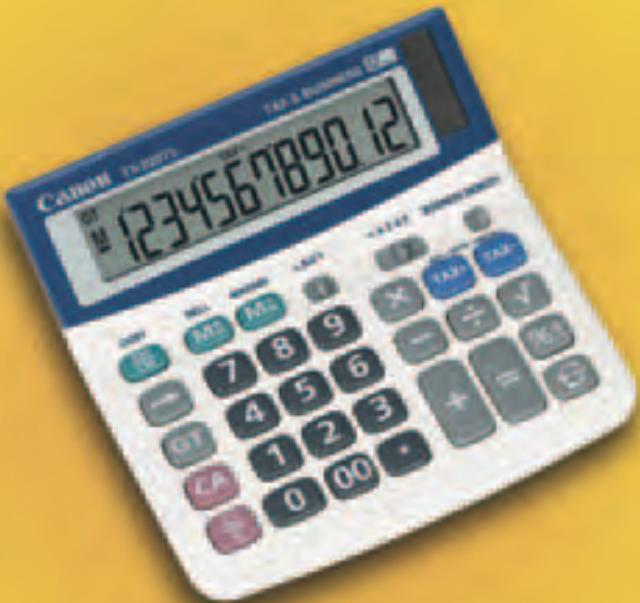

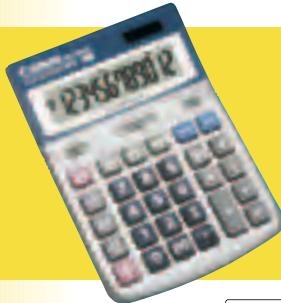

TAX & EVERYDAY BUSINESS CALCULATIONS TX-220TS

12 digits
Extra-large, adjustable tilt display
- Quick and easy tax calculations
Profit margin calculation
Grand total key
- Decimal positions: A, 4, 2, 0, F
- Adjustable tilt display

12digits

[TAX]

Features

Type	Desktop Display Calculator
Display	Liquid Crystal Display
Display Screen Size	104mm (W) x 23mm (L)
Calculation Capacity	12 Digits for all calculations
Decimal Point System	+ (Add mode), 4, 2, 0, F (Floating)
Rounding	↑5/4↓ selection switch for rounding up/off/down
Types of Calculations	Addition, subtraction, multiplication and division. Profit Margin calculations. Constant calculations. Percentage calculation. Percentage add-on/discount calculation. Extraction of square root. Memory calculation. Various mixed calcula-tions. Tax Calculation. Sign change. Grand total calculation.
Indication Functions	Overflow and Error signs (ERROR), Memory sign (MEMORY), Minus sign (-M), Punctuation after every three digits.
Power Source	Solar cell and alkaline battery (1 x CR2032)
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	5.7" (W) x 5.7" (L) x 1.2" (H) (146mm x 145mm x 30mm)
Weight	5.9 oz. (166 g)

12 digits
Profit margin calculation
- Quick and easy tax calculations
- Square root, sign change and memory keys
- Attractive metallic design

12digits

TAX

Features

Type	Desktop Display Calculator
Display	Liquid Crystal Display
Display Screen Size	88.7mm (W) x 21mm (L)
Calculation Capacity	12 Digits for all calculations
Decimal Point System	+ (Add mode), 4, 3, 2, 1, 0, F (Floating)
Rounding	↑5/4↓ selection switch for rounding up/off/down
Types of Calculations	Addition, subtraction, multiplication and divi-sion. Chain multiplication and division. Memory calculation. Percentage calculation. Percentage add-on and discount calculations. Profit margin calculations. Square root. Mixed calculations. Sign change, Tax calculation. Grand total calculation. Sign change.
Indication Functions	Overflow and Error sign (E). Memory sign (M).Minus sign (-M). Punctuation after every 3 digits.
Power Source	Solar cell and alkaline battery (1 x LR44)
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	6.7" (W) x 4.8" (L) x 1.4" (H)(174mm x 123mm x 38mm)
Weight	6 oz. (170 g)

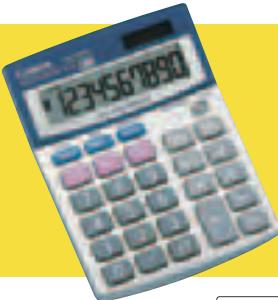

PORTABLE, AFFORDABLE LS-100TS

10 digits
Profit margin calculation
- Quick and easy tax calculations
- Square root, sign change and memory keys
- Attractive metallic design

10digits

Features

Type	Desktop Display Calculator
Display	Liquid Crystal Display
Display Screen Size	77.5mm (W) x 19.5mm (L)
Calculation Capacity	10 Digits for all calculations
Types of Calculations	Addition, subtraction, multiplication and division. Constant calculations. Profit margin calculation. Percentage calculation. Percentage add-on/discount calculation. Memory calculation. Various mixed calculations. Square root. Sign change. Tax function.
Indication Functions	Overflow and Error signs (ERROR), Memory sign (MEMORY), Minus sign (-M), Punctuation after every three digits.
Power Source	Solar cell and alkaline battery (1 x LR44)
Usable Temperatures	32°F – 104°F (0°C – 40°C)
Dimensions	4.1" (W) x 5.3" (L) x 1.3" (H) (103mm x 135mm x 32mm)
Weight	2.9 oz. (82 g)

10 digits
Profit margin calculation
- Adjustable tilt display
- Quick and easy tax calculations
- Square root, sign change and memory keys
- Attractive metallic design
Vinyl protective case

10digits

[TAX]

Features

Type	Handheld Display Calculator
Display	Liquid Crystal Display
Display Screen Size	65mm (W) x 19.5mm (L)
Calculation Capacity	10 Digits for all calculations
Types of Calculations	Addition, subtraction, multiplication and divi-sion. Constant calculations.Profit margin calcula-tion. Percentage calculation. Percentage add-on/discount calculation. Memory calculation. Various mixed calculations. Square root. Sign change. Tax function.
Indication Functions	Overflow and Error signs (ERROR), Memory sign (MEMORY), Minus sign (-M), Punctuation after every three digits.
Power Source	Solar cell and battery (1 x CR2016)
Usable Temperatures	32°F – 104°F (0°C – 40°C)
Dimensions	3" (W) x 5" (L) x 0.4" (H) (103mm x 135mm x 32mm)
Weight	2.9 oz. (82 g)

8 digits
- Eye-angled, upright display
- Floating decimal point system
Automatic power-off function
- Square root, sign change and memory keys

Features

Type	Dual-Powered Desktop Display Calculator
Display	Liquid Crystal Display
Display Screen Size	76mm (W) x 19mm (L)
Calculation Capacity	8 Digits for all calculations
Decimal Point System	Floating System
Types of Calculations	Addition, subtraction, multiplication, and division. Chain multiplication and division. Memory calculations. Constant calculations. Percentage calculations. Extraction of square roots. Reciprocal calculations. Various mixed calculations.
Indication Functions	Overflow and error sign (E). Memory sign (M).Minus sign (-). Punctuation after every three digits.
Power Source	Solar cell and alkaline battery (1 x LR1130)
Dimensions	3.9" (W) x 5.1" (L) x 1.0" (H)(100mm x 130mm x 26mm)
Weight	3.3 oz. (93.6 g)

8 digits
- Adjustable tilt display
- Floating decimal point system
- Square root, sign change and memory keys
- Mark-up calculation

8digits

Features

Type	Desktop Display Calculator
Display	Liquid Crystal Display
Calculation Capacity	8 Digits for all calculations
Decimal Point System	Floating decimal system
Types of Calculations	Addition, subtraction, multiplication and divi-sion. Automatic constant addition, subtraction, multiplication and division. Chain multiplication and division. Percentage and add-on/discount calculation. Memory, mixed and mark-up calculation.
Power Source	Solar cell and alkaline battery (1 x LR1130)
Usable Temperature	32°F – 104°F (0°C – 40°C)
Dimensions	4.0" (W) x 6.5" (L) x 0.4" (H) (103mm x 166mm x 11mm)
Weight	3.9 oz. (112 g)

Handheld Displays

Small enough to go anywhere, Canon's HANDHELD DISPLAY calculators incorporate powerful features, a dual power supply and an array of calculating possibilities to meet everyone's needs.

8 digits
- Flip-top display panel
- Adjustable, extra-large tilt display
- Dual power source: solar and battery

8digits

Features

Type	Handheld Display Calculator
Display	Liquid Crystal Display
Calculation Capacity	8 Digits for all calculations
Decimal Point System	Floating system
Types of Calculations	Addition, subtraction, multiplication and divi-sion. Automatic constant addition, subtraction, multiplication and division, Chain multiplication and division. Percentage, add-on/discount calcu-lation. Memory, mixed and mark-up calculation.
Power Source	Solar cell and alkaline battery (1 x LR1130)
Usable Temperature	32°F – 104°F (0°C – 40°C)
Dimensions	3.3" (W) x 5.1" (L) x 0.5" (H) (83mm x 130mm x 13mm)
Weight	2.8 oz. (80 g)

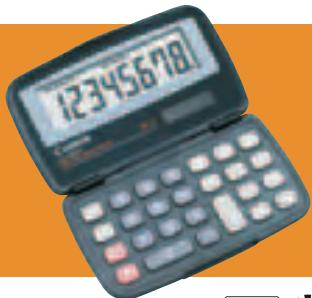

STURDY, COMPACT DESIGN FOR CONVENIENCE LS-555H

8 digits
- Foldover design
Sturdy hard cover casing keeps keys dust-free
- Fingertip-size keys with hard rounded keytops
- Dual power source: solar and battery

8digits

Features

Type	Foldable Handheld Display Calculator
Display	Liquid Crystal Display
Display Screen Size	77.5mm (W) x 23mm (L)
Calculation Capacity	8 Digits for all calculations
Decimal Point System	Floating system
Types of Calculations	Addition, subtraction, multiplication and division Chain multiplication and division. Memory calculation. Constant calculation. Percentage calculation. Extraction of square root. Reciprocal calculation. Sign change. Various mixed calculations.
Indication Functions	Overflow and error (ERROR), memory sign (MEMORY), minus sign (-MINUS)
Power Source	Solar cell and alkaline battery (1 x LR1130)
Usable Temperatures	32°F-104°F (0°C-40°C)
Dimensions	Closed: 4.3" (W) x 2.7" (L) x 0.6" (H) (110mm x 67.5mm x 15mm)
	Opened: 4.3" (W) x 5.1" (L) x 0.3" (H) (110mm x 129mm x 8mm)
Weight	2.82 oz. (80 g)

8 digits
Large, eye-angled, upright display
- Floating decimal point system
- Extra-compact portable size
- Extraction of square root
- Dual power source: solar and battery

8digits

Features

Type	Portable Display Calculator
Display	Liquid Crystal Display
Display Screen Size	2-7/32" x 3/4" 56mm x 18.5mm
Character Size	7/32" x 5/8" 5.5mm x 15mm
Calculation Capacity	8 Digits for all calculations
Decimal Point System	Floating decimal point system
Types of Calculations	Addition, subtraction, multiplication and divi-sion. Chain multiplication and division. Memory calculations. Percentage calculations. Add-on and discount calculations. Extraction of square root. Reciprocal calculations. Various mixed calculations.
Indication Functions	Overflow and error sign (E), memory sign (M), minus sign (-).
Power Source	Solar cell and alkaline battery (1 x LR1130)
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	3.5" (W) x 4.4" (L) x 1.3" (H) (88mm x 111mm x 32mm)
Weight	2.5 oz. (64 g)

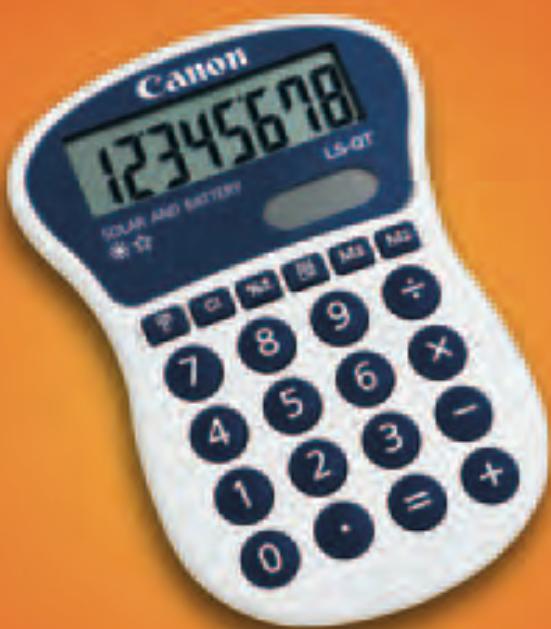

COMPACT, STYLISH, DUAL POWERED LS-QT

• Ergonomic palm design
• Oversized, easy-to-read display
• Dual power source: solar and battery

8digits

Features

Type	Handheld Display Calculator
Display	Liquid Crystal Display
Display Screen Size	52mm (W) x 15mm (L)
Calculation Capacity	8 Digits for all calculations
Decimal Point System	Floating system
Types of Calculations	Addition, subtraction, multiplication, division. Automatic constant addition, subtraction, multi- plication and division. Chain multiplication and division. Memory calculations. Percentage add- on/discount calculations. Mixed calculations.
Indication Functions	Overflow and Error sign (ERROR), Memory sign (MEMORY), Minus sign (-MINUS).
Power Source	Solar cell and battery (1 x CR2016)
Automatic Power Off	Approx. 7 minutes
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	3.1" (W) x 4.5" (L) x 0.5" (H) (71mm x 103mm x 13mm)
Weight	1.3 oz. (37 g)

• Ergonomically designed, large plastic keys with rounded edges for comfort
• Dual power source: solar and battery
• Extraction of square root and sign change

8digits

Features

Type	Handheld Display Calculator
Display	Liquid Crystal Display
Display Screen Size	2-5/32" (W) x 1/2" (H) (55mm x 13mm)
Calculation Capacity	8 Digits for all calculations
Decimal Point System	Floating decimal point system
Types of Calculations	Addition, subtraction, multiplication and divi- sion. Automatic multiplication by a constant. Memory calculation. Extraction of square root. Percentage calculations. Various mixed calcula- tions. Sign change.
Indication Functions	Overflow and error sign (E), memory sign(M), minus sign(-)
Power Source	Solar cell and alkaline battery (1 x LR1130)
Dimensions	2.9" (W) x 4.7" (L) x 0.5" (H) (73.5mm x 119.5mm x 11.5mm)
Weight	2.2 oz. (62 g)

• Oversized, easy-to-read display
• Dual power source: solar and battery
• Mark-up key
• Extraction of square root and sign change

8digits

Features

Type	Handheld Display Calculator
Display	Liquid Crystal Display
Display Screen Size	53mm (W) x 16mm (L)
Calculation Capacity	8 Digits for all calculations
Decimal Point System	Floating system
Types of Calculations	Addition, subtraction, multiplication, division. Automatic constant addition, subtraction, multi- plication and division. Chain multiplication and division. Memory calculations. Percentage add- on and discount calculations. Square root. Mark- up. Sign change. Mixed calculations.
Indication Functions	Overflow and Error sign (ERROR), Memory sign (MEMORY), Minus sign (-MINUS).
Power Source	Solar cell and alkaline battery (1 x CR2032)
Automatic Power Off	Approx. 7 minutes
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	2.8" (W) x 4.5" (L) x 0.4" (H) (71mm x 114mm x 10mm)
Weight	1.2 oz. (29 g)

• Oversized, easy-to-read display
• Dual power source: solar and battery
  Mark-up key
• Extraction of square root
• Attractive metallic design

8digits

Features

Type	Handheld Display Calculator
Display	Extra-large Liquid Crystal Display
Display Screen Size	36.5mm (W) x 17.3mm (L)
Calculation Capacity	8 Digits for all calculations
Decimal Point System	Floating system
Types of Calculations	Addition, subtraction, multiplication, division. Automatic constant addition, subtraction, multi- plication and division. Chain multiplication and division. Memory calculation. Percentage add-on and discount calculations. Square root. Mark- up/down. Sign change. Mixed calculations.
Indication Functions	Overflow and Error sign (ERROR), Memory sign (MEMORY), Minus sign (-MINUS).
Power Source	Solar cell and alkaline battery (1 x LR1130)
Automatic Power Off	Approx. 7 minutes
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	2.4" (W) x 4.0" (L) x 0.4" (H) (61mm x 102mm x 10mm)
Weight	1.3 oz. (37 g)

SLIM, CREDIT CARD SIZE LS-716H

• Easy-to-read, extra-large display
• Slim, credit card design
  Solar-powered from available light source
• Includes pouch case

8digits

Features

Type	Card-size Display Calculator
Display	Liquid Crystal Display
Display Screen Size	42.5mm (W) x 14mm (L)
Calculation Capacity	8 Digits for all calculations
Decimal Point System	Floating decimal point system
Types of Calculations	Addition, subtraction, multiplication and division. Chain multiplication and division. Constant multiplication and division. Percentage calculations. Extraction of square root. Mixed calculations. Sign change.
Indication Functions	Minus sign (-) memory sign (M), and error sign (E).
Power Source	Integrated silicon solar cells
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	3.4" (W) x 2.1" (L) x 0.1" (H) (85.5mm x 54mm x 3.8mm)
Weight	0.74 oz. (21 g)

• Designed with a freely rotating key chain
  8-digit liquid crystal display
• Floating decimal point system

8digits

Features

Type	Mini Key Chain Calculator
Display	Liquid Crystal Display
Display Screen Size	1.6" (W) x 3.1" (L) x 0.5" (H)
Calculation Capacity	8 Digits for all calculations
Decimal Point System	Floating point system
Types of Calculations	Addition, subtraction, multiplication, division, and chain multiplication and division. Automatic multiplication and division by a constant. Reciprocal calculations. Percentage calculations.
Indication Functions	Overflow and error sign (E). Minus sign (-).
Power Source	A alkaline battery (1 x LR1130). Battery life about 3,500 hours of operation.
Usable Temperature	32°F - 104°F (0° - 40°C)
Dimensions	1.7" (W) x 3.0" (L) x 0.5" (H) (43mm x 76mm x 14mm)
Weight	1 oz. (27 g)

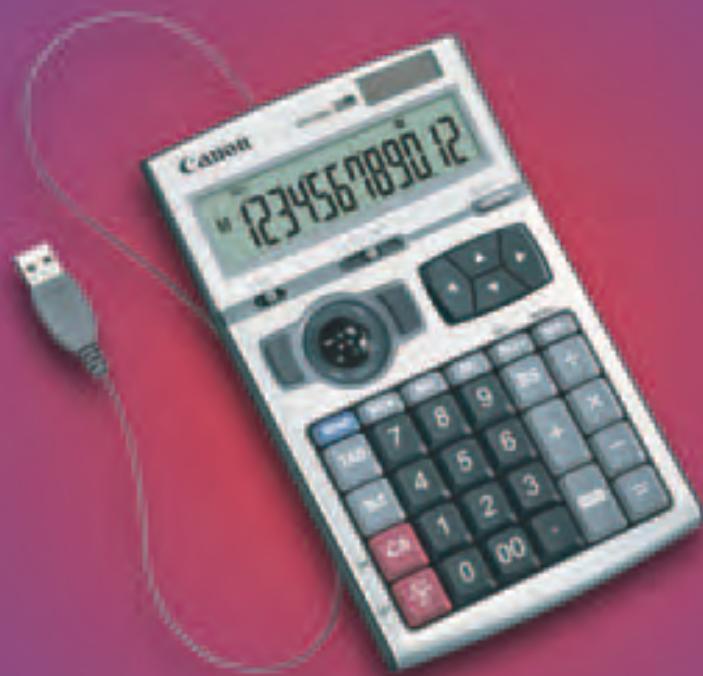

USB Compatible

Utilizing Plug and Play technology, Canon USB calculators offer immediate access to the benefit of an external keypad in a format that is optimal for the mobile professional. The DK-10i, DK-100i and the DK-1000i USB calculators are ideal for anyone who is concerned with efficiency and convenience.

Key pad
12-digitis
Large liquid crystal display
PC link function
- USB cable included
- USB Plug & Play technology
- Tax keys
Trendy metallic black body
- Dual power capability (solar and battery)

12digits

Features

Type	Handheld USB Calculator
Display	Large, Liquid Crystal Display
Calculation Capacity	12 Digits for all calculations
Decimal Point System	Floating system
Types Of Calculations	Addition, subtraction, multiplication, division. Memory calculation. Percentage add-on and discount calculations. PC link function. Tax calculation.
Indication Functions	Overflow and Error sign (ERROR), Memory sign (MEMORY), Minus sign (-MINUS).
Computer	IBM PC/AT or compatible with built-in USB port
Operating System	Pre-installed Windows 98/98SE/Me/2000 Professional/XP/Windows Vista™
Power Source	Solar cell and alkaline battery (CR2016)
Automatic Power Off	Approx. 7 minutes
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	2.8" (W) x 4.8" (L) x 0.5" (H) (72mm x 122mm x 13mm)
Weight	2.33 oz. (66 g)

Windows and Windows Vista are trademarks or registered trademarks of Microsoft Corporation in the U.S. and/or other countries.

CONVENIENT FOR YOUR DESK OR LAPTOP DK-100i

Key pad
12-digitis
Large liquid crystal display
PC link function
USB cable included
- USB Plug & Play technology
- Tax keys
Trendy metallic black body
- Dual power capability (solar and battery)

12digits

Features

Type	Desktop USB Calculator
Display	Large, Liquid Crystal Display
Calculation Capacity	12 Digits for all calculations
Decimal Point System	Floating system
Types Of Calculations	Addition, subtraction, multiplication, division. Memory calculation. Percentage add-on and discount calculations. PC link function. Tax calculation.
Indication Functions	Overflow and Error sign (ERROR), Memory sign (MEMORY), Minus sign (-MINUS).
Computer	IBM PC/AT or compatible with built-in USB port
Operating System	Pre-installed Windows 98/98SE/Me/2000 Professional/XP/Windows Vista™
Power Source	Solar cell and alkaline battery (CR2016)
Automatic Power Off	Approx. 7 minutes
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	4.1" (W) x 5.3" (L) x 1.3" (H) (103mm x 135.5mm x 34mm)
Weight	4.3 oz. (122 g)

Windows and Windows Vista are trademarks or registered trademarks of Microsoft Corporation in the U.S. and/or other countries.

Trackball
- PC touch key pad
12-digits
- PC function key: TAB, Enter & send keys
PC link function
- Retractable USB cable
- USB Plug & Play technology
- Tax keys
- Stylish metal plate design

Features

Type	Desktop USB Calculator
Display	Large, Liquid Crystal Display
Calculation Capacity	12 Digits for all calculations
Decimal Point System	+ (Add), 4, 3, 2, 1, 0 & F (Floating)
Types Of Calculations	Addition, subtraction, multiplication, division. Memory calculation. Percentage add-on and discount calculations. PC link function. Tax calculation.
Indication Functions	Overflow and Error sign (ERROR), Memory sign (MEMORY), Minus sign (-MINUS).
Computer	IBM PC/AT or compatible with built-in USB port
Operating System	Pre-installed Windows 98/98SE/Me/2000 Professional/XP/Windows Vista™
Power Source	Solar cell and alkaline battery (CR2032)
Automatic Power Off	Approx. 7 minutes
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	4.5" (W) x 7.2" (L) x 1.4" (H) (115mm x 184mm x 37mm)
Weight	9.7 oz. (275 g)

Windows and Windows Vista are trademarks or registered trademarks of Microsoft Corporation in the U.S. and/or other countries.

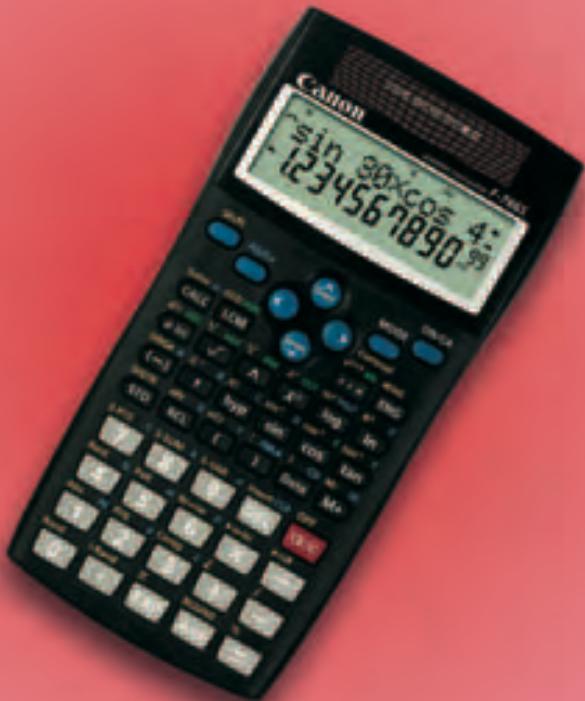

Scientific

Canon's SCIENTIFIC calculators are packed with great features, including 38 built-in formulas and an LCD contrast adjustment.

Total 349 functions
- 10+2 digits
- Dual power (solar and battery)
17 store and recall memories
38 built-in formulas
- Undo / input recovery
- Adjustable LCD contrast
- Battery strength indicator
- Quick reference guide
- Protective hard case included

10digits

Features

Display	Lines-2, 1st Line Display (Dot Matrix)-12, 2nd Line Display-10+2, Contrast Adjustable, Notation (Sci/Eng)
Memory	No of Store Memory-17, Independent Memory-1, Alphanumeric Character-9 (A~F, M, X, Y) E, F only use in Base-n Calculation, Equation Pending Operations-9
Formula/Constant Value/Metric	Direct Input Calculation Expression-M.e.V.i.m., Built-in Formula-38, Engineering Symbol Calculations
Mathematics	Parentheses-24, General Calculation, Log.b Calculation, Fraction Calculation, Degree-minutes-seconds ≦ Decimal degrees/sexagesimal cal., Equation Solving (Quadratic, Cubic, Simultaneous), CALC Function, SOLVE Function, Complex Number Operations, Least Common Multiple/Greatest Common Divisor, Absolute Value Calculation, Multi-Statements Calculation
Trigonometry	Angles Conversion, DRG Mode Calculation, Trigonometric Calculation, Coordination Conversion (Rectangular ↔ Polar)
Computer Math	Base-n Calculation (Binary, Octal, Decimal, Hexadecimal) & Transformation between DHBO, Logic Operator
Statistics	1-/2-Variable-2, Mean/Standard Deviation/Sum of Value, Median, Maximum/Minimum Value, Factorials/Permutations & Combinations, Probability Distribution, Linear Regression, Quadratic Regression, Exponential/Logarithmic/Power/Inverse Regression, Correlation Coefficient, Regression Coefficient, Random Number Generation, Integer Random Number Generation
Replay	Last Digit Correction, Last Answer Recall, Multiple Replay, Block Level Reply (Base-n mode), UNDO/Input Recover
Other	Low Battery Indicator
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	3.2" (W) x 6.3" (L) x 0.7" (H) (81.5mm x 160mm x 18mm)
Weight	5.3 oz. (150 g) including cover

Total 288 functions
- 10+2 digits
- Dual power (solar and battery)
17 store and recall memories
38 built-in formulas
- Undo / input recovery
- Adjustable LCD contrast
- Battery strength indicator
- Quick reference guide
- Protective hard case included

10digits

Features

Display	Lines-2, 1st Line Display (Dot Matrix)-12, 2nd Line Display-10+2, Contrast Adjustable, Notation (Sci/Eng)
Memory	No of Store Memory-17, Independent Memory-1, Alphanumeric Character-A-D, M, X, Y, Equation Pending Operations-9
Formula/Constant Value/Metric	Direct Input Calculation Expression-M.e.-V.i.m., Built-in Formula-38, Engineering Symbol Calculations
Mathematics	Parentheses-24, General Calculation, Log.b Calculation, Fraction Calculation, Degree-minutes-seconds ⋆ Decimal degrees/sexagesimal cal., Quotient & Remainder Calculation/Exchange, Least Common Multiple/Greatest Common Divisor, Absolute Value Calculation, Multi- Statements Calculation
Trigonometry	Angles Conversion, DRG Mode Calculation, Trigonometric Calculation, Coordination Conversion (Rectangular ↔ Polar)
Statistics	1-/2- Variable-2, Mean/Standard Deviation/Sum of Value, Median, Maximum/Minimum Value, Factorials/ Permutations & Combinations, Linear Regression, Quadratic Regression, Exponential/Logarithmic/Power/ Inverse Regression, Correlation Coefficient, Regression Coefficient, Random Number Generation, Integer Random Number Generation
Replay	Last Digit Correction, Last Answer Recall, Multiple Replay, UNDO/Input Recover
Other	Low Battery Indicator
Usable Temperature	32°F – 104°F (0°C – 40°C)
Dimensions	3.2" (W) x 6.3" (L) x 0.7" (H) (81.5mm x 160mm x 18mm)
Weight	5.3 oz. (150 g) including cover

• Display type: floating, scientific exponential liquid crystal display
  139 total functions +38 built-in formulas;
  Power Source: alkaline battery CR-2032
• Easy-to-read description of key functions
  Large, durable plastic keytops
• Protective hard cover case included

10digits

Features

Display	Lines-2, 1st Line Display (Dot Matrix)-11, 2nd Line Display-10+2, Contrast Adjustable, Notation (Sci/Eng)
Memory	No of Store Memory-3, Independent Memory-1, Parentheses-23, Pending Operations-7
Formula/Constant Value/Metric	Direct Input Calculation Expression, Built-in Formula-38, Scientific Constants/Constant Value-1, Engineering Symbol Calculations
Mathematics	General Calculation, Fraction Calculation, Degree-minutes-seconds ⇔ Decimal degrees/sexagesimal cal.
Trigonometry	Angles Conversion, DRG Mode Calculation, Trigonometric Calculation, Coordination Conversion (Rectangular ↔ Polar)
Statistics	1-/2-Variable-1, Mean/Standard Deviation/Sum of Value, Factorials/Permutations & Combinations, Correlation Coefficient, Random Number Generation
Replay	Last Digit Correction, Last Answer Recall
Usable Temperature	32°F – 104°F (0°C – 40°C)
Dimensions	3.2" (W) x 5.9" (L) x 0.5" (H) (152mm x 77mm x 13mm)
Weight	3.1 oz. (88 g)

• Display type: floating, scientific exponential liquid crystal display
  142 total functions
  Power Source: alkaline battery LR-44
• Easy-to-read description of key functions
  Large, durable plastic keytops
• Protective hard cover case included

10digits

Features

Display	Lines-1, Calculating Digits/Scientific Notation-10+2, Alphanumeric-Partial
Memory	No of Store Memory-10, Independent Memory-1, Parentheses-15, Pending Operations-5
Mathematics	Fixed Decimal Option, Log, 10°, In, e', x', ^V, y', 1/x, ^Vy, %, Exponential calculation in a x 10', Degree-minutes-seconds ⌊, Decimal deg./sexa-gesimal cal., Rectangular ↦ Polar
Trigonometry	DEG, RAD, GRAD, DRG Conversions, Sin, Cos, Tan, Inverses, Hyperbolic
Computer Math	Binary, Octal, Decimal, Hexadecimal, Logic Operator/Base-N calculation
Statistics	1-/2-Variable-1, Mean, Standard Deviation, Sum of Value, Factorials, Permutations & Combinations, Linear Regression, Random
Replay	Last Digit correction
Usable Temperature	32°F – 104°F (0°C – 40°C)
Dimensions	3.1" (W) x 5.9" (L) x 0.7" (H) (79mm x 149mm x 18mm)
Weight	3.2 oz. (90 g)

• Display type: floating, scientific exponential liquid crystal display
  136 total functions
  Power Source: alkaline battery LR-44
• Easy-to-read description of key functions
  Large, durable plastic keytops
• Protective hard cover case included

8digits

Features

Display	Lines-1, Calculating Digits/Scientific Notation-8+2, Alphanumeric-Partial
Memory	Independent Memory-1, Parentheses-15, Pending Operations-3
Mathematics	Fixed Decimal Option, Log, 10', In, e', x', ^v, y', 1/x, ^vY, %, Exponential calculation in a x 10', Degree-minutes-seconds <>, Decimal degrees/sexagesimal cal., Rectangular <> Polar
Trigonometry	DEG, RAD, GRAD, DRG Conversions, Sin, Cos, Tan, Inverses, Hyperbolic
Statistics	1-/2- Variable-1, Mean, Standard Deviation, Sum of Value, Factorials, Random
Usable Temperature	32°F – 104°F (0°C – 40°C)
Dimensions	3.0" (W) x 5.6" (L) x 0.4" (H) (76mm x 141mm x 11mm)
Weight	2.6 oz. (75 g)

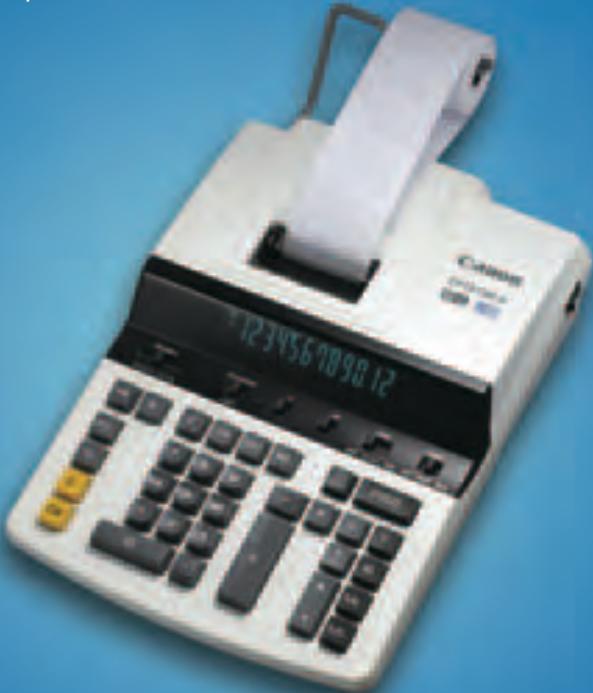

Commercial Calculators

Equipped with a Canon COMMERCIAL calculator, today's business professional is always prepared when faced with even the most demanding financial tasks. From tallying earnings to calculating payrolls, Canon Commercial Calculators help you get the answers you need with the accuracy and efficiency you expect from Canon.

High-speed, two-color printing (5.2 Lines-per-second)
14-digit Extra-large fluorescent display
Profit margin calculation
- Clock and calendar function
- Quick and easy tax calculations
- Decimal positions: +, 0, 2, 3, 4, 6, F
Power save mode

14digits

TAX

Power Save

SAVE ON ENERGY COST

MU

Features

Type	Commercial Printing Calculator
Printing System	Ink Ribbon
Calculation Capacity	14 Digits for all calculations
Display	Extra-large Fluorescent Tube Display
Decimal Point System	+ (Add mode), 0, 2, 3, 4, 6, F (Floating position)
Rounding	↑5/4↓ selection switch for rounding up/off/down
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	5.2 Lines-per-second
Printing Paper	Standard plain paper roll width: 2-1/4" (57mm)
Types of Calculations	Profit margin calculation. Tax calculation. Currency conversion. Memory calculation. Grand total. Mixed calculations. Increase/decrease ratio calculation (Δ%). Addition, subtraction, multiplication and division. Repetitive addition and subtraction. Chain multiplication and division. Constant multiplication and division. Percentage add-on/discount calculation. Add mode. Sign Change. Round-up/off/down, Mark-up/down. Item count.
Power Source	AC
Auto Power Off	Approx. 7 minutes
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	9.8" (W) x 13.5" (L) x 3.9" (H) (250mm x 343mm x 99mm)
Weight	4.9 lbs. (2.2 kg)

POWERFUL PERFORMANCE CP1260D

High-speed, two-color printing (5.2 Lines-per-second)
12-digit large fluorescent display
Profit margin calculation
- Clock and calendar function
- Quick and easy tax calculations
- Decimal positions: +, 0, 2, 3, 4, 6, F
Power save mode

12digits

[TAX]

Power Save

SAVE ON ENERGY COST

Features

Type	Commercial Printing Calculator
Printing System	Ink Ribbon
Calculation Capacity	12 Digits for all calculations
Display	Extra-large Fluorescent Tube Display
Decimal Point System	+ (Add mode), 0, 2, 3, 4, 6, F (Floating position)
Rounding	↑5/4↓ selection switch for rounding up/off/down
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	5.2 Lines-per-second
Printing Paper	Standard plain paper roll width: 2-1/4" (57mm)
Types of Calculations	Profit margin calculation. Tax calculation. Currency conversion. Memory calculation. Grand total. Mixed calculations. Increase/decrease ratio calculation (Δ%). Addition, subtraction, multiplication and division. Repetitive addition and subtraction. Chain multiplication and division. Constant multiplication and division. Percentage add-on/discount calculation. Add mode. Sign Change. Round-up/off/down. Mark-up/down. Item count.
Power Source	AC
Auto Power Off	Approx. 7 minutes
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	9.8" (W) x 13.5" (L) x 3.9" (H) (250mm x 343mm x 99mm)
Weight	4.9 lbs. (2.2 kg)

CP1213D II

PROFESSIONAL TOOLS FOR THE PROFESSIONAL

High-speed, two-color printing (4.8 Lines-per-second)
12-digit large fluorescent display
- Decimal positions: F, 6, 4, 3, 2, 1, 0, +1, +2
Memory storage
- Independent memory with accumulation capability
- Constant multiplication and division
- Averaging and pairing calculations

12digits

Features

Type	Commercial Printing Calculator
Printing System	Ink ribbon
Calculation Capacity	12 Digits for all calculations
Display	Fluorescent Tube Display
Decimal Point System	6,4,3,2,1,0,+1,+2 (Add-mode) and F (Floating) positions
Rounding	↑5/4↓ selector for round-off, round-down and round-up
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	4.8 Lines-per-second
Printing Paper	Roll width 57 - 58mm (2-1/4") Max. diameter 86mm (3-5/32")
Types of Calculations	Mark-up/mark-down calculation. Memory calculation. Percentage calculation. Add-on calculation. Discount calculation. Percentage increase and decrease calculation. Average calculation. Par mode calculation. Mixed calculations. Addition, subtraction, multiplication and division. Repetitive addition and subtraction. Chain multiplication and division. Constant multiplication and division. Raising to powers. Reciprocal calculation. Sum and difference of products and quotients. Item counting.
Power Source	AC
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	9.5" (W) x 13.4" (L) x 3.4" (H) (241mm x 340mm x 86mm)
Weight	4.1 lbs. (1.9 kg)

PROFESSIONAL TOOLS FOR THE PROFESSIONAL CP1013D II

High-speed, two-color printing (4.8 Lines-per-second)
10-digit large fluorescent display
- Decimal positions: F, 6, 4, 3, 2, 1, 0, +1, +2
Memory storage
- Independent memory with accumulation capability
- Constant multiplication and division
- Averaging and pairing calculations

10digits

MU

Features

Type	Commercial Printing Calculator
Printing System	Ink ribbon
Calculation Capacity	10 Digits for all calculations
Display	Fluorescent Tube Display
Decimal Point System	6,4,3,2,1,0,+1,+2 (Add-mode) and F (Floating) positions
Rounding	↑5/4↓ selector for round-off, round-down and round-up
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	4.8 Lines-per-second
Printing Paper	Roll width 57 - 58mm (2-1/4") Max. diameter 86mm (3-5/32")
Types of Calculations	Mark-up/mark-down calculation. Memory calculation. Percentage calculation. Add-on calculation. Discount calculation. Percentage increase and decrease calculation. Average calculation. Par mode calculation. Mixed calculations. Addition, subtraction, multiplication and division. Repetitive addition and subtraction. Chain multiplication and division. Constant multiplication and division. Raising to powers. Reciprocal calculation. Sum and difference of products and quotients. Item counting.
Power Source	AC
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	9.5" (W) x 13.4" (L) x 3.4" (H) (241mm x 340mm x 86mm)
Weight	4.1 lbs. (1.9 kg)

High-speed, two-color printing (4.8 Lines-per-second)
12-digit large fluorescent display
Profit margin calculation
- Clock and calendar function
- Quick and easy tax calculations
- Decimal positions: +, 0, 2, 3, 4, 6, F
Memory storage

12digits

TAX

Features

Type	Commercial Printing Calculator
Printing System	Ink Ribbon
Calculation Capacity	12 Digits for all calculations
Display	Extra-large Fluorescent Tube Display
Decimal Point System	+ (Add mode), 0, 2, 3, 4, 6, F (Floating position)
Rounding	↑5/4↓ selection switch for rounding up/off/down
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	4.8 Lines per second
Printing Paper	Roll width: 2-1/4" (57mm) Max. diameter: 3-3/8" (86mm)
Types of Calculations	Profit margin calculation. Tax calculation. Percentage add-on/ discount calculation. Increase/decrease ratio calculation (Δ%). Add mode calculation. Grand total. Mixed calculations. Addition, subtraction, multiplication and division. Repetitive addition and subtraction. Chain multiplication and division. Constant multiplication and division. Sign Change. Round-up/off/down, Mark-up/down. Item count.
Power Source	AC
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	9.6" (W) x 13.2" (L) x 3.7" (H) (245mm x 335mm x 94mm)
Weight	4 lbs. 7 oz. (2.0 kg)

COMFORT, RELIABILITY, & SPEED CP1200D

High-speed, two-color printing (4.3 Lines-per-second)
12-digit large fluorescent display
- Quick and easy tax calculations
- Decimal positions: +, 0, 2, 3, 4, 6, F
Memory storage

12digits

MU

Features

Type	Commercial Printing Calculator
Printing System	Ink Ribbon
Calculation Capacity	12 Digits for all calculations
Display	Fluorescent Tube Display
Decimal Point Systems	+(Add mode), 0, 2, 3, 4, 6, F (Floating position)
Rounding	↑5/4↓ selection switch for rounding up/off/down
Printing Color	Positive numbers are printed in black and nega-tive numbers in red
Printing Speed	4.3 Lines-per-second
Printing Paper	Roll width: 2-1/4" (57mm) Max. diameter: 3-3/8" (86mm)
Types of Calculations	Tax calculation. Increase/decrease ratio calculation (Δ%). Percentage add-on/ discount calculation. Add mode calculation. Grand total. Mixed calcula-tions. Addition, subtraction, multiplication and divi-sion. Repetitive addition and subtraction. Chain mul- tiplication and division. Constant multiplication and division. Sign Change. Round-up/off/down, Mark- up-down. Item count.
Power Source	AC
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	9.6" (W) x 13.2" (L) x 3.6" (H) (245mm x 335mm x 94mm)
Weight	4 lbs. 7 oz. (2.0 kg)

12 digits
- Extra large fluorescent display
Profit margin calculation
- Currency conversion
- Clock and Calendar
- Quick and easy tax calculation
- Convenient "00" and "000" keys

12digits

TAX

Features

Type	Desktop Display Calculator
Calculation Capacity	12 Digits for all calculations
Display	Fluorescent Tube Display
Decimal Point System	+(Add mode), 6, 3, 2, 1, 0, F (Floating)
Rounding	↑5/4↓ selection switch for rounding up/off/down
Types of Calculations	Addition, subtraction, multiplication, and division. Profit margin calculations. Constant calculations. Currency conversion calculations. Percentage calculations. Percentage add-on / discount calculation. Extraction of square root. Memory calculations. Various mixed calculations. Tax calculation. Sign change. Grand total calculation.
Indication Functions	Overflow and error signs (E), Memory sign (M), Grand total LED, Punctuation after every three digits.
Power Source	AC
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	8.6" (W) x 8.3" (L) x 2.8" (H) (218mm x 211mm x 71mm)
Weight	1.6 lbs. (726 g)

PRODUCT CONFIGURATION/DIMENSION CHARTS

DESKTOP PRINTERS/TWO COLOR

MODEL

ITEM CODE

UPC CODE

PRODUCT DIMENSIONS

DISPLAY BOX

INNER CARTON

MASTER CARTON

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

MP49D

9491A001AA

013803 04010 4

13.2 x 8.9 x 3.0

4.0

1 ea.

4.3 x 10.4 x 15.6

4.9

1 ea.

n/a

n/a

n/a

21.4 x 13.3 x 16.6

31.7

6

MP41DHII

9726A001AA

013803 04315 0

14.0 x 8.9 x 3.2

3.5

1 ea.

5.2 x 10.3 x 17.2

4.6

1 ea.

n/a

n/a

n/a

22.2 x 17.9 x 11.6

22.0

4

MP27D

6995A001AB

013803 00383 3

13.1 x 8.9 x 3.0

3.9

1 ea.

5.4 x 10.4 x 17.0

5.0

1 ea.

n/a

n/a

n/a

22.3 x 18.0 x 11.6

22.3

4

MP25DV

8077A001AB

038569 10871 4

12.6 x 8.8 x 3.6

3.7

1 ea.

5.0 x 10.3 x 16.7

5.2

1 ea.

n/a

n/a

n/a

21.3 x 15.9 x 18.0

34.7

6

MP21DX

8676A001AA

013803 02732 7

12.2 x 9.0 x 3.7

4.0

1 ea.

4.3 x 10.4 x 15.6

4.9

1 ea.

n/a

n/a

n/a

21.4 x 13.3 x 16.6

31.7

6

MP11DX

9637A001AA

013803 04221 4

13.1 x 8.9 x 2.9

3.9

1 ea.

4.5 x 10.4 x 16.0

4.7

1 ea.

n/a

n/a

n/a

21.4 x 14.1 x 17.2

32.2

6

P170-DH

0181B001AA

013803 02566 8

10.7 x 7.8 x 2.5

2.0

1 ea.

3.0 x 9.5 x 15.2

2.7

1 ea.

15.5 x 10.1 x 14.3

14.4

5

20.9 x 16.3 x 15.6

32.4

10

P160-DH

0719B002AA

013803 05563 4

10.4 x 7.4 x 2.4

1.9

1 ea.

2.7 x 8.6 x 14.5

2.4

1 ea.

14.3 x 9.0 x 14.3

13.4

5

19.0 x 15.2 x 15.5

30.0

10

PORTABLE/PALM PRINTING

MODEL

ITEM CODE

UPC CODE

PRODUCT DIMENSIONS

DISPLAY BOX

INNER CARTON

MASTER CARTON

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

P23-DHV

1904B001AA

013803 04293 1

9.1 x 6.4 x 2.2

1.1

1ea.

2.8 x 7.0 x 13.9

1.7

1ea.

14.6 x 7.2 x 14.2

9.2

5

15.4 x 15.4 x 16.3

21.6

10

P1-DHV

1905B001AA

013803 04292 4

8.1 x 4.0 x 1.9

0.6

1ea.

2.6 x 4.4 x 12.2

1.1

1ea.

13.5 x 12.0 x 5.0

5.9

5

24.6 x 14.2 x 11.0

26.9

20

PORTABLE DISPLAYS

MODEL

ITEM CODE

UPC CODE

PRODUCT DIMENSIONS

DISPLAY BOX

INNER CARTON

MASTER CARTON

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WS-1400H

4087A002AA

038569 10722 9

7.9 x 5.9 x 1.0

0.5

1 ea.

8.3 x 11.7 x 1.1

0.7

1 ea.

10.9 x 8.6 x 12.3

7.5

10

22.4 x 18.0 x 13.3

33.5

40

TX-220TS

0612B001AA

038569 10728 1

5.7 x 5.7 x 1.2

0.4

1 ea.

9.4 x 8.1 x 1.4

0.5

1 ea.

11.7 x 9.8 x 8.8

5.4

10

24.5 x 10.1 x 10.0

26.4

40

HS-1200TS

7438A003AA

013803 01416 7

6.7 x 4.8 x 1.4

0.4

1 ea.

10.4 x 7.2 x 1.6

0.5

1 ea.

10.6 x 4.2 x 7.9

1.8

3

11.1 x 9.0 x 16.5

9.4

12

LS-100TS

5936A002AA

013803 00382 6

5.3 x 4.1 x 1.3

0.2

1 ea.

5.9 x 8.7 x 1.3

0.3

1 ea.

10.4 x 9.0 x 6.6

3.5

10

18.7 x 11.1 x 14.3

16.7

40

TS-10TS

9359A001AA

013803 03759 3

5.0 x 3.0 x 0.4

0.2

1 ea.

8.1 x 5.7 x 0.8

0.3

1 ea.

17.2 x 8.3 x 6.2

6.6

20

18.0 x 17.4 x 13.3

29.8

80

LS-85H

4072A001AA

038569 10724 3

5.1 x 3.9 x 1.0

0.2

1 ea.

7.9 x 4.9 x 1.2

0.3

1 ea.

10.8 x 8.2 x 5.5

3.1

10

17.2 x 12.3 x 11.5

15.0

40

TS-83H

4051A005AA

038569 10716 8

6.5 x 4.0 x 0.4

0.2

1 ea.

6.6 x 4.1 x 0.7

0.3

1 ea.

8.7 x 8.1 x 7.0

7.0

10

16.9 x 15.0 x 9.2

30.2

40

PRODUCT CONFIGURATION/DIMENSION CHARTS

HANDHELD DISPLAYS

MODEL	ITEM CODE	UPC CODE	PRODUCT DIMENSIONS			DISPLAY BOX			INNER CARTON			MASTER CARTON
			L x W x H (INCHES)	WT. LB.	QTY.	L x W x H (INCHES)	WT. LB.	QTY.	L x W x H (INCHES)	WT. LB.	QTY.	L x W x H (INCHES)	WT. LB.	QTY.	WT. LB.	QTY.
TS-82H	4050A003AB	0 38569 10545 4	5.1 x 3.3 x 0.5	0.2	1 ea.	9.8 x 8.3 x 0.3	0.6	1 ea.	10.1 x 8.5 x 6.5	3.4	10	20.9 x 18.2 x 13.7	31.1	80
LS-555H	4009A003AB	0 38569 10576 8	2.7 x 4.3 x 0.6	0.2	1 ea.	8.3 x 9.8 x 0.5	0.3	1 ea.	8.6 x 5.7 x 10.3	2.9	10	21.3 x 18.0 x 9.9	20.9	60
LS-82Z	4075A002AA	0 38569 10725 0	4.4 x 3.5 x 1.3	0.1	1 ea.	8.7 x 5.9 x 1.3	0.2	1 ea.	10.9 x 9.1 x 6.4	2.4	10	22.8 x 19.0 x 14.1	23.6	80
LS-QT	8941A001AB	0 13803 03088 4	4.5 x 3.1 x 0.5	0.1	1 ea.	6.9 x 4.7 x 0.6	0.2	1 ea.	11.1 x 4.9 x 6.9	3.5	20	15.8 x 11.7 x 15.7	24.5	120
LS-390H	4782A001AA	0 38569 10592 8	4.7 x 2.9 x 0.5	0.1	1 ea.	8.7 x 5.9 x 0.7	0.2	1 ea.	14.3 x 9.0 x 6.5	4.5	20	18.7 x 15.0 x 14.2	21.2	80
LS-330H	8942A001AB	0 13803 03089 1	4.5 x 2.8 x 0.4	0.1	1 ea.	7.5 x 4.8 x 0.6	0.2	1 ea.	12.6 x 5.2 x 8.2	3.6	20	16.2 x 13.4 x 17.2	24.3	120
LS-270H	5932A001AA	0 13803 00953 8	4.0 x 2.4 x 0.4	0.1	1 ea.	7.0 x 4.4 x 0.6	0.1	1 ea.	7.4 x 5.6 x 5.0	1.4	10	17.7 x 15.4 x 11.3	19.3	120
LS-716H	4013A003AA	0 38569 10587 4	3.4 x 2.1 x 0.1	0.1	1 ea.	8.7 x 5.9 x 0.3	0.1	1 ea.	8.8 x 6.0 x 1.5	1.0	10	19.0 x 16.8 x 13.3	43.0	400
KC-30	2291B001AA	0 13803 08370 5	3.1 x 1.6 x 0.5	0.1	1 ea.	6.7 x 3.9 x 0.7	0.1	1 ea.	7.6 x 7.0 x 4.8	1.1	10	16.3 x 15.2 x 10.2	9.8	80

USB COMPATIBLE DISPLAYS

MODEL

ITEM CODE

UPC CODE

PRODUCT DIMENSIONS

DISPLAY BOX

INNER CARTON

MASTER CARTON

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

DK10i

9723A001AA

0 13803 04310 5

4.8 x 2.8 x 0.5

0.2

1 ea.

8.9 x 6.9 x 1.0

0.4

1 ea.

8.0 x 7.3 x 9.6

4.7

10

17.4 x 15.4 x 11.3

23.1

40

DK100i

9722A001AA

0 13803 04307 5

5.3 x 4.1 x 1.3

0.3

1 ea.

10.0 x 7.7 x 2.0

0.7

1 ea.

10.7 x 7.6 x 8.8

3.7

5

15.9 x 11.5 x 18.1

17.7

20

DK1000i

0009B001AA

0 13803 04666 3

7.2 x 4.5 x 1.4

0.6

1 ea.

13.1 x 9.7 x 2.5

1.0

1 ea.

n/a

n/a

n/a

18.5 x 13.9 x 18.3

12.7

8

SCIENTIFIC STATISTICAL

MODEL

ITEM CODE

UPC CODE

PRODUCT DIMENSIONS

DISPLAY BOX

INNER CARTON

MASTER CARTON

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

F-766S

1698B001AA

013803 07373 7

6.3 x 3.2 x 0.7

0.2

1 ea.

9.6 x 6.0 x 1.3

0.5

1 ea.

13.0 x 10.0 x 6.5

5.7

10

20.6 x 13.7 x 13.9

26.0

40

F-716S

1698B001AA

013803 07374 4

6.3 x 3.2 x 0.7

0.2

1 ea.

9.6 x 6.0 x 1.3

0.5

1 ea.

13.0 x 10.0 x 6.5

5.7

10

20.6 x 13.7 x 13.9

26.0

40

F-710

9208A001AA

013803 03569 8

5.9 x 3.2 x 0.8

0.3

1 ea.

9.7 x 6.0 x 1.1

0.4

1 ea.

10.0 x 5.9 x 6.5

2.4

5

20.7 x 12.4 x 14.1

22.0

40

F-604

7102A004AA

013803 01417 4

5.9 x 3.1 x 0.7

0.2

1 ea.

9.6 x 6.0 x 1.2

0.3

1 ea.

10.0 x 6.3 x 6.5

2.0

5

20.4 x 13.2 x 14.1

19.2

40

F-502

4106A003AB

038569 10616 1

5.6 x 3.0 x 0.4

0.2

1 ea.

9.8 x 5.9 x 0.9

0.3

1 ea.

10.4 x 9.3 x 6.2

3.8

10

19.3 x 13.2 x 11.6

17.9

40

COMMERCIAL CALCULATORS

MODEL

ITEM CODE

UPC CODE

PRODUCT DIMENSIONS

DISPLAY BOX

INNER CARTON

MASTER CARTON

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

WT. LB.

QTY.

CP1460D

9490A001AA

013803 04009 8

13.5 x 9.8 x 3.9

4.9

1 ea.

6.1 x 11.3 x 17.4

6.4

1 ea.

n/a

n/a

n/a

24.9 x 18.1 x 12.2

28.5

4

CP1260D

9489A001AA

013803 04008 1

13.5 x 9.8 x 3.9

4.9

1 ea.

6.1 x 11.3 x 17.4

6.4

1 ea.

n/a

n/a

n/a

24.9 x 18.1 x 12.2

28.5

4

CP1213D II

1841B001AA

038569 10868 4

13.4 x 9.5 x 3.4

4.1

1 ea.

6.4 x 11.0 x 17.3

5.5

1 ea.

n/a

n/a

n/a

25.6 x 11.6 x 18.5

25.2

4

CP1013D II

1842B001AA

038569 10881 3

13.4 x 9.5 x 3.4

4.1

1 ea.

6.4 x 11.0 x 17.3

5.5

1 ea.

n/a

n/a

n/a

25.6 x 11.6 x 18.5

25.2

4

CP1250D

7868A001AA

013803 01414 3

13.2 x 9.6 x 3.7

4.4

1 ea.

5.7 x 11.0 x 17.0

5.8

1 ea.

n/a

n/a

n/a

23.2 x 17.4 x 11.6

26.7

4

CP1200D

8838A001AA

013803 02856 0

13.2 x 9.6 x 3.6

4.4

1 ea.

5.8 x 11.1 x 17.2

5.5

1 ea.

n/a

n/a

n/a

23.5 x 17.7 x 12.2

25.7

4

L1255

9668A003AA

013803 08326 6

8.3 x 8.6 x 2.8

1.6

1 ea.

11.3 x 10.0 x 4.0

2.2

1 ea.

20.1 x 10.4 x 12.0

12.1

5

21.5 x 20.9 x 13.3

28.4

10

MODEL COMPARISON CHARTS

DESKTOP PRINTERS

MODEL

DIGITS

4-KEY MEMORY

%±(%)

Δ%

ITEM

↑5/4↓

MU/MD

←

GT

→

00/000

PRINTING COLOR

INK RIBBON INK ROLLER

PROFIT MARGIN

CLOCK/ CALENDAR

MP49D

14

●

●

●

●

●

●

●

● / ●

2

Ink Ribbon

●

●

MP41DHII

14

●

●

●

●

●

●

●

● / ●

2

Ink Ribbon

●

MP27D

12

●

●

●

●

●

●

●

● / ●

2

Ink Ribbon

●

●

MP25DV

12

●

●

●

●

●

●

●

● / -

2

Ink Ribbon

●

●

MP21DX

12

●

●

●

●

●

●

●

●

●

● / -

2

Ink Ribbon

MP11DX

12

●

●

●

●

●

●

●

● / -

2

Ink Ribbon

●

●

P170-DH

12

●

●

●

●

●

●

●

● / ●

2

CP13 Ink Roller

●

●

P160-DH

12

●

●

●

●

●

●

●

● / ●

2

CP13 Ink Roller

●

●

PORTABLE/PALM PRINTING

MODEL

DIGITS

4-KEY MEMORY

%±

ITEM

[5/4]

←→

00/000

PRINTING COLOR

INK ROLLER

TIME CALC.

PROFIT MARGIN

CLOCK/ CALENDAR

BATTERY INDICATOR

P23-DHV

12

●

●

●

●

●

●/-

2

CP-13

●

●

●

●

P1-DHV

12

(only 3 keys)

●

5/4↓

●

1

CP-16

●

●

●

PORTABLE DISPLAYS

MODEL	DIGITS	TAX KEYS	%±(%)	√	[5/4]↓	MU	G	GT	→	00/000	PROFIT MARGIN
WS-1400H	14		●	●	●	●	●	●	●	● / ●
TX-220TS	12	●	●	●	●		●	●	●	● / -	●
HS-1200TS	12	●	●	●	●		●	●	●	● / -	●
LS-100TS	10	●	●	●			●		●		●
TS-10TS	10	●	●	●			●				●
LS-85H	8		●	●			●
TS-83H	8		●	●		●	●

MODEL COMPARISON CHARTS

HANDHELD DISPLAYS

MODEL	DIGITS	DUAL POWER	√	%±	MU	G
TS-82H	8	●	●	●		●
LS-555H	8	●	●	●		●
LS-82Z	8	●	●	●
LS-QT	8	●		●
LS-390H	8	●	●	●		●
LC-330H	8	●	●	●	●	●
LS-270H	8	●	●	●	●	●
LS-716H	8		●	●		●
KC-30	8			●

USB COMPATIBLE DISPLAYS

MODEL	DIGITS	4-KEY MEMORY	TAX KEYS	DUAL POWER	%±	SPECIAL FEATURES
DK-10i	12	●	●	●	●	Key Pad
DK-100i	12	●	●	●	●	Key Pad
DK-1000i	12	(only 3 keys)	●	●	●	Trackball/Key Pad

MODEL

DIGITS

K

RV

Δ%

ITEM COUNT

%±

MU/MD

GT(AM)

↑5/4↓

#

BACKSPACE

CLOCK/CALENDAR

√

PROFIT MARGIN

POWER SAVE MODE

CP1460D

14

●

●

●

●

●

●

●

●

●

●

●

CP1260D

12

●

●

●

●

●

●

●

●

●

●

●

CP1213D II

12

●

●

●

●

●

●

(●)

●

●

●

●

CP1013D II

10

●

●

●

●

●

●

●

●

●

●

●

CP1250D

12

●

●

●

MU

●

●

●

●

●

●

CP1200D

12

●

●

●

MU

●

●

●

●

L1255

12

●

●

●

●

●

●

●

●

CONSUMABLES AND ACCESSORIES

AC ADAPTER	MODELS
AD-11	P23-DHV, P1-DHV
AD-38	P23-DHV, P1-DHV
INK ROLLERS/INK CASSETTES	MODELS
CP-13	P160-DH, P170-DH, P23-DHV
CP-16/CP-16 II	P1-DHV
PAPER ROLL-ALL PRINTING CALCULATORS USE STANDARD 2-1/4"-WIDE PAPER

All of Canon's calculator consumables and accessory products are designed and manufactured to work with specific models.
We recommend using only Canon accessories with Canon calculators to ensure the highest quality performance from each machine.
For decimal positions: ^ 一 + ^ 一 and "A" represent Add Mode, F represents Floating Decimal.

Scientific Calculator Comparison Table

MODEL	F-766S	F-716S	F-710	F-604	F-502
Scientific Functions	349	288	139	142	136
MEMORY
Number of Stored Memory	17	17		10
Independent Memory	1	1	3	1	1
Alphanumeric Character	(A-D,M,X,Y)E,F only use in Base-N Calculation	A-D,M,X,Y		A - F only use in Base-N Calculation
Equation Pending Operations	9	9	7	5	3
FORMULA / INPUT
Direct Input Calculation Expression	●	●	●
Built-in Formulas	38	38	38
Engineering Symbol Calculations	●
MATHEMATICS
Parentheses	24	24	23	15	15
General Calculation	●	●	●	●	●
Logab Calculation	●	●
Fraction Calculation	●	●	●	●	●
Degree - Minutes - Seconds ⇌ Decimal Degrees / Sexagesimal Calculation
Coordination Conversion (Rectangular ⇌ Polar)	●	●	●	●	●
Equation Solving (Quadratic, Cubic, Simultaneous)	●
CALC Function	●
SOLVE Function	●
Complex Number Operations	●			●	●
Quotient & Remainder Calculation, Exchange		●
Least Common Multiple, Greatest Common Divisor	●	●
Absolute Value Calculation	●	●
Multi-Statements Calculation	●	●
TRIGONOMETRY
Angles Conversion	●	●	●	●	●
DRG Mode Calculation	●	●	●	●	●
Trigonometric Calculation	●	●	●	●	●
COMPUTER MATHEMATICS
Base-N Calculation (Decimal, Hexadecimal, Binary, Octal) & Transformation between DHBO	●			●	●
Logic Operation	●

Scientific Calculator Comparison Table (cont'd.)

MODEL	F-766S	F-716S	F-710	F-604	F-502
STATISTICS
Variable	2	2	1	1	1
Mean, Standard Deviation, Sum of Value	●	●	●	●	●
Median	●	●
Maximum, Minimum Value	●	●
Factorials, Permutations & Combinations	●	●	●	●	Factorials only
Probability Distribution	●
Linear Regression	●	●
Quadratic Regression	●	●
Exponential / Logarithmic / Power/Inverse Regression	●	●
Correlation Coefficient	●	●
Regression Coefficient	●	●
Random Number Generation	●	●		●	●
Integer Random Number Generation	●	●
REPLAY/Others
Last Digit Correction	●	●	●	●	●
Last Answer Recall	●	●	●
Multiple Replay	●	●
Block Level Reply (Base-N Mode)	●
UNDO / Input Recover	●	●
Others	Low Battery Indicator	Low Battery Indicator	Exchange Display w/ Storage Memory	Exchange Display w/ Storage Memory	Exchange Display w/ Storage Memory
Product Specifications
DISPLAY
Lines	2	2	2	1	1
1st Line Display (Dot Matrix)	12	12	11	10 + 2	10
2nd Line Display	10 + 2	10 + 2	10 + 2
Contrast Adjustable	●	●	●
Notation (Sci / Eng.)	●	●	●	●	●
Cursor Arrow (Left, Right)	●	●	●	Backspace
Cursor Arrow Up, Down	●	●
BODY
Body Size L x W x H (inches)	6.3 x 3.2 x .7	6.3 x 3.2 x .7	5.9 x 3.2 x .5	5.9 x 3.1 x .7	5.6 x 3.2 x .4
Weight (lbs.)	.24 (w/o cover) .33 (w/cover)	.24 (w/o cover) .33 (w/cover)	.19	.21	.17
Body Color	Black	Grey	Silver	Dark Grey	Black
Quick Reference Guide	●	●	●
Slide Case / Hard Case	●	●	●	●	●
POWER
Power Source (Battery / Battery+Solar)	CR2032 x 1 Solar	CR2032 x 1 Solar	CR2032 x 1	LR44 x 2	LR44 x 2
Auto-Power Off	●	●	●	●	●

38 Built-in Formula Table

Name of Formula	Formula (Equation)
Triangular area	S=I/2bc sinA
Circular area	S=πr2
Fan-shaped area	S=I/2r2θ
Parallelogrammic area	S=ab sinθ
Elliptical area	S=πab
Trapeziform area	S=I/2(a+b)h
Spherical surface area	S=4πr2
Cylindrical surface area	S=2πr(h+r)
Spherical volume	S=4/3πr
Cylindrical volume	V=πr2h
Conform volume	V=I/3πr2h
Sum of arithmetic progression	S=I/2n[2a0+(n-I)]d]
Sum of geometric progression	S=a0(rn'-I)/r-I
Sum of square number	S=I/6n(n+1)(2n+1)
Sum of cubic number	S=(I/2n(n+1))2
Distance between arbitrary two points	d=√(x2-x1)2+(y2-y1)2
Included angle of the intersecting lines	θ=tan-1k2-kI/1+hIh2
Law of cosines	a=√b2+c2-2bc cosA
Law of sines	a=2r sinA
Displacement of uniformly accelerated linear motion	d=vt0t+I/2at2
Velocity of uniformly accelerated linear motion	v=vt0+at
Period of circular motion (1)	T=2πr/v
Period of circular motion (2)	T=2π/ω
Period of simple pendulum	T=2π√I/g
Electric oscillation frequency	f=I/2π√LC
Resistive formula	R=p-S
Joule's theorem (1)	P=V2/R
Joule's theorem (2)	P=I2R
Resistance of shunt resistance	R=RI*R2/RI+R2
Kinetic energy	E=I/2mv2
Gravitational potential energy	E=mgh
Centrifugal force (1)	F=mv2/r
Centrifugal force (2)	F=maw2r
The law of gravity	F=G Mm/r2
Electric field intensity	E=Q/(4πr2)
Heron's Formula	S=√arbc(2arbc/a)(2a+abce-b)(2abce-c)
Refractive index	E=sin i/sin r
Critical angle of total reflection	θ=sin-1(n2/nI)
*The above 38 formulas are built-in the F-710, F-716S and F-766S

Scientific Calculator Function Reference (F-716S/F-766S)

Function	Sign / Key	Symbol / Calculation
Engineering Symbol	k (kilo), M (Mega), G (Giga), T (tera), m (milli), u (micro), n (nano), p (pico), f (femto)
Alphanumeric Character	A, B, C, D, E, F, M, X, Y, Z
MEMORY
Number of Stored Memory	STO (store) + "A" or "B" or "C" ... RCL (recall) + "A" or "B" or "C" ...	Calculate by store Variables Memory A.) 3+4=7 B.) 3+5=8
Independent Memory	M, M+, M-
Parentheses	(,)	[(2yx3(3y+6)) - (9y2+5)]
Last Answer Recall	Ans
MATHEMATICS
Fixed Decimal Option	FIX	400.000
Composition Ratio Calculation	STO, RCL, %	125+185+190 = 500 To calculate their ratio in % 500 is 100%, 125 is 25%, 185 is 37%, 190 is 38%
SignificantDigits	Sci
Exponential Display Format	Norm	3.3°
Rounding	Round	28.576--28.58
Pi	π	3.14159265359
Logarithms	Log, In
Exponential / Antilogarithms	10^a, e^a
Square, Power Square	x^2, y^2, y^a
Square Roots, Multiple Roots	√^-, x^-
Geometric Mean	x^√^-	G = ^4√2x5 = 1.78
Cube Roots, Cubes	x^√^-, y^3, x^3
Reciprocal	x^-1	x^-1 = 1/x
Fractions	a b/c
Fractions - Decimal Conversion	b/c	1/2 -> 0.5
Mixed Fraction Conversion		1 1/2 -> 3/2
Exponential Calculation	EXP	321x10^-14 = 3.21 EXP (-)¹⁶
Quadratic Equation	EQN	ax^+bx+c=0
Cubic Equation	EQN	ax^+bx^+cx+d=0
Simultaneous Equations	EQN	3x+4y=c & 6x+2y=c if x=1, y=2, c=?
Complex Number Operations		(2+3i) + (4+5i) = 6+8i 6 is real number; 8 is imaginary number
Degree-Minutes-Seconds←→ Decimal Points	° ‰ → ° ‰	2.3456 -> 2°20'44.16
Calculation of Time (hour, min, sec.)	° ‰ → ° ‰	4° 18' 23" - 2° 9' 56" -> 2° 08" 27
Complex Number	CPLX	Re ←→ Im, i, < ▷a+bi, ▷κ0 Abs, Ang, Conig

Scientific Calculator Function Reference (cont'd.)

Function	Sign / Key	Symbol / Calculation
TRIGONOMETRY
Angles (Degree, Radian, Gradient)		DRG
Trigonometry, Inverse Trigonometry	Sin, Cos, Tan, sin1, cos2, tan1
Hyperbolic, Inverse Hyperbolic	sinh, cosh, tanh, sinh1, cosh2, tanh2
Rectangular ⇌ Polar Conversion	Rec, Pol(	y r θθx
DRG Conversions (Degree, Radian, Gradient)	DRG▶	Converting the amount between Degree, Radian & Gradient
COMPUTER MATH
Logic Operator		And, Or, Xnor, Xor, Not, Neg
Base-N Calculations (Decimal, Hexadecimal, Binary, Octal)	DEC, HEX, OCT, DHBO, BIN	Binary No.2~9, Octal No.0~7 e.g. Binary 11010110
STATISTICS
Number of sample	Data	n
Mean	x̅	x̅ = x1 + x2 + ...xn/n
Population Standard Deviation of x	x̅on
Sample Standard Deviation of x	x̅on-1
Sum of Value	Σx, Σy
Square Sum	Σx2, Σy2
Factorials	n! (x!)	n! or x! are n or x Factorials
Permutations & Combinations	nPr, nCr	nPPr = n! / (n-r)!; nCr = n! / n!(n-r)!
Probability Distribution	DISTR	P(t): Probability below given point x Q(t): Probability below given point x and above the mean
Statistics Point	S-PTS	minX: minimum X maxX: maximumX med: median
Statistics Variance	S-VAR	x, x̅on, x̅on-1, r, x̅, y......
Correlation Coefficient	r
Variables x, y	x̅, y̅	to calculate the value in the regression formula
Linear Regression	A,B,x,y	(1,5),(3,9); y=2x+3
Quadratic Regression	A,B,C,x,y	f(x)=2x2+3x-2(=0)
Exponential Regression	A,B,x,y	y=Aeab (ln y = ln A + Bx)
Logarithmic Regression	A,B,x,y	y=A+B.ln x
Power Regression	A,B,x,y	y=Ax0 (ln y = ln A + B ln x)
Inverse Regression	A,B,x,y	y=A+B1/x
Random	Rand	between 0.000 and 0.999
Integer Random	i-Rand	between 1 and 100

Canon

1-800-OK-CANON

www.usa.canon.com

Canon U.S.A., Inc.

One Canon Plaza

Lake Success, NY 11042
