Product Type	Steam Iron
Model	KSG5344
Brand	Kunft
Power Consumption	2200 W
Voltage	220-240 V
Frequency	50-60 Hz
Water Tank Capacity	300 ml
Soleplate Material	Stainless Steel
Continuous Steam Output	40 g/min
Steam Boost	150 g/min
Temperature Settings	Adjustable thermostat
Anti-Drip System	Yes
Self-Clean Function	Yes
Auto Shut-Off	Yes (8 min idle)
Cord Length	2.5 m
Weight	1.3 kg
Dimensions (L x W x H)	30 x 15 x 18 cm
Water Fill Opening	Wide opening for easy filling
Spray Function	Yes
Dry Ironing Capability	Yes
Vertical Steaming	Yes
Indicator Lights	Power and temperature ready
Safety	Overheat protection
Warranty	2 years

Frequently Asked Questions - KSG5344 Kunft

What type of water should I use in my Kunft KSG5344 iron?

For best results and to prolong the life of your iron, use distilled or demineralized water. Tap water may cause scale buildup over time.

How do I clean the soleplate of my iron?

Allow the iron to cool completely. Wipe the soleplate with a damp cloth. For stubborn residue, use a mixture of vinegar and water (1:1) on a soft cloth. Never use abrasive cleaners.

Why is my iron not producing steam?

Ensure the water tank is filled and the temperature dial is set to a steam setting (medium to high). If still no steam, try the self-clean function to remove blockages.

Can I use the iron vertically?

Yes, the KSG5344 features a vertical steam function. Hold the iron upright and press the steam boost button to remove wrinkles from hanging garments or curtains.

What does the anti-drip system do?

The anti-drip system prevents water from leaking out of the soleplate when the iron is not hot enough for steaming, keeping your clothes dry.

How do I activate the self-clean function?

Fill the water tank to max, set the temperature to high, and when the light turns off, unplug the iron. Hold it over a sink and press the self-clean button. Steam and impurities will flush out.

Does the iron automatically shut off?

Yes, the iron has an auto shut-off feature. It turns off automatically if left upright for 8 minutes or in a horizontal position for 30 seconds.

What is the maximum steam output?

The continuous steam output is 40 g/min, and the steam boost provides up to 150 g/min for stubborn wrinkles.

Can I iron delicate fabrics with this iron?

Yes, the adjustable thermostat allows you to select a lower temperature for delicate fabrics like silk and synthetics. Always test on a hidden area first.

How do I descale my iron?

Use the self-clean function regularly (once a month). For heavy scaling, fill the tank with a mixture of half white vinegar and half water, heat to high, then use the self-clean cycle. Rinse with clean water.

USER MANUAL KSG5344 Kunft

Exterior view of a Kuwait air iron with visible branding and measurement scale (no text or symbols on the device itself)

Simple line drawing of a steam iron (no text or symbols)

steam station iron

kunft.®

steam station iron

KSG5344

EN

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS....4

1.1. Power Supply....6
1.2. Power Cord and Other Cables......6
1.3. Humidity and Water 6
1.4. Cleaning....6
1.5. General Precautions ...... 7

1. OPERATING INSTRUCTIONS....10

2.1. Product Description.... 10
2.2. Product usage....10
2.3. Maintenance 14

1. TECHNICAL SPECIFICATIONS....15
2. POST-SALE SERVICE....15
3. ENVIRONMENTAL PROTECTION 15

2

3

kunft®

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of Electric ShockDo Not Open
Warning: to avoid the risk of electric shock, do not remove the cover.The interior does not contain any parts that can be repaired by the user.Ask for assistance from the Customer Support Service.

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance should not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope,

steam station iron

KSG5344

EN

any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to the Customer Support Service for assistance.

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

kunft.®

Children shall not play with the appliance.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Customer Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main

steam station iron

KSG5344

EN

power supply. Always allow the unit to cool down before cleaning.

1.5. General Precautions

• Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.
• Before using the appliance, make sure the outlet voltage corresponds to the one shown on the rating plate.
• Do not use the appliance if the main cord, plug, light or the appliance itself shows visible damage, or if the appliance has been dropped or is leaking. Take it to the nearest Customer Support Service or to a qualified serviceman for examination and repair in order to avoid a hazard.

kunft®

• If the supply cord is damaged, it must be replaced by the manufacturer Worten, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not allow the cord to come into contact with the soleplate when it is hot.
• Burns may occur from touching hot metal parts, hot water or steam.
• Do not let the cord hang over a table edge or hot surface.
• To protect against a risk of electric shock, never immerse the steam iron in water or other liquids. If this has happened, do not use this appliance anymore; dispose of the appliance.
• Do not leave the steam iron unattended while connected into a power supply or on an ironing board.
• Always place or use the appliance on a stable, level and horizontal surface.
• Using an accessory not recommended by the manufacturer Worten may cause injury to people or damage to the appliance.
• When placing the steam iron on its stand, ensure that the surface on which it stands is stable.
• Never fill the water tank with hot water, scented water, vinegar, starch, descaler, fabric softener or other chemical reagent.
• Unplug the appliance from outlet when not in use, before filling with water or when cleaning.

steam station iron

KSG5344

EN

• Do not use the appliance for other than its intended use.
• Keep the steam iron and its cord out of reach of children less than 8 years of age when plugged in or when cooling down.
• Never touch the hot soleplate unless the steam iron is cooled down completely and unplugged.
• Do not use outdoors.

CAUTION: Hot Surface. Surface is liable to get hot during use.

kunft.

2. OPERATING INSTRUCTIONS

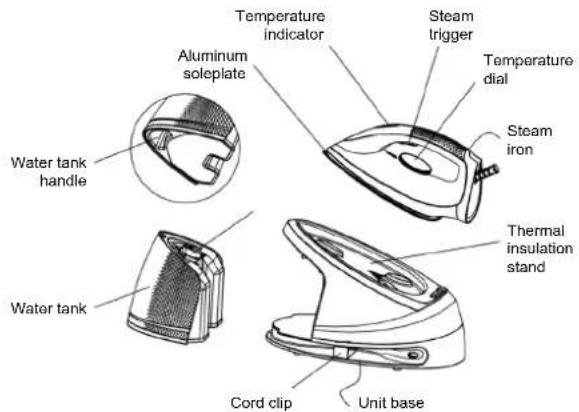

2.1. Product Description

(The product may be subject to change without prior notice)

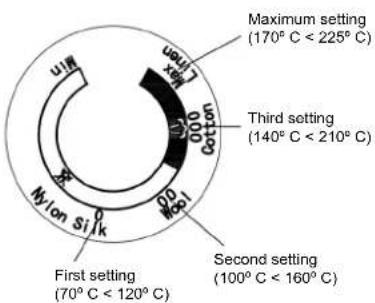

TEMPERATURE DIAL
Maximum setting (170°C < 225°C)

2.2. Product usage

HOUSEHOLD USE ONLY

Fill the water tank with water through the filling aperture. Make sure the water does not exceed the maximum water tank level.

steam station iron

KSG5344

EN

Temperature dial

Turn the temperature dial to set the ironing temperature according to the garment needs to be ironed.

Temperature indicator

When the steam iron is heating up, the temperature indicator will light up. Once the steam iron has reached the selected temperature, the light will shut off. The temperature indicator will illuminate solidly during heating.

Steam trigger

When the appliance is heated to the selected temperature and the temperature indicator is shut off, press the steam trigger with a little bit of force and steam will be sprayed from the soleplate. When you loosen the steam trigger, the appliance can only be used for dry ironing without steam.

Cord clip

When not in use, the power cord can be tied with a cable tie and the steam supply hose can be stored using the cord clips (see Fig.1 & Fig.2).

Black Kuwait air iron with visible brand mark and power cord (no text or symbols on body)

Fig.1 Fig.2

Black Kuwait air fryer with visible brand logo and cord (no text or symbols on body)

Correct steam iron placement on the thermal insulation stand

When the steam iron is put on the thermal insulation stand, it must be placed on it correctly (see Fig.3).

Wrong placement Correct placement Wrong placement

Fig.3

kunft®

steam station iron

KSG5344

EN

BEforE flrSt uSE

1. Remove any sticker or protective foil from the soleplate.
2. Fill the water tank with water and heat up the steam iron to the maximum temperature and then iron over a piece of damp cloth for several minutes to remove any residue on the soleplate according to the "Steam ironing" section.

NOTE:

1. It is normal for a strange odour to come out from the unit for the first use. This will cease after a short while.
2. Some particles may come out of the soleplate when you use the steam iron for the first time. This is normal, the particles are harmless and stop coming out of the steam iron after a short while.

uSING your StEaM StatIoN

The appliance has two ironing ways. You can use dry ironing or steam ironing, the details refer to the following:

Dry ironing

1. Put the unit base on a stable and levelled surface.
2. Put the steam iron on the thermal insulation stand of unit base correctly (see Fig.3).
3. Connect the plug to a wall outlet and turn the temperature dial to select your desired temperature setting, according to the garment fabric. Refer to "IRONING TIPS" and "ADDITIONAL TABLE" as below when selecting the temperature.
4. The temperature indicator will illuminate and the steam iron will start heating.
5. When the soleplate temperature reaches the selected temperature, the temperature indicator turns off and you can start ironing.

WARNING: Never touch the hot soleplate at any time before cooling down!

Steam ironing

1. Put the unit base on a stable and levelled surface.
2. Grasp the water tank handle and pull out the water tank horizontally, fill the water tank with water through the filling aperture and place the water tank back in position (see Fig.4). Make sure the water tank is pulled out horizontally when removing the water tank. We recommend using purified water with less calcium particles. The water tank's maximum capacity is 1.2 L, the water level should not exceed the maximum level.

Remove the water tank horizontally

Fill the water tank with water

Replace the water tank

Fig.4

1. Put the iron on the thermal insulation stand of unit base correctly (see Fig.3).
2. Connect the plug to a wall outlet and turn the temperature dial to select your desired temperature setting, according to the garment fabric. Refer to "IRONING TIPS" and "ADDITIONAL TABLE" as below when selecting the temperature.
3. The temperature indicator will illuminate and the steam iron will start heating.
4. When the soleplate temperature reaches the selected temperature, the temperature indicator turns off and you can now start ironing with steam.
5. Press the steam trigger with a little force, the steam will be sprayed from the soleplate continuously, and then you can iron the garment with steam.
   NOTE: There may be dripping water during the steam spraying when the temperature is lower than that of the second setting. This is normal.

CAUTIONS:

(1) Do not touch hot soleplate at any time before cooling down!
(2) Never direct the steam at people!
(3) Do not activate the steam function when the steam iron is placed on the unit base to avoid being scalded by steam.

1. After ironing, remove the plug from the wall socket and the appliance will be turned off. While the soleplate is still hot, never touch it. Place it on the thermal insulation stand correctly until it cools down completely.

IroNING tIPS

• Always check first whether a label with ironing instructions is attached to the appliance. Follow these ironing instructions in any case.
• The steam iron heats up quicker when cooling it down, therefore, you should start ironing the articles requiring the lower temperature such as those made of synthetic fibres.
• If the fabric consists of various kinds of fibres, you must always select the lowest ironing temperature to iron the composition of those fibres.

kunft®

• Synthetic fibres and silk fabrics should be ironed inside out to avoid shiny.
• Velvet and other textures that rapidly become shiny should be ironed in one direction with light pressure applied. Always keeps the iron moving at any moment.
• Pure wool fabrics (100 % wool) may be ironed with the steam iron. Use a dry cloth as a mat and then select the corresponding fabric setting for ironing.
• Never iron over zipper/rivets in the cloth. This will damage the soleplate. Iron around any such object.

NOTE: When ironing woollen fabrics, shining of the fabric may occur. So it is suggested that you should turn the article inside out and iron the reverse side.

ADDITIONAL TABLE

Setting Temperature (°C) Fabric

The first setting 70 < T < 120 Acetate, elastane,polyamide,polypropylene

The second setting 100 < T < 160 Cupro, polyester, silk

The third setting 140 < T < 210 Triacetate, viscose,wool

Maximum 170 < T < 225 Cotton, flax

2.3. Maintenance

Before cleaning, disconnect the power outlet and let the appliance cools down.

1. Wipe the residues and any other deposits on the soleplate with a damp cloth or a non-abrasive (liquid) cleaner.
   NOTE: Do not use chemical, steel, wooden or abrasive cleaners to scrape the soleplate.
2. Clean the upper part of steam iron with a soft damp cloth. Wipe the water drop on the unit base and the thermal insulation stand with dry cloth.
3. When not using the appliance for a long time, empty the water tank, turn the temperature dial to the minimum setting and store the steam supply hose and power cord with the cord clips. Then put the appliance at a place out of the reach of children.

steam station iron

KSG5344

EN

3. TECHNICAL SPECIFICATIONS

Supply Voltage: 220-240V \~ 50-60Hz

Power: 2000-2400W

Steam Flow: 60g / min

Maximum pressure: 5 bar

Maximum Deposit: 1.2L

4. POST-SALE SERVICE

KUNFT has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

5. ENVIRONMENTAL PROTECTION

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic.

The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

kunft.®

Black Kuwait air fryer with visible label and cord, no other text or symbols present

Black Kuwait air fryer with attached cable, no visible text or symbols on body

Fig.1 Fig.2

Three technical line drawings of a steam iron (no text or symbols present)

kunft®

APENAS PARA USO DOMÉSTICO

CONHECER A SUA CALDEIRA

Abertura de enchimento

Two black Kuwait air fume steamers side by side, one with visible branding and cable, the other with a white label (no text or symbols on the device itself)

Fig.1 Fig.2

Posicionamento correto do ferro a vapor no suporte de isolamento térmico

Simple line drawing of a steam iron (no text or symbols)

steam station iron

is perfectly enough

KSG5344
