Product Type	Steam Iron
Brand	Kunft
Model	KSG-1876
Power Consumption	1500 W
Weight	1.2 kg
Dimensions (L x W x H)	28 x 12 x 15 cm
Soleplate Material	Stainless Steel / Non-stick Coating
Water Tank Capacity	200 ml
Steam Output	20 g/min continuous
Steam Burst	Yes, up to 80 g/min
Spray Function	Yes
Dry Ironing	Yes
Auto Shut-Off	Yes, after 8 minutes of inactivity
Self-Cleaning System	Yes
Anti-Drip System	Yes
Vertical Steaming	Yes
Temperature Settings	Adjustable thermostat with indicator
Cord Length	2.5 m
Voltage	220-240 V, 50/60 Hz
Safety Features	Auto shut-off, heat-resistant base
Maintenance	Descaling recommended every 3 months
Package Contents	Iron, measuring cup, user manual
Warranty	2 years

Frequently Asked Questions - KSG-1876 Kunft

How do I fill the water tank?

Unplug the iron. Open the water inlet cover. Use the provided measuring cup to pour water into the tank. Do not exceed the MAX level. Use distilled or tap water. Close the cover securely.

Why is the iron not producing steam?

Ensure the water tank has enough water. Set the temperature dial to a steam-enabled setting (usually 3 dots or higher). Wait for the iron to heat up. If still no steam, try the self-cleaning function or descale the iron.

How do I use the steam burst feature?

Press the Steam Burst button located on the handle. This releases a powerful jet of steam to remove stubborn wrinkles. Wait a few seconds between bursts to allow the iron to reheat.

What does the auto shut-off do?

The auto shut-off turns off the iron if left unattended for 8 minutes (when placed horizontally) or 30 seconds (if tipped over). It is a safety feature to prevent accidents. Move the iron to reactivate it.

Can I use the iron for vertical steaming?

Yes, the Kunft KSG-1876 can be used for vertical steaming. Hang the garment on a hanger, hold the iron vertically, and press the Steam Burst button to remove wrinkles from curtains, suits, or dresses.

How do I clean the soleplate?

Unplug and let the iron cool. Wipe the soleplate with a damp cloth. For stubborn residue, use a non-abrasive cleaner. Do not use steel wool or harsh chemicals. The self-cleaning function also helps maintain the soleplate.

What should I do if water leaks from the iron?

Check if the water tank is overfilled. Drain excess water. Ensure the temperature setting is high enough for steam. If leaking persists, activate the anti-drip system by ironing at a higher temperature. Also, empty the tank when storing.

How often should I descale the iron?

Descaling every 3 months is recommended, especially in hard water areas. Use a mixture of 1 part white vinegar to 2 parts water. Fill the tank, heat the iron, and press the self-cleaning button repeatedly to flush out deposits.

Can I use the iron without water?

Yes, the iron can be used for dry ironing. Set the temperature to the desired level and iron without filling the water tank. The dry ironing function is suitable for fabrics that require no moisture.

What does the indicator light mean?

The temperature indicator light turns on when the iron is heating and turns off when the set temperature is reached. It will cycle on and off during use. This is normal and indicates the thermostat is maintaining the heat.

USER MANUAL KSG-1876 Kunft

Exterior view of a modern steam iron with brand mark 'kunft' on the side (no additional text or symbols visible)

Simple line drawing of a steam iron (no text or symbols)

steam generator

is perfectly enough

KSG-1876

kunft.®

steam generator

KSG-1876

EN

Dear client,

We thank you for purchasing this product.

This appliance was submitted to several laboratorial tests, which certify its quality. To simplify the use of this appliance, this instruction manual has been provided.

The instructions must ensure a quick and safe use.

Please read carefully the instructions and safety measures described in this manual.

We wish our clients great satisfaction in using their new appliance.

INDEX

1. SAFETY INSTRUCTIONS .... 4

1.1. Power Supply 5
1.2. Power Cable and Other Cables ...... 6
1.3. Humidity and Water 6
1.4. Cleaning 6
1.5. General Precautions ...... 6

1. USE AND FUNCTIONING 8

2.1. Product Description.... 8
2.2. Operations Instructions 8
2.3. Maintenance 9

1. TECHNICAL SPECIFICATIONS ...... 9
2. POST-SALE SERVICE 10
3. ENVIRONMENTAL PROTECTION .... 10

2

3

kunft®

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of Electric ShockDo Not Open
Warning: to avoid the risk of electric shock, do not remove the cover.The interior does not contain any parts that can be repaired by the user. Ask for assistance by qualified personnel.

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any ma-

steam generator

KSG-1876

EN

nual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to a qualified technician for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case please consult the Customer Support Service.

kunft.®

steam generator

KSG-1876

EN

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Technical Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product use a dry soft cloth only.

1.5. General Precautions

- Please follow the instructions in the user manual which help to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.

• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.

kunft.

2. USE AND OPERATION

2.1. Product Description

This product provides easy and professional quality ironing at home. Sheets, towels, jeans etc. can be ironed faster. The holes in the tip of the iron release a jet of steam which softly smoothes away even the most difficult creases.

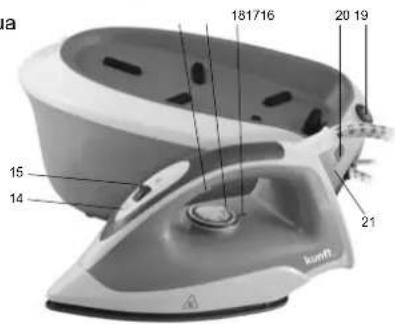

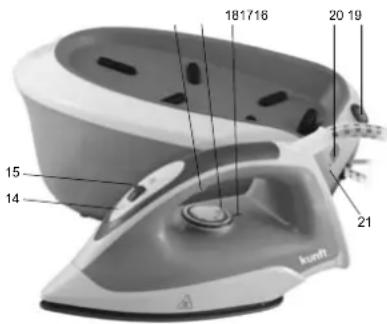

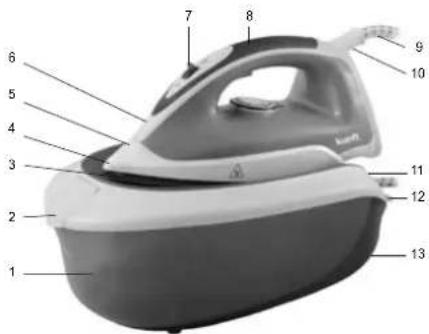

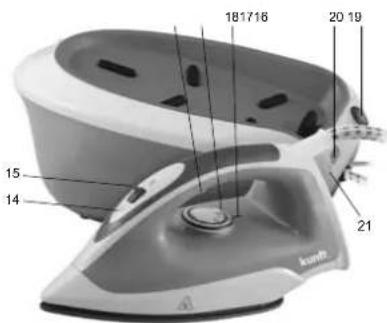

APPLIANCE PARTS

1. Water Tank base
2. Water inlet cover
3. Iron insulating mat
4. Skirt
5. Body
6. Lamp cover
7. Steam Button
8. Top cover

9. Water supply line

10. Cord guard

11. Base top cover

12. Power cord

13. Bottom cover

14. Temperature Control Dial

15. Steam Button

16. Manual steam button

17. Temperature knob

18. Iron lamp cover

19. Power switch

20. No Water Indicator Light

21. Plate

2.2. Operations Instructions

INSTALLATION

Take the appliance out of the box and remove the packing. In order to ensure sufficient ventilation, the distance between the iron and the wall or other objects should be at least 15cm at the back and 15cm on the side.

a) Place the appliance on a stable and heat-resistant surface
b) Twist off the tank

steam generator

KSG-1876

EN

c) Fill with tap water or demineralized water. The water tank capacity is 2.0 liters. Fill the water tank with 1800 - 1900ml of water and be careful not to overfill it. If some water comes out or if the water tank is too full, empty the tank slightly and dry the appliance thoroughly.
d) Insert the plug into the wall outlet and turn on the switch.
e) When the iron operating indicator goes out the appliance is ready for use.

Note: During the whole time it is in use, the iron's indicator will turn on and off in erratic intervals, this is normal.

f) Adjust the steam jet by turning the steam temperature dial.

To activate the steam jet, press the steam button.

To obtain a continuous jet of steam, use the continuous steam lever. If the steam stops coming out, this is probably because there is no more water in the tank. In order to continue ironing, follow the instructions in the "SUPPLYING WATER WHILE OPERATING" section.

Steaming Fabrics

Follow the "INSTRUCTIONS" from (a) to (f).

Place the iron vertically at a minimum distance of 20-30cm from curtains or fabrics and press the steam button, then steam the fabrics using a circular movement.

Note: be careful to check the compatibility of the fabric with this kind of treatment by checking on the fabric label. The appliance has Super-large capacity water tanks and can be used for long time. When there is no water left in the tank, the indicator will turn on and you must then add water to the tank.

Dry Ironing (without steam)

a) Place the appliance on a stable and heat-resistant surface
b) Turn on the iron using the on/off button which will light, as will the iron operating indicator.
c) When the iron operating indicator goes out, the iron is ready for use

2.3. Maintenance

Servicing due to damage or faults caused by the formation of scale are not covered by the guarantee.

This device must only be repaired by qualified technicians authorized by specific centers.

3. TECHNICAL SPECIFICATIONS

Model no. KSG-1876
Rated voltage 220-240V ~ 50/60Hz
Rated power input	2200W

kunft®

centro de planchado

KSG-1876

ES

4. POST-SALE SERVICE

KUNFT has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Costumer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

5. ENVIRONMENTAL PROTECTION

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

kunft®

centro de planchado

KSG-1876

ES

Siga as "INSTRUÇÕES" de (a) a (f).
