XCEED WUX4000 Medical

XCEED WUX10 Mark II Medical

XCEED SX7 Mark II Medical

XEED SX80 Mark II Medical

you can

Giving all the image accuracy you need.

Medical imaging demands extremely accurate reproduction of greyscales, if patient conditions are to be illustrated faithfully. Combining the benefits of Canon's LCOS panel technology with ultra-bright, high resolution imaging – up to native WUXGA resolution (1920 x 1200 pixels) – XCEED offers seamless projection and optimal reproduction of medical images.

In hospitals, private medical centres and dentistry practices, Canon XCEED projectors are a powerful addition to any PACS (Picture Archiving and Communication System), providing a reliable platform for radiological case discussions. Teaching hospitals and university medical schools will appreciate XCEED's precise and accurate projection of X-ray and MRI images in any size of room.

Out-of-the-box DICOM simulation.

Optimising images to human visual perception, the DICOM 14 standard sets the benchmark in digital radiology. The XCEED WUX4000 Medical, XCEED WUX10 Mark II Medical, XCEED SX7 Mark II Medical and XCEED SX80 Mark II Medical all offer a DICOM simulation mode as standard.*

This DICOM SIM mode features 21 different levels of greyscale reproduction, based on varying combinations of luminance and contrast. The result is a flexible solution that can be used in various ambient lighting conditions. In addition, the range of DICOM preset available makes it far easier to accurately match twin screens when required.

Additional on-site calibration option.

On-site calibration giving full DICOM 14 compliance can be achieved using the AcuScreenPRO system, available separately from our partner Lariviere GmbH. Environmental factors, such as the intensity and tone of ambient light, plus the projection screen type, are all taken into account to achieve the very best possible image quality.

Without DICOM simulation mode

With DICOM simulation mode

Canon XCEED Projector WUX4000 Medical /

WUX10 Mark II Medical /

XCEED SX7 Mark II Medical /

XCEED SX80 Mark II Medical

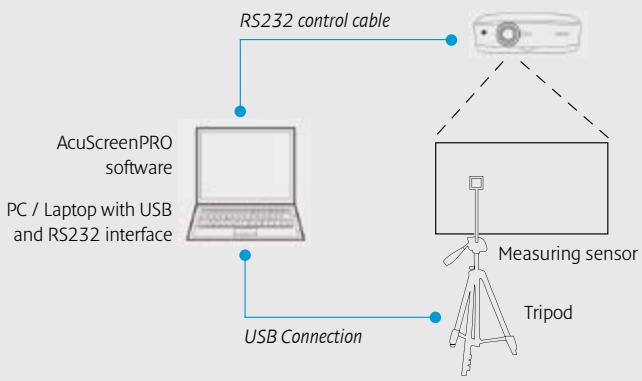

The AcuScreenPRO system is comprised of easy-to-use, PC-based software and a measuring sensor. The supplied luminance sensor is used to evaluate exact display conditions, allowing precise corrections to be made according to the specific environment. By carrying out these corrections, the gradation between minimum luminance – where black areas appear grey due to external light – and maximum luminance can be distributed optimally.

Regular recalibration is recommended, to ensure ongoing DICOM 14 compliance, with the system downloading the new parameters to the projector after each calibration.

The XEED advantage:

The superior choice for medical professionals.

Leveraging Canon's 70 year heritage at the forefront of lens design, Canon XCEED projectors deliver crisp, premium quality projection for demanding medical imaging applications, in a choice of both portable and installation models.

Employing Canon LCOS (Liquid Crystal on Silicon) panel technology, ultra-fine greyscales can be achieved in most lighting conditions. Projected images are displayed seamlessly, free from unwanted lattice and rainbow effects, that can so often plague conventional LCD and DLP models. The result is simply the best possible reproduction of radiological images.

A combination of exceptional contrast and high brightness is achieved via a unique optical system known as Canon AISYS (Aspectual Illumination System).

XCEED WUX4000 Medical Installation Locator

FULL HD 1080

HOMI

• Native WUXGA resolution with Canon LCOS technology
  4000 lumens brightness and 1000:1 contrast ratio
  Full HD capability
• DICOM Simulation image mode
• Range of three interchangeable lenses and motorised lens shift

XCEED WUX10 Mark II Medical Portable Projector

• Native WUXGA resolution with Canon LCOS technology
  3200 lumens brightness and 1000:1 contrast ratio
  Full HD capability
• DICOM Simulation image mode

FULLH 1080

HOMI

XCEED SX7 Mark II Medical Portable Projector

• Native SXGA+ resolution with Canon LCOS technology
  4000 lumens brightness and 1000:1 contrast ratio
• HD Ready
• DICOM Simulation image mode

XCEED SX80 Mark II Medical Portable Projector

• Native SXGA+ resolution with Canon LCOS technology
  3000 lumens brightness and 900:1 contrast ratio
• PC-less presentation via USB port
• DICOM Simulation image mode

HD ready

HOMI

HD ready

SPECIFICATIONS	XCEED WUX4000 MEDICAL	XCEED WUX10 MARK II MEDICAL	XCEED SX7 MARK II MEDICAL	XCEED SX80 MARK II MEDICAL
PRODUCT CLASS	Installation	Portable	Portable	Portable
LCD PANEL Type	LCOS reflective display, TFT Active Matrix	LCOS reflective display, TFT Active Matrix	LCOS reflective display, TFT Active Matrix	LCOS reflective display, TFT Active Matrix
Aspect Ratio	16:10	16:10	4:3	4:3
Native Resolution	1920 x 1200 (WUXGA), 2304000 pixels	1920 x 1200 (WUXGA), 2304000 pixels	1400 x 1050 (SXGA+), 1470000 pixels	1400 x 1050 (SXGA+), 1470000 pixels
OPTICS Zoom Magnification and Control Lens Shift	1.5x Motorised Vertical and Horizontal, Motorised	1.5x Motorised 10:0 (fixed)	1.7x Motorised 9:1 (fixed)	1.5x Motorised 10:0 (fixed)
IMAGE AND AUDIO Brightness Contrast Ratio Keystone Correction Range Display Modes	4000 lumens 1000:1 (full on / full off) Vertical: +20° to -11° Horizontal: +/-20° Standard, Presentation, Dynamic, Vivid Photo, Photo/sRGB, Video, Cinema, Custom DICOM SIM	3200 lumens 1000:1 (full on / full off) Vertical: +/-20° (Auto / Manual) Horizontal: None Standard, Presentation, Movie, sRGB, Photo, DICOM SIM	4000 lumens 1000:1 (full on / full off) Vertical: +/-20° (Auto / Manual) Horizontal: +/-20° (Manual) Standard, Presentation, Movie, Adobe RGB, sRGB, Photo, DICOM SIM	3000 lumens 900:1 (full on / full off) Vertical: +/-20° (Auto / Manual) Horizontal: None Standard, Presentation, Movie, sRGB, Photo, DICOM SIM
PORTS AND CONNECTORS Digital RGB / Analogue RGB Digital Video and Audio Input Analogue RGB Input 2 Analog RGB Output S-Video Input Composite Video Input Audio Inputs Audio Output Service Port / Projector Control Network Port	DVI-D 24-pin (HDCP compatible) HDMI V1.3 with Deep Colour Mini D-Sub 15-pin (Component via optional adaptor cable) - - - 3.5mm stereo mini-jack x 2 3.5mm stereo mini-jack (variable level) Mini D-Sub 9-pin RJ-45	DVI-I 29-pin (HDCP compatible) HDMI V1.3 with Deep Colour Mini D-Sub 15-pin (Component via supplied adaptor cable) Mini D-Sub 15-pin (shared with Input 2) Mini-DIN 4-pin RCA x 1 3.5mm stereo mini-jack x 3 3.5mm stereo mini-jack (variable level) Mini D-Sub 9-pin RJ-45	DVI-I 29-pin (HDCP compatible) - Mini D-Sub 15-pin (Component via supplied adaptor cable) Mini D-Sub 15-pin Mini-DIN 4-pin RCA x 1 3.5mm stereo mini-jack x 3 3.5mm stereo mini-jack (variable level) Mini-DIN 8-pin Via optional RS-NA01 network adaptor	DVI-I 29-pin (HDCP compatible) HDMI V1.3 with Deep Colour Mini D-Sub 15-pin (Component via supplied adaptor cable) Mini D-Sub 15-pin Mini-DIN 4-pin RCA x 1 3.5mm stereo mini-jack x 3 3.5mm stereo mini-jack (variable level) Mini D-Sub 9-pin RJ-45
RATINGS Dimensions (W x H x D) Weight Power Consumption Noise Level Warranty	380mm x 170mm x 430mm 8.5kg (without lens) Normal Mode: 410W / Quiet Mode: 365W / Standby: 1.7W / Standby (LAN off): 0.35W Normal Mode: 39dBA / Quiet Mode: 36dBA 3 years	284mm x 114mm x 336mm 5.0kg Normal Mode: 400W / Quiet Mode: 330W / Standby: 11W Normal Mode: 36dBA / Quiet Mode: 32dBA 3 years	266mm x 114mm x 336mm 4.8kg Normal Mode: 360W / Quiet Mode: 290W / Standby: 7W Normal Mode: 35dBA / Quiet Mode: 31dBA 3 years	332mm x 121mm x 340mm 5.0kg Normal Mode: 330W / Quiet Mode: 270W / Standby: 15W Normal Mode: 35dBA / Quiet Mode: 31dBA 3 years

All data is based on Canon's standard testing methods. This Leaflet and the specifications of the product have been developed prior to the date of product launch. Specifications are subject to change without notice.

True Throw Distances

	WUX4000 MEDICAL WITH STANDARD LENS
Image size (inches)	40	60	80	100	150	200	300
Width (cm)	86	129	172	215	323	431	646
Height (cm)	54	81	108	135	202	269	404
Projection distance (zoom max)	1.3m	1.9m	2.6m	3.2m	4.8m	6.4m	9.6m
Projection distance (zoom min)	1.9m	2.9m	3.9m	4.8m	7.2m	9.6m	-

	WUX10 MARK II MEDICAL
Image size (inches)	40	60	80	100	150	200	300
Width (cm)	86	129	172	215	323	431	646
Height (cm)	54	81	108	135	202	269	404
Projection distance (zoom max)	1.2m	1.8m	2.4m	3.0m	4.5m	6.1m	9.1m
Projection distance (zoom min)	1.8m	2.6m	3.5m	4.4m	6.7m	8.9m	-

	SX7 MARK II MEDICAL
Image size (inches)	40	60	80	100	150	200	300
Width (cm)	81	122	163	203	305	406	610
Height (cm)	61	91	122	152	229	305	457
Projection distance (zoom max)	1.2m	1.8m	2.4m	3.0m	4.5m	5.9m	8.9m
Projection distance (zoom min)	2.0m	2.9m	3.9m	4.9m	7.4m	-	-

	SX80 MARK II MEDICAL
Image size (inches)	40	60	80	100	150	200	300
Width (cm)	81	122	163	203	305	406	610
Height (cm)	61	91	122	152	229	305	457
Projection distance (zoom max)	1.2m	1.8m	2.4m	3.0m	4.5m	6.0m	9.1m
Projection distance (zoom min)	1.7m	2.6m	3.5m	4.4m	6.6m	8.9m	-

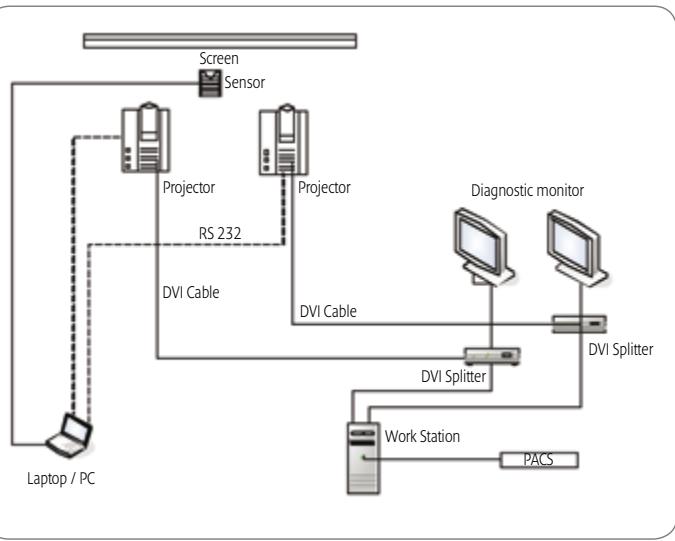

System Architecture – Integration of XEED with a typical PACS System
