USER MANUAL LV-7392A CANON

Compatible to Firmware Ver. 1.x of the projector.

Most commands can be used to control projector remotely from PC by RS-232C. Therefore, the commands are defined as Expand Serial Commands.

LV-7292A/LV-7297A/LV-7392A/LV-7393A/LV-7398A/LV-8227A/LV-7292M/LV-7297M/LV-8227M Expand Serial Command Functional Specifications ２．Serial Interface Specification

2.1 Transfer Specification

Item Specification Synchronous System Asynchronous Transmission Speed 9600 / 19200 Data Length 8 bit Parity N/A Stop Bit

Flow Control N/A Note1) Transmission Speed: initial setting value is 19200 Note2) Transmission Speed can be changed in service mode.

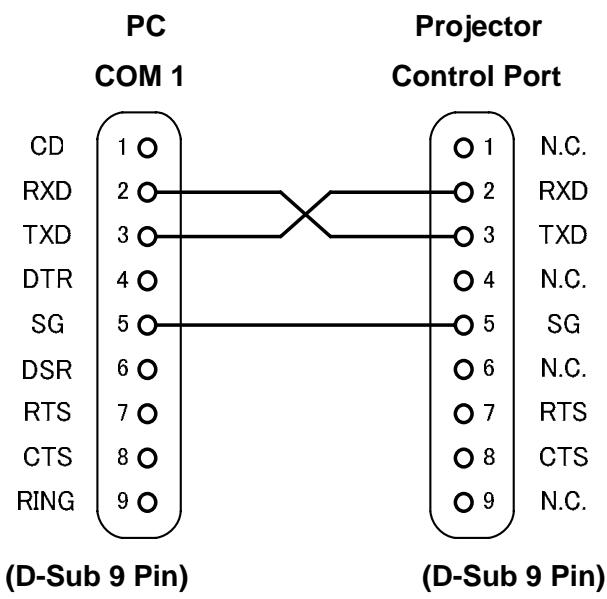

Dedicated serial cable must be used for a connection to a computer and a projector.

Expand Serial Command is defined as one command / one line that starts with “C” and ends with carriage return (0x0D)

There are two types of commands: Functional Execution Command and Status Read Command. - Example of Functional Execution Command:”CF_BRIGHT_032”[CR] - Example of Status Read Command: “CR_RIGHT”[CR] Note) ”_” means a space

When it takes more than one second to receive one command, it is not executed. When it takes more than one second to receive carriage return (0X0D) after the projector receives the first data “C”, it clears the information of buffer.

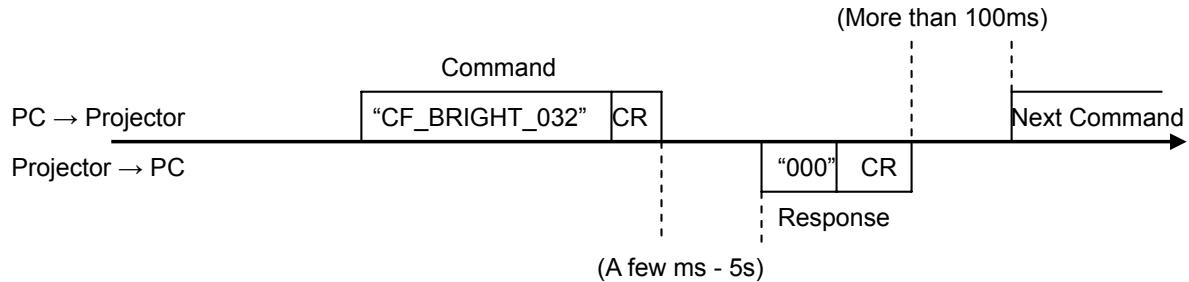

On command pipelining, wait for the interval of 100ms till sending next command after receiving a response. (More than 100ms) Command PC → Projector

Projector → PC Next Command “000” CR Response (A few ms - 5s) When a computer sends next command before receiving a response, the projector may not operate properly, except when there is no response for more than 5 seconds.

It takes about 5 seconds for internal initialization after plugging in AC power. During this time commands cannot be processed. Do not issue any command.

Data from a controller to a projector is represented as COMMAND, and data from a projector to a controller for the incoming command is represented as RESPONSE.

[CR] : Carriage Return Code Command ends with cartridge return code. Response also ends with carriage return code.

_ : Space Code A space Code is indicated by (_).

%1 : Parameter in Command When there are several parameters, they are defined as %2, %3…

%a : Parameter in Response Command When there are several parameters, they are defined as %b, %c…

Image Command Table Execute command Item Set Brightness value

Item Select Input Select Input Source Select computer-1 and set Input selected in %1 Select computer-2 and set Input selected in %1 Select Video and set Input selected in %1 Select Input and Source Select System

Screen Command Table Execute command

Item Reset total running time of each lamp Select Lamp mode Sound Command Table Execute command

Item Set Volume value Control ON/OFF of Sound Mute Control ON/OFF of MIC Control value of MIC gain Control ON/OFF of Standby MIC out

PC Adjust Status Read Command Table Status read command Item Get setting value of Fine Sync Get setting value of Total Dots Get setting value of Clamp Get setting value of Horizontal Position Get setting value of Vertical Position Get setting value of Display Dots Get setting value of Display Line Get Free or Stored status for PC Adj. mode1-10

Video Status Read Command Table Status read command Item Get selected current signal. When in Auto mode, it returns a result by Auto detect.

Input Status Read Command Table Status read command

Item Get selected Input No. Get selected source of currently selected Input Get selected source of Computer 1 Get selected source of Computer 2 Get selected source of Video Get selected system status in Input mode Get selectable System table Get selectable Mode table

Screen Status Read Command Table Status read command Item Get selected screen size Get setting status of Vertical Scale Get setting status of Vertical Position Get setting status of Horizontal Scale Get setting status of Horizontal Position Get setting status of Keystone Store mode Get setting status of Ceiling Get setting status of Rear Get setting status of Screen Aspect

Lamp Status Read Command Table Status read command

Item Get the information for Lamp replacement time Get lamp total running time Get corresponding lamp use time Get Lamp Mode status Get lamp lighting status Get projector total running time Get lamp number Sound Status Read Command Table Status read command Item

Get Volume value Get Sound Mute setting status Get setting status of MIC Get value of MIC gain Get setting status of Standby MIC out

Setting Status Read Command Table Status read command Item

Get selected language Get setting status of Input search Get setting status of Auto PC in Auto setup Get setting status of Keystone in Auto setup Get setting status screen mode for the case of no signal Get setting status of Display Get setting status of Logo Set setting status of HDMI Image Get setting status of HDMI Sound Get setting status of Power management Get setting time for Power management Get setting status of Direct on Get setting status of Standby Mode Get selected mode of P-timer Get operation status of P-timer Get setting status of Timer for P-timer Get setting status of channel of Closed caption Get setting status of color of Closed caption Get selected Remote Control Code Get setting status of Security Get RC/KEY disability status Get if PJ Lock is actually in operation Get setting status of PJ Lock on Menu Get selected Fan mode Get selected Fan Control Mode Get setting status of Video delay control Get Filter used time Get the information for Filter replacement time Get time when Filter warning OSD is displayed Other Status Read Command Status read command

Item Get setting status of Projector behavior Get Signal Status if there is a signal or not Get setting status of No Show Get setting status of Freeze Get if temperature is close to abnormal temperature Get current temperature status Get temperature when sensors detect abnormal temperature Get Serial Number

Contents -When the received data cannot be decoded -Parameter determination error (digit number error, including invalid value, etc.)

The function is not available in the selected Mode

Selected value is out of range (Not reflected)

Command mismatched to Hardware (command for Optional function which is not installed)

When reached upper or lower limit of increasing or decreasing data

Command cannot be executed during capturing display. Resend the command after a while

Command cannot be executed during Auto PC operation. Resend the command after a while

Command cannot be executed during PIN code operation. Resend the command after a while. Note) These error codes are applied to Expand Command, not to Basic Command

The projector decodes the received command and when it is ready to receive the next command, it returns the response. “000” [CR] : (0x06, 0x0D) When receiving Functional Execution Command “nnn” [CR] : Except “000” , when it is unable to execute command by any specific reason. See Error Code Table for details

When the received data cannot be decoded, the projector returns “?” [CR] Transfer Example When setting projector’s total dots to 1344 by Expand Serial Command

Operation Requirements

1) Functional Execution Command is limited when the projector status is as below.

However, Status Read Command is effective even under these conditions. Projector Status Available Functional Execution Command In Standby

(Terminates Countdown)

(Terminates Countdown) N/A Countdown in process Cooling down in process Cooling down in process due to Abnormal Temperature Abnormal Temperature Power Failure (For 60 seconds after Power Failure occurred) Power Save / Cooling down in process Power Save in process N/A N/A N/A N/A

Note:) When the projector receives the other command in this above status, it returns error code to show the status.When the projector receives the following functional execution commands, OSD menu is closed except for pop-up menu

2) When Eco mode is selected in Standby mode of Setting menu and projector is in Standby,

Functional Execution Commands are invalid.

Details Response Set Brightness value of user control Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. (The value is held in Suspend mode.) This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“000~063” --------------- Directly select Contrast setting value “UP” ----------------------- Current Contrast setting value + 1 “DN” ----------------------- Current Contrast setting value – 1 Set Contrast value of user control Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. (The value is held in Suspend mode.) This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] "Error Code”[CR] CF_COLOR Command Command

“000~063” ---------------- Directly select Color setting value “UP” ------------------------ Current Color setting value + 1 “DN” ------------------------ Current Color setting value - 1 Set Color value of user control Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. (The value is held in Suspend mode.) This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR] CF_TINT Command Command

“000~063” --------------- Directly select Tint setting value “UP” ----------------------- Current Tint setting value + 1 “DN” ----------------------- Current Tint setting value – 1 Set Tint value of user control Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. (The value is held in Suspend mode.) This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“ON”-------------------Set Iris to On “OFF” ”----------------Set Iris to Off Set Iris. Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. (The value is held in Suspend mode.) This command is available in normal Power ON status. Acceptable “000”[CR] Unacceptable “Error Code”[CR] CF_SHARP Command Command

“000~015” ---------------- Directly select Sharpness setting value “UP” ------------------------ Current Sharpness setting value + 1 “DN” ------------------------ Current Sharpness setting value - 1 Set Sharpness value of user control Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. (The value is held in Suspend mode.) This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR] CF_GAMMA Command Command

“000~015” ---------------- Directly set Gamma setting value “UP” ------------------------ Current Gamma setting value + 1 “DN” ------------------------ Current Gamma setting value – 1 Set Gamma value of user control Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. (The value is held in Suspend mode.) This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“000~063” ----------- Directly select Color value specified by White Balance%1 “UP” ------------------- Current Color value set by White Balance%1 + 1 “DN” ------------------- Current Color value set by White Balance%1 - 1 Details Response

Set Color value set by White Balance%1 of user control Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. (The value is held in Suspend mode.) This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR] CF_COLTEMP Command Command

“000” ------ Xlow “001” ------ Low “002” ------ Mid “003” ------ High Set Color Temperature. (Available only in the normal Power ON status) The value set by this command will not be saved to the projector. Therefore, when turning into Standby-mode or ALL is OFF, the value returns to original setting. (The value is held in Suspend mode.) This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“FILM” -------- Select Progressive Mode FILM “L1” ----------- Select Progressive Mode L1 “L2” ----------- Select Progressive Mode L2 “OFF” --------- Cancel Progressive scan “UP” --------------- The same operation as pressing Up key or Left key “DN” ----------------The same operation as pressing Down key or Right key Set / cancel Progressive scan Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. (The value is held in Suspend mode.) This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“OFF” ------- Cancel Noise Reduction “L1” --------- Noise Reduction for moving image “L2” --------- Noise Reduction for still image “UP” --------------- The same operation as pressing Up key or Left key “DN” ----------------The same operation as pressing Down key or Right key Noise Reduction based on frame correlation Select L1 or L2 depending on motion detection L2 is more effective in reducing noise than L1, however, L2 can have a blur in moving image Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. (The value is held in Suspend mode.) This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR] CF_IMAGE Command Command

“DYNAMIC” ------ Dynamic (Fixed value to enable projection with a sharp, powerful picture tone) “STAND” ---------- Standard (Image adjust value is set to factory default) “REAL” ------------ Real (Fixed value to display graphic image with natural tone) “CINEMA” -------- Cinema (Fixed value to focus on tone reproduction for movie) “BLACKBOARD” – Blackboard (Fixed value to project image onto green-colored blackboard) blackboard) “COLORBOARD ” – Colorboard(Fixed value to project image onto colored board) “CUSTOM1” ----- Image1 (the value set and stored by a user) “CUSTOM2” ----- Image2 (the value set and stored by a user) “CUSTOM3” ----- Image3 (the value set and stored by a user) “CUSTOM4” ----- Image4 (the value set and stored by a user) Details Select Image Mode Parameter “CUSTOM1” to “CUSTOM4” is the same as “Image1” to “Image4” displayed when selecting Image on OSD menu. The value set by this command is stored in EEPROM and its setting is effective even after ALL is OFF. This command is available in normal Power ON status. Response Acceptable Unacceptable “000”[CR] “Error Code”[CR]

CF_COLBOARD Command Command

“CF_COLBOARD_%1”[CR]

“RED” --------------Select Red “BLUE” ------------ Select Blue “YELLOW” ------- Select Yellow “GREEN” --------- Select Green Select Color of Colorboard mode. Image mode is automatically switched to Colorboard mode by receiving this command. Details The value set by this command is stored in EEPROM and its setting is effective even after ALL is OFF. This command is available in normal Power ON status. Response Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“CF_IMAGEADJ_%1”[CR]

“RST” ------- Reset Image adjustment “STR1” ----- Store current Image adjustment to Image 1 “STR2” ----- Store current Image adjustment to Image 2 “STR3” ----- Store current Image adjustment to Image 3 “STR4” ----- Store current Image adjustment to Image 4 Reset / store Image adjustment. Parameter “STR1” to “STR4” is the same as “Image1” to “Image4” displayed when adjusting Image on OSD menu and selecting “Store” The value stored to “Image1-4” is saved and its setting is effective even after ALL is OFF. This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

PC Adjust Control Command

“0000~0031” --------------- Directly select Fine Sync setting value “UP” -------------------------- Current Fine Sync setting value + 1 “DN” -------------------------- Current Fine Sync setting value - 1 Set Fine Sync value of PC signal Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR] CF_TDOTS Command Command

“mmmm~nnnn” --- Directly select Total Dots setting value “mmmm” shows minimum value, it is current Display Dots Horizontal value + Position value. “nnnn” shows maximum value, which is not over 140MHz. “UP” -------------- Current Total Dots setting value + 1 “DN” -------------- Current Total Dots setting value - 1 Details Set Total Dots of PC signal Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. This command is available in normal Power ON status. Response

“mmmm~nnnn” ---- Directly select Clamp setting value “mmmm” shows minimum value, fixed-value “0001”. “nnnn” shows maximum value: it depends on input signal. “UP” ------------------ Current Clamp setting value + 1 “DN” ------------------ Current Clamp setting value – 1 Set Clamp value of PC signal Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

CF_H – POS Command Command

“0000~nnnn” --- Directly select Horizontal Position setting value “nnnn” shows maximum value, it is current Total Dots value - Display Dots value “UP” -------------- Current Horizontal Position setting value + 1 “DN” -------------- Current Horizontal Position setting value - 1 Details Set Horizontal Position value of PC signal. Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. This command is available in normal Power ON status. Response

“0000~nnnn” --- Directly select Vertical Position setting value “nnnn” shows maximum value, it is current Total Line value - Display Line value “UP” -------------- Current Vertical Position setting value + 1 “DN” -------------- Current Vertical Position setting value – 1 Details Set Vertical Position value of PC signal Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. This command is available in normal Power ON status. Response

“0256”~”nnnn” --- Directly select Display Dots setting value “nnnn” shows maximum value, it is current Total Dots value - Horizontal Position value Even number is available and when odd number is set, it is rounded out. “UP” -------------- Current Display Dots setting value + 2 “DN” -------------- Current Display Dots setting value – 2 Set Display Dots value of PC signal Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

CF_DLINE Command Command

“0100”~”nnnn” --- Directly select Display Line setting value “nnnn” shows maximum value, it is current Total Line value – Vertical Position value “UP” -------------- Current Display Line setting value + 1 “DN” -------------- Current Display Line setting value – 1 Set Display Line value of PC signal Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR] CF_PCSTORE Command Command

“MODE1” ---- Store current PC Adjust status to Mode1 “MODE2” ---- Store current PC Adjust status to Mode2 “MODE3” ---- Store current PC Adjust status to Mode3 “MODE4” ---- Store current PC Adjust status to Mode4 “MODE5” ---- Store current PC Adjust status to Mode5 “MODE6” ---- Store current PC Adjust status to Mode6 “MODE7” ---- Store current PC Adjust status to Mode7 “MODE8” ---- Store current PC Adjust status to Mode8 “MODE9” ---- Store current PC Adjust status to Mode9 “MODE10” --- Store current PC Adjust status to Mode10 Store current PC Adjust status (each parameter status such as Total dots) to Mode1~Mode10. This command operates the same way as storing to Mode1-Mode10 in PC Adjust MENU. This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR] CF_PCMODEFREE Command Command

“CF_PCMODEFREE_%1”[CR]

“MODE1” ---- Set Mode1 to Free status “MODE2” ---- Set Mode2 to Free status “MODE3” ---- Set Mode3 to Free status “MODE4” ---- Set Mode4 to Free status “MODE5” ---- Set Mode5 to Free status “MODE6” ---- Set Mode6 to Free status “MODE7” ---- Set Mode7 to Free status “MODE8” ---- Set Mode8 to Free status “MODE9” ---- Set Mode9 to Free status “MODE10” --- Set Mode10 to Free status Delete the registered data in Mode1-Mode10 and turns it to Free status. This command operates the same as turning Mode1-Mode10 to Free in PC Adjust Menu. This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“CONPUTER” ----- Select Computer Input “HDMI” -------------- Select HDMI Input “VIDEO” -------------- Select Video Input “UP” --------------- The same operation as pressing Up key or Left key “DN” ----------------The same operation as pressing Down key or Right key Select Input The same operation as “INPUT” button of the projector and Remote Control. This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR] CF_SOURCE Command Command

Input is HDMI Input is Video Details Response “ANALOG” ------- Select Analog Input “YPBPR” ---------- Select Component Input “S−VIDEO” ------ Select S-Video Input “SCART” ----------- Select Scart Input “UP” ----------------- The same operation as pressing Up key or Left key “DN” ------------------The same operation as pressing Down key or Right key “HDMI” --------- Select HDMI Input ”UP” ”DN” Although no operation is executed, parameter ”UP” /”DN” projector “VIDEO” ------------- Select Composite Video Input ”UP” ”DN” Although no operation is executed, projector parameter ”UP” /”DN” accepts accepts Select Source of currently selected Input When Input specified by %1 is inappropriate for selected Input, the projector returns “101” and the command is not executed. This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

Details Response Select Computer input and source specified by %1 at the same time. This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“HDMI” ---------- Select HDMIInput Select HDMI input and source specified by %1 at the same time. This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR] CF_INPUT3 Command Command Details Response

“CF_INPUT_%1_%2”[CR]

Details Select image size on screen. When Input specified by %1 is inappropriate for selected Input, the projector returns “101” [CR] and the command is not executed. “DZOOM UP” and “DZOOM DN” start effecting from the first command. This command is available in normal Power ON status. Note) When Input is computer and AV sorts signals (480i / 575i…etc) are entered, the signal recognized as Video Input. Response Acceptable Unacceptable “000”[CR] “Error Code”[CR]

Details Select image size on screen. When Input specified by %1 is inappropriate for selected Input, the projector returns “101” [CR] and the command is not executed. “DZOOM UP” and “DZOOM DN” start effecting from the first command. This command is available in normal Power ON status. Note) When Input is computer and AV sorts signals (480i / 575i…etc) are entered, the signal recognized as Video Input. Response

”CENT” ---- Cancel Digital Zoom (CENT: “CENTER”) Cancel Digital Zoom When image is expanded or shrunk, reset its value. This command is available in normal Power ON status and when Input is Computer. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“032” --------- +32 “031” --------- +31 “002” --------- +2 “001” --------- +1 “000” --------- +0 “-01” ---------- -1 “-02” ---------- -2 “-31” ---------- -31 “-32” ---------- -32 “UP” ---------- Vertical Scale setting value + 1 “DN” ---------- Vertical Scale setting value - 1 Set Vertical Scale This command is available in normal Power ON status. Note1) When Screen setting is not in Custom mode, projector changes image mode into Custom by receiving this command. Note2) When there is no signal detected, projector returns 101 and the command does not execute. Acceptable Unacceptable “000”[CR] “Error Code”[CR] CF_VPOS Command Command

“015” --------- +15 “014” --------- +14 “002” --------- +2 “001” --------- +1 “000” --------- +0 “-01” ---------- -1 “-02” ---------- -2 “-14” ---------- -14 “-15” ---------- -15 “UP” ---------- Vertical Position setting value + 1 “DN” ---------- Vertical Position setting value – 1 Set Vertical Position This command is available in normal Power ON status. Details Response Note1) When Screen setting is not in Custom mode, projector changes image mode into Custom by receiving this command. Note2) When there is no signal detected, projector returns 101 and the command does not execute.. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

CF_HSCALE Command Command

Note1) When Screen setting is not in Custom mode, projector changes image mode into Custom by receiving this command. Note2) When there is no signal detected, projector returns 101 and the command does not execute. Acceptable Unacceptable “000”[CR] “Error Code”[CR] CF_HPOS Command Command

“015” --------- +15 “014” --------- +14 “002” --------- +2 “001” --------- +1 “000” --------- +0 “-01” ---------- -1 “-02” ---------- -2 “-14” ---------- -14 “-15” ---------- -15 “UP” ---------- Horizontal Position setting value + 1 “DN” ---------- Horizontal Position setting value - 1 Set Horizontal Position This command is available in normal Power ON status. Details Response Note1) When Screen setting is not in Custom mode, projector changes image mode into Custom by receiving this command. Note2) When there is no signal detected, projector returns 101 and the command does not execute. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“CF_KEYSTONE_%1”[CR]

“UP” ------------- Correct Keystone distortion to reduce upper part of image “FUP” ----------- Correct Keystone distortion to reduce upper part by 2steps “DN” ------------- Correct Keystone distortion to reduce lower part of image “FDN” ----------- Correct Keystone distortion to reduce lower part by 2steps “RST” ------------ Reset Keystone Change Keystone distortion correction This command is available in normal Power ON status. Acceptable Response

Unacceptable “000”[CR] “Error Code”[CR] “201”[CR] ----When reaching the Keystone correction limit or reaching 1 step to correction limit and “FDN”/”FUP” is received. (The command is not executed) CF_KYSTNMODE Command Command Details Response

“CF_KYSTNMODE_%1”[CR]

“STR” --------- Set Keystone store mode to Store “RST” --------- Set Keystone store mode to Reset Set Keystone store mode This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“ON” ------------------------ Set Ceiling to ON “OFF” ----------------------- Set Ceiling to OFF Set/Cancel Ceiling setting. The value set by this command is stored in EEPROM and its setting is effective even after ALL is OFF This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR] CF_REAR Command Command

“ON” --------------------------- Set Rear to ON “OFF” ------------------------- Set Rear to OFF Set/Cancel Rear setting. When Rear is ON, image is left/right reversed. The status set by this command is stored in EEPROM and its setting is effective after ALL is OFF This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

Command Details Response

“CF_SCREENASPECT_%1”[CR]

CF_LAMPH Command Command Details Response

“RST” Reset total lamp running time This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR] CF_LAMPMODE Command Command

“CF_LAMPMODE_%1”[CR]

“HIGH” ------------ Set lamp to High mode status “NORMAL” ------- Set lamp to Normal mode status “ECO” ------------- Set lamp to 3L mode status “UP” --------------- The same operation as pressing Up key or Left key “DN” --------------- The same operation as pressing Down key or Right key Select Lamp Mode The value set by this command is stored in EEPROM and its setting is effective even after ALL is OFF. This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

CF_VOLUME Command Command

Details Response Control Volume value The same operation of Volume Up/Down as projector and RC, and directly select Volume setting value. When setting Volume value, the Sound Mute ON status is canceled just like RC operation. The value set by this command is stored in Projector. This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“ON” ----------------------------- Set MIC to ON “OFF” ---------------------------- Set MIC to OFF Control MIC ON/OFF This command is available in normal Power ON status. Acceptable “000”[CR] Unacceptable “Error Code”[CR] CF_MICGAIN Command Command

“000-063” -------------------------- Directly select MIC gain setting value “UP” --------------------------------- Current MIC gain setting value +1 “DN” --------------------------------- Current MIC gain setting value -1 Control MIC gain value When setting MIC gain value just like operation by menu, the Sound Mute ON status is canceled. The value set by this command is stored in Projector. This command is available in normal Power ON status. Acceptable “000”[CR] Unacceptable “Error Code”[CR]

“CF_STANDBYMICOUT_%1”[CR]

“ON” ----------------------------- Set Standby MIC out to ON “OFF” ---------------------------- Set Standby MIC out to OFF Control Standby MIC out ON/OFF This command is available in normal Power ON status. Acceptable “000”[CR] Unacceptable “Error Code”[CR]

8.10 Setting Command

“ENG” --------------------------- Select English “DEU” --------------------------- Select German “FRA” --------------------------- Select French “ITA” ----------------------------- Select Italian “ESP” ---------------------------- Select Spanish “POR” --------------------------- Select Portuguese “NED” --------------------------- Select Dutch “SVE” --------------------------- Select Swedish “RUS” --------------------------- Select Russian “CHI” ---------------------------- Select Chinese “KOR” --------------------------- Select Korean “JPN” --------------------------- Select Japanese “FIN” ---------------------------- Select Finnish “POL” --------------------------- Select Polish “HUN” -------------------------- Select Hungarian “ROM” -------------------------- Select Romanian “THA” -------------------------- Select Thai “TUR” -------------------------- Select Turkish “KAZ” -------------------------- Select Kazakh “VIE” --------------------------- Select Vietnamese Set language for OSD The language set by this command is stored in EEPROM and its setting is effective after ALL is OFF. This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR] CF_MENUPOSITION Command Command

“SET” ------------------ Move the menu display to next position Change the menu position This command is available in normal Power ON status. Menu postion set by this command is stored in EEPROM and its setting is effective after ALL is OFF. Position: center – bottom left-bottom right – top left - top right – center-… Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“OFF” ------------------------- Set Input search operation to OFF “ON1” ------------------------- Set Input search operation to On1 “ON2” ------------------------- Set Input search operation to On2 Set Input search operation mode. The status set by this command is stored in EEPROM and its setting is effective after ALL is OFF This command is available in normal Power ON status. Note) It is unable to set Keystone, PC ADJ. and Input search to OFF at once. e.g. If projector receives Input search OFF command while Auto PC ADJ. and Keystone are OFF, it returns error code “101”.. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“ON” ------------------- Set Auto PC ADJ. function to ON “OFF” ------------------ Set Auto PC ADJ. function to OFF Set/Cancel Auto PC adj. function This command is available in normal Power ON status. Note) It is unable to set Keystone, PC ADJ. and Input search to OFF at once. e.g. If projector receives Auto PC ADJ. OFF command while Keystone and Input search are OFF, it returns error code “101”. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“AUTO” ------------------- Set Auto Keystone function to Auto “MANUAL” --------------- Set Auto Keystone function to Manual “OFF” --------------------- Set Auto Keystone function to OFF Set Keystone function of Auto setup This command is available in normal Power ON status. Note) It is unable to set Keystone, PC ADJ. and Input search to OFF at once. e.g. If projector receives Keystone OFF command while Auto PC ADJ. and Input search are OFF, it returns error code “101”.. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

8.10.6 CF_AUTOSETUP Command

Command Details Response

“CF_AUTOSETUP_%1”[CR]

“START” ------------------- Execute Auto Setup Execute Auto Setup Note) CF commands does not execute while Auto setup is in process. If the command is sent during this, projector returns error code “302” Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“BLUE” -------------------- Select Blue Back “USER” ------------------- Select User “BLACK” ------------------ Select Black Back “UP” ----------------------- The same operation as pressing Up key or Left key “DN” ----------------------- The same operation as pressing Down key or Right key Set Screen status for no signal.(Available only in the normal Power ON status) The status set by this command is stored in EEPROM and the setting remains even after the power is turned to ALL OFF status. *When ％1=”USER” is received, error code “101” is returned, in the case of Capture non-practice. Acceptable “000” [CR] Unacceptable “Error Code” [CR]

“ON” ----------------------------- Select Display “OFF” --------------------------- Cancel Display “CNTDWNOFF” -------------- Count down OFF “UP” ----------------------- The same operation as pressing Up key or Left key “DN” ----------------------- The same operation as pressing Down key or Right key Set / Cancel Display The value set by this command is stored in EEPROM and its setting is effective even after ALL is OFF. This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“OFF” ---------------------------- Disable Logo function “DFLT” --------------------------- Display Default Logo “USER” -------------------------- Display Captured Logo “UP” ----------------------- The same operation as pressing Up key or Left key “DN” ----------------------- The same operation as pressing Down key or Right key Set / Cancel Logo The value set by this command is stored in EEPROM and its setting is effective even after ALL is OFF This command is available in normal Power ON status. %1--- Set LOGO PIN CODE Details - When LOGO LOCK is in operation PIN CODE is correct ------------------ Command is valid (Acceptable) PIN CODE is incorrect ---------------- Command is invalid (Error Code “102”) PIN CODE is out of %1 range ------ Command is invalid (Error Code “? “) -When LOGO LOCK is not in operation PIN CODE is within %1 range ------ Command is valid PIN CODE is out of %1 range ------ Command is invalid (Error Code “? “) Note) Receiving correct LOGO PIN CODE while LOGO LOCK is in operation enables to change LOGO setting, but it does not release LOGO LOCK. (LOGO LOCK continues.) Projector returns Error Code “101” by receiving USER in %2 when capture has not operated. Response Acceptable Unacceptable “000”[CR] “Error Code”[CR]

8.10.10 CF_HDMISETUP Command

Command Details Response

“CF_HDMISETUP_%1”[CR]

“NORMAL” ----------------------- Set Normal mode “ENHANCED” ------------------- Set Enhanced mode Set HDMI Image setup. This command is available in normal Power ON status. The value set by this command is stored in EEPROM and its setting is effective even after ALL is OFF Acceptable Unacceptable “000”[CR] “Error Code”[CR]

8.10.11 CF_HDMISOUNDCommand

Command Details Response

“CF_HDMISOUND_%1”[CR]

“HDMI” ----------------------- Set PCM Digital Sound Inpout “EXTERNAL” -------------- Set External sound Input Set HDMI Sound setup. This command is available in normal Power ON status. The value set by this command is stored in EEPROM and its setting is effective even after ALL is OFF Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“OFF” --------------------------------- Set Power Management to OFF “READY” ----------------------------- Set Power Management to Ready “SHUTDOWN” --------------------- Set Power Management to Shut Down mode “UP” ----------------------- The same operation as pressing Up key or Left key “DN” ----------------------- The same operation as pressing Down key or Right key Set/Cancel Power Management The status set by this command is stored in EEPROM and its setting is effective after ALL is OFF This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“01” ~ ”30” ----------------------- Directly select setting time by the minute “UP” ------------------------------- Plus one minute (01 → 02 → ･･･ → 30 → 01) “DN” ------------------------------- Minus one minute(30 → 29 → ･･･ → 01 → 30) Set Power Management time The status set by this command is stored in EEPROM and its setting is effective after ALL is OFF This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“ON” -------------------------- Set Direct on active “OFF” ------------------------- Set Direct on inactive “UP” ----------------------- The same operation as pressing Up key or Left key “DN” ----------------------- The same operation as pressing Down key or Right key Set/Cancel Direct On Start The status set by this command is stored in EEPROM and its setting is effective after ALL is OFF This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

8.10.15 CF_STANDBYMODE Command

Command Details Response

“CF_STANDBYMODE_%1”[CR]

“ECO” ---------------------- Less standby electricity “NORMAL” ------- -------- Normal standby electricity Switch Standby Mode setting. This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“CF_PTIMEMODE_%1”[CR]

“COUNTUP” ---------------- Select Count up “COUNTDN” ---------------- Select Countdown Set operation mode of P-timer. The status set by this command is stored in EEPROM and its setting is effective after ALL is OFF This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR] CF_PTIMER Command

“001” ~ “180” -----------Directly specify the timer by minutes. Set Countdown timer for P-timer function. The status set by this command is stored in EEPROM and its setting is effective after ALL is OFF This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“CF_CCAPTIONDISP_%1”[CR]

“OFF” ------------- Select Off “CC1” ------------- Select CC1 “CC2” ------------- Select CC2 “CC3” ------------- Select CC3 “CC4” ------------- Select CC4 Select channel of Closed caption. The status set with this command is stored in EEPROM and its setting is effective even after ALL is OFF. This command is available in normal Power ON status. Closed caption is available under conditions below; Entered signal is appropriate (Video, NTSC signal of S-video) and System is fixed to NTSC i. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“COLOR” ------- Select Color “WHITE” -------- Select White Select color of Closed caption. The status set with this command is stored in EEPROM and its setting is effective even after ALL is OFF. This command is available in normal Power ON status. Closed caption is available under conditions below; Entered signal is appropriate (Video, NTSC signal of S-video) and System is fixed to NTSC. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

"001” --------------------------- Select Code1 "002” --------------------------- Select Code2 “UP” --------------- The same operation as pressing Up key or Left key “DN” --------------- The same operation as pressing Down key or Right key Select Code of Remote Control The status set by this command is stored in EEPROM and its setting is effective after ALL is OFF This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

8.10.22 CF_KEYDIS Command

Command Details Response

“CF_PJPINCODE_%1”[CR]

“0000” – “9999” ---------Set PJ PIN CODE directly Set PJ PIN CODE to release PJ LOCK. PIN CODE cannot be changed by this command. -When PJ LOCK is in operation PIN CODE is correct ------------------------- Command is valid (Acceptable) PIN CODE is incorrect ----------------------- Command is invalid(Error Code”102”) PIN CODE is out of %1 range ------------- Command is invalid (Error Code “? “) Details -When PJ LOCK is not in operation PIN CODE is within %1 range ---------------- Command is valid (Acceptable) PIN CODE is out of %1 range ---------------- Command is invalid (Error Code “? “) This command is valid during a dialog “PJ PIN CODE” is displayed after Power On and Count down. Also when PJ LOCK setting is “On1”, it is necessary to transmit this command every time lamp turns on. Response Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“L1” ---------------------------- Set Fan Mode to L1 “L2” ---------------------------- Set Fan Mode to L2 Switch Fan Mode When L1 is selected, fan noise after POWER OFF is louder. When L2 is selected, fan noise after POWER OFF becomes quiet, however, fan rotates longer than L1. The status set by this command is stored in EEPROM and its setting is effective even after ALL is OFF. This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“OFF” ---------------------------- Set Fan control to Off “ON1” ---------------------------- Set Fan control to On1 “ON2” ---------------------------- Set Fan control to On2 Set Fan control setting. The status set by this command is stored in EEPROM and its setting is effective even after ALL is OFF. This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

Command Details Response

“CF_DELAYCTRL_%1”[CR]

“ON” --------------------------- Set Video delay control On “OFF” -------------------------- Set Video delay control Off Set Video delay control. The status set by this command is stored in EEPROM and its setting is effective even after ALL is OFF. This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

Command Details Response

Command Details Response

“CF_FDEFAULT_%1”[CR]

“RST” Set the value to Factory Default This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“RIGHT” ------------------------- Shift Pointer on OSD Menu to right “LEFT” --------------------------- Shift Pointer on OSD Menu to left “UP” ------------------------------ Shift Pointer on OSD Menu to right “DN” ------------------------------ Shift Pointer on OSD Menu to right “SELECT” ----------------------- Behave the same as Select key “AUTOPC” ---------------------- Execute Auto PC adj This command behave the same as corresponding keys of Remote Control / Projector Auto PC adj. keeps operating even though projector receives this command again while Auto PC adj. is in process. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

8.11.2 CF_MENU Command

Command Details Response

“ON” ------------Power ON projector “OFF” ---------- Power OFF Projector Note1) Countdown can be terminated by sending this command.

Note2) Projector returns error code due to unable of command execution depends on its condition. Note3) Although projector returns “OK”, operation may not be proceeding properly. (e.g. After returning “000” for Power ON command, projector gets abnormal temperature.) Use Status read command to get projector states. Details Response Power ON / OFF projector. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

“ON” ------------------------ Set Freeze to ON “OFF” ----------------------- Set Freeze to OFF “UP” --------------- The same operation as pressing Up key or Left key “DN” --------------- The same operation as pressing Down key or Right key Set/Cancel Freeze setting. Although projector returns “000”, receiving another Freeze command does not release Freeze operation. This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

8.11.5 CF_VMUTE Command

“ON” --------------------------- Set Blank ON “OFF” ------------------------- Set Blank OFF “UP” --------------- The same operation as pressing Up key or Left key “DN” --------------- The same operation as pressing Down key or Right key Set/Cancel Blanksetting. This command is available in normal Power ON status. Acceptable Unacceptable “000”[CR] “Error Code”[CR]

PC issues commands in format as below: “CR_Command” [CR] Command : Character Line

When projector receives the appropriate command, it returns a character line as the required data “000＿”%1 [CR] %1: Required Data (Character Line. See [Basic Status Read Command Table])

When the received data cannot be decoded, the projector returns “?”[CR] Transfer Example Get total dots of projector by Expand Commands

PC → PJ: “CR_TDOTS” [CR]

PC ← PJ: “000_1344” [CR]

1) Basically Status Read Commands should be always operated.

2) When Eco mode is selected in Standby mode of Setting menu and projector is in Standby,

Status Read Commands are invalid.

I Image Status Read Command

Get Brightness value of user control Acceptable Response

Details Response Get Contrast value of user control

Get Color value of user control Acceptable Response

Unacceptable “000_%a”[CR] “000”~“063” “Error Code”[CR] CR_TINT Command Command Details

Unacceptable “000_%1”[CR] “OFF”------------ Auto Iris OFF is selected “ON” ------------- Auto Iris ON is selected “Error Code”[CR]

Get Sharpness value of user control Acceptable Response

Get Gamma value of user control Acceptable Response

Get White Balance Red value of user control Acceptable Response

“000”~“015” CR_GAMMA Command Command

“000_%a”[CR] “000_%a”[CR] “000”~“063” “Error Code”[CR] CR_WBAL – G Command Command Details

Get White Balance Green value of user control Acceptable Response

Get White Balance Blue value of user control Acceptable Response

Get setting status of Noise Reduction Acceptable Response

“000_%1”[CR] “L1” -------- Noise Reduction for moving image “L2” -------- Noise Reduction for still image “OFF” ----- Noise Reduction is OFF “Error Code”[CR] CR_PROGV Command Command Details

Get setting status of Progressive scan Acceptable Response

Unacceptable “000_%a”[CR] “L1” ----------------- Progressive Mode L1 is selected “L2” ----------------- Progressive Mode L2 is selected “FILM” -------------- Progressive Model FILM is selected “OFF” --------------- Progressive scan is disabled “Error Code”[CR]

Get image setting status Required data “CUSTOM1” to “CUSTOM4” is the same as “User 1” to “User 4” displayed when selecting IMAGE on OSD menu Acceptable Response

CR_FSYNC Command Command Details Response

“000_%a”[CR] CR_CLAMP Command Command

CR_DDOTS Command Command Details

“000_%a”[CR] “000_%a”[CR] “0100”~“nnnn” (nnnn = Total Line – Vertical Position value) “Error Code”[CR] CR_PCSTORE Command Command Details

Get Free/Stored status of MODE1 – MODE10 for PC Adjust. Each data consists of 10 bytes. Each byte indicates MODE1~MODE10 respectively. (F:Free S:Stored) Acceptable Response

Unacceptable the status “000_%a”[CR] “FFFFFFFFFF” ----------- All Free “SFFFFFFFFF” ----------- MODE1 is Stored, others are Free “FFFFFFFFFS” ----------- MODE10 is Stored, others are Free “SSSSSSSSSS” ---------- All Stored “Error Code”[CR]

Get currently selected signal Returns auto-detected signal in Auto mode Only available for Video input. (N/A when Input is computer) Acceptable Response

Details Get selected Source “000_%1”[CR] Request data “ANALOG” ---------- Analog (RGB) Input is selected “SCART” ------------- SCART is selected “VIDEO” -------------- Video Input is selected “S-VIDEO” ----------- S-Video Input is selected “YPBPR” ------------- Component Input is selected “HDMI” ---------------- HDMI is selected Unacceptable “Error Code”[CR] CR_SRCINP1 Command Command Details

Get selected source of Input 1_CMP1 Acceptable Response “000_%1”[CR] Request data “ANALOG” ---------- Analog RGB Input is selected “YPBPR” ----------- YPBPR Input is selected “S-VIDEO” ----------- S-Video Input is selected “SCART” ----------- Scart Input is selected Unacceptable “Error Code”[CR] CR_SRCINP2 Command Command Details

Get selected source of Input 2_HDMI Acceptable Response

“1”-”3” CR_SOURCE Command Acceptable

“000_%1”[CR] “000_%1”[CR] Request data “HDMI” --------- HDMI Input is selected Unacceptable “Error Code”[CR] CR_SRCINP3 Command Command Details

“000_%1”[CR] Input is PC Analog “VGA1” -------------- VGA1 is selected “VGA2” -------------- VGA2 is selected “XGA1”-------------- XGA1 is selected “WXGA3” --------- WXGA3 is selected “1080i” ------------ 1080i is selected “1035i” ------------ 1035i is selected “720p” ------------- 720p is selected “575p” ------------- 575p is selected “480p” ------------- 480p is selected “575i” -------------- 575i is selected “480i” -------------- 480i is selected “MODE1” ------- Mode1 is selected “MODE10” -------------- Mode10 is selected When there is no signal, projector returns error code”101” [CR] Input is HDMI “D-XGA1”-------------- D-XGA1 is selected “D-WXGA3” --------- D-WXGA3 is selected “D-1080i” ------------ D-1080i is selected “D-1035i” ------------ D-1035i is selected “D-720p” ------------- D-720p is selected “D-575p” ---------------- D-575p is selected “D-480p” ------------- D-480p is selected “When there is no signal, projector returns error code”101” [CR] Input is Y,Pb/Cb,Pr /Cr “AUTO” ----------- Auto is selected “1080i” ------------1080i is selected “1035i” ------------ 1035i is selected “720p” ------------- 720p is selected “575p” ------------- 575p is selected “480p” ------------- 480p is selected “575i” -------------- 575i is selected “480i” -------------- 480i is selected Projector returns selected System status regardless of the signal input. Input is Video,S-Vi deo “AUTO” --------------- Auto is selected “NTSC” --------------- NTSC is selected “NTSC443” ---------- NTSC4.43 is selected “PAL” ------------------ PAL is selected “SECAM” ------------- SECAM is selected “PAL−M” ------------- PAL-M is selected “PAL−N” ------------- AL-N is selected Projector returns selected System status regardless of the signal input. Unacceptable ““Error Code”[CR]

Get selectable System titles Acceptable “000_%1_%2_..._%x” [CR] - When Input is PC-Analog “XGA1” ------------ XGA1is selectable “1080I ” ----------- 1080i is selectable Projector does not return Auto,Mode1-10 When there is no signal, it returns Error Code “101” - When Input is HDMI “D-XGA1” ------------ D-XGA1is selectable “D-720p ” ------------- D-720pi is selectable Response

-When Input is Y,Pb/Cb,Pr/Cr Returns all the System titles on Menu including Auto “AUTO” ------------ Auto is selectable “1080I” ------------ 1080i is selectable “1035I” ------------ 1035i is selectable

“575I” ------------ 575i is selectable “480I” ------------ 480i is selectable Projector does not return Error Code “101” even if there is no signal. -When Input is Video, S-Video Returns all the System titles on Menu including Auto “AUTO” ---------Auto is selectable “PAL” ------------ PAL is selectable “SECAM” ------ SECAM is selectable

“PAL-N” --------- SECAM is selectable Projector does not return Error Code “101” even if there is no signal. Unacceptable

Unacceptable “000_%1_%2_..._%x” [CR] Returns Error code “101” when Input is other than PC-Analog Returns Error code “101” when Input is PC-Analog but no signal When Input is PC-Analog and signal is found, returns selectable Mode among Mode1 – 10 “MODE1”

“MODE10 “Error Code”[CR]

Get selected on-screen image size Acceptable Response Input

“NORMAL” --------------- Normal mode is selected “FULL” --------------------- Full mode is selected “WIDE” -------------------- Wide (16:9) mode is selected “ZOOM” -------------------- Zoom mode is selected “TRUE” -------------------- True mode is selected When the screen is set to D.Zoom, projector returns the previous status (NORMAL ) “CUSTOM” ---------------- Custom mode is selected Input Video “NORMAL” --------------- Normal mode is selected “FULL” --------------------- Full mode is selected “WIDE” -------------------- Wide (16:9) mode is selected “ZOOM” -------------------- Zoom mode is selected “CUSTOM” --------------- Custom mode is selected

Get selected on-screen image size Acceptable Response “000_%a”[CR] Input

“NORMAL” --------------- Normal mode is selected “FULL” --------------------- Full mode is selected “WIDE” -------------------- Wide (16:9) mode is selected “ZOOM” -------------------- Zoom mode is selected “TRUE” -------------------- True mode is selected When the screen is set to D.Zoom, projector returns the previous status (NORMAL ) “CUSTOM” ---------------- Custom mode is selected Input Video “NORMAL” --------------- Normal mode is selected “FULL” --------------------- Full mode is selected “WIDE” -------------------- Wide (16:9) mode is selected “ZOOM” -------------------- Zoom mode is selected “NATURAL” -------------- Natural mode is selected “CUSTOM” --------------- Custom mode is selected

“000_%a”[CR] “Error Code”[CR] CR_VSCALE Command Command Details Response

CR_VPOS Command Command Details

“000_%1”[CR] “-15” ~ “015” Unacceptable

“Error Code”[CR] CR_HSCALE Command Command Details

“000_%1”[CR] “-32” ~ “032” Unacceptable

“000_%1”[CR] “-15” ~ “015” “Error Code”[CR] CR_ KYSTNMODE Command Command Details

“Error Code”[CR] “000_%a”[CR] “STR” ---------------------- Store mode is “Store” “RST” ---------------------- Store mode is “Reset” “Error Code”[CR] CR_CEIL Command Command Details

Get setting status of Rear Acceptable Response

Unacceptable “000_%1”[CR] “ON” ------------------------------ Rear is ON “OFF” ----------------------------- Rear is OFF “Error Code” [CR]

Get setting status of Screen Aspect Acceptable Response

CR_LAMPREPL Command Command Details

Get total running time of lamp by hour (h) *Actual running time, not corresponding value Acceptable Response “000_%1”[CR]

“00000”~“99999” Unacceptable “Error Code”[CR] CR_LAMPCORRESPH Command Command Details

“CR_LAMPCORRESPH”[CR]

Get total running time of lamp by hour (h)

• Corresponding value, not actual running time Acceptable Response

“Error Code”[CR] CR_LAMPH Command Command

“1” means the number of lamps. (1 lamp model→ “1”) “Y”/”N” means if it has reached its replacement time or not. e.g. “1Y” -----------projector is 1 lamp model and Lamp is over its replacement time “000_%1”[CR]

Unacceptable “000_%1”[CR] “HIGH” -------------------- Lamp Mode is High “NORMAL” -------------- Lamp Mode is Normal “ECO” --------------------- Lamp Mode is Eco “Error Code”[CR]

CR_LAMPMSTS Command Command Details

Get Lighting status of lamp Acceptable “000_%1”[CR] “n**** ” A number of * should be among 1-4. First character shows how many lamps are incorporated in projector. (1,2 or 4 ) Response

Get total running time of Projector by hour (h) Acceptable Response

Second character shows following status in order of lamp number. “I” Lamp is ON “O” Lamp is OFF “X” Lamp failure e.g. “1I” ･･･････ 1 Iamp model and Lamp is ON “2IO･･･････ 2 lamps model and No.1 Lamp is ON and No.2Lamp is OFF “4IOXI” ････ 4 lamps model and No.1,No.4 lamps are ON. No.2 lamp is OFF and No.3 model is failed. “000_%1”[CR] “0000000”~“0099999” “Error Code”[CR] CR_HMLAMP Command Command Details

9.10.1 CR_VOLUME Command

Get Volume value of user control Acceptable Response

Unacceptable “000_%a”[CR] “ON” -------------------- Sound Mute is ON “OFF” ------------------- Sound Mute is OFF “Error Code” [CR]

Details Get setting status of MIC Acceptable Response

Unacceptable “000_%1”[CR] “ON” -------------------- MIC is ON “OFF” ------------------- MIC is OFF “Error Code” [CR]

Details Get MIC gain value of user control Acceptable Response

Unacceptable “000_%1”[CR] “ON” -------------------- Standby MIC out is ON “OFF” ------------------- Standby MIC out is OFF “Error Code” [CR]

9.11 Setting Status Read Command

Get selected language Acceptable Response

Unacceptable “000_%a”[CR] “ENG” -------------------------- English is selected “DEU” -------------------------- German is selected “FRA” -------------------------- French is selected “ITA” --------------------------- Italian is selected “ESP” -------------------------- Spanish is selected “POR” -------------------------- Portuguese is selected “NED” -------------------------- Dutch is selected “SVE” -------------------------- Swedish is selected “JPN” -------------------------- Japanese is selected “CHI” -------------------------- Chinese is selected “KOR” -------------------------- Korean is selected “RUS” -------------------------- Russian is selected “FIN” ---------------------------- Finnish is selected “POL” --------------------------- Polish is selected “HUN” -------------------------- Hungarian is selected “ROM” -------------------------- Romanian is selected “THA” --------------------------- Thai is selected “TUR” --------------------------- Turkish is selected “KAZ” --------------------------- Kazakh is selected. “VIE” ---------------------------- Vietnamese is selected “Error Code”[CR]

“CR_INPUTSEARCH”[CR]

Unacceptable “000_%a”[CR] “ON” ------------------ Auto PC ADJ. in Auto setup is ON “OFF” ----------------- Auto PC ADJ. in Auto setup is OFF “Error Code”[CR]

Get Keystone setting status in Auto setup Acceptable Response

“000_%a”[CR] “AUTO” -------------- Auto Keystone is Auto “MANUAL” ---------- Auto Keystone is Manual “OFF” ---------------- Auto Keystone is OFF Unacceptable “Error Code”[CR]

Get setting status of Screen for no signal Acceptable Response “000_%1” [CR] “BLUE” -------------------------------- Blue Back is selected “USER” ------------------------------- User is selected “BLACK” ------------------------------ Black Back is selected

Unacceptable “Error Code” [CR]

9.11.6 CR_DISP Command

Unacceptable “000_%1”[CR] “NORMAL” ------------------------ Normal is selected “ENHANCED” -------------------- Enhanced is selected “Error Code” [CR]

Unacceptable “000_%a”[CR] “OFF” -------------------------- Power Management is OFF “READY” ---------------------- Power Management is Ready “SHUTDOWN” ---- Power Management is set to Shut Down mode “Error Code” [CR]

Get time to start Power Management Acceptable Response

Unacceptable “000_%a”[CR] “ON” -------------------------- Direct On Start is ON “OFF” ------------------------- Direct On Start is OFF “Error Code” [CR]

Get operation mode of P-timer. Acceptable Response

“000_%a”[CR] “COUNTUP” ---------------- Count up is selected “COUNTDN” ---------------- Count down is selected. Unacceptable “Error code”[CR]

Get current status of P-timer Acceptable Response

“000_%a”[CR] “ON” ------------------------ P-timer is in execution “STOP” --------------------- P-timer is paused “OFF” ----------------------- P-timer is inactive Unacceptable “Error code”[CR]

“CR_CCAPTIONDISP”[CR]

Get selected channel of Closed caption Acceptable Response

Unacceptable “000_%a”[CR] “OFF” --------- Off “CC1” --------- CC1 is selected “CC2” --------- CC2 is selected “CC3”--------- CC3 is selected “CC4” --------- CC4 is selected “Error Code”[CR]

Get selected color of Closed caption Acceptable Response

Unacceptable “000”[CR] “COLOR” ------- Color is selected “WHITE” -------- White is selected “Error Code”[CR]

Unacceptable “000_%1[CR] “ON” ------------- PJ Lock setting on Menu is ON-1 or ON-2 “OFF” ------------PJ Lock setting on Menu is OFF “Error Code” [CR]

Get if PJ lock is actually in operation Acceptable Response

Unacceptable “000_%1[CR] “LOCK” ------------- PJ Lock is in operation. PJ Lock status is ON-1 or ON-2 on Menu, and PJ PIN CODE is not entered so that projector is actually locked. “FREE” ------------- PJ Lock is released. PJ Lock status is OFF, or, status is ON-1 or ON-2 on Menu but PJ PIN CODE is entered correctly so that PJ Lock is released. “Error Code” [CR]

“CR_PJLOCKMENU” [CR]

Get status of PJ Lock on Menu Acceptable Response

Unacceptable “000_%1[CR] “ON1” ------------- PJ Lock status is On-1 “ON2” ------------- PJ Lock status is On-2 “OFF” ------------- PJ Lock status is OFF “Error Code” [CR]

Unacceptable “000_%a”[CR] “L1” ----------------------- Fan mode is L1 “L2” ----------------------- Fan mode is L2 “Error Code” [CR]

Unacceptable “000_%a”[CR] “OFF” ----------------------- Fan control is OFF “ON1” ----------------------- Fan control is ON1 “ON2” ----------------------- Fan control is ON2 “Error Code” [CR]

Get setting status of Video delay control Acceptable Response

Unacceptable “000_%1”[CR] “ON” ----------------------- Video delay control is active “OFF” ---------------------- Video delay control is inactive “Error Code”[CR]

Get setting time which filter warning OSD is displayed Acceptable Response

9.12 Other Status Read Command

9.12.1 CR_STATUS Command

Command Details “CR_STATUS”(CR) Get status of Projector behavior. This command affects the same as ”CR0” of Basic Serial command, but this has an error code. Acceptable Response

Unacceptable “000_%1”[CR] “00”= Power ON “80”= Stand by “40”= Count down “20”= Cooling down “10”= Power failure “28”= Cooling down due to abnormal temperature “88”= Stand by after Cooling down “24”= Power saving cooling down “04”= Power saving “21”= Cooling down due to Lamp failure “81”= Stand by after Cooling down due to Lamp failure “Error Code”[CR]

9.12.2 CR_SIGNAL Command

Command Details “CR_SIGNAL”(CR) Get Signal status if there is signal or not Acceptable Response

Unacceptable “000_%a”[CR] “ON” ------------------------ Signal is found “OFF” ----------------------- There is no signal “Error Code” [CR]

9.12.3 CR_VMUTE Command

Unacceptable “000_%a”[CR] “ON” -------- Blank is ON “OFF” ------- Blank is OFF “Error Code” [CR]

Unacceptable “000_%a”[CR] “ON” ---------------------- Freeze is ON “OFF” --------------------- Freeze is OFF “Error Code” [CR]

Get the temperature inside a projector and its condition if it is abnormal temperature or close to abnormal temperature If there are several sensors installed, it is possible to get information from all the sensors at once. Acceptable “000_%a_%b_%c”[CR] %a -------------------- Sensor 1 status %b -------------------- Sensor 2 status %c -------------------- Sensor 3 status “W” ---- Approach or reach abnormal temperature (dangerous temperature) “S” ---- Far from abnormal temperature (safe temperature) “N” ---- Sensor detects no abnormal temperature Response

Unacceptable [Example] “S_W_S”[CR] means Sensor 1 detects safe temperature, Sensor 2 detects abnormal temperature and Sensor 3 detects safe temperature Note) When the temperature difference between Sensor 1 and 3 reaches specific value, some of the models detect it as Abnormal temperature. In this case, the 3rd data shows if the temperature difference between Sensor 1 and 3 is dangerous state or not. The 3rd data means temperature abnormality due to Sensor 3 When abnormal temperature is not detected by sensor, “N” (No connection with temperature abnormality) is returned. “Error Code” [CR]

Get current temperature inside a projector. If there are several sensors installed, it is possible to get information from all the sensors at once. Acceptable “000_%1_%2_%3”[CR] %1= Sensor 1 temperature (Outside temperature) %2= Sensor 2 temperature (Inside temperature1) %3= Sensor 3 temperature (Inside temperature2) %1,%2 are consists of 6 bites fixed There must be 1 space between %1 and %2, and, %2 and %3 e.g. _31.5F “_” means a space and “_” changes into “-“, when temperature gets below freezing. e.g. -05.5F The last character shows if corresponding sensor is under abnormal temperature. Response %1,%2,%3 “F” ------- Abnormal temperature “W”-------Close to abnormal temperature(Temperature is as high to display Warning) “S” -------Not close to abnormal temperature (Temperature is low enough and safe.) “N”-------Applicable sensor does not detect abnormal temperature “E” -------Not able to return temperature data When several sensors are incorporated, projector returns values continuously. e.g. “_31.5F__35.2S__38.0W”[CR] A data of sensor 1 comes first and a data of sensor 2 follows after 1 space. As described respectively in e.g., sensor 1 detects abnormal temp., sensor 2 detects 35.2 degrees which means safety, and sensor 3 is 38 degrees which is close to abnormal temp. In case projector cannot return its data due to some hard ware failure, the last character becomes “E” such as “_00.0E”. Some of the projectors get abnormal temperature because of heat of Lamp ballast in Standby mode or Powering ON. Therefore detection of abnormal temperature is suspended while Standby mode or adequate time after Power ON, and during that time projector returns “_----N” as a temperature data. Unacceptable “Error Code”[CR]

CR_TEMPFAIL Command Command Details

Get the temperature inside a projector when abnormal temperature occurs. If there are several sensors installed, it is possible to get information from all the sensors at once. Acceptable “000_%a_%b_%c”[CR] %a ------------------ Sensor 1 temp. (External temp.) %b ------------------ Sensor 2 temp. (Internal temp.1) %c ------------------ Sensor 3 temp. (Internal temp.2) [Example] “_31.5F”[CR] “_” indicates a space. When the temperature sinks to -, the first character is “-” like “-05.5F”[CR] The last character means the sensor’s status if it reaches abnormal temperature Response

Exceeding critical temp. ------------------------------ “F” Temp. is safe -------------------------------------------- “S” Sensor detects no critical temp.--------------------- “N” The example shows that sensor 1 indicates 31.5 degrees and the temperature is abnormal. When the temperature is safe, all data are represented as “□000S”. When the projector is reset, “□000S” is set, and every time abnormal temperature occurs, it renews the data and returns it. In short, it only returns the renewed data of the latest abnormal temperature and the previous data is deleted. Unacceptable “Error Code” [CR]

Unacceptable “000_%1”[CR] “8 bytes alphanumeric characters “Error Code” [CR]
