USER MANUAL RE-455X CANON

CLORARRBElR TRES] LÉLICRMICRELT<ÉEUS Please read this instruction manual carefully before operation. Store this manual in a readily accessible location for future reference.

A BBICSÉUL TETE < TEDIT HE LE:

@ NEARR 9 PFARRS DV'ERLTÉUREÆERE UT A—R74—-H2ÈRETSE

&l&k, FOCUSR9ÆHL T<THEEL FOCUS # >

—F) Eb#RbbET. REMÆEURIERERDÉZSEELSTTHLET.

© LMEMORRENDÉRLNSES LEGER, 773% RAF EDR DD TARET,

(222 3% RAF: REICET RËSE, ET RPBEËNSE

ÆDDEFOCUSRY/ÆMLTEY Rd

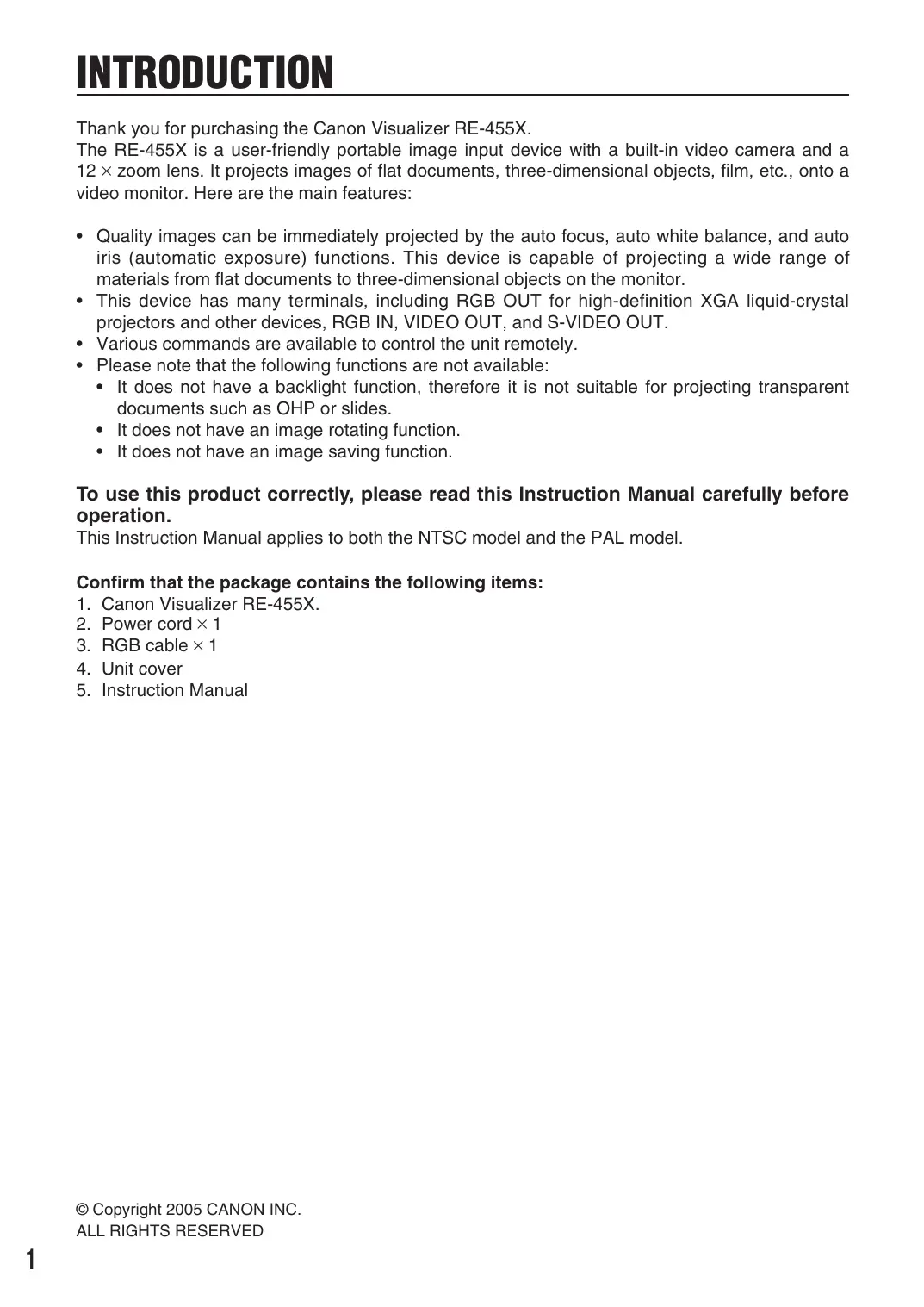

RE-455X INSTRUCTION MANUAL NTSC/PAL INTRODUCTION Thank you for purchasing the Canon Visualizer RE-455X.

The RE-455X is a user-friendly portable image input device with a built-in video camera and a 12 x zoom lens. lt projects images of flat documents, three-dimensional objects, film, etc., onto a video monitor. Here are the main features:

+ Quality images can be immediately projected by the auto focus, auto white balance, and auto iris (automatic exposure) functions. This device is capable of projecting a wide range of materials from flat documents to three-dimensional objects on the monitor.

+ This device has many terminals, including RGB OUT for high-definition XGA liquid-crystal projectors and other devices, RGB IN, VIDEO OUT, and S-VIDEO OUT.

+_ Various commandés are available to control the unit remotely.

+ _ Please note that the following functions are not available:

+ _lt does not have a backlight function, therefore it is not suitable for projecting transparent documents such as OHP or slides.

+_ lt does not have an image rotating function.

+_ It does not have an image saving function.

To use this product correctly, please read this Instruction Manual carefully before operation. This Instruction Manual applies to both the NTSC model and the PAL model.

Confirm that the package contains the following items: 1. Canon Visualizer RE-455X.

© Copyright 2005 CANON INC.

ARE ON OR IMMEDIATELY AFTER THEY HAVE BEEN TURNED OFF. DO NOT TOUCH THEM DIRECTLY. BE ESPECIALLY CAREFUL WHEN FOLDING THEM AFTER USE.

CAUTION: ( FLUORESCENT LAMPS ARE HOT WHEN THEY FCC NOTICE Visualizer, Model RE-455X This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmiul interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: + Reorient or relocate the receiving antenna. + Increase the separation between the equipment and receiver. + Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. + Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Canon U.S.A. Inc, One Canon Plaza, Lake Success, NY 11042, U.S.A. Tel NO. (516) 328-5600

NOTE FOR CUSTOMERS IN THE US LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS.

À IMPORTANT SAFETY INSTRUCTIONS In these safety instructions the word “product” refers to the Canon Visualizer RE-455X and all its

1. Read Instructions—AIl the safety and operating instructions should be read before the product is operated.

2. Retain Instructions—The safety and operating instructions should be retained for future reference.

3. Heed Warnings—All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions —All operating and maintenance instructions should be followed.

5. Cleaning—Unplug this product from the wall outlet before cleaning. Wipe the product with a clean soft cloth. If necessary, put the cloth in diluted neutral detergent and wring it out well, before wiping the product. Finally, clean the product with a clean dry cloth. Do not use benzene, thinner or other volatile liquids or pesticides as they may damage the products finish. When using chemically-treated cleaning cloths, observe their precautions accordingly.

6. Accessories—Do not use non Canon approved accessories as they may be hazardous. Always use the specified connection cables and be sure to connect devices correctly.

7. Water and Moisture—Hazard of electric shock—Do not use this product near water or in rainy/moist situations. Do not put a heater near this product.

8. Placing or Moving—Do not place this product on an unstable cart, stand, tripod, bracket or table. The

product may fall, causing serious injury to a child or adult and serious damage to the product. À product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

9. Power Sources—This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply in your home, consult your product dealer or local power company.

10.Grounding—This product is equipped with a 3-

pronged grounding plug (the plug has a third grounding pin). The 3-pronged grounding plug will fit into a grounding type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug

11.Power-Cord Protection—Power cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to plugs, and the point from which the cords exit the product

12.Outdoor Antenna Grounding—if an outside antenna is connected to the product, be sure the antenna is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No. 70—1984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna dischage unit, size of grounding conductors, location of antenna dischage unit, connection to grounding electrodes, and requirements for the gounding electrode. See figure 1.

Example of antenna grounding as per National Electrical Code

__ Antenna lead-in wire

Antenna discharge unit (NEC section 810-20)

Equipment Grounding conductors

{NEC art 250, part H) NEC—National Electric Code

18.Lightning—For added protection of this product during a lightning storm, or when it is left unattended and unused for long periods of time, disconnect it from the wall outlet. This will prevent damage to the product due to lightning and power-line surges.

14.Power Lines—An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

15.0verloading—Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

16.Objects and Liquid Entry—Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Be careful not to spill liquid of any kind onto the product.

17.Servicing—Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

18.Damage Requiring Service—Disconnect the product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged.

b.. If any liquid has been spilled onto, or objects have fallen into the product.

c. If the product has been exposed to rain or water.

d. Ifthe product does not operate normally even if you follow the operating instructions, adjust only those controls that are covered by the operation instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e. Ifthe product has been dropped or the cabinet has been damaged.

f. When the product exhibits a distinct change in performance. This indicates a need for service.

19.Replacement Parts—When replacement parts are required, be sure the service technician has used replacement parts that are specified by Canon or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

20.Safety Check—Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in safe operating order.

CONTENTS A IMPORTANT SAFETY INSTRUCTIONS 3 1. NOMENCLATURE AND FUNCTIONS 6

2. ASSEMBLING, STORING AND CONNECTION :::8

3. OPERATION : Manual Focusing --- Readjusting the White Balance Changing the angle to Letter/A4 size :: Freezing an output image Projecting white documents Adjusting Brightness and Image Contrast ----.--...

4. SYSTEM CONNECTION EPLEESETE SEE SE EEE ETES SEE TEE ES Outputting to a video monitor To Control by a Computer Changing to Sources via External Input Equipment ---16

Recording Images on AV Equipment ::------. 17 Transferring Images to Computers (Image Input)------ 17 Functions Controlled by a Computer :-:---. 18

—— lllumination lamp

Arm llumination lamp for reflection copies. Pressing the LIGHTS button on the operation panel tums the lamp on. The angle of the lamp is adjustable. SEMRE Document table

Arm lock release lever.

Press to folduntold the amm

Power switch (see page 11) Pull out to carry the unit. |

After tuming the power OFF, wait at least 5 seconds before turning the power

ON again. Tuming the power ON too soon may cause a malfunction.

Mevo | The illumination lamps do not light up immediately after the LIGHTS button is pressed. To protect the lamps, the system preheats for 3 seconds, then turns

See page 15 for system construction.

S-VIDEO OUT terminal

RS-232C terminal [Use this terminal when controlling the RE-455X | remotely with a computer using various

command (see page 15, 18).

[Use this button to turn ON the ilumination lamps for reflection copies. The indicator flashes during preheating, and stays lit after preheating

CAMERA button/indicator

Use this button to switch from images from an | external input (such as a computer) to images from the units camera head (see page 16). The indicator lights up when the camera is selected

RGB IN button/indicator

Use this control to adjust image quality (see page 14). Turn the control to the HARD side to emphasize the utine, tum ta the SOFT side for softer outlne.

FOCUS buttons/indicator

Use this button to focus automatically or

Use this button to switch from images from the units camera head to images via an external input (such as a computer) (see page 16). The indicator lights up when the external input is

manual (see page 12). The indicator lights up

when auto focus is selected

WHITE BALANCE button/indicator/control

E this button/knob to adjust color tone (see

(Press the WIDE button to change | he image to wide-angle. Press the TELE button to change ihe image to telephoto.

Lights up when the power is ON (see page 11).

WHITE PAPER button/indicator

Use this button to make a paper document on the table appear whiter. The indicator lights up when this function is on.

[Use this knob to adjust image brighiness (see page 14).

ZOOM PRESET button/indicator [Use this button to change the angle of view | to fit letter/A4 size (see page 18). The indicator lights up when the button is pressed!

STILL PICTURE button/indicator

Press the STILL PICTURE button to freeze | a moving output image (see page 18). The indicator lights up when the image is frozen

[2 ASSEMBLING, STORING AND CONNECTION

Unfold and raise the pair of illumination lamps.

Raise the right-hand illumination lamp first, then the left-hand

Ii ! ! 1 ! illumination lamp (D -»@). 1 Ii ! 1 Ii

Press the arm lock release lever, and raise the arm until it stops.

vonce Make sure to hold the arm when pressing the arm lock release lever. If the lever is pressed without holding the arm, the arm jumps up and may result in injury or malfunction. Please raise the arm slowly.

Direct the camera head towards the document = ll table. É ! 1 ! ! 1 ! ! 1 ! Remove the lens cap. | !

Keep the lens cap in a safe place.

illumination lamp (D ->@).

1 CAUTION Put the lens cap to the lens.

none | Be sure to turn the power OFF before storing the unit.

2 Direct the camera head sideways until it stops.

Hold the arm with your right hand and press 3 the arm lock release lever, then pull the arm down to the document table very carefully.

sonce Make sure to hold the arm when stowing it. If the arm is stowed without being held, in injury or malfunction. Please stow it slowly.

Ilumination lamps very carefully.

Fold the left-hand illumination lamp first, then the right-hand

Do not touch the fluorescent lamps after thei ilumination lamps are turned of, as they may still

the arm jumps up and may result

Put the supplied unit cover on the RE-455X when the unit is not in use. The unit cover has a pocket to store cords.

PCECEECPECEREREEEEERERESERESEREERRRERERREE

+ Place the unit horizontally when storing it. If the unit is stored

CAUTION … vertically, it may fall down, resulting in injury or malfunction.

+ To carry the unit, turn the power OFF, disconnect the cords, fold the unit, and pull out the carrying handle.

1 + Make sure the unit has adequately cooled off before putting on i the cover. i ! 0 ! ! !

To connect the RE-455X to a projector, use the RGB cable included in the package. Use the power cord included in the package.

To RGB input terminal RGB cable (supplied)

To RGB OUT Rear panel

Power cord (supplied)

none To protect the RE-458X as well as other equipment in use, make sure all the equipment (if any) is OFF before connecting cables. Always hold onto the plug section whenever connecting/disconnecting the cables.

Meuo + Use an XGA-compatible projector. + See page 15 for connecting various equipment. For details of operation, refer to the instruction manual of the equipment to be used.

i When the power of the RE-455X is turned ON, the POWER 1 indicator on the operation panel lights up. É i MEMO + When the power is turned on, it takes about 20 seconds to ! show an image.

+ When the power is tumed on, white balance and focus are automatically adjusted.

Power switch Operation Panel

Turn ON the power source of the other equipment to be used.

1 1 Either the power of the RE-455X or other equipment may be turned on first. 1

! ! 3 Put the document at the center of the document Document table

If no image is displayed, check to see that the lens cap has been removed

Auto focus will activate when the power is turned ON. If auto focus does not bring the subject into focus, switch to manual focus.

When operation is completed, turn the power OFF.

The POWER indicator goes off. The illumination lamps will go off (if they are on). Also tum OFF the power of other equipment.

nome | After tuming the power OFF, wait at least 5 seconds before tuming the power ON again. Tuming the power ON too soon may cause a malfunction.

MS The power of the RE-455X should be turned OFF when the unit is not used.

Disconnect the power cord if the unit will not be used for extended periods.

When auto focus doesn't focus correctly or when focusing on a particular point of a three-dimensional object, you can focus manually. Manual focusing is available up to approx. 65mm above the document table. Because of depth of field, sharp focus may not be achieved for the entire area of a three-dimensional object.

1 Follow the procedures below.

@ Press the FOCUS button to switch to manual focus mode.

1 @ Press the NEAR button or

the FAR button to adjust

! L To return to auto focus mode, L_press the FOCUS button. FOCUS button

CEE MEuo + When the FOCUS button is pressed for two seconds or longer, the mode will

PA switch to one-shot auto focus (one-shot AF: once focus is achieved on the

subject, focus will be locked in this mode). This mode is recommended when changing subjects often.

+ When switching projection between three-dimensional objects and paper documents and in other similar cases, switch to one-shot AF mode first, then press the FOCUS button achieve focus.

+ The FOCUS indicator flashes in one-shot AF mode, and it turns off once the subject is properly focused.

+ To retum from one-shot AF mode to normal auto focus mode, and hold press the FOCUS button for to seconds or longer.

EH Undesirable objects for focusing

Objects such as those listed below may present some difficulty with focusing. lf this happens, focus the lens manually.

Objects with a low reflection factor (such as a dark cloth, hair, etc.) Objects having a glossy or reflective surface (glassware, etc.) Objects viewed through glass.

Objects with low contrast.

Objects with only horizontal lines or diagonal lines.

Readjusting the White Balance

Readjust the white balance manually when the color tone seems unnatural or if you want to change it to your desired tone.

1 Follow the procedures below. ration panel 1 © Press the WHITE BALANCE button (to turn on manual mode). pe E CET 1 @ Tum the WHITE BALANCE knob to adjust to the desired color

tones. Tuming the knob toward the RED side increases the red tones. Tuning the knob toward the BLUE side increases the blue tones. PE @® If you cannot readjust the color tone, remove the document, O00 press the WHITE BALANCE button, and execute steps © and == © again.

mm mm mm mm mm mm mm mm mm

Changing the angle to Letter/A4 size

To make the view accommodate Letter/A4 size, press the ZOOM PRESET button. The output image size will become Letter/A4 size.

Ifthe ZOOM PRESET button is pressed, the indicator lights up. Operation panel Use the ZOOM buttons to change the angle.

L Meuo The set angle may be slightly different from Letter/A4 size.

Freezing an output image

To pause a moving output image, press the STILL PICTURE button. The output image will change from a movie to a frozen image.

Fr ! The STILL PICTURE indicator lights up while the image is frozen. Operati n panel

If you press the STILL PICTURE button again, the frozen image will start moving again.

MEuo You cannot make adjustments such as zoom, focus, or white balance while an image is frozen.

Projecting white documents

lfthe WHITE PAPER button is pressed when projecting text documents on a white background, this mode automatically adjusts so projection of white parts of a document appear much whiter.

Fr If the button is pressed, the WHITE PAPER indicator lights up. Operat n panel

If the button is pressed again, the indicator tums off and retumns to femmes ee que | regular mode.

Mo The effectiveness may vary depending on the document, including how dark i is.

Adijusting Brightness and Image Contrast

If you want to project a black or dark document, or the item being projected is small and has great contrast compared to the background, you may be able to control the brightness (adjust the exposure) by using the EXPOSURE knob to make the image clearer.

If the background is white and the subject is dark, sometimes the quality of the image improves if you place it on black paper when projecting it.

Turn the knob toward the HIGH side to brighten the image. Turn the Operati n panel

knob toward the LOW side to darken the image.

Use the DETAIL control to adjust image quality. Tum the control toward the HARD side to emphasize the outline of an object. Turn the control towards the SOFT side for a softer outline.

MEuo | Brighiness may not be adjusted effectively using the EXPOSURE knob if the image is too dark.

EA SYSTEM CONNECTION The following equipment can be connected to the input and output terminals. Use the included power cord. For cables other than the power cord and the RGB cable, use commercially available cables. For details of operation, refer to the instruction manual of the equipment to be used.

tting to a video monitor

To output to a video monitor, connect the RE-455X to a monitor video input terminal using a commercially available video cable. The video monitor projects images from the camera

none | When connecting to equipment such as a video monitor or a VCR, check if your RE-455X model uses NTSC or PAL format, and use equipment compatible with the appropriate

the following order.

head, regardless of the selected input equipment

MEuo Use XGA-compatible LR Proiectors and RGB

When using video output and S-video output, dark areas may appear on the periphery of the screen.

(m) E CE + MC +0 Power cord

To control the RE-455X remotely with a computer, proceed in |

1) Connect the unit to the computer with a RS-232C cable. 2) Tum the unit and computer power ON.

3) Operate the computer.

Please consult your dealer for details.

Changing to Sources via External Input Equipment

If you connect a computer or other equipment to the RGB input terminal, you can project images from that

equipment simply by pressing a button.

RGB OUT RGBIN External input

To switch to images from external input equipment such as a computer, press the RGB IN button. The RGB IN indicator lights up, and images from the equipment connected to the RGB input terminal will be projected.

- + Depending on the computer or projector, images may appear 1

d distorted and switching of image sources cannot be done

Q Q CAUTION + Images may appear in a slightly different position between the l

RE-455X camera head and a computer.

MEuo Regardiess of the selected input equipment, images from the camera head will

Recording Images on AV Equipment

If you want to record using AV equipment, connect the RE-455X to the AV equipment using a commercially available video cable. For operating details for the equipment being used, refer to the instruction manual that came with the equipment.

AV equipment (DVD recorder, VCR, etc.)

nome | Check if your RE-455X model is uses NTSC or PAL format, and use an AV equipment compatible with the appropriate format.

Memo When you use AV equipment with a S-video outlet, use a S-video cable to connect to the S-video outlet. This will enable you to project high-quality images.

Transferring Images to Computers (Image Input)

If you want to transfer images from the RE-455X to a computer, you can do so by simply using a video cable to connect the unit to an AV-capable computer. If your computer is not AV-capable, a video capture board is required to convert the video signal (analog signal) to a digital signal suitable for a computer. Contact the manufacturer of your computer or a store for details.

[ Video capture board

Memo Use an XGA-compatible computer.

Functions Controlled by a Computer

The RE-455X can be controlled remotely with a computer through various commands. See the table below for functions that can be controlled remotely. For more information including control methods, please contact your dealer.

Category Abbreviation Meaning Zoom lens control Zoom STOP ‘The zoom lens stops. Zoom TELE Moves the zoom lens toward telephoto. Zoom WIDE Moves the zoom lens toward wide-angle Zoom positioning default position | Moves the zoom lens to default position. Zoom positioning A4 landscape Moves the zoom lens to A4 landscape position. Zoom positioning Moves the zoom lens to specified position Zoom speed Sets lens zooming speed Focus control Focus AF Switches to auto focus mode Focus ONE SHOT Switches to one-shot focus mode. Focus MANUAL Switches to manual focus mode. Focus STOP Stops lens focus movement. Focus NEAR Moves lens focus closer. Camera Focus FAR Moves lens focus farther. control White balance setting White balance AUTO Adjusts white balance automatically. White balance MANUAL Adjusts white balance manually. ‘White balance value designation Specifies white balance target value. Exposure compensation _ | Exposure value designation Specifies exposure value. Exposure mode NORMAL Switches exposure to NORMAL mode. Exposure mode WHITE PAPER | Switches exposure to WHITE PAPER mode Still picture Still picture ON Tums STILL PICTURE mode ON Still picture OFF Tums STILL PICTURE mode OFF. Outline adjustment DETAIL setting Sets image quality adjustment values. Input signal selection Input selection CAMERA Selects the internal camera head as the input signal. Input selection EXTERNAL Selects external signal as the input signal. llumination control Lights ON Tums the illumination lamps on System Lights OFF Tums the illumination lamps off. control, |Controi mode selection | Host control mode Switches the RE-455X to be controlled by a computer. Local control mode Cancels the Host Control Mode Information output Model name request Reads the RE-455X model information. ROM version request Reads ROM version information

lfthe RE-455X does not function properly, check the following points before contacting your dealer.

ï Reference Problem Possible cause page No image appears on + The lens cap has not been removed. 8 the monitor + The power of the RE-455X or other equipment has not been 11 turned ON. + Connection may be incorrect. 15 + The input source is not selected correctly. 16 The image cannot be + The document may be too dark or glowing. 12 focused correctly + Strong light may be reflected on the screen. 12 + The object has low contrast. 12 + Focusing has been set in manual mode. 12 + The image is frozen. 13 The zoom function + The image is frozen. 13 doesn't work Images appear + The white balance has been adjusted manually. 13 reddish/bluish + The color tone of the video monitor is not correct. — Images are too + The WHITE PAPER button is on. 14 bright/dark + Exposure of the RE-455X or monitor has not been adjusted 14 correctly. + The object is not illuminated properly. —_ The input source + The power of the RE-455X or other equipment has not been 11 cannot be changed tumed ON. + Connection may be incorrect. 15 The screen doesn't + The image is frozen. 13 change The illumination lamps | * To protect the lamps, the system preheats for 3 seconds, do not light up then the lamps light up. During preheating, the LIGHT immediately when the indicator flashes. This is not a malfunction. — LIGHTS button is pressed The RE-455X cannot be | + The power of the RE-455X or other equipment has not been 11 controlled by a tumed ON. computer + Connection may be incorrect. 15

Incorrect operation may be the cause.

If the problem cannot be solved after checking the above points, please contact your dealer.

replacement, please consult your dealer.

MEMO The fluorescent illumination lamps are consumables. Replace with a new lamp if a lamp starts flickering or becomes dark. For details of

1/3* CCD Effective pixels

Horizontal 1,024 pixels x Vertical 768 pixels

Internal synchronization only (XGA output and NTSC/PAL output are asynchronous)

F=5.4mm-64.8mm F1.8-F2.8 10 element, 8 group design

(Maximum) 306 x 230mm — 31.5 x 23.7mm

Iris adjustment Power auto/manual with WHITE PAPER button for white documents (exposure)

6W fluorescent lamp x 2, high-frequency lighting, angle-adjustable

Can be switched between internal camera head/exteral input equipment for XGA only

Operating environment

Temperature: 45°C — +35°C (4°F - 95°F) Relative humidity: 20% — 85% (no condensation)

+ Weight and dimensions are approximate.

+ Errors and omissions excepted

+ Specifications and design of the product are subject to change without notice. + Canon is a registered trademark of Canon Inc.

© Copyright 2005 CANON INC.

Sortie XGA, 15 images/sec.

© Copyright 2005 CANON INC.

© Copyright 2005 CANON INC.
