Product Type	Upright / Canister Vacuum Cleaner
Brand	King
Model	P-275 (Piranha)
Color	Red and Gray
Dust Capacity	Approximately 1.5 L (dust barrel)
Filtration System	Pre-motor filter, HEPA filter, Air outlet filter
Power Cord Length	Approximately 5 m (with yellow and red mark indicators)
Cord Rewind	Automatic cord rewind with button
Power Switch	On/Off button on unit
Handle	Top carrying handle
Wheels	Rear wheels for maneuverability
Hose and Attachments	Flexible hose, tube, floor brush
Safety Features	Safety valve to prevent overheating, thermal protection
Usage	Indoor dry surfaces only
Filter Maintenance	Clean pre-motor filter and HEPA filter regularly; replace if damaged
Sponge Filter	Sponge filter can be rinsed and dried for 24 hours (every 6 months or if suction reduces)

Frequently Asked Questions - P-275 KING

How do I assemble the vacuum cleaner?

First, ensure the unit is unplugged. Attach the flexible hose into the air intake duct until it clicks. Then fit the tube to the curved wand/hose extension, and push the tube into the floor brush. Adjust the tube to desired length. Finally, unwind the power cord up to the yellow mark and plug in.

How do I empty the dust barrel?

Press the knob on the dust cup arm and lift the dust barrel up. Then press the knob on the lower end of the dust barrel to open the cover and empty the contents. Always unplug the vacuum before emptying.

How do I clean the filters?

For the pre-motor filter: remove the dust barrel and take out the filter for cleaning. For the HEPA filter: open the dust barrel cover and remove the filter. For the air outlet filter: press the grid knob to open and remove the filter. Rinse washable filters with water and let dry completely for 24 hours before refitting. Do not use near heat sources.

Why is the suction reduced suddenly?

Reduced suction may occur if the dust barrel is full, filters are clogged, or there is a blockage in the hose or tube. First check and empty the dust barrel, then clean or replace the filters. If the problem persists, inspect the hose and tube for obstructions. The vacuum also has a safety valve that activates if suction is too high; if that happens, turn off and clear the blockage.

Can I use the vacuum on wet surfaces or pick up liquids?

No, this vacuum cleaner is designed for dry indoor surfaces only. Using it on wet surfaces or to pick up liquids can cause electric shock or damage to the unit. Never immerse the vacuum in water.

How do I use the cord rewind function?

To rewind the power cord, hold the plug with one hand and press the cord rewind button with the other. This prevents the plug from whipping and causing injury or damage. Always unplug before rewinding is not necessary, but recommended for safety.

What should I do if the vacuum cleaner overheats?

If the vacuum overheats, it may activate a safety valve or thermal cut-off. Turn off the unit and unplug it. Check for blockages in the hose, tube, or filters. Clean or replace filters if needed. Allow the vacuum to cool down for at least 30 minutes before restarting. Ensure the suction openings are not blocked.

How often should I replace the filters?

The pre-motor filter and HEPA filter should be checked regularly, preferably after each use. Replace them if they show signs of damage or wear. The sponge filter can be cleaned and reused; it is recommended to clean it every 6 months or when suction noticeably reduces. Replace any damaged filter immediately.

Can I use attachments other than those provided?

Only use attachments recommended by the manufacturer. Using unauthorized attachments may cause damage or reduce performance. The manual specifies using only manufacturer's recommended attachments for safety and optimal operation.

Is the vacuum safe to use around children?

Close attention is necessary when used near children. Do not allow children to use the vacuum as a toy. Always unplug the vacuum when not in use and store it out of reach of children. The vacuum contains small parts and moving components that could be hazardous.

USER MANUAL P-275 KING

Red background with a white crown and circular swirl design (no text or symbols)

king

P 275 Piranha

Elektrikli Süpürge Vacuum Cleaner

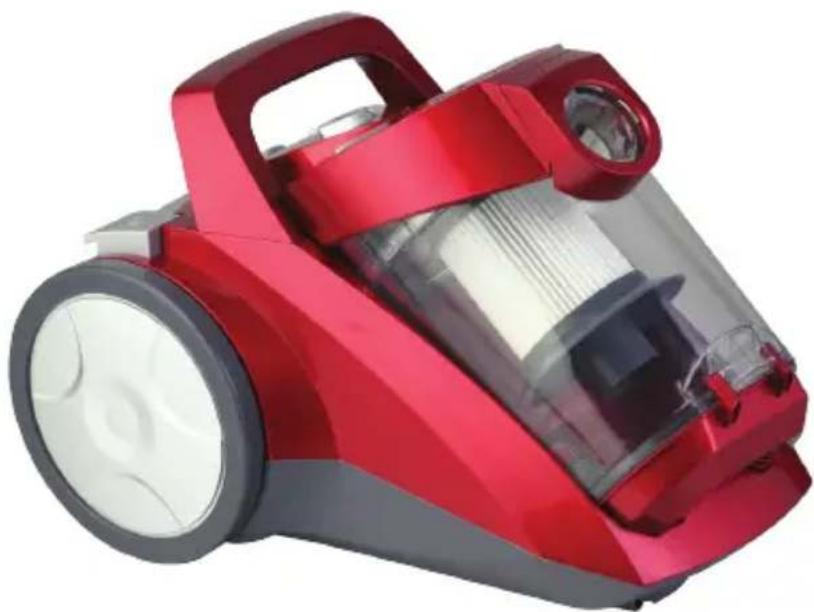

Red and gray vacuum cleaner with white filter, no visible text or symbols

4yul

GARANTI

Red background with a white crown and circular ring (no text or symbols)

king

MAIN PARTS

1. Handle
2. Hose socket
3. Dust cup
4. Hepa filter
5. Back wheel
6. Rewind button
7. On / Off switch

king

IMPORTANT SAFETY INSTRUCTIONS

For household use only!

When using your vacuum, basic safety precautions should always be observed, including the following

1. Do not leave vacuum cleaner unattended when it is plugged in. Unplug from outlet when not in use and before pulling filters out.

2. To reduce the risk of electric shock-do not use outdoors or on wet surfaces.

3. Do not allow children to use as a toy. Close attention is necessary when used near children.

4. Use only as described in this manual. Use only manufacturer's recommended attachments.

5. Do not use with damaged cord or plug. Do not use vacuum cleaner if it has been dropped damaged left outdoor or dropped into water. Return appliance to the appliance customer service for examination repair or adjustment.

6. Do not pull or carry by cord. Do not use cord as a handle. Close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

8. Do not handle plug or vacuum cleaner with wet hands. Dot not use outdoors or on wet surfaces.

9. Do not put any objects into openings. Do not use with any openings blocked and do not restrict airflow. Keep all opening free of dust, lint, hair, and anything that may reduce airflow.

10. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

11. Do not pick up hard or sharp objects such as glass nails, screws, coins, etc.

12. Do not pick up hot coals, cigarette, matches or any hot, smoking, or burning objects.

13. Do not use without filters in place.

14. Turn off all controls before plugging or unplugging vacuum cleaner.

15. Use extra care when vacuuming on stairs.

16. Do not pick up flammable or combustible materials (lighter fluid, gasoline, etc.) or use in the presence of explosive liquids or vapor.

17. Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.)

18. Do not in an enclosed space filled with vapors given off by oil based paints, paint thinner, moth proofing, flammable dust, or other explosive or toxic vapors.

19. Always unplug this appliance before connecting or disconnecting vacuum hose. Do not allow plug to whip when rewinding.

20. Use only on dry, indoor surfaces.

21. Do not use for any purpose other than described in this user's guide.

22. Store your appliance indoor in a cool, dry area.

23. Keep your work area well dry.

24. Do not immerse the hand vacuum into water or other liquids.

25. Keep end of hose, wands and other openings away from your face and body.

26. Do not use the cleaner to clean your pets or any animal.

27. Keep the head (eyes, ear, mouth, etc.) away from the openings, when the cleaner is working or plugging.

king

WARNING:

Important:

If the suction openings of the unit, the hose or the tube are blocked, switch off the vacuum clearer and remove the blocking substance before you start the unit again.

1. Do not operate the vacuum cleaner too close to heater or radiators.
2. Before inserting the power plug into the wall outlet, make sure that your hands are dry.
3. Before you start the unit, make sure to remove large or sharp objects that might damage the dust tank and hose.
4. When pulling out the power plug from the wall outlet, pull the plug not the power cord.
5. Do not use without all filters in place.
6. When using, if you learn of squeak from the cleaner, it must be suction appears to be reduced, so you must stop (make sure the cleaner is not plugging), then clean the all air filter.

Note:

If the supply cord is damaged, it must be replaced by manufacture, its service agent or similarly qualified person in order to avoid a hazard.

WARNING:

Hold the plug when rewinding the cord. Do not allow the cord to whip when rewinding.

Use and function

Assembling vacuum cleaner:

Note:

Always remove the power plug from the wall outlet before assembling or removing accessories.

1. Attaching the Flexible Hose into the vacuum connect the
   flexible hose into the air intake duct, push in until you hear a "click", indicating it is in its locked position.
2. Fitting the tube to the curved wand/hose extension.
3. Fitting the Floor Brush to the tube. Push the tube into the floor brush. Adjust the tube to the desired length.

Note:

Once all attachments are in place, unwind a sufficient length of cable and insert the plug into the wall outlet. A yellow mark on the power cord shows the ideal cable length. Do not pull the power cord beyond the red mark.

Close-up of a hand using a black tool to press or install green objects into a white appliance (no visible text or symbols)

Red background with a white crown and circular ring (no text or symbols)

king

1. Insert the power plug into the wall outlet.
2. Press the power on/off button located the unit to turn the vacuum cleaner "on".
3. To rewind the power cord, press the cord rewind button with one hand and guide the power cord with the other hand to ensure that it does not whip causing damage or injury.

Clean the dust barrel:

1. Press the knob on the dust cup arm.
2. Lift dust barrel up.
3. Press knob on low end of dust barrel to open the dust barrel cover.

Close-up of a hand holding a white and green handheld device (no visible text or symbols)

Close-up of a hand holding a white cloth next to a green and white vacuum cleaner (no text or symbols visible)

Close-up of a hand interacting with a white appliance, showing a black handle and circular base (no visible text or symbols)

Carry and move away the cleaner:

Note: There is a handle on the top. You could use it to conveniently carry the cleaner. Removing & cleaning pre-motor filter, centric Hepa filter, and air outlet filter

Hand cleaning a white and green robotic vacuum cleaner (no text or symbols visible)

Warning:

Always unplug the unit from electrical outlet before getting out the dust barrel.

a. Pre-motor filter

1. Press the knob on the dust cup arm.
2. Lift dust barrel up.
3. Take out the pre-motor filter for cleaning and changing.

king

Hand cleaning a white and green robotic vacuum cleaner (no text or symbols visible)

Close-up of a white and green vacuum cleaner with a hand adjusting its lid (no visible text or symbols)

Close-up of a white aircraft fuselage with visible engine compartment and tail (no text or symbols)

b. HEPA filter

1. Press the knob on the dust cup arm.
2. Lift dust barrel up.
3. Press knob on low end of dust barrel to open the dust barrel cover.
4. Clean

Hand holding a white and green robotic device (no visible text or symbols)

Hand holding a white and green robotic device with a button (no visible text or symbols)

Air outlet filter

1. Press the air outlet grid knob to open
2. Take out the air outlet filter for clean and change.

Please note:

The sponge filter material in the cleaner will become dusty over time. This is normal and will not affect the performance of the filter. If the sponge filter is so dusty that suction does not return to 100%, then we suggest that the filter be removed then rinsed under the faucet and allowed to dry for 24 hours by airing not near the fire or some high temperature objects before refitting into the vacuum. This should be done once six months or when suction appears to be reduced obviously.

Important:

Please note that there is a safety valve inside the vacuum to prevent the unit from being run with high vacuum rate. If the vacuum is too high, the safety valve will be turned on. In this case, it can minish the vacuum rate and protect the motor from being broken.

Note:

The suction hole must be open, free of any obstructions at all times. Otherwise, the motor will overheat and could become damaged.

Important:

All filters should be checked regularly for signs of damage, preferably after each cleaning task. The filters must be replaced immediately if they become damaged. Always disconnect the vacuum from the electrical outlet when checking the filters.

White crown icon on red background, no text or symbols present

king

PARÇALARI

Red background with a white crown and circular swirl design (no text or symbols)

king

Close-up of a hand using a black tool to press or install a white electronic device with green components (no visible text or symbols)

Hand placing white and green paper sheets onto a black robotic device (no text or symbols visible)

Close-up of a white and green vacuum cleaner with a green handle, no visible text or symbols

Close-up of a white car's front bumper with visible red and black markings (no text or symbols)

Red background with a white crown and circular ring (no text or symbols)

king

Hand holding a white and green paper-wrapped object resembling a vacuum cleaner (no text or symbols visible)

Close-up of a white and green vacuum cleaner with a hand adjusting its cover (no text or symbols visible)

Close-up of a white, futuristic vehicle or aircraft component with no visible text or symbols

b. HEPA filtre

Hand holding a white and green handheld device with a spiral top (no visible text or symbols)

Hand holding a white and green handmade robot device (no text or symbols visible)

Red background with a white crown and ring (no text or symbols)

king

Lütfen not ediniz:

Red crown icon with circular motion lines, no text or symbols present

king

Red background with a white crown and circular swirl design (no text or symbols)

king

تعليمات السلام

Red background with a white crown and ring symbol (no text or numbers)

king

تجنب المخاطر.

تحذير:

Close-up of a hand holding a black tool next to a white appliance with circular components (no visible text or symbols)

Red background with a white crown and circular swirl design (no text or symbols)

king

تنظيف برميل غبار:

Hand holding a white and green paper-wrapped device (no visible text or symbols)

Close-up of a hand holding a white and green vacuum cleaner (no visible text or symbols)

Close-up of a hand using a handheld device to interact with a black plastic component (no visible text or symbols)

Hand placing a green clip onto a white vacuum cleaner's airbag (no text or symbols visible)

Hand placing a green and white plastic bag onto a white robotic device (no text or symbols visible)

Close-up of a white and green vacuum cleaner with a hand adjusting its lid (no visible text or symbols)

Close-up of a white, curved object with a dark opening and a small inset panel (no visible text or symbols)

قبل محرك فلتر

Red background with a white crown and circular swirl design (no text or symbols)

king

ب. فلتر

Hand holding a white and green robotic device with a black handle, against a gray background (no text or symbols visible)

Hand interacting with a white and green robotic vacuum cleaner (no text or symbols visible)

يرجى ملاحظة ما يلي:

Red crown icon with circular motion lines, no text or symbols present

king

Red background with a white crown and circular swirl design (no text or symbols)

king

SATIŞ SONRASI SERVİS

Symbol of a trash bin with crossed x and y lines, no text or numbers present

Red background with a white crown and ring symbol (no text or numbers)

king

Üretici Firma:

KING PAZARLAMA VE DIŞ TİCARET A.Ş.

İbrahimağa Cad.2. Emintaş Sanayi Sitesi. No: 20 Daire/2

Bayrampaşa / İSTANBUL

Tel: [phone] Faks: 0212 544 30 32

king

White crown icon on red background, no text or symbols present

king

GARANTI BELGESİ ŞARTLARI
