Product type	Vacuum cleaner
Brand	KING
Model	Dinamico P 288
Power supply	220-240 V ~ 50/60 Hz
Collection type	Dust bag
Fill indicator	Yes, red
Speed control	Yes, rotary button
On/off pedal	Yes
Cord rewinding	Automatic via pedal
Cord length	Approximately 5 m (estimated)
Included accessories	Hose, telescopic tube, floor brush, integrated brush and nozzle
Brush type	Floor brush (carpet/hard floor)
Additional brush	Integrated brush and nozzle for furniture, curtains, corners
Motor filter maintenance	Clean once a year, replace if damaged
Bag replacement	When the indicator turns red
Safety	Unplug before maintenance; do not vacuum water or flammable materials
Repairability	Do not repair yourself, contact customer service
Usage	For hard floors and carpets, furniture, curtains
Weight	Approximately 4 kg (estimated)

Frequently Asked Questions - Dinamico P 288 KING

How do I change the dust bag?

Open the front cover by unclipping, remove the bag support, take out the full bag and replace it with a new one. Make sure the bag is properly installed before closing.

When should I change the dust bag?

When the fill indicator turns red, it's time to empty or replace the bag.

What accessories are included with the vacuum cleaner?

The vacuum cleaner comes with a hose, a telescopic tube, a floor brush, and an integrated brush/nozzle.

How do I use the floor brush?

Attach the floor brush to the telescopic tube. It is suitable for carpets and hard floors. You can adjust the brush height according to the floor type.

Can I vacuum water with this vacuum cleaner?

No, never vacuum water or flammable materials. This could damage the appliance and create a hazard.

What should I do if the fill indicator is red?

This means the bag is full or the airflow is blocked. Check the bag and replace it if necessary, or clean the filters.

How do I clean the motor protection filter?

Remove the filter and rinse it with water. Let it dry completely before reinstalling. Replace it if damaged. Perform this operation once a year.

Does the power cord rewind automatically?

Yes, you can press the rewinding pedal to store the cord. Hold the plug during rewinding.

Can I use the vacuum cleaner without a dust bag?

No, the vacuum cleaner requires a dust bag. Never use it without a bag or filter as this could damage the motor.

What to do in case of abnormal noise or suspicious smell?

Turn off the appliance immediately and unplug it. Contact after-sales service for repair. Do not attempt to repair it yourself.

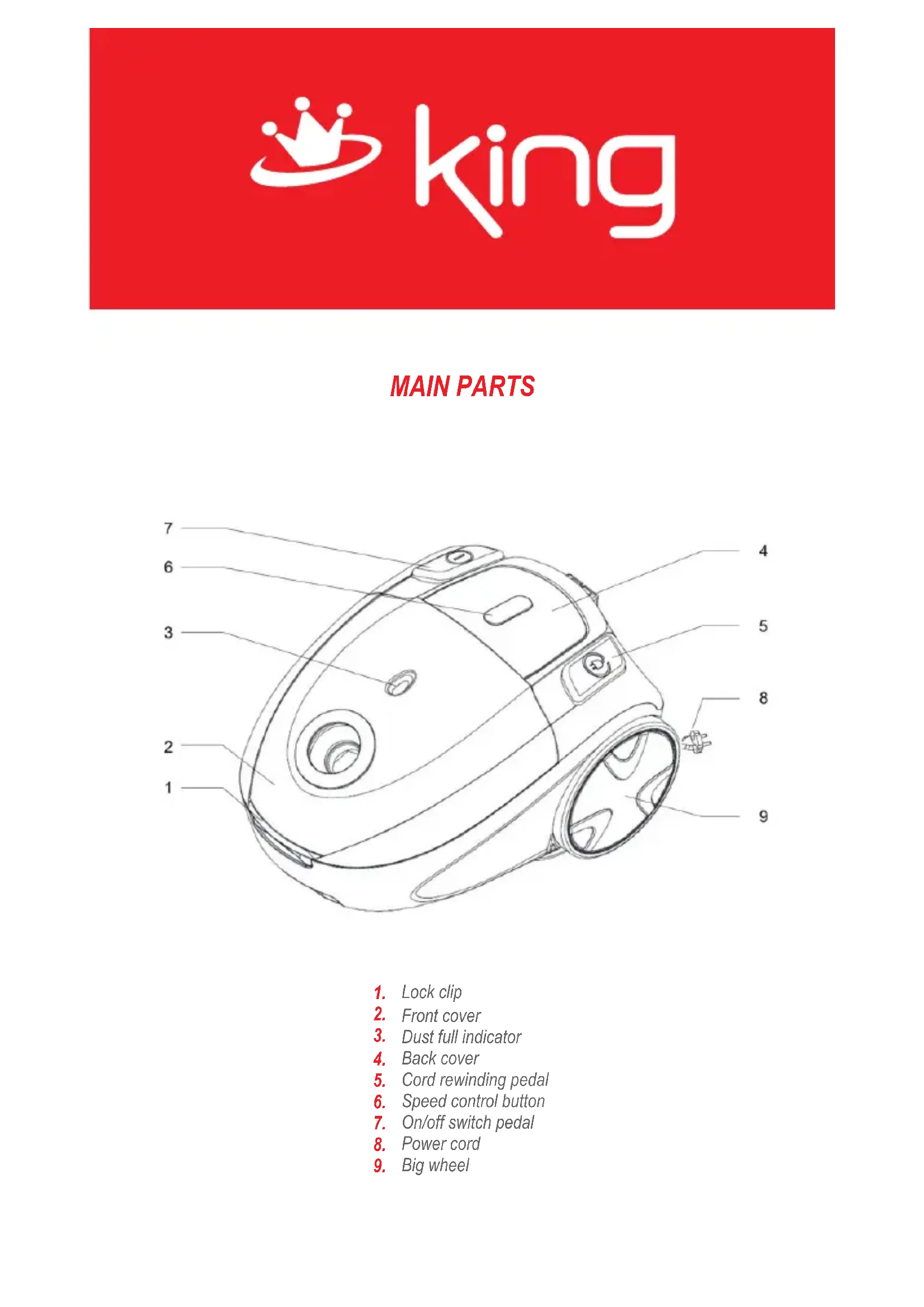

USER MANUAL Dinamico P 288 KING

1. Lock clip
2. Front cover
3. Dust full indicator
4. Back cover
5. Cord rewinding pedal
6. Speed control button
7. On/off switch pedal
8. Power cord
9. Big wheel

king

Safety directions:

1. For the first operation, it is advisable to read the manual carefully before hand and keep it properly for future use.
   2.Before the first operation, make sure the dust cup or the dust bag is properly installed.
   3.Make sure the power supply is 220-240V~50/60Hz
   4.Do not vacuum water and inflammable material.
   5.Do not vacuum burning material and ashes.
   6.Do not use the machine without a motor protection filter filled.
2. Please change the dust bag immediately when it was damaged.
   8.Do not store or use the machine close to high temperature places.
   9.Do not let children use the machine in case of danger.
3. If abnormal noise, smell, smoke or any other failure or breakage is found during the operation, you should turn off the switch and unplug it. Then contact with your service center for repair. Do not repair by yourself.
   11.If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
5. Children should be supervised to ensure that they do not play with the appliance.
6. The plug must be removed from the power socket before any maintenance or replacement.

Failure clearance

Less vacuum power of the cleaner

1. The cleaner can be used as tip the rubbish out of the full dust cup or the dust bag.
   2.If blockage is found in ground brush, hose or tubes, the machine can be re-operated only after the blockage is cleared away.

Introduction of Product

P 288 vacuum cleaner of clear lines and structure can produce centralized wind with less noise, adjust the operation speed, indicate full dust, and automatically rewind the wire, multi-level filter exchange, dust cup and dust bag two in one. Being convenient and flexible in cleaning dust, it is reliable and ideal household cleaning tool.

Welcome to purchase and use our products.

king

Attached list

A set of hose accessories, one extendible tube, one floor brush, one integrated brush & nozzle

Operation methods

1. Connects the hose accessories: insert the hose end into the hose socket at the front cover and then hook it. (Fig1)
   Remove the hose accessories: press the adaptors at both side of the hose end and then pull the hose accessories. (Fig2)
2. Connect the plastic tube to the curves end of the hose. (Fig3)
3. Connect different nozzle tools to the tube for different cleaning purpose: floor brush (adjusted to the type of ground) for carpet or floor (Fig4,5); combined brush & nozzle for sofa, wall surface, curtain, corner or space between furniture and etc. (Fig6)
4. Turn on the machine: insert the plug of cord into the power socket which conform to that on the label for power supply, and press the on/off switch pedal, the machine could start working (Fig7).
   5.Cord rewinding: hold the plug and pull out the cord; press the cord rewinding pedal, that power cord will be drawn in.(Fig8)

1

2

3

4

5

6

7

8

Maintenance

1. Change the dust bag: when the wind indicator turns to be red, it is time to clear the dust or replace with a new bag. (Fig1)

Open the front cover by clipping. (Fig2)

Take out the bag holder then remove the full dust bag. (Fig3)

king

2.Exchange the outlet filter: clip down and remove the outlet cover by hands for exchange of filter. (fig4,5)
3. The motor protection filter should be removed and rinsed once a year, and can use it after dry. If the filter is damage, a new filter should be replaced. (Fig6)

1

2

3

4

5

6

Warning

The plug must be removed from the power socket before any maintenance or replacement.

If the power cord is damaged, replace them only by the factory or maintenance center or similarly qualified persons.

king

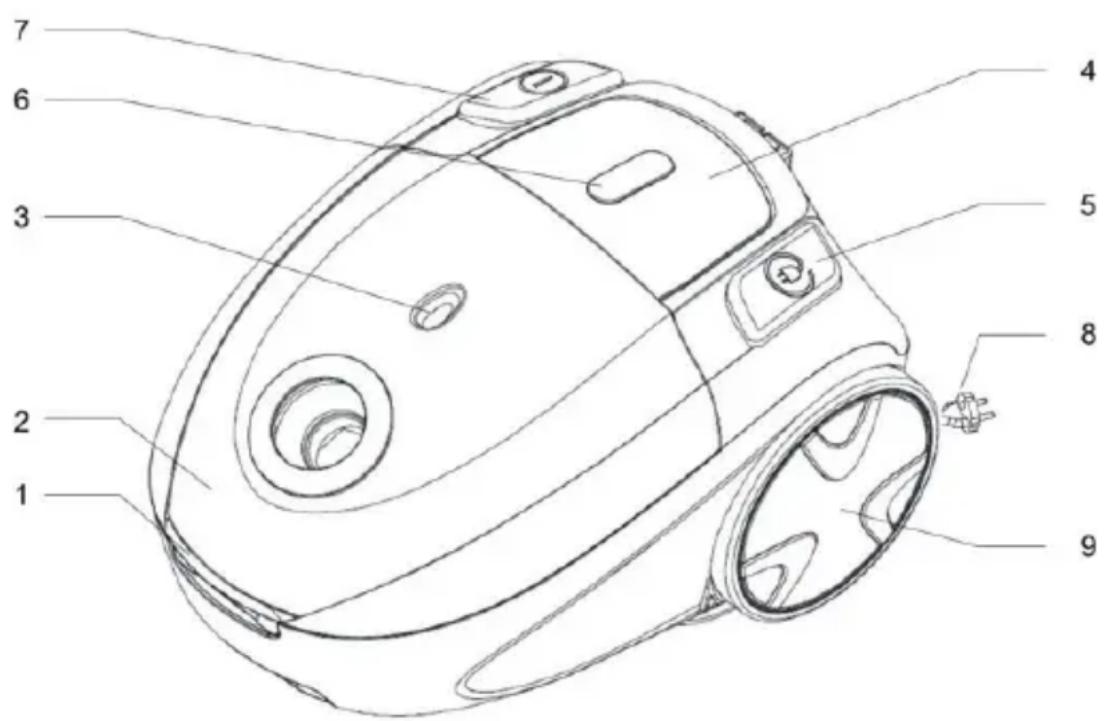

PARÇALARI

1. Toz hazne kilitleme mandali
2. Toz hazne kapaqi
3. Dolu toz gostergesi
4. Arka kapak
5. Kordon geri sarma pedali
6. Hiz kontrl butonu
7. On/Off Düɡmesi
8. Kordo
9. Buyuk tekerlek
