Vento P 276 - Vacuum Cleaner KING - Free user manual and instructions

Product type	Canister vacuum cleaner
Brand	KING
Model	Vento P 276
Power supply	Mains (power cord)
Collection type	Dust bag
Number of power positions	Variable (regulation switch)
Main functions	On/off by foot pedal, power adjustment, full indicator, automatic cord rewind, 360° hose rotation, parking hook
Included accessories	Combi nozzle, floor brush (2 positions: carpet/hard floor), metal tube, crevice tool, flexible hose
Brush type	Floor brush with two positions (hard floors/carpets)
Cord length	Approx. 5 m (estimated)
Weight	Approx. 4.5 kg (estimated)
Maintenance and cleaning	Empty the dust bag regularly; clean the motor filter twice a year; brush the HEPA filter; do not clean with water
Safety	Unplug before any maintenance; do not pull on the cord; do not exceed the red mark; do not use outdoors or near water
Spare parts available	Dust bag, motor filter, HEPA filter
Repairability	Replacement of filters and bag possible by user; for other repairs, contact an authorized service center

Frequently Asked Questions - Vento P 276 KING

How to empty the dust bag?

Press the locking clip to open the front cover. Remove the dust bag, empty it into a trash bin, then put it back and close the cover.

How to clean the filters?

The motor protection filter (under the cover) should be rinsed with water twice a year or when clogged. The HEPA filter is cleaned by brushing it with a soft bristle brush. Do not wash the HEPA filter with water.

The red light of the full indicator turns on, what to do?

This means the dust bag is full. Follow the steps for emptying the bag. If the light remains red after emptying, check that the bag is correctly installed or that the hose is not blocked.

How to use the floor brush with its two positions?

The floor brush has two positions: one for hard floors (lowered position) and one for carpets/rugs (raised position). Operate the switch on the brush to change mode.

The power cord does not rewind completely, what to do?

Make sure the cord is not twisted or blocked. Pull gently on the cord then press the rewind pedal. If the problem persists, check that no obstacle is hindering the mechanism.

How to assemble the tubes and accessories?

Insert the metal tube into the curved end of the flexible hose. Then attach the desired nozzle or brush to the end of the tube. For the hose, press the two-ribbed adapters and insert it into the hose connection on the appliance.

Can I use the vacuum without a bag?

No, this vacuum is designed to operate with a dust bag. Using the appliance without a bag may damage the motor and void the warranty.

How to clean the combi nozzle?

The combi nozzle can be cleaned with a damp cloth if necessary. For stuck dirt, use a small brush. Make sure it is thoroughly dry before connecting.

What to do if the vacuum does not turn on?

First check that the power outlet works and that the cord is properly plugged in. Press firmly on the on/off pedal. If nothing happens, the dust bag may be too full or a filter may be clogged. If the problem persists, contact customer service.

Where to buy replacement bags and filters?

Spare parts (bags, motor and HEPA filters) are available from authorized KING dealers or on their website. Always use original parts to ensure proper operation of the appliance.

USER MANUAL Vento P 276 KING

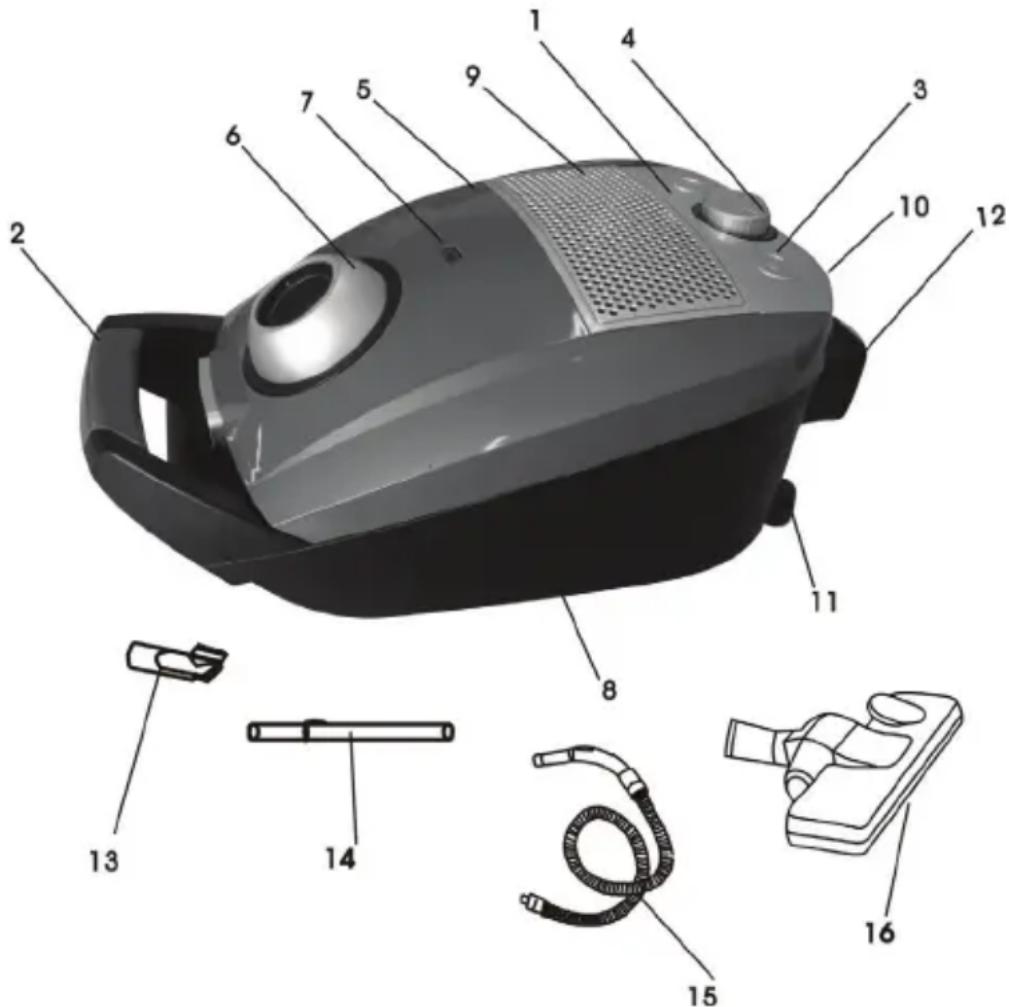

1. On/off switch pedal
2. Handle
3. Cord rewinding pedal
4. Power regulating switch
5. Front cover
6. Rotate 360 degrees hose socket
7. Dust full indicator

8. Bottom bracket

9. Outlet board

10. Parking hook
11. Wheels
12. Power cord
13. Combi nozzle
14. Tubes
15. Hose
16. Floor brush

king

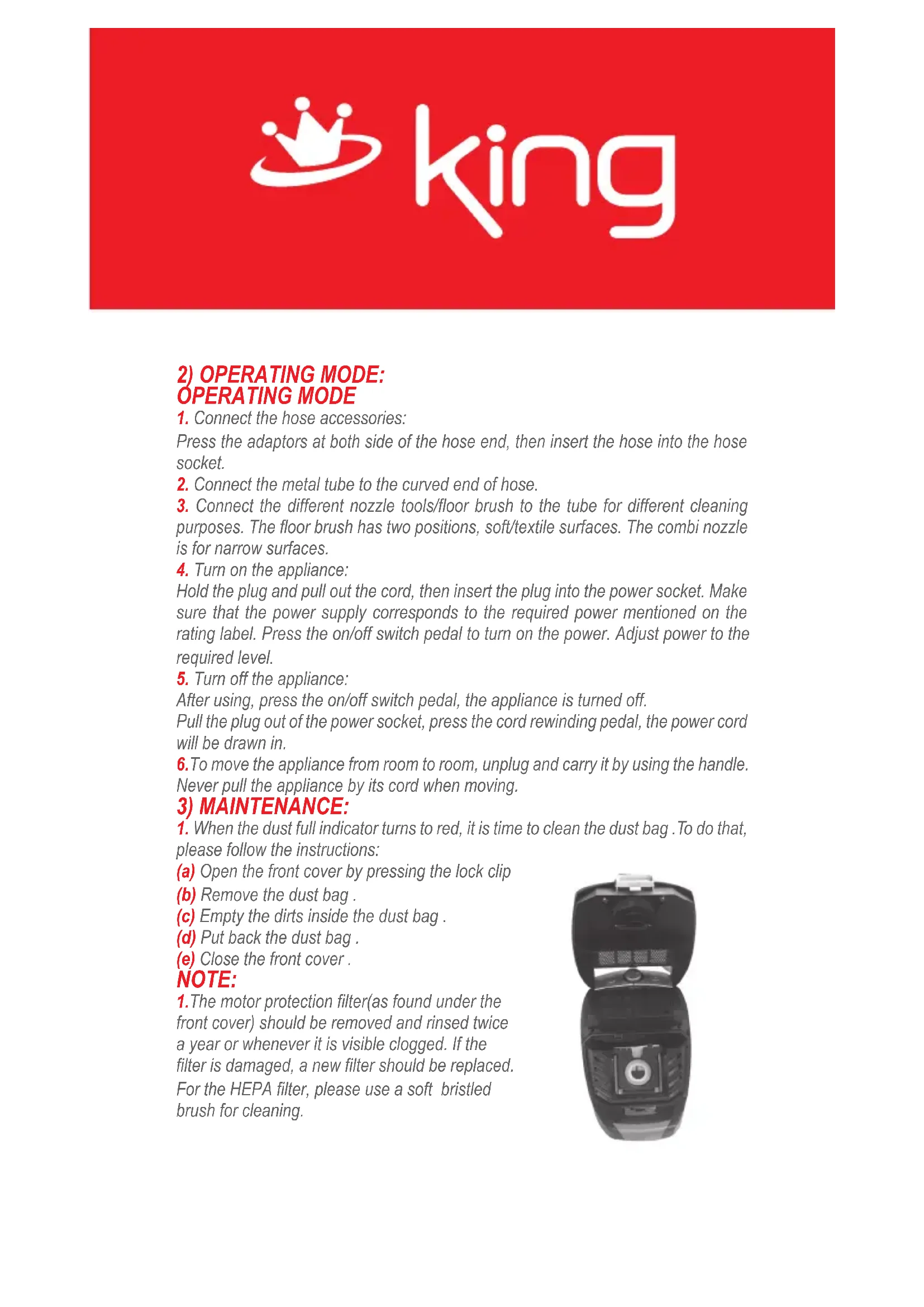

1. Connect the hose accessories:

Press the adaptors at both side of the hose end, then insert the hose into the hose socket.

1. Connect the metal tube to the curved end of hose.
2. Connect the different nozzle tools/floor brush to the tube for different cleaning purposes. The floor brush has two positions, soft/textile surfaces. The combi nozzle is for narrow surfaces.
3. Turn on the appliance:

Hold the plug and pull out the cord, then insert the plug into the power socket. Make sure that the power supply corresponds to the required power mentioned on the rating label. Press the on/off switch pedal to turn on the power. Adjust power to the required level.

1. Turn off the appliance:

After using, press the on/off switch pedal, the appliance is turned off.

Pull the plug out of the power socket, press the cord rewinding pedal, the power cord will be drawn in.

1. To move the appliance from room to room, unplug and carry it by using the handle. Never pull the appliance by its cord when moving.

3) MAINTENANCE:

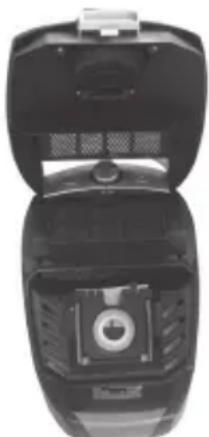

1. When the dust full indicator turns to red, it is time to clean the dust bag. To do that, please follow the instructions:

(a) Open the front cover by pressing the lock clip
(b) Remove the dust bag.
(c) Empty the dirt inside the dust bag.
(d) Put back the dust bag.
(e) Close the front cover.

NOTE:

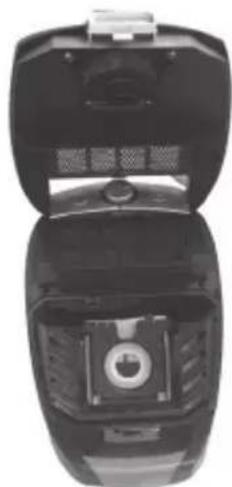

1. The motor protection filter (as found under the front cover) should be removed and rinsed twice a year or whenever it is visible clogged. If the filter is damaged, a new filter should be replaced.

For the HEPA filter, please use a soft bristled brush for cleaning.

king

1. The exhausted filter should be cleaned in time. To do that, unclip the grille and shake the filter to clean any dust accumulated. Then relocate the filter and clip the grille.

Power Cord Marking

NOTE: Do not exceed the red mark when pulling out the cord. The yellow mark shows the ideal cable length.

WARNING: the plug must be removed from the power socket before any maintenance or replacement.

SAFETY INSTRUCTIONS:

General Information

1. Read these instructions carefully and keep it in a safe place.
2. Only use the appliance as described in this manual.
3. In case of damage caused by failure of not living up this manual the warranty will decay immediately. The manufacturer/importer accepts no liability for damages caused by failure to not living up the manual, a negligent use of use not in accordance with the requirements of this manual..
4. Keep the appliance out of the reach of children.
5. This appliance is not intended for use by persons (including children) when reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
6. Children should be supervised to ensure that they do not play with the appliance.

7. Always remove the power cord and let it cool:

8. Before moving the unit

9. Before the units is stored
10. Before you go mounting or dismantle parts

11. Before cleaning or maintenance work

12. After use.

13. If any blockage is found in brush, hose or tubes, the appliance can be re-operated only after the blockage is cleaned away.

14. Do not store or use the appliance close to high temperature places.
15. If abnormal noise, smell, smoke, or any other irregularity occur during operation, turn off the switch and unplug it. Then contact your service centre for repair. Do not repair by yourself.
16. If the power cord, switch or motor are damaged, have them repaired or replaced only by qualified persons. Do not run over the power cord.

king

Using the appliance

1. This appliance is intended to be used in household and similar applications such as:
   a. Staff kitchen areas in shop, offices and other working environment ,
   b. Farm houses.
   c. By clients in hotels, motels and other residential type environments,
   d. Bed and breakfast type environments
2. The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.
3. Only use the appliance indoors, in dry areas away from water.
4. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

king

PARÇALARI

1. On/off pedal
2. Tutma/taşima yeri
3. Kablo sardirma pedali
4. Guc/emis ayar dugmesi
5. On kapak
6. 360 derece donebilen hortum giris yeri
7. Toz torba dolum gostergesi

8. Altgovde

9. Hava cikis izgarasi

10. Metal boru asma yeri
11. Tekerlekler
12. Fisli kablo
13. Cift yonl'u temizleme ucu
14. Metal borular
15. Hortum
16. Yer fircasi

king

2)çALISTIRMA:

ab = 1 又 a > 0

1.

（）

y

i

HEPA

1

2

king

a1 = 2,a2 = - 4

1

12jui p 10000000000000000000000000000000000000000000000000000

3 1

JJI 4.

5.

1pJnJ 100000000000000000000000000000

6.

1p5i0j j 1u 1u 1u 1u 7.

-

-

• jgj

-

-2ε10²cωuJ1

8.

10g 10g

10 9

10.

gulil ggl, gssu uua.

U

11.

J 1

10t^2 + 5t^2 = - 8

1

1. 1

king

.

C. ①②③④⑤

.

2

123

Ug jooj 11

100

king

SATIS SONRASI SERVIS
