Product Type	Fan Heater
Brand	Techly
Model	IC-HEAT001
Power Output (Nominal)	1.8 - 2.0 kW
Power Output (Minimum)	1.0 kW
Power Output (Maximum Continuous)	2.0 kW
Voltage	230 V
Heat Settings	Half power (1000W) and Full power (2000W)
Thermostat	Adjustable, automatic on/off
Fan Speed	Single speed (same for both heat settings)
Safety Features	Tip-over switch, Overheat protection
Control Type	Rotary dials (power and thermostat)
Pilot Light	Indicates when heater is on
Handle	Yes, practical carry handle
Cleaning	Wipe exterior with dry or slightly damp cloth; vacuum grills
Maintenance	No user-serviceable parts inside
Warranty	Against defects in material or workmanship
Compliance	CE marked, WEEE compliant

Frequently Asked Questions - IC-HEAT001 Techly

How to set the desired temperature?

Turn the thermostat dial to maximum (clockwise) then slowly turn back until you hear a click. The temperature is now set. The heater will automatically switch on and off to maintain that temperature.

What should I do if the heater tips over?

The heater is equipped with a tip-over safeguard that automatically shuts it off. Return the heater to its upright position, check for damage, and if undamaged, you can reuse it normally.

Can I use this heater in a bathroom?

No, this heater is not suitable for wet or damp spaces such as bathrooms, laundry rooms, or near pools or showers. It must not be exposed to water.

How do I clean the heater?

Switch off, unplug, and let it cool. Wipe the exterior with a dry or slightly damp cloth. Use a vacuum cleaner to remove dust from the grills. Do not use aggressive cleaners.

What does the pilot light indicate?

The pilot light turns on when the heater is switched on. It turns off when the thermostat switches the heater off, indicating the set temperature has been reached.

Is it safe to cover the heater?

No, never cover the heater. Covering can cause overheating and fire. Keep air inlets and outlets unobstructed.

Can I use an extension cord?

If unavoidable, use an undamaged, approved extension cord with a minimum diameter of 2×2.5 mm² and a minimum rating of 2000W/10A. Fully extend the cord to prevent overheating.

What is the recommended room size?

This heater is suitable for well-insulated spaces and occasional use. Do not use in rooms smaller than 6 m².

How to store the heater after use?

Clean the heater, then store it upright in a cool, dry, dust-free place. If possible, use the original packaging.

Does the heater have a timer?

No, this heater does not have a timer. It uses a manual thermostat to control temperature. Do not use an external timer to automatically switch it on.

USER MANUAL IC-HEAT001 Techly

TECHly® The Modern IT brand

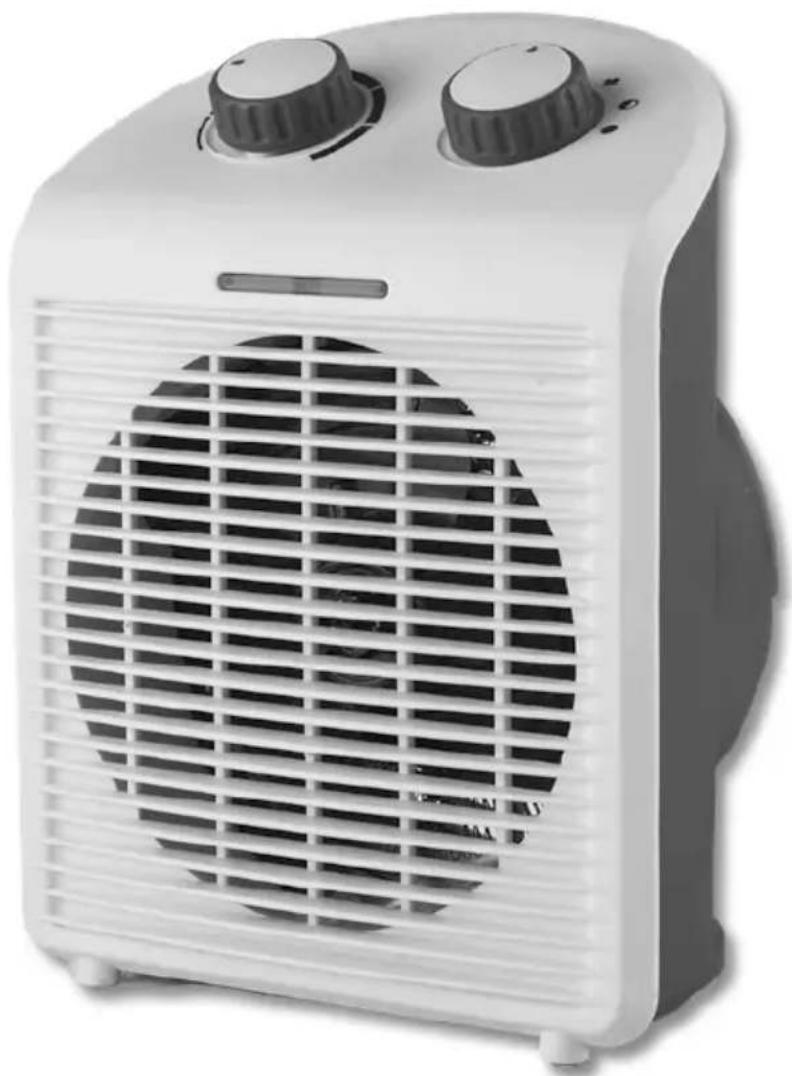

2000W FAN HEATER

White portable electric heating fan with two rotary switches and a circular vent grille (no visible text or symbols)

Technical features

2000 WATT

ADJUSTABLE

PRACTICAL HANDLE

P/N: IC-HEAT001

8059018369946

EN

This product is only suitable for well insulated spaces or occasional use.

IT

GENERAL SAFETY INSTRUCTIONS

1. Before using the machine, carefully read this entire instruction manual.

2. Do not use this fan heater in the immediate surroundings of a bath, a shower or a swimming pool.

3. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.

4. Warning: In order to avoid overheating, do not cover the heater.

5. The heater must not be located immediately below a socket-outlet.

6. The meaning of figure ☑ in marking is "WARNING: DO NOT COVER".

7. WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

8. Before using your new heater, check it, including cord and plug, for any visible damage. Do not use a damaged heater, but send it back to your dealer for replacement.

9. This heater is strictly intended for normal domestic use. Only use it as an additional heater in your home.

10. This heater in not suitable for use in wet or damp spaces such as bathrooms and laundry rooms. Do not place the heater nearby of taps, bathtub, shower, pool, fountains or other sources of moisture. Make sure it cannot fall into water and prevent water from getting into the heater itself. If, at any time, the heater does fall into water, unplug it immediately! Do not use a heater that has a damp interior but have it repaired. Never immerse the heater, cord or plug in water and never touch it with wet hands.

11. The supply voltage and utility frequency, specified on the machine, need to match those of the socket that is used. The electrical installation needs to be protected by a residual current device (max. 30 mAmp).

12. Fully extend the cord before plugging in the heater. Make sure it does not come into contact with any part of the heater and prevent it from heating up any other way. Do not run the cord underneath carpeting; do not cover it with mats, carpet strips, or similar and make sure it is not placed in any passageways. Make sure the cord cannot be stepped on and that no furniture is placed on top of it. Do not lead the cord around sharp corners and do not roll it up too tightly after use!

13. If possible, do not use an extension cord, as this poses the risk of overheating and fire. If the use of an extension cord is unavoidable, then make sure it is an undamaged, approved extension cord with a minimum diameter of 2 × 2.5 mm^2 and a minimum permissible power of 2000 Watt/10Amp. To prevent overheating, always fully extend the cord!

14. To prevent the circuit being overloaded and fuses being blown, make sure no other appliances are connected to the same socket or wired to the same electrical circuit as the heater.

15. Do not use the heater outdoors and do not use it in spaces smaller than 6m^2 .

16. A heater contains hot and/or glowing and sparking components. Do not, therefore, use it in areas where fuels, paint, flammable liquids and/or gasses etc. are stored.

17. Do not place the heater near, under, or directly opposite a socket and do not place near an open fire or other heat source.

18. Do not use the heater near or directly opposite furniture, animals, curtains, paper, clothes, bedding or other inflammable objects. Keep them at least 1 meter away from the heater!

19. Never cover a heater! The heater's air inlets and outlets should never be obstructed in any way, so as to prevent the possibility of fire. Never use the heater to dry clothes and do not place anything on top of the heater. Do not place it on soft surfaces such as beds or deep-pile carpets, as they can block openings.

20. Make sure that the air around the heater can circulate freely. Do not place the heater too close to walls or large objects and do not place it under shelves, cupboards, and similar.

21. Prevent foreign objects from entering the heater via the venting or exhaust openings as this may lead to electric shock, fire or damage.

22. Never leave the heater unattended when switched on. Always switch if off before removing the plug from the socket. Always unplug the heater when not in use! Pull on the plug to remove from the socket, never pull on the cord!

23 Always switch the heater off, unplug it and leave to cool down before:

a) cleaning the heater

b) carrying out maintenance on the heater

c) touching or moving the heater. Use the handle for this!

1. This machine gets hot when it is in use. To prevent burns, do not let bare skin come into contact with hot surfaces.

2. Do not use a timer or a similar product to automatically switch on the heater. Always perform safety checks before using the heater!

3. Close supervision is necessary when the product is used near children or incapacitated persons. Do not let children use the appliance as a toy. This appliance is not suitable to be operated by children or persons who have physical, sensory and/or mental limitations, or by persons who have no knowledge of, or experience with, this appliance.

4. Keep the heater clean. Dust, dirt and/or a build up of deposits in the heater are a common cause of overheating. Make sure these deposits are removed regularly.

5. Do not turn on the appliance if you have discovered damage to the appliance, cord or plug, if the appliance is malfunctioning, if it has been dropped or if there are signs of any other defect. Return the complete product to the vendor or to a certified electrician for inspection and/or repair. Always ask for original parts.

6. Do not use attachments and/or accessories, not recommended or supplied by the manufacturer.

7. The appliance (incl. cord and plug) may only be opened and/or repaired by properly authorized and qualified persons.
8. Only use this heater for its intended purpose and as described in this instruction manual. Failure to follow instructions 23, 24 and 25 may lead to damage, fire and/or personal injuries. A failure to adhere to these rules also immediately nullifies the guarantee and vendor, importer and/or manufacturer do not take responsibility for any of the consequences!
9. Do not touch the appliance with wet hands.
10. Do not introduce any objects inside the appliance (for example needles).

FOR COUNTRIES SUBJECT TO EUROPEAN REGULATIONS

• Children aged between 3 and 8 years must only activate or deactivate the appliance, provided that it has been positioned or installed in its normal operating position and that they are supervised or have received instructions regarding the safe use of the appliance and are aware of the potential risks. Children aged between 3 and 8 years must not connect, adjust or clean the appliance or carry out maintenance operations.
• WARNING: some parts of the appliance can overheat and cause burns. Pay particular attention in the presence of children or vulnerable people.
• This appliance can be used by children aged 8 or over and by people whose physical, sensory or mental abilities are reduced or who lack the necessary experience and knowledge, provided that these people are properly supervised or have been instructed on the safe use of the appliance and related risks. Children must not play with the appliance. Cleaning and maintenance operations must not be carried out by children left unattended.

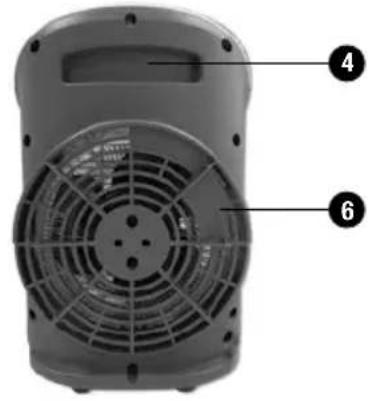

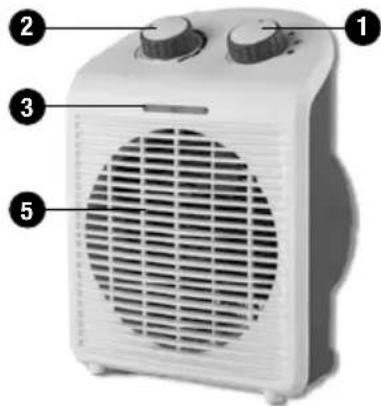

DESCRIPTION

1	CONTROL DIAL
2	THERMOSTAT DIAL
3	PILOT LIGHT
4	HANDLE
5	AIR OUTLET GRILL
6	AIR INTAKE GRILL (REVERSE SIDE)

Front view of a portable air conditioner fan with visible internal blades and mounting holes (no text or symbols)

LOCATION AND CONNECTION

• Remove all packaging material and keep out of reach of children. After removing packaging, check the appliance for damage or other signs that could indicate a fault/defect/malfunction. In case of doubt, do not use the appliance, but contact your vendor for inspection or replacement.
• Choose a suitable location for the heater which is at least one meter away from any obstructions, walls or inflammable materials (see also safety instructions).
• Make sure a functioning heater is always placed on a solid, flat and horizontal surface.
• Check if the control dial is set to 'OFF' (O).
• Fully extend the power cord and plug into a suitable 230V socket. To prevent the circuit overloading, check that no other appliances are connected to the same group.

SET-UP AND OPERATION

- Turn the thermostat dial to maximum (clockwise as far as possible).

- Switch the heater on by turning the control dial to one of the following three positions:

Heating at half power (1000W)

II Heating at full power (2000W)

The light at the front will turn on.

It is most economical to heat the space at full power, then to switch to half power to maintain the temperature.

• Both at half and full power, the fan rotates at the same speed; the difference between the two lies in the number of heating elements in use.
• Once the desired temperature is reached, turn the thermostat dial back slowly until you hear a click. The temperature is now set. The heater will automatically switch on and off to maintain the set temperature. When the heater switches off, the pilot light turns off as well. To set a higher or lower temperature, turn the thermostat dial either clockwise or anticlockwise.
• Unplug.

SAFETY FEATURES

The heater is fitted with a tipping safeguard which automatically shuts off the appliance if it inadvertently falls over. When the heater is returned to its upright position, it will resume functioning as normal but, before reusing, switch if off, unplug and check for damage. Do not use the heater if it is damaged or malfunctioning, but have it inspected/ repaired! In case of internal overheating, the overheating safeguard will switch the heater off. This may occur if the heater cannot give off enough heat or if it cannot draw in enough fresh air. As mentioned above, this is generally caused by (partially) covering the heater, obstructing the air intake and/or outlet grills or installing the heater too close to a wall or something similar. When the overheating safeguard switches the heater off, set the mode selector dial to '0' (off), unplug and allow the heater to cool down. Remove and/or amend the cause of overheating and reuse the heater as normal. If you cannot find a cause and overheating recurs, stop using the heater, and take it in for inspection/repair.

CLEANING AND MAINTENANCE

• Keep the heater clean. Deposits of dust and dirt in the appliance are a common cause of overheating so these should be removed regularly. Switch off the heater, remove the plug from the socket and allow the heater to cool down before cleaning or carrying out maintenance work.
• Wipe the outside of the heater regularly with a dry or slightly damp cloth. Do not use aggressive soaps, sprays, cleaners or abrasives, waxes, polishes or chemical solutions!
• Using a vacuum cleaner, carefully remove any dust and dirt from the grills and ensure that the air intake and outlet openings are clean. Be careful not to touch or damage any internal parts during cleaning!
  • The heater contains no other parts which need maintenance.
• At the end of the season, store the cleaned heater in the original packaging if possible. Store upright in a cool, dry and dust-free place.
• Do not dispose of heater with household waste when if becomes worn or damaged beyond repair. Take it to your local authority's collection point for electrical appliances where any reusable materials will be collected and redistributed.

WARRANTY INFORMATION

The warranty only covers defects in material or workmanship.

The repairs under warranty may only be carried out by an authorized service centre. When making a claim under the warranty, the original bill of purchase (with purchase date) must be submitted.

The warranty will not apply in cases of:

• Normal wear and tear
- Incorrect use, e.g. overloading of the appliance, use of non-approved accessories
- Use of force, damage caused by external influences
- Damage caused by non-observance of the user manual, e.g. connection to an unsuitable mains supply or non-compliance with the installation instructions
• Partially or completely dismantled appliances

INFORMATION REQUIREMENT FOR THE ELECTRIC LOCAL SPACE HEATERS
Model identifier(s): IC-HEAT001
Item Symbol Value Unit Item Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output Pnom	1.8-2.0 kW			manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	Pmin 1,0 kW			manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c 2,0 kW			electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				fan assisted heat output No
At nominal heat output elmax N/A		kW		Type of heat output/room temperature control (select one)
At minimum heat output	elmin	N/A	kW	single stage heat output and no room temperature control	No
In standby mode	eISB 0 kW			Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	Yes
				with electronic room temperature control No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	TECHLY® - Viale Europa 33 - 33077 Sacile (PN) - Italy - WWW.TECHLY.COM

In compliance with EU Directive WEEE this product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products in compliance with WEEE directive, otherwise contaminative and hazardous substances can pollute the environment.

With the CE sign, Techly® ensures that the product is conformed to the basic European standards and directives.
