EX1200T Pro - Wi-Fi repeater Totolink - Free user manual and instructions

Product Type	Wi-Fi Repeater (Range Extender)
Model	EX1200T Pro
Brand	Totolink
Standards	IEEE 802.11a/b/g/n/ac
Frequency Bands	2.4 GHz (up to 300 Mbps) + 5 GHz (up to 867 Mbps)
Maximum Speed	AC1200 (combined 1167 Mbps)
Dimensions (approx.)	100 x 70 x 50 mm (3.94 x 2.76 x 1.97 in)
Weight	200 g (7.05 oz)
Power Supply	Micro USB 5V/1A (AC adapter included)
Ethernet Port	1 x 10/100/1000 Mbps RJ45
Antennas	2 x external fixed omnidirectional
WPS Button	Yes
Modes	Repeater, Access Point, WISP
Security	WPA/WPA2/WPA3, WEP, WPS
Care and Maintenance	Keep in a well-ventilated area away from moisture and direct sunlight. Clean with a dry cloth.
Safety Instructions	Do not disassemble. Avoid water and high temperatures. Use only provided power adapter.
Spare Parts & Repairability	No user-serviceable parts. Contact Totolink support for repairs.
General Information	Supports WPS for easy setup. Compatible with 802.11a/b/g/n/ac devices.

Frequently Asked Questions - EX1200T Pro Totolink

How do I set up the EX1200T Pro?

Plug the repeater into a power outlet near your router. Connect to its WiFi network or use WPS. Follow the quick setup guide in the manual or the Totolink app.

What is the maximum range of the EX1200T Pro?

The range depends on obstacles and interference. Typically up to 300 m in open space and 100 m indoors.

Does it support both 2.4 GHz and 5 GHz?

Yes, it is a dual-band repeater supporting both bands simultaneously, providing speeds up to 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz.

Can I use it as an access point?

Yes, you can switch to Access Point mode using the web interface. Connect it via Ethernet to your router.

How do I reset the device?

Press and hold the WPS/RESET button for about 10 seconds until the LED flashes rapidly. Release to restore factory settings.

Is it compatible with any router?

It works with any standard 802.11a/b/g/n/ac router from any brand.

Does it have a Gigabit Ethernet port?

Yes, it features a Gigabit Ethernet port for wired connections up to 1000 Mbps.

What should I do if the connection is unstable?

Try repositioning the repeater halfway between your router and dead zone. Avoid interference from thick walls or electronic devices. Update firmware via the web interface.

Can I manage it via an app?

Yes, you can use the Totolink app for iOS and Android for easy setup and management.

What does the LED indicator show?

Solid red: poor connection. Solid yellow: acceptable. Solid green: good. Flashing: WPS active. Off: power or connection issue.

USER MANUAL EX1200T Pro Totolink

EX1200T Pro Wi-Fi Range Extender is designed to boost your existing network range with up to 1167Mbps wireless speed.

EX1200T Pro

1167Mbps Wi Fi Dual Band

WPS One Click Extension

MESH Node

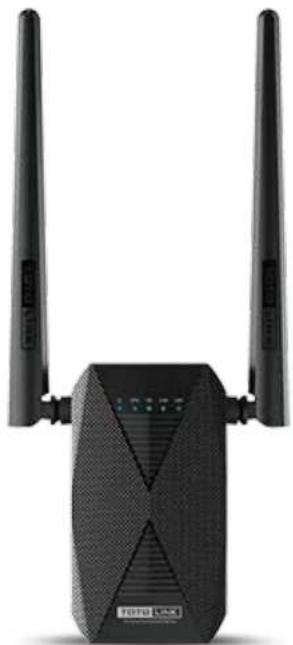

Black wireless router device with two external antennas and ventilation slots (no visible text or symbols)

Indicators

AP ModeSmart LEDExternal Dual Band Antennas

Overview

EX1200T Pro Wi-Fi Range Extender is designed to boost your existing network range with up to 1167Mbps wireless speed.

It turns your single band Wi-Fi into dual band wireless networks and compatible with both 802.11ac & b/g/n Wi-Fi devices.

The wall-plugging design help you save space and is applicable for most countries.

Generally, it is ideal for very large houses to reduce Wi-Fi dead spots and enjoy HD video streaming, online gaming etc.

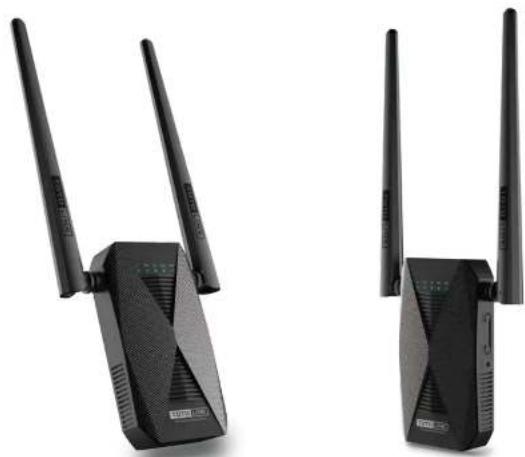

Two black wireless network devices with two antennas, one with a logo and the other with a logo (no visible text or symbols on the devices themselves)

Features

- Complies with 802.11ac/a/b/g/n standards.

- Turns your single band Wi-Fi to dual band Wi-Fi.

- Delivers up to 300Mbps on 2.4G band or 867Mbps on 5G band.

- Two external antennas enhance the throughput's stability.

- Supports easy and quick setup by smart phones.

- Supports WPS (Wi-Fi Protected Setup) with one-click button.

- Two signal strength LED indicators help you get optimum position for extender.

- Supports two working modes: AP Mode, Extender Mode and MESH Node Mode.

- Wall-plug design saves your space.

Black wireless router device with two external antennas mounted on a wooden surface (no text or symbols visible)

Highlights

5GHz 867Mbps

2.4GHz 300Mbps

Exterior view of a black wireless router with attached antennas and a side-view showing its control panel (no text or symbols visible)

High-Speed Dual Band Wi-Fi

EX1200T Pro adopts the next generation 802.11ac technology and delivers fast speeds of dual band Wi-Fi up to 1167Mbps, optimized for Internet activities requiring high bandwidth, such as HD videos and online gaming.

Simultaneous Dual Band

The support of dual band helps extend your existing 2.4G or 5GHz Wi-Fi signal with high speed to further distance, turning your single band Wi-Fi to dual band and reducing Wi-Fi dead spots.

One-touch Wi-Fi Secure Extensio

Simply press the WPS button on both EX1200T Pro and your wireless router, secured home Wi-Fi connection (2.4G or 5G) can be established quickly to extend the coverage of your existing WLAN network.

Plug and play

Once connected with an existing router, you can take EX1200T Pro to an ideal place, no more further configurations.

Highlights

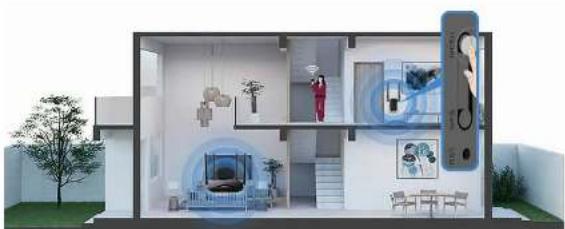

Interior architectural rendering of a modern residential house with visible furniture and wall art (no text or symbols)

Signal Strength Lights Guide Better Positioning

Two signal strength LED indicators are provided to show you how the Wi-Fi signal from original WLAN is, so that you could place the extender into a optimum position to get best Wi-Fi.

One-touch Mesh Networking

EX1200T Pro has EasyMesh networking function, can work as Satellite device in mesh network. With the EasyMesh networking function, the network units can work together to form a unified network with a single network name. When you move around the house, the device will automatically switch between the two to get the fastest possible speed.

Stable Wi-Fi with Two External 5dBi Antennas

Two external dual band high performance antennas with MIMO technology ensure stable wireless connection and data transmission for multiple Wi-Fi devices simultaneously.

Specifications

Hardware
Interface	- 1 *10/100Mbps Ethernet port
Power Supply	- AC 100V~240V 50/60Hz 0.1A
Button	- 1 *MESH, 1*WPS, 1*RST
LED Indicators	- 1 *Power, 1 *CPU, 1 *5G EXT, 1*2.4G EXT, 1*LAN
Antenna	- 2 *5dBi fixed dual band antennas
Dimensions (W x D x H)	- 117 x 72 x 66mm (not including antennas)
Wireless
Standards	- IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g,- IEEE 802.11b, IEEE 802.11a
RF Frequency	- 2.4GHz/5GHz
Data Rate	- 2.4GHz: 300Mbps (2T2R)- 5GHz: 867Mbps (2T2R)
EIRP	- 2.4GHz < 20dBm- 5GHz < 20dBm
Advanced Features	- Easy Mesh, Mobile UI Quick Setup

Wireless
Reception Sensitivity	- 2.4GHz:11b 11M: -81dBm @ 8%PER11g 54M: -68dBm @ 10%PER11n HT20 MCS7: -65dBm @ 10%PER11n HT40 MCS7: -62dBm @ 10%PER- 5GHz:11a 54M: -68dBm @ 10%PER11n HT20 MCS7: -65dBm @ 10%PER11n HT40 MCS7: -62dBm @ 10%PER11ac VHT80 MCS9: -51dBm @ 10%PER
Others
Package Contents	- EX1200T Pro Wireless Extender *1- Quick Installation Guide *1
Environment	- Operating Temperature: 0°C~40°C (32°F ~104°F)- Storage Temperature: -40°C~70 °C (-40 °F~158°F)- Operating Humidity: 10%~90% non-condensing- Storage Humidity: 5%~90% non-condensing
