Product Type	Front-loading washing machine
Brand	Elektro Helios
Model	TF806-2
Capacity	8 kg
Maximum Spin Speed	1400 rpm
Energy Class	B
Dimensions (H x W x D)	84.5 cm x 60 cm x 54 cm
Weight	Approx. 70 kg
Power Supply	220-240 V, 50 Hz, 10 A
Water Consumption (per cycle)	Approx. 50 L
Programs	Cotton, Synthetics, Delicates, Wool, Quick, Eco, Rinse, Spin, Drain
Key Functions	Delay start, Child lock, Pre-wash, Extra rinse, Temperature selection, Spin speed adjustment
Display	LED indicator
Noise Level (Wash/Spin)	58 dB / 76 dB
Door Opening	Left hinge, 180° opening
Drum Material	Stainless steel
Cleaning and Maintenance	Clean detergent drawer, filter and drum periodically; descale every 3 months
Safety Features	Child lock, overflow protection, unbalanced load detection, door lock during cycle
Spare Parts Availability	Door seal, pump filter, belt, heating element, control board available through service centers
Repairability Index	8.5 / 10
Included Accessories	User manual, inlet hose, drain hose, transit bolts

Frequently Asked Questions - TF806-2 ELEKTRO HELIOS

What is the capacity of the Elektro Helios TF806-2 washing machine?

The TF806-2 has a capacity of 8 kg, suitable for medium-sized households.

How do I install the washing machine?

Remove all transit bolts, level the machine using adjustable feet, connect the inlet hose to a cold water tap, and attach the drain hose to a standpipe or sink. Ensure the power cord is plugged into a grounded outlet.

What programs are available?

Programs include Cotton, Synthetics, Delicates, Wool, Quick, Eco, Rinse, Spin, and Drain. You can customize temperature and spin speed.

How do I clean the detergent drawer?

Pull out the drawer, press the tab to remove it, and rinse with warm water. Use a brush to clean the compartment. Dry thoroughly before reinserting.

Why is the machine not spinning?

Check if the drain pump filter is clogged, if the load is unbalanced, or if a child lock is activated. Also ensure the spin speed is set correctly.

How do I enable child lock?

Press and hold the Child Lock button (or combination) for 3 seconds until the icon appears. To disable, repeat the same action.

What does the error code E11 mean?

E11 indicates a drainage issue. Clean the drain pump filter and check the drain hose for kinks or blockages.

Can I pause a cycle to add laundry?

Yes, press the Start/Pause button. If the water level is low and door is unlocked, you can open it. If water is high, wait for the machine to drain.

How often should I descale the machine?

In areas with hard water, descale every 3 months using a suitable descaler or run a hot cycle with vinegar.

Where can I find spare parts?

Contact Elektro Helios authorized service centers or online spare parts retailers. Common parts include door seals, belts, and filters.

USER MANUAL TF806-2 ELEKTRO HELIOS

Cross-sectional diagram of a circular container with bubbles inside, showing internal structure and shading (no text or symbols)

GB

OPERATING INSTRUCTIONS

Page 8

S

BRUKSANVISNING

Sid 26

D

GEBRAUCHSANWEISUNG

Seite 42

E

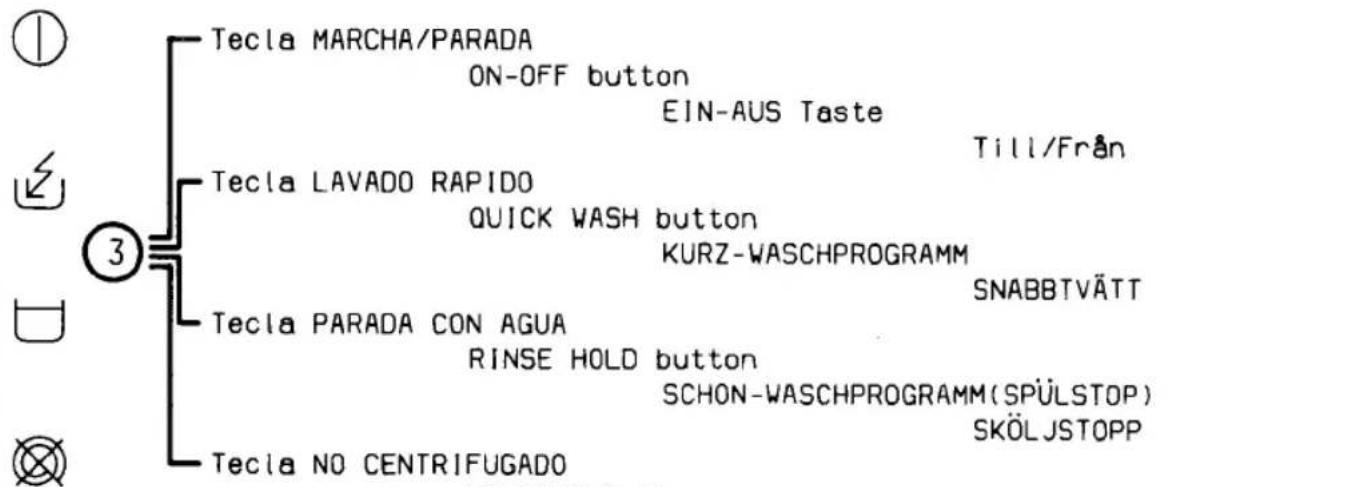

① Cubeta de detergente Detergent box WaschmitteleinspÜlmulde Tvättmedelsfack
② Piloto de Funcionamiento ON-OFF light Betriebs-Kontrollampe Kontrollampa


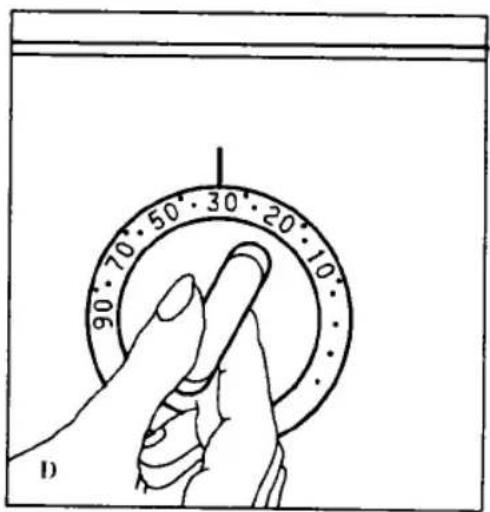

④ Selector de temperatura Temperature selector knob Temperaturwähler Termostatvred
⑤ Mando del programador Program selector knob Programm-Wahlschalter Programvred

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a pipe fitting with three components, labeled Fig. 5 (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with no visible text or symbols

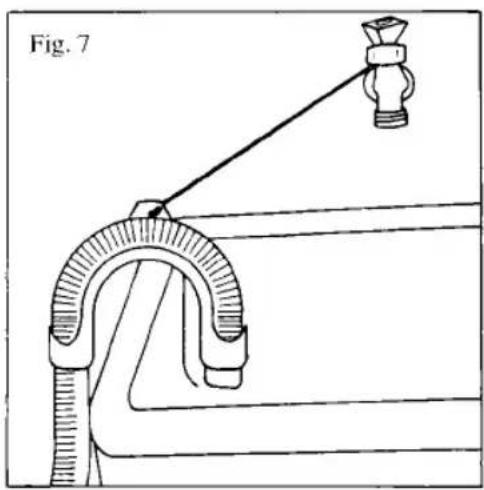

Diagram of a pipe fitting with a funnel and handle, labeled Fig. 7 (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with concentric rings and two curved notches, labeled Fig. 8 (no text or symbols on the diagram itself)

Illustration of a hand inserting a socket into an electrical outlet, labeled Fig. 10 (no text or symbols on the diagram itself)

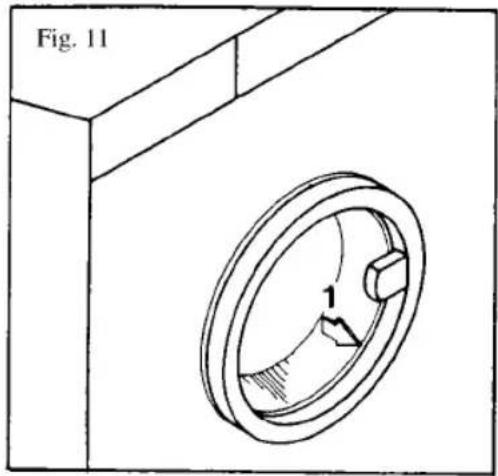

Technical drawing of a mechanical component with a circular feature and labeled Fig. 11 (no text or symbols on the diagram itself)

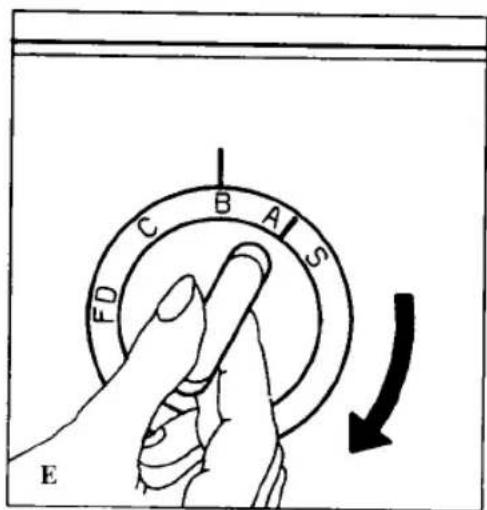

Hand pressing a circular button on a wall, with an arrow indicating clockwise motion (no text or symbols)

Diagram of a human hand washing a tooth inside a circular opening, showing anatomical structure without any text or labels.

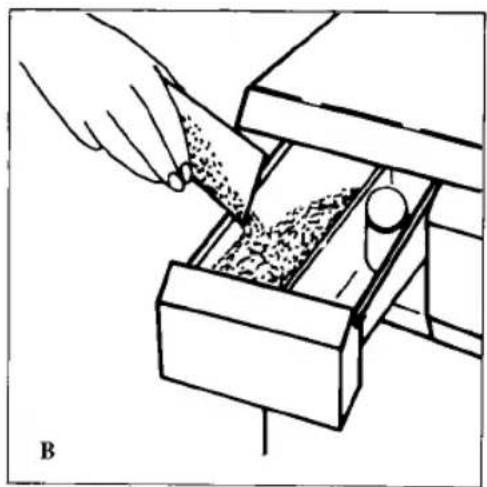

Illustration of a hand pouring granular material into a container with a tool, labeled 'B' (no text or symbols on the diagram itself)

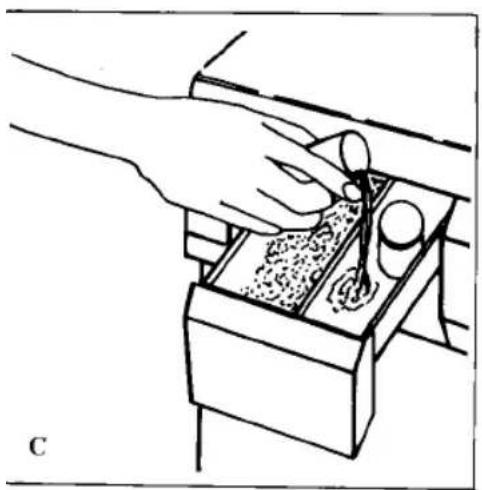

Illustration of a hand using a tool to adjust or remove material from a container (no text or symbols visible)

INNEHÅLLSFÖRTECKNING

Figurer 1 - 8 Sid 4

Figurer 9 - 13 Sid 5

Figurer A - E Sid 5

Panelskiss Sid 3

Simple line drawing of a horizontal line with three vertical tick marks at the bottom (no text or symbols)
