Product Type	Front-loading washing machine
Brand	Elektro Helios
Model	TF802-2
Drum Capacity	7 kg
Spin Speed	1200 rpm
Energy Class	A+++ (estimated)
Dimensions (H x W x D)	85 x 60 x 55 cm
Weight	Approximately 68 kg
Power Supply	230 V, 50 Hz, 10 A
Water Consumption	49 L per cycle (estimated)
Noise Level (Wash/Spin)	55 dB / 75 dB (estimated)
Number of Programs	15 (estimated)
Key Programs	Cotton, Synthetics, Delicates, Quick 30', Wool, Hand Wash, Rinse & Spin, Drain
Additional Functions	Delay start, Child lock, Extra rinse, Temperature selection, Spin speed adjustment
Display	LED digital display with program progress
Drum Material	Stainless steel
Door Type	Front loading with 180° opening
Adjustable Feet	Yes, for leveling
Safety Features	Overflow protection, unbalanced load detection, door lock during operation
Maintenance	Clean detergent drawer, drum clean cycle, clean filter regularly
Transport Bolts	3 transport bolts at rear (must be removed before installation)

Frequently Asked Questions - TF802-2 ELEKTRO HELIOS

How do I remove the transport bolts?

Start by unscrewing the three plastic transport bolts at the rear of the machine with a wrench. Pull them out completely. Keep the bolts for future moves. Refer to the manual for detailed transport bolt removal.

How to clean the detergent drawer?

Press the release button inside the drawer and pull it out completely. Rinse under warm water to remove residue. Clean the drawer compartment with a cloth. Reinsert and click into place. Regular cleaning prevents detergent buildup.

How do I clean the pump filter?

Open the lower front panel (use a screwdriver if needed). Place a tray under the filter. Turn the filter counterclockwise to unscrew. Remove lint and objects. Clean the filter and replace it. Ensure it is tightened properly to avoid water leaks.

What should I do if the machine displays an error code?

First, note the error code. Common codes: E01 (door lock issue), E02 (drain problem), E03 (overheating). Consult the manual for specific error code meanings. Basic steps: turn off, wait 10 minutes, restart. If persists, contact service.

How to level the washing machine?

Adjust the four feet at the base by turning them clockwise or counterclockwise. Use a spirit level on top of the machine. Ensure it is stable and does not rock. Proper leveling reduces noise and vibration.

Can I wash wool or delicate items?

Yes, select the Wool or Delicates program. Use a gentle cycle with cold water and reduced spin speed. Always check the garment care label first. For hand-wash items, use the Hand Wash program.

How to use the delay start function?

Load your laundry and select a program. Press the Delay Start button repeatedly to set the delay time (e.g., 3 hours). Press Start. The machine will begin after the set delay. You can cancel the delay by turning the program dial.

What is the maximum spin speed?

The maximum spin speed is 1200 rpm. You can adjust it lower for delicate items. Higher speeds extract more water but may cause more wrinkling. Select the appropriate speed for your fabric.

How do I activate the child lock?

Press and hold the Child Lock button (usually with a padlock icon) for 3 seconds until the symbol appears on the display. Repeat to deactivate. When active, all buttons except power are locked to prevent accidental operation.

What is the recommended laundry load capacity?

For cotton, the maximum load is 7 kg. For synthetics, reduce to 3.5 kg, and for delicates, 2 kg. Overloading reduces washing efficiency and may cause the machine to become unbalanced. Always follow the program guidelines.

USER MANUAL TF802-2 ELEKTRO HELIOS

Cross-sectional diagram of a circular structure with internal layers and scattered particles (no text or symbols)

Line drawing of a single front-loading washing machine with a circular vent and control panel (no text or symbols)

UPPACKNING OCH TRANSPORTSKADOR

Line drawing of a wire basket filled with scattered papers or documents (no text or symbols)

C0198

Line drawing of a hand inserting a drawer into a cabinet (no text or symbols)

Hand holding a small rectangular object with an arrow pointing to it, against a plain background (no text or symbols)

Line drawing of a hand using a switch to clean or install an electrical outlet (no text or symbols)

Skruva loss filtret.

Line drawing of a hand cleaning a kitchen appliance with a coiled ear and towel (no text or symbols)

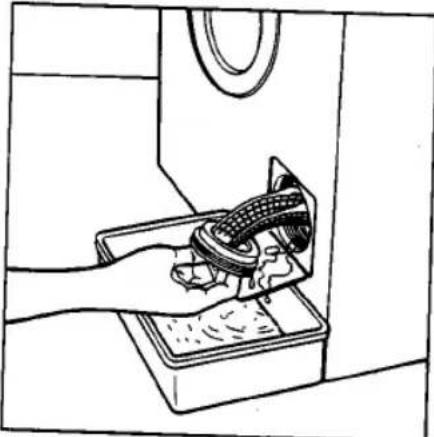

Dra ut filtret.

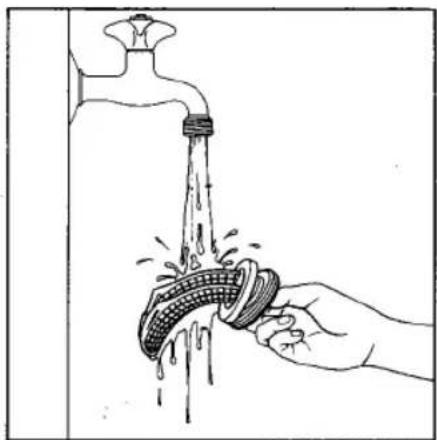

Illustration of a hand washing a faucet with water splashing from the drain (no text or symbols)

Line drawing of two hands inserting a drawer into a drawer, with arrows indicating direction (no text or symbols)

Line drawing of a hand using scissors to adjust or install a component on an electrical box (no text or symbols)

Illustration of a person using a tool to lift or lift stairs, with a black arrow indicating the motion direction (no text or symbols present)

Technical line drawing of an electronic device with internal components and mounting base (no text or symbols)

Technical line drawing of a mechanical assembly with a component inserted into a housing (no text or symbols)

Technical line drawing of a mechanical assembly with a component housing and internal structure (no text or symbols)

Line drawing of a hand using scissors to cut a mechanical component (no text or symbols)

Ta ut de tre plastbultarna.

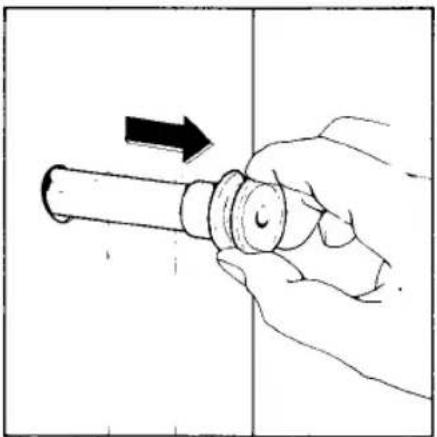

Hand holding a cylindrical mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a hand turning a mechanical component with an inset showing the process (no text or symbols)

Elektrisk installation

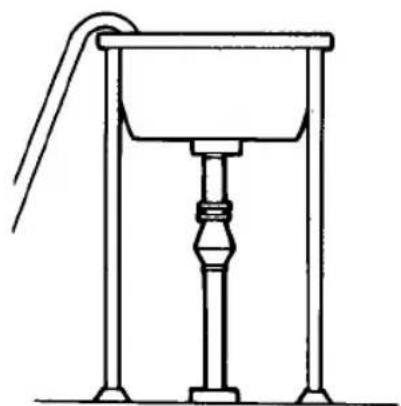

Diagram showing mechanical assembly with pipe fittings and a funnel-shaped component (no text or symbols)

Line drawing of a washing machine connected to a pipe with a valve, showing internal components and wiring (no text or symbols)

Technical line drawing of a mechanical apparatus with pipes and a funnel (no text or symbols)

Simple line drawing of a mechanical device with a handle and base (no text or symbols)

UPPSTÄLLNINGEN ÄR VIKTIG

Line drawing of a multi-tiered electrical cabinet with a circular vent and power button symbol (no text or labels)

NIVÅJUSTERING

Illustration of a hand using a tool to cut a gear into a slot (no text or symbols)

FÖR SÄKERHETS SKULL

Mod.

Prod. No. ____

Ser. No.

Gäller endast Finland:
