Type	Washing machine
Brand	Elektro Helios
Model	TF1337
Capacity	7 kg
Max spin speed	1200 rpm
Energy class	A+
Annual energy consumption	200 kWh
Water consumption per cycle	50 L
Noise level (wash)	56 dB
Noise level (spin)	76 dB
Dimensions (H x W x D)	85 x 60 x 60 cm
Net weight	68 kg
Power supply	220-240V, 50 Hz
Power rating	2000 W
Load type	Front
Control type	Electronic
Programs	Cotton, Synthetics, Wool, Quick, Delicates
Features	Delay start, End time, Child lock
Drum material	Stainless steel
Door opening angle	180°

Frequently Asked Questions - TF1337 ELEKTRO HELIOS

How do I install the washing machine?

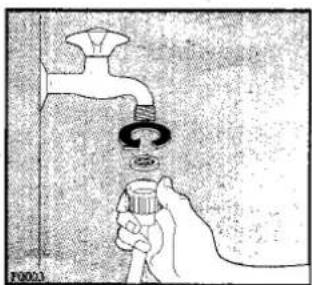

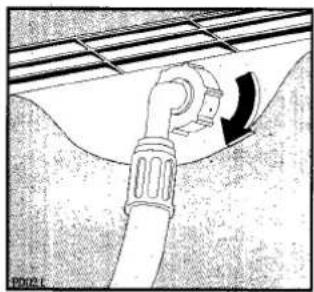

Ensure the machine is on a level surface. Connect the inlet hose to a water tap with a 3/4 inch thread. Attach the drain hose to a standpipe or sink outlet. Plug into a grounded outlet.

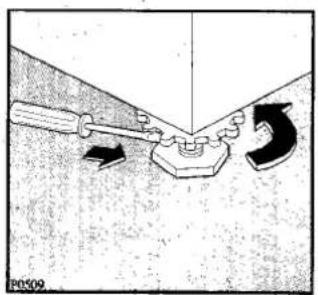

How do I level the washing machine?

Adjust the four feet by turning them. Use a spirit level to check. The machine should not rock. Tighten the lock nuts after leveling.

What should I do if the machine does not start?

Check if the door is closed properly. Ensure the water tap is open. Verify that the machine is plugged in and the circuit breaker is on. Press the Start/Pause button.

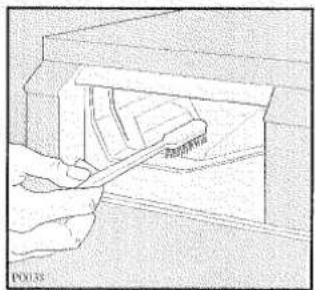

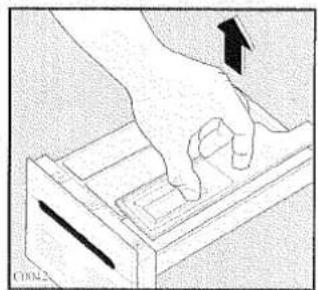

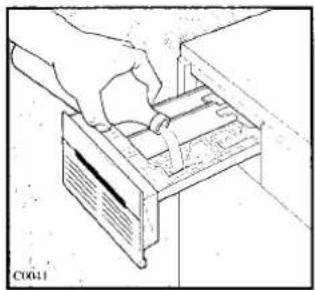

How do I clean the detergent drawer?

Pull out the drawer and remove the insert. Wash with warm water and a brush. Clean the compartment. Reassemble after drying.

Why is the machine vibrating excessively?

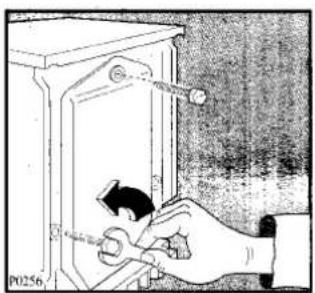

Uneven load distribution can cause vibration. Pause the cycle and redistribute clothes. Ensure the machine is level and the transport bolts are removed.

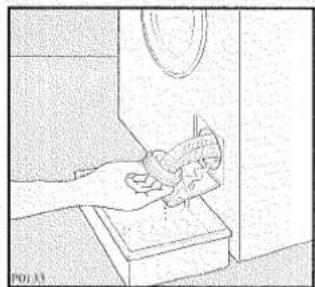

How often should I clean the filter?

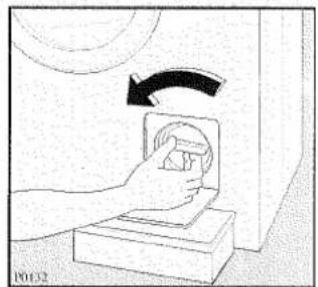

Clean the drain pump filter every 2-3 months. Open the lower cover, unscrew the filter, remove lint, and screw it back.

What does error code E10 mean?

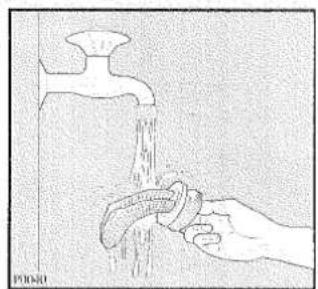

E10 indicates water supply problem. Check that the tap is fully open and the inlet hose is not kinked. Clean the inlet filter.

Can I use liquid detergent?

Yes, but use the appropriate compartment. For liquid detergent, insert the dosing aid or pour directly into the drawer before starting the program.

How do I perform a drum cleaning cycle?

Run a hot wash (90°C) with an empty drum. Add a cup of white vinegar or use a drum cleaner. This removes mold and odors.

What should I do in case of a power outage?

The machine will resume the cycle when power returns. If you want to cancel, turn the dial to Off and then select a drain or spin program.

USER MANUAL TF1337 ELEKTRO HELIOS

B R U K S A N V I S N I N G

TF 1037

TF 1337

INNEHÅLLSFÖRTECKNING 3

Elektro Helios

Hand using a tool to cut or insert a component into a workbench (no text or symbols visible)

Illustration of a hand using a tool to press or install a component on a stand (no text or symbols visible)

Illustration of hands using a device to press or install a sheet, with arrows indicating movement (no text or symbols)

Hand pressing down on a mechanical component with an arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to clean or store items (no text or symbols visible)

Hand holding a square object with an arrow pointing to it, against a plain wall background (no text or symbols)

Illustration of a hand pressing a button into a box with an arrow indicating rotation (no text or symbols)

Illustration of a hand using a tool to clean or wash a small object on a surface, with no visible text or symbols.

Illustration of hands washing a faucet with water, no text or symbols present

Hand using a tool to adjust or install a mechanical component (no visible text or symbols)

Technical illustration of an electronic device with a connector and mounting base (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and arrows indicating motion (no readable text or symbols)

Illustration of a hand using a tool to switch an open electrical switch (no text or symbols visible)

Placering

Illustration of hands performing a mechanical or electrical operation with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical tool interacting with a base, showing motion arrows (no text or symbols)

Diagram of a pipe fitting with a curved arrow indicating direction (no text or symbols)

Illustration of a hand holding a faucet with a valve inserted, showing water level (no text or symbols)

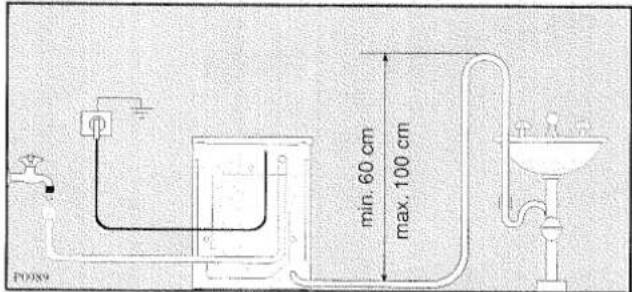

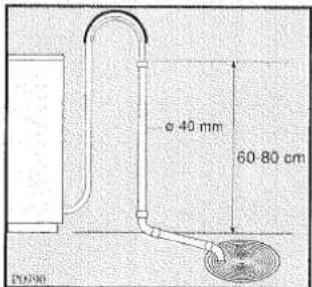

Avloppsanslutning

Diagram of a pipe with a valve inserted into a tank, showing structural components (no text or labels)
