ASA 141 - Cables for Computers and Peripherals Extron - Free user manual and instructions

Product Type	Computer Cable / Adapter
Brand	Extron
Model	ASA 141
Connector Type A	VGA Male (15-pin HD-15)
Connector Type B	VGA Female (15-pin HD-15)
Cable Length	6 ft (1.8 m)
Outer Diameter	6.0 mm (0.24 in)
Weight	Approx. 0.11 kg (0.24 lbs)
Shielding	Triple shielding (foil + braid + drain)
Conductor Material	OFC (Oxygen-Free Copper)
Connector Plating	Gold-plated contacts for corrosion resistance
Impedance	75 ohms
Video Resolution Support	Up to 1920x1200 (WUXGA) or 1080p
Bandwidth	300 MHz
Compliance	RoHS, CE, UL
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Humidity Range	10% to 90% (non-condensing)
Color	Black
Maintenance	Wipe with dry cloth; avoid solvents
Safety	Use with certified equipment; do not bend sharply
Repair / Spare Parts	Not repairable; replace entire cable

Frequently Asked Questions - ASA 141 Extron

What is the Extron ASA 141 cable used for?

The ASA 141 is a VGA extension cable designed to connect a computer to a monitor, projector, or other display device with VGA input, extending the reach by 6 feet.

Does this cable support audio transmission?

No, this is a standard VGA cable for video only. Audio must be transmitted separately via a 3.5mm audio cable or HDMI.

Is the ASA 141 compatible with 4K resolutions?

No, VGA is an analog interface and typically supports up to 1920x1200 (WUXGA) or 1080p. It does not support 4K.

Can I chain multiple ASA 141 cables together?

Yes, you can connect multiple VGA extension cables to increase length, but signal degradation may occur beyond 50 feet. Use a VGA booster for longer runs.

What is the difference between male and female connectors on this cable?

The ASA 141 has one male (pins) and one female (holes) connector. The male end connects to the source (computer), and the female end connects to the display cable or monitor.

How do I clean the connectors?

Use a lint-free cloth lightly dampened with isopropyl alcohol to gently clean the gold-plated contacts. Allow to dry before connecting.

Is this cable shielded?

Yes, it features triple shielding (foil, braid, and drain wire) to reduce electromagnetic interference and ensure signal integrity.

Does the ASA 144 come with a warranty?

Extron typically offers a limited lifetime warranty on passive cables. Check your packaging or contact Extron for details.

Can I use this cable with a projector?

Yes, it is suitable for connecting a computer to any VGA-compatible projector up to 6 feet away.

What should I do if the cable stops working?

First, check connections and try a different port. If the cable is damaged, replace it as it is not repairable. Ensure it is not kinked or pinched.

USER MANUAL ASA 141 Extron

ASA 111, ASA 121.... 1 unbalanced mono

ASA 131.... 1 balanced mono

ASA 141 1 transformer balanced/unbalanced mono

Connectors (1) 3.5 mm direct insertion captive screw connector, 3 pole

Impedance (with 50 ohm input impedance)

ASA 101 75 ohms unbalanced, 150 ohms balanced

ASA 111, 121 .... 1k ohm unbalanced

ASA 131 2k ohms balanced

ASA 141 3.3k ohms balanced (typical)

Nominal level

ASA 111, 121 -10 dBV (316 mV)

ASA 131 +4 dBu (1.23 V)

ASA 141 +15 dBu (5.6 V)

Maximum level

ASA 111, 121, 131 +24 dBu (12.3 V)

ASA 141 +15 dBu (5.6 V)

General

Power ...... Not powered

Temperature/humidity...... Storage: -40 to +158 °F (-40 to -70 °C) /

10% to 90%, noncondensing

Operating: +32 to +122 °F (0 to +50 °C) /

10% to 90%, noncondensing

Rack mount .... Can be attached to any flat surface with supplied Velcro ^®

Enclosure type ...... Molded plastic

Enclosure dimensions

ASA 111, 121, 131 0.7" H x 0.7" W x 1.3" D

1.8 cm H x 1.7 cm W x 3.4 cm D

(Depth excludes the 24 inch long pigtail for ASA 121, and the

24 inch long single cable for the ASA 111 and ASA 131.)

ASA 141....1.1" II x 1.1" W x 1.6" D

2.8 cm H x 2.8 cm W x 4.0 cm D

(Depth excludes the 24 inch long pigtail)

Product weight 0.2 lbs (0.1 kg)

Shipping weight 1 lb (1 kg)

Vibration.... ISTA 1A in carton (International Safe Transit Association)

Listings UL, CUL

Compliances...... CE, FCC Class A, VCCI, AS/NZS, ICES

MTBF 30,000 hours

Warranty 3 years parts and labor

NOTE All nominal levels are at ± 10% .

NOTE Specifications are subject to change without notice.

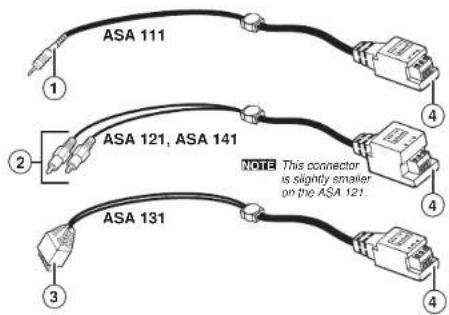

ASA Audio Summing Adapters

(ASA 111, ASA 121, ASA 131, ASA 141)

The Extron ASA audio summing adapters sum left and right stereo audio signals into mono signals for distributed sound and other applications that require mono sound. The ASA 111 and ASA 121 output an unbalanced audio signal only. The ASA 131 outputs a balanced audio signal. The ASA 141 outputs a balanced or unbalanced audio signal.

Model	Input connector	Input signal	Output connector	Output signal
ASA 111	3.5 mm mini 1 plug	Unbalanced stereo	3-pin captive screw 4a(2 pins are used)	Unbalanced mono (only)
ASA 121	2 RCAs 2	Unbalanced stereo	3-pin captive screw 4a(2 pins are used)	Unbalanced mono (only)
ASA 131	5-pin captive 3 screw	Balanced stereo	3-pin captive 4b screw	Balanced mono (only)
ASA 141	2 RCAs 3-pin 2	Unbalanced stereo	screw 4a 4b	Balanced/ unbalanced mono

NOTE ASA 141 unbalanced output — Do not short the negative (-) terminal to ground (Gnd).

NOTE The ASA 131 supports the wiring scheme used by Extron products that output audio on 5-pole captive screw connectors.

Extron Electronics, USA

1250 South Lewis Street

Analisis, Ltd 92805 USA

714.491.1500

14.591.137

Extron Electronics, Europe

Baciloh:nnog 61.

3821 AH Amsterdam The Netherlands

-51.33.453.6040

1(2+5)37.9754030

Extron Electronics, Asia | Extron Electronics, Japan

153 Jan Serg Real, 2014-01

P&I Industrial Building Singapore 368563

+65.6353.4400

Extron Electronics, Japan

Kyodu Buikley

Chiveda-ko, Tokre 102-0082 Japan

+81.3,5511.7655 Tax +81.3,5511.7655

150-01

Rev. C

1106

Drawings
ASA 111 (part #60-738-01)

ASA 121 (part #60-739-01)

ASA 131 (part #60-740-01)

ASA 141 (part #60-804-01)

Specifications

Audio

Gain

ASA 111, ASA 121..... See the table below. Tested with an unbalanced output and a 20k ohm load.

ASA 131 ...... See the table below. Tested with a 20k ohm output load.

Input Channel		Output
Left	Right
signal	signal	-1 dB
signal	^—	-7 dB
^—	signal	-7 dB

Tested with this input remaining connected.

ASA 141...... See the table below. Tested with an unbalanced output and a 20k ohm load. Gain numbers are ±2 dB.

Input Channel		Output Wiring
Left	Right	Unbalanced	Balanced
0 dB	0 dB	+3 dB	-3 dB
0 dB	open +3 dB	-3 dB
0 dB	50 ohms	-3 dB	-9 dB

Frequency response

ASA 111, 121, 131 ...... 20 Hz to 20 kHz, ±0.05 dB

ASA 141 with -10 dBV, +4 dBu, or +15 dBV

20 Hz to 20 kHz, -3 dB to +1 dB

THD + Noise

ASA 111, 121, 131 ....0.03%, 20 Hz to 20 kHz at nominal level

ASA 141

-10 dBV input 0.05%, 1 kHz, 1% from 40 Hz to 20 kHz

+4 dBu input 0.05%, 1 kHz, 1% from 50 Hz to 20 kHz

+15 dBV input 0.05%, 1 kHz, 1% from 80 Hz to 20 kHz

S/N 130 dB at maximum output

Audio input

Number/signal type

ASA 111, 121, 141 .... 1 stereo, unbalanced

ASA 131....1 stereo, balanced

Connectors

ASA 111 (1) 3.5 mm male stereo mini jack (tip-ring-sleeve)

ASA 121, 141 .... 1 pair of male RCA (tip-ring)

ASA 131 (1) 3.5 mm captive screw connector, 5-pole

Impedance

ASA 111, ASA 121.... 22k ohms (one input terminated);

4k ohms (both inputs terminated)

ASA 131....24k ohms (one input terminated);

7k ohms (both inputs terminated)

ASA 141 5.4k ohms (both inputs terminated)

Nominal level

ASA 111, 121 -10 dBV (316 mVrms)

ASA 131 +4 dBu (1.23 Vrms)

ASA 141 ....+10 dBV (316 mVrms) or +4 dBu (1.23 Vrms)
