Product Type	DisplayPort Cable
Brand	Extron
Model	DP Pro P/100
Length	100 ft (30.4 m)
Cable Diameter	0.18 in (4.7 mm)
Connector Type	DisplayPort Male to Male
Maximum Resolution	8K at 30 Hz (4:4:4)
Directionality	Unidirectional (Source to Display)
Plenum Rating	Yes
Jacket Material	Plenum-rated (likely PVC or LSZH)
Shielding	Yes (for EMI protection)
Connector Labeling	Source (blue ring) and Display
Bend Radius	Small (tight bend radius)
Compliance	DisplayPort 1.4 (up to 8K/30)
Weight	Approx. 0.9 kg (2 lbs)
Power Supply	Not required (passive cable)
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Maintenance	Clean with dry cloth; avoid bending sharply
Safety	Meets UL/CSA standards; plenum rated for fire safety
Spare Parts/Repairability	Non-repairable; replace if damaged

Frequently Asked Questions - DP Pro P/100 Extron

What is the maximum resolution supported by the Extron DP Pro P/100?

The Extron DP Pro P/100 supports digital video resolutions up to 8K at 30 Hz with 4:4:4 chroma subsampling.

Is the DP Pro P/100 cable directional?

Yes, it is unidirectional. Connect the connector with the blue ring to the source and the other end to the display.

What is the length of the DP Pro P/100 cable?

The cable length is 100 feet (30.4 meters).

Is the DP Pro P/100 plenum rated?

Yes, it is plenum rated, suitable for installation in air-handling spaces such as drop ceilings.

What is the diameter of the cable?

The cable has a small diameter of 0.18 inches (4.7 mm), allowing tight bends.

Can the DP Pro P/100 be used for 4K resolutions?

Yes, it easily supports 4K at 60 Hz and higher, as it is rated for 8K/30.

How do I identify the source end of the cable?

The source end has a blue ring on the connector. Always insert that end into the source device.

What is the weight of the DP Pro P/100?

The approximate weight is 0.9 kg (2 lbs).

Is the cable compatible with DisplayPort 1.4?

Yes, it is compatible with DisplayPort 1.4 and earlier versions.

How should I clean the cable?

Clean the connectors with a dry, lint-free cloth. Do not use liquids or abrasives. Avoid sharp bends.

USER MANUAL DP Pro P/100 Extron

DP Pro Plenum Series Cable Guide

The Extron DP Pro Plenum cables support digital video resolutions up to 8K/30 at 4:4:4 while maintaining a small and flexible diameter (0.18" [4.7 mm]) ideal for an installation with a tight bend radius. These unidirectional, plenum rated cables are offered in seven lengths from 25 feet (7.6 m) to 150 feet (45.7 m):

Model Description
DP Pro P/25 DP Pro Plenum Cable M-M 25 feet (7.6 m)
DP Pro P/35 DP Pro Plenum Cable M-M 35 feet (10.6 m)
DP Pro P/50 DP Pro Plenum Cable M-M 50 feet (15.2 m)
DP Pro P/75 DP Pro Plenum Cable M-M 75 feet (22.8 m)
DP Pro P/100 DP Pro Plenum Cable M-M 100 feet (30.4 m)
DP Pro P/125 DP Pro Plenum Cable M-M 125 feet (38 m)
DP Pro P/150 DP Pro Plenum Cable M-M 150 feet (45.7 m)

NOTE: The DP Pro Plenum cables are unidirectional from source to display.

DP Pro Plenum Series Cable Guide, Continued

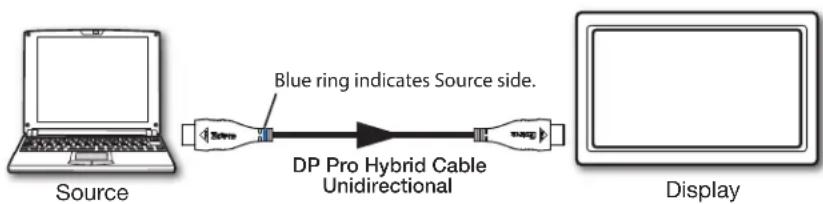


NOTES:

• The DP Pro Plenum connectors are labeled Source and Display. Be sure to connect them accordingly for proper signal flow.
• Insert the connector with the blue ring into the source.
