Product Type	DisplayPort Cable
Brand	Extron
Model	DP Pro P/50
Length	50 feet (15.2 m)
Connector Type	DisplayPort (male) to DisplayPort (male)
Supported Resolution	Up to 4K @ 60Hz
Bandwidth	21.6 Gbps (HBR2)
Shielding	Triple-shielded
Jacket Material	PVC
Connector Plating	Gold-plated
Compliance	DisplayPort 1.2
Color	Black
Weight	Approximately 1.2 lbs (0.54 kg)
Package Contents	1 DisplayPort cable
Warranty	Limited lifetime
Cleaning	Wipe with a dry, soft cloth. Do not use liquids or abrasives.
Safety Precautions	Use in a dry environment. Avoid sharp bends and excessive force on connectors.
Repairability	Non-repairable. If damaged, replace the cable.
Spare Parts	Not available separately. Replacement cable can be purchased.
General Information	Designed for high-performance video and data transmission between computers and peripherals.

Frequently Asked Questions - DP Pro P/50 Extron

What is the length of the Extron DP Pro P/50 cable?

The cable is 50 feet (15.2 meters) long.

Is this cable compatible with DisplayPort 1.4?

The DP Pro P/50 complies with DisplayPort 1.2 standard. It supports up to 4K @ 60Hz. While it may work with DisplayPort 1.4 sources, it cannot guarantee higher bandwidth features like 8K.

Can I use this cable to connect my computer to a monitor?

Yes, it is designed for connecting computers to monitors, projectors, or other display devices with DisplayPort inputs.

What is the maximum resolution supported?

It supports up to 4K @ 60Hz with a bandwidth of 21.6 Gbps.

Does the cable support audio?

Yes, DisplayPort cables carry both video and audio signals.

Is the cable gold-plated?

Yes, the connectors are gold-plated for corrosion resistance and reliable signal transfer.

How do I clean the cable?

Wipe the cable with a dry, soft cloth. Avoid using liquids or abrasive materials to prevent damage.

What is the warranty period?

Extron offers a limited lifetime warranty for this cable. Contact Extron support for details.

Can the cable be repaired if damaged?

No, the cable is non-repairable. If damaged, it should be replaced with a new one.

Is the cable shielded?

Yes, it features triple shielding to minimize electromagnetic interference and ensure stable signal transmission.

USER MANUAL DP Pro P/50 Extron

DP Pro Plenum Series Cable Guide

The Extron DP Pro Plenum cables support digital video resolutions up to 8K/30 at 4:4:4 while maintaining a small and flexible diameter (0.18" [4.7 mm]) ideal for an installation with a tight bend radius. These unidirectional, plenum rated cables are offered in seven lengths from 25 feet (7.6 m) to 150 feet (45.7 m):

Model Description
DP Pro P/25 DP Pro Plenum Cable M-M 25 feet (7.6 m)
DP Pro P/35 DP Pro Plenum Cable M-M 35 feet (10.6 m)
DP Pro P/50 DP Pro Plenum Cable M-M 50 feet (15.2 m)
DP Pro P/75 DP Pro Plenum Cable M-M 75 feet (22.8 m)
DP Pro P/100 DP Pro Plenum Cable M-M 100 feet (30.4 m)
DP Pro P/125 DP Pro Plenum Cable M-M 125 feet (38 m)
DP Pro P/150 DP Pro Plenum Cable M-M 150 feet (45.7 m)

NOTE: The DP Pro Plenum cables are unidirectional from source to display.

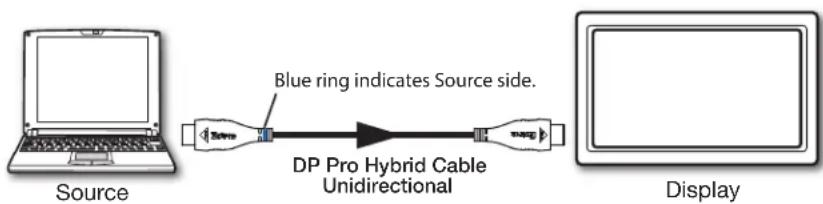

DP Pro Plenum Series Cable Guide, Continued

NOTES:

• The DP Pro Plenum connectors are labeled Source and Display. Be sure to connect them accordingly for proper signal flow.
• Insert the connector with the blue ring into the source.
