USER MANUAL HT-ES4200 SAMSUNG

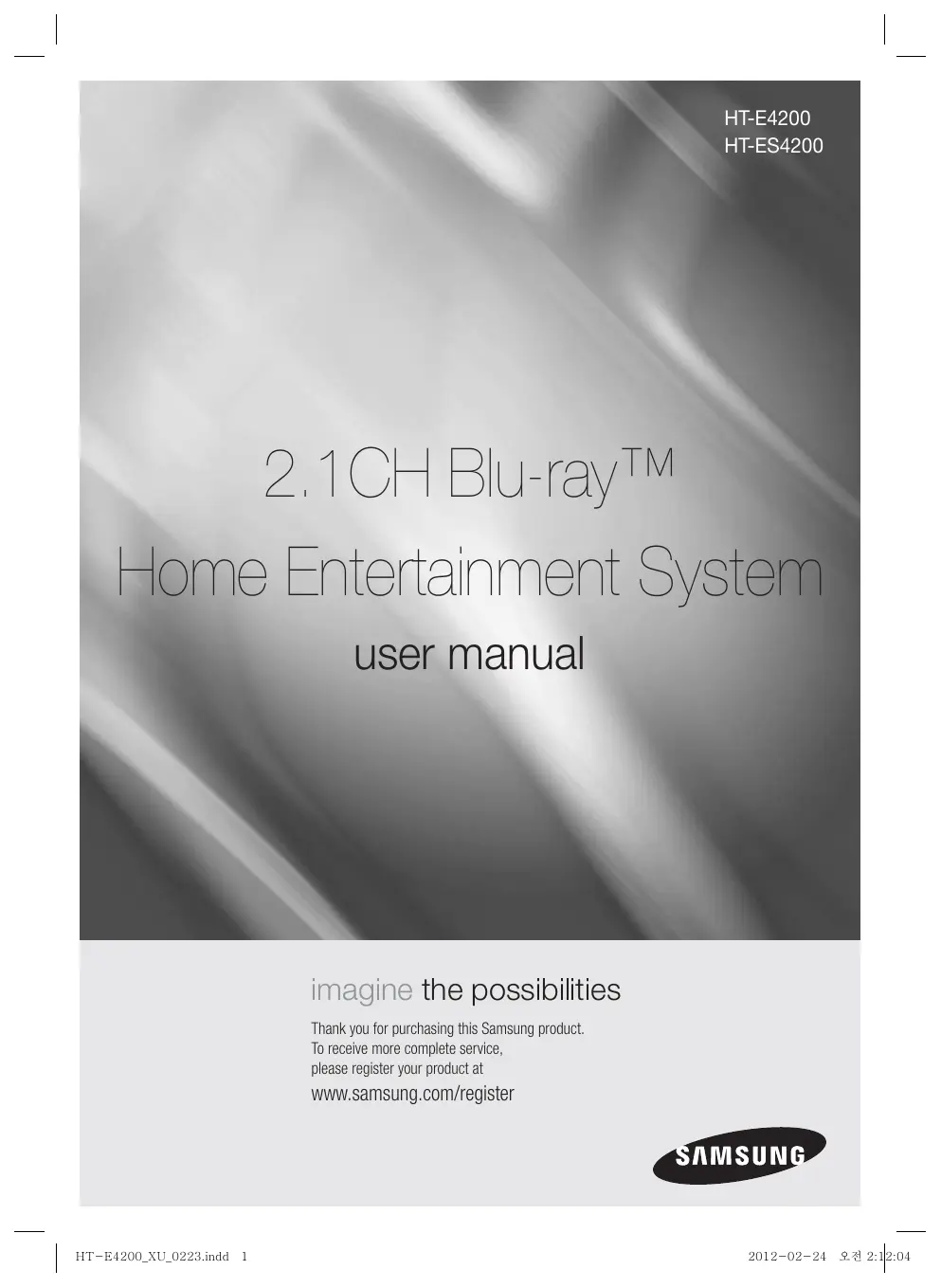

HT-E4200_ XU_0223.ndd 1 imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at Www.samsung.com/register HT-E4200 HT-ES4200

This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury. FULLY INSERT. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, This symbol indicates important instructions accompanying the product. WARNING + To reduce the risk of fie or electric shock, do not expose this appliance to rain or moisture. CAUTION + Apparatus shall not be exposed to dripping or splashing and no objects filed with liquids, such as vases, shall be placed on the apparatus. + The Mains plug is used as a disconnect device and shall stay ready operable at any time. + This apparatus shall always be connected to an AC outlet with a protective grounding connection. + To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shal be readily operable. CLASS 1 KLASSE 1 LUOKAN 1 LASER PRODUCT LASER PRODUKT LASER LAITE LASER APPARAT KLASS 1

PRODUCTO LASER CLASE 1

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. CAUTION

+ INVISIBLE LASER RADIATION WHEN OPEN

EXPOSURE TO BEAM. Wiring the Main Power Supply Plug (UK Only) IMPORTANT NOTICE The mains lead on this equipment is supplied with a mouded plug incorporating a fuse. The value of the fuse is indicated on the pin face of he plug and ii requires replacing, a fuse approved to BS1362 of the same rating must be used. Never use the plug with the fuse cover remove. the cower is detachable and a replacement is required, it must be of the same colour as the fuse fited in the plug. Replacement covers are available from your dealer. Ifthe fited plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consul your dealer for assistance. However ifthere is no altemative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a mains socket 28 there s a risk of shock hazard from the bared flexible cord. Never attempt to insert bare wires directly into a mains socket. À plug and fuse must be used at all times. IMPORTANT The wires in the mains lead are coloured in accordance with the following code: BLUE = NEUTRAL BROWN = LIVE As these colours may not correspond to the coloured markings identfying the terminals in your Plug, proceed as follows:-The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L'or coloured BROWN or RED.

HT-E4200 XU sc Storage & Managemen + Holding Discs = Fingerprints or scratches on a disc may reduce sound and nt picture quality or cause skipping. - Avoid touching the surface of a disc where data has been recorded. - Hold the disc by the edges so that fingerprints wil not get on the surface. = Do not stick paper or tape on the disc. + Cieaning Discs = IFyou get fingerprints or dirt on a disc, clean it with a mild detergent diluted in water and wipe with a soft cloth. When cleaning, wipe gently from the inside to the outside of the disc. - Disc Storage = Do not keep in direct sunlight. = Keep in a cool ventilated area. = Keep in a clean protection jacket and store vertical. Handling Cautions + Do not expose this apparatus to dripping or splashing. Do not put objects filed with liquid, such as vases, on the apparatus. + To tum this apparatus off completely, you must pull the power plug out of the wall socket. Consequentiy, the power plug must be easily and readily accessible at all times. + Do not touch the power plug with a wet hand. It can cause an electric shock. + Do not plug multiple electric devices into the same wall socket. Ovedrloading a socket can cause it to overheat, resulting in a fire. + Maintenance of the Cabinet - Before connecting other components to this product, be sure to turn them off.

-_Ifyou move your product suddenly from a cold place to a warm place, condensation may occur on the operating parts and lens and cause abnormal disc playback. If this occurs, unplug the product, wait for two hours, and then connect the plug to the power outlet. Then, insert the disc, and try to play back again. Ifthe product makes an abnormal noise or produces a burning smell or smoke, turn off the power switch immediately and disconnect the power plug from the wall outlet. Then, contact the nearest customer service centre for technical assistance. Do not use the product. Using the product as it is may cause à fire or an electric shock. To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times. Using the 3D Funci

IMPORTANT HEALTH AND SAFETY

INFORMATION FOR 3D PICTURES. Read and understand the following safety information before using the 8D function. + Some viewers may experience discomfort while viewing 8D TV such as dizziness, nausea, and headaches. If you experience any such symptom, stop viewing 8D TV, remove the 3D Active Glasses, and rest. Watching 8D images for an extended period of time may cause eye strain. f you feel eye strain, stop viewing 8D TV, remove your 8D Active Glasses, and rest. A responsible aduit should frequentiy check on children who are using the 8D function. Ifthere are any reports of tired eyes, headaches, dizziness, or nausea, have the child stop viewing 8D TV and rest. Do not use the 8D Active Glasses for other purposes (such as general eyeglasses, sunglasses, protective goggles, etc.) Engish 31 2012-02-24

Safety Information + Do not use the 8D function or 8D Active Glasses while walking or moving around. Using the 3D function or 8D Active Glasses while moving around may cause you to bump into objects, trip, and/or fall, and cause serious injury. If you want to enjoy 8D content, connect a 3D device (3D compliant AV receiver or TV) to the products HDMI OUT port using a high-speed HDMI cable. Put on 8D glasses before playing the 8D content. + The product outputs 8D signals only through HDMI cable connected to the HDMI OUT port. + As the video resolution in 8D play mode is fixed according to the resolution of the original D video, you can not change the resolution to your preference. Some functions such as BD Wise, screen size adjustment, and resolution adjustment may not operate properiy in 8D play mode. You must use a high-speed HDMI cable for proper output of the 3D signal. Stay at least three times the width of the screen from the TV when watching 8D images. For example, if you have a 46 inch screen, stay 3.5 meters from the screen - Place the 8D video screen at eye level for the best 3D picture. + When the product is connected to some 3D devices, the 8D effect may not function properiy. + This product does not convert 2D content into

+ “Blu-ray 8D° and “Blu-ray 8D° logo are trademarks of the Blu-ray Disc Association: Copyrighi © 2012 Samsung Electronics Co..Ltcl Al rights reserved: No part or whole of this user's manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.Lid. 14 English Licence IDOLBY TRUEIE DIGITAL PLUS + Dolby and the double-D symbol are registered trademarks of Dolby Laboratories. S dts-un Master Audio | Essential + Manufactured under licence under U.S. Patent Nos: 5,956,674; 5,974,380; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS-HD, the Symbol, & DTS- HD and the Symbol together are registered trademarks & DTS-HD Master Audio | Essential is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved. DIVX.

+ ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsicliary of Rovi Corporation. This is an official DivX Certiied® device that plays DivX video. Visit divx.com for more information and software tools to convert your fles into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certiied® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the Divx VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. DivX Certified® to play DivX® video up to HD 1080p, including premium content: DivX®, DivX Certiied® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under licence. Covered by one or more of the following U.S. patents : 7,295,673; 7.460.668; 7.515.710:

Homi + The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. + Oracle and Java are registered trademarks of Oracle and/or ts affllates. Other names may be trademarks of their respective owners. + This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation, Reverse engineering and disassembly are prohibited. + Blu-ray Disc", Blu-ray", and the logos are trademarks of Blu-ray Disc Association. + iPad, iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. + This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced fim and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted More information about Cinavia technology is provided at the Cinavia Online Consumer Information Centre at http:/Amww:cinavia.com. To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Centre, PO. Box 86851, San Diego, CA, 92138, USA" This product incorporates proprietary technology under licence from Verance Corporation and is protected by U.S. Patent 7,869,677 and other US. and worldwide patents issued and pending as well as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark of Verance Corporation. Copyright 2004-2010 Verance Corporation. All rights reserved by Verance. Reverse engineering or disassembly is prohibited. Open Source Licence Notice - In the case of using open source software, Open Source Licences are available on the product menu. Engish 5]

Contents SAFETY INFORMATION Warning Disc Storage & Management Handling Cautions Using the 8D Function Copyright Licence SRG GETTING STARTED 7 Disk and Format Compatibility 8 Logos of Discs the product can play

CONNECTIONS 15 Connecting the Speakers 15 Speaker Components 16 Instaling the Speakers {HT-ES4200 Oniy) 17 Assembling the Front Speaker (HT-ES4200 Oniy) 18 Connecting The Speakers (HT-ES4200 Only) 19 Connecting the FM Antenna 19 Connecting to an iPod/iPhone 19 Attaching the Toroidal Ferrite Core to the Power Cord of the Main Unit 20 Connecting to a TV 20 Method 1 Connecting to a TV with an HDMI Cable - Best Quality (Recommended) 20 Method 2 Connecting to a TV with a Video Cable - Good Quality 21 Connecting to External Devices 21 Method 1 AUX IN : Connecting an External Analogue Component 21 Method 2 OPTICAL : Connecting an External Digital Audio Component 22 Connecting to a Network Router 22 Wired Network 22 Wireless Network 16 English | nr-r2o0 xu.o22ime 6 SETTINGS The Initial Settings Procedure The Home Screen Accessing the Settings Screen Settings Menu Functions Networks and the Internet Upgrading Software MEDIA PLAY The AllShare Play Screen Playing Files on a USB Storage Device or iPod/iPhone iPod/iPhone Models You Can Use with This Product The Function Screen Playing Commercial Video Discs Playing Commercial Audio Discs Playing a Disc with User Recorded Content Using the AllShare Network Function Controlling Video Playback Controlling Music Playback Playing Photo Contents Using the Tools Menu when a File is Highlighted Listening to Radio Using the Special Effects Remote Control Buttons NETWORK SERVICES Using Smart Hub BD-LIVE®" APPENDIX Additional Information Troubleshooting Specifications

HT-E4200 XU sk and Format Compa ty Disc types and contents your product can play Media Disc Type Details Bury Disc 8D-ROM or BD-RE/-R disc recorded in the BD-RE format. 3D Blu-ray Disc VIDEO DVD-VIDEO, DVD-RW, | DVD-VIDEO, recorded DVD+RW/DVD-RW(V)/DVD-R/+R discs that have been DVD-R, DVD+RW, | recorded and finalised, or a USB storage media containing DivX, MK MP4 DVD+R contents. muse | -AW/RDVD-RW-R, | Musi recorded on CD-RWV-R, DVD-AW/-R BD-RE/-R disc or a USB storage BD-RE/R mea containing MP3 or WMA contents. pHoro | CP-AWRDUD-RIR, | Phoïs recorded on CD-RI-R, DVD-RW/-R, BD-RE/-R disc or a USE storage BD-RE/R mecia containing JPEG contents. NOTE | »_ The product may not play certain CD-RW/-R and DVD-R because of the disc type or recording conditions. »_ fa DVD-RW disc has not been recorded proper in DVD video format, it will not be playable. »_ Your product wil not play content that has been recorded on a DVD-R at a bit rate that exceeds 10 Mbps. Your product wil not play content that has been recorded on a BD-R or USB device at a bi rate that exceeds 30 Mbps. ». Playback may not work for some types of discs, or vien you use specific operations, such as angle change and aspect ratio adjustment. Information about the discs is written in detail on the disc box. Please refer to this f necessary. »_ When you play a BD-J tite, loading may take longer than a normal title or some functions may perform slow. Disc types your product cannot play + HDDVD + DVD-RAM + DVD-RW(VR mode) + 3.9 GB DVD-R Disc + DVD-ROM/PD/MV- + Super Audio CD + CVD/CD-ROM/CDV/ for Authoring. Disc, etc {except CD layer) CD-G/CD-VLD (CD-Gs play audio only, not graphics.) INOTE | »_ This product may not respond to al operating commands because some Blu-ray Disc, DVD, and CD discs allow specific or limited operation and provide only certain features during playback Please note that this is not a defect in the product. >. Samsung cannot guarantee that this product wil play every disc bearing the Blu-ray Disc, DVD or CD logo because disc: formats evolve, and problems and errors may occur during the creation of Blu-ray Disc, DVD, and CD software and/or the manufacture of discs. ». Please contact the SAMSUNG Customer Care Centre, if you have questions or encounter difculty when playing Blu-ray Disc, DVD, or CD discs in this product. Also, refer to rest of this user manual for additional information on playback restrictions. >. Some commercial discs and DVD discs purchased outside your region may not play on this product. Engish 7| 2012-02-24

Getting Siartea Region Code Both products and discs are coded by region. These regional codes must match for a disc to Logos of Discs the product can play = &rey play. the codes do not match, the disc wil not 2 Day. Z 32, The Region Number for this product is displayed on the rear panel of the product Blu-ray Disc 3D Blu-ray Disc . Region Discrpe | Fo Area 81° [IDoLEY DLIVE.. —_ TRUE | North America, Central America, BIEMTAL PLUS South America, Korea, Japan, Taiwan, Hong Kong and South BD-LVE Doby East Asa. Blu-ray Disc Europe, Greenland, French =dtsu DIVX feriores, Middle East, Arca, Master Auto Esettl HD Australia and New Zealand DTS Dix India, China, Russie, Central and South Asia The US. US. territories and PAL Canada Europe, Japan, the Middle East ; TZ Egypt, South Africa, Greenland PAPbroedes teste nn Java UXK, France, Germany, etc. d Taivan, Korea, the Philippines, Indonesia, Hong K Mdonés'a, Hong Kong Supported Formats Mexico, South America, DVD-VIDEO Central America, Austal, Music File Support 7 | New Zealand, Pac Islands, Caribbean Fe ET Extension | CET | Codec | SuPPort Range Russia, Eastem Europe, ia, & most o Africa, North Korea, cm8 | ms | ms Mongolia Compliant with China WMA version 10 7 * Sampling rates (in . ko) - 8, 11, 16, INOTE | uma | WMA | WMA | 22 32,441,48 »_ the Region number of a Blu-ray Disc/DVDS does not correspond to the Region number of this product, the product cannot play the disc. 18 English | nT-sa200 xu.o72imie à

• Bitrates - AI bit rates in the range Skbps to 384kbps

*39p 3cPP MC MPEGA SpasP | 19206080 | 6-30 8 MPEG2 19201080 | 24/25/30 25 AC3 . vo vo po MPEG MPEG1 19201080 | 24/25/30 25 LPCM MPEG1 19201080 | 24/25/30 25 ac3 mpg MPEG mur ps MPEG2 19201080 | 24/25/30 25 H264 1920xt080 6-30 25 AMC MPEG2 19201080 | 24/25/30 25 103 “ts AAC “ TS H264 19201080 | 6-30 25 te “1 DD vo 19201080 | 6-30 25 + » Limitations - Even when a fll is encoded by a supported codec listed above, the fle might not be played if its content has a problem. = Normal playback is not guaranteed if the files container information is wrong or the file itself is corrupted. = Files having higher bit or frame rates than standard may stutter when played back. HT-E4200 XU English 9! 2012-02-24

Getting Started -_ The Seek (skip) function is not available if the fll's index table is damaged. When you playback a fie remotely through a network connection, video playback may stutter depending on the network speed. Video decoder Supports up to H.264 Level 4.1 - Does not support H.264 FMO/ASO/RS, VC1 SP/MP/AP L4 and AVCHD MPEGA SP, ASP : Below 1280 x 720 : 60 frames max Above 1280 x 720 : 80 frames max = Does not support GMC 2 or higher Audio decoder Supports WMA 7, 8, 9 and STD = Does not support WMA 9 PRO muit-channel fils if the number of channels is more than 2 or the îles require lossless audio decoding. Does not support WMA samplng rate of 22050Hz mono 2 Supported DivX subtitle file formats “txt, *.smi, “sert, “sub, *.txt Notes on the USB connection + Your product supports USB storage media, MPS players, digital cameras, and USB card readers + The product does not support folder or file names longer than 128 characters. Some USB/digital camera devices may not be compatible with the product. Your product supports the FAT 16, FAT 32, and NTFS fles systems. Connect USB devices directly to the products USB port. Connecting through a USB cable may cause compatibilty problems. Inserting more than one memory device into à multi-card reader may cause the reader to operate improperiy. + The product does not support the PTP protocol. Do not disconnect a USB device during a “loading” process. + The bigger the image resolution, the longer the image takes to display. 110 Engiish + This product cannot play MPS files with DRM (Digital Rights Management) dounloaded from commercial sites. Your product only supports video that is under 80fps (frame rate) Your product only supports USB Mass Storage Class (MSC) devices such as thumb drives and USB HDD. (HUB is not supported.) Certain USB HDD Devices, muli-card readers and thumb drives may not be compatible with this product. If some USB devices require excessive power, they may be limited by the circuit safety device. If playback from a USB HDD is unstable, provide additional power by plugging the HDD into a wall socket. the problem continues, contact the USB HDD manufacturer. You must remove the USB storage device safely {by performing the “Safely Remove USB" function) to prevent possible damage to the USB memory. Press the HOME button to move to the home menu, press the YELLOW (C) button, and then press the (] button. + SAMSUNG is not responsible for any data flle damage or data loss: AVCHD (Advanced Video Codec High Definition) + This product can play back AVCHD format discs. These discs are normally recorded and used in camcorders. + The AVCHD format is a high definition digital video camera format. + The MPEG-4 AVC/H.264 format compresses images with greater efficiency than the conventional image compressing format. + Some AVCHD discs use the ‘x.Colour” format This product can play back AVCHD discs that use “xMColour” format + “xv.Colour" is a trademark of Sony Corporation + “AVCHD" and the AVCHD logo are trademarks of Matsushita Electronic Industrial Co, Ltd. and Sony Corporation

INOTE | ». Some AVCHD format discs may not play, depending on the recording conditions. »_ AVCHD format discs need to be finalised. »_“xwColour” offers a wider colour range than normal DVD camcorder discs. >. Some DivX, MKV and MP4 format discs may not play, depending on their video resolution and frame rate Accessories peus Eumeo 20 | Check for the supplied accessories below.

Video Cable User Manual 2 d (For Power cord) FM Antenna Toroidal Ferrite Core Remote Control/Batteries(AAA size) 2 Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. # An administration fee may be charged if either

2. an engineer is called out at your request and there is no defect in the product (Le. where you have

failed to read this user manual) b. you bring the unit to a repair centre and there is no defect in the product (Le. where you have failed to read this user manual). "The amount of such administration charge will be advised to you before any work or home visit is carried out. Engish 11! 2012-02-24 A 2: HT-E4200 XU

Getting Started Front Panel

INOTE | »_ To upgrade the product's software through the USB Host jack, you must use a USB memory stick. »_ When the product displays the Blu-ray Disc menu, you cannot star the movie by pressing the 3 button on the product or the remote, To play the movie, you must select Play Movie or Start in the disc menu, and then press the (E button Rear Panel COOLING FAN nu | : VIDEO OUT

Remote Control Tour of the Remote Control Turn the product on and of. e—| To change to TV mode, press the e— button. FUNCTION To change to Home Cinema, press the BD button. Press numeric buttons to operate options. Press to view the disc menu. Press to skip backwards or forward, Press to stop/play a disc. Cut off the sound temporariy. Adjust the volume. Press to move to the Home screen. e—1 Press this to see the full screen onaT. Press to use the Tools menu. Select on-screen menu items and + | change menu value Retumn to the previous menu. These buttons are used both for menus on the product and also °—| several Blu-ray Disc functions. Press to use Smart Hub. &—1 Press this to use the Tuner. e—| Me EE Press to select Blu-rays mode {AUX, BD/DVD, etc).

Press to select TV's video mode.

To open and close the disc tray. Set a Sleep time to shut of the product Use the RDS function to receive FM stations. Use to enter the Popup menu/ Title menu. Press to search backwardis or fonwards. Press to pause a disc. Search for active FM stations and 40 change channels. Use to adjust the level of the subwoofer. Alows you to repeat a te, chapter, rack or disc. Use to display the playback information when playing à Blu-ray/DVD disc. [—e Press to exit the menu. Use to set a preset radio frequency. Η—< Select MONO or STEREO for radio broadeasts, D Press to apply 8D sound effect. Fe Press to appiy sound effects. Press to search contents. Selects the disc Audio language. —| Press to enjoy an ordinary 2D video in 8D mode. Selects the disc subitl language. English 131 2012-02-24 42

INOTE | is # >. Make sure to match the “+ and “-" ends of he batteries 7 Fine with the diagram inside the compartiment. Du fi TE . Dm nr 2 »_Assuming typical TV usage, the batteries last for about Eu E ER —— nec lé (6,06, 67 one year. Tr 5 Fate ak _| 17,486 00,01,75 The remote control can be used up to approximately an EE DETTE 7 meters from the product in a straight line. ne dm ÉRHEI : Com GE Setting the Remote Control ee — : & CITE You can control certain functions of your TV with ETS Samsung 4. Hs this remote control. Daewoo 223,24 F4 7 Same | 1988 When operating a TV with the remote control 0,40, 50,5 Don Sas [ENTT]

1. Press the TV button to set the remote control Dynasty Snap 15,57,64

u Sie 2000 to TV mode. nan ue zu 3.5

enter the code corresponding to your brand of TV + Ifthere is more than one code listed for your TV in the table, enter one at a time to determine which code works: + Example : For a Samsung TV

Emo While holding down the POWER button, Tia use the number buttons to enter 00. that — does not work, try 15, then 16, etc. en

4. lfthe TV turns off, the setting is complete. 16 (Got) dec

+ You can use the TV POWER, VOLUME, us Var CHANNEL, and Numeric buttons (0-9) DU Geas) era

> The remote control may not work on some brands of TV's. are LE Also, some operations may not be possible, depending on es # your brand of TV. MGA 8,40 Dan [HN > The remote control will work with Samsung TVS by defaut. 1114 Engish 1200_XU_0223.ndd 14 | mr

This section describes various methods of connecting the product to other external components. Before moving or installng the product, be sure to turn off the power and disconnect the power cord. Connecting the Speakers

Position of the product Place it on a stand or cabinet shef, or under the TV stand. suogoouuoo 0 | Selecting the Listening Position The listening position should be located about 2.5 to 8 times the distance of the TV's screen size away from the TV. For example, if you have a 46 inch screen, locate the listening position 2.92 to 3.50 meters from the screen. Place these speakers in front of your istening position, facing inwards (about 45°) Front Speakers | toward you. Place the front speakers so that their twesters will be at the same height as your ear. Subwoofer The position of the subwoofer is not so critical. Place it anywhere you like. Speaker Components HT-E4200 FRONT SUBWOOFER indé 15 HT-E4200 XU HT-ES4200 Do ® FRONT.

Connections Installing the Speakers (HT-ES4200 Only) You can install to use 4 types that described on the right side. Type 1. You can assemble the speakers as a bar form and use the hole on the rear of the speaker to hang it up on the wall. Type 2. You can assemble the speakers as a bar form and put it on the table to use. Type 3. You can assemble the speakers as a stand form and put it on the table or floor to use. Type 4. You can assemble the speakers as a stand form and use the hole on the rear of the speaker to hang it up on the wall. INOTE | » However, f you instal he speakers on te wal, instalation senice or accessories (scrèus or nai) are not prouded from the company. 116 Engish 2012-02-24 2 2:14:00 | nr-sazoo x

Assembling the Front Speaker (HT-ES4200 Only) You can install the product in one of the following two ways: Choose a desired one according to the installation area and your decoration plan. s Installing on the Partition 8 SENTE 3 The front speakers can be combined by a partition. 8

2. Insert screws into the hole on the rear of each @)

speakers, and then use screwdriver to tighten screws clockwise.

8. Thisis the appearance after the speaker is 6)

installed Installing on the Table Stand

1. Connect the Speaker to the Stand Base. o

2. Insert a screw into the hole on the rear of the (2)

speaker, and then use screwdriver to tighten a screw clockwise. & Stand ] | Base

8. Thisis the appearance after the speaker is

installed. Follow this steps to install other (8) speaker. HT-E4200 XU Engish 17 2012-02-24 24 2 4e 09

Connections Connecting The Speakers (HT-ES4200 Only)

1. Match the front speaker cable bundie to the correct speaker by matching

the colour coded plug on each bundie to the coloured sticker on the bottom of the front speaker.

2. To attach speaker wire to the front speaker.

a. Press down the red tab on the back of the front speaker, insert the red wire, and then release the tab. b. Press down the black tab on the back of the front speaker, insert the black wire, and then release the tab.

8. Connect the speaker wire plugs to the back of the product by matching

the colours of the front speaker plugs to the colours of the front speaker jacks: In case of HT-E4200 SPEAKERS OUT Front Speaker (L) Subwoofer Front Speaker (R) Refer to page 15 for the speakers of HT-ES4200. | CAUTION | Hyou want to instal he product on tne wal,fsten re screws or all on tne wal fm and use he holes on tn rear of speaker to instal. However, when you install, accessories (nas or screws) and installation is not provided by the company. Do not lt children play th or near te speakers. They cou get hurtif a speaker fa. Keep the subwoofer speaker out o reach of chldren to prevent children from inseting their hand or lien substances into te dut (ol) afthe suboofer speaker. Do nat hang te suboofer on tre wal through the duct (hi) INOTE | »_ you place a speaker near your TV se, te screen colour may be distorted because of the magnetic ild 118 Engish 2012-02-24 2 2:1h:18

Connecting the FM Antenna FM Antenna (supplied)

1. Connect the FM antenna supplied to the FM ANTENNA Jack.

2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it

to a wall or other rigid surface. INOTE | »_ This product does not receive AM broadcast. Connecting to an iPod/iPhone Connect an iPod/Phone using the USB cable to the front USB port. If you attach a Toroidal ferrite core to the power cord of the main unit, it will help to prevent RF interference from radio signals.

1. Pullthe fxing tab of the Toroïdal ferrite core to open

it. Make a loop twice in the main unit power cord. Attach the Toroidal ferite core to the main unit power cord as the figure shows and press it until it clicks.

Connections Select either Method 1 or Method 2. _Ifyou have set the products remote control to aperate your TV, press the TV SOURCE button on the remote control, and then select the correct external source from the TV's source list (HDMI, Video In, etc} to view video from the home cinema.

ji fl (Cable not supplied.) IMEtHodM Connecting to a TV with an HDMI Cable - Best Quality (Recommended) Connect an HDMI cable (not supplied from the HDMI OUT jack on the back of the product to the HDMI IN jack on your TV. Ifthe TV supports ARC, you can hear TV sound from home cinema with only connect this cable. IMEtHodl2] Connecting to a TV with a Video Cable - Good Quality Connect the supplied Video cable from the MDEO OUT jack on the back of the product to the VIDEO IN jack on your TV. INOTE | »_ Te VIDEO Out jack always outputs in the 5761480 resolution regardiess of the resolution set in the Setup menu »_ Do not connect the unit through a VCR. Video signals fed through VCRS may be affected by copyright protection systems and the picture wil be distorted on the television. 120 Engiish

Method 1 Red E+ Er Wnite MERS AUX IN : Connecting an External Analogue Component Using an RCA audio cable (not supplied, connect the AUDIO In jack on the product to the AUDIO Out jack on the external analogue component. & Select the AUX mode. + Be sure to match the colours on the cable plugs to the colours on the input and output jacks. IMEthoal2l oPTICAL : Connecting an External Digital Audio Component To connect the digital audio output of digital signal components such as Cable Boxes and Satelite Recelvers (Set-Top-Boxes) Using a digital optical cable (not supplied), connect the Optical Digital Audio In jack on the product to the Digital Optical Out jack of the external digital device using a digital optical cable. & Select the D. IN mode. INOTE | »_ To see video from your Cable Bow/Satelite receiver, you must connect its video output direct} to your TV. »_ This system supports Digital sampling frequencies of 32 kHz or higher from external digital components »_ This system supports only DTS and Dolby Digital audio. MPEG audio, a bitstream format, is not supported Engish 21! HT-E4200_ XU_ 2012-02-21 24 2 4e z

Connections You can connect your product to your network router using one of the methods illustrated below. Wired Network Broadband modem {with integrated router) Broadband

il Broadband » service Broadband modem INOTE | »_Intemet access to Samsung s Software Update server may not be allowed, depending on the router you use or your ISP's policy. For more information, contact your ISP {internet Service Provider) >. DSL users, please use a router to make a network connection. »_ To use the AlShare Play function, you must connect your PC to your network as shown in the ilustrations on the let. The connection can be wired or wireless. 122 Engish Wireless Network Broadband service INOTE | »_ This product is compatible with only Samsung's Wireless LAN Acapter. (not supplied) (Model name: WISO9ABGN). = The Samsung Wireless LAN Adapter is sold separately. Contact à Samsung Electronics retaller for purchasing You must use a wireless IP sharer that supports IEEE

802.11 a/b/g/n. (n is recommended for stable operation

ofthe vireless netnork.) Wireless LAN, by it nature, may cause interference, depending on the use condition (router performance, distance, obstacles, interference by ner radio devices, etc) Setthe wireless IP sharer to Infrastructure mode. Ad-hoc mode is not supported. The home cinema supports the following security protocols on.

For the AlShare Play function, a PC must be connected in the network as shoun in the figure.

HT-E4200_XU_ Thel I Settings Procedure + The Home menu will not appear if ou do not configure: the initial settings. + The OSD (On Screen Display) may change in this product after you upgrade the software version. + The access steps may differ depending on the menu you selected.

1. Turn on your TV after connecting the product,

and then turn on the product. When you turn on the product for the first time, the product automatically displays the Initial Settings: Language screen.

2. Usethe AY 4» buttons on the remote

to select the desired language, and then button twice. The Start screen button to start setup. The Network Settings screen appears. 4: Connect the network cable or insert the Samsung Wireless LAN Adapter. <incase of Network Cable connected> button to set up the product's wired network connecton or select Skip, and then press the (®J button to skip network setup. If you selected Skip, go to Step 9.

6. Hfthe connection is successful, the

Connection Complete screen appears. Select Next, and then press the (Æ button. The Software Update screen appears. INOTE | »_ the connection is not successful, select Next, and then press the (E) button. After you have completed the Initial Settings procedure, go to "Wired Network on page 30 to set up the products vired network connection.

7. To upgrade the software, select Update

now, and then press the (Æ] button. To skip the upgrade, select Update later, press the © button, and go to Step 9. INOTE | »_ you skipped network set up, you must skip Software Update also.

8. Ifthere is a Software Update available,

the product downloads and installs the upgrade. This can take some time. there is no Software Update available, the ‘There are no new software updates for you to download. You already have the most up to date version." message appears. And button. The TV Aspect Ratio screen appears. English 23] 2012-02-24 24 2 4e sôumes vo |

Settings 9 Usingthe A v buttons, select the aspect ratio that matches your screen, and then press the button. Select Next, and then press the button. You have four choices: 16:9 Original - For widescreen TVs. Displays widescreen pictures in their original 16:9 format and 4:3 pictures (the old, standard format) in 4:3 pillar box format with black bars on the left and right. 16:9 Full - For widescreen TVs. Displays widescreen pictures in their original 16:9 format and expands 4:8 pictures to fil the 16:9 screen. 4:3 Letter Box - For older, standard screen analogue TVs. Displays 4:3 pictures in full screen and 16:9 pictures in letter box format that retains the 16:9 aspect ratio but puts black bars above and below the picture. 4:3 Pan-Scan - For older, standard screen analogue TVs. Displays 4:3 pictures in full screen and 169 pictures in Pan-Scan format that fils the screen, but cuts off the left and right sides of the picture and enlarges the middle vertically.

10. The Setup completed screen appears. Check

the settings to confirm they are Select OK, and then press the The Home screen appears: 124 Engish | nr-sazoo x INOTE | »_Hfyou want to display the Initial Setting screen again and make changes, select the Reset option. (See page 29) I you use an HDMI cable to connect the product to an Anynet+ (HDMI-CEC)-compliant Samsung TV and 1.) You have set the Anynet+ (HDMI-CEC) feature to ON in both the TV and the product and 2.) You have set the TV to à language supported by the product, the product wil select that language as the preferred language automatically. The Home Screen Smart Hub. Starts Smart Hub, From Smart Hub, you can access YouTube, games, and other apps. AllShare Play. Play videos, photos or music content from Disc, USB, PC or mobile devices. Function. Select the audio/video input source. Settings. Set various functions to suit your personal references. Displays the coloured buttons on your remote that you can press to access or perform functions = Selecting an Option on the Home Screen 1... To select an option on the Home screen, move the cursor using the à buttons until it highlights the option of your choice, and then press the (E] button. 2012-02-24 42:14:42

HT-E4200_XU_ Accessing the Settings Screen

1. Select Settings on the Home screen, and

then press (®J. The Settings screen appears.

2. To access the menus, sub-menus, and

options on the Settings screen, please refer to the remote control ilustration below. NOTE | »_H you leave the product in the stop mode for more than 5 minutes without using it, a screen saver will appear on your TV.Hthe product is let in the screen saver mode for more than 20 minutes, the power will automatically turn of. Buttons on the Remote Control Used for the Settings Menu

© | HOME Bution : Press to move to the Home screen. © | RETURN Button : Retum to the previous menu. © Enter / DIRECTION Button : + Press A w 4 to move te cursor or select e an tem. + Press the (3 button to activate the currently selected item or conf a setting. © | EXIT Button : Press to ext the current menu, ‘8 front panel can be butin on the remote used for same purpose as the control Detailed Function Information Each Settings function, menu item, and individual option is explained in detail on-screen. To view an explanation, use the 4 Y 4» buttons to select the function, menu item, or option. The explanation will usually appear on the right of the screen. À short description of each Settings function starts on the next page. Additional information on some of the functions is also in the Appendix of this manual. Engish 25|

Settings Settings Menu Functions Display 3D Settings Set up the 8D related functions. J 3D Blu-ray Playback Mode: Select whether to play à Blu- ray Disc with 8D contents in 8D Mode. If you move to the Home or Smart Hub Home menu while in 8D mode, the product wil switch to 2D automatically. J Screen Size: Enter the size of the TV attached to the product. The product will automatically adjust the 8D output to the screen size of the TV. TV Aspect Ratio Lets you adjust the output of the product to the screen size of your TU See page 24, Step 9 for a description of the screen size options. Smart Hub Screen Size Lets you select the optimal size for the Smart Hub Screen BD Wise BD Wise is Samsungs latest inter-connectivity feature: When you connect a Samsung product and a Samsung TV with BD Wise to each other via HDMI, and BD Wise is on in both the product and TV, the product outputs video at the video resolution and frame rate of the Blu-ray/DVD Disc. Resolution Lets you set the output resolution of the HDMI video signal to Auto, 1080p, 1080i, 720p, 576p/480p. If Composite is connected, the resolution supports only 5761/4801. The number indicates the number of Ines of video per frame. The i and p indicate interaced and progressive scan, respectively. The more lines, the higher quality. Movie Frame (24Fs) Setting the Movie Frame (24Fs) feature to Auto lets the product adjust its HDMI output to 24 frames per second automatically for improved picture quality if attached to a 24Fs compatible TV. + You can enjoy the Movie Frame (24Fs) feature only on a TV supporting this frame rate. + Movie Frame is only available when the product is in the HDMI 1080 or 1080p output resolution modes. HDMI Colour Format Lets you set the colour space format for the HDMI output to match the capabilties of the connected device (TV, monitor, etc) HDMI Deep Colour Lets you set the product to output video from the HDMI OUT. jack with Deep Colour. Deep Colour provides more accurate colour reproduction with greater colour depth Progressive Mode Lets you improve picture quality when viewing DVDs. 126 Engish 3indd 26 2012-02-24

Audio Speaker Settings You can set the speaker options. Equaliser Let you configure the Equaliser settings manually. Smart Volume Lets you set the product so that the volume remains stable when a scene change occurs or when you change the channel Speaker Selection Lets you select which speakers you want active, either the TV's speakers or the Home theater's speakers. Audio Return Channel Lets you direct the sound from the TV to the Home Cinema speakers. Requires an HDMI connection and an Audio Return Channel (ARC) compatible TV. + When Audio Return Channel set to on, use HDMI Cable to connect the product to the TV. At this time, optical input does not work. + When Audio Return Channel set to auto, use HDMI Cable to connect the product to the TV. At this time, ARC and optical input is selected automatically. Digital Output Let you set the Digital Output to match the capabilties of the AV receiver you've connected to the product. For more details, please refer to the digital output selection table. (See page 56) Dynamic Range Control Lets you apply dynamic range control to Dolby Digital, Dolby Digital Plus, and Dolby True HD audio. Auto: Automatically controls the dynamic range of Dolby TrueHD audio, based on information in the Dolby TrueHD soundtrack. Also tums dynamic range control on for Dolby Digital and Dolby Digital Plus. Off: Leaves the dynamic range uncompressed, letting you hear the original sound. % On: Tums dynamic range control on for all three Dolby formats. Quieter sounds are made louder and the volume of loud sound is reduced. Audio Sync When the product is attached to a digital TV, lets you aclust the audio delay so that the audio syncs with the video. You can set the delay between O and 300 miliseconds. HT-E4200 XU Network Network Settings For more information about Network Settings and network functions, see "Networks and the Internet" starting on page

Network Status Let you check whether a connection to the network and the Internet have been established. Engish 27|

Settings Lets you permit external devices such as smart phones to AllShare connect to the product and share content with or control the Settings product BD-Live | Lets you allow, mit, or prohibit an Internet connection for the Settings | BD-Live service System Initial Settings Lets you re-run the Initial Settings procedure. See page 23 for details. Device Manager You can connect a wireless USB keyboard or mouse to the USB port on the front of the product. J Keyboard Settings: Lets you configure a wireless USB keyboard connected to the product INOTE | >. You can use the Keyboard only when a QWERTY keyboard screen or window appears in the Web Browser. Mouse Settings: Lets you configure a wireless USB mouse connected to the product. You can use the mouse in the products menu in the same way You use à mouse on your

= To use a mouse with the product's menu:

1. Connect the USB mouse to the product.

2. Click the primary button you selected in Mouse Settings.

The Simple Menu appears.

3. Click the menu options you want.

INOTE | > Depending on the model of the USB HD keyboard and mouse may not be compatible with your product > Some HID keyboard keys may not work. > Wired USB keyboard are not supported. > Some applications may not be supported »_ fa wireless HD Keyboard does not operate because of interference, move the keyboard closer to the product. Anynet+ (HDMI-CEC) Anynet+ is a convenient function that offers linked operations with other Samsung products that have the Anynet+ feature and lets you control those products with one Samsung TV remote. To operate this function, you must connect this product to an Anynet+ Samsung TV using an HDMI cable. 128 Engish 3indd 28

Language You can select the language you prefer for the On-Screen menu, disc menu, subttles, etc. + The language you select for the disc menu, disc audio, or subtitles wi only appear iit is supported on the disc. Security The defaut PIN is 0000. Enter the default PIN to access the security function if you haven't created your own password. BD Parental Rating: Prevents playback of Blu-ray Discs with a rating equal to or above a specific age rating you enter unless the PIN is entered. / DVD Parental Rating: Prevents playback of DVDs with a rating above à specific numerical rating you select unless the PIN is entered. / Change PIN: Change the 4-digit PIN used to access security functions. = If you forget your PIN

1. Remove any disc or USB storage device.

2. Press and hold the EJ button on the front panel for 5

seconds or more. All settings will revert to the factory settings. [NOTE | > When the factory default settings are restored, all the user stored BD data will be deleted.

General You can specify the display brightness and time zone. + Front Display: Lets you change the brighiness of the front panel. / Time Zone: You can specify the time zone that is applicable to your area. + Menu Transparency: Adjust the transparency of the menu box DivX® Video On Demand View DivX® VOD Registration Codes to purchase and play DivX® VOD contents. Support Software Update For more information about the Software Update function, see “Upgrading Software” on page 33. Contact Samsung Provides contact information for assistance with your product. Remote Management When activated, lets Samsung Call Centre agents diagnose and fix problems with the product remotely. Requires an active Internet connection. Remote Management service might not be available in some countries. Reset Al settings wil rever to the default except for the network and Smart Hub settings. The default security password is 0000. HT-E4200 XU indé 29 English 29! 2012-02-28 2%

| nr-sazoo x Settings When you connect this product to a network, you can use network based applications and functions such as Smart Hub and BD-LIVE, and upgrade the product's software through the network connection. For more information about accessing and using Internet services, see the Network Services chapter of this manual on pages 49-51. Instructions for configuring the network connection start below. Configuring Your Network Connection Before you begin, contact your ISP to find out i your IP address is static or dynamic. fit is dynamic, and you have a wired or wireless network, we recommend using the Automatic configuration procedures described below. I you are connecting to a wired network, connect the product to your router using a LAN cable or Samsung Wireless LAN Adapter (sold separately) before you start the configuration procedure. If you are connecting to a wireless network, disconnect any wired network connection before you begin. To begin configuring your network connection, follow these steps: 1: Inthe Home screen, select Settings, and then press the 2+ Select Network, and then press the button.

3- Select Network Settings, and then press the

button. 4 Go to the instructions for Wired networks starting below or the instructions for Wireless networks starting on page 31. Wired Network 2 Wired - Automatic After following Steps 1 to 3 above: 1+ Select Start in the Network Settings screen, and then press the (Æ button. The product detects the wired connection, veriies the network connection and then connects to the network. 1 30 Engish 2 Wired - Manual If you have a static IP address or the Automatic: procedure does not work, you'll need to set the Network Settings values manual After following Steps 1 to 3 above: 1+ Select Start in the Network Settings screen, and then press the (ÆJ button. The Network Status screen appears. The product attempts 0 ver the network connection and fais. The IP Settings screen appears.

3. Select the IP Mode field, and then set it to

Manual. 4" Use the number keypad on your remote to enter the Network values. Use the A Y 4» buttons on the remote to move from entry field to entry field. INOTE | You can get these values from your Intemet provider. You can also view these values on most Windows computers For instructions, see "Getting the Netork Settings Values." on next page.

5. When done, highlight OK, and then press

button. The product verifles the network connection and then connects to the network. 2012-02-24

HT-E4200_XU_ < Getting the Network Settings Values > You can view your Network Settings values on most Windows computers. To view the Network Settings values, follow these steps: + Windows XP 1: Right click the Network icon on the bottom right of the Windows desktop. 2+_Inthe pop-up menu, click Status. 3-_ Onthe dialog that appears, click the Support tab. 4 Onthe Support tab, click the Details button. 5 The Network settings are displayed + Windows 7 1 Click the Network icon on the bottom right of the Windows desktop. 2+_Inthe pop-up menu, click Network and Sharing Centre. 3-_ Onthe dialog that appears, click the Local Area Connection or Wireless Network Connection depending on your network connection. 4 Onthe Support tab, click the Details button. The Network settings are displayed INOTE | ». Depending on your Windows version, the information may dif. Wireless Network You can setup a wireless network connection in three ways: = Wireless Automatic - Wireless Manual = WPS{PBC) When you configure the wireless network connection, any wireless network devices currently connected through the product or, if applicable, the product's current wired connection, will be disconnected. 2 Wireless (General) - Automatic After following Steps 1 to 8 in “Configuring Your Network Connection" on page 80. 1: Select Start in the Network Settings screen, and then press the (EJ button. The product searches for and then displays a list of the available networks. 2-+ Select the desired network, and then press button.

3- Select Next, and then press the Æ

again. 4 Onthe Security screen, enter your network's: Security Code or Pass Phrase. Enter numbers directiy using the number buttons on your remote control. Enter letters by selecting a letter with an arrow button, and then pressing (Æ button.

5. When done, select Next at the right ofthe

screen. The product veriies the network connection and then connects to the network. button INOTE | »_ You should be able to ind the Security Code or Pass Phrase on one of the set up screens you used to set up Your router or modem. 2 Wireless (General) - Manual If you have a static IP address or the Automatic: procedure does not work, you'll need to set the Network Settings values manualy. After folloiwng Steps 1 to 8 in “Configuring Your Network Connection" on page 30. English 31! sôumes vo | 2012-02-24 24 2 07

Settings 1 Select Start in the Network Settings screen, and then press the [Æ} button. The product searches for and then displays a [ist of the available networks. 2+ Select the desired network or the Add Network, and then press the [E] button. 3-_ Select Next, and then press the [Æ button again. 4-_ If you select the Add Network, enter your wireless router's name to connect. Enter numbers directly using the number buttons on your remote control. Enter letters by selecting a letter with the A Y 4» buttons, and then pressing the (E] buttor Select Next, and then press the (Æ} button again. You can select security type, and then select Next, and then press the (®} button again. 5: Onthe Security screen, enter your network's Security Code or Pass Phrase. Enter numbers directly using the number buttons on your remote control. Enter letters by selecting a letter with the A v 4» buttons, and then pressing the (E] button. 6: When done, select Next at the right of the screen, and then press the (®} button. 7: The Network Status screen appears. The product attempts to verify the network connection and fails. 8 Select IP Settings on the right of the screen, and press the (®] button. The IP Settings screen appears. 9 Select the IP Mode field, and then set it to Manual. 10 : Use the number keypad on your remote to enter the Network values. Use the À Y 42 buttons on the remote to move from entry. field to entry field INOTE | You can get these values from your Internet provider. You can also view these values on most Windows computers For instructions, see "Getting the Network Settings Values." on page 31 132 Engish

button, The Network Status screen appears. The product veriies the network connection and then connects to the network. When it is done, highlight OK, and then press button. 2 WPS(PBC) One of the easiest ways to set up the wireless network connection is using the WPS(PBC) function. If your wireless router has a WPS(PBC) button, follow these steps: 1 Open the Home screen. 2+ Press the BLUE (D) button on the remote control. 3 Press the WPS(PBC) button on your router within two minutes. Your product automatically acquires all the network settings values it needs and connects to your network. The Network Status screen appears. The product connects to the network after the network connection is verifie. AllShare Settings The AllShare Settings screen lists your network connected AlShare devices and their IP addresses. Through this screen, you can allow à device to access the product, deny access, or delete the device from the AlIShare list. 1: In the Home screen, select Settings, and 2-+ Select Network, and then press the button. 3 Select AllShare Settings, and then press the button.

4- Select a device, and then press the

button. The AllShare Settings pop-up appears.

5- Select Allow, Deny, or Delete from List, and

then press the (3 button. The AllShare Settings screen only displays devices if you have established networked connections to AlShare devices. For more information about AlShare networked devices, see pages 35-36.

The Software Update menu allows you to upgrade the products software for performance improvements or additional services. + Never tum the product off or back on manually during the update process. In the Home menu, select the Settings, and then press the (Æ button. Select Support, and then press the button. Select Software Update, and then press the © button. Select one of the following methods: + Online + BYUSB + By Disc + By downloaded + Standby Mode Upgrade Directions for each method begin below. INOTE | ‘The upgrade is complete when the product turns of, and then turs on again by itself. Samsung Electronics takes no legal responsiblity for product malfunction caused by an unstable Internet connection or consumer negligence during a Software Update. I you want to cancel he upgrade while the upgrade software is downloading, press the Online Your product must be connected to the Internet to use the Online function.

HT-E4200 XU Select Online, and then press the (ÆJ button. The Connecting to Server message appears. Ifthere is a download available, the Download pop-up appears with a progress bar and the download starts: 3-_ When the download is complete, the Upgrade Query window appears with three choices: Update now, Update later or Don't update. 4 If you select Update now, the product upgrades the software, turns off, and then turns on automatically. 5 If you do not make a selection in one minute or select Update later, the product stores the new upgrade software. You can upgrade the software later using the By downloaded function. 6-_ if you select Don't update, the product cancels the upgrade. By USB 1 Visit www:samsung.com. 2+ Click SUPPORT on the top right of the page

3- Enter the product's model number into the

search field, and then click Find Product. 4 Click Get downloads in the centre of the page below the Downloads header. 5 Click Firmware in the centre of the page.

6- Click the ZIP icon in the File column on the

right side of the page. 7: Click OK in the pop-up that appears to download and save the firmware fl to your PC. 8-_ Unzip the zip archive to your computer. You should have a single folder with the same name as the zip file. 9 Copy the folder to a USB flash drive.

10 - Make sure no disc is inserted in the product,

and then insert the USB flash drive into the USB port of the product. 11 In the products menu, go to Settings > Support > Software Update.

Settings INOTE | There should be no disc in the product when you upgrade the software using the USB Host jack When the Software Update is done, check the software details in the Software Update menu: Do not turn off the product during the Software Update. may cause the product to malfunction. Software Updates using the USB Host jack must be performed with a USB flash memory stick on. By Disc 1 Visit www.samsung.com. 2 Cick SUPPORT on the top right of the page 3: Enter the product's model number into the search field, and then click Find Product. 4 Cick Get downloads in the centre of the page below the Downloads header. 5 Cick Firmware in the centre of the page.

6- Click the ZIP icon in the File column on the

right side of the page. 7 Click OK in the pop-up that appears to download and save the firmware file to your PC. 8-_ Unzip the zip archive to your computer. You should have a single .RUF fl. 9-+ Write the RUF file onto a disc. We recommend a CD-R or DVD-R.

10- Finalise the disc before you remove it from

your computer. 11 : Insert the disc into the product. 12: In the products menu, go to Settings > Support > Software Update.

INOTE | »_ When the system upgrade is done, check the software details in the Software Update menu: >. Do nottum of the product during the Software Update. It may cause the product malfunction. 134 Engiish By downloaded The By downloaded option lets you upgrade using a fl the product downloaded earier but you decided not to install immediately. 1 lfupgrade software has been downloaded, you will see the software version number to the right of By downloaded 2+ Select By downloaded, and then press the button. 3-_ The product displays a message asking if you want to upgrade. Select Yes. The product begins the upgrade: 4-_ When the update is complete, the product turns off automatically, and then turns on. INOTE | »_ When the system upgrade is done, check the software details in the Software Update menu: »_ Do not tum of the product during the Software Update. may cause the product to malfunction. Standby Mode Upgrade You can set the Standby Mode Upgrade function so that the product downloads new upgrade software when i is in Standby mode. In Standby mode, the product is off, but its Internet connection is active. This allows the product to download upgrade software automatically, when you are not using it.

1- Press the A buttons to select Standby

Mode Upgrade, and then press the button. 2+ Select On or Off. If you select On, the product will automatically download new upgrade software when it is in Standby mode with the power of. If it downloads new upgrade software, the product will ask you if you want to install it when you turn the product on. INOTE | »_ To use Standby Mode Upgrade function, your product must be connected to the Internet. »_ this function does not appear, you can upgrade to the latest software and use it 2012-02-24

HT-E4200_XU_ Medal Your Blu-ray product can play Disc and USB contents and the contents located on your PC, DLNA compatible mobile phone, or NAS using the AlShare Play function. For more information about AlShare Play, refer to page 38. The AllShare Play Screen To access the AllShare Play screen, select the AlShare Play icon on the Main screen, and then press the (J button. Using the AllShare Play Screen When the AllShare Play screen appears, it displays My List and a list of content types - Videos, Photos, and Music - on the left side. On the right, it displays, by default, the content in My List: a list of recently played or viewed items, a list of the newest items you have viewed or Istened to, and your most recent Playlist. If you have never played or viewed any items, or created a Playlist, this area wil be empty. 2 Playing My List Items To play displayed My List items, you must have the source of the items connected to or inserted in the product. For example, if recently played My List photos came from a DVD disc, you must have that disc in the product to view them. To play or view My List items, perform one of the actions below: + Use the 4» buttons to select an item you want to view or play, and then press the button. To view or play another item, press the RETURN (9) button, and then repeat the process described in the first sentence. + Use the 4» buttons to select an item, press the TOOLS button to display the Tools menu, select Play, and then press the view or play another item, press the RETURN (2) button, and then repeat the process described in the first sentence. 2 Playing Video, Photo, or Music Content 1 Make sure that the source of the content you want to play or view is connected to or inserted into the product. 2+ Usethe AY buttons to select Videos. Photos, or Music, and then press the ( button. The first source selection on the right side is highighted

3- Usethe AY buttons to select the source of

the content, and then press the INOTE | ». Sources displayed for each content type may diffe. 4 To control the playing of Videos, Photos, or Music, see: + Gontroling Video Playback on page 40. + Gontroling Music Playback on page 42. + Playing Photo Contents and Using the Tools Menu when a File is Highlighted on pages 43-46. INOTE | >. Depending on how and wen you aftach a content source to the product and the content type, the product may. display a different seres of screens to sta playback. For aitemative playback methods see: + Playing Fies on a USB Storage Device or Pod/Phone on page 36. + Playing Commercial Video Discs on page 37. + Playing Commercial Audio Discs on page 37. + Playing à Disc with User Recorded Content on page 38. English 35] 2012-02-24

| nr-sazoo x Media Play Playing Files on a USB Storage Device or iPod/iPhone You can play multimedia fles located on a connected USB device. 1: With the product turned off, connect a USB storage device or an iPod/iPhone.

2. Tum on the product. When the Main screen

appears, select AllShare Play > Videos, Photos or Music > Connected Device, and then press the (Æ] button.

1. With the product turned on, connect a USB

storage device or an iPod/Phone. 2”. When screen below appears, use the AY buttons to select the kind of content you want to view or play, and then press the button. INOTE | ». Even though the product wi display all available folders, itwil ny display fles of the content type you selected in Step 2 or 2”. For example, i you selected music, you will only be able to see music fles. You can change this selection using AlShare Play. 136 Engish The kind of content you selected on the connected device is displayed. Depending on how the contents is arranged, you will see either folders, individual fles, or both. Using the A w 4 buttons on your remote, select the desired contents. To open a folder, select it, and then press the (E] button. To play a file, select it, and then press the button. Press the RETURN (9) button to exit a folder or to return to the Main screen. INOTE | To prevent possible damage to the USB memory, you must remove the USB storage device safely using the “Safely Remove USB" function. Press the HOME button to move to the Home menu, select the YELLOW (C) button, and then press the (EJ buiton. The Photos, Videos menu does not support iPods or iPhones. Oniy the playback screen will appear on the TV. View other iPod screens on he iPod player. iPod/iPhone Models You Can Use with This Product iPod touch 3rd/2nd/1st generation iPod classic / iPod with video iPod with Click Wheel iPod nano 5th/4th/3rd/2nd generation iPhone 4$ / iPhone 4 iPhone 3GS / iPhone 3G / iPhone 2012-02-24 SA 21

The Function Screen Playing Commercial Audio Discs On the Function Screen, you can select the audio 1: Place a pre-recorded, commercial audio disc and/or video input source to view or listen to. into the disc tray with the disc's label facing up, | NOTE | and then close the tray. The AlShare Play Music screen appears listing the tracks. Playback of »_ You can also change sources by pressing te Function button the fist track starts automatically. in the upper right of he remote. red epen 60 | To access the Function Screen, select the Function icon on the Main screen, and then press: Options on the Function Screen To select, highlight an option using the AY buttons, and then press the (ÆJ button. Digitalin | SEE nl ect audio source connected to Digital Audio In. 2- To play a particular track, use the A buttons Select to listen to audio from the on the remote to select the track, and then AUX analogue audio source connected to press the (EJ button. Audio. a Music Screen Controls ou | Selectto listen to music from the iPod Remote (PO | nnected to the iPod jack. il Pause a track. Tuner | Select to listen to the FM radio Play a track. Repeat one track or all tracks. Play tracks in random order. Playing Commercial Video Discs 1 Place a disc into the disc tray with the disc's label facing up and then close the disc tray. Playback starts automatically. I playback does not start automaticaly, press |NoE the © button on your remote or select the : AlShare Play option on the Main screen, » The Music Screen contro ar ony accessible uen a rack and then press the (ÆJ button. See "Playing is playing. Video, Photo, or Musie Content” on page 35.» Alcools do nt appear at he same time. ». For more information about playing musie, go to "Controling Music Playback on page 42 Display the Equaliser. mn Adjustthe equaliser manual. (Only when equaliser mode is On) English 371 HT-E4200 XU 37 2012-02-24 A 2:1

Media Play Conteni You can play multimedia fles you have recorded on DVD or CD discs.

Place a user recorded disc into the disc tray with the disc's label facing up, and then close the tray. The Device Connected pop-up appears. Use the A # buttons to select the type of content you want to view or play - Video Photos, or Music - and then press the button. INOTE | Even though the product wi isplay folder for al content types, it vil only display fes of the content type you selected in Step 2. For example, i you selected music, you will on be able to see music les. Vou can change this selection using AlShare Play. Use the A w 4» buttons to select the folder containing the content type you selected in Step 2, and then press the (®J button. I you selected Music, the AlShare Play Music screen appears listing the music fes on the disc. Use the A # buttons to select the fl you want to play, and then press the I you selected Photos, the AlShare Play Photos screen appears listing the photos on the disc. Use the A Y 4» buttons to select the photo you want to view, and then press the I you selected Videos, the AlShare Play Videos screen appears listing the video fles on the disc. Use the À # 4» buttons to select the video you want to watch, and then press the (®} button. INOTE | Forthe Music and Video falders, you can also push the TOOLS buiton on your remote, and then select Play Folder to play or vieu all the les in the folder automaticaly, Select the folder first before pushing the TOOLS button For more information about playing music, go to Controling Music Playback on page 42. 138 Engish > For more information about playing photo contents, go to Playing Photo Contents and Using the Tools Menu when a File is Highlighted on pages 43-46 ». For more information about playing video contents, go to Controling Video Playback on page 40. Using the AllShare Network Function AlShare lets you play Videos, Photos, or Music located on your PC or your DLNA compatible device through the product using a wireless network connection. To Download the AllShare Software To use AlShare with your PC or DLNA device, you must install AÏShare software on your PC. You can download the PC software and get detailed instructions for using AlShare from the Samsung.com website. 1 Go to wwisamsung.com. 2+ Click Support at the top of the page. 3-_ On the Support page, enter the model number of your product into the Model Number field. 4+_ Onthe page that appears, click Get downloads on the left side under Downloads. The Download Centre appears. 5 Onthe Download Centre page, click the Software tab. 6-+ Onthe software tab, click the File icon on the right side of the AlIShare line 7 Inthe pop-up that appears, click Save File 8-+ Find the AllShare install file on your disk, and then double click the fille. 9-_Inthe pop-up that appears, click Run, and then follow the directions that appear on your screen. Download the AlShare Installation/Instruction manual from the same Software Tab by clicking the corresponding PDF flle symbol in the File column on the right. The fl, in PDF format, will download and open. You can view and/or save the file. 2012-02-24

Playing Content Located on Your PC or DLNA Device through the Product

- Play back PC'S files AllShare Connection 1+_ Connect the product, your PC, and/or your DLNA compatible cell phone to the same wireless network.

2- Folow the directions in the AlShare software

Installation/nstruction manual to set up devices and files for playing or viewing. 3: Select AllShare Play in the AlShare Play screen appears. 4 Select the connected DLNA compatible device or your PC, and then press the button. À screen listing the available fles appears. 5 Select the file you want to play or view, and then press the (Æ button. Controlling the Playback of Content Located on Your PC with Your Smart Phone

Play back PC'S files AllShare Control PC's files to Connection Product Smart Phone {Only available with Samsung phones supporting AlShare functionalty.)

Connect the product, your PC, and your DLNA compatible cel phone to the same wireless network. Follow the directions in the AIShare software Installation/nstruction manual to set up devices and files for playing or viewing. On your computer, using the AllShare software, confirm your phone is connected. On the phone, select the file you want to view or play, and then select the Blu-ray product as the playback device. On the phone, start playback. English 39!

Media Play You can control the playback of video files located on Blu-ray, DVD, and CD discs, and on USB storage devices. Depending on the disc, some of the functions described in this manual may not be available. Buttons on the Remote Control used for Video Playback pm [” Using the disc menu, title menu, popup menu and title list DISC MENU | 2in9 Playback press this button to display the Disc menu During playback, press this button to LE Eng | SP Te menu [ your disc has a playit, press the

• Repeat Playback GREEN (B) button to go to the playist POPUP MENU | urn9 playback, press his button to display the Pop-up menu 4 During playback, press the REPEAT button on the remote control.

2- Pressthe AW buttons to select DISC MENU or | During playback, press this button to

a Chapter or Title, then press the TITLE MENU | display the title list. button NOTE | = Playback related buttons Repeat a Title| » Te screen may not display Chapter ar Tite TNe product does not play sound in Search, Slow, or Chapter immedite). Continue to press the A W or Step mode. vins uni your choice is inside he blue D] Su pa 8 Toretum to normal play, press the [=] Stops playback. REPEAT button again, press the A 9 butons 1 dec Of andihen Pauses payback press the (®J button. During playback, press the €] or Œ3 Fast Motion | button 1 During playback, press the REPEAT button on the remote control. 2-+ Pressthe AY buttons to select Repeat A-B, In pause mode, press the C2 button Play Each time you press the €) or Œ2 button, the playback speed wil change. |NOTE | En MOtOn | Each time vou press the C3 button, the » The screen may not display Repeat À playback speed vil change immediately. Continue to press the À V Step Motion | PAUSE moe, press he EI buton buttons until Repeat A-B is inside the blue DE HO | Each time you press the ED button, a Ropeara fe ÿ new frame appears. Bt 3 Press the ( buïton at te point where you want repeat play to star (A). Dung playback press the Æ2 or 2

4. Press the (E) button at the point Skip Motion | 20"

where you want repeat play to stop (B. Ee Each time you press @ or Œ2 button, 5 To return to normal play, press the the disc moves to the previous or next REPEAT button again. chapter or file.

6- Press the (® button.

[NOTE | You must set point ) at last 5 seconds of phaying time after point (A. 140 Engiish

Using the TOOLS Menu During playback, press the TOOLS button. Title Search Time Search Select to move to a desired title if the disc has more than one tte, to a desired scene, or, using Time Search, to a specific point in a movie or video With Time Search, you designate the specific point by entering a time coordinate in the following format 00:00:00 (hours, minutes, seconds) using the remote. Repeat Mode Select to repeat a specific Title, Chapter (BD/DVD discs on) or marked section. Works the same as the REPEAT button See page 40. Full Screen Select to set the desired fu screen size. You can select Original, Mode (larger, and Mode2 (argest. Picture Mode Select to setthe picture mode = Dynamic : Choose this setting to increase sharpness. = Standard : Choose this setting for most viewing applications. = Movie : This is the best setting for watching movies. = User: Lets you adjust the sharpness and noise reduction function respectively. [NOTE | >. When you select User the User Settings screen appears. Select an option, press (E. use the > buttons to make an adjustment, and then press (®. Press the RETURN

9) button to go back to the TOOLS

menu. When you use the BD vise function, this menu wil not appear. Equaliser Mode Select to use the Equaliser. Equaliser Settings Select to set the Equaliser. [NOTE | »_Itonly appears wihen equaliser mode is on HT-E4200 XU Menu that appears only when BD/DVD disc plays Play from the | Select to play the movie from the beginning | beginning Select to move to a chapter that you Ghapter Search | de à watch Select to set the desied audio language. Audio = You can also operate this function by pressing the AUDIO button on the remote control. Select o set the desired subtile language. Subtitle = You can also operate this function by pressing the SUBTITLE button on the remote control. To view a scene from another angle. ro The Angle option displays the number gl of angles avaïlable to view (1/1, 1/2, 178, etc) BONUSVIEW Video / Select to set the desired bonusieur BONUSVIEW | option. Audio Menu that appears only when a file plays Go to Videos Lit Move to video list screen. Scene Search | Search the video fle by the scene Information | Checkthe video fils information. NOTE | »_ Depending on the disc or storage device, the Tools menu may diff. Al options may not be displayed. Engish 41! 2012-02-24

| nr-sazoo x Media Play Controlling Music Playback You can control the playback of music content located on a DVD, CD, or a USB storage device. Buttons on the Remote Control used for Music Playback LL)

Fast Play (Audio CD (CD-DA) only) During playback, press the & or Æ3 button Each time you press the &2] or Æ2 button, the playback speed wil change. 0 butin : Pause a track 2 button : Plays the currentiy selected track. D oution : Stops a track. Skip : During playback, press the Æ2 or Æ button to move to the previous or next music of listed. NUMBER buttons : During Playlist playback, press the desired track number. The selected track is played © | © 00 e Repeating Tracks on an Audio CD You can set the product to repeat tracks on an audio CD (CD-DA/MP3). 1: During playback, use the » button to select Gin the lower right corner of the screen, and then press the [Æ button. 2-+ Usethe AY to select the repeat mode you want - Off, One Song, or AI - and then 142 Engiish Shuffling Tracks on an Audio CD You can set the product to play tracks on an audio CD (GD-DA/MPS) at random 1: During playback, use the » button to select X in the lower right corner of the screen, and then press the [E] button. 2: Use the 4 Y to set the Shuffle Mode On or button. Off, and then press the (€ Creating a Playlist 1 With the Playback screen displayed, press the TOOLS button. The Tools menu appears.

2- Usethe AY buttons to select Play selection,

and then press the [3 button. The Play selection screen appears. 3-: Use the AY buttons to select a track, and then press the (Æ button. À check appears to the left of the track. Repeat Step 3 to select and check additional tracks. 5-+ To remove a track from the list, move to the track, and then press the (E] button again. The check on the track is removed!

6-_ When done, press the > button to select Play, and then press the (ÆJ button. The Music Playback screen reappears listing only the tracks you checked. The selected tracks play automatically. [NOTE | >. You can create à playlist with up to 99 tracks on Audio CDs (CD-DA) »_ Ifyou have created a playist, Play selection is replaced by Edit playlist on the Tools menu: »_ On the Play selection screen, you can also choose Select All, Deselect AI, and Cancel 2012-02-24 42 2:1l5:00

+ Use Select AI to select al tracks. This cancells NOTE | your individual track selections. When you press the »_ When Ripping is done, a folder called MP is created in the RETURN (9) button on your remote or select PLAY and USB. then press the (© button, al tracks will appear on the ER inc Photo Contents | play all tracks from Track 001. Playing Photo Contents + Use Deselect AI to deselect ll selected tracks at once. You can play photo contents located on a DVD, Then, select individual tracks or use Select Al to select USB, mobile device or PC. althe tracks, and then press the RETURN (9) button on our remote or select PLAY and then press the button. f you do not use Select Al or select individual tracks, the Plaiist will not change.

Using the Tools Menu During playback, press the TOOLS button. + Cancel cancells any changes you made on the Play Go to Photos | Select to go to the list of photos on the Select screen. When you return to the Playback screen, List current media. the Playlist il be unchanged Start Slide _ _ Eten Select to start the slide shou. ipping - Slide Show ide show You can rip music from a music CD to a USB Speed Select to set a slide shou/s speed device inserted in the USB jack Slide Show | Selectto seta side shows special 1 Insert a USB device into the USB jack on Effect effects the front of the product, and then press the - RETURN (2) button on your remote. Background | Select to listen to music while viewing 2+_ Insert the disc you want to rip from into the Music On a slide show. product and close the disc tray. Background | Select to set te background music

3- With the Playback screen displayed, press Music Setting | seting.

the TOOLS button. The Tools menu appears. 4+ Use the AY buttons to select Rip, and Select to set the picture settings. then press the [7 button. The Rip screen = Dynamic : Choose to increase appears. Sharpness 5 Usethe AY buttons to select a track, and = Standard : Choose for most vieuing then press the (Æ button. À check appears applications. to the left of the track. Movie : This is the best setting for 6-_ Repeat Step 5 to select and check additional |bgie mode | etching movies. tracks. -_ User : Lets you adjust the sharpness 7 To remove a track from the list, move to the and noise reduction function track, and then press the (J button again. respectively The check on the track is removed. 8-_ When done, press the » button to select [NOTE | Rip, and then press the (J button. The Rip Wen you use the BD wise function, POp-up appears: this menu wil not appear. 9 Press the (E] button to begin the ripping process, The Ripping Completion Bar pop-up |Z00m: Select to enlarge the current picture. appears. (Enlarge up to 4 times) 10: When ripping is complete, the “Ripping Select to rotate te picture. (his il completed." message appears. Press the Rotate rotate the picture ether clockwise or buiton counter clockwise ) 11: Press the RETURN (9) button to go back to Information the Playback Screen, Shows the picture information. English 43] HT-E4200 XU 2012-02-24 A 2:1

Media Play [NOTE | Depending on the disc or storage device, the Tools menu may diffr. Al options may not be displayed To enable the background music function, the photo file must be in the same storage media as the music fl However, the sound quality can be affected by the bi rate ofthe MP3 file, the size of the photo, and the encoding method. You can't enlarge the subtile and PG graphic in tne full screen mode. Using the Tools Menu hlighted en a File When a fille is highlighted, press the TOOLS button. Earliest Date Appears on the View function screen Select to sort and then display al photo or video fl on à storage device from the earliest to latest date. Monthly. Appears on the View function screen Select to sont ll photo or video fles on storage device by the month created. Select to access the sort options: Artist, Genre, Month, Latest Date, etc. The sort options that appear depend on the storage and media type. View Appears in the View function screen. Select to display the folders on the storage device. Folder view Appears on the View function screen Select to sort al photo or video files on a storage device by title Title Appears on the View function screen Select Artist to sort and then display al music tracks on a storage device by artist. Artist Appears on the View function screen Select Album to sort and then display al music tracks on a storage device by album Album Appears on the View function screen Select Genre to sort and then display al music tracks on a storage device by genre. Genre Appears on the View function screen Select to sort and then display all photo or video fles on a storage device from the latest to earliest date. Latest Date 1 44 Engiish Play selection Play selection lets you select specific music, video, and photo fls to play. Itworks essential the same for all media, The example below is for photos

1. On the Thumbnail View screen,

3. On the selection screen, use the

AY <<» buttons to select a photo you want to view, and then press the (®} button. A check mark appears to the left ofthe picture.

4. Repeat Step 3 for each photo you

5. To de-select a photo, highlight it,

to select Play, and then press the (© button. A side show containing the photos you selected begins.

Select Send to upload selected fles to Picasa, Facebook, Cloud Storage, N Drive, or Fami Story. To use Send, you need to establish an account with the on-line ste, and then log in using the Log In function.

2. Repeat for each track or fl you

want to upload. [NOTE | >. You can also move to Select All on the right, and then press the button to select al tracks or files. Select Send on the right side, and then press the (® button. . Usethe A W buttons to select the on Ie ste you want to upload the fles or tracks to, and en press

+ Select Create new, and then press button. On the keyboard pop-up that appears, create a name or the new playlist. Enter numbers using the numbers on the remote. Enter letters by using the A Y > buttons to move the cursor, and then pressing the (Æ button. When fnished, move to DONE at the bottom of the screen, and then press the (E] button. Depending on the screen you are viewing, select Delete to erase a fle from erasable media (such as a USB denice) or to delete a playit. Delete (Playlist) Login / Out The Log In/Out function lets you log in to your online Samsung account. Add to Playlist HT-E4200 XU Select to create a playlist or add files ortracks to a playlist

1. Select Add to Playlist, and then

2. Usethe AY 4» buttons to

Highlight a track or fl, and then

3. Repeat for each track or fl you

4. Select Add on the right, and then

5. On the screen that appears,

perform one of the following actions: + Select the Plalst to which you ant to add he tracks or fles and then 3indd 45 Select Edit playlist to remove files or tracks from an existing playlist. The storage device containing the playlist must be inserted into or attached to the product.

2. Repeat for each track or fl you

want o remove. [NOTE | »_ You can also move to Select Al on the right, and then press the ( button to select ll tracks or files Edit playlist

3. Select Remove on the right side,

and then press the (€ After you have sorted by Artist, Genre, Album Title, Latest Date, Earlest Date, or Monthly, select a group that is the result of the sort (for example, all pictures taken in August), and then select Play Current Group to play or vieu the fes in that group only. Play Current Group Select to go to the Playlist section of Go to Playlist | fin AlGhare screen. English 45] 2012-02-24 A 2:1

Media Play Encoding - which changes by language or by geographical area - mocifies how the product sorts, aranges, and presents fles or tracks, displays dates, etc. Select Encodng to change the encoding to match your language or geographical area Encoding Displays media fl and content Information h information. [NOTE | >. Depending on the disc or storage device, the Tools menu may diffr. Al options may not be displayed Listening to R: Using Buttons on the Remote Control 1: Press the FUNCTION button to select FM 2: Tunein to the desired station. + Preset Tuning 1 : Press the TJ button to select PRESET and then press the TUNING/CH (A V) button to select the preset station. - Before you can tune to preset stations, you must add preset stations to the product's memory. + Manual Tuning : Press the © button to select MANUAL and then press the TUNING/CH (A V) button to tune in to a lower or higher frequency. + Automatic Tuning : Press the © button to select MANUAL and then press and hold the TUNING/CH (A V) button to automatically search the band. Setting Mono/Stereo Press the MO/ST button + Each time the button is pressed, the sound switches between STEREO and MONO. + In a poor reception area, select MONO for a clear, interference-free broadcast. 146 Engish Presetting Stations Example : Presetting FM 89.10 into memory, 1 Press the FUNCTION button to select FM

2. Press the TUNING/CH (A V) button to

select <89.10>. 3-_ Press the TUNER MEMORY button. + NUMBER flashes on the display. 4 Press the TUNER MEMORY button again + Press the TUNER MEMORY button before NUMBER disappears from the display on its own. + After you press the TUNER MEMORY button, NUMBER disappears from the display and the station is stored in memory, 5: To preset another station, repeat steps 2 to 4. + To tune in to a preset station, press the TUNING/CH (A V) button: About RDS Broadcasting Using the RDS (Radio Data System) to receive FM st:

RDS allows FM stations to send an additional signal along with their regular program signals. For example, the stations send their station names, as well as information about what type of program they broadcast, such as sports or music, etc. When tuned to an FM station which provides the RDS service, the RDS indicator lights up on the display. Description on RDS function + PTY (Program Type) : Displays the type of program currentiy being broadcast. + PS NAME (Program Service Name) : Indicates the name of broadcasting station and is composed of 8 characters. + RT (Radio Text) : Decodes the text broadcast by à station (f any) and is composed of maximum 64 characters: 2012-02-24 22 2:f5:17

+ CT (Clock Time) : Decodes the real time clock from the FM frequency. Some stations may not transmit PTY, RT or CT information therefore this may not be displayed in all cases. + TA (Traffic Announcement) : TA ON/OFF it shows: that the traffic announcement is in progress. INOTE | »_ RDS may not aperate correct} if the station tuned is not transmiting RDS signal propery or if the signal strength is weak To show the RDS signals You can see the RDS signals the station sends on the display. Press the RDS DISPLAY button while listening to an FM station. + Each time you press the button, the display change to show you the following information : PS NAME — RT= CT — Frequency = Wie searching, <PS NAME> appears and then he station names vil be (a et displayed. <NO PS> appears if no signal is sent. Wie searching, <RT> appears and RT ten text messages Îhe station sends (RadioText) | will be displayed. <NO AT> appears if no signal is sent. Frequency | Station frequency (non-ADS senice) About characters shown in the display When the display shows PS,or RT signals.the following characters are used. +_ The display window cannot differentiate upper case and lower case letters and always uses upper case letters. +_ The display window cannot show accented letters, <A,> for instance, may stands for accented <As> like <À, À, À, À, À and À.> PTY-SEARCH function One of the advantages of the RDS service is that you can locate a particular Kind of program from the preset channels by specifying the PTY codes. To search for a program using the PTY codes 2 Before you start! + The PTY Search is only applicable to preset stations. + To stop searching any time during the process, press TB button while searching. + There is a time limit in doing the following steps. Ifthe setting is cancelled before you finish, start from step 1 again. + When pressing the buttons on the primary remote control, make sure that you have selected the FM station using the primary remote control

1 Press the PTY SEARCH button while listening to an FM station. 2+. Press the PTY- or PTY+ button until the PTY code you want appears on the display. + The display gives you the PTY codes described to the right.

3- Press the PTY SEARCH button again, while

the PTY code selected in the previous step is still on the display. + The centre unit searches 15 preset FM stations, stops when it finds the one you have selected, and tunes in that station. Engish 47 2012-02-24 red epen 60 | SA 2 1:18

Media Play l Effects Remote 20-30 Playing a 2D video in 3D mode SOUND SOUND EFFECT Function Lets you select a mode that optimizes the sound .. Press the SOUND EFFECT button.

2. Press the A Y bution to select the desired mode:

DSP or Sound Mode. . Press the > butions to select the desired sound effect.

3 DSP MP3 Enhancer + Power Bass -+Off + MP3 Enhancer : Helps enhance your sound experience (8x. mp3 musi). You can upscale your MP3 level sound (24 kHz, 8bi to CD level sound (44.1 kHz, 16 + Power Bass : Increases the volume level of bass tones and provides thudding sound effects, + Off: Select this for normal listening. 2 Sound Mode Virtual Sound -+ Music — News -+ Drama -» Cinema — Sports — Game — Off You can enjoy an ordinary 2D video in 30 mode. INOTE | »_f you move to the Home or Smart Hub Home menu in 3D mode, it will switch to 2D automatically. vTuner vTuner Tuner is the function of the listening a radio. 1 you press the vTüner button, you can move to vTuner application You can use the vTuner Function after download the Tuner application from Samsung Apps. 3D SOUND 3D Sound You can enjoy more natural and vivid surround sound with enriched tones by adjusting the depth of sound using the level options. Off + High — Medium — Low INOTE | »_ltis not available in FM mode. 148 Engish

You can enjoy various network services such as Smart Hub or BD-LIVE by connecting the product to your network. To use network services, you must first: 1: Connect the product to the network. (See page 22) 2 Configure the network settings. (See pages 80-32) Using Smart Hub Using Smart Hub, you can download movies, videos, and music from the Internet, and access various for pay or free-of-charge applications and view them on your TV. Application content includes news, sports, weather forecasts, stock market quotes, maps, photos, and games. For instructions that explain how to use Smart Hub, follow these steps: 1 Go to wwwsamsung.com. 2+ Click Support at the top of the page. 3-_ Onthe Support page, enter the model number of your product into the Model Number field. 4 Onthe page that appears, click Get downloads on the left side under Dounloads. The Dounload Centre appears. 5+_Onthe Download Centre page, click the Manusls tab. 6-+ On the Manuals tab, click the fle icon to the right of Smart Hub Users Manual. The manual downloads. INOTE | »_Tne web location of the Smart Hub manual s subject to change without notice Smart Hub at a Glance Your Video : Provides recommendations for videos based on your astes. Search : Provides an integrated search of your video providers and connected AlShare devices. Recommended : Displays recommended contents managed by Samsung. Commercial : Displays the Smart Hub Guide, an © | introduction to the product, and new application introduction. Family Story : An efforts way to access family content. + Provides access to family photos, messages, and events, anytime and anywhere. Fitness : Gateway to the Unified Self-Care Service. 6 | Presents fitness videos from various content partners with feedback on calories burmed after every workout. Kids : Kids service gives kids an easy and safe way to enjoy their avourie content O\ . prod a wide variety fn and sa content for children. Navigation Help : Displays the remote control buttons you can use to navigate in Smart Hub. o ‘M: Tenbsrane + GREEN (B): To display the background screen. + Tools : To display the settings windon. + Return : To return to the previous menu. Engish 49 | 2012-02-24

Network Services My Applications : Displays your personal gallery Web Browser at a Glance © | d'applications which you can add to, modify, and delete. Samsung Apps : Open Samsung Apps to download © | various for pay or free-of-charge application senvices. Using the Web Browser You can access the internet using the Web Browser application which is installed in the Smart Hub screen by default 1: Select Smart Hub on the Home screen, and then press the (Æ] button. 2+ Select the Web Browser application in Smart Control Panel : Dispiays the various Web Browser Hub, and then press the (®J button functions. + €: Moves ta the previous page. <> :Moves to the last page before going back. + $ : Reloads the current page so that it is refreshed on the screen <> : Moves to the Home screen of the Web Browser. & :Allows you to zoom in or out of the screen at various percentages. [NOTE | When you run the Web Browser with the product connected by HDMI to a BD Wise compatible TV - and BD Wlise is on - the browser is maximized to fil the screen and the TV resolution is set to the optimal resolution automaticalh. The Web Browser is not compatible with Java applications h ». you atempt to douload a fl, and he fle can not be at ) ee mn nn pages so Save an error message il appear ©. | + 5 :Alows you to view he history of your isted ». The playback of Flash vides not supported pages by cale, name, à requenc, ». E-commerce, for purchaing products onine, not + (Es meme): Allous you to enter a supported page address manual or select page from the »_ActiveX is not supported visited page list to move to that page. Allows you to suitch easily between multiple, currently open Web Browser windows @ :Allows you to search for information by entering words. + @ : Lets you share the current site with your family group by sending a message. + @ : Alows you to configure all settings for using the Web Browser. 150 Engiish

Navigation Help : Displays the remote control buttons you can use to navigate in Web Browser. + GREEN (B): To display the Control Panel. © |. veLLoW (C):To search a nt + Tools : To display Tools window. + Exit: To retum to the previous menu. BD-LIVETM Once the product is connected to your network, you can enjoy various movie-related service contents avallable on BD-LIVE compliant discs. 1 Attach a USB memory stick to the USB jack on the front of the product, and then check its remaining memory. The memory device must have at least 1GB of free space to accommodate the BD-LIVE services. 2+ Select Settings on the Home screen, and then press the (Æ button. 3: Select Network, and then press the [e button. 4: Select BD-Live Settings, and then press the © button. 5: Select BD Data Management, and then button.

6- Select Select Device, and then press the

© button. 7: Select USB, and then press the 8-_ Insert a Blu-ray Disc that supports BD-LIVE. 9 Select an item from the list of BD-LIVE service contents provided by the disc manufacturer. button. INOTE | »_ Te way you use BD-LVE and the provided contents may dffr, depending on the disc manufacturer. HT-E4200_XU_

Appendix Add Note nal Information Connections HDMI OUT + Certain HDMI output résolutions may not work, depending on your TV. +_ You must have an HDMI connection to enjoy videos with 3D technology. + Along HDMI cable may cause screen noise. f this occurs, set HDMI Deep Colour to Off in the menu. Settings 3D Settings + For some 3D discs, to stop a move during 3D playback, press the ID button once. The movie stops and the 3D mode option is de-activated. To change a 3D option selection wien you are playing a 3D movie, press the (CD button once. The Blu-ray menu appears. Press the D button again, then select 3D Settings in the Blu-ray menu. + Depending on the content and the position of the picture on your TV screen, you may see vertical black bars on the left side, right side, or both sides. TV Aspect + Depending on the disc type, some aspect ratios may not be available + I you select an aspect ratio and option which is different than the aspect ratio of your TV screen, then the picture might appear to be distorted. + I you select the 16:9 Original, your TV may display 4:3 Pilarbox (black bars on sides of picture) BD Wise (Samsung Products only) + When BD Wise is on, the Resolution setting automatically defaults to BD Wise and BD Wise appears in the Resolution menu: + the product is connected to a device that does not support BD Wise, you can not use the BD \Wise function For proper operation of BD Wise, st the BD Wise option in bath the product and the TV to On. Digital Output + Be sure to select the correct Digital Output or you wil hear no sound or just loud noise. + the HDMI device (AV receiver, TV) is not compatible with compressed formats (Dolby digital, DTS), the audio signal outputs as PCM. + Regular DVDs do not have BONUSVIEW audio and Navigation Sound Effects + Some Blu-ray Discs do not have BONUSVIEW audio and Navigation Sound Effects + This Digital Output setup does not affect the analogue (L/R) audio or HDMI audio output to your T\. Itafects the optical and HDMI audio output when your product is connected to an AV receiver. + you play MPEG audio soundtracks, the audio signal outputs as PCM regardless of your Digital Output selections PCM or Bitstream). BD-LIVE Internet Connection + The Internet connection may be restricted while you are using BD-LIVE contents. 152 Engish 22 2:16:

Settings Anynet+ (HDMI-CEC) + Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV. This function is not avallable the HDMI cable does not support CEC. your Samsung TV has an Anynet+ logo, then it support the Anynet+ function. BD Data Management In the external memory mode, disc playback may be stopped if you disconnect the USB device in the middle of playback. + Oniy those USB devices formatted in the FAT fle system (DOS 8.3 volume labe) are supported We recommend you use USB devices that support USB 2.0 protocol with 4 MB/sec or faster read/urite speed. The Resume Play function may not work after you format the storage device. The total memory avallable to BD Data Management may differ, depending on the conditions. DivX® Video On Demand + For more information about DivX{R) VOD, visit “http://vod.divx.com". Speaker Settings: + Wen Speaker Selection is selected to TV Speaker, audio is produced through TV speakers HDMI audio + When HDMI audio output to the TV speaker, it is automatically doun-mixed to 2 channels. Audio Return Channel + Wen Anynet+ (HDMI-CEC) is Of, the Audio Return Channel function is not available + Using an HDMI cable not cerfied or ARC (Audio Return Channel) may cause a compatiilty problem The ARC function is only available if an ARC-compliant TV is connected. Digital Output + Digital Output can be activated when Speaker Selection is selected to TV Speaker. Playback Playing a Video files + Video les with high bit rates of 20Mbps or more strain the product capablities and may Stop playing during playback. Selecting the Audio Language + The <> indicator wil not appear on the screen the BONUSVIEW section does not contain any BONUSVIEW audio settings. The languages avalable through the Audio Language function depend on the languages that are encoded on the disc. Tis function or certain languages may not be valable. + Some Blu-ray Discs may allow you to select either the PCM or Dolby digital audio soundtrack in English. HT-E4200 XU English 531 2012-02-24

Appendix Playback Selecting the Subtitle Language + Depending on the Blu-ray Disc / DVD, you may be able to change the subtil language in the Disc Menu. Press the DISC MENU button. This function depends on the selection of subtitles that are encoded on the disc and may not be available on all Blu-ray Discs/DVDs. + Information about the main feature BONUSVIEW mode will also appear if the Blu-ray Disc has a BONUSVIEW section. + This function changes both the primary and secondary subtiles at the same time The total number of primary and secondary subtiles are displayed respectively. Playing a JPEG files + You can't enlarge the subitle and PG graphic in the ful screen mode. AllShare Play Using the TOOLS button while playing pictures + the system is connected to a BD Wise compliant TV that has set BD Wise to On, the Picture Settings menu vil! not appear. +_ The Background Music function wi not work unless the music fl and the photo fl are located on the same storage mec. Also, sound quality can be impacted by the bit rate of the MP3 music fl, he size of the photos, and the encoding method. Playing back a USB Storage Device + You must remove the USB storage device safely by perfoming the “Safely Remove USB” function) to prevent possible damage to the USB memory. Press the HOME button to move to the Home menu, select the YELLOW (C) button, and then press the (E button Playing Music + Adjust the volume to a moderae level before you connect your Pod to the product. + When the product is on and you connect an iPod, the product will charge the iPod's battery iPod iPod/iPhone Models You Can Use with This Product +_ The volume control may not operate normally with iPod and iPhone models not isted on page

36. you have a problem with any of the models listed above, please update the sofware of the

iPod/Phone to the lastest version. + Depending on the software version of the iPod, control problems may occur. This is not a malfunction of the Home Cinema. + Depending on the software version or the type of IPod, some operations may dffr. Install the latest iPod software. recommended) + Playback of applications’ contents through the product is not guaranteed. We recommend playing contents downloaded to the iPod. + you have a problem using your Pod, please visit wun.apple.com/supportpod 154 Engiish | nr-sazoo x 2012-02-24

• the Source Stream is 2ch or mono, “Re-encoded Dolby D' Setting are not applied. Output will be PCM 2ch. Blu-ray Discs may include three audio streams - Main Feature Audio : The audio soundtrack of the main feature. = BONUSVIEW audio : An additional soundtrack such as the director or actor's commentary. = Navigation Sound Effects : When you choose some menu navigation, Navigation Sound Effects may sound. Navigation Sound Effects are different on each Blu-ray Disc. 156 Engish | nr-si2o0 xu.o22imia 56 2012-02-24 CERN

Troubleshooting Refer to the table below when this product does not function properiy. the problem you are experiencing is not listed below or ithe instructions below do not help, turn off the product, disconnect the power cord and contact the nearest authorized dealer or Samsung Electronics Service Centre.

Symptom Check/Remedy . ; € 1Sthe pour cord plugged securel into the outet? 1 cannot eject the disc. Game Med | in ofttne pourer and then turn it back on. Check te condition of the iPod connector. he iPod fails to connect. iPod fails to connect | he iPod sofiar version up to date Check te region number of the Blu-ray/DVD disc. playback does not start Blu-ray/DVD disc purchased from abroad may not be playable. SE | CD-ROMS and DVD-ROMS cannot be played on this product. Make sure that te rating level is corect. Playback does not start immediately when the | » Are you using a deformed disc or a disc with scratches on the surface? Play/Pause button is e Wipe the disc cean. pressed. Sound is not produced. The home cinema dos not play sound during fas playback, slow playback and step motion payback. Are the speakers connected proper? 1 the speaker setup correct customized? + Is the disc severely damage? The remote control does not work. Are jou operating the remote win ts apertional range and within the proper angle relative to the sensor? Are the batteries dained? + Have you selected the mode (TV/BD) functions of the remote control (TV or BD correct? + The disc is rotating but no Is the TV power on? picture is produced. + Are the video cables connected properiy?

• Picture quality is poor and | + Is tne disc city or damaged? picture is shaking. + A poorly manufactured disc may not be playable. Audio language and subitles | + Audio language and subtiles wil not work if the disc does not contain them. do not work. The menu screen does not | + Are you using a disc that does not contain menus? appear even when the menu function is selected. ‘The aspect ratio cannot be changed. + You can play 16:9 Blu-ray/DVD discs in 16:9 Full mode, 4:3 Letter Box mode, or 4:3 Pan-Scan mode, but 4:3 Blu-ray/DVD discs are played in 4:3 ratio on, Refer to the Blu-ray Disc jacket and then select the appropriate function. HT-E4200 XU English 571 2012-02-24 4 2:1f5:39

Appendix Symptom Check/Remedy The product is not + Press and hold the remote controls (EB button for 5 seconds in STANDBY mode. working. - Using the RESET function wil erase all stored settings. (Example: The power goes out or a strange noise is heard) The Products not working normal. Do not use this unless necessary You have forgotten the rating level password. + With no disc in the product, press and hold the products (CD button for longer than 5 seconds. INIT appears on the display and al setings wi return to the default values. Then, press the POWER button. - Using the RESET function wil erase all stored settings. Do not use this unless necessary Can't receive radio broadcasts. IS the antenna connected proper? I the antenna's input signal is weak, install an external FM antenna in an area with good reception. Wile listening to TV audio through the Product, no sound is heard. + Hfthe OPEN/CLOSE 2 button is pressed while listening to TV audio using the D. IN or AUX functions, the Blu-ray/DVD disc functions are tumed on and the TV audio is muted. "Not Available" appears on screen. + The features or action cannot be completed at this time because: 1.Tne Blu-ray/DVD disc's software restricts it.

2. The Blu-ray/DVD disc's software doesn't support the feature (.g., angles)

3.Tne feature is not available at the moment 4, You've requested a fe or chapter number or search time that is out of range. Hthe HDMI outputis settoa |» Press and holdthe 9 button on front panel for more than 5 seconds th no disc resolution your TV cannot inserted. Al settings vil revert to the factory settings. support (for example, 1080p), you may not see a picture on your TV. No HDMI output. + Check the connection between the TV and the HDMI jack of the product. + Check if your TV supports 576p/480p/720p/1080i/1080p HDMI input resolution. Abnormal HDMI output screen. + random noise appears on the screen, means that TV does not support HDCP (High- bandhidth Digital Content Protection) I can see folders shared through AllShare Play, but! cannot see the iles. + AlShare Play shous only files corresponding to the Photo, Music, and Movie categories. Files that do not correspond to these categories may not be displayed. 158 Engish 2012-02-24 42 sal

Symptom Check/Remedy Video is played + Check the network is stable. intermittentiy. + Check ifthe network cable is properiy connected and if the network is not overloaded + The wireless connection between the server and the product is unstable. Check the connection. The AllShare Play + IP address under the same subnetwork should be unique, otherwise IP colision can connection between the TV. | results in such a phenomenon. and PC is unstable. + Check you have a firewall enabled. If 50, disable the firewall function.

1 cannot connect to the + Test whether the nebork connection is successful by using the Network Status function. BD-LIVE server. + Check whether a USB memory device is connected to the product. The memory device must have at cast 168 of free space to accommodate the BD-LIVE service You can check the available size in BD Data Management. (See page 53) + See ifthe BD-LIVE Internet Connection option is set to AlowAI). Hall above ail, contact the contents provider or update to the latest fimuvare When usingthe BD-LIVE | + The memory device must have at least 168 of free space to accommodate the BD-LIVE service, an error OCCUrS. Service. You can check the available size in BD Data Management. (See page 53) INOTE | > When the factory default settings are restored, all stored user BD data will be deleted. HT-E4200_XU_ English 59! 2012-02-24 24 2 ÿ

HT-E4200 XU Network speeds equal to or below 10Mbps are not supported. Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. Weight and dimensions are approximate. Design and specifications are subject to change without prior notice. For the power supply and Power Consumption, refer to the label attached to the product. Engish 61! 2012-02-24

Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Area Contact Centre æ I Web Site Area Contact Centre & Web Site Europe Montenegro | 020405 888 rar ETS TOO SINSINS ENT Naherans ï samsung com Austria 0810 - SAMSUNG (7267864, nn Samsung com 7267864) (€ 0, 10/Min) ÿ €0.07/min) ing. Nonvay 15-56 480 HN SEMSUNg com SAMSUNG on GED SAMSNS (72078 | any, nn mon Er Pond EN samsung om u a SamSung.COm/ Portugal “80820-SAMSUNG (726-7864) _ | www.samsung.com be French) T-DBDTO SANSUNE 172678) Be OS 15 doar din rteaua Romteecom, Buare CRUE CETTE Bumaria taitlocal samsung om Costa 062 SAUSUNG 062 725 7904 | imcsamsung com 2.021.206 01.10 din ace BON SANSONE (800-2678 Te rom Samsung Z., Ceskä organizaëni v Serbia à una ( L WNNLSAMSUNQ.COM Gest Sa, Das Forenc Sao | "S2msungcom 7854) loskéBo4 17. 180 00. Praha 8 LEE OROD-SANSUNE 1726 7004 | vnrsamsung com Dem | 0701070 TETE Spin 902-1 SAMSUNG (202 172 678] wvusamsung com Fran D -027 STE ETES Suede OP 726 TEA ANSUNS | mansamsung com France 01 48 63 00 00 yrsLSamSUng Com ; OBAB SAMSUNG (7267864, | "Samsung como DIRE - SANSUNS PEER À Suterend | GES) samsung om Gemam | DS vsamsungoom ch HFrench) Fr DRE ME UK DEE0 SANS 7207809 | samsung com Fa TT GE on nt sansurg com Fe AB ONT2TO Liane | 5-80077777, ur Samsung om LH EE Ta BON 7207 Samsung om Fanone—| 023 207777 Estona 00-7267. samsung om Correct disposal of batteries in this product {applicable in the European Union and other European countries with separate battery return systems.) This marking on the batteny, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. lf batteries are not proper disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system. Correct Disposal of This Product (Waste Electrical & Electronic Equipment) {applicable in the European Union and other European countries with separate collection systems) BR maine one produt aocessories or eralure indicate that he product and its electronic acoessares (e.g. HT-E4200 XU. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontroled waste disposal, please separate these items from other types of waste and recycle them responsibl to promote the sustainable reuse of material resources. Household users should contact elther the retaïer where they purchased this product, or their local government ofice, for details of were and hour they can take these items for environmental, safe recycing. Business users should contact their supplier and check the terms and conditions of he purchase contract. This product and its electronic accessories should nat be mixed wilh other commercial wastes for disposal 2012-02-20

RISQUE D'ÉLECTROCUTION, LA BROCHE

6.226.616: 6,487,535; 7,892,195; 7,272,567:

Homi + The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

PORTA USB ACCENSIONE
