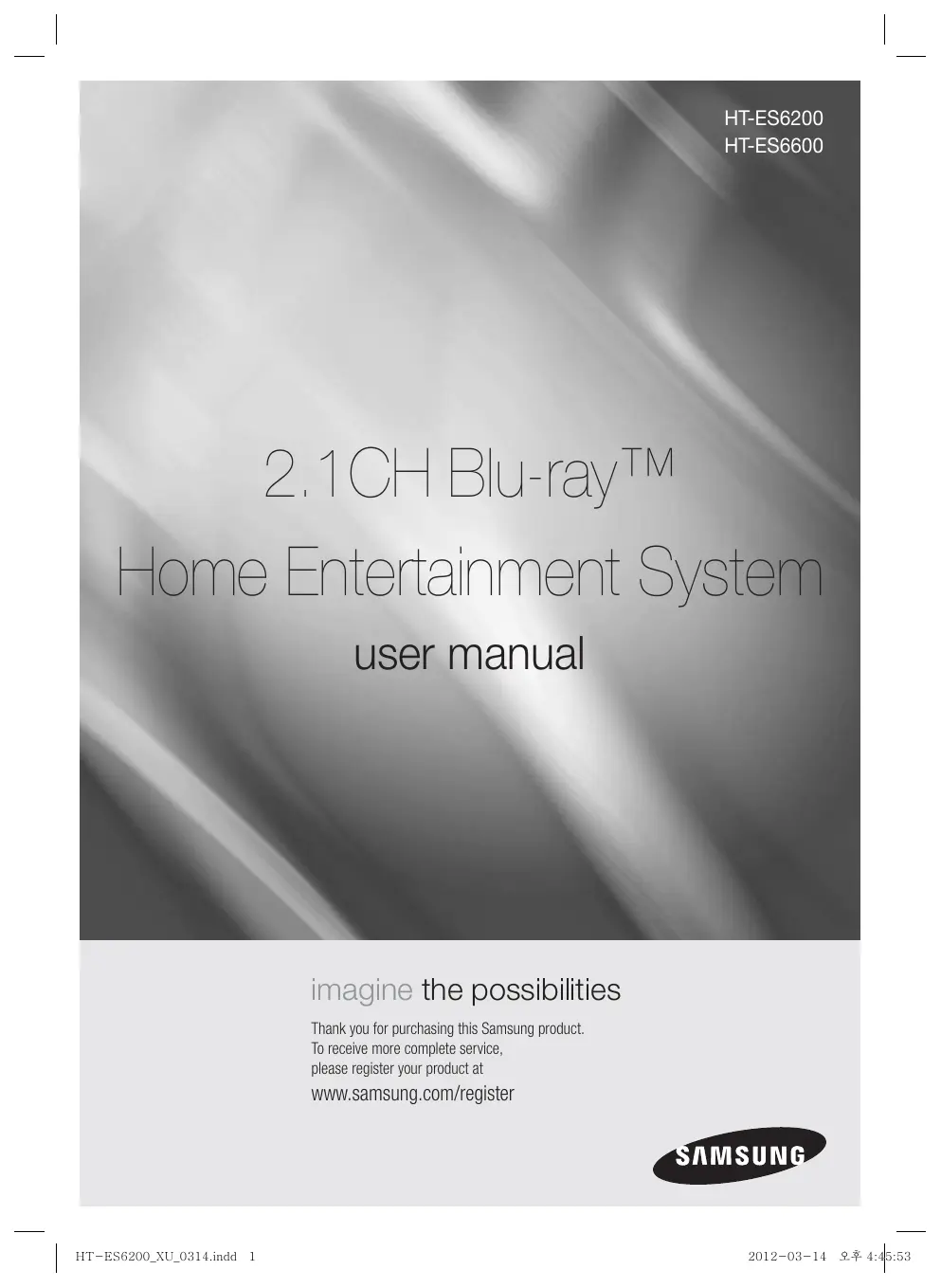

USER MANUAL HT-ES6200 SAMSUNG

This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. WARNING

• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. CAUTION
• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
• The Mains plug is used as a disconnect device and shall stay readily operable at any time.
• This apparatus shall always be connected to an AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable. CLASS 1 KLASSE 1 LUOKAN 1 KLASS 1 PRODUCTO This symbol indicates important instructions accompanying the product. LASER PRODUCT LASER PRODUKT LASER LAITE LASER APPARAT

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. CAUTION

• INVISIBLE LASER RADIATION WHEN OPEN

AND INTERLOCKS DEFEATED, AVOID

EXPOSURE TO BEAM. Wiring the Main Power Supply Plug (UK Only) IMPORTANT NOTICE The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used. Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of the same colour as the fuse fitted in the plug. Replacement covers are available from your dealer. If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance. However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a mains socket as there is a risk of shock hazard from the bared flexible cord. Never attempt to insert bare wires directly into a mains socket. A plug and fuse must be used at all times. IMPORTANT The wires in the mains lead are coloured in accordance with the following code:– BLUE = NEUTRAL BROWN = LIVE As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:–The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.

WARNING : DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH LETTER E OR

, OR COLOURED GREEN OR GREEN AND YELLOW. | 2 English HT-ES6200_XU_0314.indd 2 2012-03-14 오후 4:46:09 Disc Storage & Management Keep in a clean protection jacket and store vertically. Safety Information Do not keep in direct sunlight. Keep in a cool ventilated area.

• Holding Discs - Fingerprints or scratches on a disc may reduce sound and picture quality or cause skipping. - Avoid touching the surface of a disc where data has been recorded. - Hold the disc by the edges so that fingerprints will not get on the surface. - Do not stick paper or tape on the disc.
• Cleaning Discs - If you get fingerprints or dirt on a disc, clean it with a mild detergent diluted in water and wipe with a soft cloth. - When cleaning, wipe gently from the inside to the outside of the disc. - Disc Storage

• Maintenance of the Cabinet - Before connecting other components to this product, be sure to turn them off. - If you move your product suddenly from a cold place to a warm place, condensation may occur on the operating parts and lens and cause abnormal disc playback. If this occurs, unplug the product, wait for two hours, and then connect the plug to the power outlet. Then, insert the disc, and try to play back again.
• If the product makes an abnormal noise or produces a burning smell or smoke, turn off the power switch immediately and disconnect the power plug from the wall outlet. Then, contact the nearest customer service centre for technical assistance. Do not use the product. Using the product as it is may cause a fire or an electric shock.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times. Using the 3D Function Handling Cautions
• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases, on the apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.
• Do not touch the power plug with a wet hand. It can cause an electric shock.
• Do not plug multiple electric devices into the same wall socket. Ovedrloading a socket can cause it to overheat, resulting in a fire.

IMPORTANT HEALTH AND SAFETY

INFORMATION FOR 3D PICTURES. Read and understand the following safety information before using the 3D function.

• Some viewers may experience discomfort while viewing 3D TV such as dizziness, nausea, and headaches. If you experience any such symptom, stop viewing 3D TV, remove the 3D Active Glasses, and rest.
• Watching 3D images for an extended period of time may cause eye strain. If you feel eye strain, stop viewing 3D TV, remove your 3D Active Glasses, and rest.
• A responsible adult should frequently check on children who are using the 3D function. If there are any reports of tired eyes, headaches, dizziness, or nausea, have the child stop viewing 3D TV and rest.
• Do not use the 3D Active Glasses for other purposes (such as general eyeglasses, sunglasses, protective goggles, etc.) English HT-ES6200_XU_0314.indd 3

2012-03-14 오후 4:46:10 Safety Information

• Do not use the 3D function or 3D Active Glasses while walking or moving around. Using the 3D function or 3D Active Glasses while moving around may cause you to bump into objects, trip, and/or fall, and cause serious injury.
• If you want to enjoy 3D content, connect a 3D device (3D compliant AV receiver or TV) to the product’s HDMI OUT port using a high-speed HDMI cable. Put on 3D glasses before playing the 3D content.
• The product outputs 3D signals only through HDMI cable connected to the HDMI OUT port.
• As the video resolution in 3D play mode is fixed according to the resolution of the original 3D video, you can not change the resolution to your preference.
• Some functions such as BD Wise, screen size adjustment, and resolution adjustment may not operate properly in 3D play mode.
• You must use a high-speed HDMI cable for proper output of the 3D signal.
• Stay at least three times the width of the screen from the TV when watching 3D images. For example, if you have a 46 inch screen, stay 3.5 meters from the screen. - Place the 3D video screen at eye level for the best 3D picture.
• When the product is connected to some 3D devices, the 3D effect may not function properly.
• This product does not convert 2D content into 3D.
• “Blu-ray 3D” and “Blu-ray 3D” logo are trademarks of the Blu-ray Disc Association. Copyright © 2012 Samsung Electronics Co.,Ltd. All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd. Licence

• Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.

• Manufactured under licence under U.S. Patent Nos: 5,956,674; 5,974,380; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS-HD, the Symbol, & DTSHD and the Symbol together are registered trademarks & DTS-HD Master Audio | Essential is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

• ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. DivX Certified® to play DivX® video up to HD 1080p, including premium content. DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under licence. Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274 | 4 English HT-ES6200_XU_0314.indd 4 2012-03-14 오후 4:46:10 Safety Information

• Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be trademarks of their respective owners.

• Open Source Licence Notice - In the case of using open source software, Open Source Licenses are available on the product menu.

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. This product incorporates proprietary technology under licence from Verance Corporation and is protected by U.S. Patent 7,369,677 and other U.S. and worldwide patents issued and pending as well as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark of Verance Corporation. Copyright 2004-2010 Verance Corporation. All rights reserved by Verance. Reverse engineering or disassembly is prohibited.

• This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.
• Blu-ray Disc™, Blu-ray™, and the logos are trademarks of Blu-ray Disc Association.

• iPad, iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
• This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted. More information about Cinavia technology is provided at the Cinavia Online Consumer Information Centre at http://www.cinavia.com. To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA.” English HT-ES6200_XU_0314.indd 5

Disk and Format Compatibility Logos of Discs the product can play Accessories Front Panel Rear Panel Remote Control CONNECTIONS

Connecting the Speakers Speaker Components Connecting The Speakers Attaching the Toroidal Ferrite Core For Power Cord/HDMI Cable/LAN Cable For Speaker Cable Connecting the FM Antenna Connecting to an iPod/iPhone Connecting to a TV Method 1 Connecting to a TV with an HDMI Cable - Best Quality (Recommended) Method 2 Connecting to a TV with a Video Cable - Good Quality Connecting to External Devices Method 1 OPTICAL : Connecting an External Digital Audio Component Method 2 AUX IN : Connecting an External Analogue Component Connecting to a Network Router Wired Network Wireless Network The Initial Settings Procedure The Home Screen Accessing the Settings Screen Settings Menu Functions Networks and the Internet Upgrading Software

The AllShare Play Screen Playing Files on a USB Storage Device or iPod/iPhone iPod/iPhone Models You Can Use with This Product The Function Screen Playing Commercial Video Discs Playing Commercial Audio Discs Playing a Disc with User Recorded Content Using the AllShare Network Function Controlling Video Playback Controlling Music Playback Playing Photo Contents Using the Tools Menu when a File is Highlighted Listening to Radio Using the Special Effects Remote Control Buttons NETWORK SERVICES

Disc types and contents your product can play Disc Type Blu-ray Disc 3D Blu-ray Disc VIDEO DVD-VIDEO, DVD-RW, DVD-R, DVD+RW, DVD+R Details BD-ROM or BD-RE/-R disc recorded in the BD-RE format. DVD-VIDEO, recorded DVD+RW/DVD-RW(V)/DVD-R/+R discs that have been recorded and finalised, or a USB storage media containing DivX, MKV, MP4 contents. MUSIC CD-RW/-R, DVD-RW/-R, Music recorded on CD-RW/-R, DVD-RW/-R, BD-RE/-R discs or a USB storage BD-RE/-R media containing MP3 or WMA contents. PHOTO CD-RW/-R, DVD-RW/-R, Photos recorded on CD-RW/-R, DVD-RW/-R, BD-RE/-R discs or a USB storage BD-RE/-R media containing JPEG contents. Getting Started Media | NOTE | The product may not play certain CD-RW/-R and DVD-R because of the disc type or recording conditions. If a DVD-RW/-R disc has not been recorded properly in DVD video format, it will not be playable. Your product will not play content that has been recorded on a DVD-R at a bit rate that exceeds 10 Mbps. Your product will not play content that has been recorded on a BD-R or USB device at a bit rate that exceeds 30 Mbps. Playback may not work for some types of discs, or when you use specific operations, such as angle change and aspect ratio adjustment. Information about the discs is written in detail on the disc box. Please refer to this if necessary. When you play a BD-J title, loading may take longer than a normal title or some functions may perform slowly. Disc types your product cannot play

• Super Audio CD (except CD layer)

• 3.9 GB DVD-R Disc for Authoring. | NOTE | This product may not respond to all operating commands because some Blu-ray Disc, DVD, and CD discs allow specific or limited operation and provide only certain features during playback. Please note that this is not a defect in the product. Samsung cannot guarantee that this product will play every disc bearing the Blu-ray Disc, DVD or CD logo because disc formats evolve, and problems and errors may occur during the creation of Blu-ray Disc, DVD, and CD software and/or the manufacture of discs. Please contact the SAMSUNG Customer Care Centre, if you have questions or encounter difficulty when playing Blu-ray Disc, DVD, or CD discs in this product. Also, refer to rest of this user manual for additional information on playback restrictions. Some commercial discs and DVD discs purchased outside your region may not play on this product. English HT-ES6200_XU_0314.indd 7

2012-03-14 오후 4:46:13 Getting Started Region Code Logos of Discs the product can play Both products and discs are coded by region. These regional codes must match for a disc to play. If the codes do not match, the disc will not play. The Region Number for this product is displayed on the rear panel of the product. Disc Type Blu-ray Disc DVD-VIDEO Region Code Area

North America, Central America, South America, Korea, Japan, Taiwan, Hong Kong and South East Asia.

Europe, Greenland, French territories, Middle East, Africa, Australia and New Zealand.

India, China, Russia, Central and South Asia.

The U.S., U.S. territories and Canada

Europe, Japan, the Middle East, Egypt, South Africa, Greenland

Taiwan, Korea, the Philippines, Indonesia, Hong Kong

Mexico, South America, Central America, Australia, New Zealand, Pacific Islands, Caribbean

Russia, Eastern Europe, India, most of Africa, North Korea, Mongolia

China | NOTE | If the Region number of a Blu-ray Disc/DVDs does not correspond to the Region number of this product, the product cannot play the disc. Blu-ray Disc 3D Blu-ray Disc BD-LIVE Dolby DTS DivX PAL broadcast system in U.K, France, Germany, etc. Java Supported Formats Music File Support File Extension Container Audio Codec Support Range *.mp3 MP3 MP3

WMA Compliant with WMA version 10

• Sampling rates (in kHz) - 8, 11, 16, 22, 32, 44.1, 48
• Bit rates - All bit rates in the range 5kbps to 384kbps *.wma WMA | 8 English HT-ES6200_XU_0314.indd 8 2012-03-14 오후 4:46:14 Video File Support *.avi AVI *.mkv MKV *.asf ASF *.wmv WMV (wmv9) *.mp4 MP4 *.3gp 3GPP *.vro *.mpg *.mpeg *.ts *.tp *.trp Video Codec Resolution Frame rate (fps) Bit rate (Mbps) DivX 3.11/4.x /5.1/6.0 1920x1080 6 ~ 30

MPEG2 1920x1080 24/25/30

MPEG2 1920x1080 24/25/30

AC3 MPEG LPCM AC3 MPEG LPCM AAC AC3 AAC MP3 DD+ Limitations - Even when a file is encoded by a supported codec listed above, the file might not be played if its content has a problem. - Normal playback is not guaranteed if the file’s container information is wrong or the file itself is corrupted. - Files having higher bit or frame rates than standard may stutter when played back. English HT-ES6200_XU_0314.indd 9

2012-03-14 오후 4:46:16 Getting Started - The Seek (skip) function is not available if the file’s index table is damaged. - When you playback a file remotely through a network connection, video playback may stutter depending on the network speed. Video decoder - Supports up to H.264 Level 4.1 - Does not support H.264 FMO/ASO/RS, VC1 SP/MP/AP L4 and AVCHD - MPEG4 SP, ASP : Below 1280 x 720 : 60 frames max Above 1280 x 720 : 30 frames max - Does not support GMC 2 or higher Audio decoder - Supports WMA 7, 8, 9 and STD - Does not support WMA 9 PRO multi-channel files if the number of channels is more than 2 or the files require lossless audio decoding. - Does not support WMA sampling rate of 22050Hz mono

Supported DivX subtitle file formats *.ttxt, *.smi, *.srt, *.sub, *.txt

• This product cannot play MP3 files with DRM (Digital Rights Management) downloaded from commercial sites.
• Your product only supports video that is under 30fps (frame rate).
• Your product only supports USB Mass Storage Class (MSC) devices such as thumb drives and USB HDD. (HUB is not supported.)
• Certain USB HDD Devices, multi-card readers and thumb drives may not be compatible with this product.
• If some USB devices require excessive power, they may be limited by the circuit safety device.
• If playback from a USB HDD is unstable, provide additional power by plugging the HDD into a wall socket. If the problem continues, contact the USB HDD manufacturer.
• You must remove the USB storage device safely (by performing the “Safely Remove USB” function) to prevent possible damage to the USB memory. Press the HOME button to move to the home menu, press the YELLOW (C) button, and then press the E button.
• SAMSUNG is not responsible for any data file damage or data loss. Notes on the USB connection
• Your product supports USB storage media, MP3 players, digital cameras, and USB card readers.
• The product does not support folder or file names longer than 128 characters.
• Some USB/digital camera devices may not be compatible with the product.
• Your product supports the FAT 16, FAT 32, and NTFS files systems.
• Connect USB devices directly to the product’s USB port. Connecting through a USB cable may cause compatibility problems.
• Inserting more than one memory device into a multi-card reader may cause the reader to operate improperly.
• The product does not support the PTP protocol.
• Do not disconnect a USB device during a “loading” process.
• The bigger the image resolution, the longer the image takes to display. AVCHD (Advanced Video Codec High Definition)
• This product can play back AVCHD format discs. These discs are normally recorded and used in camcorders.
• The AVCHD format is a high definition digital video camera format.
• The MPEG-4 AVC/H.264 format compresses images with greater efficiency than the conventional image compressing format.
• Some AVCHD discs use the “x.v.Colour” format. This product can play back AVCHD discs that use “x.v.Colour” format.
• “x.v.Colour” is a trademark of Sony Corporation.
• “AVCHD” and the AVCHD logo are trademarks of Matsushita Electronic Industrial Co., Ltd. and Sony Corporation. | 10 English HT-ES6200_XU_0314.indd 10 2012-03-14 오후 4:46:17 | NOTE | Some AVCHD format discs may not play, depending on the recording conditions.

AVCHD format discs need to be finalised. Getting Started “x.v.Colour” offers a wider colour range than normal DVD camcorder discs. Some DivX, MKV and MP4 format discs may not play, depending on their video resolution and frame rate. Accessories Check for the supplied accessories below. FUNCTION SOURCE RECEIVER SLEEP

Video Cable Soft Cloth POPUP FM Antenna MUTE VOL

Toroidal Ferrite Core Remote Control/ Batteries(AAA size) Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. An administration fee may be charged if either a. an engineer is called out at your request and there is no defect in the product (i.e. where you have failed to read this user manual) b. you bring the unit to a repair centre and there is no defect in the product (i.e. where you have failed to read this user manual).

The amount of such administration charge will be advised to you before any work or home visit is carried out. English HT-ES6200_XU_0314.indd 11 11 | 2012-03-14 오후 4:46:17 Getting Started Front Panel STOP PLAY/PAUSE FUNCTION DISC SLOT ENTER EJECT POWER VOLUME CONTROL DISPLAY REMOTE CONTROL SENSOR | NOTE | When the product displays the Blu-ray Disc menu, you cannot start the movie by pressing the 6 button on the product or the remote. To play the movie, you must select Play Movie or Start in the disc menu, and then press the E button. Rear Panel COOLING FAN SPEAKER OUTPUT CONNECTORS USB HOST HDMI OUT LAN TERMINAL EXTERNAL DIGITAL AUDIO IN (OPTICAL) FM ANTENNA AUX IN VIDEO OUT | NOTE | To upgrade the product's software through the USB Host jack, you must use a USB memory stick. Ensure a minimum of 10 cm of clear space on all sides of the home cinema to ensure adequate ventilation. Do not obstruct the cooling fan or ventilation holes. | 12 English HT-ES6200_XU_0314.indd 12 2012-03-14 오후 4:46:20 Remote Control

POPUP Press to stop/play a disc. MUTE VOL

TUNING / CH Press to move to the Home screen. FULL SCREEN HOME REPEAT Press this to see the full screen on a TV. TOOLS Use to display the playback information when playing a Blu-ray/DVD disc. EXIT RETURN

SEARCH 'ĺ' 3D SOUND AUDIO SUBTITLE SOUND EFFECT Press this to use the vTuner. Press to search contents. Selects the disc Audio language. Press to exit the menu. Use to set a preset radio frequency. TUNER MEMORY HUB Press to use Smart Hub. Search for active FM stations and to change channels. Use to adjust the level of the subwoofer. Allows you to repeat a title, chapter, track or disc. INFO Select on-screen menu items and change menu value. These buttons are used both for menus on the product and also several Blu-ray Disc functions. Use to enter the Popup menu/ Title menu. Press to pause a disc. Cut off the sound temporarily. Return to the previous menu. Use the RDS function to receive FM stations. Press to search backwards or forwards. Press to skip backwards or forwards. Press to use the Tools menu. Set a Sleep time to shut off the product.

DISC MENU Adjust the volume. Press to select Blu-ray's mode (AUX, BD/DVD, etc.). Press to select TV's video mode. To eject the disc. Select MONO or STEREO for radio broadcasts. Press to apply 3D sound effect. Press to apply sound effects. Press to enjoy an ordinary 2D video in 3D mode. Selects the disc subtitle language. English HT-ES6200_XU_0314.indd 13 Getting Started Turn the product on and off. 13 | 2012-03-14 오후 4:46:23 Getting Started Installing batteries in the Remote Control Battery size: AAA

| NOTE | Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment. Assuming typical TV usage, the batteries last for about one year. The remote control can be used up to approximately 7 meters from the product in a straight line. Setting the Remote Control You can control certain functions of your TV with this remote control. When operating a TV with the remote control 1 . Press the TV button to set the remote control to TV mode. 2 . Turn on your TV. 3 . While holding down the POWER button, enter the code corresponding to your brand of TV.

• If there is more than one code listed for your TV in the table, enter one at a time to determine which code works.
• Example : For a Samsung TV While holding down the POWER button, use the number buttons to enter 00. If that does not work, try 15, then 16, etc. 4 . If the TV turns off, the setting is complete.
• You can use the TV POWER, VOLUME, CHANNEL, and Numeric buttons (0~9). | NOTE | The remote control may not work on some brands of TV's. Also, some operations may not be possible, depending on your brand of TV. TV Control Codes Brand Code Brand Code Admiral (M.Wards) A Mark 56, 57, 58 Mitsubishi/MGA MTC NEC Nikei Onking Onwa 18, 40, 59, 60, 75 18, 19, 20, 40, 59, 60

06, 07, 08, 09, 54, 66, 67, 73, 74 03, 15, 17, 18, 48, 54, 59, 62, 69, 90 15, 17, 18, 40, 48, 54, 62, 72 63, 66, 80, 91 15, 18, 59 06, 66, 67 17, 48, 56, 60, 61, 75 18, 59, 67, 76, 77, 78, 92, 93, 94 03, 19

59, 61, 63 02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, Daewoo 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90 Daytron Dynasty 03, 15, 40, 46, 59, 61, Emerson 64, 82, 83, 84, 85 Fisher 19, 65 Funai Futuretech General Electric 06, 40, 56, 59, 66, (GE) 67, 68 Hall Mark Hitachi 15, 18, 50, 59, 69 Inkel JC Penny 56, 59, 67, 86 JVC KTV 59, 61, 87, 88 KEC 03, 15, 40 KMC 15, 16, 17, 37, 38, LG (Goldstar) 01, 39, 40, 41, 42, 43, 44 Luxman 19, 54, 56, 59, 60, 62, LXI (Sears) 63, 65, 71 15, 17, 18, 48, 54, 59, Magnavox 60, 62, 72, 89 Marantz 40, 54 Matsui MGA 18, 40 Panasonic Penney Philco Philips Pioneer Portland Proton Quasar Radio Shack RCA/Proscan Realistic Sampo Samsung 00, 15, 16, 17, 40, 43, 46, 47, 48, 49, 59, 60, 98 Sanyo Scott Sears Sharp Signature 2000 (M.Wards) 19, 61, 65 03, 40, 60, 61 15, 18, 19 15, 57, 64 Sony 50, 51, 52, 53, 55 Soundesign Spectricon 03, 40

03, 15, 18, 25 18, 40 19, 57, 63, 71 59, 60, 69 Wards 15, 17, 18, 40, 48, 54, 60, 64 Yamaha

Dongyang 03, 54 The remote control will work with Samsung TVs by default. | 14 English HT-ES6200_XU_0314.indd 14 2012-03-14 오후 4:46:25 Connections This section describes various methods of connecting the product to other external components. Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

Connecting the Speakers Place it on a stand or cabinet shelf, or under the TV stand. Subwoofer Front (R) Connections Position of the product Selecting the Listening Position The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV. For example, if you have a 46 inch screen, locate the listening position 2.92 to 3.50 meters from the screen. Product Front (L) Front Speakers Place these speakers in front of your listening position, facing inwards (about 45°) toward you. Place the front speakers so that their tweeters will be at the same height as your ear. Subwoofer The position of the subwoofer is not so critical. Place it anywhere you like. Speaker Components (L) (R) FRONT SPEAKER CABLE SUBWOOFER English HT-ES6200_XU_0314.indd 15 15 | 2012-03-14 오후 4:46:27 Connections Connecting The Speakers

1. Match each speaker cable bundle to the correct speaker by matching the

colour coded plug on each bundle to the coloured sticker on the bottom of each speaker.

2. To attach speaker wire to each speaker:

Black a. Press down the red tab on the back of the speaker, insert the red wire, and then release the tab. Red b. Press down the black tab on the back of the speaker, insert the black wire, and then release the tab.

3. Connect the speaker wire plugs to the back of the product by matching

the colours of the speaker plugs to the colours of the speaker jacks. Front Speaker (L) Subwoofer Front Speaker (R) | CAUTION | If you want to install the product on the wall, fasten the screws or nails on the wall firmly and use the holes on the rear of speaker to install. However, when you install it, accessories (nails or screws) and installation is not provided by the company. Do not let children play with or near the speakers. They could get hurt if a speaker falls. When connecting the speaker wires to the speakers, make sure that the polarity (+/–) is correct. Keep the subwoofer speaker out of reach of children to prevent children from inserting their hands or alien substances into the duct (hole) of the subwoofer speaker. Do not hang the subwoofer on the wall through the duct (hole). | NOTE | If you place a speaker near your TV set, the screen colour may be distorted because of the magnetic field. | 16 English HT-ES6200_XU_0314.indd 16 2012-03-14 오후 4:46:31 Attaching the Toroidal Ferrite Core

For Power Cord/HDMI Cable/LAN Cable Connections If you attach a Toroidal ferrite core to the power cord of the main unit, it will help to prevent RF interference from radio signals.

1. Pull the fixing tab of the Toroidal ferrite core to open

2. Make a loop twice in the main unit power cord.

3. Attach the toroidal ferrite core to the main unit

power cord as the figure shows and press it until it clicks. Method for connecting toroidal ferrite core to HDMI cable and LAN cable is same as steps 1-3 described above. Power Cord < In case of Power Cord > | NOTE | Attach the ferrite core to the main unit as close as possible. For Speaker Cable

1. Open the toroidal ferrite core by pulling the lock

2. Arrange up all the speaker cables that are

connected to the main unit and make two loops.

3. Attach the toroidal ferrite core to the main unit

power cord as the figure shows and press it until it clicks.

4. Cover the speaker cables with the toroidal ferrite

core as shown and colse it until you hear a click. Speaker Cable | NOTE | Attach the ferrite core to the main unit as close as possible. English HT-ES6200_XU_0314.indd 17 17 | 2012-03-14 오후 4:46:33 Connections Connecting the FM Antenna FM Antenna (supplied) 1 . Connect the FM antenna supplied to the FM ANTENNA Jack. 2 . Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface. | NOTE | This product does not receive AM broadcasts. Connecting to an iPod/iPhone Connect an iPod/iPhone using the USB cable to the rear USB port. | 18 English HT-ES6200_XU_0314.indd 18 2012-03-14 오후 4:46:35 Connecting to a TV

Select either Method 1 or Method 2. Connections

• If you have set the product's remote control to operate your TV, press the TV SOURCE button on the remote control, and then select the correct external source from the TV's source list (HDMI, Video In, etc.) to view video from the home cinema. (Cable not supplied.) Method 1 Method 2 HDMI IN VIDEO IN Method 1 Connecting to a TV with an HDMI Cable - Best Quality (Recommended) Connect an HDMI cable (not supplied) from the HDMI OUT jack on the back of the product to the HDMI IN jack on your TV. If the TV supports ARC, you can hear TV sound from home cinema with only connect this cable. Method 2 Connecting to a TV with a Video Cable - Good Quality Connect the supplied Video cable from the VIDEO OUT jack on the back of the product to the VIDEO IN jack on your TV. | NOTE | The VIDEO Out jack always outputs in the 576i/480i resolution regardless of the resolution set in the Setup menu. Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by copyright protection systems and the picture will be distorted on the television. English HT-ES6200_XU_0314.indd 19 19 | 2012-03-14 오후 4:46:37 Connections Connecting to External Devices To select the correct mode for an external device, press the FUNCTION button. Each time you press the button, the mode changes in this order : BD/DVD D. IN AUX R. IPOD FM

White (Cable not supplied.) (Cable not supplied.) Method 1 Method 2 External Devices OPTICAL OUT AUDIO OUT Method 1 OPTICAL : Connecting an External Digital Audio Component To connect the digital audio output of digital signal components such as Cable Boxes and Satellite Receivers (Set-Top-Boxes). Using a digital optical cable (not supplied), connect the Optical Digital Audio In jack on the product to the Digital Optical Out jack of the external digital device using a digital optical cable. Select the D. IN mode. Method 2 AUX IN : Connecting an External Analogue Component Using an RCA audio cable (not supplied), connect the AUDIO In jack on the product to the AUDIO Out jack on the external analogue component. Select the AUX mode.

• Be sure to match the colours on the cable plugs to the colours on the input and output jacks. | NOTE | To see video from your Cable Box/Satellite receiver, you must connect its video output directly to your TV. This system supports Digital sampling frequencies of 32 kHz or higher from external digital components. This system supports only DTS and Dolby Digital audio. MPEG audio, a bitstream format, is not supported. | 20 English HT-ES6200_XU_0314.indd 20 2012-03-14 오후 4:46:39 Connecting to a Network Router Wireless Network Connections You can connect your product to your network router using one of the methods illustrated below. Wired Network Wireless IP sharer Broadband modem (with integrated router) Broadband service Broadband service

Router | NOTE | Broadband service Broadband modem | NOTE | Internet access to Samsung’s Software Update server may not be allowed, depending on the router you use or your ISP’s policy. For more information, contact your ISP (Internet Service Provider). DSL users, please use a router to make a network connection. To use the AllShare Play function, you must connect your PC to your network as shown in the illustrations on the left. The connection can be wired or wireless. If your wireless IP router supports DHCP, this product can use a DHCP or static IP address to connect to the wireless network. Set your wireless IP router to Infrastructure mode. Ad-hoc mode is not supported. The product supports only the following wireless security key protocols: - WEP (OPEN/SHARED), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES) Select a channel on the wireless IP router that is not currently being used. If the channel set for the wireless IP router is currently being used by another device nearby, it will result in interference and communication failure. If you select the Pure High-throughput (Greenfield) 802.11n mode and set the Encryption type on your router or AP to WEP, TKIP or TKIP-AES (WPS2Mixed), the product will not support a connection in compliance with new WiFi certification specifications. Wireless LAN, by its nature, may cause interference, depending on the operating conditions (AP performance, distance, obstacles, interference by other radio devices, etc). English HT-ES6200_XU_0314.indd 21 21 | 2012-03-14 오후 4:46:41 Settings The Initial Settings Procedure

• The Home menu will not appear if you do not configure the initial settings.
• The OSD (On Screen Display) may change in this product after you upgrade the software version.
• The access steps may differ depending on the menu you selected. If you skip wireless network setup here, go to "Wireless Network" on page 31 to set up the product's wireless network connection later. 5 · The product searches for and then displays all available wireless router network connections. Initial Settings > Network Settings (2/5) Select your wireless router from the list. 1 . Turn on your TV after connecting the product, and then turn on the product. When you turn on the product for the first time, the product automatically displays the Initial Settings Language screen. 2 · Use the ▲▼◄► buttons on the remote to select the desired language, and then press the E button twice. The Start screen appears. 3 · Press the E button to start setup. The Network Settings screen appears. 1/4 KIMING_VTOWER Refresh TIAS WPS(PBC) si-ap Previous surlwang5 Next Add Network Skip 6 · Use the ▲▼ buttons to select a router, and then press the E button. The Next button is highlighted. 7 · Press the E button to continue. The Security Key screen appears. | NOTE | Initial Settings > Network Settings (1/5) The next step is to set up a wireless network using an internal LAN Adapter. Previous Next If you have a WPS(PBC) compatible router, select WPS(PBC) instead, press the E button, and then follow the directions on the screen. When done, go to Step 10. Skip If you want to connect to your wired network, plug in a network cable. Initial Settings > Network Settings (4/5) Enter security key. 0 entered

4 · Press the E button to set up the product’s wireless network connection or select Skip, and then press the E button to skip network setup. If you selected Skip, go to Step 12. | NOTE | The product starts the wireless network connection procedure by default. If you want to set up a wired connection, select Skip, and then go to "Configuring Your Network Connection" on page 30 after you have completed the Initial Settings Procedure. WPS PIN

Space Skip 8 · Enter your network's security key. When done, use the ▲▼◄► buttons to select Next, and then press the E button. | 22 English HT-ES6200_XU_0314.indd 22 2012-03-14 오후 4:46:44 | NOTE | To display capital letters (or redisplay small letters if capital letters are displayed), select A/a, and then press the E button. To display symbols and punctuation, select , and then press the E button. To redisplay letters, select , and then press the E button. 9 · If the connection is successful, the Connection Complete screen appears. Select Next, and then press the E button. The Software Update screen appears. | NOTE | If the connection is not successful, select Next, and then press the E button. After you have completed the Initial Settings procedure, go to "Wireless Network" on page 31 to set up the product's wireless network connection. 10 · To upgrade the software, select Update now, and then press the E button. To skip the upgrade, select Update later, press the E button, and go to Step 12. You have four choices: 16:9 Original - For widescreen TVs. Displays widescreen pictures in their original 16:9 format and 4:3 pictures (the old, standard format) in 4:3 pillar box format with black bars on the left and right. Settings Enter letters by selecting a letter using the ▲▼◄► buttons, and then press E button. 12 · Using the ▲▼ buttons, select the Aspect Ratio that matches your screen, and then press the E button. Select Next, and then press the E button.

Enter numbers by pressing the number buttons on your remote. 16:9 Full - For widescreen TVs. Displays widescreen pictures in their original 16:9 format and expands 4:3 pictures to fill the 16:9 screen. 4:3 Letter Box - For older, standard screen analogue TVs. Displays 4:3 pictures in full screen and 16:9 pictures in letter box format that retains the 16:9 aspect ratio but puts black bars above and below the picture. 4:3 Pan-Scan - For older, standard screen analogue TVs. Displays 4:3 pictures in full screen and 16:9 pictures in Pan-Scan format that fills the screen, but cuts off the left and right sides of the picture and enlarges the middle vertically. | NOTE | Initial Settings > Complete If you skipped network set up, you must skip Software Update also. 11 · If there is a Software Update available, the product downloads and installs the upgrade. This can take some time. If there is no Software Update available, the "There are no new software updates for you to download. You already have the most up to date version." message appears. And then press the E button. The TV Aspect Ratio screen appears. Setup completed. On-Screen Language

Press Smart Hub to enjoy a variety of Internet content.

Smart Hub Initial Settings > TV Aspect Ratio 13 · The Setup completed screen appears. Check the settings to confirm they are correct. Select OK, and then press the E button. The Home screen appears. Set to match the type of television connected. | NOTE | 16:9 Original 16:9 Full 4:3 Letter Box 4:3 Pan-Scan Previous Select when connecting to a 16:9 TV Screen. All content will be displayed at original aspect ratio. Content formatted in 4:3 will be displayed with black bars on left and right. Next If you want to display the Initial Setting screen again and make changes, select the Reset option. (See page 29) If you use an HDMI cable to connect the product to an Anynet+ (HDMI-CEC)-compliant Samsung TV and 1.) You have set the Anynet+ (HDMI-CEC) feature to ON in both the TV and the product and 2.) You have set the TV to a language supported by the product, the product will select that language as the preferred language automatically. English HT-ES6200_XU_0314.indd 23 23 | 2012-03-14 오후 4:46:45 Settings 2 . To access the menus, sub-menus, and options on the Settings screen, please refer to the remote control illustration below. The Home Screen | NOTE | AllShare Play Play videos or music, or view photos from discs or connected devices.

Smart Hub Function If you leave the product in the stop mode for more than 5 minutes without using it, a screen saver will appear on your TV. If the product is left in the screen saver mode for more than 20 minutes, the power will automatically turn off. Settings Buttons on the Remote Control Used for the Settings Menu

Smart Hub. Starts Smart Hub. From Smart Hub, you can access YouTube, games, and other apps.

Function. Select the audio/video input source.

Settings. Set various functions to suit your personal preferences. Selecting an Option on the Home Screen 1 . To select an option on the Home screen, move the cursor using the ◄► buttons until it highlights the option of your choice, and then press the E button. Accessing the Settings Screen 1 . Select Settings on the Home screen, and then press E. The Settings screen appears. FULL SCREEN HOME REPEAT

HOME Button : Press to move to the Home screen.

E (Enter) / DIRECTION Button : ~ Press ▲▼◄► to move the cursor or select an item. ~ Press the E button to activate the currently selected item or confirm a setting.

EXIT Button : Press to exit the current menu. | NOTE | 3D Settings Display Audio TV Aspect Ratio Smart Hub Screen Size BD Wise Network System Support 16:9 Original Size 3 Off Resolution Auto Movie Frame (24Fs) Auto HDMI Colour Format Auto HDMI Deep Colour Auto Progressive Mode Auto The E button on the product's front panel can be used for same purpose as the E button on the remote control. Detailed Function Information Each Settings function, menu item, and individual option is explained in detail on-screen. To view an explanation, use the ▲▼◄► buttons to select the function, menu item, or option. The explanation will usually appear on the right of the screen. A short description of each Settings function starts on the next page. Additional information on some of the functions is also in the Appendix of this manual. | 24 English HT-ES6200_XU_0314.indd 24 2012-03-14 오후 4:46:46 Settings Menu Functions TV Aspect Ratio Lets you adjust the output of the product to the screen size of your TV. See page 23, Step 12 for a description of the screen size options. Smart Hub Screen Size Lets you select the optimal size for the Smart Hub Screen. BD Wise BD Wise is Samsung’s latest inter-connectivity feature. When you connect a Samsung product and a Samsung TV with BD Wise to each other via HDMI, and BD Wise is on in both the product and TV, the product outputs video at the video resolution and frame rate of the Blu-ray/DVD Disc. Resolution Lets you set the output resolution of the HDMI video signal to Auto, 1080p, 1080i, 720p, 576p/480p. If Composite is connected, the resolution supports only 576i/480i. The number indicates the number of lines of video per frame. The i and p indicate interlaced and progressive scan, respectively. The more lines, the higher quality. Movie Frame (24Fs) Setting the Movie Frame (24Fs) feature to Auto lets the product adjust its HDMI output to 24 frames per second automatically for improved picture quality if attached to a 24Fs compatible TV.

• You can enjoy the Movie Frame (24Fs) feature only on a TV supporting this frame rate.
• Movie Frame is only available when the product is in the HDMI 1080i or 1080p output resolution modes. HDMI Colour Format Lets you set the colour space format for the HDMI output to match the capabilities of the connected device (TV, monitor, etc). HDMI Deep Colour Lets you set the product to output video from the HDMI OUT jack with Deep Colour. Deep Colour provides more accurate colour reproduction with greater colour depth. Progressive Mode Lets you improve picture quality when viewing DVDs. English HT-ES6200_XU_0314.indd 25 Settings 3D Settings Set up the 3D related functions. 3D Blu-ray Playback Mode: Select whether to play a Bluray Disc with 3D contents in 3D Mode. If you move to the Home or Smart Hub Home menu while in 3D mode, the product will switch to 2D automatically. Screen Size: Enter the size of the TV attached to the product. The product will automatically adjust the 3D output to the screen size of the TV.

Display 25 | 2012-03-14 오후 4:46:59 Settings Audio Speaker Settings You can set the speaker options. Equaliser Let you configure the Equaliser settings manually. Smart Volume Lets you set the product so that the volume remains stable when a scene change occurs or when you change the channel. Speaker Selection Lets you select which speakers you want active, either the TV's speakers or the Home theater's speakers. Audio Return Channel Lets you direct the sound from the TV to the Home Cinema speakers. Requires an HDMI connection and an Audio Return Channel (ARC) compatible TV.

• When Audio Return Channel set to on, use HDMI Cable to connect the product to the TV. At this time, optical input does not work.
• When Audio Return Channel set to auto, use HDMI Cable to connect the product to the TV. At this time, ARC and optical input is selected automatically. Digital Output Let you set the Digital Output to match the capabilities of the AV receiver you’ve connected to the product. For more details, please refer to the digital output selection table. (See page 57) Dynamic Range Control Lets you apply dynamic range control to Dolby Digital, Dolby Digital Plus, and Dolby True HD audio. Auto: Automatically controls the dynamic range of Dolby TrueHD audio, based on information in the Dolby TrueHD soundtrack. Also turns dynamic range control on for Dolby Digital and Dolby Digital Plus. Off: Leaves the dynamic range uncompressed, letting you hear the original sound. On: Turns dynamic range control on for all three Dolby formats. Quieter sounds are made louder and the volume of loud sounds is reduced. Audio Sync When the product is attached to a digital TV, lets you adjust the audio delay so that the audio syncs with the video. You can set the delay between 0 and 300 milliseconds. | 26 English HT-ES6200_XU_0314.indd 26 2012-03-14 오후 4:46:59 Network For more information about Network Settings and network functions, see "Networks and the Internet" starting on page 30. Network Status Let you check whether a connection to the network and the Internet have been established. Wi-Fi Direct Lets you connect a Wi-Fi Direct device to the product using a Peer-to-Peer network, without a wireless router. You can use the device to control the product. Soft AP Lets you connect other types of Wi-Fi devices to the product wirelessly. Requires that you create a security key which you must enter into the other Wi-Fi devices when you are connecting them to the network. AllShare Settings Lets you permit external devices such as smart phones to connect to the product and share content with or control the product. Device Name Lets you assign an identifying name to the product. You use this name to identify the product when you are connecting external Wi-Fi devices (smart phones, tablets, etc.) to it. BD-Live Settings Lets you allow, limit, or prohibit an Internet connection for the BD-Live service.

Network Settings HT-ES6200_XU_0314.indd 27 Settings English 27 | 2012-03-14 오후 4:47:00 Settings System Initial Settings Lets you re-run the Initial Settings procedure. See page 22 for details. You can connect a wireless USB keyboard or mouse to the USB port on the rear of the product. Keyboard Settings: Lets you configure a wireless USB keyboard connected to the product. | NOTE | You can use the keyboard only when a QWERTY keyboard screen or window appears in the Web Browser. Mouse Settings: Lets you configure a wireless USB mouse connected to the product. You can use the mouse in the product's menu in the same way you use a mouse on your PC. Device Manager To use a mouse with the product's menu: 1 . Connect the USB mouse to the product. 2 . Click the primary button you selected in Mouse Settings. The Simple Menu appears. 3 . Click the menu options you want. | NOTE | Depending on the model of the USB HID keyboard and mouse may not be compatible with your product. Some HID keyboard keys may not work. Wired USB keyboards are not supported. Some applications may not be supported. If a wireless HID Keyboard does not operate because of interference, move the keyboard closer to the product. Anynet+ (HDMI-CEC) Anynet+ is a convenient function that offers linked operations with other Samsung products that have the Anynet+ feature and lets you control those products with one Samsung TV remote. To operate this function, you must connect this product to an Anynet+ Samsung TV using an HDMI cable. Language You can select the language you prefer for the On-Screen menu, disc menu, subtitles, etc.

• The language you select for the disc menu, disc audio, or subtitles will only appear if it is supported on the disc. | 28 English HT-ES6200_XU_0314.indd 28 2012-03-14 오후 4:47:00

Settings Security The default PIN is 0000. Enter the default PIN to access the security function if you haven't created your own password. BD Parental Rating: Prevents playback of Blu-ray Discs with a rating equal to or above a specific age rating you enter unless the PIN is entered. DVD Parental Rating: Prevents playback of DVDs with a rating above a specific numerical rating you select unless the PIN is entered. Change PIN: Change the 4-digit PIN used to access security functions. If you forget your PIN 1 . Remove any disc or USB storage device. 2 . Press and hold the 5 button on the front panel for 5 seconds or more. All settings will revert to the factory settings. | NOTE | When the factory default settings are restored, all the user stored BD data will be deleted. General DivX® Video On Demand Support You can specify the display brightness and time zone. Front Display: Lets you change the brightness of the front panel. Time Zone: You can specify the time zone that is applicable to your area. Menu Transparency: Adjust the transparency of the menu box. View DivX® VOD Registration Codes to purchase and play DivX® VOD contents. Software Update For more information about the Software Update function, see "Upgrading Software" on page 34. Contact Samsung Provides contact information for assistance with your product. Remote Management When activated, lets Samsung Call Centre agents diagnose and fix problems with the product remotely. Requires an active Internet connection. Remote Management service might not be available in some countries. Reset All settings will revert to the default except for the network and Smart Hub settings. The default security password is 0000. English HT-ES6200_XU_0314.indd 29 29 | 2012-03-14 오후 4:47:01 Settings Networks and the Internet When you connect this product to a network, you can use network based applications and functions such as Smart Hub and BD-LIVE, and upgrade the product's software through the network connection. For more information about accessing and using Internet services, see the Network Services chapter of this manual on pages 50~52. Instructions for configuring the network connection start below.

Wired - Manual If you have a static IP address or the Automatic procedure does not work, you'll need to set the Network Settings values manually. After following Steps 1 to 3 above: 1 · Select Start in the Network Settings screen, and then press the E button. The Network Status screen appears. The product attempts to verify the network connection and fails. Configuring Your Network Connection Before you begin, contact your ISP to find out if your IP address is static or dynamic. If it is dynamic, and you have a wired or wireless network, we recommend using the Automatic configuration procedures described below. If you are connecting to a wired network, connect the product to your router using a LAN cable before you start the configuration procedure. If you are connecting to a wireless network, disconnect any wired network connection before you begin. To begin configuring your network connection, follow these steps: 1 · In the Home screen, select Settings, and then press the E button. 2 · Select Network, and then press the E button. 3 · Select Network Settings, and then press the E button. 4 · Go to the instructions for Wired networks starting below or the instructions for Wireless networks starting on page 31. Wired Network

Wired – Automatic After following Steps 1 to 3 above: 1 · Select Start in the Network Settings screen, and then press the E button. The product detects the wired connection, verifies the network connection and then connects to the network. Network Settings Wired network connection failed. MAC Address IP Address Subnet Mask Gateway DNS Server XX:XX:XX:XX:XX:XX

Unable to connect to the network. Try the following: check if your IP address is set correctly in IP Settings. Contact your Internet service provider for more information. Previous IP Settings Retry

2 . Select IP Settings on the right of the screen, and then press E button. The IP Settings screen appears. 3 . Select the IP Mode field, and then set it to Manual. 4 · Use the number keypad on your remote to enter the Network values. Use the ▲▼◄► buttons on the remote to move from entry field to entry field. | NOTE | You can get these values from your Internet provider. You can also view these values on most Windows computers. For instructions, see "Getting the Network Settings Values." on this page. 5 · When done, highlight OK, and then press E button. The product verifies the network connection and then connects to the network. < Getting the Network Settings Values > You can view your Network Settings values on most Windows computers. To view the Network Settings values, follow these steps:

• Windows XP 1 · Right click the Network icon on the bottom right of the Windows desktop. | 30 English HT-ES6200_XU_0314.indd 30 2012-03-14 오후 4:47:01 2 · In the pop-up menu, click Status. Network Settings Select your wireless router from the list. Refresh Previous

Mirhenge_edu Depending on your Windows version, the information may differ. Wireless Network You can setup a wireless network connection in three ways: - Wireless Automatic - Wireless Manual - WPS(PBC) When you configure the wireless network connection, any wireless network devices currently connected through the product or, if applicable, the product's current wired connection, will be disconnected.

Wireless (General) - Automatic After following Steps 1 to 3 in "Configuring Your Network Connection" on page 30. 1 · Select Start in the Network Settings screen, and then press the E button. The product searches for and then displays a list of the available networks. Next Cancel SO070VOIP 1 · Click the Network icon on the bottom right of the Windows desktop. | NOTE | WPS(PBC) JSY

• Windows 7 4 · On the Support tab, click the Details button. The Network settings are displayed. Settings ELT 5 · The Network settings are displayed. 3 · On the dialog that appears, click the Local Area Connection or Wireless Network Connection depending on your network connection. 1/10 iptime23 4 · On the Support tab, click the Details button. 2 · In the pop-up menu, click Network and Sharing Centre.

3 · On the dialog that appears, click the Support tab. 2 · Select the desired network, and then press the E button. 3 · Select Next, and then press the E button again. 4 · On the Security screen, enter your network's Security Code or Pass Phrase. Enter numbers directly using the number buttons on your remote control. Enter letters by selecting a letter with an arrow button, and then pressing E button. 5 · When done, select Next at the right of the screen. The product verifies the network connection and then connects to the network. | NOTE | You should be able to find the Security Code or Pass Phrase on one of the set up screens you used to set up your router or modem.

Wireless (General) - Manual If you have a static IP address or the Automatic procedure does not work, you'll need to set the Network Settings values manually. After folloiwng Steps 1 to 3 in "Configuring Your Network Connection" on page 30. 1 · Select Start in the Network Settings screen, and then press the E button. The product searches for and then displays a list of the available networks. 2 · Select the desired network or the Add Network, and then press the E button. 3 · Select Next, and then press the E button again. English HT-ES6200_XU_0314.indd 31 31 | 2012-03-14 오후 4:47:02 Settings 4 · If you select the Add Network, enter your wireless router's name to connect. Enter numbers directly using the number buttons on your remote control. Enter letters by selecting a letter with the ▲▼◄► buttons, and then pressing the E button. Select Next, and then press the E button again. You can select security type, and then select Next, and then press the E button again. 5 · On the Security screen, enter your network's Security Code or Pass Phrase. Enter numbers directly using the number buttons on your remote control. Enter letters by selecting a letter with the ▲▼◄► buttons, and then pressing the E button. 6 · When done, select Next at the right of the screen, and then press the E button. 7 · The Network Status screen appears. The product attempts to verify the network connection and fails. 8 · Select IP Settings on the right of the screen, and press the E button. The IP Settings screen appears. 9 · Select the IP Mode field, and then set it to Manual. 10 · Use the number keypad on your remote to enter the Network values. Use the ▲▼◄► buttons on the remote to move from entry field to entry field. | NOTE | You can get these values from your Internet provider. You can also view these values on most Windows computers. For instructions, see "Getting the Network Settings Values." on page 30. 11 · When done, highlight OK, and then press E button. The Network Status screen appears. The product verifies the network connection and then connects to the network. When it is done, highlight OK, and then press E button.

Network Settings Select your wireless router from the list. Refresh ELT After following Steps 1 to 3 in "Configuring Your Network Connection" on page 30. WPS(PBC) JSY Previous

Next Mirhenge_edu Cancel SO070VOIP 2 · Select WPS(PBC), and then press the E button. 3 · Press the WPS(PBC) button on your router within two minutes. Your product automatically acquires all the network settings values it needs and connects to your network. The Network Status screen appears. The product connects to the network after the network connection is verified. Wi-Fi Direct The Wi-Fi Direct function allows you to connect Wi-Fi Direct devices to the product and each other using a peer-to-peer network, without a wireless router. 1 · Turn on the Wi-Fi direct device and activate its Wi-Fi Direct function. 2 · In the Home screen, select Settings, and then press the E button. 3 · Select Network, and then press the E button. 4 · Select Wi-Fi Direct, and then press the E button. The Wi-Fi Direct devices that you can connect appear. Wi-Fi Direct WPS(PBC) One of the easiest ways to set up the wireless network connection is using the WPS(PBC) function. If your wireless router has a WPS(PBC) button, follow these steps: 1/10 iptime23 Device Name : [HTS]ES6200 Display Select your Wi-Fi Direct device to connect to. Audio AndroidXXXXXXX Disconnected Network Refresh System Close Support m Move " Enter ' Return 1 · Select Start in the Network Settings screen, and then press the E button. | 32 English HT-ES6200_XU_0314.indd 32 2012-03-14 오후 4:47:03 5 · You have three ways to complete the Wi-Fi connection: Through the Wi-Fi Device 1 · On the Wi-Fi device, follow the procedure on the device for connecting to another Wi-Fi Direct device. See the device's user manual for instructions. 2 · When you have completed the procedure, you should see a pop-up on your TV screen saying that a device that supports Wi-Fi Direct has requested to connect. Select OK, and then press the E button to accept. 3 · The Connecting pop-up appears, followed by the Connected pop-up. When it closes, you should see the device listed on the Wi-Fi Direct screen as connected. Through the Product Using PBC 1 · Select the Wi-Fi Direct device you want to connect to this product, and then press the E button. The PBC/PIN pop up appears. 2 · Select PBC, and then press the E button. The PBC pop-up appears. 3 · Press the PBC button on the Wi-Fi Direct device within 2 minutes. 4 · The Connecting pop-up appears, followed by the Connected pop-up. When it closes, you should see the device listed on the Wi-Fi Direct screen as connected. Through the Product Using a PIN 1 · Select the Wi-Fi Direct device you want to connect to this product, and then press the E button. The PBC/PIN pop up appears. 2 · Select PIN, and then press the E button. The PIN pop-up appears. 3 · Note the PIN code in the pop-up, and then enter it into the appropriate field in the Wi-Fi Direct device you want to connect. 4 · The Connecting pop-up appears, followed by the Connected pop-up. When it closes, you should see the device listed on the Wi-Fi Direct screen as connected. Soft AP Soft AP lets you connect other Wi-Fi devices to your network through the product and lets them access the Internet. It requires that you create a security key which you must enter into the other Wi-Fi devices when you are connecting them to the network. 1 · In the Home screen, select Settings, and then press the E button. 2 · Select Network, and then press the E button. 3 · Select Soft AP, and then press the E button. 4 · Select On or Off, and then press the E button. < To Set the Soft AP Security Key > 1 · On the Soft AP screen, select Security Key, and then press the E button. The Security Key screen appears. 2 · On the Security key screen, enter a security key. Enter numbers directly using the number buttons on your remote control. Enter letters by selecting a letter with the ▲▼◄► buttons, and then pressing the E button. 3 · When done, use the ▲▼◄► buttons to move to DONE at the bottom of the screen, and then press the E button. When you connect a Wi-Fi device through the connection procedure on the device, you must enter the security key you created here into the appropriate field. AllShare Settings The AllShare Settings screen lists your network connected AllShare devices and their IP addresses. Through this screen, you can allow a device to access the product, deny access, or delete the device from the AllShare list. 1 · In the Home screen, select Settings, and then press the E button. 2 · Select Network, and then press the E button. English HT-ES6200_XU_0314.indd 33 Settings Each is covered below. The wired or wireless network connection will be disconnected when you use the Wi-Fi Direct function.

• Through the Wi-Fi device.
• Through the product using PBC.
• Through the product using a PIN. | NOTE | 33 | 2012-03-14 오후 4:47:09 Settings 3 · Select AllShare Settings, and then press the E button. 4 · Select a device, and then press the E button. The AllShare Settings pop-up appears. 5 · Select Allow, Deny, or Delete from List, and then press the E button. The AllShare Settings screen only displays devices if you have established networked connections to AllShare devices. For more information about AllShare networked devices, see pages 36~37. Upgrading Software The Software Update menu allows you to upgrade the product’s software for performance improvements or additional services.
• Never turn the product off or back on manually during the update process. Online Your product must be connected to the Internet to use the Online function. 1 · Select Online, and then press the E button. The Connecting to Server message appears. 2 · If there is a download available, the Download pop-up appears with a progress bar and the download starts. 3 · When the download is complete, the Upgrade Query window appears with three choices: Update now, Update later or Don’t update. 4 · If you select Update now, the product upgrades the software, turns off, and then turns on automatically. 5 · If you do not make a selection in one minute or select Update later, the product stores the new upgrade software. You can upgrade the software later using the By downloaded function. 1 · In the Home menu, select the Settings, and then press the E button. 6 · If you select Don’t update, the product cancels the upgrade. 2 · Select Support, and then press the E button. By USB 3 · Select Software Update, and then press the E button. 1 · Visit www.samsung.com. 4 · Select one of the following methods:
• Online 3 · Enter the product's model number into the search field, and then click Find Product.

• By downloaded 5 · Click Firmware in the centre of the page.

• Standby Mode Upgrade 6 · Click the ZIP icon in the File column on the right side of the page. 5 · Press the E button. Directions for each method begin below. | NOTE | The upgrade is complete when the product turns off, and then turns on again by itself. Samsung Electronics takes no legal responsibility for product malfunction caused by an unstable Internet connection or consumer negligence during a Software Update. If you want to cancel the upgrade while the upgrade software is downloading, press the E button. 7 · Click OK in the pop-up that appears to download and save the firmware file to your PC. 8 · Unzip the zip archive to your computer. You should have a single folder with the same name as the zip file. 9 · Copy the folder to a USB flash drive. 10 · Make sure no disc is inserted in the product, and then insert the USB flash drive into the USB port of the product. | 34 English HT-ES6200_XU_0314.indd 34 2012-03-14 오후 4:47:09 11 · In the product’s menu, go to Settings > Support > Software Update. There should be no disc in the product when you upgrade the software using the USB Host jack. When the Software Update is done, check the software details in the Software Update menu. Do not turn off the product during the Software Update. It may cause the product to malfunction. 1 · If upgrade software has been downloaded, you will see the software version number to the right of By downloaded. 2 · Select By downloaded, and then press the E button. Software Updates using the USB Host jack must be performed with a USB flash memory stick only. 3 · The product displays a message asking if you want to upgrade. Select Yes. The product begins the upgrade. By Disc 4 · When the update is complete, the product turns off automatically, and then turns on. 1 · Visit www.samsung.com. 2 · Click SUPPORT on the top right of the page. 3 · Enter the product's model number into the search field, and then click Find Product. 4 · Click Get downloads in the centre of the page below the Downloads header. 5 · Click Firmware in the centre of the page. 6 · Click the ZIP icon in the File column on the right side of the page. 7 · Click OK in the pop-up that appears to download and save the firmware file to your PC. 8 · Unzip the zip archive to your computer. You should have a single .RUF file. 9 · Write the RUF file onto a disc. We recommend a CD-R or DVD-R. 10 · Finalise the disc before you remove it from your computer. | NOTE | When the system upgrade is done, check the software details in the Software Update menu. Do not turn off the product during the Software Update. It may cause the product to malfunction. Standby Mode Upgrade You can set the Standby Mode Upgrade function so that the product downloads new upgrade software when it is in Standby mode. In Standby mode, the product is off, but its Internet connection is active. This allows the product to download upgrade software automatically, when you are not using it. 1 · Press the ▲▼ buttons to select Standby Mode Upgrade, and then press the E button. 13 · Select By Disc. 2 · Select On or Off. If you select On, the product will automatically download new upgrade software when it is in Standby mode with the power off. If it downloads new upgrade software, the product will ask you if you want to install it when you turn the product on. | NOTE | | NOTE | When the system upgrade is done, check the software details in the Software Update menu. To use Standby Mode Upgrade function, your product must be connected to the Internet. Do not turn off the product during the Software Update. It may cause the product malfunction. If this function does not appear, you can upgrade to the latest software and use it. 11 · Insert the disc into the product. 12 · In the product’s menu, go to Settings > Support > Software Update. English HT-ES6200_XU_0314.indd 35 Settings | NOTE | The By downloaded option lets you upgrade using a file the product downloaded earlier but you decided not to install immediately.

12 · Select By USB. By downloaded 35 | 2012-03-14 오후 4:47:10 Media Play Your Blu-ray product can play Disc and USB contents and the contents located on your PC, DLNA compatible mobile phone, or NAS using the AllShare Play function. For more information about AllShare Play, refer to page 39. The AllShare Play Screen

• Use the ◄► buttons to select an item, press the TOOLS button to display the Tools menu, select Play, and then press the E button. To view or play another item, press the RETURN (') button, and then repeat the process described in the first sentence.

Playing Video, Photo, or Music Content To access the AllShare Play screen, select the AllShare Play icon on the Main screen, and then press the E button. 1 · Make sure that the source of the content you want to play or view is connected to or inserted into the product. Using the AllShare Play Screen 2 · Use the ▲▼ buttons to select Videos, Photos, or Music, and then press the E button. The first source selection on the right side is highlighted. AllShare Play / My list / Recently played My List Videos 3 · Use the ▲▼ buttons to select the source of the content, and then press the E button. Recently played files will be displayed here. What's new Recently updated 09.Jan.2012 View More Photos SAM_0001 SAM_0002 SAM_0003 SAM_0004 SAM_0005 Playlist Music Sources displayed for each content type may differ. No playlists have been created. Create a playlist to access your content quickly and easily. a Login ' Return When the AllShare Play screen appears, it displays My List and a list of content types - Videos, Photos, and Music - on the left side. On the right, it displays, by default, the content in My List: a list of recently played or viewed items, a list of the newest items you have viewed or listened to, and your most recent Playlist. If you have never played or viewed any items, or created a Playlist, this area will be empty.

| NOTE | Playing My List Items To play displayed My List items, you must have the source of the items connected to or inserted in the product. For example, if recently played My List photos came from a DVD disc, you must have that disc in the product to view them. 4 · To control the playing of Videos, Photos, or Music, see:

• Controlling Video Playback on page 41.
• Controlling Music Playback on page 43.
• Playing Photo Contents and Using the Tools Menu when a File is Highlighted on pages 44~47. | NOTE | Depending on how and when you attach a content source to the product and the content type, the product may display a different series of screens to start playback. For alternative playback methods see:
• Playing Files on a USB Storage Device or iPod/iPhone on page 37.
• Playing Commercial Video Discs on page 38.
• Playing Commercial Audio Discs on page 38.
• Playing a Disc with User Recorded Content on page 39. To play or view My List items, perform one of the actions below:
• Use the ◄► buttons to select an item you want to view or play, and then press the E button. To view or play another item, press the RETURN (') button, and then repeat the process described in the first sentence. | 36 English HT-ES6200_XU_0314.indd 36 2012-03-14 오후 4:47:10 Playing Files on a USB Storage Device or iPod/iPhone 2 · Turn on the product. When the Main screen appears, select AllShare Play > Videos, Photos or Music > Connected Device, and then press the E button. 4 · Using the ▲▼◄► buttons on your remote, select the desired contents. To open a folder, select it, and then press the E button. To play a file, select it, and then press the E button. 5 · Press the RETURN (') button to exit a folder or to return to the Main screen. Media Play 1 · With the product turned off, connect a USB storage device or an iPod/iPhone.

You can play multimedia files located on a connected USB device. 3 · The kind of content you selected on the connected device is displayed. Depending on how the contents is arranged, you will see either folders, individual files, or both. | NOTE | AllShare Play Play videos or music, or view photos from discs or connected devices. Smart Hub Function Settings Safely Remove USB

1 . With the product turned on, connect a USB storage device or an iPod/iPhone. 2-1. When screen below appears, use the ▲▼ buttons to select the kind of content you want to view or play, and then press the E button. AllShare Play New device connected. Play videos orr music, or view photos from discs or conn connected devices. USB DISK To prevent possible damage to the USB memory, you must remove the USB storage device safely using the “Safely Remove USB” function. Press the HOME button to move to the Home menu, select the YELLOW (C) button, and then press the E button. If you insert a disc when playing a USB storage device, the device mode changes to "BD/DVD or CD" automatically. The Photos, Videos menu does not support iPods or iPhones. Only the playback screen will appear on the TV. View other iPod screens on the iPod player. iPod/iPhone Models You Can Use with This Product iPod touch 3rd/2nd/1st generation iPod classic / iPod with video iPod with Click Wheel iPod nano 5th/4th/3rd/2nd generation iPhone 4S / iPhone 4 iPhone 3GS / iPhone 3G / iPhone Videos Photos Music " Enter ' Return Smart Hubb Function Settings Safely Remove USB | NOTE | Even though the product will display all available folders, it will only display files of the content type you selected in Step 2 or 2-1. For example, if you selected music, you will only be able to see music files. You can change this selection using AllShare Play. English HT-ES6200_XU_0314.indd 37 37 | 2012-03-14 오후 4:47:16 Media Play The Function Screen On the Function Screen, you can select the audio and/or video input source to view or listen to. | NOTE | You can also change sources by pressing the Function button in the upper right of the remote. Playing Commercial Audio Discs 1 · Insert a pre-recorded, commercial audio disc into the disc slot with the disc’s label facing forward. The AllShare Play Music screen appears listing the tracks. Playback of the first track starts automatically. AllShare Play / Music / To access the Function Screen, select the Function icon on the Main screen, and then press the E button. Options on the Function Screen To select, highlight an option using the ▲▼ buttons, and then press the E button. Digital In Select to listen to the digital audio source connected to Digital Audio In. 1 / 17 Audio CD ► TRACK 001 03:59 TRACK 002 04:34

Music Screen Controls Repeat one track or all tracks. Play tracks in random order. Playing Commercial Video Discs Display the Equaliser. 1 · Insert a pre-recorded, commercial video disc into the disc slot with the disc's label facing forward. Playback starts automatically. If playback does not start automatically, press the 6 button on your remote or select the AllShare Play option on the Main screen, and then press the E button. See "Playing Video, Photo, or Music Content" on page 36. Adjust the equaliser manually. (Only when equaliser mode is On) | NOTE | The Music Screen controls are only accessible when a track is playing. All controls do not appear at the same time. For more information about playing music, go to "Controlling Music Playback" on page 43. | 38 English HT-ES6200_XU_0314.indd 38 2012-03-14 오후 4:47:22 Playing a Disc with User Recorded Content 2 · Use the ▲▼ buttons to select the type of content you want to view or play - Videos, Photos, or Music - and then press the E button. | NOTE | Even though the product will display folders for all content types, it will only display files of the content type you selected in Step 2. For example, if you selected music, you will only be able to see music files. You can change this selection using AllShare Play. 3 · Use the ▲▼◄► buttons to select the folder containing the content type you selected in Step 2, and then press the E button. 4 · If you selected Music, the AllShare Play Music screen appears listing the music files on the disc. Use the ▲▼ buttons to select the file you want to play, and then press the E button. 5 · If you selected Photos, the AllShare Play Photos screen appears listing the photos on the disc. Use the ▲▼◄► buttons to select the photo you want to view, and then press the Ebutton. 6 · If you selected Videos, the AllShare Play Videos screen appears listing the video files on the disc. Use the ▲▼◄► buttons to select the video you want to watch, and then press the E button. | NOTE | For the Music and Video folders, you can also push the TOOLS button on your remote, and then select Play Folder to play or view all the files in the folder automatically. Select the folder first before pushing the TOOLS button. For more information about playing music, go to Controlling Music Playback on page 43. Using the AllShare Network Function AllShare lets you play Videos, Photos, or Music located on your PC or your DLNA compatible device through the product using a wireless network connection. To Download the AllShare Software To use AllShare with your PC or DLNA device, you must install AllShare software on your PC. You can download the PC software and get detailed instructions for using AllShare from the Samsung.com website. 1 · Go to www.samsung.com. 2 · Click Support at the top of the page. 3 · On the Support page, enter the model number of your product into the Model Number field. 4 · On the page that appears, click Get downloads on the left side under Downloads. The Download Centre appears. 5 · On the Download Centre page, click the Software tab. 6 · On the software tab, click the File icon on the right side of the AllShare line. 7 · In the pop-up that appears, click Save File. 8 · Find the AllShare install file on your disk, and then double click the file. 9 · In the pop-up that appears, click Run, and then follow the directions that appear on your screen. Download the AllShare Installation/Instruction manual from the same Software Tab by clicking the corresponding PDF file symbol in the File column on the right. The file, in PDF format, will download and open. You can view and/or save the file. English HT-ES6200_XU_0314.indd 39 Media Play 1 · Insert a user recorded disc into the disc slot with the disc’s label facing forward. The Device Connected pop-up appears. For more information about playing video contents, go to Controlling Video Playback on page 41.

You can play multimedia files you have recorded on DVD or CD discs. For more information about playing photo contents, go to Playing Photo Contents and Using the Tools Menu when a File is Highlighted on pages 44~47. 39 | 2012-03-14 오후 4:47:27 Media Play Playing Content Located on Your PC or DLNA Device through the Product Controlling the Playback of Content Located on Your PC with Your Smart Phone Product

Play back PC's files AllShare Connection 1 · Connect the product, your PC, and/or your DLNA compatible cell phone to the same wireless network. 2 · Follow the directions in the AllShare software Installation/Instruction manual to set up devices and files for playing or viewing. 3 · Select AllShare Play in the product's Home screen, and then press the E button. The AllShare Play screen appears. 4 · Select the connected DLNA compatible device or your PC, and then press the E button. A screen listing the available files appears. 5 · Select the file you want to play or view, and then press the E button. AllShare Connection Play back PC's files Control PC's files to Product Smart Phone (Only available with Samsung phones supporting AllShare functionality.) 1 · Connect the product, your PC, and your DLNA compatible cell phone to the same wireless network. 2 · Follow the directions in the AllShare software Installation/Instruction manual to set up devices and files for playing or viewing. 3 · On your computer, using the AllShare software, confirm your phone is connected. 4 · On the phone, select the file you want to view or play, and then select the Blu-ray product as the playback device. 5 · On the phone, start playback. | 40 English HT-ES6200_XU_0314.indd 40 2012-03-14 오후 4:47:28 Controlling Video Playback You can control the playback of video files located on Blu-ray, DVD, and CD discs, and on USB storage devices. Depending on the disc, some of the functions described in this manual may not be available.

• If your disc has a playlist, press the GREEN (B) button to go to the playlist. POPUP MENU During playback, press this button to display the Pop-up menu. MUTE FULL SCREEN

HOME REPEAT Repeat Playback 1 · During playback, press the REPEAT button on the remote control. 2 · Press the ▲▼ buttons to select a Chapter, All or Title, then press the E button. | NOTE | Repeat a Title The screen may not display Chapter or Title or Chapter immediately. Continue to press the ▲▼ buttons until your choice is inside the blue field. 3 · To return to normal play, press the REPEAT button again, press the ▲▼ buttons to select Off, and then press the E button. 1 · During playback, press the REPEAT button on the remote control. 2 · Press the ▲▼ buttons to select Repeat A-B. | NOTE | Repeat a Section The screen may not display Repeat A-B immediately. Continue to press the ▲▼ buttons until Repeat A-B is inside the blue field. 3 · Press the E button at the point where you want repeat play to start (A). 4 · Press the E button at the point where you want repeat play to stop (B). 5 · To return to normal play, press the REPEAT button again. 6 · Press the E button. | NOTE | DISC MENU or During playback, press this button to TITLE MENU display the title list.

Playback related buttons The product does not play sound in Search, Slow, or Step mode.

Pauses playback. Fast Motion Play During playback, press the 3 or button. Each time you press the 3 or button, the playback speed will change. Slow Motion Play In pause mode, press the button. Each time you press the button, the playback speed will change. Step Motion Play In pause mode, press the 7 button. Each time you press the 7 button, a new frame appears. Skip Motion Play During playback, press the 1 or 2 button. Each time you press 1 or 2 button, the disc moves to the previous or next chapter or file. You must set point (B) at least 5 seconds of playing time after point (A). English HT-ES6200_XU_0314.indd 41 41 | 2012-03-14 오후 4:47:32 Media Play Using the TOOLS Menu Menu that appears only when BD/DVD disc During playback, press the TOOLS button. plays Title Search Time Search Select to move to a desired title if the disc has more than one title, to a desired scene, or, using Time Search, to a specific point in a movie or video. With Time Search, you designate the specific point by entering a time coordinate in the following format 00:00:00 (hours, minutes, seconds) using the remote. Repeat Mode Select to repeat a specific Title, Chapter (BD/DVD discs only) or marked section. Works the same as the REPEAT button. See page 41. Full Screen Select to set the desired full screen size. You can select Original, Mode1 (larger), and Mode2 (largest). Picture Mode Select to set the picture mode. - Dynamic : Choose this setting to increase sharpness. - Standard : Choose this setting for most viewing applications. - Movie : This is the best setting for watching movies. - User : Lets you adjust the sharpness and noise reduction function respectively. | NOTE | Play from the beginning Select to play the movie from the beginning. Chapter Search Select to move to a chapter that you desire to watch. Audio Select to set the desired audio language. - You can also operate this function by pressing the AUDIO button on the remote control. Subtitle Select to set the desired subtitle language. - You can also operate this function by pressing the SUBTITLE button on the remote control. Angle To view a scene from another angle. The Angle option displays the number of angles available to view (1/1, 1/2, 1/3, etc.). BONUSVIEW Video / BONUSVIEW Audio Select to set the desired bonusview option. Menu that appears only when a file plays Go to Videos List Move to video list screen. Scene Search Search the video file by the scene. Information Check the video file's information. When you select User, the User Settings screen appears. Select an option, press E, use the ◄► buttons to make an adjustment, and then press E. Press the RETURN (') button to go back to the TOOLS menu. | NOTE | When you use the BD wise function, this menu will not appear. Depending on the disc or storage device, the Tools menu may differ. All options may not be displayed. Equaliser Mode Select to use the Equaliser. Select to set the Equaliser. Equaliser Settings | NOTE | It only appears when equaliser mode is on. | 42 English HT-ES6200_XU_0314.indd 42 2012-03-14 오후 4:47:34 Shuffling Tracks on an Audio CD Controlling Music Playback Buttons on the Remote Control used for Music Playback 1 · During playback, use the ► button to select in the lower right corner of the screen, and then press the E button. RDS DISPLAY

PTY- Media Play You can set the product to play tracks on an audio CD (CD-DA/MP3) at random.

You can control the playback of music content located on a DVD, CD, or a USB storage device.

Fast Play (Audio CD (CD-DA) only) During playback, press the 3 or button. Each time you press the 3 or button, the playback speed will change. 2 7 button : Pause a track. 3 6 button : Plays the currently selected track. 4 5 button : Stops a track. Skip : During playback, press the 1 or 2 button 5 to move to the previous or next music of listed. NUMBER buttons : During Playlist playback, press 6 the desired track number. The selected track is played. Repeating Tracks on an Audio CD You can set the product to repeat tracks on an audio CD (CD-DA/MP3). 1 · During playback, use the ► button to select in the lower right corner of the screen, and then press the E button. 2 · Use the ▲▼ to select the repeat mode you want - Off, One Song, or All - and then press the E button. 1 / 17 Audio CD ► TRACK 001 03:59 TRACK 002 04:34

TRACK 003 04:24 TRACK 004 04:01 TRACK 005 04:26 TRACK 006 05:07 TRACK 007 04:47 TRACK 008 03:59 TRACK 009 04:34 TRACK 010 04:02 ٭TRACK 001 00:00 / 03:59 b Page Move / Tools ' Return 1 · With the Playback screen displayed, press the TOOLS button. The Tools menu appears. 2 · Use the ▲▼ buttons to select Play selection, and then press the E button. The Play selection screen appears. 3 · Use the ▲▼ buttons to select a track, and then press the E button. A check appears to the left of the track. 4 · Repeat Step 3 to select and check additional tracks. 5 · To remove a track from the list, move to the track, and then press the E button again. The check on the track is removed. 6 · When done, press the ► button to select Play, and then press the E button. The Music Playback screen reappears listing only the tracks you checked. The selected tracks play automatically. | NOTE | You can create a playlist with up to 99 tracks on Audio CDs (CD-DA). If you have created a playlist, Play selection is replaced by Edit playlist on the Tools menu. On the Play selection screen, you can also choose Select All, Deselect All, and Cancel. English HT-ES6200_XU_0314.indd 43 43 | 2012-03-14 오후 4:47:35 Media Play

• Use Select All to select all tracks. This cancels your individual track selections. When you press the RETURN (') button on your remote or select PLAY and then press the E button, all tracks will appear on the Music Playback screen, and the product will begin to play all tracks from Track 001. | NOTE |

• Use Deselect All to deselect all selected tracks at once. Then, select individual tracks or use Select All to select all the tracks, and then press the RETURN (') button on your remote or select PLAY and then press the E button. If you do not use Select All or select individual tracks, the Playlist will not change. You can play photo contents located on a DVD, USB, mobile device or PC.

• Cancel cancels any changes you made on the Play Select screen. When you return to the Playback screen, the Playlist will be unchanged. Ripping You can rip music from a music CD to a USB device inserted in the USB jack. 1 · Insert a USB device into the USB jack on the rear of the product, and then press the RETURN (') button on your remote. 2 · Insert the disc you want to rip from into the product. 3 · With the Playback screen displayed, press the TOOLS button. The Tools menu appears. 4 · Use the ▲▼ buttons to select Rip, and then press the E button. The Rip screen appears. 5 · Use the ▲▼ buttons to select a track, and then press the E button. A check appears to the left of the track. 6 · Repeat Step 5 to select and check additional tracks. 7 · To remove a track from the list, move to the track, and then press the E button again. The check on the track is removed. 8 · When done, press the ► button to select Rip, and then press the E button. The Rip pop-up appears. 9 · Press the E button to begin the ripping process. The Ripping Completion Bar pop-up appears. 10 · When ripping is complete, the “Ripping completed.” message appears. Press the E button. 11 · Press the RETURN (') button to go back to the Playback screen. When Ripping is done, a folder called MP is created in the USB. Playing Photo Contents Using the Tools Menu During playback, press the TOOLS button. Go to Photos List Select to go to the list of photos on the current media. Start Slide Show Select to start the slide show. Slide Show Speed Select to set a slide show's speed. Slide Show Effect Select to set a slide show's special effects. Background Music On Select to listen to music while viewing a slide show. Background Music Setting Select to set the background music setting. Picture Mode Select to set the picture settings. - Dynamic : Choose to increase Sharpness. - Standard : Choose for most viewing applications. - Movie : This is the best setting for watching movies. - User : Lets you adjust the sharpness and noise reduction function respectively. | NOTE | When you use the BD wise function, this menu will not appear. Zoom Select to enlarge the current picture. (Enlarge up to 4 times) Rotate Select to rotate the picture. (This will rotate the picture either clockwise or counter clockwise.) Information Shows the picture information. | 44 English HT-ES6200_XU_0314.indd 44 2012-03-14 오후 4:47:41 | NOTE | To enable the background music function, the photo file must be in the same storage media as the music file. However, the sound quality can be affected by the bit rate of the MP3 file, the size of the photo, and the encoding method. Monthly Appears on the View function screen. Select to sort all photo or video files on a storage device by the month created. Play selection lets you select specific music, video, and photo files to play. It works essentially the same for all media. The example below is for photos. You can't enlarge the subtitle and PG graphic in the full screen mode. Using the Tools Menu when a File is Highlighted

1. On the Thumbnail View screen,

highlight a photo, and then press the TOOLS button on the remote. When a file is highlighted, press the TOOLS button. View Select to access the sort options: Artist, Genre, Monthly, Latest Date, etc. The sort options that appear depend on the storage and media type. Folder view Appears in the View function screen. Select to display the folders on the storage device. Title Appears on the View function screen. Select to sort all photo or video files on a storage device by title. Artist Appears on the View function screen. Select Artist to sort and then display all music tracks on a storage device by artist. Album Appears on the View function screen. Select Album to sort and then display all music tracks on a storage device by album. Genre Appears on the View function screen. Select Genre to sort and then display all music tracks on a storage device by genre. Latest Date Appears on the View function screen. Select to sort and then display all photo or video files on a storage device from the latest to earliest date.

2. In the Tools menu, select Play

selection, and then press the E button.

3. On the selection screen, use the

▲▼◄► buttons to select a photo you want to view, and then press the E button. A check mark appears to the left of the picture.

4. Repeat Step 3 for each photo you

want to view. Play selection

5. To de-select a photo, highlight it,

and then press the E button.

6. When done, use the ◄► buttons

to select Play, and then press the E button. A slide show containing the photos you selected begins.

7. To pause the slide show, press the

E button once. To restart the slide show, press the E button again.

8. To stop the slide show, press the

RETURN (') button. | NOTE | After the slide show begins, you can control the slide show by pressing the TOOLS button and displaying the Slide Show menu. See " Using the Tools Menu" page 44. English HT-ES6200_XU_0314.indd 45 Media Play Earliest Date Appears on the View function screen. Select to sort and then display all photo or video files on a storage device from the earliest to latest date.

Depending on the disc or storage device, the Tools menu may differ. All options may not be displayed. 45 | 2012-03-14 오후 4:47:41 Media Play

• Select Create new, and then press the E button. On the keyboard pop-up that appears, create a name for the new playlist. Enter numbers using the numbers on the remote. Enter letters by using the ▲▼◄► buttons to move the cursor, and then pressing the E button. When finished, move to DONE at the bottom of the screen, and then press the E button. Select Send to upload selected files to Picasa, Facebook, Cloud Storage, N Drive, or Family Story. To use Send, you need to establish an account with the on-line site, and then log in using the Log In function.

1. Use the ▲▼◄► buttons to

select a file, and then press the E button. Send

2. Repeat for each track or file you

want to upload. | NOTE | You can also move to Select All on the right, and then press the E button to select all tracks or files. Depending on the screen you are viewing, select Delete to erase a file Delete (Playlist) from erasable media (such as a USB device) or to delete a playlist. Select Edit playlist to remove files or tracks from an existing playlist. The storage device containing the playlist must be inserted into or attached to the product.

3. Select Send on the right side, and

then press the E button.

4. Use the ▲▼ buttons to select the

on line site you want to upload the files or tracks to, and then press the E button. Login / Out The Log In/Out function lets you log in to your online Samsung account. Edit playlist Select to create a playlist or add files or tracks to a playlist. You can also move to Select All on the right, and then press the E button to select all tracks or files.

3. Select Remove on the right side,

and then press the E button.

3. Repeat for each track or file you

4. Select Add on the right, and then

5. On the screen that appears,

perform one of the following actions:

• Select the Playlist to which you want to add the tracks or files and then press E button.

2. Repeat for each track or file you

want to remove. | NOTE |

1. Select Add to Playlist, and then

select a file, and then press the E button. Play Current Group After you have sorted by Artist, Genre, Album,Title, Latest Date, Earliest Date, or Monthly, select a group that is the result of the sort (for example, all pictures taken in August), and then select Play Current Group to play or view the files in that group only. Go to Playlist Select to go to the Playlist section of the Main AllShare screen. | 46 English HT-ES6200_XU_0314.indd 46 2012-03-14 오후 4:47:42 Displays media file and content information. | NOTE | Depending on the disc or storage device, the Tools menu may differ. All options may not be displayed. Listening to Radio Using Buttons on the Remote Control Example : Presetting FM 89.10 into memory. 1 · Press the FUNCTION button to select FM. Media Play Information Presetting Stations

Encoding Encoding - which changes by language or by geographical area - modifies how the product sorts, arranges, and presents files or tracks, displays dates, etc. Select Encoding to change the encoding to match your language or geographical area. 2 · Press the TUNING/CH (,.) button to select <89.10>. 3 · Press the TUNER MEMORY button.

• NUMBER flashes on the display. 4 · Press the TUNER MEMORY button again.
• Press the TUNER MEMORY button before NUMBER disappears from the display on its own.
• After you press the TUNER MEMORY button, NUMBER disappears from the display and the station is stored in memory. 5 · To preset another station, repeat steps 2 to 4.
• To tune in to a preset station, press the TUNING/CH (,.) button. 1 · Press the FUNCTION button to select FM. 2 · Tune in to the desired station.
• Preset Tuning 1 : Press the 5 button to select PRESET and then press the TUNING/CH (,.) button to select the preset station. - Before you can tune to preset stations, you must add preset stations to the product's memory.
• Manual Tuning : Press the 5 button to select MANUAL and then press the TUNING/CH (,.) button to tune in to a lower or higher frequency.
• Automatic Tuning : Press the 5 button to select MANUAL and then press and hold the TUNING/CH (,.) button to automatically search the band. Setting Mono/Stereo Press the MO/ST button.
• Each time the button is pressed, the sound switches between STEREO and MONO.
• In a poor reception area, select MONO for a clear, interference-free broadcast. About RDS Broadcasting Using the RDS (Radio Data System) to receive FM stations RDS allows FM stations to send an additional signal along with their regular program signals. For example, the stations send their station names, as well as information about what type of program they broadcast, such as sports or music, etc. When tuned to an FM station which provides the RDS service, the RDS indicator lights up on the display. Description on RDS function
• PTY (Program Type) : Displays the type of program currently being broadcast.
• PS NAME (Program Service Name) : Indicates the name of broadcasting station and is composed of 8 characters.
• RT (Radio Text) : Decodes the text broadcast by a station (if any) and is composed of maximum 64 characters. English HT-ES6200_XU_0314.indd 47 47 | 2012-03-14 오후 4:47:42 Media Play
• CT (Clock Time) : Decodes the real time clock from the FM frequency. Some stations may not transmit PTY, RT or CT information therefore this may not be displayed in all cases.
• TA (Traffic Announcement) : TA ON/OFF it shows that the traffic announcement is in progress. PTY (Program Type) indication and | NOTE | To search for a program using the PTY RDS may not operate correctly if the station tuned is not transmitting RDS signal properly or if the signal strength is weak. To show the RDS signals You can see the RDS signals the station sends on the display. Press the RDS DISPLAY button while listening to an FM station.
• Each time you press the button, the display change to show you the following information : PS NAME RT CT Frequency (Program Service) While searching, <PS NAME> appears and then the station names will be displayed. <NO PS> appears if no signal is sent.

(RadioText) While searching, <RT> appears and then text messages the station sends will be displayed. <NO RT> appears if no signal is sent. Frequency Station frequency (non-RDS service) PTY-SEARCH function One of the advantages of the RDS service is that you can locate a particular kind of program from the preset channels by specifying the PTY codes. codes

• The PTY Search is only applicable to preset stations.
• To stop searching any time during the process, press 5 button while searching.
• There is a time limit in doing the following steps. If the setting is cancelled before you finish, start from step 1 again.
• When pressing the buttons on the primary remote control, make sure that you have selected the FM station using the primary remote control.Usin RDS DISPLAY

About characters shown in the display 1 · Press the PTY SEARCH button while listening to an FM station. When the display shows PS,or RT signals,the following characters are used.

• The display window cannot differentiate upper case and lower case letters and always uses upper case letters.
• The display window cannot show accented letters, <A,> for instance, may stands for accented <A’s> like <À, Â, Ä, Á, Å and Ã.> 2 · Press the PTY- or PTY+ button until the PTY code you want appears on the display.
• The display gives you the PTY codes described to the right. 3 · Press the PTY SEARCH button again, while the PTY code selected in the previous step is still on the display.
• The centre unit searches 15 preset FM stations, stops when it finds the one you have selected, and tunes in that station. | 48 English HT-ES6200_XU_0314.indd 48 2012-03-14 오후 4:47:43 Using the Special Effects Remote Control Buttons Playing a 2D video in 3D mode

EFFECT Lets you select a mode that optimizes the sound.

1. Press the SOUND EFFECT button.

2. Press the ▲▼ button to select the desired mode:

3. Press the ◄► buttons to select the desired sound

DSP MP3 Enhancer Power Bass Off You can enjoy an ordinary 2D video in 3D mode. | NOTE | If you move to the Home or Smart Hub Home menu in 3D mode, it will switch to 2D automatically. Media Play SOUND SOUND EFFECT Function vTuner vTuner vTuner is the function of the listening a radio. If you press the vTuner button, you can move to vTuner application. You can use the vTuner Function after download the vTuner application from Samsung Apps.

• MP3 Enhancer : Helps enhance your sound experience (ex. mp3 music). You can upscale your MP3 level sound (24 kHz, 8bit) to CD level sound (44.1 kHz, 16bit).
• Power Bass : Increases the volume level of bass tones and provides thudding sound effects.
• Off : Select this for normal listening.

Sound Mode Virtual Sound Music News Drama Cinema Sports Game Off 3D Sound You can enjoy more natural and vivid surround sound with enriched tones by adjusting the depth of sound using the level options. Off High Medium Low | NOTE | It is not available in FM mode. English HT-ES6200_XU_0314.indd 49 49 | 2012-03-14 오후 4:47:45 Network Services You can enjoy various network services such as Smart Hub or BD-LIVE by connecting the product to your network. Smart Hub at a Glance

To use network services, you must first:

Search 1 · Connect the product to the network. (See page 21) 2 · Configure the network settings. (See pages 30~33)

Using Smart Hub Using Smart Hub, you can download movies, videos, and music from the Internet, and access various for pay or free-of-charge applications and view them on your TV. Application content includes news, sports, weather forecasts, stock market quotes, maps, photos, and games. For instructions that explain how to use Smart Hub, follow these steps: a Login b WallPaper / Tools ' Return

Your Video : Provides recommendations for videos based on your tastes.

Search : Provides an integrated search of your video providers and connected AllShare devices.

Recommended : Displays recommended contents managed by Samsung.

Commercial : Displays the Smart Hub Guide, an introduction to the product, and new application introductions.

Family Story : An effortless way to access family content.

• Provides access to family photos, messages, and events, anytime and anywhere.

Fitness : Gateway to the Unified Self-Care Service.

• Presents fitness videos from various content partners with feedback on calories burned after every workout.

Kids : Kids service gives kids an easy and safe way to enjoy their favourite content.

• Provides a wide variety of fun and safe content for children.

Navigation Help : Displays the remote control buttons you can use to navigate in Smart Hub.

• RED (A) : To log in to Smart Hub.
• GREEN (B) : To display the background screen.
• Tools : To display the settings window.
• Return : To return to the previous menu. 1 · Go to www.samsung.com. 2 · Click Support at the top of the page. 3 · On the Support page, enter the model number of your product into the Model Number field. 4 · On the page that appears, click Get downloads on the left side under Downloads. The Download Centre appears. 5 · On the Download Centre page, click the Manuals tab. 6 · On the Manuals tab, click the file icon to the right of Smart Hub Users Manual. The manual downloads. | NOTE |

The web location of the Smart Hub manual is subject to change without notice. | 50 English HT-ES6200_XU_0314.indd 50 2012-03-14 오후 4:47:45

Samsung Apps : Open Samsung Apps to download various for pay or free-of-charge application services. Web Browser at a Glance

Network Services My Applications : Displays your personal gallery of applications which you can add to, modify, and delete.

http://www.google.com/ Using the Web Browser You can access the internet using the Web Browser application which is installed in the Smart Hub screen by default. Google Search b Control Panel Link Browsing / Tools ' Exit 1 · Select Smart Hub on the Home screen, and then press the E button. 2 · Select the Web Browser application in Smart Hub, and then press the E button. | NOTE | When you run the Web Browser with the product connected by HDMI to a BD Wise compatible TV - and BD Wise is on - the browser is maximized to fill the screen and the TV's resolution is set to the optimal resolution automatically. The Web Browser is not compatible with Java applications. If you attempt to download a file, and the file can not be saved, an error message will appear. The playback of Flash videos is not supported. E-commerce, for purchasing products online, is not supported. ActiveX is not supported. I’m Feeling Lucky

Control Panel : Displays the various Web Browser functions. : Moves to the previous page. : Moves to the last page before going back.

• : Reloads the current page so that it is refreshed on the screen. : Moves to the Home screen of the Web Browser.
• : Allows you to zoom in or out of the screen at various percentages. : Allows you to bookmark specific pages so that you can move to them easily. : Allows you to view the history of your visited pages by date, name, or frequency. http://www.google.com/ : Allows you to enter a page address manually or select a page from the visited page list to move to that page. : Allows you to switch easily between multiple, currently open Web Browser windows. : Allows you to search for information by entering words. : Lets you share the current site with your family group by sending a message. : Allows you to configure all settings for using the Web Browser. English HT-ES6200_XU_0314.indd 51

Navigation Help : Displays the remote control buttons you can use to navigate in Web Browser.

• YELLOW (C) : To search a link.
• Exit : To return to the previous menu. BD-LIVE™ Once the product is connected to your network, you can enjoy various movie-related service contents available on BD-LIVE compliant discs. 1 · Attach a USB memory stick to the USB jack on the rear of the product, and then check its remaining memory. The memory device must have at least 1GB of free space to accommodate the BD-LIVE services. 2 · Select Settings on the Home screen, and then press the E button. 3 · Select Network, and then press the E button. 4 · Select BD-Live Settings, and then press the E button. 5 · Select BD Data Management, and then press the E button. 6 · Select Select Device, and then press the E button. 7 · Select USB, and then press the E button. 8 · Insert a Blu-ray Disc that supports BD-LIVE. 9 · Select an item from the list of BD-LIVE service contents provided by the disc manufacturer. | NOTE | The way you use BD-LIVE and the provided contents may differ, depending on the disc manufacturer. | 52 English HT-ES6200_XU_0314.indd 52 2012-03-14 오후 4:47:48 Appendix Additional Information

• Certain HDMI output resolutions may not work, depending on your TV.
• You must have an HDMI connection to enjoy videos with 3D technology.
• A long HDMI cable may cause screen noise. If this occurs, set HDMI Deep Colour to Off in the menu. Appendix HDMI OUT 3D Settings
• For some 3D discs, to stop a movie during 3D playback, press the 5 button once. The movie stops and the 3D mode option is de-activated. To change a 3D option selection when you are playing a 3D movie, press the 5 button once. The Blu-ray menu appears. Press the 5 button again, then select 3D Settings in the Blu-ray menu.
• Depending on the content and the position of the picture on your TV screen, you may see vertical black bars on the left side, right side, or both sides. TV Aspect
• Depending on the disc type, some aspect ratios may not be available.
• If you select an aspect ratio and option which is different than the aspect ratio of your TV screen, then the picture might appear to be distorted.
• If you select the 16:9 Original, your TV may display 4:3 Pillarbox (black bars on sides of picture). BD Wise (Samsung Products only) Settings

• When BD Wise is on, the Resolution setting automatically defaults to BD Wise and BD Wise appears in the Resolution menu.
• If the product is connected to a device that does not support BD Wise, you can not use the BD Wise function.
• For proper operation of BD Wise, set the BD Wise option in both the product and the TV to On. Digital Output
• Be sure to select the correct Digital Output or you will hear no sound or just loud noise.
• If the HDMI device (AV receiver, TV) is not compatible with compressed formats (Dolby digital, DTS), the audio signal outputs as PCM.
• Regular DVDs do not have BONUSVIEW audio and Navigation Sound Effects.
• Some Blu-ray Discs do not have BONUSVIEW audio and Navigation Sound Effects.
• This Digital Output setup does not affect the analogue (L/R) audio or HDMI audio output to your TV. It affects the optical and HDMI audio output when your product is connected to an AV receiver.
• If you play MPEG audio soundtracks, the audio signal outputs as PCM regardless of your Digital Output selections (PCM or Bitstream). BD-LIVE Internet Connection
• The Internet connection may be restricted while you are using BD-LIVE contents. English HT-ES6200_XU_0314.indd 53 53 | 2012-03-14 오후 4:47:49 Appendix Anynet+ (HDMI-CEC)
• Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV.
• This function is not available if the HDMI cable does not support CEC.
• If your Samsung TV has an Anynet+ logo, then it supports the Anynet+ function. BD Data Management
• In the external memory mode, disc playback may be stopped if you disconnect the USB device in the middle of playback.
• Only those USB devices formatted in the FAT file system (DOS 8.3 volume label) are supported. We recommend you use USB devices that support USB 2.0 protocol with 4 MB/sec or faster read/write speed.
• The Resume Play function may not work after you format the storage device.
• The total memory available to BD Data Management may differ, depending on the conditions. Settings DivX® Video On Demand
• For more information about DivX(R) VOD, visit “http://vod.divx.com”. Speaker Settings
• When Speaker Selection is selected to TV Speaker, audio is produced through TV speakers. HDMI audio
• When HDMI audio output to the TV speaker, it is automatically down-mixed to 2 channels. Audio Return Channel
• When Anynet+ (HDMI-CEC) is Off, the Audio Return Channel function is not available.
• Using an HDMI cable not certified for ARC (Audio Return Channel) may cause a compatibility problem.
• The ARC function is only available if an ARC-compliant TV is connected. Digital Output
• Digital Output can be activated when Speaker Selection is selected to TV Speaker. Playing a Video files
• Video files with high bit rates of 20Mbps or more strain the product’s capabilities and may stop playing during playback. Selecting the Audio Language Playback

• The ◄► indicator will not appear on the screen if the BONUSVIEW section does not contain any BONUSVIEW audio settings.
• The languages available through the Audio Language function depend on the languages that are encoded on the disc. This function or certain languages may not be available.
• Some Blu-ray Discs may allow you to select either the PCM or Dolby digital audio soundtrack in English. | 54 English HT-ES6200_XU_0314.indd 54 2012-03-14 오후 4:47:50 Selecting the Subtitle Language Appendix Playback

• Depending on the Blu-ray Disc / DVD, you may be able to change the subtitle language in the Disc Menu. Press the DISC MENU button.
• This function depends on the selection of subtitles that are encoded on the disc and may not be available on all Blu-ray Discs/DVDs.
• Information about the main feature BONUSVIEW mode will also appear if the Blu-ray Disc has a BONUSVIEW section.
• This function changes both the primary and secondary subtitles at the same time.
• The total number of primary and secondary subtitles are displayed respectively. Playing a JPEG files
• You can’t enlarge the subtitle and PG graphic in the full screen mode. Using the TOOLS button while playing pictures
• If the system is connected to a BD Wise compliant TV that has set BD Wise to On, the Picture Settings menu will not appear.
• The Background Music function will not work unless the music file and the photo file are located on the same storage media. Also, sound quality can be impacted by the bit rate of the MP3 music file, the size of the photos, and the encoding method. Playing back a USB Storage Device AllShare Play

• You must remove the USB storage device safely (by performing the “Safely Remove USB” function) to prevent possible damage to the USB memory. Press the HOME button to move to the Home menu, select the YELLOW (C) button, and then press the E button.
• If you insert a disc when playing a USB storage device, the Function mode is changed to “BD/DVD” automatically. Playing Music
• Adjust the volume to a moderate level before you connect your iPod to the product.
• When the product is on and you connect an iPod, the product will charge the iPod's battery. iPod/iPhone Models You Can Use with This Product iPod

• The volume control may not operate normally with iPod and iPhone models not listed on page

37. If you have a problem with any of the models listed above, please update the software of

the iPod/iPhone to the lastest version.

• Depending on the software version of the iPod, control problems may occur. This is not a malfunction of the Home Cinema.
• Depending on the software version or the type of iPod, some operations may differ. Install the latest iPod software. (recommended)
• Playback of applications' contents through the product is not guaranteed. We recommend playing contents downloaded to the iPod.
• If you have a problem using your iPod, please visit www.apple.com/support/ipod. English HT-ES6200_XU_0314.indd 55 55 | 2012-03-14 오후 4:47:50 Appendix Resolution according to the output mode

576i/480i | 56 English HT-ES6200_XU_0314.indd 56 2012-03-14 오후 4:47:51 Digital Output Selection PCM Bitstream (Re-encoded Dolby D) HDMI supported AV receiver PCM Up to PCM 7.1ch PCM DTS re-encoded Re-encoded Dolby Digital * Dolby Digital Up to PCM 7.1ch Dolby Digital DTS re-encoded Re-encoded Dolby Digital * Dolby Digital Plus Up to PCM 7.1ch Dolby Digital Plus DTS re-encoded Re-encoded Dolby Digital * Up to PCM 7.1ch Dolby TrueHD DTS re-encoded Re-encoded Dolby Digital * Up to PCM 6.1ch DTS DTS re-encoded Re-encoded Dolby Digital * DTS-HD High Resolution Audio Up to PCM 7.1ch DTS-HD High Resolution Audio DTS re-encoded Re-encoded Dolby Digital * DTS-HD Master Audio Up to PCM 7.1ch DTS-HD Master Audio DTS re-encoded Re-encoded Dolby Digital * PCM 2ch PCM 2ch PCM 2ch PCM 2ch Up to PCM 5.1ch Dolby Digital Dolby Digital Dolby Digital Up to PCM 6.1ch DTS DTS DTS Decodes the main feature audio and BONUSVIEW audio stream together into PCM audio and adds Navigation Sound Effects, then re-encodes the PCM audio into DTS bitstream. Decodes the main feature audio and BONUSVIEW audio stream together into PCM audio and adds Navigation Sound Effects, then reencodes the PCM audio into Dolby digital bitstream or PCM. Audio Stream Dolby TrueHD on Blu-ray Disc DTS PCM Audio Stream Dolby Digital on DVD DTS Definition for Blu-ray Disc Bitstream (Re-encoded DTS) Any Decodes the main feature audio and BONUSVIEW audio stream together into PCM audio and adds Navigation Sound Effects. Outputs only the main feature audio stream so that your AV receiver can decode the audio bitstream. You will not hear BONUSVIEW audio or Navigation Sound Effects. Appendix Connection Bitstream (Unprocessed)

• If the Source Stream is 2ch or mono, “Re-encoded Dolby D” Setting are not applied. Output will be PCM 2ch. Blu-ray Discs may include three audio streams : - Main Feature Audio : The audio soundtrack of the main feature. - BONUSVIEW audio : An additional soundtrack such as the director or actor’s commentary. - Navigation Sound Effects : When you choose some menu navigation, Navigation Sound Effects may sound. Navigation Sound Effects are different on each Blu-ray Disc. English HT-ES6200_XU_0314.indd 57 57 | 2012-03-14 오후 4:47:51 Appendix Troubleshooting Refer to the table below when this product does not function properly. If the problem you are experiencing is not listed below or if the instructions below do not help, turn off the product, disconnect the power cord and contact the nearest authorized dealer or Samsung Electronics Service Centre. Symptom Check/Remedy I cannot eject the disc.

• Is the power cord plugged securely into the outlet?
• Turn off the power and then turn it back on. The iPod fails to connect.

• Check the condition of the iPod connector.
• Keep the iPod software version up to date. Playback does not start.

• Check the region number of the Blu-ray/DVD disc. Blu-ray/DVD disc purchased from abroad may not be playable.
• CD-ROMs and DVD-ROMs cannot be played on this product.
• Make sure that the rating level is correct. Playback does not start immediately when the Play/Pause button is pressed.

• Are you using a deformed disc or a disc with scratches on the surface?
• Wipe the disc clean. Sound is not produced.

• The home cinema does not play sound during fast playback, slow playback,and step motion playback.
• Are the speakers connected properly? Is the speaker setup correctly customized?
• Is the disc severely damaged? The remote control does not work.

• Are you operating the remote within its operational range and within the proper angle relative to the sensor?
• Are the batteries drained?
• Have you selected the mode (TV/BD) functions of the remote control (TV or BD) correctly?

• The disc is rotating but no picture is produced.

• Picture quality is poor and picture is shaking. Is the TV power on? Are the video cables connected properly? Is the disc dirty or damaged? A poorly manufactured disc may not be playable. Audio language and subtitles do not work.

• Audio language and subtitles will not work if the disc does not contain them. The menu screen does not appear even when the menu function is selected.

• Are you using a disc that does not contain menus? The aspect ratio cannot be changed.

• You can play 16:9 Blu-ray/DVD discs in 16:9 Full mode, 4:3 Letter Box mode, or 4:3 Pan-Scan mode, but 4:3 Blu-ray/DVD discs are played in 4:3 ratio only. Refer to the Blu-ray Disc jacket and then select the appropriate function. | 58 English HT-ES6200_XU_0314.indd 58 2012-03-14 오후 4:47:52 Symptom

• Press and hold the remote control's 5 button for 5 seconds in STANDBY mode. - Using the RESET function will erase all stored settings. Do not use this unless necessary.

• The product is not working. (Example: The power goes out or a strange noise is heard.) Check/Remedy

• The Product is not working normally. You have forgotten the rating level password.

• With no disc in the product, press and hold the product's 5 button for longer than 5 seconds. INIT appears on the display and all settings will return to the default values. Then, press the POWER button. - Using the RESET function will erase all stored settings. Do not use this unless necessary. Can't receive radio broadcasts.

• Is the antenna connected properly?
• If the antenna's input signal is weak, install an external FM antenna in an area with good reception. While listening to TV audio through the Product, no sound is heard.

• If the 6 button is pressed while listening to TV audio using the D. IN or AUX functions, the Blu-ray/DVD disc functions are turned on and the TV audio is muted. "Not Available" appears on screen.

• The features or action cannot be completed at this time because:

1. The Blu-ray/DVD disc's software restricts it.

2. The Blu-ray/DVD disc's software doesn’t support the feature (e.g., angles)

3. The feature is not available at the moment.

4. You’ve requested a title or chapter number or search time that is out of range.

If the HDMI output is set to a resolution your TV cannot support (for example, 1080p), you may not see a picture on your TV.

• Press and hold the 5 button on front panel for more than 5 seconds with no disc inserted. All settings will revert to the factory settings. No HDMI output.

• Check the connection between the TV and the HDMI jack of the product.
• Check if your TV supports 576p/480p/720p/1080i/1080p HDMI input resolution. Abnormal HDMI output screen.

• If random noise appears on the screen, it means that TV does not support HDCP (Highbandwidth Digital Content Protection). English HT-ES6200_XU_0314.indd 59 59 | 2012-03-14 오후 4:47:52 Appendix Symptom Check/Remedy AllShare Play function I can see folders shared through AllShare Play, but I cannot see the files.

• AllShare Play shows only files corresponding to the Photo, Music, and Movie categories. Files that do not correspond to these categories may not be displayed. Video is played intermittently.

• Check if the network is stable.
• Check if the network cable is properly connected and if the network is not overloaded.
• The wireless connection between the server and the product is unstable. Check the connection. The AllShare Play connection between the TV and PC is unstable.

• IP address under the same subnetwork should be unique, otherwise IP collision can results in such a phenomenon.
• Check if you have a firewall enabled. If so, disable the firewall function. BD-LIVE I cannot connect to the BD-LIVE server.

• Test whether the network connection is successful by using the Network Status function.
• Check whether a USB memory device is connected to the product.
• The memory device must have at least 1GB of free space to accommodate the BD-LIVE service. You can check the available size in BD Data Management. (See page 54)
• See if the BD-LIVE Internet Connection option is set to Allow(All).
• If all above fails, contact the contents provider or update to the latest firmware. When using the BD-LIVE service, an error occurs.

• The memory device must have at least 1GB of free space to accommodate the BD-LIVE service. You can check the available size in BD Data Management. (See page 54) | NOTE | When the factory default settings are restored, all stored user BD data will be deleted. Hereby, Samsung Electronics, declares that this Home Cinema System is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The official Declaration of Conformity may be found at http://www.samsung.com, go to Support > Search Product Support and enter the model name. This equipment may be operated in all EU countries. This equipment may only be used indoors. | 60 English HT-ES6200_XU_0314.indd 60 2012-03-14 오후 4:47:53 Specifications DVD (Digital Versatile Disc) Disc CD : 12cm (COMPACT DISC) CD : 8cm (COMPACT DISC) Video Output Composite Video Video/Audio HDMI Front speaker output Subwoofer speaker output Amplifier Frequency response S/N Ratio Channel separation Input sensitivity Speaker system Speaker

General Weight Dimensions Operating Temperature Range Operating Humidity Range Signal/noise ratio Usable sensitivity Total harmonic distortion BD (Blu-ray Disc) Network speeds equal to or below 10Mbps are not supported. Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. Weight and dimensions are approximate. Design and specifications are subject to change without prior notice. For the power supply and Power Consumption, refer to the label attached to the product. English HT-ES6200_XU_0314.indd 61 61 | 2012-03-14 오후 4:47:53 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Area ` Europe Albania Austria Contact Centre 0810 - SAMSUNG (7267864, € 0.07/min) 02-201-24-18 Bosnia Bulgaria Croatia

reţea, tarif normal 0700 Samsung (0700 726 7864) 0800-SAMSUNG (726-7864) 902-1-SAMSUNG (902 172 678) 0771 726 7864 (SAMSUNG) Web Site www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com/ch www.samsung.com/ ch_fr/(French) www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com Correct disposal of batteries in this product (Applicable in the European Union and other European countries with separate battery return systems.) This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system. Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. HT-ES6200_XU_0314.indd 62 2012-03-15 오후 1:34:46 HT-ES6200 HT-ES6600 Système Home Entertainment Blu-ray™ 2,1 canaux Manuel d'utilisation imaginez les possibilités Merci d'avoir acheté ce produit Samsung. Pour obtenir notre service complet, veuillez enregistrer votre produit sur www.samsung.com/register HT-ES6200_XU_FRA_0314.indd 1 2012-03-14 오후 4:49:52 Consignes de Sécurité Avertissement POUR RÉDUIRE LES RISQUES D’ÉLECTROCUTION, NE RETIREZ JAMAIS LE CAPOT (NI L’ARRIÈRE). LES PIÈCES DE CE PRODUIT NE SONT PAS RÉPARABLES PAR L’UTILISATEUR. VEUILLEZ CONTACTER UN TECHNICIEN QUALIFIÉ POUR TOUTE RÉPARATION. ATTENTION

RISQUE D’ÉLECTROCUTION, LA BROCHE

MPEG2 1920x1080 24/25/30

MPEG2 1920x1080 24/25/30

Codes TV utilisables Code Marque Code Admiral (M.Wards) 56, 57, 58 Mitsubishi/MGA 18, 40, 59, 60, 75 A Mark 01, 15 Anam 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14 AOC 01, 18, 40, 48 Marque

NEC 18, 19, 20, 40, 59, 60 Nikei

Philco 03, 15, 17, 18, 48, 54, 59, 62, 69, 90 Philips 15, 17, 18, 40, 48, 54, 62, 72 Cetronic

Citizen 03, 18, 25 Cinema

Portland 15, 18, 59 Concerto

00, 15, 16, 17, 40, 43, 46, 47, 48, 49, 59, 60, 98 CXC

Samsung Daewoo 02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90 Sanyo 19, 61, 65 Scott 03, 40, 60, 61 Daytron

Emerson 03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85 Fisher 19, 65 Funai

General Electric (GE) 06, 40, 56, 59, 66, 67, 68 Hall Mark

Hitachi 15, 18, 50, 59, 69 Inkel

JC Penny 56, 59, 67, 86 JVC

KTV 59, 61, 87, 88 KEC 03, 15, 40 KMC

LG (Goldstar) 01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44 Luxman

LXI (Sears) 19, 54, 56, 59, 60, 62, 63, 65, 71 Magnavox 15, 17, 18, 48, 54, 59, 60, 62, 72, 89 Marantz 40, 54 Matsui

Videch 59, 60, 69 Wards 15, 17, 18, 40, 48, 54, 60, 64 Yamaha

MPEG2 1920x1080 24/25/30

MPEG2 1920x1080 24/25/30

MPEG2 1920x1080 24/25/30

NEC 18, 19, 20, 40, 59, 60 Nikei

Philco 03, 15, 17, 18, 48, 54, 59, 62, 69, 90 Philips 15, 17, 18, 40, 48, 54, 62, 72 Cetronic

Citizen 03, 18, 25 Cinema

Portland 15, 18, 59 Concerto

00, 15, 16, 17, 40, 43, 46, 47, 48, 49, 59, 60, 98 CXC

Samsung Daewoo 02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90 Sanyo 19, 61, 65 Scott 03, 40, 60, 61 Daytron

Emerson 03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85 Fisher 19, 65 Funai

General Electric (GE) 06, 40, 56, 59, 66, 67, 68 Hall Mark

Hitachi 15, 18, 50, 59, 69 Inkel

JC Penny 56, 59, 67, 86 JVC

KTV 59, 61, 87, 88 KEC 03, 15, 40 KMC

LG (Goldstar) 01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44 Luxman

LXI (Sears) 19, 54, 56, 59, 60, 62, 63, 65, 71 Magnavox 15, 17, 18, 48, 54, 59, 60, 62, 72, 89 Marantz 40, 54 Matsui

Videch 59, 60, 69 Wards 15, 17, 18, 40, 48, 54, 60, 64 Yamaha

MPEG2 1920x1080 24/25/30

MPEG2 1920x1080 24/25/30

NEC 18, 19, 20, 40, 59, 60 Nikei

Philco 03, 15, 17, 18, 48, 54, 59, 62, 69, 90 Philips 15, 17, 18, 40, 48, 54, 62, 72 Cetronic

Citizen 03, 18, 25 Cinema

Portland 15, 18, 59 Concerto

00, 15, 16, 17, 40, 43, 46, 47, 48, 49, 59, 60, 98 CXC

Samsung Daewoo 02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90 Sanyo 19, 61, 65 Scott 03, 40, 60, 61 Daytron

Emerson 03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85 Fisher 19, 65 Funai

General Electric (GE) 06, 40, 56, 59, 66, 67, 68 Hall Mark

Hitachi 15, 18, 50, 59, 69 Inkel

JC Penny 56, 59, 67, 86 JVC

KTV 59, 61, 87, 88 KEC 03, 15, 40 KMC

LG (Goldstar) 01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44 Luxman

LXI (Sears) 19, 54, 56, 59, 60, 62, 63, 65, 71 Magnavox 15, 17, 18, 48, 54, 59, 60, 62, 72, 89 Marantz 40, 54 Matsui

Videch 59, 60, 69 Wards 15, 17, 18, 40, 48, 54, 60, 64 Yamaha
