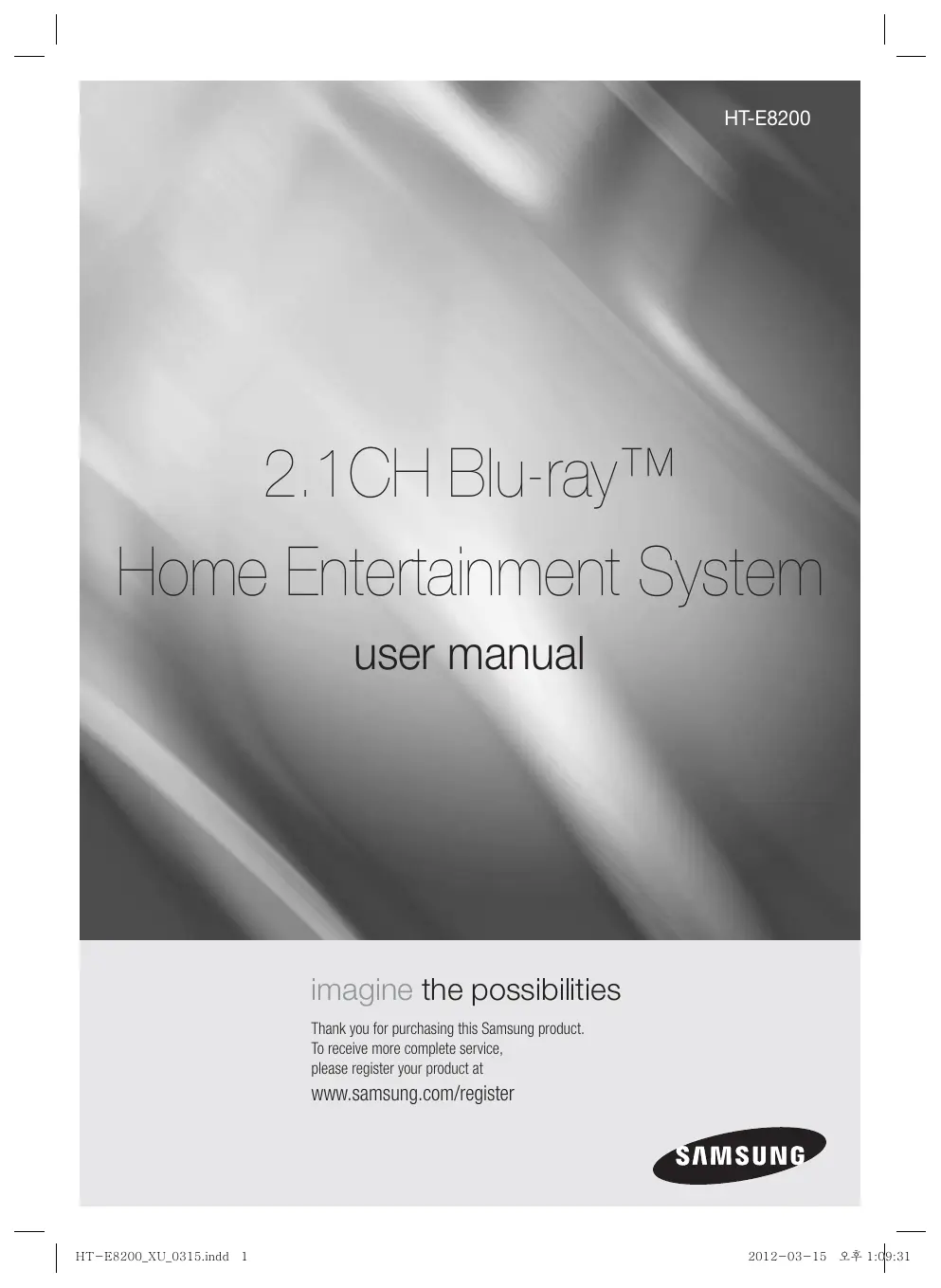

USER MANUAL HT-E8200 SAMSUNG

HT-E8200 XU_0315.ndd 1 imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at Www.samsung.com/register HT-E8200

This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury. FULLY INSERT. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, This symbol indicates important instructions accompanying the product. WARNING + To reduce the risk of fie or electric shock, do not expose this appliance to rain or moisture. CAUTION + Apparatus shall not be exposed to dripping or splashing and no objects filed with liquids, such as vases, shall be placed on the apparatus. + The Mains plug is used as a disconnect device and shall stay ready operable at any time. + This apparatus shall always be connected to an AC outlet with a protective grounding connection. + To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shal be readily operable. CLASS 1 KLASSE 1 LUOKAN 1 LASER PRODUCT LASER PRODUKT LASER LAITE LASER APPARAT KLASS 1

PRODUCTO LASER CLASE 1

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. CAUTION

+ INVISIBLE LASER RADIATION WHEN OPEN

EXPOSURE TO BEAM. Wiring the Main Power Supply Plug (UK Only) IMPORTANT NOTICE The mains lead on this equipment is supplied with a mouded plug incorporating a fuse. The value of the fuse is indicated on the pin face of he plug and ii requires replacing, a fuse approved to BS1362 of the same rating must be used. Never use the plug with the fuse cover remove. the cower is detachable and a replacement is required, it must be of the same colour as the fuse fited in the plug. Replacement covers are available from your dealer. Ifthe fited plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consul your dealer for assistance. However ifthere is no altemative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a mains socket 28 there s a risk of shock hazard from the bared flexible cord. Never attempt to insert bare wires directly into a mains socket. À plug and fuse must be used at all times. IMPORTANT The wires in the mains lead are coloured in accordance with the following code: BLUE = NEUTRAL BROWN = LIVE As these colours may not correspond to the coloured markings identfying the terminals in your Plug, proceed as follows:-The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L'or coloured BROWN or RED.

sc Storage & Managemen + Holding Discs = Fingerprints or scratches on > a disc may reduce sound and picture quality or cause skipping. - Avoid touching the surface of a disc where data has been recorded. - Hold the disc by the edges so that fingerprints wil not get on the surface. = Do not stick paper or tape on the disc. + Cieaning Discs = Ifyou get fingerprints or dirt on a disc, clean it with a mild detergent diluted in water and wipe with a soft cloth. When cleaning, wipe gentiy from the inside to the outside of the disc. - Disc Storage = Do not keep in direct sunlight. = Keep in a cool ventilated area. = Keep in a clean protection jacket and store vertical. Handling Cautions + Do not expose this apparatus to dripping or splashing. Do not put objects filed with liquid, such as vases, on the apparatus. + To tum this apparatus off completely, you must pull the power plug out of the wall socket. Consequentiy, the power plug must be easily and readily accessible at all times. + Do not touch the power plug with a wet hand. It can cause an electric shock. + Do not plug multiple electric devices into the same wall socket. Ovedrloading a socket can cause it to overheat, resulting in a fire. + Maintenance of the Cabinet - Before connecting other components to this product, be sure to turn them off. HT-E8200 XU_0315.indd 3 -_Ifyou move your product suddenly from a cold place to a warm place, condensation may occur on the operating parts and lens and cause abnormal disc playback. If this occurs, unplug the product, wait for two hours, and then connect the plug to the power outlet. Then, insert the disc, and try to play back again. Ifthe product makes an abnormal noise or produces a burning smell or smoke, turn off the power switch immediately and disconnect the power plug from the wall outlet. Then, contact the nearest customer service centre for technical assistance. Do not use the product. Using the product as it is may cause à fire or an electric shock. To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times. Using the 3D Funci

IMPORTANT HEALTH AND SAFETY

INFORMATION FOR 8D PICTURES. Read and understand the following safety information before using the 8D function. + Some viewers may experience discomfort while viewing 8D TV such as dizziness, nausea, and headaches. If you experience any such symptom, stop viewing 8D TV, remove the 8D Active Glasses, and rest. Watching 8D images for an extended period of time may cause eye strain. I you feel eye strain, stop viewing 8D TV, remove your 8D Active Glasses, and rest. A responsible adult should frequentiy check on children who are using the 8D function. Ifthere are any reports of tred eyes, headaches, dizziness, or nausea, have the child stop vieuing 8D TV and rest. Do not use the 8D Active Glasses for other purposes (such as general eyeglasses, sunglasses, protective goggles, etc.} Do not use the 8D function or 8D Active Glasses while walking or moving around. Using the 3D function or 8D Active Glasses while moving around may cause you to bump into objects, tip, and/or fal, and cause serious injury.

Safety Information + If you want to enjoy 8D content, connect a 8D device (3D compliant AV receiver or TV] to the product's HDMI OUT port using a high-speed HDMI cable. Put on 8D glasses before playing the 8D content The product outputs 8D signals only through HDMI cable connected to the HDMI OUT port As the video resolution in 8D play mode is fixed according to the resolution of the original 3D video, you can not change the resolution to your preference. Some functions such as BD Wise, screen size adjustment, and resolution adjustment may not operate properiy in 8D play mode. You must use à high-speed HDMI cable for proper output of the 8D signal Stay at least three times the width of the screen from the TV when watching 8D images. For example, i you have a 46 inch screen, stay 138 inches (3.5meters) from the screen. - Place the SD video screen at eye level for the best 8D picture When the product is connected to some 3D devices, the 8D effect may not function proper. This product does not convert 2D content into 8D. “Blu-ray 8D° and ‘Blu-ray 80° logo are trademarks of the Blu-ray Disc Association. Copyright © 2012 Samsung Electronics Co..Ltcl Al rights reserved: No part or whole of this user's manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.Lid. Licence ŒIDOLBY TRUEIE “DIGITAL PLUS | + Dolby and the double-D symbol are registered trademarks of Dolby Laboratories. dts-un Master Audio | Essential + Manufactured under licence under U.S. Patent Nos: 5,956,674; 5,974,380; 6,226,616: 6.487,535; 7,392,195; 7,272,567: 7,833.029; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS-HD, the Symbol, & DTS- HD and the Symbol together are registered trademarks & DTS-HD Master Audio | Essential is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved. DIVX.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsicliary of Rovi Corporation. This is an official DivX Certiied® device that plays DivX video. Visit divx.com for more information and software tools to convert your fles into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certiied® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the Divx VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. DivX Certified® to play DivX® video up to HD 1080p, including premium content: DivX®, DivX Certiied® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under licence. Covered by one or more of the following U.S. patents : 7,295,673; 7.460.668; 7.515.710:

Homi The terms HDMI and HDMI High-Defnition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. 2012-03-15 84 1:10:03

+ Oracle and Java are registered trademarks of Oracle and/or ts affllates. Other names may be trademarks of their respective owners. + This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation, Reverse engineering and disassembly are prohibited. + Blu-ray Disc", Blu-ray", and the logos are trademarks of Blu-ray Disc Association. + This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced fim and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted More information about Cinavia technology is provided at the Cinavia Online Consumer Information Centre at http:/Amww:cinavia.com. To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Centre, PO. Box 86851, San Diego, CA, 92138, USA" This product incorporates proprietary technology under licence from Verance Corporation and is protected by U.S. Patent 7,869,677 and other U.S. and worldwide patents issued and pending as well as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark of Verance Corporation. Copyright 2004-2010 Verance Corporation. All rights reserved by Verance. Reverse engineering or disassembly is prohibited. Open Source Licence Notice - In the case of using open source software, Open Source Licences are available on the product menu.

Contents SAFETY INFORMATION Warning Disc Storage & Management Handling Cautions Using the 8D Function Copyright Licence SRG GETTING STARTED 7 Disk and Format Compatibility 8 Logos of Discs the product can play

12 Front & Side Panel 12 RearPanel

CONNECTIONS 15 Connecting the Wireless Subwoofer 16 Attaching the Toroidal Ferrite Core to the Power Cord 16 Connecting the FM Antenna 16 Installing the Cradle Stand 17 Installing the Wall Mount 18 Connecting to a TV 18 Method 1 Connecting to a TV with a Video Cable - Good Quality 18 Method 2 Connecting to a TV with an HDMI Cable - Best Quality (Recommended) 19 Connecting to External Devices 19 Method 1 AUX IN : Connecting an External Analogue Component 19 Method 2 OPTICAL IN : Connecting an External Digital Audio Component 19 Method 3 HDMI IN : Connecting to an External Component with an HDMI Cable 20 Connecting to a Network Router 20 Wired Network 20 Wireless Network

SETTINGS The Initial Settings Procedure The Home Screen Accessing the Settings Screen Settings Menu Functions Networks and the Internet Upgrading Software MEDIA PLAY The AlShare Play Screen Playing Files on a USB Storage Device The Function Screen Playing Commercial Video Discs Playing Commercial Audio Discs Playing a Disc with User Recorded Content Using the AllShare Network Function Controlling Video Playback Controlling Music Playback Playing Photo Contents Using the Tools Menu when a File is Highlighted Listening to Radio Using the Special Effects Remote Control Buttons NETWORK SERVICES Using Smart Hub BD-LIVE®" APPENDIX Additional Information Troubleshooting Specifications 84 1:10:05

HT-E8200 XU_0315.indd 7 sk and Format Compa ty Disc types and contents your product can play 8 [on] Media Disc Type Size Details £ u a Bury Disc BD-ROM or BD-RE/-R disc recorded in the BD-RE format. @ 3D Bl-ray Disc ë VIDEO | DVD-VIDEO, DVD-RW, DVD-VIDEO, recorded DVD+RW/DVD-RW(V)/DVD-R/+R discs that have 8 DVD-R, DVD+RW, been recorded and fialised, or a USB storage media containing DivX, DVD+R MK, MP4 contents. CD-RW/-R, 12cm vus DVD-RWLR, Music recorded on CD-RW/-R, DVD-RW/-R, BD-RE/-R discs or a USB BDRELR storage media containing MP3 or WMA contents. CD-RWZR, . PHOTO DVD-RWLR, Photos recorded on CD-RW/-R, DVD-RW/-R, BD-RE/R discs or a USB BD.REZR : storage media containing JPEG contents. INOTE | »_ 8om Dis is not available, The product would be damaged if use. »_ The product may not play certain CD-RW/-R and DVD-R because of the disc type or recording conditions. »_ fa DVD-RW/R disc has not been recorded proper in DVD video format, it will not be playable. Your product wil not play content that has been recorded on a DVD-R at a bit-rate that exceeds 10 Mbps Your product wil not play content that has been recorded on a BD-R or USB device at a bi rate that exceeds 30 Mbps. ». Playback may not work for some types of discs, or vien you use specific operations, such as angle change and aspect ratio adjustment. Information about the discs is written in detail on the disc box. Please refer to this f necessary. »_ When you play a BD-J tite, loading may take longer than a normal title or some functions may perform slow. Disc types your product cannot play + HDDVD + DVD-RAM + DVD-RW(VR mode) + 3.9 GB DVD-R Disc + DVD-ROM/PD/MV- + Super Audio CD + CVD/CD-ROM/CDV/ for Authoring. Disc, etc {except CD layer) CD-G/CD-VLD (CD-Gs play audio only, not graphics.) INOTE | »_ This product may not respond to al operating commands because some Blu-ray Disc, DVD, and CD discs allow specific or limited operation and provide only certain features during playback Please note that this is not a defect in the product. >. Samsung cannot guarantee that this product wil play every disc bearing the Blu-ray Disc, DVD or CD logo because disc: formats evolve, and problems and errors may occur during the creation of Blu-ray Disc, DVD, and CD software and/or the manufacture of discs. ». Please contact the SAMSUNG Customer Care Centre, if you have questions or encounter difculty when playing Blu-ray Disc, DVD, or CD discs in this product. Also, refer to rest of this user manual for additional information on playback restrictions. >. Some commercial discs and DVD discs purchased outside your region may not play on this product. Engish 7| 15 s#1 % 06

Getting Siartea Region Code Both products and discs are coded by region. These regional codes must match for a disc to play. the codes do not match, the disc will not Logos of Discs the product can play = &turey

es Le The Region Number for this product is displayed on the rear panel of the product Blu-ray Disc 3D Blu-ray Disc . Region Discrpe | Fo Area 81° [IDoLEY DLIVE.. __ mue] North America, Central America, BIEMTAL PLUS South America, Korea, Japan, Taiwan, Hong Kong and South BD-LVE Doby East Asa. Blu-ray Disc Europe, Greenland, French =dtsu DIVX feriores, Middle East, Arca, Master Auto Esettl HD Australia and New Zealand DTS Dix India, China, Russie, Central and South Asia The US. US. territories and PAL Canada Europe, Japan, the Middle East ; TZ Egypt, South Africa, Greenland PAPbroedes teste nn Java UXK, France, Germany, etc. d Taivan, Korea, the Philippines, Indonesia, Hong K Mdonés'a, Hong Kong Supported Formats Mexico, South America, DVD-VIDEO Central America, Austal, Music File Support 7 | New Zealand, Pac Islands, Caribbean Fe ET Extension | CET | Codec | SuPPort Range Russia, Eastem Europe, ia, & most o Africa, North Korea, cm8 | ms | ms Mongolia Compliant with China WMA version 10 7 * Sampling rates (in . ko) - 8, 11, 16, INOTE | uma | WMA | WMA | 22 32,441,48 »_ the Region number of a Blu-ray Disc/DVDS does not correspond to the Region number of this product, the product cannot play the disc. 18 English

MPEG2 1920x1080 | 24/25/30 25 ac3 “is AAC “tp TS H264 19201080 6-30 25 Nes “1 DD vci 19201080 6-30 25 + = Limitations HT-E8200 Even when a fll is encoded by a supported codec listed above, the file might not be played if its content has a problem. Normal playback is not guaranteed if the flk’s container information is wrong or the fl itself is corrupted. Files having higher bit or frame rates than standard may stutter when played back. The Seek (skip) function is not available if the file's index table is damagedi. When you playback a file remotely through a network connection, video playback may stutter depending on the network speed. XU_0315.indd

Getting Started = Video decoder Supports up to H.264 Level 4.1 - Does not support H.264 FMO/ASO/RS, VC1 SP/MP/AP L4 and AVCHD MPEGA SP, ASP : Below 1280 x 720 : 60 frames max Above 1280 x 720 : 80 frames max = Does not support GMC 2 or higher Audio decoder Supports WMA 7, 8, 9 and STD = Does not support WMA 9 PRO mult-channel fils if the number of channels is more than 2 or the files require lossiess audio decoding. Does not support WMA sampling rate of 22050Hz mono 2 Supported DivX subtitle file formats “txt, *.smi, *.srt, *.sub, *.txt Notes on the USB connection + Your product supports USB storage media, MPS players, digital cameras, and USB card readers + The product does not support folder or file names longer than 128 characters. Some USB/digital camera devices may not be compatible with the product. Your product supports the FAT 16, FAT 32, and NTFS fles systems. Connect USB devices directly to the products USB port. Connecting through a USB cable may cause compatibilty problems. Inserting more than one memory device into à multi-card reader may cause the reader to operate improperiy. + The product does not support the PTP protocol. Do not disconnect a USB device during a “loading” process. The bigger the image resolution, the longer the image takes to display. + This product cannot play MPS files with DRM (Digital Rights Management) downloaded from commercial sites. + Your product only supports video that is under 80fps (frame rate) 110 Engiish + Your product only supports USB Mass Storage Class (MSC) devices such as thumb drives and USB HDD. (HUB is not supported.) + Certain USB HDD Devices, multi-card readers and thumb drives may not be compatible with this product. If some USB devices require excessive power, they may be limited by the circuit safety device. If playback from a USB HDD is unstable, provide additional power by plugging the HDD into a wall socket. the problem continues, contact the USB HDD manufacturer. You must remove the USB storage device safely {by performing the “Safely Remove USB" function) to prevent possible damage to the USB memory. Press the HOME button to move to the home menu, press the YELLOW (C) button, and then press the (] button. + SAMSUNG is not responsible for any data flle damage or data loss: AVCHD (Advanced Video Codec High Definition) + This product can play back AVCHD format discs. These discs are normally recorded and used in camcorders. + The AVCHD format is a high definition digital video camera format. + The MPEG-4 AVC/H.264 format compresses images with greater efficiency than the conventional image compressing format. + Some AVCHD discs use the ‘x.Colour” format This product can play back AVCHD discs that use “xMColour” format “x wColour" is a trademark of Sony Corporation + “AVCHD" and the AVCHD logo are trademarks of Matsushita Electronic Industrial Co, Ltd. and Sony Corporation I NOTE | Some AVCHD format discs may not play, depending on the recording conditions. AVCHD format discs need to be finalised. “xv.Colour" offers a wider colour range than normal DVD camcorder discs. Some DivX, MKV and MP4 format discs may not play, depending on their video resolution and frame rate 2012-03-15 24 1:10:10

Accessories Check for the supplied accessories below. peus Eumeo 20 | Video Cable FM Antenna ee] User Manual Audio Gender m0 (ny USB Cable Bracket Wall Mount Cradle Stand/Cradle Stand Screw Toroidal Ferrite Core (2EA) Remote Control/Batteries (AAA size) LNOTE | > The dedicated USB cable is provided for communicating with the extemal USB device. »_Itis recommended to use the provided USB cable as à vibration may occur depending on the connected USB device. 2 Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. # An administration fee may be charged if either

2. an engineer is called out at your request and there is no defect in the product (Le. where you have

failed to read this user manual) b. you bring the unit to a repair centre and there is no defect in the product (Le. where you have failed to read this user manual). "The amount of such administration charge will be advised to you before any work or home visit is carried out. Engish 11! HT-E8200_XU_0315indd 11 15 s# 1

Getting Started Front & Si Panel DISPLAY USB HOST

INOTE | »_ To upgrade the product's software through the USB Host jack, you must use a USB memory stick. >. When the product displays the Blu-ray Disc menu, you cannot star the movie by pressing the 3 button on the product or the remote, To play the movie, you must select Play Movie or Start in the disc menu, and then press the (E button Rear Panel LAN EJECT FUNCTION

= FMANT UT HDMI IN 2 a E | E orea

MOUNTING STUDS COOLING FAN

L L © 00 o ät} ST fie © o INOTE | + Ensure a minimum of 10 cm of clear space on all sides of the home cinema to ensure adequate ventilation. Do not obstruct the cooling fan or ventilation holes. 112 Engish E8200_XU_0315.indd 12 2012-03-15 84 121022:

Press to select TV video mode Tum the product on and off. FUNCTION

To change to TV mode, press the TV button. Set a Sieep time to shut off the product. To change to Home Cinema, press the BD button. To eject the disc. Press numerc buttons to operate options. Use to enter the Popup menu/ Title menu. Press to view the disc menu. Press to search backwards or Press to skip backwardis or fonwards. forward. Press to stop/play a disc. Press to pause a disc. Cut of the sound temporariy. Adiust the volume. 4 VOL Due É Search for active FM stations and Dress to mo to te to change channels. ress to move to the Home screen. —1 nr ee Use to adjust the level of the Press this to see the full screen e Subuoofer ona TV Alows you to repeat a fe, chapter, track or disc Press to use the Tools menu. Use to display the playback information when playing Select on-screen menu items and à Blu-ray/DVD disc. change menu value. | — Press to exit the menu. Return to the previous menu. Use to set a preset radio frequency. ‘These buttons are used both for menus on the product and also +—| several Blu-ray Disc functions. Press to use Smart Hub. e—7| Press this to use the vTuner. e—"| [-—— Select MONO or STEREO for radio broadcasts. A+ Press to apply ED sound effect. Η Press to appiy sound effects. Press to enjoy an ordinary 2D video in 8D mode. Selects the disc Audio language. Selects he disc subtitle language Press to search contents. English 131 HT-E8200 XU_0%15indd 13 2012-03-15 2# 10

Getting Started Installing batteries in the Remote TV Control Codes Control Brand tie Brand hi : Msn Battery size: AAA rade ST 7m | Aa ü.5 o @) ee ne Anam | 06,07,08,09,10.11 AR ETS ET] Pnasone 708,09 oo ET ÉRE Brocsanic _ ae Pi san INOTE | DSEUTTS »_ Make sure o match he “+ and “" ends of the batteries or with the diagram inside the compartment. Pioneer 63, 66,89, “ EE RTE »_ Assuming typical TV usage, the batteries last fr about En mn one year. as mur RadoSm | 17,4,56.60,01,7 DEN)

The remote control can be used up to approximatehy 7 meters from the product in a Straight line RAPrcan Setting the Remote Control You can control certain functions of your TV with this remote control.

When operating a TV with the remote control Deer EE CET

1. Press the TV button to set the remote control ET

to TV mode. Dayron se RC NET na + ———

enter the code corresponding to your brand of TV

03,40 n Spain ù + Ifthere is more than one code listed for _ - a your TV in the table, enter one at a time to É BR ETTTT determine which code works: RTE NT RC — + Sa + Example : For a Samsung TV — While holding down the POWER button, nn use the number buttons to enter 00. that ae TRE does not work, try 15, then 16, etc. Te —

4. Ifthe TV turns off, the setting is complete. Ts

+ You can use the TV POWER, VOLUME, 5 _ CHANNEL, and Numeric buttons (0-9) 1 Guen ner 77 | Vars INOTE | Un me [0 —> »_The remote control may not work on some brands of Vs. Liga | PARRUR EE — Aso, some operations may not be possible, depending on nn TERRE uen we your brand of TU. en | HR — 7m . LE EE ï »_ Te remote control will work with Samsung TV by EE —— default. EU [ES Ban 1114 Engish 315.ndd 14 2012-03-15 2% 1:10:29 | nr-saroo x

This section involves various methods of connecting the product to other external components Before moving or instaling the product, be sure to turn off the power and disconnect the power cord eless Subwoofer Connecting the The Subwoofer's linking ID is preset at the factory and the main unit and sub should link (connect wirelessly) automatically when turned on, the Ink indicator does not light when main unit and subwoofer are turned on, please set the ID by following the process below.

1. Plug the power cords of the main unit and subwoofer into the AC power supply.

2. Press the ID SET button on the back of the subwoofer with a small, pointed object for 3 seconds.

+ The STANDBY indicator is turned off and the LINK indicator (blue LED) blinks quick. <The rear of the Subwoofer> <The top of the Subwoofer>

3. In stand-by mode while the main unit is off, press the 0, 1, 8, 5 buttons in order.

+ The red standby LED on main unit flashes and then stop in few second.

4. Press the POWER button to turn on the main unit.

+ The main unit and the subwoofer are now linked (connected) + The Link indicator (blue LED) on the subwoofer is tumed on. INOTE | Before moing or instling te product, be sure t tum off the poner and disconnect the pour cord _Hfthe main uni is pouered of the wireless subwoofer wil bein tne standby mode and the STANDBY LED on the upper sde will bin _Hfthe main uni doesn't make wireless connection folow steps 1-4 above t rer te connection between the main unit and vireless suboofr. | GAUTION | »_ The wireless receling antenna built into he wireless subwoofer. Keep the unit away from water and moisture ». For optimal Hstning perfommance, make sur that the area around the wireless subwoofer location s clear of any obstructions. English 15] 15 s#1 %

Connections Attaching the Toroidal Ferrite Core to the Power Cord If you attach a Toroïdal ferrite core to the power cord, it wil help to prevent RF interference from radio signals. <Main Unit> <Subwoofer>

1. Pullthe fixing tab of the Toroidal ferrite core to open it.

2. Make a loop twice in the power cord.

8. Attach the Toroidal ferite core to the power cord as the figure shows and press it until it clicks.

Connecting the FM Antenna Connect the FM antenna supplied to the FM ANT Jack. FM Antenna (supplied)

2. Slowiy move the antenna wire L

around until you find a location where reception is good, then fasten it to a wall or other rigid surface. INOTE | »_ This product does not receive AM broadcast Installing the Cradle Stand

1. Putthe 8 bumps on the product into

the three holes on the crade stand.

2. Putthe supplied a screw in the

product and rotate them clockwise with screw driver. 3 bumps 116 Engish 2012-03-15 4 1:10:

Installing the Wall Moun You can use the wall mount bracket to mount this unit on a wall. Installation Precautions + Do not instal on a place other than a verical wal.

• For the installation, avoid a location with high (D) temperature or humidity. + Check the strength of the wall. Ie strength of the Wallis insuficient for the product instalation, make sure to reinforce the wall before the instalation. + Check the material of he wall. I the wal is made of plaster board, marble, or iron board, purchase and use the appropriate fhing screws. + Cables connecting to external devices need to be (2) connected to the set before instaling + Be sure to turn off and unplug the unit before installation, Otherwise, it may cause electric shock.

1. Rotate a screw on the cradle stand counter-

clockwise to seperate them from the unit.

2. Place the wall mount bracket on a wall surface and

then secure it with two screws (not suppliech). Be sure to instal the wall mount bracket so that the arrow ( © is placed in the centre of the TV.

8. Then, fit the unit into the corresponding slots of the

wall mount bracket. For secure installation, make sure the mounting studs slide firmiy down into the bottom of the slots.

4. This is the completion of the suggested wall mount

installation. INOTE | Do not hang onto the installed unit and avoid any impact to the uni. Wen the uni is installed on a wall, please make sure that a child does not pull any of connecting cables, as it may cause it t fl. Wen you instal the product with TV on the wal, leave suffcient space for ejecting a CD. (Disc size 12cm+ space for moving hands) Engish 17 HT-E8200_XU_0315.ndd 17 2012-03-15 2# 10 35

Connections Select either Method 1 or Method 2 If you have set the products remote control to aperate your TV, press the TV SOURCE button on the remote control and then select the correct external source from the TV's source list (HDMI, Video In, etc} to view video from the home Cinema. (Cable not supplied.) Method 2

HDMI IN IMEtHodM Connecting to a TV with a Video Cable - Good Quality Connect the supplied Video cable from the VIDEO OUT jack on the back of the product to the VIDEO IN jack on your TV. MERS] Connecting to a TV with an HDMI Cable - Best Quality (Recommended) Connect an HDMI cable (not supplied from the HDMI OUT jack on the back of the product to the HDMI IN jack on your TV. Ifthe TV supports ARC, you can hear TV sound from home cinema with only connect this cable. INOTE | »_ Te VIDEO Out jack always outputs in the 5761480 resolution regardiess of the resolution set in the Setup menu »_ Do not connect the unit through a VCR. Video signals fed through VCRS may be affected by copyright protection systems and the picture wil be distorted on the television. 118 Engish | HT-E8200_ XU_ 2012-03-15 2 1:13

Connecting to External Devices To select the correct mode for an external device, press the FUNCTION button, Each time you press the bution, the mode changes in this order : BD/DVD — D. IN - AUX + HDMI1 — HDMI2 — FM BT Audio Cable (not supplied) I the external analogue component has only one Audio Out, connect either left or right.

(Cable not supplied) Method 2 (Cable not supplied.) MERS AUX IN : Connecting an External Analogue Component Using an RCA audio cable (not supplied, connect the AUDIO In jack on the product to the AUDIO Out jack on the external analogue component. & Select the AUX mode. + Be sure to match the colours on the cable plugs to the colours on the input and output jacks. IMEthoal2) OPTICAL IN : Connecting an External Digital Audio Component To connect the digital audio output of digital signal components such as Cable Boxes and Satelite Recelvers (Set-Top-Boxes) Using a digital optical cable (not supplied), connect the Optical Digital Audio In jack on the product to the Digital Optical Out jack of the external digital device using a digital optical cable. & Select the D. IN mode. IMEthoalS! HDMI IN : Connecting to an External Component with an HDMI Cable Connect an HDMI cable (not supplied) from the HDMI IN jack on the back of the product to the HDMI OUT jack on your digital device. + Select the HDMI or HDMI2 mode. INOTE | »_ To see video from your Cable Bow/Satelite receiver, you must connect its video output direct} to your TV. »_ This system supports Digital sampling frequencies of 32 kHz or higher from external digital components »_ This system supports only DTS and Dolby Digital audio. MPEG audio, a bitstream format, is not supported English 19! HT-E8200_XU_0315.ndd 19 15 s#1 % 40

Connections Connecting to a Network Router Wireless Network You can connect your product to your network router using one of the methods illustrated below. Wired Network Broadband modem uith integrated router) 2m, res

Router + Ca) Île /=\- Broadband & FLE INOTE | »_Intemet access to Samsung's Software Update server may not be allowed, depending on the router you use or your ISP's policy. For more information, contact your ISP {intemet Service Provider »_ DSL users, please use a router to make a network connection. »_ To use the AlShare Play function, you must connect your PC to your network as Shoun in the ilustrations on the lt. The connection can be wired or wireless. 120 Engiish E8200_XU_0315.ndd 20 Wireless IP sharer Broadband service INOTE | I your wireless IP router supports DHCP this product can use a DHCP or static IP address to connect to the wireless netork Set your wireless P router to Infrastructure mode. Ad-hoc mode is not supported. The product supports only the following wireless security Key protocois: = WEP (OPEN/SHARED), WPA-PSK (TKIP/AES), WPA2-PSK (KP/AES) Select a channel on the wireless IP router that is not currentiy being used. 1Fthe channel set for the wireless IP router is currently being used by another device nearby, it wil result in interference and communication failure. I you select the Pure High-throughput (Greenfelc) 802.111n mode and set the Encryption type on your router or AP to WEP. TKIP or TKP-AES (WPS2Mixed), the product il not support à connection in compliance with new Wi- Fi certification specifcations Wireless LAN, by it nature, may cause interference, depending on the operating conditions (AP performance, distance, obstacles, interference by other radio devices, etc 2012-03-15 84 1:10:42

Thel I Settings Procedure + The Home menu will not appear if ou do not configure: the initial settings. + The OSD (On Screen Display) may change in this product after you upgrade the software version. + The access steps may differ depending on the menu you selected.

1. Turn on your TV after connecting the product,

and then turn on the product. When you turn on the product for the first time, the product automatically displays the Initial Settings: Language screen.

2. Usethe AY 4» buttons on the remote

desired language, and then button twice. The Start screen

3. button to start setup. The

Network Settings screen appears.

4. button to set up the products

wireless network connection or select Skip, and then press the (ÆJ button to skip network setup. If you selected Skip, go to Step 12. NOTE | »_ The product starts the wireless network connection procedure by default. you want to set up a wired connection, select Skip, and then go to "Configuring Your Network Connection” on page 29 after you have completed he Initial Settings Procedure. HT-E8200 XU_0315.indd 21 »_Hfyou skip vireless network setup here, go to “Wireless: Network" on page 30 to set up the products wireless network connection later.

5. The product searches for and then displays

all available wireless router network connections.

6. Use the 4 Y buttons to select a router, and

then press the [Æ button. The Next button is highlighted.

7. Press the ÆJ button to continue. The

Security Key screen appears. INOTE | »_ fou hate a WPSPBC) compatible router, select

8. Enter your network's security key. When

done, use the AY 4» buttons to select Next, and then press the sôumes vo | Engish 21! 2012-0: 15 s#1 % 45

Settings INOTE | Enter numbers by pressing the number buttons on your remote. Enter letters by selecting a letter using the À V <> buttons, and then press To display capital letters (or redisplay small letters if capital letters are displayed), select A/a, and then press te © button. To display symbols and punctuation, select + and then press the (E button. To redisplay letters, select + and then press the (© button: 9... lfthe connection is successful, the Connection Complete screen appears. Select Next, and then press the (button. The Software Update screen appears. INOTE | »_ the connection is not successful, select Next and then press the () button. After you have completed the Initial Settings procedure, go to “Wireless Network on page 30 to setup the product's wireless network connection:

10. To upgrade the software, select Update

now, and then press the [Æ button. To skip the upgrade, select Update later, press the button, and go to Step 12. INOTE | »_ you skipped network set up, you must skip Software Update also. 1 . Ifthere is a Software Update available, the product downloads and installs the upgrade, This can take some time. If there is no Software Update available, the “There are no new software updates for you to download. You already have the most up to date version." message appears. And then press the [®] button. The TV Aspect Ratio screen appears. 122 Engish | nr-seroo xuomsima 22

Using the A Y buttons, select the aspect ratio that matches your screen, and then press the button. Select Next, and then press the button. You have four choices: 16:9 Original - For widescreen TVs. Displays widescreen pictures in their original 16:9 format and 4:3 pictures (the old, standard format) in 4:3 pillar box format with black bars on the left and right. 16:9 Full - For widescreen TVs. Displays widescreen pictures in their original 16:9 format and expands 4:8 pictures to fil the 16:9 screen. 4:3 Letter Box - For older, standard screen analogue TVs. Displays 4:3 pictures in full screen and 16:9 pictures in letter box format that retains the 16:9 aspect ratio but puts black bars above and below the picture. 4:3 Pan-Scan - For older, standard screen analogue TVs. Displays 4:3 pictures in full screen and 16:9 pictures in Pan-Scan format that fils the screen, but cuts off the left and right sides of the picture and enlarges the middle vertically.

13. The Setup completed screen appears. Check

the settings to confirm they are correct. Select OK, and then press the [ÆJ button. The Home screen appears. INOTE |

I you want to display the Initial Setting screen again and make changes, select the Reset option. (See page 28) I you use an HDMI cable to connect the product to an Anynet+ (HDMI-CEC)-compliant Samsung TV and 1.) You have set the Anynet+ (HDMI-CEC) feature to ON in both the TV and the product and 2.) You have set the TV to à language supported by the product he product wil select that language as the preferred language automatically. 15 #4 1:10

The Home Screen 2. To access the menus, sub-menus, and options on the Settings screen, please refer to the remote control ilustration below. INOTE | »_ you leave the product in the stop mode for more than 5 minutes without using it, a screen saver wil appear on your TV. the product is lef in the screen saver mode for more than 20 minutes, the pouer vil automatically tum of. Buttons on the Remote Control Used for the Settings Menu sôumes vo | Smart Hub. Starts Smart Hub. From Smart Hub, fT you can access YouTube, games, and other apps. AllShare Play. Play videos, photos or music content © from Disc, USB, PC or mobile devices. Function. Select the audio/video input source. Settings. Set various functions to sui your personal e references. Selecting an Option on the Home Screen © | HOME Button : Press to move to the Home screen.

1. To select an option on the Home screen,

move the cursor using the 4% buttons unti it =@ | RETURN Button : Return o the previous menu. highlights the option of your choice, and then © Enter / DIRECTION Button : + Press A w <> to move the cursor or select @| aim Accessing the Settings Screen e Press th button to activate the currently selected item or conf a setting.

1. Select Settings on the Home screen, and ©

then press ®. The Settings screen appears. EXIT Button : Press to exit the current menu. INOTE | »_The (®J button on the product's front panel can be used for same purpose as the (E button on tne remote control Detailed Function Information Each Settings function, menu item, and individual option is explained in detail on-screen. To view an explanation, use the 4 Y 4» buttons to select the function, menu item, or option. The explanation will usually appear on the right of the screen. À short description of each Settings function starts on the next page. Additional information on some of the functions is also in the Appendix of this manual. English 23] HT-E8200 XU_0%15indd 23 2012-03-15 2# 10 si

Settings Display Set up the 8D related functions. ‘ 8D Blu-ray Playback Mode: Select whether to play à Blu- ray Disc with 8D contents in 8D Mode. If you move to the Home or Smart Hub Home menu while in 8D mode, the $D Settings product wil switch to 2D automatically. J Screen Size: Enter he size of the TV attached to the product, The product will automatically adjust the 8D output to the screen size of the TU Tv Aspect | LES You adiust ine output of the product to the screen size of Rate your TV, See page 22, Step 12 for a description of the screen Size options. Smart Hub | | é you select the optimal size for the Smart Hub Screen: Screen Size BD Wise is Samsungs latest inter-connectivity feature: When you connect a Samsung product and a Samsung TV BD Wise | with BD Wise to each other via HDMI, and BD Wise is on in both the product and TV, the product outputs video at the video resolution and frame rate of the Blu-ray/DVD Disc. Lets you set the output resolution of the HDMI video signal to Auto, 1080p, 1080i, 720p, 576p/480p. If Composite is connected, the resolution supports only 5761/4801. The number indicates the number of Ines of video per frame. The i and p indicate interaced and progressive scan, respectively. The more lines, the higher quality. Resolution Setting the Movie Frame (24Fs) feature to Auto lets the product adjust its HDMI output to 24 frames per second automatically for improved picture quality if attached to a 24Fs compatible Movie Frame | TV. (4Fs) + You can enjoy the Movie Frame (24Fs) feature only on a TV supporting this frame rate. + Movie Frame is only available when the product is in the HDMI 1080 or 1080p output resolution modes. HDMI Colour _ | Lets you set the colour space format for the HDMI output to Format match the capabilties of the connected device (TV, monitor, etc) Lets you set the product to output video from the HDMI OUT. HDMI Deep | L2ck with Deep Colour. Deep Colour provides more accurate Golour Colour reproduction with greater colour depth Progressive Lets you improve picture quality when viewing DVDs: 124 Engish E8200_XU_0315.indd 24 2012-03-15 &# 1:1:02

Audio Speaker Settings You can set the speaker options. Equaliser Let you configure the Equaliser settings manually. Smart Volume Lets you set the product so that the volume remains stable when a scene change occurs or when you change the channel.

Speaker Selection Lets you select which speakers you want active, either the TV's speakers or the Home theater's speakers. Audio Return Channel Lets you direct the sound from the TV to the Home Cinema speakers. Requires an HDMI connection and an Audio Return Channel (ARC) compatible TV. + When Audio Return Channel set to on, use HDMI Cable to connect the product to the TV. At this time, optical input does not work. + When Audio Return Channel set to auto, use HDMI Cable to connect the product to the TV. At this time, ARC and optical input is selected automatically. Digital Output Let you set the Digital Output to match the capabilties of the AV receiver you've connected to the product. For more details, please refer to the digital output selection table. (See page 56) Dynamic Range Control Lets you apply dynamic range control to Dolby Digital, Dolby Digital Plus, and Dolby True HD audio. J Auto: Automaticaly controls the dynamic range of Dolby TrueHD audio, based on information in the Dolby TrueHD soundtrack. Also tumns dynamic range control on for Dolby. Digital and Dolby Digital Plus. J Off: Leaves the dynamic range uncompressed, letting you hear the original sound. Y On: Tums dynamic range control on for all three Dolby formats. Quieter sounds are made louder and the volume of loud sounds is reduced Audio Sync Wen the product is attached to a digital TV, lets you adjust the audio delay so that the audio syncs with the video. You can set the delay between 0 and 800 miliseconds. HT-E8200_XU-_0315.ndd 25 Engish 25| 15 s#1 } 02

Settings Network Network | For more information about Network Settings and network Settings | functions, see ‘Networks and the Internet starting on page 29. Network | Let you check whether a connection to the network and the Status Internet have been established. Lets you connect a \M-Fi Direct device to the product using a Wi-Fi Direct _ | Peer-to-Peer network, without a wireless router. You can use the device to control the product. Lets you connect other types of Wi-Fi devices to the product Soft AP wirelessiy. Requires that you create a security key which you must enter into the other Wi-Fi devices when you are connecting them to the network. AllShare | L!S vou permit external devices such as smart phones to Setti connect to the product and share content with or control the ettings product Lets you assign an identifying name to the product. You use Device Name | this name to identify the product when you are connecting external Wi-Fi devices (smart phones, tables, etc.) to it BD-Live | Lets you allow, limit, or prohibit an Internet connection for the Settings | BD-Live service. 126 Engish F-E8200_XU_0315.ndd 26 2012-03-15 84 1:11:03

sim Lets you re-run the Initial Settings procedure. See page 21 for details. SYSMN initial Settings You can connect a wireless USB keyboard or mouse to the USB port on the side of the product. / Keyboard Settings: Lets you configure à wireless USB keyboard connected to the product. [NOTE | >. You can use the Keyboard only when a QWERTY keyboard screen or window appears in the Web Browser.

/ Mouse Settings: Lets you configure a wireless USB mouse connected to the product. You can use the mouse in the product's menu in the same way you use à mouse on your PC. Device = To use a mouse with the product's menu: Manager | 1. Connect the USB mouse to the product.

2. Click the primary button you selected in Mouse Settings.

The Simple Menu appears.

3. Click the menu options you want.

[NOTE | >. Depending on the model of the USB HD keyboard and mouse may not be compatible with your product. >. Some HD keyboard keys may not work. > Wired USB keyboards are not supported >. Some applications may not be supported. »_ fa wireless HD Keyboard does not operate because of interference, move the keyboard closer to the product. Anynet+ is a convenient function that offers linked operations with other Samsung products that have the Anynet+ feature Anynet+ | and lets you control those products with one Samsung TV (HDMI-CEC) | remote. To operate this function, you must connect this product to an Anynet+ Samsung TV using an HDMI cable. You can select the language you prefer for the On-Screen menu, disc menu, subtitles, etc. + The language you select for the disc menu, disc audio, or subtitles will only appear if it is supported on the disc. Language Engish 27| 15 s#1 } HT-E8200_XU_0315.ndd 27

Settings Security The default PIN is 0000. Enter the default PIN to access the security function if you haven’'t created your own password. J BD Parental Rating: Prevents playback of Blu-ray Discs with a rating equal to or above a specific age rating you enter unless the PIN is entered Y DVD Parental Rating: Prevents playback of DVDs with a rating above a specific numerical rating you select unless the PIN is entered. J Change PIN: Change the 4-digit PIN used to access security functions. = If you forget your PIN

1. Remove any disc or USB storage device.

2. Press and hold the EJ button on the front panel for 5

seconds or more Al settings wil revert to the factory settings. NOTE | » When the factory default settings are restored, all the user stored BD data will be deleted. General You can specify the display brighness and time zone. J Front Display: Lets you change the brighiness of the front panel. {Time Zone: You can specify the time zone that is applicable to your area, J Menu Transparency: Adjust the transparency of the menu box DivX® Video On Demand View DivX® VOD Registration Codes to purchase and play DivX® VOD contents. Software Update Support For more information about the Software Update function, see “Upgrading Software" on page 33 Contact Samsung Provides contact information for assistance with your product. Remote Management When activated, lets Samsung Call Centre agents diagnose and fix problems with the product remotely. Requires an active Internet connection. Remote Management service might not be available in some countries. Reset Al settings will revert to the default except for the network and Smart Hub settings. The default security password is

sale” # Networks and the Internet When you connect this product to a network, you can use network based applications and functions such as Smart Hub and BD-LIVE, and upgrade the product's software through the network connection. For more information about accessing and using Internet services, see the Network Services chapter of this manual on pages 49-51. Instructions for configuring the network connection start below. Configuring Your Network Connection Before you begin, contact your ISP to find out if your IP address is static or dynamic. Ifit is dynamic, and you have a wired or wireless network, we recommend using the Automatic configuration procedures described below. If you are connecting to a wired network, connect the product to your router using a LAN cable before you start the configuration procedure. 2 Wired - Manual If you have a static IP address or the Automatic: procedure does not work, you’ need to set the Network Settings values manualy. After following Steps 1 to 3 above:

Select Start in the Network Settings screen, and then press the (J button. The Network Status screen appears. The product attempts to verify the network connection and fails. If you are connecting to a wireless network, 2. Select IP Settings on the right of the screen, disconnect any wired network connection before and then press you begin. The IP Settings screen appears. To begin configuring your network connection, 3. Select the IP Mode field, and then set it to follow these steps: Manual.

1. Inthe Home screen, select Settings, and 4. Use the number keypad on your remote to

2. Seleot Network, and then press the £

enter the Network values. Use the A V4» buttons on the remote to move from entry field to entry field.

3. Select Network Settings, and then pressthe | NOTE |

© button. »_ You can get these values from your Internet provider. You can also view these values on most Windows computers. For instructions, see "Getng the Netvork Settings Values." on this page.

5. When done, highlght OK, and then press

© button. The product verifies the network connection and then connects to the network.

4. Go to the instructions for Wired networks

starting below or the instructions for Wireless networks starting on page 30. Wired Network 2 Wired - Automatic < Getting the Network Settings Values > You can view your Network Settings values on most Windows computers. To view the Network Settings values, follow these steps: After following Steps 1 to 3 above:

1. Select Start in the Network Settings screen,

and then press the (ÆJ button. The product detects the wired connection, verifles the network connection and then connects to the network. + Windows XP

3. Onthe dialog that appears, click the Support

5. The Network settings are displayed.

3. On the dialog that appears, click the Local

Area Connection or Wireless Network - Select Next, and then press the (E button Connection depending on your network again. connection. 4. On the Security screen, enter your network's

4. Onthe Support tab, click the Details button. Security Code or Pass Phrase.

The Network settings are displayed. Enter numbers direclly using the number buttons on your remote control. Enter letters INOTE | by selecting a letter with an arrow button, and »_ Depending on your Windows version, the information may then pressing Lis 5. When done, select Next at the right of he screen. The product veriies the network connection and then connects to the less Network You can setup a wireless network connection in network. three ways: . INOTE | - Wireless Automatic >. You shouid be able to find the Security Code or Pass Phrase on one of the set up screens you used to set up = WPS(PBC) our router or modem. When you configure the wireless network connection, any wireless network devices currently 1 Wireless (General) - Manual connected through the product or, if applicable, - Wireless Manual the products current wired connection, wil be I you have a static IP address or the Automatic disconnected. procedure does not work, you'll need to set the Network Settings values manually 2 Wireless (General) - Automatic After folloiwng Steps 1 to 3 in "Configuring Your After following Steps 1 to 3 in "Configuring Your Network Connection” on page 29. Network Connection” on page 29. 1... Select Start in the Network Settings soreen,

1. Select Start in the Network Settings screen, and then press the (®3 button. The product

6 then piece le Searches for and then displays a list ofthe The product searches for and then displays a available networks, list of ihe available networks. 2... Select the desired network or the Add Network, and then press the

4. li you select the Add Network, enter your

wireless router's name to connect. Enter numbers directly using the number buttons on your remote control. Enter letters by selecting a letter with the A Y 4» buttons, and then pressing the (Æ button. Select Next, and then press the (E3 button again. You can select security type, and then select Next, and then press the (®] button again.

5. On the Security screen, enter your network's

Security Code or Pass Phrase. Enter numbers directly using the number buttons on your remote control. Enter letters by selecting a letter with the À v 4» buttons, and then pressing the (®] button.

6. When done, select Next at the right of the

screen, and then press the 7... The Network Status screen appears. The product attempts to verify the network connection and fails.

8. Select IP Settings on the right of the screen,

button. The IP Settings screen appears.

9. Select the IP Mode field, and then set it to

10. Use the number keypad on your remote to

enter the Network values. Use the A Y 4» buttons on the remote to move from entry field to entry field. INOTE | You can get these values from your Internet provider. You can also view these values on most Windows computers. For instructions, see "Getting the Netork Settings Vaues." on page 29

11. When done, highlight OK, and then press

button. The Network Status screen appears. The product verifies the network connection and then connect to the network. When it is done, highlight OK, and then press button. 2 WPS(PBC) One of the easiest ways to set up the wireless network connection is using the WPS(PBC) function. If your wireless router has a WPS(PBC) button, follow these steps: HT-E8200 XU_0315.ndd 31 After following Steps 1 to 8 in “Configuring Your Network Connection" on page 29.

1. Select Start in the Network Settings screen,

3. Press the WPS{PBC) button on your router

within two minutes. Your product automatically acquires al the network settings values it needs and comnects to your network. The Network Status screen appears. The product connects to the network after the network connection is verified. Wi-Fi Direct The Wi-Fi Direct function allows you to connect Wi-Fi Direct devices to the product and each other using a peer-to-peer network, without a wireless router. 1... Tum on the Wi-Fi direct device and activate its Wi-Fi Direct function.

2. Inthe Home screen, select Settings, and

then press the [® button.

3. Select Network, and then press the

button. i Direct, and then press the (E The Wi-Fi Direct devices that you can connect appear. sôumes vo | Engish 31] 2012-0: 15 s#1 } 06

5. You have three ways to complete the Wi-Fi

connection: + Through the Wi-Fi device. + Through the product using PBC. + Through the product using a PIN Each is covered below. Through the Wi-Fi Device

1. Onthe Wi-Fi device, follow the procedure on

the device for connecting to another Wi-Fi Direct device. See the device's user manual for instructions. 2... When you have completed the procedure, INOTE | »_ The wired or wireless network connection vill be disconnected when you use the Wi-Fi Direct function. Soft AP Soft AP lets you connect other M-Fi devices to vour network through the product and lets them access the Internet. It requires that you create a security key which you must enter into the other Wi-Fi devices when you are connecting them to the network.

In the Home screen, select Settings, and then press the (3 button. you should see a pop-up on your TV screen 2. Select Network, and then press the Saying that a device that supports Wi-Fi button: Direct has requested to connect. Select OK, = and then press the (E3 button to accept 32 peer SON AP: and Ihen press Îhe

3. The Connecting pop-up appears, followed 4. Select On or Off, and then press the

by the Connected pop-up. When it closes, you should see the device listed on the Wi-Fi Direct screen as connected. Through the Product Using PBC

1. Select the Wi-Fi Direct device you want to

connect to this product, and then press the button. The PBC/PIN pop up appears. button. < To Set the Soft AP Security Key >

On the Soft AP screen, select Security Key, and then press the (®} button. The Security Key screen appears.

2. On the Seourity key screen, enter a security

2. Select PBC, and then press the (ÆJ button: key. Enter numbers direcily using the number

The PBC pop-up appears: buttons on your remote control. Enter

3. Press the PBC button on the Wi-Fi Direct letters by selecting a letter with the A v 4»

device within 2 minutes. buttons, and then pressing the (} button.

4. The Connecting pop-up appears, followed 3. When done, use the À Y 4» buttons to

by the Connected pop-up. When it closes, you should see the device listed on the Wi-Fi Direct screen as connected. move to DONE at the bottom of the screen, and then press the (®} button. When you connect a Wi-Fi device through the connection procedure on the device, you must enter the security key you created here into the appropriate field! Through the Product Using a PIN

1. Select the Wi-Fi Direct device you want to

connect to this product, and then press the button. The PBC/PIN pop up appears.

2. Select PIN, and then press the

The PIN pop-up appears.

3. Note the PIN code in the pop-up, and then

enter it into the appropriate field in the Wi-Fi AllShare Settings button. The AllShare Settings screen lists your network connected AlShare devices and their IP addresses. Through this screen, you can allow à device to access the product, deny access, or Direct device you want to connect. 4... The Connecting pop-up appears, followed by the Connected pop-up. When it closes, you should see the device listed on the Wi-Fi Direct screen as connected. 132 Engish delete the device from the AllShare list.

3. Select AllShare Settings, and then press the

4. Select a device, and then press the (E]

button, The AlShare Settings pop-up appears.

5. Select Allow, Deny, or Delete from List, and

then press the The AlShare Settings screen only displays devices if you have established networked connections to AlShare devices. For more information about AlShare networked devices, see pages 35-86. Upgrading Software The Software Update menu allows you to upgrade the products software for performance improvements or additional services. + Never tum the product off or back on manually during the update process.

2. Select Support, and then press the (

4. Select one of the following methods:

+ Online + BYUSB + By Disc + By downloaded + Standby Mode Upgrade

5. Press the [®) button.

Directions for each method begin below. INOTE | ‘The upgrade is complete when the product turns of, and then turs on again by itself. Samsung Electronics takes no legal responsiblity for product malfunction caused by an unstable Internet connection or consumer negligence during a Software Update. I you want to cancel he upgrade while the upgrade software is downloading, press the (E button. HT-E8200_XU_0315.ndd 33 Online Your product must be connected to the Internet to use the Online function.

1. Select Online, and then press the Æ

The Connecting to Server message appears.

2. there is a download available, the Download

pop-up appears with a progress bar and the download starts.

3. When the download is complete, the

Upgrade Query window appears with three choices: Update now, Update later or Don't update.

4. If you select Update now, the product

upgrades the software, turns off, and then turns on automatically.

5. If you do not make a selection in one minute

or select Update later, the product stores the new upgrade software. You can upgrade the software later using the By downloaded function.

6. If you select Don't update, the product

cancels the upgrade. By USB

3. Enter the product's model number into the

search field, and then click Find Product.

4. Click Get downloads in the centre of the

page below the Downloads header.

5. Click Firmware in the centre of the page.

7. Click OK in the pop-up that appears to

download and save the firmware file to your PC.

8. Unzip the zip archive to your computer. You

should have a single folder with the same name as the zip file.

9. Copy the folder to a USB flash drive.

10. Make sure no disc is inserted in the product,

and then insert the USB flash drive into the USB port of the product. English 33] button.

1. In the products menu, go to Settings >

Support > Software Update.

INOTE | There should be no disc in the product when you upgrade the software using the USB Host jack When the Software Update is done, check the software details in the Software Update menu: Do not turn off the product during the Software Update. may cause the product to malfunction. Software Updates using the USB Host jack must be performed with a USB flash memory stick on. By Disc

3. Enter the product's model number into the

search field, and then click Find Product.

4. Cick Get downloads in the centre of the

page below the Downloads header.

5. Cick Firmware in the centre of the page.

7. Click OK in the pop-up that appears to

download and save the firmware file to your PC.

8. Unzip the zip archive to your computer. You

should have a single .RUF file. 9... Write the RUF file onto a disc. We recommend a CD-R or DVD-R.

10. Finalise the disc before you remove it from

11. Insert the disc into the product

12. In the products menu, go to Settings >

Support > Software Update.

INOTE | »_ When the system upgrade is done, check the software details in the Software Update menu: >. Do nottum of the product during the Software Update. It may cause the product malfunction. 134 Engiish

By downloaded The By downloaded option lets you upgrade using a fl the product downloaded earier but you decided not to install immediately.

1. lfupgrade software has been downloaded,

you will see the software version number to the right of By downloaded

2. Select By downloaded, and then press the

want to upgrade. Select Yes. The product begins the upgrade:

4. When the update is complete, the product

turns off automatically, and then turns on. INOTE | »_ When the system upgrade is done, check the software details in the Software Update menu: »_ Do not tum of the product during the Software Update. may cause the product to malfunction. Standby Mode Upgrade You can set the Standby Mode Upgrade function so that the product downloads new upgrade software when i is in Standby mode. In Standby mode, the product is off, but its Internet connection is active. This allows the product to download upgrade software automatically, when you are not using it.

1. Press the A buttons to select Standby

Mode Upgrade, and then press the button.

2. Select On or Off.

If you select On, the product will automatically download new upgrade software when it is in Standby mode with the power of. If it downloads new upgrade software, the product will ask you if you want to install it when you turn the product on. INOTE | »_ To use Standby Mode Upgrade function, your product must be connected to the Internet. »_ this function does not appear, you can upgrade to the latest software and use it 2012-03-15 + 1413

Medal Your Blu-ray product can play Disc and USB contents and the contents located on your PC, DLNA compatible mobile phone, or NAS using the AlShare Play function. For more information about AlShare Play, refer to page 38. The AllShare Play Screen To access the AllShare Play screen, select the AlShare Play icon on the Main screen, and then press the (J button. Using the AllShare Play Screen When the AllShare Play screen appears, it displays My List and a list of content types - Videos, Photos, and Music - on the left side. On the right, it displays, by default, the content in My List: a list of recently played or viewed items, a list of the newest items you have viewed or Istened to, and your most recent Playlist. If you have never played or viewed any items, or created a Playlist, this area wil be empty. 2 Playing My List Items To play displayed My List items, you must have the source of the items connected to or inserted in the product. For example, if recently played My List photos came from a DVD disc, you must have that disc in the product to view them. HT-E8200_XU_0315.ndd 35 To play or view My List items, perform one of the actions below: + Use the 4» buttons to select an item you want to view or play, and then press the button. To view or play another item, press the RETURN (9) button, and then repeat the process described in the first sentence. + Use the 4» buttons to select an item, press the TOOLS button to display the Tools menu, select Play, and then press the (Æ] button. To view or play another item, press the RETURN (2) button, and then repeat the process described in the first sentence. 2 Playing Video, Photo, or Music Content

1. Make sure that the source of the content

you want to play or view is connected to or inserted into the product.

2. Usethe AY buttons to select Videos.

Photos, or Music, and then press the button. The first source selection on the right side is highighted

3. Usethe AY buttons to select the source of

the content, and then press the INOTE | ». Sources displayed for each content type may diffe.

4. To control the playing of Videos, Photos, or

Music, see: + Gontroling Video Playback on page 40. + Gontroling Music Playback on page 42. + Playing Photo Contents and Using the Tools Menu when a File is Highlighted on pages 45-47. INOTE | >. Depending on how and wen you aftach a content source to the product and the content type, the product may. display a different seres of screens to sta playback. For aitemative playback methods see: + Playing Fies on a USB Storage Device on page 36 + Playing Commercial Video Discs on page 37. + Playing Commercial Audio Discs on page 37. + Playing à Disc with User Recorded Content on page 38. English 35]

Media Play Playing Files on a USB Storage Device You can play multimedia fles located on a connected USB device.

1. With the product tumed off, connect a USB

storage device. 2... Tum on the product. When the Main screen appears, select AllShare Play > Videos, Photos or Music > Connected Device, and then press the (Æ] button.

1. With the product turned on, connect a USB

storage device. 2”. When screen below appears, use the AY buttons to select the kind of content you want to view or play, and then press the button. INOTE | ». Even though the product wi display all available folders, itwil ny display fles of the content type you selected in Step 2 or 2”. For example, i you selected music, you will only be able to see music fles. You can change this selection using AlShare Play. 136 Engish | nr-sa200 xuom15ima 36

3. The kind of content you selected on the

connected device is displayed. Depending on how the contents is arranged, you will see either folciers, individual les, or both.

4. Using the À v 4» buttons on your remote,

select the desired contents. To open a folder, select it, and then press the (E] button. To play a file, select it, and then press the button.

5. Press the RETURN (9) button to exit a folder

or to return to the Main screen. NOTE | »_ To prevent possible damage to the USB memory, you must remove the USB storage device safely using the “Safely Remove USB" function. Press the HOME button to moe to the Home menu, select the YELLOW (C) button, and then press the (EJ buiton. I you insert a disc when playing a USB storage device, the device mode changes to "BD/DVD or CD" automaticaly. 2012-0: 15 ##1ah:19

DE 2 | The Function Screen Playing Commercial Audio Discs On the Function Screen, you can select the audio and/or video input source to view or listen to. NOTE | »_ You can also change sources by pressing the Function button in the upper right of the remote. To access the Function Screen, select the Function icon on the Main screen, and then press: Options on the Function Screen To select, highlight an option using the AY buttons, and then press the (ÆJ button. | Select to listen to te digital audio Digital in | orce connected to Digital Audio In Select to isten to audio from the aux analogue audio source comected to Audio In. Select to vieu video rom the denice HDMIIN 1 | Gonnected to HDMI IN 1 Select to vieu video rom the denice HDMLIN 2 | Gonnectedto HDMIIN2 Tuner | Seecttolitento te FM radio. Select to listen t the music in the Blu Bluetooth device. Playing Commercial Video Discs Place a disc into the disc slot with the disc's label facing up. Playback starts automaticalh. If playback does not start automatically, press the © button on your remote or select the AllShare Play and then press the (ÆJ button. See "Playing Video, Photo, or Music Content" on page 35. HT-E8200_XU_0315.ndd 37 option on the Main screen,

1. Insert a pre-recorded, commercial audio disc

into the disc slot with the disc's label facing forward. The AlShare Play Music screen appears listing the tracks. Playback of the first track starts automatically.

2. Toplaya particular track, use the A Y buttons

on the remote to select the track, and then press the (®J button. 3 Music Screen Controls Pause a track.

Play a track. Repeat one track or all tracks. Play tracks in random order. Display the Equaliser. Adjust the equaliser manual {Onby when equaliser mode is On) INOTE | > The Music Screen controls are only accessible when a track is playing. »_ Al controls do not appear at the same time. ». For more information about playing musie, go to "Controling Music Playback on page 42 English 371 red epen 60 |

Media Play Conteni You can play multimedia fles you have recorded on DVD or CD discs.

Insert a user recorded disc into the disc slot with the disc's label facing forward. The Device Connected pop-up appears. Use the A buttons to select the type of content you want to view or play - Videos, Photos, or Music - and then press the button INOTE | Even though the product ill display folders for al content types, it wi only display files of the content type you selected in Step 2. For example, if you selected music, you wil only be able to see music fes. You can change this selection using AlShare Play Use the AY 4» buttons to select the folder containing the content type you selected in Step 2, and then press the [€] button. If you selected Music, the AlShare Play Music screen appears listing the music files on the disc. Use the A Y buttons to select the file you want to play, and then press the button. If you selected Photos, the AlShare Play Photos screen appears listing the photos on the disc. Use the AY 4» buttons to select the photo you want to view, and then press If you selected Videos, the AIShare Play Videos screen appears listing the video files on the disc. Use the AY 4» buttons to select the video you want to watch, and then INOTE |

For he Music and Video folders, you can also push the TOOLS button on your remote, and then select Play Folder to play or view all he fles in the folder automatically Select the folder fist before pushing the TOOLS button. For more information about playing music, go to Controling Music Playback on page 42. 138 Engish

. For more information about playing photo contents, go to Playing Photo Contents and Using the Tools Menu when a File is Highlighted on pages 45-47. ». For more information about playing vidéo contents, go to Controling Video Playback on page 40. Using the AllShare Network Function AlShare lets you play Videos, Photos, or Music located on your PC or your DLNA compatible device through the product using a wireless network connection. To Download the AllShare Software To use AlShare with your PC or DLNA device, you must install AÏShare software on your PC. You can download the PC software and get detailed instructions for using AlShare from the Samsung.com website.

1. Go to wwwisamsung.com.

2. Click Support at the top of the page.

3. On the Support page, enter the model

number of your product into the Model Number field.

4. Onthe page that appears, click Get

downloads on the left side under Downloads. The Download Centre appears.

right side of the AlIShare line

7. Inthe pop-up that appears, click Save File

8. Find the AllShare install file on your disk, and

then double click the fille.

9. Inthe pop-up that appears, click Run, and

then follow the directions that appear on your screen. Download the AlShare Installation/Instruction manual from the same Software Tab by clicking the corresponding PDF flle symbol in the File column on the right. The fl, in PDF format, will download and open. You can view and/or save the file. 2012-03-15

Playing Content Located on Your PC or DLNA Device through the Product

1. Connect the product, your PC, and/or your

DLNA compatible cell phone to the same wireless network.

2. Folowthe directions in the AlShare software

Installation/nstruction manual to set up devices and files for playing or viewing.

3. Select AllShare Play in the product's Home

AlShare Play screen appears.

4. Select the connected DLNA compatible

device or your PC, and then press the button. À screen listing the available fles appears.

5. Select the file you want to play or view, and

then press the (Æ button. HT-E8200_XU_0315.ndd 39 Controlling the Playback of Content Located on Your PC with Your Smart Phone

Product Play back PC'S files Control PC's files to Product Smart Phone AllShare Connection {Only available with Samsung phones supporting AlShare functionalty.)

Connect the product, your PC, and your DLNA compatible cel phone to the same wireless network. Follow the directions in the AIShare software Installation/nstruction manual to set up devices and files for playing or viewing. On your computer, using the AllShare software, confirm your phone is connected. On the phone, select the file you want to view or play, and then select the Blu-ray product as the playback device. On the phone, start playback. English 39! 2012-0:

Media Play You can control the playback of video files located on Blu-ray, DVD, and CD discs, and on USB storage devices. Depending on the disc, some of the functions described in this manual may not be available. Buttons on the Remote Control used for Video Playback GET

1. During playback, press the REPEAT

button on the remote control.

2. Press the A W buttons to select a

Chapter, IL or Title, then press the button [NOTE | »_ The screen may not display Chapter or Tite immediately. Continue to press the A W bufions until your choice is inside he blue fi.

8. To return to normal play, press the

REPEAT button again, press the AY buttons to select Off, and then

1. During playback, press the REPEAT

button on the remote control.

2. Pressthe AY buftons to select

Repeat A-B [NOTE | » The screen may not display Repeat À immediately. Continue to press he À V butions until Repeat AB is inside the blue fi. Repeat a

Section 8... Press the (EJ button at the point

where you want repeat play to star (A).

4. Press the (®J button at the point

where you want repeat play to stop (B). 5... To return to normal play, press the REPEAT button again.

6. Press the (®) button.

[NOTE | You must set point at least 5 seconds of playing time after point (A). 140 Engiish E8200_XU_0315.in dd 40 Using the disc menu, title menu, popup menu and title list DISC MENU | Ling Paÿbeck, press this buton to display the Disc menu During playback, press this button to TIME MENU | SP Tite menu your disc has a playit, press the GREEN (B) button to go to the playist POPUP MENU | Lin paÿbeck, press this buton to display the Pop-up menu DISC MENU or | During playback, press this button to TITLE MENU | display the tte list Playback related buttons The product d or Step mode. loes not play sound in Search, Slow, L>] Starts playback. [=] Stops playback 0 Pauses playback. During playback, precs the E2] or C3 Fast Motion | button Play Each time you press the € or Œ3 button, the playback speed wil change. . In pause mode, press the Æ2 button. Fu MOtOn | Each time vou press the C3 button, the y playback speed will change. . In pause mode, press the ÆB button. Ê MO#ON | E2ch time you press the ER button, a y news frame appears. During playback, press the @9 or Œ2) Motion Loutton Eee MO#ON | Each time you press Æ9 or ÆJ button, the disc moves to the previous or next chapter or file. 2012-03-15 84 1:18

Using the TOOLS Menu During playback, press the TOOLS button. Title Search Time Search Select to move to a desired title if the disc has more than one tte, to a desired scene, or, using Time Search, to a specific point in a movie or video With Time Search, you designate the specific point by entering a time coordinate in the following format 00:00:00 (hours, minutes, seconds) using the remote. Repeat Mode Select to repeat a specific Title, Chapter (BD/DVD discs on) or marked section. Works the same as the REPEAT button See page 40. Full Screen Select to set the desired fu screen size. You can select Original, Mode (larger, and Mode2 (argest. Picture Mode Select to setthe picture mode = Dynamic : Choose this setting to increase sharpness. = Standard : Choose this setting for most viewing applications. = Movie : This is the best setting for watching movies. = User: Lets you adjust the sharpness and noise reduction function respectively. [NOTE | >. When you select User the User Settings screen appears. Select an option, press (E. use the > buttons to make an adjustment, and then press (®. Press the RETURN

9) button to go back to the TOOLS

menu. When you use the BD vise function, this menu wil not appear. Equaliser Mode Select to use the Equaliser. Equaliser Settings Select to set the Equaliser. [NOTE | »_Itonly appears wihen equaliser mode is on HT-E8200_XU_0315.ndd 41 Menu that appears only when BD/DVD disc plays — Play from the | Select to play te movie from te z beginning beginning, & Select to move to a chapter that you a bo waich & Select to set the desired audio language. Audio You can also operate this function by pressing the AUDIO button on the remote control Select to set the desired subitle language. Subtitle - You can also operate this function by pressing the SUBTITLE button on the remote control. To view a scene from another angle. Angle The Angle option displays the number gl of angles avaïlable to view (1/1, 1/2, 1/8, etc) BONUSVIEW Video / Select to set the desired bonusviewr BONUSVIEW | option. Audio Menu that appears only when a file plays Go to Videos CR Move to video list screen. Scene Search | Search the video flle by ne scene. Information | Check the video file's information. [NOTE | > Depending on the disc or storage device, the Tools menu may differ Al options may not be displayed. Engish 41! 15 s#1 }

| nr-saroo x Media Play Controlling Music Playback You can control the playback of music content located on a DVD, CD, or a USB storage device. Buttons on the Remote Control used for Music Playback LL)

Fast Play (Audio CD (CD-DA) only) During playback, press the & or Æ3 button Each time you press the &2] or Æ2 button, the playback speed wil change. 0 butin : Pause a track 2 button : Plays the currentiy selected track. D oution : Stops a track. Skip : During playback, press the Æ2 or Æ button to move to the previous or next music of listed. NUMBER buttons : During Playlist playback, press the desired track number. The selected track is played © | © 00 e Repeating Tracks on an Audio CD You can set the product to repeat tracks on an audio CD (CD-DA/MP3).

1. During playback, use the » button to select

Gin the lower right corner of the screen, and then press the [Æ button.

2. Usethe AY to select the repeat mode you

want - Off, One Song, or AI - and then 142 Engiish Shuffling Tracks on an Audio CD You can set the product to play tracks on an audio CD (GD-DA/MPS) at random

During playback, use the » button to select X in the lower right corner of the screen, and then press the [E] button. Use the AY to set the Shuffle Mode On or button. Off, and then press the ( Creating a Playlist With the Playback screen displayed, press the TOOLS button. The Tools menu appears. Use the A Y buttons to select Play selection, button. The Play selection screen appears. Use the AY buttons to select a track, and then press the (Æ button. À check appears to the left of the track. Repeat Step 3 to select and check additional tracks. To remove a track from the list, move to the track, and then press the (®J button again. The check on the track is removed When done, press the > button to select Play, and then press the (Æ] button. The Music Playback screen reappears listing only the tracks you checked. The selected tracks play automatically. [NOTE | >. You can create à playlist with up to 99 tracks on Audio CDs (CD-DA) »_ Ifyou have created a playist, Play selection is replaced by Edit playlist on the Tools menu:

»_ On the Play selection screen, you can also choose Select All Deselect AI and Cancel. + Use Select AI to select al tracks. This cancells your individual track selections. When you press the RETURN (9) button on your remote or select PLAY and then press the (3 button, al tracks will appear on the Music Playback screen, and the product wi begin to play all tracks from Track 001. + Use DeselectAIl to deselect all selected tracks at once. Then, select individual tracks or use Select AI to select althe tracks, and then press the RETURN (9) button on our remote or select PLAY and then press the button. f you do not use Select Al or select individual tracks, the Plaiist will not change. Cancel cancells any changes you made on tne Play Select screen. When you return to the Playback screen, the Playlist il be unchanged Ripping You can rip music from a music CD to a USB device inserted in the USB jack

1. Insert a USB device into the USB jack on

the side of the product, and then press the RETURN (2) button on your remote.

2. Insert the disc you want to rip from into the

the TOOLS button. The Tools menu appears.

4. Usethe AY buttons to select Rip, and

then press the [7 button. The Rip screen appears.

5. Usethe A v buttons to select a track, and

then press the (Æ button. À check appears to the left of the track.

6. Repeat Step 5 to select and check additional

7. To remove a track from the list, move to the

track, and then press the (®J button again. The check on the track is removed.

8. When done, press the » button to select

Rip, and then press the (J button. The Rip POp-up appears:

9. Press the (J button to begin the ripping

process. The Ripping Completion Bar pop-up appears. HT-E8200_XU_0315.ndd 43

10. When ripping is complete, the “Ripping

completed." message appears. Press the © button.

11. Press the RETURN (9) button to go back to

the Playback screen. NOTE | »_ When Ripping is done, a folder called MP is created in the USB. Using Bluetooth You can use à Bluetooth device to enjoy music with high quality stereo sound, all without wires! What is Bluetooth? Bluetooth is a technology that enables Bluetooth- compliant devices to easily interconnect with each other using a short wireless connection. + A Bluetooth device may cause a noise or malfunction, depending on usage. = When a part of the body is in contact with the receiving/transmitting system of the Bluetooth device or the Home Cinema. - Electrical variation from obstructions causecl by a wall, comer or office partitioning. - Electrical interference from same frequency- band devices including medical equipment, microwave oven and wireless LAN Pair the Home Cinema with the Bluetooth device while maintaining a close distance. The further the distance is between Home Cinema and Bluetooth device, the worse the quality is. Ifthe distance exceeds the Bluetooth operational range, the connection is lost. In poor reception-sensitivity areas, the Bluetooth connection may not work properiy The Home Cinema has an effective reception range of up to 10 meters in all directions if there are no obstacles. The connection will be automatically cut off if the distance is out of this range. Even within this range, the sound quality may be deteriorated by obstacles such as walls or doors. + This wireless device may cause an electric interference during its operation. English 43]

Media Play To connect the Home Cinema to a Bluetooth device Bluetooth device Check if the Bluetooth device supports the Bluetooth compliant stereo headset function.

1. Press the FUNCTION button on the remote

control of product to display the BT message.

2. Select the Bluetooth menu on Bluetooth

device you want to connect. (refer to Bluetooth device's user manual)

3. Select the Stereo headset menu on the

Bluetooth device. + You will see a list of scanned devices.

4. Select "SamsungHTS-XXXXXX" from the

searched list + When the Home Cinema is connected to the Bluetooth device, the device name of the connected Bluetooth device, followed by the Home Cinema will display the connected device name on the front display.

5. Play music on the connected device.

+ You can listen to the music playing on the connected Bluetooth device over the Home Cinema system. [NOTE | The Home Cinema ony supports Middle Quality SC data {up to 237kbps@48kHz), and does not support High Quality SBC data (328kbps@44. 1H. The AVRCP feature is supported and would work differentiy according to another device"s specifcation. Connect only to a Bluetooth device that supports the A2DP Profle. Only one Bluetooth device can be paired at a time. Search or connection by product may not be performed proper in the folowing cases: 1 44 Engiish _Ifthere emits a strong electric wave around Home theater. If several Bluetooth devices are simultaneousiy paired with product. _Ifthe Bluetooth device is tumed off, not in place, or malfunctions. Note that such devices as microwave ven, wireless LAN adaptor, plasma bulb and gas stove use the same frequency range as the Bluetooth device, which can cause an electric interference. To disconnect the Bluetooth device from the Home Cinema You can disconnect the Home Cinema from the Bluetooth device. (refer to Bluetooth deivice's user's manual) + The Home Cinema will be disconnected + When the Home Cinema is disconnected from the Bluetooth device, the Home Cinema will display DISCONNECTED on the front display. To disconnect the Home Cinema from the Bluetooth device Press the (HË}) button on the front panel of the Home Cinema to switch from BT to another mode or off the Home Cinema. + Except disconnect through function conversion, the connected Bluetooth device will wait a certain time for response from the Home Cinema before terminating the connection. {Disconnection time may differ, depending on the Bluetooth device) + The currently connected device will be disconnected. [NOTE | »_ In Bluetooth connection mode, the Bluetooth connection vil be lost if the distance between the Home Cinema System and the Bluetooth device exceeds (10 meters). IFthe distance is retumed to the effective range or you restart the Bluetooth device, you have to reconnect them. Ithe Bluetooth device fals back in the effective range, you can restart to restore the pairing with the Bluetooth denice. In BT function mode, Screen saver wi operate if the device keep Ready state last 5 minute, Then, for connecting the BT device, turn off the screen saver and connect it. To turn of ne Screen saver, operate any button on the remote control (e.g. Volume button etc.) 2012-03-15

HT-E8200 XU. Playing Photo Contents You can play photo contents located on a DVD, USB, mobile device or PC. Using the Tools Menu During playback, press the TOOLS button NOTE | Depending on the disc or storage device, the Tools menu may diffe. Al options may not be displayed. To enable the background music function, the photo file must be in the same storage media as the music fl. However, the sound quality can be affected by the bit rate ofthe MP3 file, the size of the photo, and the encoding Goto Photos | Selectto go to the list of photos onthe methon. List Current media, ». You can't enlarge the subtile and PG graphic in the ul Si screen mode. sn 2 || Select to start te slide show. Using the Tools Menu SHdE SHOW ct 5 set a side shows speed hlighted Speed Slide Show Select lo set a side shows special When a fle is highlghted, press the TOOLS Effect effects button. Background | Select t listen to music while vewing Select to access the sort options: Artist, Music On à slide show. _. Genre, Monthly, Latest Date, etc. The Background | Select to seine background music ne Del depend on the Music Setting | seting. Appears in the Vie function screen. Select io set us Setings. Folder view | Select to display the folders on îhe Dynamic : Choose t increase stage dete. Sharpness. Standard : Choose for most iewing AAppears on the Vie function screen. applications. Title Select to sort al photo or video les on = Movie : This is the best seing for à storage device by te. Picture Mode | Wetching movies. AAppears on the Vie function screen. - User: Lis you adjust the shapness Au Select rit o sort and then display and noise reduction function all music tracks on a storage denice by respectively. artist. NOTE | AAppears on the View function screen. » Wen ou use he BD vise function, Vu Select Album t sort and then display is menu il ot appear all music tracks on a storage denice by bum Select to enlarge the current picture. Zoom nage n mes pl Appears on the View function screen. _ Select Genre to sort and then display Select to rotate the picture. (This will all music tracks on a storage device by Rotate rotate the picture either clockuise or genre. counter clockvise. l AAppears on the Vie function screen. Information | Shons te picture information. Select to sort and then display al photo Latest Date | | Gien fles on a storage device rom the latest to eariest date. English 45]

Media Play Earliest Date Appears on the View function screen Select to sort and then display all photo or video fles on a storage device from the earliest to latest date. Monthly. Appears on the View function screen Select to sort al photo or video files on a storage device by the month created. Play selection Play selection lets you select specific music, video, and photo fles to play. Itworks essentialy the same for all media, The example below is for photos

selection, and then press the button .… On the selection screen, use the AY <» buttons to select a photo you want to view, and then press the (E} button. A check mark appears to the left of the picture.

4. Repeat Step 3 for each photo you

5. To de-select a photo, highlight ft,

to select Play, and then press the (© button. A slide show containing the photos you selected begins.

RETURN (2) button. [NOTE | >. After the Slide show begins, ou can control te slide show by pressing the TOOLS button and displaying the Slide Show menu. See "Using the Tools Menu” page 45 146 Engish | nT-s8200 xu.om15ima 46 Send Select Send to upload selected les to Picasa, Facebook, Cloud Storage, N Drive, or Famly Story. To use Send, you need to establish an account with the on-line site, and then log in using the Log In function.

2. Repeat for each track or file you

want to upload | NOTE | >. You can also move to Select All on the right, and then press the button to select all tracks or files.

3. Select Send on the right side, and

then press the (E3 button.

4. Usethe A W buttons to select the

on line site you want to upload the fles or tracks to, and then press the [©] button. Login / Out The Log In/Out function lets you log in to your online Samsung account. Add to Playlist Select to create a playlist or add files or tracks to a playlist

1. Select Add to Playlist, and then

press the (E} button.

2. Usethe Av <> buttons to

highlght a track or fl, and then press the (®} button.

3. Repeat for each track or file you

4. Select Add on the right, and then

press the (E} button.

5. On the screen that appears,

perform one of the following actions « Select the Playlist to which you want to add the tracks or files and then press [©] button. 2012-03-15 84 1:46

Add to Playlist (Continued) + Select Create new, and then press button. On the keyboard pop-up that appears, create a name or the new playlist. Enter numbers using the numbers on the remote. Enter letters by using the A Y > buttons to move the cursor, and then pressing the (Æ button. When finished, move to DONE at the bottom of the screen, and then button. Delete (Playlist) Depending on the screen you are viewing, select Delete to erase a flle from erasable media (such as a USB device) or to delete a playit. Edit playlist Select Edit playlist to remove files or tracks from an existing playlist. The storage device containing the playlist must be inserted into or attached to the product.

2. Repeat for each track or fl you

want o remove. [NOTE | »_ You can also move to Select Al on the right, and then press the button to select ll tracks or fl.

3. Select Remove on the right side,

and then press the Ç Play Current Group After you have sorted by Artist, Genre, Album Title, Latest Date, Earlest Date, or Monthly, select a group that is the result of the sort (for example, all pictures taken in Augusÿ, and then select Play Current Group to play or view the fes in that group only. Go to Playlist Select to go to the Playlist section of the Main AlShare screen. HT-E8200_XU_0315.ndd 47 Encoding - which changes by language or by geographical area - mocifies how the product sorts, arranges, and presents files or tracks, displays dates, etc. Select Encoding to change the encoding to match your language or geographical area. Encoding

Displays media fle and content Information | |iomaton. NOTE | »_ Depending on the disc or storage device, the Tools menu may diffe. Al options may not be displayed. Listening to Radio Using Buttons on the Remote Control

1. Press the FUNCTION button to select FM.

Tune in to the desired station. + Preset Tuning 1 : Press the ©J button to select PRESET and then press the TUNING/CH (A V) button to select the preset station. - Before you can tune to preset stations, you must add preset stations to the product's memory. See page 48 for instruction. + Manual Tuning : Press the © button to select MANUAL and then press the TUNING/CH (A V) button to tune in to a lower or higher frequency. + Automatic Tuning : Press the ©} button to select MANUAL and then press and hold the TUNING/CH (A V) button to automatically search the band. Setting Mono/Stereo Press the MO/ST button. + Each time the button is pressed, the sound switches between STEREO and MONO. + In a poor reception area, select MONO for a clear, interference-free broadcast. Engish 47 15 s#1 } 47

Media Play Presetting Stations Example : Presetting FM 89.10 into memory.

+ Press the TUNER MEMORY button before NUMBER disappears from the display on its oun. + After you press the TUNER MEMORY button, NUMBER disappears from the display and the station is stored in memory.

5. To preset another station, repeat steps 2 to 4.

+ To tune in to a preset station, press the TUNING/CH (A V) button. Using the Special Effects Remote ntrol Buttons SOUND EFFECT Function Lets you select a mode that optimizes the sound.

1. Press the SOUND EFFECT button

2. Press the A W button to select the desired mode:

effect 2 DSP MP3 Enhancer -» Power Bass + Off + MP3 Enhancer : Helps enhance your sound experience (8x. mp3 musi). You can upscale your MP3 level sound (24 kHz, 8bi to CD level sound (44.1 kHz, 16) + Power Bass : increases the Volume level of bass tones and provides thuddng sound effects, Off: Select this for normal listening. 2 Sound Mode Virtual Sound — Music —> News -» Drama > Cinema — Sports -> Game —» Off 3D SOUND 3D Sound You can enjoy more natural and vivid surround sound with enriched tones by adjusting the depth of sound using the level options. Off High -+ Medium -» Low INOTE | »_Itis not available in FM mode VTuner vTuner Tuner is the function of the listening a radio. 1 you press the vTüner button, you can move to vTuner application You can use the vTuner Function after download the Tuner application from Samsung Apps. 20-30 Playing a 2D video in 3D mode You can enjoy an ordinary 2D video in 30 mode. INOTE | »_f you move to the Home or Smart Hub Home menu in 3D mode, it will switch to 2D automatically. 148 Engish

You can enjoy various network services such as Smart Hub or BD-LIVE by connecting the product to your network. To use network services, you must first:

1. Connect the product to the network.

2. Configure the network settings.

(See pages 29-32) Using Smart Hub Using Smart Hub, you can download movies, videos, and music from the Internet, and access various for pay or free-of-charge applications and view them on your TV. Application content includes news, sports, weather forecasts, stock market quotes, maps, photos, and games. For instructions that explain how to use Smart Hub, follow these steps:

1. Go to wwwsamsung.com.

2. Click Support at the top of the page.

3. Onthe Support page, enter the model

number of your product into the Model Number field.

4. Onthe page that appears, click Get

downloads on the left side under Dounloads. The Dounload Centre appears.

right of Smart Hub Users Manual. The manual downloads. INOTE | »_Tne web location of the Smart Hub manual s subject to change without notice HT-E8200_XU_0315.ndd 49 Smart Hub at a Glance soopues momen 90 | Your Video : Provides recommendations for videos based on your astes. Search : Provides an integrated search of your video providers and connected AlShare devices. Recommended : Displays recommended contents managed by Samsung. Commercial: Displays the Smart Hub Guide, an introduction to the product, and new application introductions. Family Story : An efforts way to access family content. + Provides access to family photos, messages, and events, anytime and anywhere. Fitness : Gateway to the Unifled Sel-Care Sendice. Presents fitness videos from various content partners with feedback on calories burmed after every workout. Kids : Kids service gives kids an easy and safe way to enjoy their Favourite content. + Provides a ide variety of fun and safe content for children. Navigation Help : Displays the remote control buttons you can use to navigate in Smart Hub. + RED (A) : To log in to Smart Hub. + GREEN (B): To display the background screen. + Tools : To display the settings windon. + Return : To return to the previous menu. Engish 49 | 15 s#1 } 49

Network Services My Applications : Displays your personal gallery Web Browser at a Glance © | d'applications which you can add to, modify, and delete. Samsung Apps : Open Samsung Apps to download © | various for pay or free-of-charge application senvices. Using the Web Browser You can access the internet using the Web Browser application which is installed in the Smart Hub screen by default

1. Select Smart Hub on the Home screen, and

then press the (Æ] button.

2. Select the Web Browser application in Smart Control Panel : Dispiays the various Web Browser

Hub, and then press the [E button functions, NOTE + €: Moves to the previous page. +) : Moves to the last page before going back. >. When you run the Web Browser with the product « & : Reloals the curent page so that is connected by HDMI to a BD \Wise compatible TV - and BD teen ont pag Wlise is on - the browser is maximized to fil the screen case and the TV's resolution is set to the optimal resolution + <> : Moves to the Home screen of the Web automaticalh. Browser. | »_ The Web Browser is not compatible with Java ° en in or ui of ne screen at applications. 7 _ + £> :Alows you to bookmark specific pages so »_ you attempt to download a fle, and the fle can not be that you can more t them easy Saved an error message vil appear © | + © : Alows you to view the history of your visted »_ The playback of Flash videos is not supported. pages by date, name, or frequency, »_ E-commerce, for purchasing products online, is not + (5 mpnmmompecen”— ]:AlOUS ou to enter a supported page address manual or select a page from the »_ ActiveX is not supported. visited page list to move to that page. Allows you to suitch easily between multiple, currently open Web Browser windows + @ : Alows you to search for information by entering words. + @ : Lets you share the current site with your family group by sending a message. + @ : Alows you to configure all settings for using the Web Browser. 150 Engiish 50 2012-03-15 8% 1:15

Navigation Help : Displays the remote control buttons you can use to navigate in Web Browser. + GREEN (B): To display the Control Panel. © |. veuLow (0): To search ak, + Tools : To display Tools window. + Exit: To retum to the previous menu. BD-LIVETM Once the product is connected to your network, you can enjoy various movie-related service contents avallable on BD-LIVE compliant discs.

1. Attach a USB memory stick to the USB jack

on the side of the product, and then check its remaining memory. The memory device must have at least 1GB of free space to accommodate the BD-LIVE services.

2. Select Settings on the Home screen, and

5. Select BD Data Management, and then

6. Seleot Select Device, and then press the

8. Insert a Blu-ray Disc that supports BD-LIVE.

9. Select an item from the list of BD-LIVE service

contents provided by the disc manufacturer. button. INOTE | »_ Te way you use BD-LVE and the provided contents may dffr, depending on the disc manufacturer. HT-E8200 XU_0315.ndd 51

Appendix Add nal Information Note HDMI OUT + Certain HDMI output résolutions may not work, depending on your TV. Connections |. Vou must have an HDMI connection to enjoy videos with 3D technology. + Along HDMI cable may cause screen noise. f this occurs, set HDMI Deep Colour to Off in the menu. 3D Settings + For some 3D discs, to stop a move during 3D playback, press the ID button once. The movie stops and the 3D mode option is de-activated. To change a 3D option selection wien you are playing a 3D movie, press the (CD button once. The Blu-ray menu appears. Press the D button again, then select 3D Settings in the Blu-ray menu. + Depending on the content and the position of the picture on your TV screen, you may see vertical black bars on the left side, right side, or both sides. TV Aspect + Depending on the disc type, some aspect ratios may not be available + I you select an aspect ratio and option which is different than the aspect ratio of your TV screen, then the picture might appear to be distorted. + I you select the 16:9 Original, your TV may display 4:3 Pilarbox (black bars on sides of picture) BD Wise (Samsung Products only) + When BD Wise is on, the Resolution setting automatically defaults to BD Wise and BD Wise Settings | _ appears in the Resolution menu + the product is connected to a device that does not support BD Wise, you can not use the BD \Wise function For proper operation of BD Wise, st the BD Wise option in bath the product and the TV to On. Digital Output + Be sure to select the correct Digital Output or you wil hear no sound or just loud noise. + the HDMI device (AV receiver, TV) is not compatible with compressed formats (Dolby digital, DTS), the audio signal outputs as PCM. + Regular DVDs do not have BONUSVIEW audio and Navigation Sound Effects + Some Blu-ray Discs do not have BONUSVIEW audio and Navigation Sound Effects + This Digital Output setup does not affect the analogue (L/R) audio or HDMI audio output to your T\. Itafects the optical and HDMI audio output when your product is connected to an AV receiver. + you play MPEG audio soundtracks, the audio signal outputs as PCM regardless of your Digital Output selections PCM or Bitstream). BD-LIVE Internet Connection + The Internet connection may be restricted while you are using BD-LIVE contents. 152 Engish E8200_XU_0315.ndd 52 2012-03-15 2% 1:

Settings Anynet+ (HDMI-CEC) + Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV. This function is not avallable the HDMI cable does not support CEC. your Samsung TV has an Anynet+ logo, then it support the Anynet+ function. BD Data Management

+ Inthe external memory mode, disc playback may be stopped if vou disconnect the USB device in the middle of playback. + Oniy those USB devices formatted in the FAT fle system (DOS 8.3 volume labe) are supported We recommend you use USB devices that support USB 2.0 protocol with 4 MB/sec or faster read/urite speed. The Resume Play function may not work after you format the storage device. The total memory avallable to BD Data Management may differ, depending on the conditions. DivX® Video On Demand + For more information about DivX{R) VOD, visit “http://vod.divx.com". HDMI audio + When HDMI audio output to the TV speaker, it is automatically doun-mixed to 2 channels. Audio Return Channel + Wen Anynet+ (HDMI-CEC) is Of, the Audio Return Channel function is not available + Using an HDMI cable not cerfied or ARC (Audio Return Channel) may cause a compatiilty problem The ARC function is only available if an ARC-compliant TV is connected. Digital Output + Digital Output can be activated when Speaker Selection is selected to TV Speaker. Playback Playing a Video files + Video les with high bit rates of 20Mbps or more strain the product capablities and may Stop playing during playback. Selecting the Audio Language + The <> indicator wil not appear on the screen the BONUSVIEW section does not contain any BONUSVIEW audio settings. The languages avalable through the Audio Language function depend on the languages that are encoded on the disc. Tis function or certain languages may not be valable. + Some Blu-ray Discs may allow you to select either the PCM or Dolby digital audio soundtrack in English. HT-E8200_XU_0315.ndd 53 English 531 15 s#1 }

Appendix Playback Selecting the Subtitle Language + Depending on the Blu-ray Disc / DVD, you may be able to change the subtil language in the Disc Menu. Press the DISC MENU button. This function depends on the selection of subtitles that are encoded on the disc and may not be available on all Blu-ray Discs/DVDs. + Information about the main feature BONUSVIEW mode will also appear if the Blu-ray Disc has a BONUSVIEW section. + This function changes both the primary and secondary subtiles at the same time The total number of primary and secondary subtiles are displayed respectively. Playing a JPEG files + You can't enlarge the subitle and PG graphic in the ful screen mode. AllShare Play Using the TOOLS button while playing pictures + the system is connected to a BD Wise compliant TV that has set BD Wise to On, the Picture Settings menu vil! not appear. +_ The Background Music function wi not work unless the music fl and the photo fl are located on the same storage mec. Also, sound quality can be impacted by the bit rate of the MP3 music fl, he size of the photos, and the encoding method. Playing back a USB Storage Device + You must remove the USB storage device safely by perfoming the “Safely Remove USB” function) to prevent possible damage to the USB memory. Press the HOME button to move to the Home menu, select the YELLOW (C) button, and then press the (E button + you insert a disc when playing a USB storage device, the Function mode is changed to "BD/ DVD" automaticalh, 154 Engiish | nT-28200 xu.om15ima 54 2012-03-15 84 1:15

• Ifthe Source Stream is 2ch or mono, “Re-encoded Dolby D' Setting are not applied. Output will be PCM 2ch. Blu-ray Discs may include three audio streams - Main Feature Audio : The audio soundtrack of the main feature. = BONUSVIEW audio : An additional soundtrack such as the director or actor's commentary. = Navigation Sound Effects : When you choose some menu navigation, Navigation Sound Effects may sound. Navigation Sound Effects are different on each Blu-ray Disc. 156 Engish | HT-E8200_XU_0315.ndd 56 2012-03-15 24 1:15

Troubleshooting Refer to the table below when this product does not function properiy. the problem you are experiencing is not listed below or ithe instructions below do not help, turn off the product, disconnect the power cord and contact the nearest authorized dealer or Samsung Electronics Service Centre.

Symptom Check/Remedy . _ € 1Sthe pour cord plugged securel into the outet? 1 cannot eject the disc. Game Med | in ofttne pourer and then turn it back on. Check te region number of the Blu-ray/DVD disc. playback does not start Blu-ray/DVD disc purchased from abroad may not be playable. SE | CD-ROMS and DVD-ROMS cannot be played on this product. «Make sure that te rating level is corect. Playback does not start immediately when the | » Are you using a deformed disc or a disc with scratches on the surface? Play/Pause button is e Wipe the disc cean. pressed. Sound is not produced. The home cinema does not play sound during fas playback, slow playback and step motion payback. Are the speakers connected proper? 1 the speaker setup correct customized? + Is the disc severely damage? The remote control does not work. Are jou operating the remote win ts apertional range and within the proper angle relative to the sensor? Are the batteries dained? + Have you selected the mode (TV/BD) functions of the remote control (TV or BD correct? + The disc is rotating but no Is the TV power on? picture is produced. Are the video cables connected proper? «Picture qualit s poor and |» 1 ne isc din or damaged? picture is shaking. + A poorly manufactured disc may not be playable. Audi language and subies |» Aucio language and subies wi not wok he disc does not contain them. do not work. The menu Screen does not | + Ave you using a disc that does not contain menus? appear even when the menu function is selected. . You can play 169 Blu-ray/DVD discs in 16:9 Fu mode, 4:3 Letter Box mode, or DS ratio cannotbe | 4.3 pan-Scan mode, but 4:3 Blu-raÿ/DVD discs are played in 43 rafo on. Refer to the Blu-ray Disc jacket and then select the appropriate function. HT-E8200_ XU_0315.indd English 571 15 s#1 }

Appendix Symptom Check/Remedy + The product is not + Press and hold the remote controls (EB button for 5 seconds in STANDBY mode. working. - Using the RESET function wil erase all stored settings. (Example: The power goes out or a strange noise is heard) The Product is not working normal. Do not use this unless necessary You have forgotten the rating level password. + With no disc in the product, press and hold the products (CD button for longer than 5 seconds. INIT appears on the display and al setings wi return to the default values. Then, press the POWER button. - Using the RESET function wil erase all stored settings. Do not use this unless necessary Can't receive radio broadcasts. IS the antenna connected proper? I the antenna's input signal is weak, install an external FM antenna in an area with good reception. While listening to TV audio through the Product, no sound is heard. Ifthe EJECT butin is pressed while listening to TV audio using the D. IN or AUX functions, the Blu-ray/DVD disc functions are turned on and the TV audio is muted. "Not Available" appears on screen. +_ The features or action cannot be completed at this time because: 1.Tne Blu-ray/DVD disc's software restricts it.

2. The Blu-ray/DVD disc's software doesn't support the feature (.g., angles)

3.Tne feature is not available at the moment

4. You've requested a title or chapter number or search time that is out of range.

Ifthe HDMI output is set to a Press and hold the © button on front panel for more than 5 seconds with no disc resolution your TV cannot inserted. Al settings wi revert to the factory settings. support (for example, 1080p), you may not see a picture on your TV. No HDMI output. + Check the connection between the TV and the HDMI jack of the product + Check if your TV supports 576p/480p/720p/1080i/1 080p HDMI input resolution Abnormal HDMI output screen. + random noise appears on the screen, means that TV does not support HDCP (High- bandhidth Digital Content Protection) 158 Engish | nr-sa2oo xuom5ima 58 2012-03-15 84 1:15

Symptom Check/Remedy

Ian see folders shared | + AlShare Play shows only files corresponding to the Photo, Music, and Movie categories. through AllShare Play, Fies that do not correspond to these categories may not be displayed. but cannot see the files. Video is played + Check if the netuork is stable. intermittentiy. + Check if the netork cable is property connected and f the network is not overloaded The wireless connection between the server and the product is unstable. Check the connection. The AllShare Play IP address under the same subnetwork should be unique, othemuise IP collision can connection between the TV | results in such a phenomenon. and PC is unstable. + Check if you have a firewall enabled. 1f so, disable the firewall function. 1 cannot connect to the + Test whether the network connection is successful by using the Network Status function. BD-LIVE server. + Check whether a USB memory device is connected to the product. + The memory device must have at least 16B of free space to accommodate the BD-LIVE senice. You can check the available size in BD Data Management. (See page 53) + See the BD-LIVE Internet Connection option is set to AlowAI). Hall above fils, contact the contents provider or update to the latest firmware. When usingthe BD-LIVE | + The memory device must have at least 1GB of free space to accommodate the BD-LIVE service, an error OCcurs. service. You can check the available size in BD Data Management. (See page 53) INOTE | > When the factory default settings are restored, all stored user BD data will be deleted. CEO Hereby, Samsung Electronics, declares that this Home Cinema System is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The official Declaration of Conformity may be found at http://www.samsung.com, go to Support > Search Product Support and enter the model name. This equipment may be operated in all EU countries. In France, this equipment may only be used indoors. HT-E8200 XU. 59 English 59! 2012-03-22 24 11 h o1

Weight 4k General Dimensions 21041 (M x 133 (H) x 96 (D) mm (With Stand) enr Operating Temperature Range +5°C to +35°C Operating Humidity Range 10% t0 75 % Signal/noise ratio 55 dB FM Tuner Usable senstiity 1208 Total harmonic distortion 10% BD (iu-ray Disc) Reading Speed : 9.834 m/sec Reading Speed : 6.98 - 7.68 m/sec. DVD (igitl Versatie Disc) Disc Approx. Play Time (Single Sided, Single Layer Disc): 135 min. Reading Speed : 4.8 - 5.6 msec. CD : 12cm (COMPACT DISC) Maximum Play Time : 74 min. 1 channel : 1.0 Vp-p (75 0 load) Video Output | Composite Video Blu-ray Disc : 576i/480i DVD : 576i/480i Video/Audio HDMI 1080p, 10801, 720p, 576n/480p PCM muichannel audio, Bitstream audio, PCM audio Front speaker output 133W x 2630) Subuoofer speaker output 134W(0) Analogue input 20Hz-20kHz (2308) Frequency response Ampifier Digital input 20Hz-40kHz (2408) SIN Ratio 70d8 Channel separation 60d8 Input senstty {AUX500mV Weight 7.259 Suburoofer Dimensions 290 (x 290 (H) « 370 (D) mm + Network speeds equal to or below 10Mbps are not supported + Samsung Electronics Co., Ltd reserves the right to change the speciications without notice. + Weight and dimensions are approximate + Design and specifcations are subject to change without prior notice. + For the power supply and Power Consumption, refer to the label attached to the product. 1 60 Engish | nr-s8200 xu.om15ima 60 2012-03-15 84 1:15

Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Area Contact Centre & I Web Site Area Contact Centre æ Web Site Europe onenegr [020405 0 ana DITS = 0900-SANSURE (0900 ; _ EE nenerancs | DUSNNE va samsung com se €007/min) NSTeng en None B15-50 480 NN SamEung om SENS ua DÉDUIT | pa sameung com Eau 0218 be Dutch) 1022-607-98-33 vu samsung com Four BD820- SAMSUNG (725-7804 _| av samsung com be_fr (French) 1. 08010 SAMSUNG (72678) - Be CHERE = rar din tefeaua Romilecom Bugare DLNEU NES ED Bumania ta oral vs samsung com Croatia -062 SAMSUNG (062 726 7864) | ww.samsung.com 2.021.206.01.10 - din once B0C-SAMSUNG (800-720780) — eu — 5 Samsung 27, Es Can | Sea 0700 Samsung { vsamaung om Ca A EE | y sameung om 7864 doké3o417, 180 00, Praha 8 ET DBOO-SANSUNE 728-7809 | mcsameing com Denra—| 70701970 DTETEN) Spain OD2-1-SANSON PO 172 67] mansameung com Find TN-2TSTE DETENTE Sedan O2 FEBA SAMSUNG | samsung com France O1 48 63 0000 Samsung com " Samsung OR DES - SANS PATENT " surend | DSL (77868 | va samaung con/ Germany € 0.14) " WVSAMSUNQ.COM " cch_fr/{French) TO mer I EE Te DO SAMSUNG (728-7868 | wsameung com De ge riTIon Sang Com ee En EE Samsung Om Luembug | 26108710 NE SEMSUN COM Le 2000720 MSATEUN OT DE En ED0-7207. Samsung Om Correct disposal of batteries in this product {applicable in the European Union and other European countries with separate battery retum systems.) This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human heaith or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system. Correct Disposal of This Product (Waste Electrical & Electronic Equipment) {Applicable in the European Union and other European countries with separate collection systems) M 5 mano on 1e product, aocessores or lralure indicate that the product and is electronio acoessores (2. HT-E8200_ XU_03 charger, headset, USB cable) should not be disposer of with other household waste at the end of er working if. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibl to promote the sustainable reuse of material resources, Household users should contact either the retaler were they purchased this product, or their local government ofice, for detals of where and how they can take these items for environmental safe recycing, Business users should contact their supplier and check the terms and conditions of the purchase contract. ‘This product and its electronic accessories should not be mixed with other commercial wastes for disposal

RISQUE D'ÉLECTROCUTION, LA BROCHE

6.226.616: 6,487,535; 7.892,195; 7,272,567:

6.226.616: 6,487,535; 7,892,195; 7,272,567:

Homi The terms HDMI and HDMI High-Defnition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. 2012-03-15 $
