Product Type	Network Router
Brand	WyreStorm
Model	EXP-SW-0401-H2
Dimensions (W x D x H)	200 mm x 150 mm x 30 mm
Weight	0.5 kg
Power Supply	DC 12V, 1A
Wireless Standards	IEEE 802.11ac (Wi-Fi 5)
Maximum Wireless Speed	Up to 1200 Mbps (dual-band)
Ethernet Ports	4 x Gigabit LAN, 1 x Gigabit WAN
Frequency Bands	2.4 GHz and 5 GHz
Security	WPA2-PSK, WPA3, Firewall
Main Functions	Wi-Fi routing, NAT, DHCP, VPN passthrough
Care and Cleaning	Wipe with dry cloth; avoid liquids
Safety	Place in well-ventilated area; do not cover
Spare Parts	Power adapter, network cables (not included)
Repairability	Professional repair only; no user-serviceable parts
General Information	Works with all standard Internet providers

Frequently Asked Questions - EXP-SW-0401-H2 WyreStorm

How to set up the WyreStorm EXP-SW-0401-H2 router?

Connect the router to your modem using the WAN port, power on, and follow the quick setup guide. Access the web interface via 192.168.1.1 to configure SSID and password.

What is the default IP address to access the router?

The default IP address is 192.168.1.1. Enter it in your browser to access the admin panel.

How to reset the router to factory settings?

Press and hold the Reset button on the back for about 10 seconds until the LEDs blink. All settings will be restored to default.

What wireless security options are available?

The router supports WPA2-PSK and WPA3 encryption for secure Wi-Fi connections.

Can I use this router for gaming?

Yes, it supports dual-band Wi-Fi and gigabit Ethernet, providing low latency and stable connections for online gaming.

How to improve Wi-Fi range?

Place the router in a central location, avoid obstacles, and consider using a Wi-Fi extender for larger areas.

Does the router support VPN passthrough?

Yes, it supports VPN passthrough for PPTP, L2TP, and IPSec protocols.

What is the maximum number of connected devices?

It can handle up to 30 devices simultaneously without significant performance degradation.

How to update the firmware?

Download the latest firmware from the WyreStorm website, log into the router admin panel, go to System Tools > Firmware Upgrade, and upload the file.

What to do if the router overheats?

Ensure proper ventilation, do not block vents, and place it in a cool area. If persistent, contact WyreStorm support.

USER MANUAL EXP-SW-0401-H2 WyreStorm

WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the installation process.

2160p 4:4:4 60

HDMI®

IMPORTANT! Installation Requirements

• Visit the product page to download the latest firmware, document version, additional documentation, and configuration tools.
• Read through the Wiring and Connections section for important guidelines before creating or choosing premade cables.

In The Box

1x EXP-SW-0401-H2 Switcher
1x 12V DC Power Supply (US/UK/EU/AU)
2x Mounting Brackets
1x IR Remote Control
1 x IR Receiver Cable

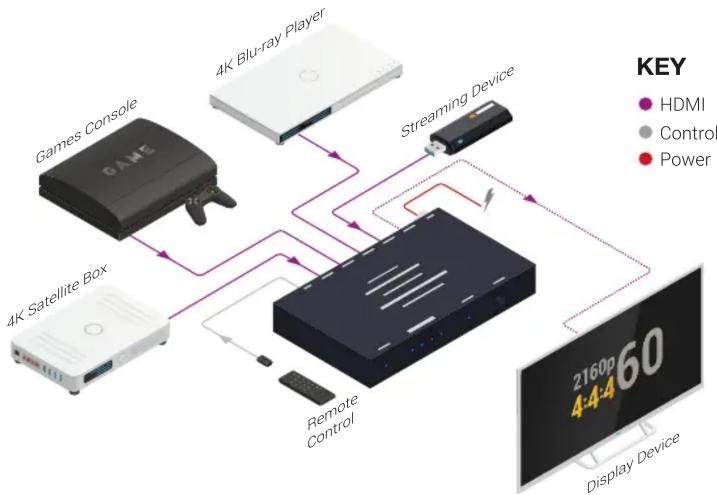

Basic Wiring Diagram
    linkStyle 0 stroke:#000,stroke-width:2px
    linkStyle 1 stroke:#000,stroke-width:2px
    linkStyle 2 stroke:#000,stroke-width:2px
    linkStyle 3 stroke:#000,stroke-width:2px
    linkStyle 4 stroke:#000,stroke-width:2px
    linkStyle 5 stroke:#000,stroke-width:2px
    linkStyle 6 stroke:#000,stroke-width:2px
    linkStyle 7 stroke:#000,stroke-width:2px
    linkStyle 8 stroke:#000,stroke-width:2px
    linkStyle 9 stroke:#000,stroke-width:2px
    linkStyle 10 stroke:#000,stroke-width:2px
    linkStyle 11 stroke:#000,stroke-width:2px
    linkStyle 12 stroke:#000,stroke-width:2px
    linkStyle 13 stroke:#000,stroke-width:2px
    linkStyle 14 stroke:#000,stroke-width:2px
    linkStyle 15 stroke:#000,stroke-width:2px
    linkStyle 16 stroke:#000,stroke-width:2px
    linkStyle 17 stroke:#000,stroke-width:2px
    linkStyle 18 stroke:#000,stroke-width:2px
    linkStyle 19 stroke:#000,stroke-width:2px
    linkStyle 20 stroke:#000,stroke-width:2px

Wiring and Connections

WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in its entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.

IMPORTANT! HDMI Wiring Guidelines

• The use of patch panels, wall plates, cable extenders, kinks in cables, and electrical or environmental interference will have an adverse effect on HDMI transmission limiting performance. Steps should be taken to minimize or remove these factors completely during installation for best results.
• WyreStorm recommends using high quality HDMI cables such as WyreStorm Essentials to ensure the highest content performance available.

Installation and Operation

1. Connect HDMI sources to the HDMI IN ports using a good quality HDMI cable.
2. Connect an HDMI display devices to the HDMI OUT port of the switcher.
   Note: The switcher is powered via mains power supply to the unit. WyreStorm recommend using only power adapter supplied.
3. Turn the power on ensuring LED power indicators are fully lit on the front of the switcher. If not, check power cable is firmly connected.

Troubleshooting

No or Poor Quality Picture (snow or noisy image)

• Verify that power is being supplied to all devices in the system and that they are powered on.
• Verify that all HDMI connections are not loose and are functioning properly.
• If transmitting 3D or 4K, verify that the HDMI cables used are 4K rated.

Troubleshooting Tips:

- WyreStorm recommends using a cable tester or connecting the cable to other devices to verify functionality.

Specifications

Audio and Video
Inputs 4x HDMI In: 19-pin type A
Outputs 1x HDMI Out: 19-pin type A
Video Encoding HDMI | TMDS
Encoding Data Rate NA
End to End Latency NA
Audio Formats 2ch PCM | Multichannel: LPCM and up to DTS-X and Dolby Atmos
	Resolution HDMI
Video Resolutions (Max)	1920x1080p @60Hz 16bit	7m/23ft
	3840x2160p @60Hz 8bit 4:4:4 HDR	3m/12ft
	4096x2160p @60Hz 12bit 4:2:2 Dolby Vision/HDR10	3m/12ft
Supported Standards	DCI | RGB | HDR | HDR10 | Dolby Vision | HLG | ALLM | VRR | BT.2020 | BT.2100
Maximum Pixel Clock 600MHz
Color Depth 12bit
Communication and Control
HDMI HDCP 2.2 | EDID | DVI-D supported with adapter (not included)
IR 1x IR Ext. Port
Push Button	Front Panel Push Button
Power
Power Supply	12V DC 1A
Max Power Consumption	3.2W
Environmental
Operating Temperature	0 to +45°C (32 to +113 °F), 10% to 90%, non-condensing
Storage Temperature	-20 to +70°C (-4 to +158 °F), 10% to 90%, non-condensing
Maximum BTU 10.92 BTU/hr
Dimensions and Weight
Rack Units/Wall Box	<1U
Height	16mm/0.62in
Width	175mm/6.9in
Depth	66.2mm/2.6in
Weight	0.25kg/0.55lbs
Regulatory
Safety and Emission	CE | FCC | RoHS | EAC | RCM

Note: WyreStorm reserves the right to change product specification, appearance or dimensions of this product at any time without prior notice.
