Product Type	Portable Bluetooth Speaker
Model	ABTS-15 PRO
Brand	AKAI
Dimensions (W x H x D)	Approx. 250 x 120 x 120 mm
Weight	1.2 kg
Power Source	Rechargeable lithium-ion battery, 7.4V 2200mAh
Battery Life	Up to 12 hours at moderate volume
Charging Time	Approximately 3-4 hours via USB-C
Bluetooth Version	5.0 with A2DP, AVRCP, HFP
Bluetooth Range	Up to 10 meters (33 feet)
Audio Output Power	2 x 15W RMS (stereo)
Frequency Response	80 Hz - 20 kHz
Driver Units	2 x 52 mm full-range drivers + passive radiator
Additional Features	Built-in microphone for hands-free calls, AUX input, microSD slot, FM radio (via app), IPX5 waterproof rating
Controls	Power, Volume +/-, Play/Pause, Next, Previous, Mode, EQ presets
Included Accessories	USB-C charging cable, 3.5mm AUX cable, user manual, quick start guide
Compatibility	Smartphones, tablets, laptops, and any Bluetooth-enabled device
Cleaning & Maintenance	Wipe with a soft, dry cloth. Do not use harsh chemicals or immerse in water.
Storage Conditions	Store in a cool, dry place away from direct sunlight
Safety Precautions	Do not disassemble, expose to heat sources, or use while charging. Keep away from children and pets.

Frequently Asked Questions - ABTS-15 PRO AKAI

How do I pair the ABTS-15 PRO with my phone?

Turn on the speaker by pressing and holding the power button until you hear a tone. The Bluetooth indicator will flash. On your phone, enable Bluetooth and select 'AKAI ABTS-15 PRO' from the list. If prompted, enter '0000' as the PIN.

Can I use the speaker while it is charging?

Yes, you can use the speaker while charging via the USB-C cable. However, for optimal battery health, it is recommended to avoid continuous use during charging.

What is the battery life of the ABTS-15 PRO?

The battery lasts up to 12 hours at moderate volume levels. Actual battery life may vary based on volume, playback content, and usage conditions.

How do I reset the speaker to factory settings?

To reset, press and hold the 'Bluetooth' and 'Volume +' buttons simultaneously for about 5 seconds until the LED indicator flashes rapidly. The speaker will restart in pairing mode.

Is the ABTS-15 PRO waterproof?

The speaker has an IPX5 rating, meaning it can withstand splashes of water from any direction. It is not fully submersible. Avoid exposing it to heavy rain or immersion.

Can I connect two speakers together for stereo sound?

Yes, if you have two AKAI ABTS-15 PRO speakers, you can pair them via TWS (True Wireless Stereo). Activate TWS by pressing the 'Mode' button on both speakers simultaneously; one will become the left channel and the other the right.

What audio sources are supported?

The speaker supports Bluetooth streaming, AUX input (3.5mm cable), and microSD card playback. It also has a built-in FM radio that can be controlled via the dedicated app.

How do I clean the speaker?

Use a soft, slightly damp cloth to wipe the exterior. Do not use abrasive cleaners or solvents. Ensure the charging port and openings are dry before use.

Why is the speaker not turning on?

Make sure the battery is charged. Connect the speaker to a power source and wait a few minutes. If it still does not turn on, try a different cable or adapter. If the issue persists, the battery may need replacement.

Where can I find the user manual?

The user manual is available for free download on notice-facile.com in PDF format. You can also find it on the official AKAI website or contact customer support.

USER MANUAL ABTS-15 PRO AKAI

Line drawing of a portable electronic device with a grid-patterned interior and handle (no text or symbols)

ABTS-15 PRO

VOLCANO

Party Speaker with Trolley

SAFETY PRECAUTIONS

Thank you for purchasing ABTS-15 PRO Volcano!

This is your assurance of quality, performance and value. Our engineers have included many useful and convenient features in this product. Please be sure to read this Instruction Manual completely to make sure you are getting the maximum benefit from each feature.

This product was manufactured using the highest quality components and standards of workmanship. It was tested by inspectors and found to be in perfect working order before it left our factory. For future reference, record the serial number in the space provided.

TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE!

Notes:

• The images appearing in this manual are for reference only.
• Due to continual revision and improvement on our products design and specifications are subject to change without further notice.

CHARGER AND BATTERY

When charging, connect a matched power adaptor to AC100-240V.

Charging time is approximately 4 to 8 hours and once the battery is fully charged, unplug the power supply. If the charging will be made for more than 8 hours, it may cause damages to the battery.

BATTERY CHARGE INDICATOR

LED panel has a battery status indicator. In the middle of

the shape of the battery are four horizontal lines, each horizontal line represents 25% of electricity remaining.

When no horizontal line in the shape of the battery or the shape flashes, please power of and promptly charge to avoid damage to the battery.

When charging, the battery indicator on LED display panel flashes.

The indicator stops blinking after full charged. After the battery will be fully charged, you can continue charging

(700%)

(75%)

(50%)

(25%)

1 - 2 hours more in order to extend the battery life, but no longer than 8 hours.

WARNING!

If the battery is under voltage, please fully charge it within 48 hours.

If the speaker has to be left unused for a long time, please let the battery fully charged, otherwise it will cause damage to the battery.

MODEL

Rated Voltage:

Rated Power:

Input sensitivity:

Battery:

DC 15V IN:

Charging time:

Working time:

Frequency response:

Audio S/N:

Bluetooth version

Bluetooth channel emission power: 6 dBm

Bluetooth frequency:

Wireless MIC frequency

ABTS-15 PRO

AC100-240V\~,50Hz/60Hz

≤60W

800±50mV

12V 7Ah

DC 15V CHARGING INTERFACE(for adaptor)

4-8h

3-5h

20Hz-20KHz

≥71dB

5.1

2.4 - 2.48GHz

1 x 201.6 MHz and 1X 202.75MHz

DESCRIPTION OF REMOTE CONTROL

MUTE

Mute or restart the speaker.

INPUT (INPUT SELECTION)

Input selection (AUX input / Bluetooth / USB / FM function).

VOL+ (INCREASE VOLUME)

PLAY /PAUSE/SCAN (▶II)

PREVIOUS (◀)

VOL-(DECREASE VOLUME)

NEXT (▶)

LED LIGHT CONTROL

Turn on the light / change the light mode.

Long press to turn off the light.

REPEAT

Repeat one, repeat all, repeat folder.

Start recording, long press it to play the recordings.

PREVIOUS FOLDER

Change to the previous folder on USB input mode.

NEXT FOLDER

Change to the next folder on USB input mode.

1 LED ON/OFF

② MICRO SD

3 USB PLAY SLOT

4 AUX INPUT

5 GUITAR SLOT

6 MIC SLOT 1

7 MIC SLOT 2

8 CHARGING LIGHT Back charging

Red: charging,

Blue: full charged.

9 DC 15V IN

DC 15V charging interface (for adaptor).

10 POWER ON/OFF

11 BASS

12 TREBLE

13 VOLUME

14 MIC.DELAY

Adjust the microphone delay.

15 PREVIOUS FOLDER

Change to the previous folder on USB

or Micro SD input mode.

16 or Micro SD input mode. NEXT FOLDER ( )

Change to the next folder on USB or Micro SD input mode.

17 REPEAT(→)

18 LED LIGHT CONTROL ( )

19 RECORD / PLAY RECORDING (●/▶) Start recording, long press it to play the recordings.

20 NEXT (▶▶)

21 PLAY / PAUSE / SCAN (▶II)

22 PREVIOUS(

23 G-BASS

INPUT( )

With a short press on the button, select the input mode (AUX input / Bluetooth/ USB / Micro SD / FM radio)

25 MIC PRIORITY ( i )

When the "MIC PRIORITY" mode is on, the volume of music will be reduced when speaking into the microphone.

26 AWS

Long press to turn on/off AWS function.

27 MIC VOLUME

28 GUITAR VOLUME

29 MIC ECHO

① MICROPHONE ON/OFF
② MUTE
3 LIGHT INDICATOR

FUNCTIONS

RECORDING FUNCTION

Press ●/▶ to record the voice into the external memory like USB disk / TF card on the speaker.

If the external memory is first time used, the system will automatically build a new folder named VOICE, and recording files in it will be named REC001, REC002, and so on.

In record mode, press ●/▶ / INPUT to stop recording.

Long press" ●/▶ play the recordings in the external memory, press PREV and NEXT to choose the recordings to play.

FM FUNCTION

Choose INPUT to switch to FM RADIO.

Search and tune automatically to radio stations by pressing ▶II on the remote control or long press the ▶II button on the speaker.

Switch channels, by pressing ◀ and on ▶ the speaker or the remote control.

AWS FUNCTION (AKAI WIRELESS CONNECTION)

1、Select the Bluetooth mode on the 2 speakers you wish to pair.
2、Note: The 2 speakers need to be exactly the same in order to pair under AWS mode.
3、Select any one of the speakers and long press the "AWS" button.
4、A sound will be heard and the main speaker display will indicate "HOST" confirming that the 2 speakers are now connected.
5、The two speakers display should indicate "BT" in a still mode.
6、To disconnect the AWS function, simply press the "AWS" button on the main speaker.
7、The two speakers display indicator should indicate "BT" in a flashing mode.
8、Long press the "PLAY/PAUSE/SCAN" button to completely disconnect the Bluetooth connection with your mobile device.

BLUETOOTH OPERATION

IMPORTANT:

Prior to use Bluetooth function, your speaker should be paired firstly with your Bluetooth device. ("Paring" means establish connection between Bluetooth devices such as MOBILE PHONE, TABLETS, PC, ETC).

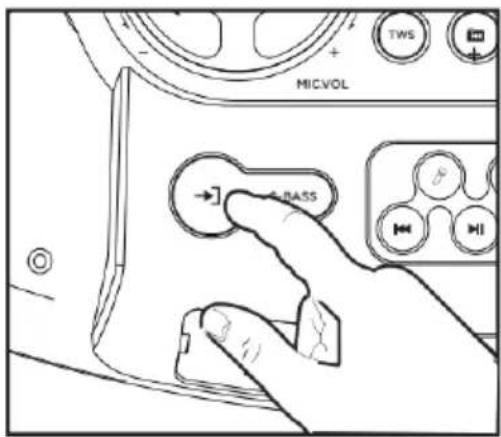

1. Press the BT MODE button to switch into the BT MODE (Bluetooth mode).

(fig.1)

1. In BT MODE, a sound indication will announce that Bluetooth pairing mode is ready.

Then the micro system will search automatically for Bluetooth devices.

1. Turn on the Bluetooth function on your device. (See your devices instructions to add or setup a Bluetooth device).

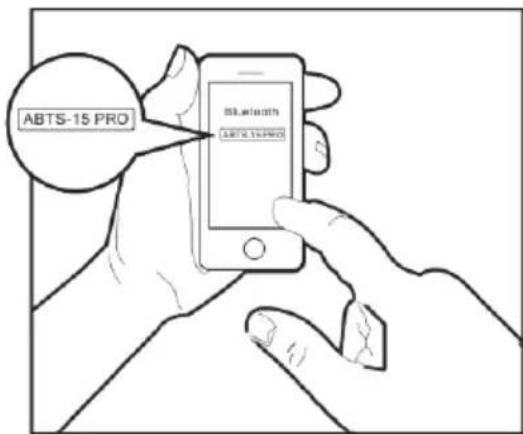

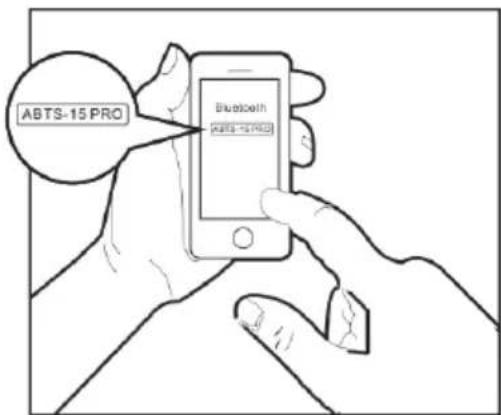

2. Search for Bluetooth device named ABTS-15 PRO (is your speaker identification) and select it. (fig.2) A sound indication will announce that Bluetooth devices are successfully paired. (During the pairing, if a password is required, you need to input code"0000)

(fig. 1)

(fig. 2)

• 1 X Party speaker with Trolley
- 1 x User manual
- 1 x DC 15V adaptor
- 1 x remote control
- 2 x wireless microphones

TROUBLE SHOOTING GUIDE

If a fault occurs, first check the points listed below before taking the speaker to repair.

Do not open the speaker as there is risk of electric shock.

If you are unable to remedy a problem by following these hints, consult your dealer or service center.

SYMPTOM		CAUSE	CORRECTION
Sound
No sound	No input sound source.		Use a better music signal.
	Volume is too low.		Adjust volume.
Distortion of sound	Volume too high.		Turn down the volume.
	Speaker may be damaged.		If speaker is damaged, repair or replace it.
Karaoke
Karaoke does not work	Microphone plug is not fully inserted.		Plug microphone properly into the socket.
	Microphone switch is not on.		Turn on microphone switch.
	Microphone volume knob is at the lowest position.		Adjust microphone volume properly.
	Wireless microphone has low battery.		Replace battery.
MP3
MP3 does not play	The song format in the USB disc is incorrect.		Transform song format into MP3 format.
	Improper operation has caused a process disorder.		Reboot the machine.
	USB disk / micro SD is disconnected.		Insert USB disc / micro SD properly.
Remote control
The remote control does not	The remote control is too far from the unit.		Operate the remote control within about
work properly			6m.
	There is an obstacle in the path of the remote control and the unit.	Remote the obstacle.
	The battery in the remote control is exhausted	Replace the battery with new one.

WARNING!

Under no circumstances should you try to repair the set yourself, as this will invalidate the warranty!

DISPOSAL OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol on the product or packaging means that the product should not be treated as household waste. Do not throw garbage at the end of its life, but take it to a collection center for recycling. In this way you will help to protect the environment and be able to prevent any negative consequences that it would have on the environment and human health. To find your

nearest collection center:

• Contact local authorities;
• Access the website: www.mmediu.ro ;
• Request additional information from the store where you purchased the product.

IMPORTER/PRODUCER: SC INTERVISION TRADING-RO SRL

Street I.C Bratianu, no. 48-52, building A, floor. 5,

room 504-505, Pitesti City, Arges County, Romania

Post code: 110121
