USER MANUAL PL57 SAMSUNG

Thank you for buying a Samsung Camera, This manual will help you learn to capture images, share or print your photos, and edit photos with the accompanying software. Please read this manual thoroughly,

Instructions

Use this camera in the following order.

Getting to Know your camera

Thank you for buying a Samsung Digital Camera.

• Prior to using this camera, please read the user manual thoroughly.
• If you require After Sales service, please bring the camera and the cause of the camera malfunction (such as battery, Memory card etc.) to the A/S centre.
• Please check that the camera is operating properly prior to when you intend to use it (e.g. for a trip or an important event) to avoid disappointment. Samsung takes no responsibility for any loss or damage that may result from camera malfunction.
• Keep this manual in a safe place.
• If you use a card reader to copy the images on the memory card to your PC, the images could be damaged. When transferring the images taken with the camera to your PC, be sure to use the supplied USB cable to connect the camera to your PC. Please note that the manufacturer holds no responsibility for loss or damage of images on the memory card due to the use of a card reader.
• The contents and illustrations of this manual are subject to change without prior notice for upgrading the camera functions.

※ Microsoft, Windows and Windows logo are registered trademarks of Microsoft Corporation incorporated in the United States and/or other countries.
※ Adobe and Reader are either trademarks or registered trademarks in the United States and/or other countries.
※ All brand and product names appearing in this manual are registered trademarks of their respective companies.

Danger

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

• Do not attempt to modify this camera in any way. To do so may result in fire, injury, electric shock or severe damage to you or your camera. internal inspection, maintenance and repairs should only be carried out by your dealer or Samsung Camera Service centre.
• Please do not use this product in close proximity to flammable or explosive gases, as this could increase the risk of explosion.
• Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the camera, and then disconnect the power source. You must contact your dealer or Samsung Camera Service centre. Do not continue to use the camera as this may cause a fire or electric shock.
• Do not insert or drop metallic or inflammable foreign objects into the camera through access points e.g. the memory card slot and battery chamber. This may cause a fire or electric shock.
• Do not operate this camera with wet hands. This could pose a risk of electric shock.

Warning

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

• Do not use the flash in close proximity to people or animals.
  Positioning the flash too close to your subject's eyes may cause eyesight damage.
• For safety reasons keep this product and accessories out of reach of children or animals to prevent accidents e.g.:
• Swallowing battery or small camera accessories. If an accident should occur, please consult a doctor immediately.
• There is the possibility of injury from the camera's moving parts.
• Battery and camera may become hot during prolonged use and it may result in camera malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it time to cool.
• Do not leave this camera in places subject to extremely high temperatures, such as a sealed vehicle, direct sunlight or other places of extremes in temperature. Exposure to extreme temperatures may adversely affect the camera's internal components and could cause a fire.
• When in use, do not cover the camera or Charger. This may cause heat to build up and distort the camera body or cause a fire. Always use the camera and its accessories in a well-ventilated area.

Caution

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in a minor or moderate injury.

• Leaking, overheating, or damaged battery could result in fire or injury.
• Use battery with the correct specification for the camera.
• Do not short circuit, heat or dispose of battery in fire.
• Do not insert the battery with the polarities reversed.

- Remove the battery when not planning to use the camera for a long period of time. Otherwise the battery may leak corrosive electrolyte and permanently damage the camera's components.

- Do not fire the flash while it is in contact with hands or objects. Do not touch the flash after using it continuously. It may cause burns.

- Do not move the camera while it is switched on, if you are using the AC adapter. After use, always switch off the camera before unplugging the cable from the wall socket. Then make sure that any connector cords or cables to other devices are disconnected before moving the camera. Failure to do so may damage the cords or cables and cause a fire or electric shock.

- Take care not to touch the lens or lens cover to avoid taking an unclear image and possibly causing camera malfunction.

- Avoid obstructing the lens or the flash when you capture an image.

- When using this camera in low temperatures, you may experience the following. These are not camera malfunctions and usually recover at normal temperature.

- It takes longer to turn on the LCD monitor and the colour may differ from the subject.

- When changing the composition, there may be an after image on the LCD monitor.

- Credit cards may be demagnetized if left near case. Avoid leaving magnetic strip cards near the case.

- Never connect the 20 pin connector to the USB port of a PC. This carries a high risk of computer malfunction.

Contents

READY

007 System chart

007 Package Contents

007 Sold Separately

008 Identification of features

008 Front & Top

009 Back

010 Bottom

010 5 Function button

011 Self-timer lamp

011 Camera Status Lamp

011 Mode icon

012 Connecting to a Power Source

014 Inserting the memory card

015 Instructions on how to use the memory card

RECORDING

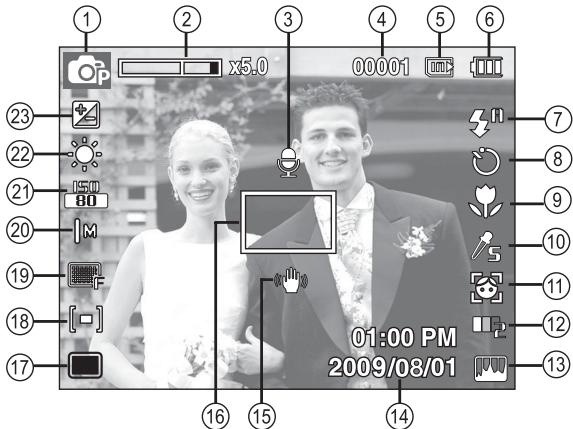

017 LCD monitor indicator

018 How to use the menu

019 Starting the recording mode

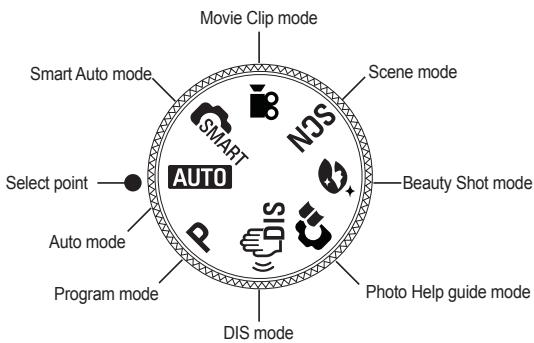

019 Selecting modes

019 How to use the Smart Auto mode

020 How to use the Auto mode

021 How to use the Program mode

021 How to use the DIS mode

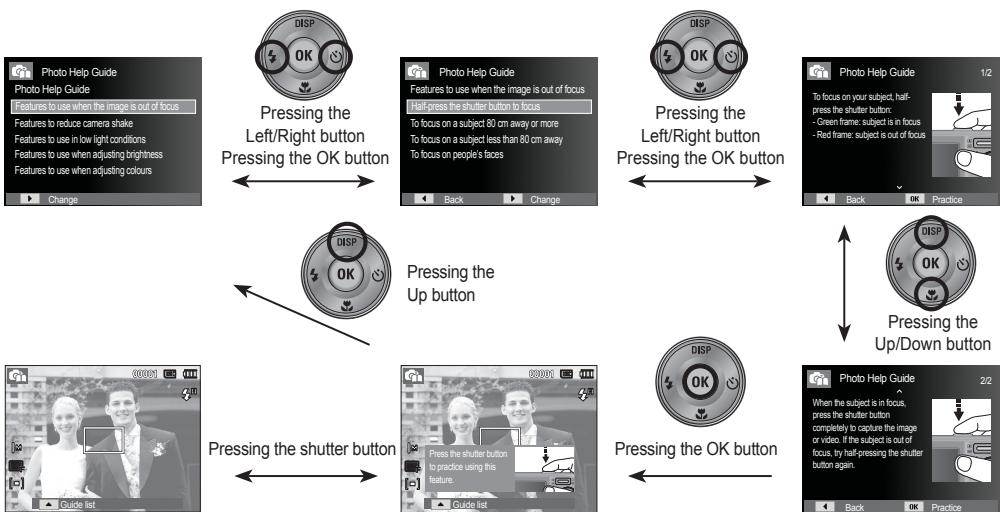

022 Using the Photo Help Guide mode

023 How to use the Beauty Shot mode

023 How to use the Scene modes

025 How to use the Movie clip mode

025 Recording the movie clip without sound

025 Pausing while recording a movie clip (Successive Recording)

026 Things to Watch Out for When Taking Pictures

027 Using the camera buttons to set the camera

027 POWER button

027 SHUTTER button

027 ZOOM button

029 Info (DISP) / Up button

029 Macro / Down button

031 Focus lock

031 Flash / Left button

033 Self-timer / Right button

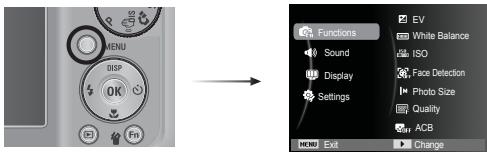

035 MENU button

035 OK button

035 Functions

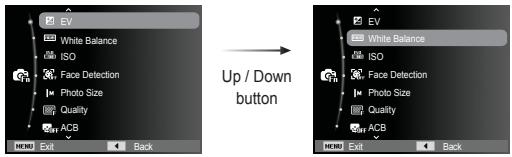

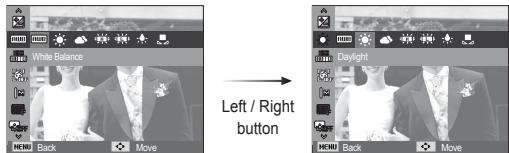

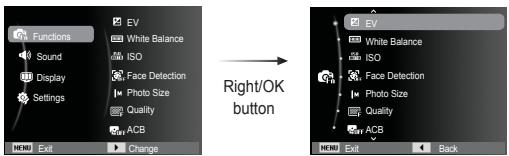

036 How to Enable Functions Using the MENU Button

036 Exposure compensation

037 White balance

038 ISO

038 Face Detection

040 Face Tone

040 Face Retouch

041 Image Size

041 Quality / Frame rate

042 ACB

042 Metering

043 Drive mode

043 Auto Focus type

044 Photo Style Selector

045 Image Adjust

046 Voice Memo

046 Voice Recording

047 Recording the movie clip without voice

SETUP 048 Sound menu

048 Sound

048 Volume

048 Start up sound

048 Shutter sound

048 Beep Sound

049 AF sound

049 Setup menu

049 Display

049 Language

049 Function Description

050 Start up image

050 Display Bright

050 Quick view

050 Display SAVE

051 Settings

051 Formatting a memory

051 Initialisation

052 Setting up the Date / Time / Date type

052 Time Zone

052 File name

053 Imprinting the recording date

053 Auto power off

054 Auto Focus lamp

054 Selecting Video out type

055 Setting the USB

PLAY 056 Starting play mode

056 Playing back a still image

056 Playing back a movie clip

057 Movie clip capture function

057 Playing back a recorded voice

058 Playing back a voice memo

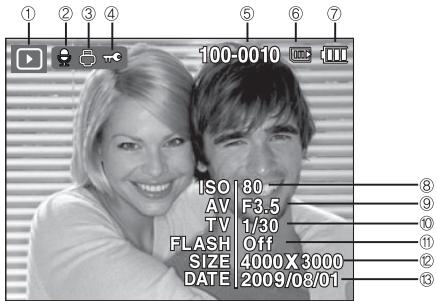

058 LCD monitor Indicator

059 Using the camera buttons to set the camera

059 Play mode button

059 Thumbnail / Enlargement button

059 Smart Album

062 Info (DISP) / Up button

062 Play & Pause / OK button

063 Left / Right / Down / MENU button

063 Delete button

064 Setting up the play back function using the LCD monitor

066 Edit

066 Resize

067 Rotating an image

067 Photo Style Selector

068 Image Adjust

070 View

070 Starting the Multi Slide Show

070 Start the Multi Slide Show

071 Selecting Images

071 Configure Multi Slide Show effects

072 Setting play interval

072 Setting Background Music

072 File Options

072 Deleting images

073 Protecting images

073 Voice memo

074 DPOF

076 Copy To Card

077 PictBridge

078 PictBridge : Picture Selection

078 PictBridge : Print Setting

079 PictBridge : Reset

079 Important notes

081 Warning indicator

082 Before contacting a service centre

084 Specifications

SOFTWARE 087 Software Notes

087 System Requirements

088 About the software

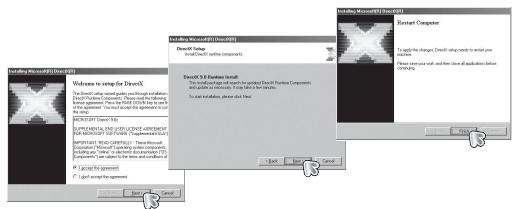

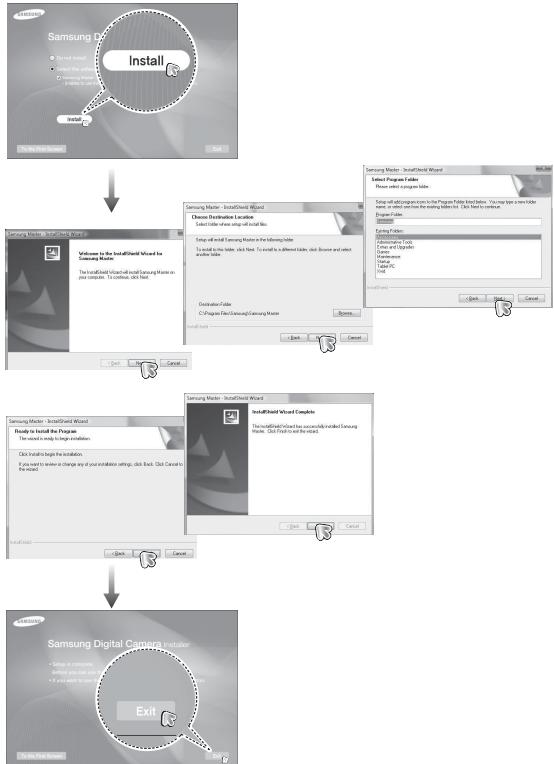

089 Setting up the application software

091 Starting PC mode

094 Removing the removable disk

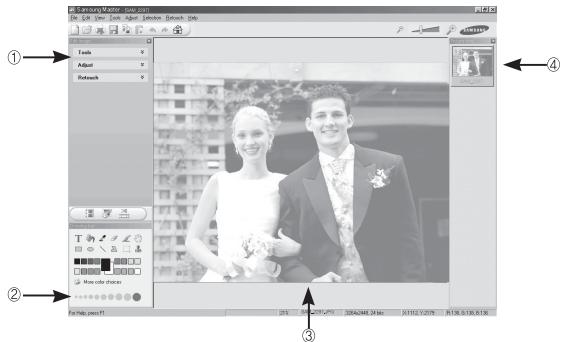

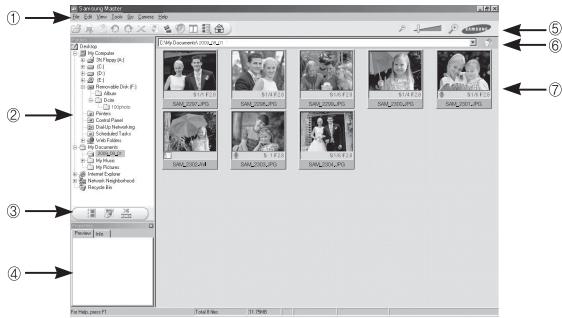

095 Samsung Master

098 Setting up the USB Driver for MAC

098 Using the USB Driver for MAC

099 FAQ

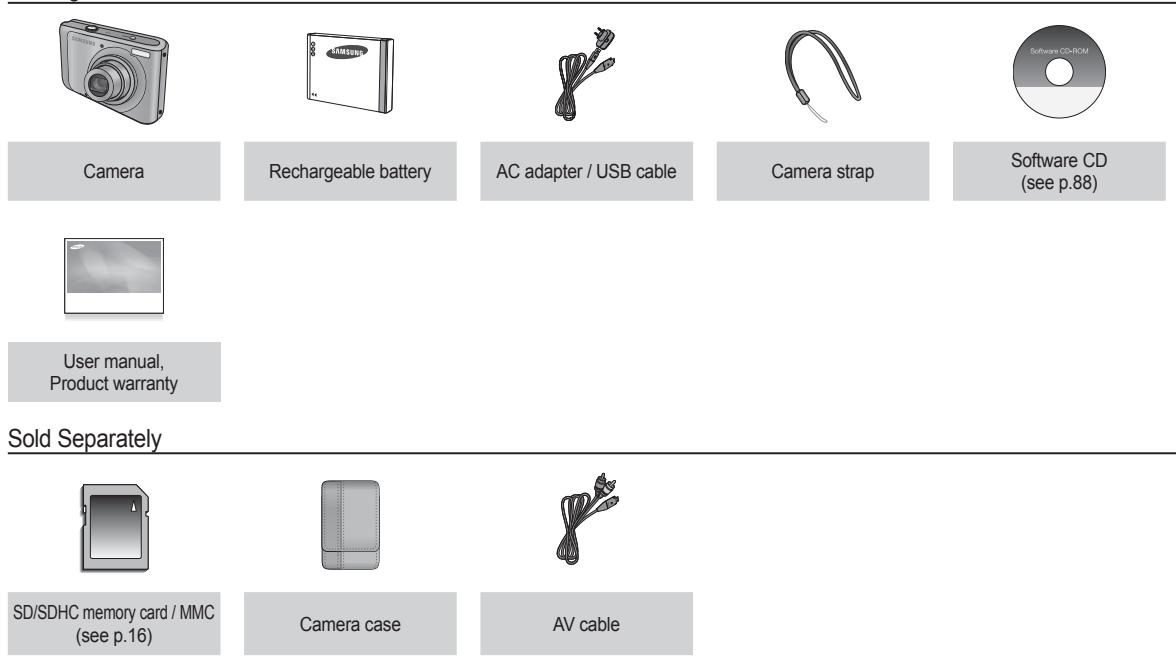

System chart

Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre. Parts and accessories illustrated below may differ from exact appearance.

Package Contents

Camera Rechargeable battery AC adapter / USB cable Camera strap Software CD (see p.88) User manual, Product warranty Sold Separately SD/SDHC memory card / MMC (see p.16) Camera case AV cable

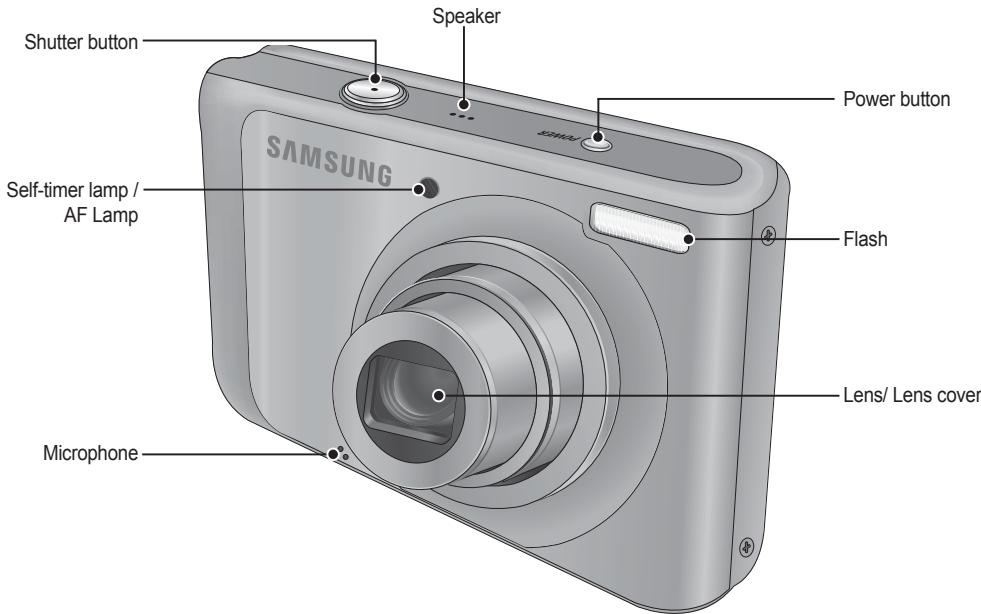

Front & Top

Shutter button Speaker Power button SAMSUNG Self-timer lamp / AF Lamp Flash Microphone Lens/ Lens cover

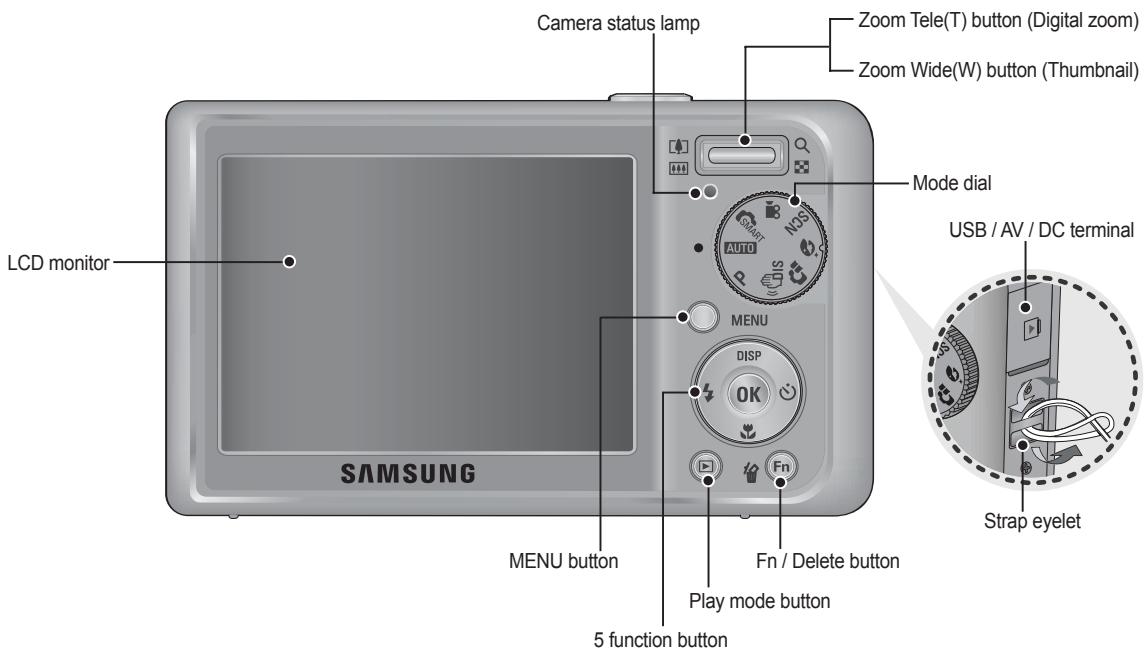

Back

Camera status lamp Zoom Tele(T) button (Digital zoom) Zoom Wide(W) button (Thumbnail) Mode dial LCD monitor MENU DISP OK FN Play mode button 5 function button USB / AV / DC terminal Strap eyelet SAMSUNG

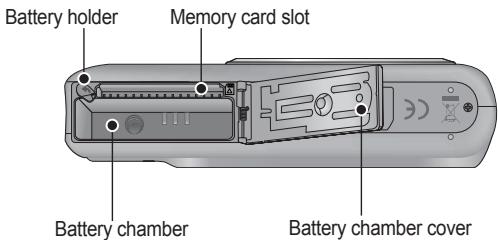

Bottom

Battery holder Memory card slot Battery chamber Battery chamber cover

Tripod socket

※ To open the battery chamber cover, slide it in the direction shown above.

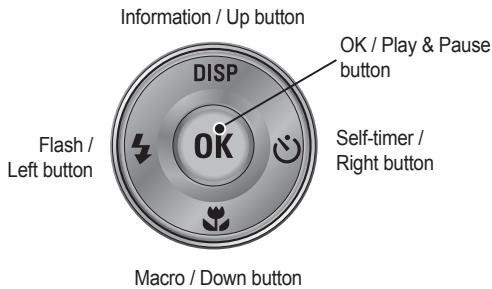

5 Function button

Information / Up button DISP OK / Play & Pause button Flash / Left button OK Self-timer / Right button Macro / Down button

Self-timer lamp

Icon	Status	Description
[2685]	Blinking	- For the first 8 seconds, the lamp blinks at 1 second intervals.- For the final 2 seconds, the lamp blinks quickly at 0.25-second intervals.
[133H]	Blinking	For the 2 seconds, the lamp blinks quickly at 0.25-second intervals.
[7K06]	Blinking	A picture will be taken after about 10 seconds and 2 seconds later a second picture will be taken.
[14HA1]	Blinking	After pressing the Shutter button, the image is taken in accordance with the subject's movement.

Camera Status Lamp

Status	Description
Power on	The lamp turns on and off when the camera is ready to take a picture
After taking a picture	The lamp blinks while saving the image data and turns off when the camera is ready to take a picture
When flash battery is charging	The lamp blinks
When the USB cable is inserted to a PC	The lamp lights up (LCD monitor turns off after initializing the device)
Transmitting Data with a PC	The lamp blinks (LCD monitor turns off)
When the USB cable is inserted into a printer	The lamp blinks
When the printer is printing	The lamp blinks
When the AF activates	The lamp turns on (The camera focus on the subject)
	The lamp blinks (The camera doesn’t focus on the subject)

You should use the rechargeable battery SLB-10A supplied with the camera. Be sure to charge the battery before using the camera.

■ SLB-10A rechargeable battery Specification

Model	SLB-10A
Type	Lithium Ion
Capacity	1050mAh
Voltage	3.7V
Charging time	Approximately 180 Minutes

■ Number of images and battery life: Using the SLB-10A

	Battery life / Number of images	Conditions
Still image	Approx. 160 MIN / Approx. 320 shots	Using the fully charged battery, Auto mode, 12M image size, Fine image quality, Shot to shot interval: 30Sec. Changing the zoom position between the Wide and the Tele after every shot. Using the flash on every second shot. Using the camera for 5 minutes and then powering it off for 1 minute.
Movie	Approx. 125 MIN	Using the fully charged battery 640x480 image size 30fps frame rate

※ These figures are measured under Samsung's standard conditions and shooting conditions and may vary depending on the user's methods.

Important information about battery usage.

• When camera is not in use, turn off the power.
• Please remove the battery if the camera will not be used for long periods. Batteries can lose power over time and are prone to leaking if kept inside the camera.
• Low temperatures (below 0^ C) can affect the performance of the battery and you may experience reduced battery life.
• Batteries will usually recover at normal temperatures.
• During extended use of the camera, the camera body may become warm. This is perfectly normal.

■ If you connect the AC adapter to the USB cable, you can use it as an AC cable and recharge the spare battery with it.

• Using an AC cable
  : Connect the AC adapter to the USB cable. It can be used as a power cable.

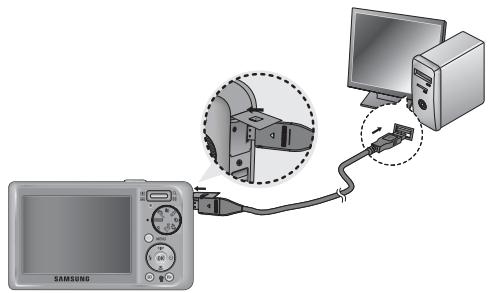

- Using a USB cable

: Remove the AC adapter. You can download stored images to your PC (p.91) or supply the power to your camera through the USB cable.

Illustration of a plug being inserted into a USB socket (no text or symbols)

Illustration of a plug with a screwdriver and connector (no text or symbols)

Important information about USB cable usage.

• Use a USB cable with the correct specification.
• If the camera is connected to the PC through a USB hub: connect the camera directly to the PC.
• If the camera and other devices are connected to the PC at the same time: remove other device.
• Camera can not be detected using the front side USB port of computer. In this case, use the back side USB port of computer.
• If the USB port of the PC doesn't meet the Power output standard (5V, 500mA), the camera may not be charged.

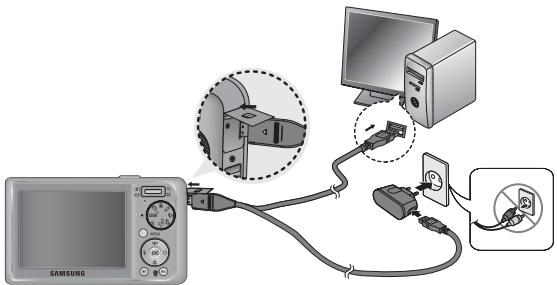

■ How to charge the rechargeable battery

Diagram showing connection between Samsung device, computer, and power cord with labeled cable and socket connections

• Before inserting any cables or AC adapter, check the directions and do not insert by force. It may cause breakage of cable or camera.
• If the charging LED of the AC Charger does not turn on or blink after inserting the rechargeable battery, please check whether the battery is inserted correctly.
• If you charge the battery with the camera power on, the battery won't be fully charged. Turn the camera off while charging the battery.

■ Charging LED of the AC Adapter

	Charging LED
Being Charged	Red LED is on
Charging is complete	Green LED is on
Charging error	Orange colored LED is off or blinking

• If you insert the fully discharged battery to charge it, do not turn on the camera at the same time. The camera may not be turned on because of the low battery capacity. Charge the battery for more than 10 minutes before using the camera.
• Do not use the flash frequently or take a movie clip with the fully discharged battery charged for a short time. Even if the charger is inserted, the camera power may be turned off because the rechargeable battery is discharged again.

Connecting to a Power Source

■ Insert the battery as shown

• If the camera does not turn on after you have inserted battery, please check whether the battery (+ / -).
• When the battery chamber cover is opened, do not force the battery chamber cover, this may damage it.

Diagram of a device with a rectangular panel and a close-up view showing internal components (no text or symbols)

■ There are 4 indicators for battery condition that are displayed on the LCD monitor.

Battery indicator		[4H0W]
Battery status	The battery is fully charged	Low battery capacity (Prepare to recharge or use spare battery)	Low battery capacity (Prepare to recharge or use spare battery)	Battery empty. (Recharge or use spare battery)

※ When using the camera and the battery in a place that is excessively cold or hot, the battery status on the LCD may be different from the actual battery status.

Inserting the memory card

■ Insert the memory card as shown.

• Turn off the camera's power before inserting the memory card.
• Have the front of the memory card facing toward the back of the camera (LCD monitor) and the card pins toward the front of the camera (Lens).
• Do not insert the memory card the wrong way round. Doing so may damage the memory card slot.

Technical illustration of a mechanical device with internal components and no visible text or symbols

• Be sure to format the memory card (see p.51) if you are using a newly purchased memory card for the first time, if it contains data that the camera cannot recognise, or if it contains images captured with a different camera.
• Turn off the camera power whenever the memory card is being inserted or removed.
• Repeated use of the memory card will eventually reduce the memory card's performance. Should this be the case, you will need to purchase a new memory card. Wear and tear on the memory card is not covered by the Samsung warranty.
• The memory card is an electronic precision device.
  Do not bend, drop or subject the memory card to any heavy impact.
• Do not store the memory card in an environment with strong electronic or magnetic fields, e.g. near loud speakers or TV receivers.
• Please do not use or store in an environment where there are extremes in temperature.
• Do not allow the memory card to become dirty or to come into contact with any liquid. Should this happen, clean the memory card with a soft cloth.
• Please keep the memory card in its case when not in use.
• During and after periods of extended use, you may notice that the memory card is warm. This is perfectly normal.
• Do not use a memory card that is used in another digital camera. To use the memory card in this camera, format the memory card using this camera.
• Do not use a memory card formatted by another digital camera or memory card reader.

- If the memory card is subjected to any of the following, the recorded data may become corrupted :

- When the memory card is used incorrectly.

- If the power is switched off or the memory card is removed while recording, deleting (formatting) or reading.

- Samsung cannot be held responsible for lost data.

- It is advisable to copy important data onto other media as back-up e.g. floppy disks, hard disks, CD etc.

- If there is insufficient memory available :

A [Memory Full] message will appear and the camera will not operate. To optimise the amount of memory in the camera, replace the memory card or delete unnecessary images stored on the memory card.

- Don't remove the memory card when the camera status lamp is blinking as this may cause damage to data in the memory card.

Instructions on how to use the memory card

The camera can use SD/SDHC Memory Cards and MMC (Multi Media Cards).

Card pins Write protect switch Label

[SD (Secure Digital) memory card]

• The SD/SDHC memory card has a write protect switch that prevents image files from being deleted or formatted. By sliding the switch to the bottom of the SD/SDHC memory card, the data will be protected. By sliding the switch to the top of the SD/SDHC memory card, the data protection will be cancelled.
• Slide the switch to the top of the SD/SDHC memory card before taking a picture.

When using a 1GB SD memory, the specified shooting capacity will be as follows. These figures are approximate as image capacities can be affected by variables such as subject matter and memory card type.

Recorded image size		Super Fine	Fine	Normal	30 FPS	15 FPS
Still image	12M	About 169	About 240	About 365	-	-
	10M	About 196	About 270	About 411	-	-
	9M	About 231	About 308	About 481	-	-
	8M	About 246	About 328	About 519	-	-
	5M	About 365	About 493	About 705	-	-
	3M	About 548	About 680	About 759	-	-
	1M	About 986	About 1095	About 1232	-	-
*Movie clip	640	-	-	-	About 13'42"	About 27'04"
	320	-	-	-	About 45'42"	About 01:19'07"

• The zoom button doesn't function during the movie recording.
• The recording times can be changed by the zoom operation.
• You can record videos of up to 4GB or 2hours each.

LCD monitor indicator

■ The LCD monitor displays information about the shooting functions and selections.

① ② ③ ④ ⑤ ⑥ 00001 x5.0 23 22 21 20 19 18 17 7 8 9 10 11 12 13 16 15 14 01:00 PM 2009/03/01

[Image & Full Status]

No.	Description	Icons	Page
1	Recording mode		p.19
2	Optical / Digital Zoom bar / Digital Zoom rate		p.27
3	Voice Memo	[IMAGE]	p.46
4	Number of available shots remaining	00001	p.16
	Remaining time	00:00:00

No.	Description	Icons	Page
5	Memory card icon / Internal memory icon		-
6	Battery		p.14
7	Flash		p.31
8	Self-timer		p.33
9	Macro		p.29
10	Photo Style Selector		p.44
11	Face Detection		p.38
12	Face Tone		p.40
13	Image Adjust / Without Sound / Face Retouch		p.45/47/40
14	Date / Time	2009/08/01 01:00 PM	p.52
15	Camera shake Warning		p.26
16	Auto Focus Frame		p.43
17	Drive mode		p.43
18	Metering	[1X1X1]	p.42
19	Image Quality / Frame Rate	[78T4]	p.41
20	Image Size	[470T]	p.41
21	ISO	[1X1TC]	p.38
22	White Balance		p.37
23	Exposure compensation	[172W8]	p.36

1. Turn on the camera and press the MENU button. A menu for each camera mode appears.

MENU DISP OK OS For Functions Sound Display Settings EV White Balance ISO Face Detection Photo Size Quality ACS Exit Charge

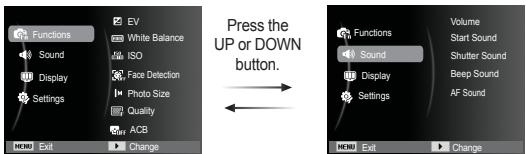

1. Use the up or down buttons to navigate through the menus.

Functions Sound Display Settings EV White Balance ISO Face Detection Photo Size Quality ACB Press the UP or DOWN button. Functions Sound Volume Start Sound Shutter Sound Beep Sound AF Sound Settings END Exit Change

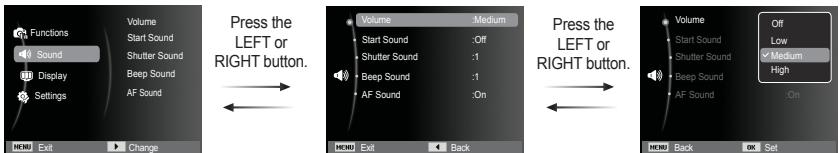

1. Use the left or right buttons to select a sub menu.

Functions Sound Display Settings Volume Start Sound Shutter Sound Beep Sound AF Sound Press the LEFT or RIGHT button. Volume Medium Start Sound :Off Shutter Sound :1 Beep Sound :1 AF Sound :On Press the LEFT or RIGHT button. Volume Off Start Sound Shutter Sound Beep Sound AF Sound :On Back Exit Change MENU Back ON Set

1. Select a submenu and click the OK button to save settings and return to the previous window.

Selecting modes

You can use the Mode dial on the back of your camera to select the correct mode.

■ How to use the mode dial

Select the shooting mode by turning the mode dial to the selection point.

Movie Clip mode Smart Auto mode Scene mode NOS Beauty Shot mode Auto mode Select point Program mode DIS mode Photo Help guide mode

How to use the Smart Auto mode

The camera automatically chooses the appropriate camera settings based on a detected type of scene. It will be helpful if you are not familiar with the camera settings for various scenes.

1. Select Smart Auto mode by using the Mode dial.
2. The camera selects a scene automatically. An appropriate mode icon will appear at the top left of the screen.
3. Press the shutter button to capture an image.

Black-and-white wedding photo of a couple in formal attire, no visible text or symbols

• If the camera does not recognize a proper scene mode, the default settings will be used.
• Even if there is a face detected, the camera may not select a portrait mode depending on the subject's position or lighting.
• The camera may not select the correct scene depending on shooting environments, such as camera shake, lighting, and distance to the subject.
• The [Night] mode recognizes scenes only when the flash is set to off. The camera operates the [Tripod] mode after checking the shooting condition on the tripod for a certain time.
• Despite using a tripod, the camera may not select a tripod mode depending on the subject's movement.

Each scene is recognized in the following conditions;

[Landscape]

: When shooting outdoor scenes

[White]

: When shooting in a very bright environment

[Nights]

: When shooting the nighttime scenes

[Night Portrait]

: When shooting people in a dark outdoor place

[Backlight]

: When shooting a backlit scenery without a portrait

[Backlight Portrait]

: When shooting a backlit portrait

[Portrait]

: When shooting a portrait

[Macro]

: When shooting close-ups

[Macro Text]

: When shooting texts in a close focus

[Tripod]

: When shooting a subject without any movement on the tripod

[Action]

: When shooting a subject making frequent movements

How to use the Auto mode ( )

Select this mode for quick and easy picture taking with minimal user interaction.

1. Insert the batteries (p.14). Insert the batteries taking note of the polarity (+ / -).

2. Insert the memory card (p.14). As this camera has a 31MB internal memory, you do not need to insert the memory card. If the memory card is not inserted, an image will be stored in the internal memory. If the image will be stored on the memo

3. Close the battery chamber cover.

4. Press the power button to turn on the camera.

5. Select the Auto mode by using the mode dial.
6. Point the camera towards the subject and compose the image by using the LCD monitor.
7. Press the shutter button to capture an image.

• If the auto focus frame turns to red when you press the shutter button down half way, it means that the camera cannot focus on the subject. Should this be the case, the camera is unable to capture an image clearly.
• Avoid obstructing the lens or the flash when you capture an image.

Black-and-white wedding photo of a couple in formal attire (no visible text or symbols)

Starting the recording mode

How to use the Program mode ( [IMAGE] )

Selecting the automatic mode will configure the camera with optimal settings. You can still manually configure all functions except the aperture value and shutter speed.

1. Select the Program mode by using the Mode dial.(p.19).
2. Press the Menu button to configure advanced functions.

Black-and-white wedding photo of a couple in formal attire (no visible text or symbols)

See p.35 for further details.

How to use the DIS mode ( 🎯 )

Digital Image Stabilisation (DIS) mode.

This mode will reduce the effect of camera shake and help you get a well-exposed image in dim conditions.

1. Select the DIS mode by using the Mode dial.(p.19)
2. Point the camera towards the subject and compose the image by using the LCD monitor.
3. Press the Shutter button to capture an image.

Black-and-white wedding photo of a couple in formal attire, no visible text or symbols

■ Things to watch out for using the DIS mode

1. The digital zoom will not operate in the DIS mode.
2. If the lighting conditions are brighter than fluorescent lighting conditions, the DIS will not activate.
3. If the lighting condition is darker than in fluorescent lighting conditions, camera shake warning indicator ( ) will display. For best results only take pictures in situations where the camera shake warning indicator ( ) is not displayed.
4. If the subject is moving, the captured image may be blurred.
5. As the DIS uses the camera's digital signal processor, it may take a little longer for the camera to process and save the images.

Starting the recording mode

Using the Photo Help guide mode ( 📄 )

Helps the user learn the correct picture taking method and includes solutions for potential problems that may occur. This also enables the user to practice the best way to take the pictures.

Available functions of the photo help guide

• Function that can be used when focusing is difficult
• Functions that can be used when the image is blurred
• Function that can be used when filming in the dark
• Function that can be used when adjusting the picture brightness
• Function that can be used when adjusting the picture colour

[Function that can be used when focusing is difficult]

How to use the Beauty Shot mode ( 📞 )

Take a photo of portraits by setting options to clear facial imperfections.

1. Select the Beauty Shot mode by using the Mode dial. (p.19)
2. Press the Up/Down button in [Functions] menu to select [Face Tone] or [Face Retouch].
3. Press the Left/Right button to select a desired level of [Face Tone] or
4. Press the Shutter button to capture images.

[Face Retouch] features. And then press the OK button.

Black-and-white wedding photo of a couple in formal attire (no visible text or symbols)

How to use the Scene modes (SCN)

Use the menu to easily configure optimal settings for a variety of shooting situations.

1. Select the Scene mode by using the Mode dial.(p.19).
2. Point the camera towards the subject and compose the image by using the LCD monitor.
3. Press the shutter button to capture an image.

03:00:1 Frame Guide: Shutter

The scene modes are listed below.

[Frame Guide] ( ) : Use this mode when you want someone else to take a picture for you from the angle you choose.
[Night] ( ): Use this for shooting still images at night or in other dark conditions.
[Portrait] ( ) : To take a picture of a person.
[Children] ( ) : To take a picture of fast moving objects, for example, children.
[Landscape] ( ) : To take pictures of distant scenery. [Close Up] ( ) : Close-up shooting for small objects such as plants and insects.
[Text] (T): Use this mode to shoot a document.
[Sunset] ( ≡ ) : For taking pictures of sunsets.
[Dawn] (☀️): Daybreak scenes.
[Backlight] ( ) : Portrait without shadows caused by backlight.
[Firework] ( ) : Firework scenes. [Beach&Snow] ( ) : For ocean, lake, beach and snowscape scenes.

■ How to use the [Frame Guide] mode

Set [Frame Guide] mode when you want someone else to take a picture for you from the angle you choose.

1. Take a picture from the angle you choose.

- A guide appears round the sides of the picture.

1. Then another person can take the picture by aligning the edge of the picture to be taken with the guide framing the sides of the window.

00001 Cancel Frame: OK Guide—

00001 Cancel Frame: OK

80001 Cancel Frame: OK

■ How to use the [Long Time Shutter] mode This camera automatically adjusts the shutter speed and aperture values to the shooting environment. However, in Night scene mode, you can set the shutter speed and aperture values to your preference.

Changing the Shutter speed and Aperture value

1. Select the [Night] mode. (p.23)
2. Press the Fn button and Long Time shutter menu will be displayed.
3. Configure the Long Time shutter value with the 5 function button.
4. Press the Fn button again. The value you set will be saved and the mode will switch to Night scene mode.

LT 3.5 > 1S Long Time Shutter Fn Exit Move

How to use the Movie clip mode ( )

A movie clip can be recorded for as long as the available recording time of the memory capacity allows.

1. Select the Movie clip mode by using the Mode dial. (The Movie clip mode icon and available recording time will display on the LCD monitor.).
2. Point the camera towards the subject and compose the image by using the LCD monitor.
3. Press the shutter button once and movie clips are recorded for as long as the available recording time allows. Movie clips will still be recorded if the shutter button is released. If you wish to stop recording, press the shutter button again.

※ Image size and type are listed below.

• Image size : 640x480, 320x240 (Selectable)
• Movie clip file type : AVI (MJPEG)
• Frame Rate : 30 FPS, 15 FPS (Selectable)

Recording the movie clip without sound

You can record the movie clip without sound.

Steps from 1 -3 are the same as those for MOVIE mode.

1. Press the Menu button.
2. Press the Up / Down button to select the [Functions] menu and press the Right button.

00 00:00:12 L 640 [·] ● STANDBY

00:00:12 640 ● STANDBY

1. Select the [Voice] menu by pressing the Up / Down button and press the OK button.
2. Select the [Off] menu by pressing the Left / Right button.
3. Press the OK button. You can record a movie without sound.

※ See p.47 for further details.

Pausing while recording a movie clip (Successive Recording)

This camera allows you to temporarily stop during unwanted scenes, while recording a movie clip. Using this function, you can record your favourite scenes into a movie clip without having to create multiple movie clips.

■ Using Successive Recording

Steps from 1-2 are the same as those for MOVIE CLIP mode.

1. Press the shutter button and movie clips are recorded for as long as the available recording time. Movie clips will still be recorded if the shutter button is released.

2. Press the OK button to pause recording.

3. Press the OK button again to resume the recording.
4. If you wish to stop recording, press the shutter button again.

640 [-] 11 00:00:18 SHUTTER Stop OK Record

Things to Watch Out for When Taking Pictures

- Pressing the shutter button down half way. Lightly press the shutter button to confirm focus and flash battery charge. Press the shutter button all way down to take the picture.

Hand pressing down on a computer monitor with a close button (no text or symbols visible)

[Lightly press the shutter button]

Hand pressing a button on a device (no text or symbols visible)

[Press the shutter button]

• The available memory capacity may vary depending on shooting conditions and camera settings.
• When the Flash Off, Slow synchro mode or DIS mode is selected in a low lighting condition, the camera shake warning indicator ( ) may appear on the LCD monitor. In this case, use a tripod, support the camera on a solid surface or change to flash shot mode.

• Shooting against the light: Please do not take pictures against the sun. Doing so may make the picture dark. To take a picture against the light, please use the [Backlight] in scene shooting mode (see page 23), fill-in flash (see page 32), spot metering (see page 42), exposure compensation (see page 36) or ACB (see page 42) function.

• Avoid obstructing the lens or the flash when you capture an image.

• Compose the image by using the LCD monitor.

- Under certain conditions the auto focus system may not perform as expected.

• When photographing a subject that has little contrast.
• If the subject is highly reflective or shiny.
• If the subject is moving at high speed.
• When there is strong reflected light, or when the background is very bright.
• When the subject matter has only horizontal lines or the subject is very narrow (such as a stick or flagpole).
• When the surroundings are dark.

Using the camera buttons to set the camera

The recording mode function can be set up by using the camera buttons.

POWER button

Used for turning the camera's power on / off. If there is no operation during the specified time, the camera's power will be turned off automatically to save battery life. Refer to page 53 for more information about the auto power off function.

Close-up of a Samsung camera with an arrow pointing to the button (no text or symbols visible)

SHUTTER button

Used for taking an image or recording voice in the RECORDING mode.

- In MOVIE CLIP mode Pressing the shutter button down fully starts the process for recording a movie clip. Press the shutter button once and the movie clip is recorded for as long as the available recording time in the

Close-up of a Samsung camera with a circular button and indicator lights (no text or symbols visible)

memory allows. If you wish to stop recording, press the shutter button again.

- In STILL IMAGE mode Pressing the shutter button down halfway activates the autofocus and checks the condition of the flash. Pressing the shutter button down fully takes and stores the image. If you select voice memo recording, the recording will start after the camera has finished storing the image data.

ZOOM button

If the menu is not displayed, this button works as the OPTICAL ZOOM or DIGITAL ZOOM button.

This camera has a 5X optical zoom and a 5X digital zoom function. Using both will offer a total zoom ratio of 25X.

Close-up of a camera's front face showing settings dial, zoom, and control buttons (no readable text or symbols beyond basic labels)

■ TELE Zoom

Optical zoom TELE : Pressing the ZOOM T button. This will zoom into the subject i.e. the subject will appear nearer.

Digital zoom TELE : When the maximum (5X) optical zoom is selected, pressing the ZOOM T button activates the digital zoom software. Releasing ZOOM T button stops the digital zooming at the required setting. Once the maximum digital zoom (5X) is achieved, pressing the ZOOM T button will have no effect.

Black-and-white photo of a couple in wedding attire, no visible text or symbols

[WIDE zoom]

Black-and-white wedding photo of a couple in formal attire (no visible text or symbols)

[TELE zoom]

Portrait of a smiling man in formal attire, no visible text or symbols

[Digital zoom 5.0X]

■ WIDE Zoom

Optical zoom WIDE

: Pressing the ZOOM W button. This will zoom out from the subject i.e. the subject will appear further away. Pressing the ZOOM W button continuously will set the camera to its minimum zoom setting i.e. the subject appears at its furthest from the camera.

Black-and-white wedding photo of a man and groom in formal attire (no visible text or symbols)

[TELE zoom]

Black-and-white wedding photo of a couple in formal attire, no visible text or symbols

[Optical zoom 2X]

Black-and-white wedding photo of a couple in formal attire, no visible text or symbols

[WIDE zoom]

Digital zoom WIDE

Optical zoom x 5.0 Digital zoom

: When the digital zoom is in operation, pressing the ZOOM W button will reduce the digital zooming in steps. Releasing ZOOM W button stops digital zooming. Pressing the ZOOM W button will reduce the digital zoom and then it will continue to reduce the optical zoom until the minimum setting is reached.

Portrait of a smiling man in formal attire, no visible text or symbols

[Digital zoom 5.0X]

Black-and-white wedding photo of a couple smiling, no visible text or symbols

[TELE zoom]

Black-and-white wedding photo of a couple in formal attire, no visible text or symbols

[WIDE zoom]

• Images taken using the digital zoom may take a little longer for the camera to process. Allow time for this to take place.
• If the Zoom buttons are being pressed during the Movie shots, the voice will not be recorded.
• You may notice a decrease in image quality when using the digital zoom.
• To view a clearer digital zoom image, press the shutter button halfway at the maximum optical zoom position and press the zoom T button again.
• The digital zoom can't be activated in some Scene modes (Night, Children, Text, Close up, Firework), DIS modes, movie mode and Face Detection.
• Take care not to touch the lens to avoid taking an unclear image and possibly causing camera malfunction. If the image is dim, turn the camera power off and on again to modify the lens position.
• Take care not to press the lens as this may cause a camera malfunction.
• When the camera is turned on, take care not to touch the camera's moving lens parts as this may cause the resulting image to be dim and unclear.
• Take care not to touch the lens when operating the zoom button.

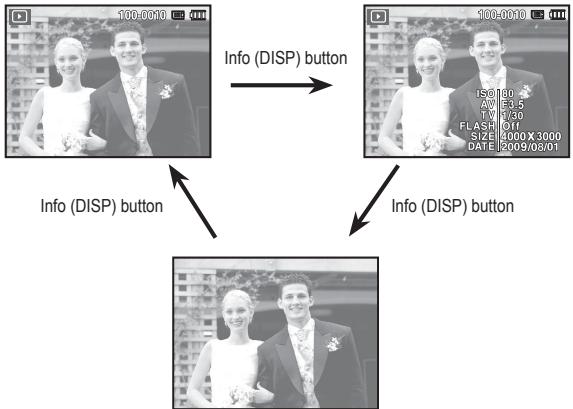

Info (DISP) / Up button

While the menu is showing, the Up button operates as a direction button. In the recording modes or playback mode, pressing this button will display the image information.

Black-and-white wedding photo of a couple in formal attire (no visible text or symbols)

[Filming screen]

Black-and-white wedding photo of a couple in formal attire (no visible text or symbols)

[Information screen]

Macro ( 🍴 ) / Down button

While the menu is showing, the Down button operates as a direction button. When the menu is not showing, you can use the MACRO (💡) / DOWN button to take macro pictures.

The distance ranges are shown below. Press the Macro button until the desired macro mode indicator appears on the LCD monitor.

Black-and-white wedding photo of a couple in formal attire (no visible text or symbols)

[Auto Focus]

Black-and-white wedding photo of a couple in formal attire, no visible text or symbols

[Macro ( 🍴 )]

Black-and-white wedding photo of a couple in formal attire (no visible text or symbols)

[Auto Macro ( 🍒 )]

■ Types of focus mode and focus range (W : Wide, T : Tele)

(Unit: cm)

Mode	Auto ( [IMAGE] )
Focus Type	Auto macro ( [IMAGE] )	Normal
Focus range	W : 10 ~ InfinityT : 50 ~ Infinity	W : 80 ~ InfinityT : 80 ~ Infinity

Mode	Program ( [IMAGE] )
Focus Type	macro ( [IMAGE] )	Normal
Focus range	W : 10 ~ 80T : 50 ~ 80	W : 80 ~ InfinityT : 80 ~ Infinity

Mode	DIS Mode ( [IMAGE] )
Focus Type	Auto macro ( [IMAGE] )	Normal
Focus range	W : 10 ~ InfinityT : 50 ~ Infinity	W : 80 ~ InfinityT : 80 ~ Infinity

• When the macro mode is selected, be particularly careful to avoid camera shake.
• When you take a picture within 40cm (Wide zoom) or 50cm (Tele zoom) in the Macro mode, select the FLASH OFF mode.

■ Available focusing method, by recording mode

Mode	Auto macro	Macro	Normal
	0		0
		0	0
	0		0
		0	0
		0	0
	0
Mode	SCENE
	Auto macro	Macro	Normal
	0
			0
			0
			0
			0
		0
	0
			0
			0
			0
			0
			0

Focus lock

To focus on a subject not positioned in the centre of the picture, use the focus lock function.

■ Using the Focus Lock

1. Ensure the subject is in the centre of the autofocus frame.
2. Press the SHUTTER button halfway. When the green auto focus frame lights up, it means the camera is focused on the subject. Be careful not to press the SHUTTER button all the way down to avoid taking an unwanted picture.
3. With the SHUTTER button still pressed down only halfway, move the camera to recompose your picture as desired, and then press the SHUTTER button completely to take the picture. If you release your finger from the SHUTTER button, the focus lock function will be cancelled.

Illustration of two people in a meeting or presentation setting, one holding a camera and gesturing, the other smiling (no text or symbols present)

1. The image to be captured.

Cartoon illustration of a smiling person holding a camera, with no visible text or symbols

1. Press the SHUTTER button halfway and focus on the subject.

Illustration of two people in a meeting, one holding a camera and the other smiling (no text or symbols present)

1. Recompose the picture and fully depress the SHUTTER button.

Flash (⚡) / Left button

When the menu is displayed on the LCD monitor, pressing the LEFT button makes the cursor shift to the left tab.

When the menu is not displayed on the LCD monitor, the LEFT button operates as the FLASH (⚡) button.

Black-and-white wedding photo of a couple in formal attire (no visible text or symbols)

[Selecting the Auto flash]

■ Selecting the flash mode

1. Select a desired Recording mode, except the [Movie] mode and the [DIS] mode.(p.19)
2. Press the Flash button until the desired flash mode indicator is displayed on the LCD monitor.
3. A flash mode indicator will be displayed on the LCD monitor. Use the correct flash to suit the environment.

■ Flash range
(Unit: m)

ISO	Normal		Macro		Auto macro
	WIDE	TELE	WIDE	TELE	WIDE	TELE
AUTO	0.8~3.4	0.8~2.1	0.4~0.8	0.5~0.8	0.4~3.4	0.5~2.1

• If you press the shutter button after selecting the flash, the first flash fires to check the shooting condition (Flash range and Power ratio of flash). Do not move the camera until the second flash fires.
• Using the flash frequently will reduce the life of the battery.
• Under normal operating conditions the re-charging time for the flash is usually within 4 seconds. If the battery is weak, the charging time will be longer.
• In the DIS mode, [Landscape], [Close up], [Text], [Sunset], [Dawn], [Firework] scene modes and the Movie clip mode, the flash function will not operate.
• Take photographs within the flash range.
• The image quality is not guaranteed if the subject is too close or highly reflective.
• When taking an image in poorly lit conditions with the flash, there may be a white speck in the captured image. The speck is caused by the flash light reflecting off atmospheric dust.

■ Flash mode indicator

Icon	Flash mode	Description
[XX2X]	Auto flash	If the subject or background is dark, the camera flash will operate automatically.
[6&0T]	Auto & Red eye reduction	If a subject or background is dark, the camera flash will work automatically and will reduce the red-eye effect by using the red-eye reduction function.
	Fill in flash	The flash fires regardless of the available light. The intensity of the flash will be automatically controlled to suit the prevailing conditions.
	Slow synchro	The flash operates with a slow shutter speed to obtain a balanced correct exposure. In poor lighting conditions the camera shake warning indicator ( [IMAGE] ) will display on the LCD monitor.
[1	Red-eye reduction	When a shot with "red eye" is detected, this mode will reduce the red-eye effect automatically.
	Flash off	The flash does not fire.Select this mode when capturing images in a place or situation where flash photography is prohibited. When you capture an image in poorly lit conditions, the camera shake warning indicator ( [IMAGE] ) will appear on the LCD monitor.

Flash (⚡) / Left button

■ Available flash mode, by recording mode (o : Selectable)

Mode
	0	0			0	0
	0	0	0	0	0	0
						0
	0	0	0	0	0	0
						0
		0			0	0
Mode	SCENE
	0				0	0
				0	0	0
		0			0	0
		0				0
						0
						0
						0
						0
						0
			0
						0
	0

Mode	SCENE
	0				0	0
				0	0	0
		0			0	0
		0				0
						0
						0
T						0
						0
						0
			0
						0
	0

Self-timer (💡) / Right button

When the menu is displayed on the LCD monitor, pressing the Right button makes the cursor shift to the right tab.

When the menu is not displayed on the LCD monitor, the RIGHT button operates as the Self-timer ( ⚙ ) button. This function is used when the photographer would also like to be in the image.

• If you operate the Self-timer button during the self-timer operation, the self-timer function is cancelled.
• Use a tripod to prevent the camera from shaking.
• In Movie Clip mode, only the 10SEC self-timer will work.

Self-timer ( ⏻ ) / Right button

■ Selecting the self-timer

1. Select a Recording mode with the exception of Voice recording mode. (p.19)
2. Press the SELF-TIMER / RIGHT (☐) button until the desired mode indicator displays on the LCD monitor. A 10 second, 2 second, Double self-timer or Motion timer icon appears on the LCD monitor.
3. When you press the SHUTTER button, the picture will be taken after the specified time has elapsed.

DISP OK

Black-and-white wedding photo of a couple in formal attire, no visible text or symbols

[Selecting the 10 SEC self-timer]

■ Self-timer mode indicator

Icon	Mode	Description
122001	10SEC self-timer	Pressing the shutter button will allow an interval of 10 seconds before the image is taken.
122002	2SEC self-timer	Pressing the shutter button will allow an interval of 2 seconds before the image is taken.
122003	Double self-timer	A picture will be taken after about 10 seconds and 2 seconds later a second picture will be taken. When using the flash, the 2-second self-timer may be delayed for longer than 2 seconds depending on the flash charging time.
122004	Motion Timer	The camera detects the subject's movement 6 seconds after pressing the Shutter button, and the picture is taken when the movement is stopped.

■ Motion Timer

Motion	Icon & Self-timer lamp
Pressing the Shuter button after setting the Motion Timer	Blink (1 second interval)
Detecting the subject's movement	Blink (0.25 second interval)
No movement is detected	Turn on and the image is taken after 2 seconds

■ The Motion Timer flows are as followings. (Movie Clip mode excluded) Selecting the Motion Timer → Pressing the Shutter button → Confirming the composition (Within 6 sec.) ^1 → Starting the detection (Swing your hands fully) ^2 → Stopping the detection (Do not move) → Taking an image (after 2 sec.)

*1: The camera detects the subject's movement 6 seconds after pressing the Shtter button, so confirm the composition within 6 seconds.
*2: Move your body or hands fully.

In the following cases, the Motion Timer may not operate.

• The focus distance is over 3m.
• The exposure is too bright or dark
• In backlight conditions.
  • The movement is insignificant
• The movement is detected beyond the center part (50%) of the sensor where the movement is recognized.
• If the camera doesn't sense any movement for 30 seconds, or the camera doesn't sense stillness after sensing movement

The detection range of Motion Timer

Black-and-white wedding photo of a couple, no visible text or symbols

MENU button

• When you press the MENU button, a menu related to each camera mode will be displayed on the LCD monitor. Pressing it again will return the LCD to the initial display.
• A menu option can be displayed when the following are selected: MOVIE CLIP and STILL IMAGE mode. There is no menu available when the voice recording function is selected.

Black-and-white wedding photo of a couple in formal attire (no visible text or symbols)

[Menu off]

[Pressing the MENU button]

Functions Sound Display Settings AUTO Exit Change EV White Balance ISO Face Detection Photo Size Quality ACB

[Menu on]

OK button

- When the menu is displayed on the LCD monitor, this button is used for shifting the cursor to the sub menu or for confirming data.

Functions Sound Display Settings MENU Exit EV White Balance ISO Face Detection Photo Size Quality ACB Change

[Pressing the OK button]

EV White Balance ISO Face Detection Photo Size Quality ACB MENU Exit Back

Functions

Use the menu that enables the functions, or the Fn button, to bring up the menus below:

Mode	Menu	Available mode	Page
(Functions)	EV		p.36
	White Balance		p.37
	ISO	[H0WX]	p.38
	Face Detection		p.38
	Face Tone	[2014]	p.40
	Face Retouch		p.40
	Photo Size / Movie Size		p.41
	Quality / Frame Rate		p.41
	ACB	[1950]	p.42
	Metering	[9817]	p.42
	Drive	[1750]	p.43
	Focus Area		p.43
	Photo Style Selector	[1438]	p.44
	Image Adjust	[7842]	p.45
	Voice		p.46

How to Enable Functions Using the MENU Button

1. Press the MENU button in an available mode.
2. Press the Up / Down button to select the [Functions] menu and press the Right/OK button.

Functions Sound Display Settings EV White Balance ISO Face Detection Photo Size Quality ACB HEM Exit Change Right/OK button EV White Balance ISO Face Detection Photo Size Quality ACB HEM Exit Back

1. Select a desired menu by pressing the Up / Down button and then press the OK button.

1. Select a desired menu by pressing the Left / Right button and then press the OK button.

White Balance Back Move Left / Right button

Use the Fn button on the rear of the camera to bring up the menus that enable frequently used functions faster.

Exposure compensation

This camera automatically adjusts the exposure according to the ambient lighting conditions.

You can also select the exposure value by using the [EV] menu.

■ Compensating Exposure

1. Click the Up/Down button from the Functions menu to select [EV] ( + - ).

2. Use the LEFT and RIGHT buttons to set the desired exposure compensation factor.

3. Press the OK button. The value you set will be saved and the Exposure Compensation setup mode will be closed. If you change the exposure value, the exposure indicator ( ✉ ) will be displayed on the Left of the LCD monitor.

※ A negative exposure compensation value reduces the exposure. Note that a positive exposure compensation value increases the exposure and the LCD monitor will appear white or you may not get good pictures.

EV MENU Back Move

White balance

The white balance control allows you to adjust the colours to appear more natural.

White Balance MENU Back Move

Mode	Icon	Description
Auto WB		The camera automatically selects the appropriate white balance settings, depending on the prevailing lighting conditions.
Daylight		For taking images outside.
Cloudy		For taking images under a cloudy and over-cast sky.
Fluorescent_H		For shooting under daylight fluorescent types of three-way fluorescent lighting.
Fluorescent_L		Shooting under white fluorescent lighting.
Tungsten	(bw=1)	For shooting under tungsten (standard light bulb) lighting.
Custom Set	(c=a+1)	Allows the user to set the white balance according to the shooting condition.

※ Different lighting conditions may cause a colour cast on your images.

■ Using the Custom White Balance

White balance settings may vary slightly depending on the shooting environment. You can select the most appropriate white balance setting for a given shooting environment by setting up the custom white balance.

1. Select the CUSTOM (☑) menu of the White Balance and place a sheet of white paper in front of the camera so that the LCD monitor shows only white.

SAMSUNG White paper

1. OK button : selects previous custom white balance.

Shutter button : saves new custom white balance.

• The custom white balance value will be applied, starting with the next picture you take.
• The user configured white balance will be remain effective until it is overwritten.

ISO

You can select the ISO sensitivity when taking pictures. The speed or specific light-sensitivity of a camera is rated by ISO numbers.

[Auto] : The camera's sensitivity is automatically changed by variables such as lighting value or subject brightness.

ISO 150 150 150 150 150 150 150 150 150 0:00 0:00 0:00 0:00 2:00 3:00 4:00 5:00 6:00 7:00 8:00 ISO MENU Back Move

[ISO 80, 100, 200, 400, 800, 1600, 3200] : You can increase the shutter speed while

the same amount of light is present, by increasing the ISO sensitivity. However, the image may be saturated in high luminance. The higher the ISO value, the higher the camera's sensitivity to light and therefore the greater its capacity to take pictures in dark conditions. However, the noise level in the image will increase as the ISO value increases, making the image appear coarse.

※ When [Motion Capture] is set, ISO speed will be set to Auto.
※ [ISO] is enabled only in [Program] or [Photo Help Guide] mode.
※ When the ISO 3200 menu is selected, the image size is fixed to under 3M.

Face Detection

If you use face detection options, your camera can detect a human face. When focusing on a human face, the brightness of the face is also adjusted. You can also capture natural facial expressions by using self portrait, smile shot or blink detection.

Face Detection MENU Back Move

■ Normal

This mode detects the face position of the subject automatically and then sets the focus and exposure. Select this mode for quick and easy face picture.

※ Selectable modes: Auto, Program, DIS, Photo Help Guide, Beauty Shot, Portrait, Children, Beach & Snow

1. The size and position of the auto focus frame is set at the face of the subject automatically.
2. Press the shutter button halfway. The focus frame turns to green when the focus is activated.
3. Press the shutter button fully to take a picture.

Black-and-white photo of a smiling couple with camera app interface overlay (no readable text or symbols)

Black-and-white photo of a smiling couple with camera interface overlays (no readable text or symbols)

• This function can detect up to 10 persons.
• When the camera recognises many people at the same time, it will focus on the nearest person.
• The Digital zoom is not activated in this mode.
• When the camera detects a target face, the white colour focus frame will be displayed over the target face and the grey colour focus frame appears over the remaining faces. Press the shutter button halfway down to focus on the face and the white focus frame turns green.
• Return to previous AF mode if face detection was failure.
• In some conditions this function cannot work properly.
• When a person wears dark glasses or some part of the face is hidden.
• When the person being taken does not look at the camera.
• Camera doesn't detect a face as the brightness is too dark or too bright.
• The distance between the camera and object are far.
• The maximum available Face Detection range is 2.5m (Wide).
• The nearer the subject, the faster the camera can recognize the subject.
• In [Beauty Shot], [Portrait], and [Children] mode, the [Face Detection] function setting is set to its default value.

■ Self Portrait

When taking pictures of yourself, the area of your face is automatically detected so that you can take self pictures more easily and quickly.

※ Selectable modes: Auto, Program, DIS, Photo Help Guide, Beauty Shot, Portrait, Children, Beach & Snow

1. For self-filming, set the camera lens towards the face of the object. It automatically detects the face of the object, and emits a guiding sound.
2. Start filming by pressing the shutter button.

Black-and-white photo of a smiling couple with camera interface overlay (no readable text or symbols)

- When locating the face in the center of the screen, it repeatedly emits a faster sound unlike the sounds that are emitted when the face is not in the center.

■ Smile Shot

※ Selectable modes: Auto, Program, DIS, Photo Help Guide, Beauty Shot, Portrait, Children, Beach & Snow

The camera automatically takes a picture by detecting the face of the subject although you don't press the shutter button. If you press the Shutter button, the picture is taken in the normal way. When taking a picture of smile shot, showing

Black-and-white photo of a smiling couple with camera interface overlay (no readable text or symbols)

teethes or keeping the smiley face of your subject helps detecting the smile face of the subject.

■ Blink Detection

※ Selectable modes: Auto, Program, DIS, Photo Help Guide, Beauty Shot, Portrait, Children, Beach & Snow

If the eyes of the subject are closed when the shutter button is pressed, the camera takes 2 continuous shots and then the images are saved. The camera takes only one picture if the eyes of the subject are open when the Shutter button is pressed.

Black-and-white photo of a smiling couple with camera app icons overlay (no readable text or symbols)

- Detecting the smiling face or the blinking eyes may not be available if any of the following situations occurs:

• If the subject is wearing sunglasses.
• When the subject is not facing directly to the camera.
• If the environmental light is too bright or too dark to detect the face of the subject.
• When the camera is far from the subject. (Orange colored focusing mark)
• If there is reflection of the light or the back light that are too bright.

Face Tone

This menu allows you to control the skin tone in images in beauty shot mode. The higher the level you select, the brighter the skin tone.

1. Select [Face Tone] by pressing the Up/Down button.
2. Select a desired face tone by pressing the Left / Right button and then press the OK button.
3. Press the Shutter button to take an image.

Face Tone MENU Back Move

Face Retouch

This menu allows you to make skin appear clear and beautiful before recording in beauty shot mode. The higher the level selected, the more effective the control.

1. Select [Face Retouch] by pressing the Up/Down button.
2. Select a desired face retouch by pressing the Left / Right button and then press the OK button.
3. Press the Shutter button to take an image.

Face Retouch MEHU Back Move

Image Size

You can select the image size appropriate for your application.

(Unit: pixel)

Stillimage mode	Icon	12M	10M	9M	8M		5M	3M	1M
	Size	4000X3000	3984X2656	3968X2232	3264X2448		2592X1944	2048X1536	1024X768
Movie clip mode	Icon	640				320
	Size	640X480				320X240

Photo Size 12M 2M 3M 8M 5M 3M 1M MEU Back Move

[ STILL IMAGE mode ]

640 640 320 Movie Size MENU Back Move

[ MOVIE CLIP mode ]

- The higher the resolution, the lower the number of shots available because high resolution images require more memory.

Quality / Frame rate

You can select the compression ratio appropriate for your application of the captured images. The higher the compression ratio, the lower the picture quality.

Mode	STILL IMAGE mode			MOVIE CLIP mode
Icon				-	[78E7]-
Sub menu	Super Fine	Fine	Normal	30 FPS	15 FPS
File Format	jpeg	jpeg	jpeg	avi	avi

Quality MEHU Back Move

[ STILL IMAGE mode ]

640 30 15 Frame Rate MEH0 Back Move

[ MOVIE CLIP mode ]

• This file format complies with the DCF (Design rule for Camera File system).
• JPEG (Joint Photographic Experts Group) : JPEG is the image compression standard developed by the Joint Photographic Experts Group. This type of compression is most commonly used for compressing photos and graphics because it can compress the files efficiently.

ACB

This function is to adjust the contrast automatically when taking photos in an environment with big exposure difference i.e. backlight or contrast. This function adjusts the brightness automatically and allows the subject to be photographed clearly.

- [ACB] Sub menus: [Off], [On]

ACB OFF CHANGE MENU Back Move

※ When using the [Program] mode, the ACB function will operate.

Black-and-white photo sequence showing a couple embracing on a beach, with no visible text or symbols

Metering

If you cannot obtain suitable exposure conditions, you can change the metering method to take brighter pictures.

[Multi] ([■]): Exposure will be calculated based on an average of the available light in the image area. However, the calculation will be biased towards the centre of the image area. This is suitable for general use.

Metering MEHU Back Move

[Spot] (I • I): Only the rectangular area in the centre of the LCD monitor will be metered for light. This is suitable when the subject in the centre is exposed correctly, regardless of the back lighting.

[Center Weighted] ([ ⊃])

: Exposure will be calculated based on an average of the available light in the image area. However, the calculation will be biased towards the centre of the image area. This is suitable for taking a picture of small object like a flower or insects.

※ If the subject is not the centre of the focus area, do not use the spot metering as this may result in an exposure error. In this circumstance, it is better to use exposure compensation.

Drive mode

You can select single, continuous, motion capture, and AEB (Auto Exposure Bracketing).

[Single] (☐)

[Continuous]

: Take one picture only.
: Images will be taken continuously until the shutter button is released.

[Motion Capture]

This takes 5 shots per second, when

the shutter is pressed and held down. After completing the continuous shooting, images are saved and the images play back on the Rear LCD. The maximum number of shots is 30 and the image size is fixed as VGA.

[AEB]

: Take three pictures in a series in different exposures: standard exposure (0.0EV), short exposure (-1/2EV) and over exposure (+1/2EV).

Drive MENU Back Move

• High resolution and picture quality increases file saving time, which increases stand-by time.
• If the [Continuous], [Motion Capture], [AEB] sub menu is selected, the flash will be off automatically.
• If less than 3 pictures are available in the memory, the AEB shooting is not available.
• It is best to use a tripod for the AEB shooting as the time to save each image file is longer and blurring caused by camera shake may occur.

Auto Focus type

You can select your preferred Focus Area according to the shooting conditions.

Focus Area MENU Back Move

[Center AF] (☐): The rectangular area in the center of the LCD monitor will be focused

[Multi AF] (☐): This camera selects all of available AF point from the 9 AF points.

Simple geometric shape: a white square centered on a gray background (no text or symbols)

[Center AF]

Simple grid pattern with dashed lines forming a 3x3 layout (no text or symbols)

[Multi AF]

※ When the camera focuses on the subject, the auto focus frame turns to green. When the camera doesn't focus on the subject, the auto focus frame turns to red.

Photo Style Selector

You can add various effects to the image without using image editing software.

Photo Style Selector MENU Back Move

1. Select the desired Photo style selector by pressing the Left/Right button and press the OK button.
2. Press the Shutter button to take an image.

Style mode	Icon	Description
Normal	[SK-ZC]	No style effect is applied.
Soft		Soft style is applied.
Vivid	[1Y3C8]	Vivid style is applied.
Forest		Forest style is applied.
Retro	[11858]	Sepia style is applied.
Cool		Cool style is applied.
Calm	[ZX75]	Calm style is applied.
Classic	[1YDA3]	Black & white effect is applied.
Negative	[DXOW]	Negative effect is applied.
Custom RGB		Define an RGB tone to create your own photo style.

■ Custom colour : You can change the R (Red), G (Green) and B (Blue) values of the image.

MENU Back Move

• Up/Down button : Selects R, G, B
• Left/Right button : Changes the values

MEHU Back Move

• When picture style is set, face detection is not available.
• When Soft or Vivid in photo style is set, saturation is not available.
• When Negative in photo style is set, contrast is not available.

Image Adjust

■ Contrast

You can change the contrast of the image.

1. Select [Contrast] by pressing the Up/Down button.
2. Change the contrast by pressing the Left/Right button.
3. Press the Shutter button to take an image.

Image Adjust Contrast -2 -1 0 +1 +2 Sharpness -2 -1 0 +1 +2 Saturation -2 -1 0 +1 +2 MEHU Back Move

- When Negative in photo style is set, contrast is not available.

■ Sharpness

You can adjust the sharpness of the picture you are about to take. You cannot check the sharpness effect on the LCD monitor before you take a picture, because this function is applied only when the captured image is stored on the memory.

Image Adjust Contrast -2 -1 0 +1 +2 Sharpness -2 -1 0 +1 +2 Saturation -2 -1 0 +1 +2 MEHO Back Move

1. Select [Sharpness] by pressing the Up/Down button.
2. Change the Sharpness by pressing the Left/Right button.
3. Press the Shutter button to take an image.

■ Saturation

You can change the saturation of the image.

1. Select [Saturation] by pressing the Up/Down button.
2. Change the saturation by pressing the Left/Right button.
3. Press the Shutter button to take an image.

Image Adjust Contrast -2 -1 0 +1 +2 Sharpness -2 -1 0 +1 +2 Saturation -2 -1 0 +1 +2 MEHU Back Move

- When Soft or Vivid in photo style is set, saturation is not available.

Voice Memo

You can add your voice-over to a stored still image. (Max. 10 sec.)

Memo MEHU Back Move

- If the voice memo indicator is displayed on the LCD monitor, the setting is completed.

- Press the shutter button and take a picture. The picture is stored on the memory card.

- Voice memo will be recorded for ten seconds from the moment the picture is stored. In the middle of the sound recording, pressing the shutter button will stop the voice memo.

Black-and-white wedding photo of a couple, no visible text or symbols

00:00:01 SHUTTER Stop

Voice Recording

A voice can be recorded for as long as the available recording time (Max. 10 hour) allows.

Record MENU Back Move

Press the shutter button to record a voice.

- Press the shutter button once and voice is recorded for as long as the available recording time (max:10 hour) allows. The recording time will be displayed on the LCD monitor. Voice will still be recorded if the shutter button is released.

- If you wish to stop recording, press the shutter button again.

- File type : *.wav

00:00:12 00:00:00 SHUTTER Record MENU Exit

[Voice recording mode]

■ Pausing while recording a voice

Using this function, you can record your favourite voice clips into a voice recording file without having to create multiple voice recording files.

00:00:01 SHUTTER Stop OK Record

[Voice recording mode]

1. Press the OK button to pause recording.
2. Press the OK button again to resume the recording.
3. If you wish to stop recording, press the shutter button again.

• A distance of 25cm between you and the camera (microphone) is the best distance to record sound.
• If the camera power is turned off while the voice recording is paused, the voice recording is cancelled.

Recording the movie clip without voice

You can record the movie without voice.

Select [Off] of [Voice] menu in the Movie clip mode. ( 😊 ) icon will appear on the LCD monitor. Press the Shutter button and a movie will record for as long as the memory capacity allows without voice.

640 Off MENU Back Move

10:00:12 6:40 STANDBY

Sound menu

In this mode, you can set up sound settings. You can use the setup menu in all camera modes, except Voice Recording mode.

■ The items indicated by * are default settings.
※ Menus are subject to change without prior notice.

Sound ( )

Volume

You can select a volume of start up sound, shutter sound, beep sound and AF sound.

- [Volume] sub menu : [Off], [Low], [Medium]*, [High]

Volume Start Sound Shutter Sound Beep Sound AF Sound Off Low ✓ Medium High :On MENU Back OK Set

Start up sound

You can select the sound that is activated whenever the camera is turned on.

- Start up sound : [Off]*, [1], [2], [3]

Volume Start Sound Shutter Sound Beep Sound AF Sound :Medium Off 1 2 3 MENU Back OK Set

Shutter sound

You can select the shutter sound.
- Shutter sound : [Off], [1]*, [2], [3]

Volume Start Sound Shutter Sound Beep Sound AF Sound :Medium :Off Off ✓ 1 2 3 MENU Back OK Set

Beep Sound

If you set sound to ON, a beep will sound when buttons are pressed, letting you know the camera operation status.

- [Beep Sound] sub menu : [Off], [1]*, [2], [3]

Volume Start Sound Shutter Sound Beep Sound AF Sound :Medium :Off Off ✓ 1 2 3 HCHNO Back OK Set

AF sound

If you set AF sound to on, AF sound will be activated when the Shutter button is pressed down half way so that you can be aware of the camera operation status.

- [AF sound] sub menu : [Off], [On]*

Volume Start Sound Shutter Sound Beep Sound AF Sound :Medium :Off :1 :1 Off ✓ On MENU Back OK Set

Setup menu

In this mode, you can set up basic settings. You can use the setup menu in all camera modes, except Voice Recording mode.

■ The items indicated by * are default settings.
※ Menus are subject to change without prior notice.

Display ( )

Language

There is a choice of language that can be displayed on the LCD monitor. Even if the battery is removed and inserted again, the language setting will be preserved.

Language Function Description Start Image Display Brightness Quick View Power Save English 한국어 Français Deutsch Español Italiano MENU Back OK Set

Function Description

You can select whether the function description can be displayed on the window in recording mode.

• Function Description sub menu
  [Off] : The function description function can't be activated.
  [On]* : The name and description of the option is displayed.

Language Function Description Start Image Display Brightness Quick View Power Save English Off ✓ On :0.5sec :Off MENU Back OK Set

Start up image

You can select the image that is first displayed on the LCD monitor whenever the camera is turned on.

• Sub menus : [Off]*, [Logo], [User Image]
• Use a saved image for the start-up image with the [Start Image] in the [Resize] menu in the play mode.
• The start-up image will not be deleted by [Delete] or [Format] menu.
• The User images will be deleted by [Reset] menu.

Language Function Descriptive Start Image Display Brightness Quick View Power Save Off MENU Exit Back

Display Bright

You can adjust the LCD brightness.

- Sub menus : [Auto]*, [Dark], [Normal], [Bright]

Language Function Description Start Image Display Brightness Quick View Power Save English On Off ✓ Auto Dark Normal Bright MENU Back OK Set

Quick view

If you enable Quick View before capturing an image, you can view the image you just captured on the LCD monitor for the duration set in the [Quick View] setup. Quick view is possible only with still images.

- Sub menus

[Off] : The quick view function can't be activated.
[0.5 sec]*, [1 sec], [3 sec]
: The captured image is briefly displayed during the selected time.

Language Function Description Start Image Display Brightness Quick View Power Save :English :On :Off Off ✓ 0.5 sec 1 sec 3 sec REMO Back OK Set

Display SAVE

If you set the [Power Save] to On and the camera isn't operated during the specified time, the LCD monitor will be turned off automatically.

- Sub menus

[Off]*: The LCD monitor will not be turned off.
[On] : If the camera isn't operated during the specified time (about 30 SEC.), the camera power will be idle (Camera status lamp: Blinking) automatically.

Language Function Description Start Image Display Brightness Quick View Power Save :English :On :Off :Auto ✓ Off On MENU Back OK Set

※ You can't set the [Power Save] menu of Playback Mode.

Formatting a memory

This is used for formatting the memory. If you run [Format] on the memory, all images, including the protected images, will be deleted. Be sure to download important images to your PC before formatting the memory.

- Sub menus

[Yes] : A window for confirming the selection displays. Select the [Yes] menu. A [Formatting] message appears and the memory will be formatted. If you run FORMAT in Play mode, a [Format is completed] message will appear.

Format Reset Date & Time Time Zone File No. Imprint Auto Power Off Yes No :Off :London :Series :Off :3 min MENU Back OK Set

[No]*: The memory will not be formatted.

■ Be sure to run [Format] on the following types of memory card.

• A new memory card, or an unformatted memory card
• A memory card that has a file this camera can't recognise or one that has been taken from another camera.
• Always format the memory card using this camera. If you insert a memory card that has been formatted using other cameras, memory card readers, or PCs, you will get a [Card Error] message.

Initialisation

All camera menu and function settings will be restored to their default values. However, values for DATE / TIME, LANGUAGE, and VIDEO OUT will not be changed.

- Sub menus

[Yes] : A window to confirm the selection will be displayed. Select the [Yes] menu and all settings will be restored to their defaults.

[No]* : Settings will not be restored to their defaults.

Format Reset Date & Time Time Zone File No. Imprint Auto Power Off Yes No London :Series :Off :3 min MENU Back OK Set

Setting up the Date / Time / Date type

You can change the date and time that will be displayed on the captured images and set up the date type. Setting [Time Zone] enables you to display the local date and time on the LCD monitor when travelling overseas.

- Date type : [yyyy/mm/dd], [mm/dd/yyyy], [dd/mm/yyyy], [Off]*

Format Reset Date & Time :Off Time: yyyy mm 6d File: 2009/08/01 13:00 Off Imprint :Off Auto Power Off :3 min MENU Back OK Set

Time Zone

■ Available cities:

London, Cape Verde, Mid-Atlantic, Buenos Aires, Newfoundland, Caracas, La Paz, New York, Miami, Chicago, Dallas, Denver, Phoenix, LA, San Francisco, Alaska, Honolulu, Hawaii, Samoa, Midway, Wellington, Auckland, Okhotsk, Guam, Sydney, Darwin Adelaide, Seoul,

Tokyo, Beijing, Hong Kong, Bankok, Jakarta, Yangon, Almaty, Kathmandu, Mumbai, New Delhi, Tashkent, Kabul, Abu Dhabi, Teheran, Moscow, Athens, Helsinki, Rome, Paris, Berlin

Time Zone London [GMT +00:00] 2009/08/01 01:00 PM MENU Back DST

※ DST : Daylight Saving Time

File name

This function allows the user to select the file naming format.

[Reset] : After using the reset function, the next file name will be set from 0001 even after formatting, deleting all or inserting a new memory card.

Format Reset Date & Time Time Zone File No. Imprint Auto Power Off :Off :London Reset ✓ Series MENU Back OK Set

[Series]*: New files are named using numbers that follow the previous sequence, even when a new memory card is used, or after formatting, or after deleting all pictures.

• The first stored folder name is 100PHOTO, and the first file name is SAM_0001.
• File names are assigned sequentially from SAM_0001 → SAM_0002 → \~ → SAM_9999.
• The folder number is assigned sequentially from 100 to 999 as follows: 100PHOTO → 101PHOTO → \~ → 999PHOTO.
• Maximum numbers of files in a folder are 9999.
• The files used with the memory card conform to the DCF (Design rule for Camera File systems) format. If you change the image file name, the image may not play back.

Imprinting the recording date

There is an option to include DATE / TIME on still images.

- Sub menus

[Off]* : The DATE & TIME will not be imprinted on the image file.

[Date] : Only the DATE will be imprinted on the image file.

[Date & Time] : The DATE & TIME will be imprinted on the image file.

Format Reset Date & Time Time Zone File No. Imprint Auto Power Off :Off Off Date Date & Time MENU Back OK Set

※ The Date & Time are imprinted at the bottom right side of the still image.
※ The imprint function is applied only to still images.
※ Depending on the manufacturer and print mode, the date printed on an image may not be printed correctly.

Auto power off

This function switches the camera off after a set amount of time in order to prevent unnecessary battery drainage.

- Sub menus

[Off] : The power off function will not operate.

[1 min], [3 min]*, [5 min], [10 min]

: The power will turn off automatically if not used for the period of time specified.

Format Reset Date & Time Time Zone File No. Imprint Auto Power Off Off 1 min ✓ 3 min 5 min 10 min MENU Back OK Set

• After replacing the battery, the power off setting will be preserved.
• Note that the automatic power off function will not operate if the camera is in the PC / Printer mode, slide show, playing back a voice recording and playing back a movie clip.

Auto Focus lamp

You can turn on and off the Auto Focus lamp.

- Sub menus

[Off] : The AF lamp will not light up in low light conditions.

[On]*: The AF lamp will light up in low light conditions.

AF Lamp Video Out USB Off ✓ On Auto MENU Back OK Set

Selecting Video out type

The Movie output signal from the camera can be NTSC or PAL. Your choice of output will be governed by the type of device (monitor or TV, etc.) to which the camera is connected. PAL mode can support only BDGHI.

■ Connecting to an external monitor When the camera is connected to an external monitor, the image and menus on the LCD monitor will be visible on the external monitor and the LCD monitor of the camera.

AF Lamp Video Out USB :On NTSC PAL HCMO Back ON Set

Yellow - Video White - Sound

• NTSC : U.S.A, Canada, Japan, South Korea, Taiwan, Mexico.
• PAL : Australia, Austria, Belgium, China, Denmark, Finland, Germany, U.K., Holland, Italy, Kuwait, Malaysia, New Zealand, Singapore, Spain, Sweden, Switzerland, Thailand, Norway.
• When using a TV as an external monitor, you will need to select the external or AV channel of the TV.
• There will be a digital noise on the external monitor, but it is not a malfunction.
• If the image is not in the centre of the screen, use the TV controls to centre it.
• When the camera is connected to an external monitor, some parts of the image may not be displayed.
• When the camera is connected to an external monitor, the menu will be visible on the external monitor and the menu functions are the same as those indicated on the LCD monitor.

Setting the USB

If the camera is set to connect automatically to a PC or a printer using a USB cable, you can manually set [Computer] or [Printer].

-[USB] sub menus:

[Auto]* : Automatically enables an external device connected with a USB cable.

[Computer] : Sets computer connection mode if the connected external device cannot be recognized automatically.

[Printer] : Sets printer connection mode if the connected external device cannot be recognized automatically.

AF Lamp Video Out USB :On :NTSC ✓ Auto Computer Printer MENU Back OK Set

Starting play mode

Turn the camera on and select Play mode by pressing the play mode button (☐). The camera can now play back the images stored in the memory.

If the memory card is inserted in the camera, all the camera functions apply only to the memory card.

If the memory card is not inserted in the camera, all the camera functions apply only to the internal memory.

Playing back a still image

1. Select the PLAY mode by pressing the play mode button ( ▶ ).

2. The last image stored on the memory is displayed on the LCD monitor.

3. Select an image that you want to view by pressing the Left/ Right button.

※ Press and hold the Left or Right button to play back the images quickly.

Close-up of a camera control panel with play button, coffee cup, and Fn buttons (no readable text or symbols)

Black-and-white wedding photo of a couple in formal attire (no visible text or symbols)

MENU DISP OK

Playing back a movie clip

1. Select the recorded movie clip that you want to play back by using the Left/Right button.

2. Press the OK button to play back a movie clip file.

3. To pause a movie clip file while playing it back, press the OK button again.

4. Pressing the OK button again will cause the movie clip file to restart.
5. To rewind the movie clip while it is playing, press the Left button. To fast forward the movie clip, press the Right button.
6. To stop playback of the movie clip, press the OK button, and then press the Left or Right button.

100:0010 00:00:11 OK Play Capture

DISP OK

Movie clip capture function

You can capture still images from the movie clip.

■ How to capture the movie clip

1. Press the OK button while playing the movie clip. Then press the Down button.
2. The paused movie clip is saved in a new file name.

※ The captured movie clip file is the same size as the original movie clip (640x480, 320x240).
※ When you press the down button at the beginning of the movie clip, the first frame of the movie clip will be saved as a still image.

100:00:10 00:00:02 OK Play Capture

[Paused]

OK Fn

[Press the down button]

Playing back a recorded voice

1. Select the recorded voice that you want to play back by using the Left/Right button.
2. Press the OK button to play back a recorded voice file.

- To pause a recorded voice file, while playing it back, press the OK button again.

• To resume playback of the voice file, press the OK button.
• To rewind the voice file while it is playing, press the Left button. To fast forward the voice file, press the Right button.
• To stop playback of the voice memo, press the Down button.

100-0010 00:00:18 OK Play

Starting play mode

Playing back a voice memo

1. Select a still image that has the voice memo.
2. Press the OK button to play back the voice memo.

- To pause the voice memo, while playing it back, press the OK button again.

- To resume playback of the voice memo, press the OK button.

Black-and-white photo of a smiling couple (no text or symbols visible)

100:00:10 00:00:02 OK Pause

LCD monitor Indicator

The LCD monitor displays shooting information about the displayed image.

1 2 3 4 100-0010 ISO 80 AV F3.5 TV 1/30 FLASH Off SIZE 4000X3000 DATE 2009/08/01

No.	Description	Icon	Page
1	Playback mode		p.56
2	Voice Memo		p.73
3	DPOF		p.74
4	Protect		p.73
5	Folder name & File name	100-0010	p.52
6	Memory card indicator		-
7	Battery		p.14
8	ISO	80~3200	p.38
9	Aperture value	F3.5 ~ F5.5	-
10	Shutter speed	8 ~ 1/2,000	-
11	Flash	On/Off	p.31
12	Image size	4000X3000 ~ 1024X768	p.41
13	Recording date	2009/08/01	p.52

Using the camera buttons to set the camera

In Play mode, you can use the buttons on the camera to conveniently set up the Play mode functions.

Play mode button

■ If you have turned on the camera by pressing the POWER button, you can press the Play mode button once to switch to Play mode and press it again to switch to Recording mode.
■ You can turn the power on with the Play mode button. The camera is turned on in play mode. Press the Play mode button again to turn off the camera.
■ Manner mode: To select the Manner mode, press the Play mode button for more than 3 seconds. In the Manner mode, Operating sound, Effect sound, Start-up sound and Shutter sound will not be generated. To cancel the Manner mode, turn on the camera by pressing the POWER button.

DISP OK Fn

Thumbnail ( ☐ ) / Enlargement ( Q ) button

Smart Album

You can view multiple pictures, enlarge a selected picture, and crop and save a selected area of an image.

1. Once a picture has been played back, press the Thumbnail button to run Smart Album mode.
2. Press the Left/Right button to move to a desired image.
3. Press the Digital Zoom button to return to the normal display mode.

Black-and-white wedding photo of a couple in formal attire (no visible text or symbols)

[Highlighted image]

Pressing the thumbnail button ( ☐ ) Pressing the enlargement button ( Q )

11 12 1 3 5 MEHU Filter 2009/08/01

[Smart Album 3-Thumbnail Window]

Thumbnail ( ☐ ) / Enlargement ( Q ) button

■ Searching or Deleting Files

1. Press the Thumbnail button in Smart Album.
2. Each time you press the Thumbnail button, the files in a category are displayed in Smart Album screen.
3. Select the file by pressing the Up/Down/ Left/Right buttons.
4. Press the Delete ( 🔊 ) button to delete the selected file.

Black-and-white photo of a couple in formal attire, with two inset photos and a date stamp (no readable text or symbols)

[3-Thumbnail Window]

11 12 1 3 5 HEMO Filter 2009/08/01

[9-Thumbnail Window]

HEM Filter 200908/01

[20-Thumbnail Window]

- When Smart Album feature runs or a category is selected, it may take few seconds depends on recorded data volume. However, it is not a malfunction please wait until Smart Album screen appears.

Pure diagram of a directional arrow with icons below (no text or symbols)

■ Smart Album Filter

1. Press the MENU button in Smart Album mode.
2. Selecting the desired category enables to categorize and search the files by using the Up/Down button.

Type ✓ Date Colour Week 11 12 1 3 5 Back OK Set

■Details of Each Category

Category	Description	File Format
Type	Categorized depending on the file type (e.g., picture, video, or voice)	Pictures, Videos, Voice
Date	Categorized depending on the sequence of recorded dates.
Colour	Categorized depending on the main color.
Week	Categorized depending on the sequence of recorded weeks.

■ Image enlargement

1. Select an image that you want to enlarge and press the enlargement button.

2. Different parts of the image can be viewed by pressing the 5 function button.

3. Pressing the thumbnail button will zoom back to the original full sized image.

- You can tell whether the image displayed is an enlarged view by checking the image enlargement indicator shown at the top left of

Black-and-white wedding photo of a man and a woman in formal attire (no visible text or symbols)

the LCD monitor. (If the image is not an enlarged view, the indicator will not be displayed.) You can also check the area of enlargement.

- Movie clips and WAV files can't be enlarged.

- If an image is enlarged, a loss of quality may occur.

■ The maximum enlargement rate in proportion to the image size

Image size	12M	10M	9M	8M	5M	3M	1M
Maximum enlargement rate	X10.2	X10.2	X9.3	X10.2	X8.1	X6.4	X3.2

Trimming? Yes No OK Confirm

■ Trimming : You can extract part of the image that you want and save it separately.

1. Select an image that you want to enlarge and press the enlargement button. Press the OK button and a message will be displayed.

2. Select a desired sub menu by pressing the Up / Down button and press the OK button.

3. [Yes] : The trimmed image will be saved as a new file name, and appear on the LCD monitor.

4. [No] : The trimming menu will disappear.

※ If there is not enough memory space to save the trimmed image, the image can't be trimmed.

Info (DISP) / Up button

When the menu is displayed on the LCD monitor, the UP button operates as a direction button.

When the menu is not displayed on the LCD monitor, pressing the Info button will display image information on the LCD monitor.

Play & Pause / OK button

In Play mode, the play & pause/ OK button works as follows:

• When the menu is displayed on the LCD monitor, the OK button is used for confirming data that is changed by using the 5 function button.
• If a still image with a voice memo, a voice file, or a movie clip is playing

·In Stop mode : Plays a still image with a voice memo, a voice file, or a movie clip.
·During playback : Temporarily stops playback.
·In Pause mode : Resumes playback

100-0010 00:00:18 OK Play

[ Voice recording is stopped ]

100-0010 REW 00:00:05 FP OK Pause Stop

[ Voice recording is playing ]

100-0010 00:00:05 OK Play Stop

[ Voice recording is paused ]

Left / Right / Down / MENU button

LEFT / RIGHT / DOWN / MENU buttons activate the following.

• LEFT button : While the menu is showing, the LEFT button operates as a direction button. While the menu is not showing, press the LEFT button to select the previous image.
• RIGHT button : While the menu is showing, the RIGHT button operates as a direction button. While the menu is not showing, press the RIGHT button to select the next image.
• DOWN button : While the menu is showing, the DOWN button operates as a direction button.
• MENU button : When you press the MENU button, the play mode menu will be displayed on the LCD monitor. Pressing it again will return the LCD to the initial display.

Delete ( ♣ ) button

This deletes images stored on the memory card.

1. Select an image that you want to delete by pressing the Left / Right button and press the DELETE ( 🔊 ) button.

100-0010 Delete File? Yes No Multiple Delete OK Set

[Single Image]

Delete File? Yes No Multiple Delete OK Set

[Thumbnail Image]

1. To add images to delete, select the [Multiple Delete] menu.

2. Left/Right button : Selects images

3. OK button : checks for deletion
4. Fn button : deletes the selected images.

100-0010 Prev < ✓ > Next OK Select Fn Delete

1. Select the submenu values by pressing the Up / Down button and then press the OK button.

2. If [Yes] is selected : deletes the selected images.

3. If [No] is selected : cancels "Delete Image".

Setting up the play back function using the LCD monitor

PLAY mode functions can be changed by using the LCD monitor. In the PLAY mode, pressing the MENU button displays the menu on the LCD monitor. The menus you can set up in Play mode are as follows. To capture an image after setting up the play menu, press the PLAY mode button or shutter button.

Menu Tab	Main Menu	Sub Menu		Page
Edit ( [IMAGE] )	Resize	2592X1944	2048X1536	p.66
		1024X768	2592X1728
		1800X1200	2592X1458
		1920X1080	Start Image
	Rotate	Right 90°	Left 90°	p.67
		180°	Horizontal
		Vertical	-
	Photo Style Selector	Normal	Soft	p.67
		Vivid	Forest
		Retro	Cool
		Calm	Classic
		Negative	Custom
	Image Adjust	ACB	Red-eye Fix	p.68
		Face Retouch	Brightness
		Contrast	Saturation
		Add Noise	-
View [IMAGE]	Single, 3, 9, 20			p.70
Multi Slide Show ( [IMAGE] )	Start	Play / Repeat	-	p.70
	Images	All	Date	p.71
		Select	-

Menu Tab	Main Menu	Sub Menu		Secondary Menu	Page
Multi Slide Show ( [IMAGE] )	Effect	Off	Calm	-	p.71
		Sweet	Rural	-
		Vivid	Lively	-
		Shine	Relax	-
	Interval	1, 3, 5, 10 sec		-	p.72
	Music	Off	Mist	-	p.72
		Muse	Fall	-
		Dawn	Party	-
		Drops	Trip	-
File Options ( [IMAGE] )	Delete	Select		-	p.72
		All		Yes / No
	Protect	Select		-	p.73
		All		Unlock / Lock
	Voice memo	Off		-	p.73
		On		-
	DPOF	Standard		Select / All / Reset	p.74 ~ p.75
		Index		Yes / No
		Size		Select / All / Reset
	Copy To Card	Yes		-	p.76
		No		-

Setting up the play back function using the LCD monitor

This menu is available while the camera is connected to a PictBridge supporting printer (direct connection to the camera, sold separately) with a USB cable.

Menu Tab	Main Menu	Sub Menu	Secondary Menu	Page
	Images	One Photo	-	p.78
		All Photos	-
	Size	Auto	-	p.78
		PostCard	-
		Card	-
		4X6	-
		L	-
		2L	-
		Letter	-
		A4	-
		A3	-
	Layout	Auto	-
		Full	-
		1	-
		2	-
		4	-
		8	-
		9	-
		16	-
		Index	-

Menu Tab	Main Menu	Sub Menu	Secondary Menu	Page
	Type	Auto	-	p.78
		Plain	-
		Photo	-
		FastPhoto	-
	Quality	Auto	-
		Draft	-
		Normal	-
		Fine	-
	Date	Auto	-
		Off	-
		On	-
	File Name	Auto	-
		Off	-
		On	-
	Reset	Yes	-	p.79
		No	-

※ Menus are subject to change without prior notice.

Resize

Change the resolution (size) of pictures taken. Select [Start image] to save an image to be the start-up image.

1. Press the play mode button and press the MENU button.
2. Click the Up/Down button from the Edit menu to select [Resize] (☐) menu tab and press the OK button.
3. Select a desired sub menu by pressing the Left / Right button and press the OK button.

Black-and-white wedding photo of a couple in front of a decorated archway (no text or symbols visible)

■ Image Resize Types
( o : Selectable)

	5^M	3^M	|M|
12^M	0	0	0	0
8^M	0	0	0	0
5^M		0	0	0
3^M			0	0
|M|				0

• A large sized image can be resized to a smaller sized image, but not vice versa.
• Only JPEG images can be resized. Movie clip (AVI), Voice recording (WAV) files can't be resized.
• You can change the resolution of only those files compressed in the JPEG 4:2:2 format.
• The resized image will have a new file name. The [Start Image] image is stored not on the memory card but on the internal memory.
• If a new user image is saved, one of the two user images will be deleted in order.
• If the memory capacity is insufficient to store the resized image, a [Memory Full] message will appear on the LCD monitor and the resized image can't be stored.

Rotating an image

You can rotate the stored images by various degrees.

1. Press the play mode button and press the MENU button.
2. Click the Up/Down button from the Edit menu to select [Rotate] (☐) menu tab and press the OK button.
3. Select a desired sub menu by pressing the Left / Right button and press the OK button.

Black-and-white wedding photo showing a couple in formal attire, with no visible text or symbols.

Right 90 NEW Back Move

[ ↗ : Right 90°]
: Rotate picture in a clock-wise direction

Black-and-white photo of a person sitting on a tree, with no visible text or symbols in the main image area.

[←: Left 90°]
: Rotate picture in a counter-clock-wise direction

Black-and-white photo of a dog holding a rabbit, with floral background and no visible text or symbols

[ ): 180°]
: Rotate picture 180 degrees

Horizontal HIND Back Move

[→: Horizontal]
: Rotate picture horizontally

Black-and-white wedding photo showing a bride and groom in formal attire, with no visible text or symbols.

[ψ : Vertical]
: Rotate picture vertically

※ If you display the rotated image on the LCD monitor, empty spaces may appear to the left and right of the image.

Photo Style Selector

It is possible to add various effects to your images by using this function.

1. Press the play mode button and press the MENU button.
2. Click the Up/Down button from the Edit menu to select [Photo Style Selector] ( /NOR ) menu tab and press the OK button.
3. Select a desired sub menu by pressing the Left / Right button and press the OK button.

Photo Style Selector MEHU Back Move

Style mode	Icon	Description
Normal		No style effect is applied.
Soft		Soft style is applied.
Vivid		Vivid style is applied.
Forest		Forest style is applied.
Retro		Sepia style is applied.
Cool		Cool style is applied.
Calm		Calm style is applied.
Classic		Black & white effect is applied.
Negative		Negative effect is applied.
Custom RGB		Define an RGB tone to create your own photo style.

1. The changed image is saved as a new file name.

■ Custom colour

You can change the R (Red), G (Green) and B (Blue) values of the image.

• OK button : Select / setup the Custom Colour
• Up / Down button : Selects R, G, B
• Left / Right button : Change the values

Black-and-white wedding photo frame with bride and groom, framed by foliage (no text or symbols visible)

Black-and-white wedding photo frame with bride and groom, framed by foliage (no text or symbols)

Image Adjust

1. Press the play back button and press the MENU button.
2. Click the Up/Down button from the Edit menu to select [Image Adjust] ( ) menu tab and press the OK button.

■ ACB

You can automatically adjust the brightness of the dark area, caused by under exposure to the light source.

1. Select (☐) by pressing the Left/Right button and press the OK button.
2. The [Making New Image] message is displayed and the image is saved as a new file name.

ACB MENU Back Move

■ Red eye Removal

Red eye effect can be removed from the captured image.

1. Select ( Ⓤ ) by pressing the Left/Right button and press the OK button.
2. The [Making New Image] message is displayed and the image is saved as a new file name.

Red-eye Fix MENU Back Move

■ Face Retouch

You can make the skin in an image appear clear and beautiful.

1. Select ( ^+ ) by pressing the Left/Right button and press the OK button. Then a bar for selecting the face retouch will be displayed.
2. Change the face retouch by pressing the Left/Right button.
3. Press the OK button and the image will be saved as a new file name.

Face Retouch MENU Back Move

■ Brightness control

You can change the brightness of the image.

1. Select (●) by pressing the Left/Right button and press the OK button. Then a bar for selecting the brightness will be displayed.
2. Change the brightness by pressing the Left/Right button.
3. Press the OK button and the image will be saved as a new file name.

Brightness MENU Back Move

■ Contrast control

You can change the contrast of the image.

1. Select (①) by pressing the Left/Right button and press the OK button. Then a bar for selecting the contrast will be displayed.
2. Change the contrast by pressing the Left/Right button.
3. Press the OK button and the image will be saved as a new file name.

Contrast MENU Back Move

■ Saturation control

You can change the saturation of the image.

1. Select (○) by pressing the Left/Right button and press the OK button. Then a bar for selecting the saturation will be displayed.
2. Change the saturation by pressing the Left/Right button.
3. Press the OK button and the image will be saved as a new file name.

Saturation MENU Back Move

■ Noise effect

You can add noise to an image to add a more classic feel to your photo.

1. Select (☐) by pressing the Left/Right button and press the OK button.
2. The [Making New Image] message is displayed and the image is saved as a new file name.

Add Noise HIND Back Move

You can view the thumbnails and easily categorize or search a large amount of content such as pictures and videos.

1. Press the MENU button in playback mode.
2. Press the Up/Down button to select the desired menu.
3. Press the OK button and selected thumbnail screen will appear.

Single 3 9 20 HCNO Exit Back

Starting the Multi Slide Show ( )

Images can be displayed continuously at pre-set intervals.

You can view the Multi Slide Show by connecting the camera to an external monitor.

1. Press the play mode button and press the menu button.
2. Press the Up / Down button and select the [Multi Slide Show] menu tab and press the OK button.

Start the Multi Slide Show

The Multi Slide Show can start only in the [Start] menu.

1. Use the Up / Down buttons to select the [Start] menu and press the Right button.
2. Select a desired sub menu by pressing the Up / Down button.

[Play] : The Multi Slide Show is closed after one cycle.

[Repeat] : The Slide show is repeated until cancelled.

Start Images Effect Interval Music Play Repeat :1 sec :Off MENU Back OK Set

1. Press the OK button and the slideshow will be started.

2. To pause the slide shown while playing it back, press the OK button again.

3. Pressing the OK button again will cause the Multi Slide Show restart.
4. To stop playback of the Multi Slide Show, press the OK button, and then press the Left or Right button.

Selecting Images

You can select image to view

1. Use the Up / Down buttons to select the [Images] menu and press the Right button.
2. Select a desired sub menu by pressing the Up / Down button.

[All] : All images saved in the Memory are played back.

Start Images Effect Interval Music All Date Select OK MENU Back OK Set

Press the OK button to save the configuration.

[Date] : Images taken in a specified date are played back. Press the OK button to save the configuration.

[Select] : Play only the selected images. The selected image can be saved as [Select1], [Select2] and [Select3]. If you save the selected image with the [New Select] command, it will be saved as [Select1]. But when a new image is saved again using [New Select], the former image which had been saved as [Select1] will be saved as [Select2] automatically. You can change and cancel the images which were saved as [Select1], [Select2] and [Select3]. Press the Fn button to save the configuration.

1. Select [Play] or [Repeat] in the [Start] menu to start the multi slide show.

Configure Multi Slide show effects

Unique screen effects can be used for the Multi Slide Show.

1. Select the [Effect] sub menu by pressing the UP / DOWN button and press the RIGHT button.
2. Use the Up / Down button to select the type of effect.
3. Press the OK button to confirm the setting.

Start Images Effect Interval Music Off Calm Sweet Rural Vivid Lively MENU Back OK Set

Starting the Multi Slide Show ( ▶ )

Setting play interval

Set the Multi Slide Show play interval.

1. Select the [Interval] sub menu by pressing the UP / DOWN button and press the RIGHT button.
2. Use the Up / Down buttons to select the desired interval.
3. Press the OK button to save the configuration.

Start Images Effect Interval Music :All :Off ✓ 1 sec 3 sec 5 sec 10 sec REMO Back OK Set

• The loading time depends on the image size and quality.
• While the Multi Slide Show is playing, only the first frame of a MOVIE file is displayed.
• While the Multi Slide Show is playing, the voice recording file will not display.
• The interval menu functions in the [Off] menu only.

Setting Background Music

Set the Multi Slide Show music.

1. Select the [Music] sub menu by pressing the UP / DOWN button and press the RIGHT button.
2. Use the Up / Down buttons to select the desired Music.
3. Press the OK button to save the configuration.

Start Images Effect Interval Music Off Mist Muse Fall Dawn Party MENU Back OK Set

File Options ( )

1. Press the play mode button and press the menu button.
2. Press the Up / Down button and select the [File Options] menu tab and press the OK button.

Deleting images

This deletes images stored on the memory card.

1. Press the Up / Down button and select the [Delete] menu tab. And then press the Right button.
2. Select a desired sub menu by pressing the UP / DOWN button and press the OK button.

[Select] : Selection window for an image to delete is displayed.

• Up/ Down/ Left/ Right : Select an image
• OK button : Select the image for deletion. (√ mark)
• Fn Button : Press the Fn button to display the confirmation message. Select the [Yes] menu and press the OK button to delete marked images.

[All] : Displays confirmation window. Select the [Yes] menu and press the OK button to delete all unprotected images. If there aren't protected images, all the images are deleted and a [No Image File] message will

Delete Protect Voice memo DPOF Copy To Card Select All MENU Back OK Set

Screenshot of a photo editing interface showing a grid of black-and-white group photos with UI buttons at the bottom.

Delete All File(s)? Yes No OK Set

1. After deletion, the screen will be changed to the play mode screen.

- Of all the files stored in the memory card, the unprotected files in the DCIM subfolder will be deleted. Remember that this will permanently delete unprotected images. Important shots should be stored on a computer before deletion takes place. The startup image is stored in the camera's internal memory (i.e., not on the memory card) and it will not be deleted even if you delete all files on the memory card.

Protecting images

This is used to protect specific shots from being accidentally erased (Lock). It also unprotects images that have been previously protected (Unlock).

1. Press the Up / Down button and select the [Protect] menu tab. And then press the Right button.

2. Select a desired sub menu by pressing the UP / DOWN button and press the OK button. [Select ] : Selection window for an image to be protected / released is displayed.

3. Up / Down / Left / Right : Select an image

4. OK button : Protect / release the image
5. Fn button : Your changes will be saved and the menu will disappear.

Delete Protect Voice memo DPOF Copy To Card Select All MENU Back OK Set

Screenshot of a photo editing interface showing multiple group photos and playback controls

[All] : Protect / release all saved images

• If you protect an image, the protect icon will be displayed on the LCD monitor. (An unprotected image has no indicator)
• An image in LOCK mode will be protected from the delete function or [Delete] functions, but will NOT be protected from the [Format] function.

Protect All? Lock Unlock

Black-and-white photo of three people gathered around a birthday cake on a table, surrounded by plants (no visible text or symbols)

Voice memo

You can add your voice to a stored still image.

Delete Protect Voice memo DPOF Copy To Card Off On MENU Back OK Set

[Voice memo menu]

Three smiling women in casual attire, captured in a video player interface (no text or symbols on the image itself)

[Ready for recording]

100-0010 00:00:05 SHITTER Stop

[Voice is recording]

• Press the shutter button to record up to 10 seconds of voice into a stored still image.
• To stop the recording, press the shutter button.

DPOF

■ DPOF(Digital Print Order Format) allows you to embed printing information on your memory card's MISC folder. Select the pictures to be printed and how many prints to make.
■ The DPOF indicator will display on the LCD monitor when an image that has DPOF information plays back. Images can then be printed on DPOF printers, or at an increasing number of photo labs.
■ This function is not available for Movie clips and Voice recording files.
■ When the wide angle image is printed as a wide angle print, 8% of the left and right side of the image may not be printed. Check that your printer can support the wide angle image when you print the image. When you print the image at a photo lab, request that the image is printed as a wide angle image. (Some photo labs may not support the wide angle size print.)

Standard

This function allows you to embed printing quantity information on a stored image.

1. Press the Up / Down button and select the [DPOF] menu tab. And then press the Right button.

2. Press the Right button again and [Standard] sub menu will display.

3. Select a desired sub menu by pressing the Up / Down button and press the OK button.

[Select] : Selection window for an image to print is displayed.

• Up / Down / Left / Right : Select an image to print.
• Zoom button : Select the number of prints.

[All] : Configure number of prints for all pictures except movie and voice files.

- Up / Down button : Select a number of prints

[Reset] : Cancel the print setup.

Delete Project Select Image Select All Reset Size MENU Back OK Set

Screenshot of a photo editing interface showing a grid of individual photos with size and resolution settings.

01 Quantity OK Set

1. Press the OK button to confirm the setting. If an image carries DPOF instructions, the DPOF indicator (☐) will show.

Index

Images (except for movie clips and voice file) are printed as index type.

1. Press the Up / Down button and select the [DPOF] menu tab. And then press the Right button.
2. Select the [Index] menu and press the Right button again. Sub menu will display.
3. Select a desired sub menu by pressing the UP / DOWN button. If [Yes] is selected : The image will be printed in index format. If [No] is selected : Cancel the index print setting.
4. Press the OK button to confirm the setting.

Delete Protect Setting Index? Yes No Size REMO Back OK Set

■ Print size

You can specify the print size when printing images stored on the memory card. The [Size] menu is available only for DPOF 1.1 compatible printers.

1. Press the Up / Down button and select the [DPOF] menu tab. And then press the Right button.
2. Select the [Size] menu and press the Right button again. Sub menu will display.
3. Select a desired sub menu by pressing the UP / DOWN button and press the OK button.

[Select] : Selection window to change the printed size of the image is displayed.

• Up / Down / Left / Right : Select an image.
• Zoom W/T Button : Change the print size.
• Fn button : Your changes will be saved and the menu will disappear.

[All] : Change print size of all saved images.

• Up / Down button : Select a print size
• OK button : Confirm the changed setting.

[Reset] : Cancel all of the print size settings.

※ DPOF [Size] secondary menu : Cancel, 3X5, 4X6, 5X7, 8X10

- Depending on the manufacturer and print model, cancelling the printing may take a little longer for the printer to process.

Delete Select Image Select All Reset Size MENU Back OK Set

Group photo collage of people in a studio setting, no visible text or symbols

Black-and-white photo of a woman and a child at a birthday cake, with no visible text or symbols in the main scene.

Copy To Card

This enables you to copy image files, movie clips and voice recording files to the memory card.

1. Select the [Copy To Card] menu tab by pressing the Up / Down button. And then press the Right button.
2. Select a desired sub menu by pressing the UP/ DOWN button and press the OK button.

- [Yes] : All images, movie clips and voice recording files saved in the internal memory are copied to the memory card after the [Copying] message is displayed. After copying has been completed, the screen will return to play mode.

- [No] : Cancels "Copy to Card".

Delete Protect Voice memo DPOF Copy To Card :Off Yes No MENU Back OK Set

• If there is not enough space available in the memory card to copy saved images in the internal memory (About 31MB), the [Copy To Card] command will copy only some of the images and display [Memory Full] message. Then the system will return to the playback mode. Please be sure to delete any unnecessary files to free up space before inserting the memory card into the camera.
• When you move the images that are stored in the internal memory by doing [Copy To Card] to the card, the next number of file names will be created in the card to avoid duplication of the file name.

- When the [Reset] of the [File No.] setup menu is set : The copied file names start from after the last stored file name.

- When the [Series] of the [File No.] setup menu is set: The copied file names start from after the last captured file name. After completing [Copy To Card], the last stored image of the last copied folder is displayed on the LCD monitor.

PictBridge

You can use the USB cable to connect this camera to a printer that supports PictBridge (sold separately) and print the stored images directly. Movie clips and voice files cannot be printed.

■ Setting up the camera for connection to the printer

1. Connect the camera and printer with USB cable.
2. Once the camera is turned on, the camera automatically recognizes the printer and is connected to it.

※ If automatic connection fails, set the [USB] menu to [Printer]. (p.55)
※ For a printer that can enable removable disks, set the [USB] menu to [Printer].

■ Connecting the Camera to a Printer

SAMSUNG

■ Easy printing

When you connect the camera to printer in the Play back mode, you can print a picture easily.

• Pressing the Left / Right button : Selects a previous / next image.
• Pressing the OK button :
  Currently displayed image will be printed with the printer's default setting.

100-0010 DX Print MENU Menu

PictBridge : Picture Selection

You can select images you want to print.

■ Setting the Number of Copies to Print

1. Press the Menu button and the PictBridge menu will display.

2. Use the Up / Down buttons to select the [Images] menu and press the Right button.

3. Use the Up / Down buttons to select a desired sub menu and press the OK button.

- Select [One Photo] or [All Photos]. A screen where you can set the number of copies to print will appear as shown below.

Images Size Layout Type Quality One Photo All Photos :Auto :Auto :Auto MENU Back OK Set

100-0010 0 Quantity 0% Set

[When [One Photo] is selected]

100-00:10 Quantity OK Set

[When [All Photos] is selected]

• Press the Up / Down button to select the number of prints.
• When [One Photo] is selected : Use the Left / Right button to select another picture. After selecting another picture, select the number of prints for another picture.

- After setting the number of prints, press the OK button to save.

- Press the Shutter button to return to the menu without setting the number of prints.

1. Press the play mode button ( ▶ ) and images will be printed.

PictBridge : Print Setting

You can select the Paper Size, Print Format, Paper Type, Print Quality, Date Print, and File Name Print menus for printed pictures.

1. Press the Menu button and the PictBridge menu will display.
2. Use the Up / Down buttons to select the desired menu, and then press the Right button.
3. Use the Up / Down buttons to select the desired sub menu value, and then press the OK button.

Images Size Layout Type Quality Auto Postcard Card 4x6 L 2L MENU Back OK Set

Menu	Function	Sub menu
Size	Set the size of the printing paper	Auto, PostCard, Card, 4X6, L, 2L, Letter, A4, A3
Layout	Set the number of pictures to be printed on a sheet of paper	Auto, Full, 1, 2, 4, 8, 9, 16, Index
Type	Set the quality of the printing paper	Auto, Plain, Photo, FastPhoto
Quality	Set the quality of the picture to be printed	Auto, Draft, Normal, Fine
Date	Set whether to print the date	Auto, Off, On
File Name	Set whether to print the file name	Auto, Off, On

※ Some menu options are not supported on all printers.
If not supported, the menus are still displayed in the LCD, but are not selectable.

PictBridge : Reset

Initialises user-changed configurations.

1. Use the Up / Down buttons to select the [Reset] menu tab. And then press the Right button.
2. Use the Up / Down buttons to select the desired sub menu value, and then press the OK button.

Date File Name Reset Auto Auto Yes ✓ No MENU Back OK Set

If [Yes] is selected : All print and image settings will be reset.

If [No] is selected : Settings will not be reset.

※ Default print setting varies depending on the printer manufacturer. For your printer's default setting, refer to the user's guide that came with your printer.

Important notes

Be sure to observe the following precautions!

- This unit contains precision electronic components. Do not use or store this unit in the following locations.

• Areas exposed to severe changes in temperature and humidity.
• Areas exposed to dust and dirt.
• Areas exposed to direct sunlight or the inside of a vehicle in hot weather.
• Environments where there is high magnetism or excessive vibration.

• Areas with high explosives or highly flammable materials.

• Do not leave this camera in places subject to dust, chemicals (like naphthalene and mothballs), high temperature and high humidity. Keep this camera with silica gel in a hermetically sealed box when not planning to use the camera for a long period of time

• Sand can be particularly troublesome to cameras.

- Do not let sand get inside the camera when using it on beaches, coastal dunes, or other areas where there is lots of sand.

- Doing so may result in failure or may permanently render the camera unusable.

- Handling the camera

• Never drop the camera or subject it to severe shocks or vibrations.
• Protect the large size LCD monitor from an impact. When this camera is not used, keep it in the camera case.
• Avoid obstructing the lens or the flash when you capture an image.
• This camera is not waterproof.

To avoid dangerous electrical shocks, never hold or operate the camera with wet hands.

- If you use this camera in wet places, such as beach or pool, do not let water or sand get inside the camera. Doing so may result in failure or may permanently damage the unit.

Important notes

- Extremes in temperature may cause problems.

- If the camera is transferred from a cold to a warm and humid environment, condensation can form on the delicate electronic circuitry. If this occurs, turn the camera off and wait for at least 1 hour until all moisture is dispersed. Moisture built up can also occur on the memory card. If this happens, turn off the camera and remove the memory card. Wait until the moisture has dispersed.

- Caution on Using the Lens

• If the lens is subjected to direct sunlight, it could result in the discoloration and deterioration of the image sensor.
• Take care not to get fingerprints or foreign substances on the surface of the lens.

- If the digital camera is not used for a long period, an electric discharge can occur. It is a good idea to remove the battery and the memory card if you do not intend using the camera for an extended period of time.

- If the camera is exposed to an electronic interference, it will turn itself off to protect the memory card.

- Camera Maintenance

- Use a soft brush (available from photo stores) to gently clean the lens and LCD assemblies. If this does not work, lens-cleaning paper with lens cleaning fluid can be used.

Clean the camera body with a soft cloth. Do not allow this camera to come into contact with solvent materials such as benzol, insecticide, thinners etc. This may damage the body shell of the camera and also affect its performance. Rough handling can damage the LCD monitor. Take care to avoid damage and keep the camera in its protective carry case at all times when not in use.

• Do not attempt to disassemble or modify the camera.
• Under certain conditions, static electricity can cause the flash unit to fire. This is not harmful to the camera and is not a malfunction.
• When images are uploaded or downloaded, the data transfer may be affected by static electricity. In this case, disconnect and reconnect the USB cable before trying the transfer again.
• Before an important event or going on a trip, you should check the camera condition.

- Take a picture for testing the camera condition and prepare extra battery.

- Samsung cannot be held responsible for camera malfunctions.

- If the digital camera is not used for a long period, the date and time may adopt the default settings by automatic battery discharged. In this case, reset the date and time correctly before the recording.

There are several warnings that may appear on the LCD display.

[Card Error]

• Memory card error
  → Turn off the camera power and turn it on again
  → Insert the memory card again
  → Insert and format the memory card (p.51)

[Card Locked]

• The memory card is locked
→ SD/SDHC memory card : Slide the write protect switch to the top of the memory card

[Memory Full]

• The memory card or internal memory is full.
  → Insert new memory card.
  → Delete the unnecessary image files

[No Image File]

• There are no images stored on the memory
  → Take images
  → Insert a memory card that is holding some images

[File Error]

• File error
  → Delete the file.
• Memory card error
  → Contact a camera service centre.

[Low Battery]

• There is low battery capacity
  → Insert fresh batteries.

Before contacting a service centre

Please check the following

The camera doesn't switch on

• There is low battery capacity
  → Insert fresh batteries. (p.14)
• Battery is inserted incorrectly with the polarities reversed.
  → Insert the battery according to the polarity marks (+, -).

The camera power ceases while in use

•The battery is exhausted

→ Insert fresh batteries.

- The Camera is turned off automatically

→ Turn on the camera power again.

- Operation has ceased in a low temperature outside of the camera usage temperature range.

→ Make the camera and battery warm by placing them in your pocket, etc. and then immediately before shooting, place the battery in the camera and then shoot.

Camera does not take images when pressing the Shutter button

• There is insufficient memory capacity
  → Delete unnecessary image files
• The memory card has not been formatted
  → Format the memory card (p.51)

- The memory card is exhausted

→ Insert a new memory card

- The memory card is locked

→ Refer to [Card Locked] error message

- The camera's power is off

→ Turn the camera power on

- The battery is exhausted

→ Insert fresh batteries (p.14)

- Battery is inserted incorrectly with the polarities reversed.

→ Insert the battery according to the polarity marks (+, -)

The camera suddenly stops working while in use

• The camera stopped due to a malfunction
  → Remove /re-insert battery and switch the camera on

The images are unclear

• A picture was taken of the subject without setting an appropriate macro mode
  → Select an appropriate macro mode to take a clear image.

- Taking a picture beyond the flash range

→ Take a picture within the flash range

- The lens is smudged or dirty

→ Clean the lens

Before contacting a service centre

The flash does not fire

• Flash off mode has been selected
  → Dis-engage flash off mode
• The camera mode can't use the flash
  → Refer to the FLASH instruction (p.31)

Incorrect date and time is displayed

• The date and time have been set incorrectly or the camera has adopted the default settings
  →Reset the date and time correctly

The camera buttons do not operate

• Camera malfunction
  → Remove/re-insert battery and switch the camera on

A card error has occurred while the memory card is in the camera.

• Incorrect memory card format
  → Re-format the memory card

The images don't play back

• Incorrect file name (Violation of DCF format)
  → Do not change the image file name

Colour of image is different to the original scene

• White balance or effect setting is incorrect
  → Select appropriate White balance and effect

Images are too bright

• Exposure is excessive
  → Reset exposure compensation

No image on external monitor

• The external monitor has not been connected properly with the camera
  → Check the connection cables
• There are incorrect files in the memory card
  → Insert a memory card that has correct files

When using the PC's explorer, the [Removable Disk] file does not show

• Cable connection is incorrect
  → Check the connection
• The camera is off
  → Turn the camera on
• The operating system is not Windows 2000, XP, Vista / Mac OS 10.3. Alternatively the PC does not support USB
  → Install Windows 2000, XP, Vista / Mac OS 10.3 to PC that supports USB

A part of the LCD screen does not occasionally turn on or a spot appears.

• Although the LCD screen is manufactured with high precision technology, the precision pixels are not occasionally lighted or the red, white and blue spots appear.
  → This phenomenon does not affect the quality of the recorded image and it is not a malfunction.

A vertical line appears on the LCD screen when taking a picture of a bright object.

• If a subject is exposing bright lights, a gray, black, red or purple vertical line may appear.
  → This is a phenomenon called smear and it does not affect the quality of the recorded image. This is not a malfunction.

Specifications

Image Sensor	- Type : 1/2.3" CCD- Effective Pixel : Approx. 12.2 Mega-pixel- Total Pixel : Approx. 12.4 Mega-pixel
Lens	- Focal Length : SAMSUNG Lens f = 6.3 ~ 31.5mm(35mm film equivalent : 35 ~ 175mm)- F No. : F3.5(W) ~ F5.5(T)- Digital Zoom : ·Still Image mode :1.0X ~ 5.0X·Play mode : 1.0X ~ 10.2X(depends on image size)
LCD Monitor	- 2.7" color TFT LCD (230,000 dots)
Focusing	- Type : TTL auto focus (Multi AF, Center AF)- Range

	Normal	Macro	Auto Macro
Wide	80cm ~ Infinity	10cm ~ 80cm	10cm ~ Infinity
Tele		50cm ~ 80cm	50cm ~ Infinity

Shutter	- Auto : 1 ~ 1/2,000 sec.(AEB, Continuous 1/4 ~ 1/2,000 sec.), Night : 8 ~ 1/2,000 sec.
Exposure	- Control : Program AE- Metering : Multi, Spot, Center-Weighted- Compensation : ±2EV (1/3EV steps)- ISO : Auto, 80, 100, 200, 400, 800, 1600, 3200(Up to 3M Size)

Flash	- Modes : Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash off, Red Eye Fix- Range : Wide : 0.4m ~ 3.4m,Tele : 0.5m ~ 2.1m- Recharging Time : Approx. 4 sec.(5 sec. in low battery condition)
Sharpness	- Soft+, Soft, Normal, Vivid, Vivid+
White Balance	- Auto, Daylight, Cloudy, Fluorescent_H,Fluorescent_L, Tungsten, Custom
Voice Recording	- Voice Recording (max. 10 hours)- Voice Memo in Still Image (max. 10 sec.)
Date Imprinting	- Date, Date & Time, Off (user selectable)
Shooting	- Still ImageMode : Smart Auto, Auto, Program, DIS,Photo Help Guide, Scene, Beauty ShotScene : Frame Guide, Night, Portrait, Children,Landscape, Close-up, Text, Sunset,Dawn, Backlight, Firework, Beach & SnowShooting : Single, Continuous, Motion Capture, AEBSelf-timer : 10 sec., 2 sec., Double,Motion Timer※ Smart Auto : Macro, Macro Text, White,Landscape, Action, Tripod,Night, Night Portrait, Backlight,Backlight Portrait, Portrait

Specifications

- Movie Clip

• With Audio or without Audio (user selectable, recording time : max 2 hours)
  ·Size : 640x480, 320x240
  ·Frame rate : 30 fps, 15 fps
  -5X Optical Zoom and Mute in Zooming
  •Movie Editing (Embedded): Pause during recording, Still Image Capture, Time Trimming

Storage

- Media

• Internal memory : About 31MB flash memory
  ·External Memory (Optional) : MMC card (Up to 2GB guaranteed)

SD card (Up to 4GB guaranteed)

SDHC card (Up to 8GB guaranteed)

- File Format

·Still Image : JPEG (DCF), EXIF 2.21, DPOF 1.1, PictBridge 1.0

※ These figures are measured under Samsung standard conditions and may vary depending on shooting conditions and camera settings.

Effect

• Effect : Photo Style Selector, Image Adjust (Sharpness, Contrast, Saturation)
• Editing : Resize, Rotate, Photo Style Selector, Image Adjust (ACB, Red-eye Fix, Face Retouch, Brightness, Contrast, Saturation, Add Noise)

Image Play

- Type : Single image, Thumbnails, Multi slide show, Movie Clip, Smart Album

Interface

• Digital output connector : USB 2.0
• Audio : Mono
• Video output : NTSC, PAL (user selectable)
• DC power input connector : 4.2 V

Specifications

Power Source	- Rechargeable battery : SLB-10A, 3.7V (1050mAh)※ Included battery may vary depending on sales region.
Dimensions (WxHxD)	- 97 x 59 x 24.5mm(excluding protrusions)
Weight	- Approx. 139g (without batteries and card)
Operating Temperature	- 0 ~ 40°C
Operating Humidity	- 5 ~ 85%
Software	- Samsung Master, Adobe Reader

※ Specifications are subject to change without prior notice.

※ All trademarks are the property of their respective owners.

Software Notes

Please ensure that you read the instruction manual carefully before use.

-Under no circumstances should all or part of either the software or the user manual be reproduced.
-Copyrights for software are licensed only for use with a camera.
-In the unlikely event of a manufacturing fault, we will repair or exchange your camera.

We cannot, however, be held responsible in any way for damage caused by inappropriate use.

-Using a Hand-made PC or a PC and OS that has not been guaranteed by the manufacturer is not covered by the Samsung warranty.

-Before reading this manual, you should have a basic knowledge of computers and O/S (Operating Systems).

System Requirements

	For Windows	For Macintosh
USB Connection Specifications	PC with processor better than Pentium III 500MHz (Pentium III 800MHz recommended) Windows 2000 / XP / Vista Minimum 256MB RAM (Over 512MB recommended)	Power Mac G3 or later Mac OS 10.3 or later Minimum 256MB RAM (Over 512MB recommended) 110MB of available hard disk space
Software Support Specifications	250MB of available hard disk space (Over 1GB recommend) 1024x768 pixels, 16bit color display compatible monitor (24bit color display recommended) Microsoft DirectX 9.0c or later	-

※ It is not compatible with Windows XP and Vista 64-bit Edition.

※ Samsung is not responsible for any defects or damages caused by the use of unauthorized computer including an assembled PC.

About the software

After inserting the CD-ROM provided with this camera into the CD-ROM drive, the following window should automatically run.

Samsung Digital Camera • Thank you for purchasing Samsung Digital Camera. • It is generally recommended that you are all Windows program files installing this program. • If I change it, I connect to your computer through USB cable, please remove the cable and then click [Samsung Digital Camera Installer]. • You can install Samsung Master. • This QD-80M or other User Manual which is PDF file. Samsung Digital Camera Installer Samsung Digital Camera User Manual Exit

■ Samsung Master : This is the all-in-one multi media software solution.

You can download, view, edit and save your digital images and movie clips with this software. This software is only compatible with Windows.

- You should allow 5 \~ 10 seconds for running the automatic setup program according to the capability of your computer. If the frame does not appear, run the [Windows Explorer] and select [Installer.exe] in the CD-ROM Drive root directory.

Setting up the application software

To use this camera with a PC, install the application software first. After this has been done, the stored images in the camera can be moved to the PC and can be edited by an image editing program.

- You can visit the Samsung web-site through the internet.

http://www.samsungcamera.com : English http://www.samsungcamera.co.kr : Korean

1. The auto run frame will display. Click the [Samsung Digital Camera Installer] menu in the Auto run frame.

Samsung Digital Camera Installer Samsung Digital Camera User Manual [...] Will Samsung Master. I will be used to select the following: • Please click this dialog for the next session. • Please click the other session. • Please click the first session. • Please click the second session. • Please click the third session. • Please click the fourth session. • Please click the fifth session. • Please click the sixth session. • Please click the seventh session. • Please click the eight sessions. • Please click the nine sessions. • Please click the 10 sessions. • Please click the 11 sessions. • Please click the 12 sessions. • Please click the 13 sessions. • Please click the 14 sessions. • Please click the 15 sessions. • Please click the 16 sessions. • Please click the 17 sessions. • Please click the 18 sessions. • Please click the 19 sessions. • Please click the 20 sessions. • Please click the 21 sessions. • Please click the 22 sessions. • Please click the 23 sessions. • Please click the 24 sessions. • Please click the 25 sessions. • Please click the 26 sessions. • Please click the 27 sessions. • Please click the 28 sessions. • Please click the 29 sessions. • Please click the 30 sessions. • Please click the 31 sessions. • Please click the 32 sessions. • Please click the 33 sessions. • Please click the 34 sessions. • Please click the 35 sessions. • Please click the 36 sessions. • Please click the 37 sessions. • Please click the 38 sessions. • Please click the 39 sessions. • Please click the 40 sessions. • Please click the 41 sessions. • Please click the 42 sessions. • Please click the 43 sessions. • Please click the 44 sessions. • Please click the 45 sessions. • Please click the 46 sessions. • Please click the 47 sessions. • Please click the 48 sessions. • Please click the 49 sessions. • Please click the 50 sessions. • Please click the 51 sessions. • Please click the 52 sessions. • Please click the 53 sessions. • Please click the 54 sessions. • Please click the 55 sessions. • Please click the 56 sessions. • Please click the 57 sessions. • Please click the 58 sessions. • Please click the 59 sessions. • Please click the 60 sessions. • Please click the 61 sessions. • Please click the 62 sessions. • Please click the 63 sessions. • Please click the 64 sessions. • Please click the 65 sessions. • Please click the 66 sessions. • Please click the 67 sessions. • Please click the 68 sessions. • Please click the 69 sessions. • Please click the 70 sessions. • Please click the 71 sessions. • Please click the 72 sessions. • Please click the 73 sessions. • Please click the 74 sessions. • Please click the 75 sessions. • Please click the 76 sessions. • Please click the 77 sessions. • Please click the 78 sessions. • Please click the 79 sessions. • Please click the 80 sessions.

1. Install DirectX, Samsung Master by selecting a button shown on the monitor. If a recent version of DirectX has been installed on your computer, DirectX may not be installed.

Microsoft Excel 2003 (Default) Microsoft Excel 2003 (Default) Microsoft Excel 2003 (Default) Microsoft Excel 2003 (Default) Microsoft Excel 2003 (Default) Microsoft Excel 2003 (Default) Microsoft Excel 2003 (Default) Microsoft Excel 2003 (Default) Microsoft Excel 2003 (Default) Microsoft Excel 2003 (Default) Microsoft Excel 2003 (Default)

Setting up the application software

    K["Install"] --> L["Design Master - InstallDirect Wizard"]
    L --> M["Choose Destination Location"]
    M --> N["Setup of install the Samsung Master in the following folder"]
    N --> O["To install the folder, click New. To install a deleted folder, click New and click another folder"]
    O --> P["Destination Folder"]
    P --> Q["C:\Program Files\Samsung\Master"]
    Q --> R["Assign"]
    R --> S["Next"]
    S --> T["Cancel"]

    U["Design Master - InstallDirect Wizard"] --> V["Choose Destination Location"]
    V --> W["Setup of install the Samsung Master in the following folder"]
    W --> X["To install the folder, click New. To install a deleted folder, click New and click another folder"]
    X --> Y["Destination Folder"]
    Y --> Z["C:\Program Files\Samsung\Master"]
    Z --> AA["Assign"]
    AA --> AB["Next"]
    AB --> AC["Cancel"]

    AD["Design Master - InstallDirect Wizard"] --> AE["Choose Destination Location"]
    AE --> AF["Setup of install the Samsung Master in the following folder"]
    AF --> AG["To install the folder, click New. To install a deleted folder, click New and click another folder"]
    AG --> AH["Destination Folder"]
    AH --> AI["C:\Program Files\Samsung\Master"]
    AI --> AJ["Assign"]
    AJ --> AK["Next"]
    AK --> AL["Cancel"]

    AM["Design Master - InstallDirect Wizard"] --> AN["Choose Destination Location"]
    AN --> AO["Setup of install the Samsung Master in the following folder"]
    AO --> AP["To install the folder, click New. To install a deleted folder, click New and click another folder"]
    AP --> AQ["Destination Folder"]
    AQ --> AR["C:\Program Files\Samsung\Master"]
    AR --> AS["Assign"]
    AS --> AT["Next"]
    AT --> AU["Cancel"]

    AV["Design Master - InstallDirect Wizard"] --> AW["Choose Destination Location"]
    AW --> AX["Setup of install the Samsung Master in the following folder"]
    AX --> AY["To install the folder, click New. To install a deleted folder, click New and click another folder"]
    AY --> AZ["Destination Folder"]
    AZ --> BA["C:\Program Files\Samsung\Master"]
    BA --> BB["Assign"]
    BB --> BC["Next"]
    BC --> BD["Cancel"]

    BE["Design Master - InstallDirect Wizard"] --> BF["Choose Destination Location"]
    BF --> BG["Setup of install the Samsung Master in the following folder"]
    BG --> BH["To install the folder, click New. To install a deleted folder, click New and click another folder"]
    BH --> BI["Destination Folder"]
    BI --> BJ["C:\Program Files\Samsung\Master"]
    BJ --> BK["Assign"]
    BK --> BL["Next"]
    BL --> BM["Cancel"]

    BN["Design Master - InstallDirect Wizard"] --> BO["Choose Destination Location"]
    BO --> BP["Setup of install the Samsung Master in the following folder"]
    BP --> BQ["To install the folder, click New. To install a deleted folder, click New and click another folder"]
    BQ --> BR["Destination Folder"]
    BR --> BS["C:\Program Files\Samsung\Master"]
    BS --> BT["Assign"]
    BT --> BU["Next"]
    BU --> BV["Cancel"]

    BW["Design Master - InstallDirect Wizard"] --> BX["Choose Destination Location"]
    BX --> BY["Setup of install the Samsung Master in the following folder"]
    BY --> CA["To install the folder, click New. To install a deleted folder, click New and click another folder"]
    CA --> CB["Destination Folder"]
    CB --> CC["C:\Program Files\Samsung\Master"]
    CC --> CD["Assign"]
    CD --> CE["Next"]
    CE --> CF["Cancel"]

    DG["Design Master - InstallDirect Wizard"] --> DH["Choose Destination Location"]
    DH --> DI["Setup of install the Samsung Master in the following folder"]
    DI --> DJ["To install the folder, click New. To install a deleted folder, click New and click another folder"]
    DJ --> DK["Destination Folder"]
    DK --> DL["C:\Program Files\Samsung\Master"]
    DL --> DM["Assign"]
    DM --> DE["Next"]
    DE --> DF["Cancel"]

    DG --> DG

1. After restarting the computer, connect the PC to the camera with the USB cable.
2. Turn the camera power on. The [Found New Hardware Wizard] will open and the computer will recognise the camera.

File Edit View Tools Help Address: FODMA (Output) Folders My Computer My Computer My Computer (A:) My Computer (C:) My Computer (D:) My Computer (E:) My Computer (F:) My Computer (G:) My Computer (H:) My Computer (I:) My Computer (J:) My Computer (K:) My Computer (L:) My Computer (M:) My Computer (N:) My Computer (O:) My Computer (P:) My Computer (Q:) My Computer (R:) My Computer (S:) My Computer (T:) My Computer (U:) My Computer (V:) My Computer (W:) My Computer (X:) My Computer (Y:) My Computer (Z:) My Computer (A:) My Computer (B:) My Computer (C:) My Computer (D:) My Computer (E:) My Computer (F:) My Computer (G:) My Computer (H:) My Computer (I:) My Computer (J:) My Computer (K:) My Computer (L:) My Computer (M:) My Computer (N:) My Computer (O:) My Computer (P:) My Computer (Q:) My Computer (R:) My computer SAM_2300 SAM_2301 SAM_2302 SAM_2303 SAM_2304 SAM_2305 SAM_2306 SAM_2307 SAM_2308 SAM_2309 SAM_2310 SAM_2311 SAM_2312 SAM_2313 SAM_2314 SAM_2315 SAM_2316 SAM_2317 SAM_2318 SAM_2319 SAM_2320 SAM_2321 SAM_2322 SAM_2323 SAM_2324 SAM_2325 SAM_2326 SAM_2327 SAM_2328 SAM_2329 SAM_2330 SAM_2331 SAM_2332 SAM_2333 SAM_2334 SAM_2335 SAM_2336 SAM_2337 SAM_2338 SAM_2339 SAM_2340 SAM_2341 SAM_2342 SAM_2343 SAM_2344 SAM_2345 SAM_2346 SAM_2347 SAM_2348 SAM_2349 SAM_2350 SAM_2351 SAM_2352 SAM_2353 SAM_2354 SAM_2355 SAM_2356 SAM_2357 SAM_2358 SAM_2359 SAM_2360 SAM_2361 SAM_2362 SAM_2363 SAM_2364 SAM_2365 SAM_2366 SAM_2367 SAM_2368 SAM_2369 SAM_2370 SAM_2371 SAM_2372 SAM_2373 SAM_2374 SAM_2375 SAM_2376 SAM_2377 SAM_2378 SAM_2379 SAM_2380 SAM_2381 SAM_2382 SAM_2383 SAM_2384 SAM_2385 SAM_2386 SAM_2387 SAM_2388 SAM_2389 SAM_2390 SAM_2391 SAM_2392 SAM_2393 SAM_2394 SAM_2395 SAM_2396 SAM 20000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

※ If your OS is Windows XP/ Vista, an image viewer program will open.

Setting up the application software

• PDF documents of user manual are included in the Software CD-ROM supplied with this camera. Search the PDF files with Windows explorer. Before opening the PDF files, you must install the Adobe Reader included in the Software CD-ROM. Install Adobe Reader from the CD provided. If the Internet is not enabled, install Adobe Reader by using the executable file located in the CD.
• To install the Adobe Reader 6.0.1 correctly, Internet Explorer 5.01 or later has to be installed. Visit "www.microsoft.com" and upgrade the Internet Explorer.

Starting PC mode

If you connect the USB cable to a USB port on your PC and then turn on the power, the camera will automatically switch to "computer connection mode". In this mode, you can download stored images to your PC through the USB cable.

■ Camera settings for connection

1. Turn on the camera.
2. Connect the camera and computer with the supplied USB cable.
3. Once the camera is turned on, the camera automatically recognizes the computer and is connected to it.

※ If automatic connection fails, set the [USB] menu to [Computer]. (p.55)

Starting PC mode

■ Connecting the camera to a PC

Diagram showing connection between a Samsung computer and a desktop computer via cable, with an inset close-up highlighting the device's internal structure.

■ Disconnecting the camera and PC Refer to page 94 (Removing the removable disk).

■ Downloading stored images

You can download the still images stored on the camera to your PC's hard disk and print them or use a photo editing software to edit them.

1. On your computer's desktop display, select [My computer] and double click [Removable Disk → DCIM→ 100PHOTO].The image files will then be displayed.

2. Connect the camera to your PC with the USB cable.

File Edit View Insert Tools Help Actions F:\COMCAT\Projects\ Tables - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) - 1.0 (C:\\Users) SAG-231 SAG-229 SAG-228 SAG-227 SAG-226 SAG-225 SAG-224 SAG-223 SAG-222 SAG-221 SAG-220 SAG-219 SAG-218 SAG-217 SAG-216 SAG-215 SAG-214 SAG-213 SAG-212 SAG-211 SAG-210 SAG-209 SAG-208 SAG-207 SAG-206 SAG-205 SAG-204 SAG-203 SAG-202 SAG-201 SAG-200 SAG-199 SAG-198 SAG-197 SAG-196 SAG-195 SAG-194 SAG-193 SAG-192 SAG-191 SAG-190 SAG-189 SAG-188 SAG-187 SAG-186 SAG-185 SAG-184 SAG-183 SAG-182 SAG-181 SAG-180 SAG-179 SAG-178 SAG-177 SAG-176 SAG-175 SAG-174 SAG-173 SAG-172 SAG-171 SAG-170 SAG-169 SAG-168 SAG-167 SAG-166 SAG-165 SAG-164 SAG-163 SAG-162 SAG-161 SAG-160 SAG-159 SAG-158 SAG-157 SAG-156 SAG-155 SAG-154 SAG-153 SAG-152 SAG-151 SAG-150 SAG-149 SAG-148 SAG-147 SAG-146 SAG-145 SAG-144 SAG-143 SAG-142 SAG-141 SAG-140 SAG-139 SAG-138 SAG-137 SAG-136 SAG-135 SAG-134 SAG-133 SAG-132 SAG-131 SAG-130 SAG-129 SAG-128 SAG-127 SAG-126 SAG-125 SAG-124 SAG-123 SAG-122 SAG-121 SAG-120

1. Select an image and press the right mouse button.

File Edit View Tools Help Address: C:\F-DOV\Hominy Format: My Computer SVM_2397 SAM_2398 SAM_2399 SAM_2390 SAM_2391 CAM_2397 CAM_2398 CAM_2399 CAM_2390 CAM_2391 CAM_2397 CAM_2398 CAM_2399 CAM_2390 CAM_2391 CAM_2397 CAM_2398 CAM_2399 CAM_2390 CAM_2391 CAM_2397 CAM_2398 CAM_2399 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 C:\Program Files\NAM_2397\NAM_2398\NAM_2399\NAM_2390\NAM_2391 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 FCA 1.0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_1654 RAM 1.00000000000000000000000000000000000000000000000000000000000000000000 CAM_1654 CAM_1654 CAM_1654 CAM_1654 CAM_2397 CAM_2398 CAM_2399 CAM_2399 CAM_2399 CAM_2399 CAM_2399 CAM_2399 CAM_2399 CAM_2399 CAM_2399 CAM_2399 CAM_2399 CAM_2399 CAM_2399 CAM_2399 CAM_2399 FCA 1.88888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888

1. A pop-up menu will open. Click the [Cut] or [Copy] menu.

2. [Cut] : cuts a selected file.

3. [Copy] : copies files.

File Edit View Tools Help Address: 2.0 GB/10876 Futures Open Send To: SVM Send To: SVM SVM Copy Open Send To: SVM SVM Copy Open Send To: SVM SVM Copy Open Send To: SVM SVM Copy Open Send To: SVM SVM Copy Open Send To: SVM SVM Copy Open Send To: SVM SVM Copy Open Send To: SVM SVM Copy Open Send To: SVM SMM Copy

1. Click a folder where you want to paste the file.
2. Press the right mouse button and a pop-up menu will open. Click [Paste].
3. Press the right mouse button and a pop-up menu will open. Click [Paste].

File Edit View Tools Help Refresh Paste Paste Shortcut New Paste Shortcut New Properties Import the items you have copied or used to select your options.

1. An image file is transferred from the camera to your PC.

File Edit View Tools Help Add As Remove As Edit As Delete As Edit As Properties View Properties View Properties View Properties View Properties View Properties View Properties View Properties View Properties View Properties View Properties View Properties View Properties View Properties View Properties View Properties View Properties View Properties View Properties View Properties View Properties View Properties View Properties View Properties View Properties View Properties Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: Show: 1.2544 - My Computer

- By using [Samsung Master], you can see the stored images in the memory directly on the PC monitor and you can copy or move the image files.

• We recommend that you should copy the images to the PC to view them. Opening images directly from the removable disk may be subject to unexpected disconnection.
• When you upload a file that is not taken by this camera to the Removable Disk, the [File Error] message will be displayed on the LCD monitor in the PLAY mode, and nothing is displayed in THUMBNAIL mode.

Removing the removable disk

■ Windows 2000/XP/Vista

(The illustrations may differ from those shown depending on the Windows O/S.)

1. Check whether the camera and PC are transferring a file. If the camera status lamp blinks, please wait until the lamp has finished blinking and is constantly on.
2. Double-click the [Unplug or Eject Hardware] icon on the task bar.
3. The [Unplug or Eject Hardware] window will open. Select the [USB Mass Storage Device] and click the [Stop] button.
4. The [Stop a Hardware device] window will open. Select the [USB Mass Storage Device] and click the [OK] button.

[Double-click!]

Display or Exact Hardware Select the device you want to open in select, and then click Stop. When Windows switches you that is able to do so opening the device from your computer. Hardware devices: USB Mass Storage Device USB Mass Storage Device at Samsung Digital Camera Properties Shop Display device components Show Display/Text join on the keyboard Close

Stop a Hardware device Confirm devices to be stopped. Choose OK to continue. Windows will attempt to stop the following devices. Alter the devices are stopped they may be removed safely. USB Mass Storage Device Genetic volume (F:) Samsung DSC USB Device OK Cancel

1. A [Safe to Remove Hardware] window will open. Click the [OK] button.
2. A [Unplug or Eject Hardware] window will open. Click the [Close] button and the removable disk will be removed safely.
3. Unplug the USB cable.

Unipling or EPTC Hardware Select the device you want to unipling or elect, and then click Stop. When Windows will continue you that it is able to do so unipling the device from your computer. Hardware Devices: Options Use Display device components Show Unipling/ExtOpt on the website Close

Samsung Master

You can download, view, edit and save your images and movies with this software. This software is only compatible with Windows. To start the program, click [Start → Programs → Samsung → Samsung Master].

■ Downloading images

1. Connect the camera to your PC.

2. A window for downloading images will be displayed after connecting the camera to your PC.

3. To download the captured images, select the [Select All] button.

4. Select desired folder in the window and click the [Select All] button. You can save captured images and selected folder.

5. If you click the [Cancel] button, downloading will be cancelled.

6. Click [Next >] button.

Downloaded search will guide you to download camera images to PC Pip Pian (http://pip.pian.org) Download Help to download this image. Select Info to download Add Search Add Image Add Text Add Image Add Image Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text Add Text

Downloaded search will play you to download camera image to PC. Check Email your app to download Select the downloads [ ] Image [ ] Video [ ] Play (H) [ ] Print (P) [ ] Print (S) [ ] Print (T) [ ] Print (U) [ ] Print (V) [ ] Print (W) [ ] Print (X) [ ] Print (Y) [ ] Print (Z) [ ] Print (A) [ ] Print (B) [ ] Print (C) [ ] Print (D) [ ] Print (E) [ ] Print (F) [ ] Print (G) [ ] Print (H) [ ] Print (I) [ ] Print (J) [ ] Print (K) [ ] Print (L) [ ] Print (M) [ ] Print (N) [ ] Print (O) [ ] Print (P) [ ] Print (Q) [ ] Print (R) [ ] Print (S) [ ] Print (T) [ ] Print (U) [ ] Print (V) [ ] Print (W) [ ] Print (X) [ ] Print (Y) [ ] Print (Z) [ ] Print (A) [ ] Print (B) [ ] Print (C) [ ] Print (D) [ ] Print (E) [ ] Print (F) [ ] Print (G) [ ] Print (H) [ ]Print (I) [ ] Print (J) [ ] Print (K) [ ] Print (L) [ ] Print (M) [ ] Print (N) [ ] Print (O) [ ] Print (P) [ ] Print (Q) [ ] Print (R) [ ] Print (S) [ ] Print (T) [ ] Print (U) [ ] Print (V) [ ] Print (W) [ ] Print (X) [ ] Print (Y) ( ) [ ] Cancel Cancel

1. Select a destination and make a folder to save downloaded images and folders.

2. Folder names can be made in order of date and images will be downloaded.

3. Folder name will be made as you want and images will be downloaded.

4. After selecting a folder that was made before, images will be downloaded.

5. Click [Next >] button.

6. A window will open as shown alongside.

The destination of the selected folder will be displayed on the upper side of the window.

Click the [Start] button to download the images.

1. Downloaded images will be displayed.

Downloaded local file will guide you to download current images in PC File and format are installed Data to the following: - Download: Local File (F11-104.02) - Select local files (F11-104.02) - Select printing files (F11-104.02) - Select printing files (F11-104.02) - Copy Documents (F11-104.02) - Copy Documents (F11-104.02) - Copy Documents (F11-104.02) - Copy Documents (F11-104.02) - Copy Documents (F11-104.02) - Copy Documents (F11-104.02) - Copy Documents (F16-104.02) - Copy Documents (F16-104.02) - Copy Documents (F16-104.02) - Copy Documents (F16-104.02) - Copy Documents (F16-104.02) - Copy Documents (F16-104.02) - Copy Documents (F16-103.97) - Copy Documents (F16-103.97) - Copy Documents (F16-103.97) - Copy Documents (F16-103.97) - Copy Documents (F16-103.97) - Copy Documents (F16-103.97) - Copy Documents (F16-103.97) -Copy Documents (F16-103.97) - Copy Documents (F16-103.97) - Copy Documents (F16-103.97) - Copy Documents (F16-103.97) - Copy Documents (F16-103.97) - Copy Documents (F16-103.97) - Copy Documents (F25-103.97) - Copy Documents (F25-103.97) - Copy Documents (F25-103.97) - Copy Documents (F25-103.97) - Copy Documents (F25-103.97) - Copy Documents (F25-103.97) - Copy Documents (F25-102.97) - Copy Documents (F25-102.97) - Copy Documents (F25-102.97) - Copy Documents (F25-102.97) - Copy Documents (F25-102.97) - Copy Documents (F25-102.97) - Copy Documents (F25-102.97)

Downloaded audio will help you to download current images to PC. You please read to download: Press Soft Web or Image Categories of image (not on name or web): Downloaded: C:\Program Files\2012\Adobe OK Cancel

Screenshot of a video editing software interface showing multiple video thumbnails with Chinese labels and file names.

■ Image viewer : You can view the stored images.

① ② ③ ④ File Views, Views F1 File Documents: 2016-03-24 5.1 F:2 5.1 F:2 5.1 F:2 5.1 F:2 5.1 F:2 5.1 F:2 5.1 F:2 5.1 F:2 5.1 F:2 5.1 F:2 5.1 F:2 5.1 F:2 5.1 F:2 5.1 F:2 5.1 F:2 SALC_000.JPG SALC_000.JPG SALC_000.JPG SALC_000.JPG SALC_000.JPG SALC_000.JPG SALC_000.JPG SALC_000.JPG SALC_000.JPG SALC_000.JPG SALC_000.JPG SALC_000.JPG

- Image viewer functions are listed below.

① Menu bar : You can select menus. File, Edit, View, Tools, Change functions, Auto download, help, etc.
② Image selection window : You can select the desired images in this window.
③ Media type selection menu : You can select image viewer, image edit and movie edit functions in this menu.
④ Preview window : You can preview an image or a movie clip and check the multi media information.
⑤ Zoom bar : You can change preview size.
⑥ Folder display window : You can see the folder location of the selected image.
⑦ Image display window : Images of the selected folder are displayed.

※ Refer to the [Help] menu in Samsung Master for further information.

■ Image edit : You can edit the still image.

① ② ③ ④

- Image edit functions are listed below.

① Edit menu : You can select the following menus.

[Tools] : You can resize or crop the selected image. See the [Help] menu.

[Adjust] : You can modify image quality. See the [Help] menu.

[Retouch]: You can change image or insert effects on the image. See the [Help] menu.

② Drawing tools : Tools for editing an image.
③ Image display window : A selected image displays in this window.
④ Preview window : You can preview the changed image.

※ A still image edited with Samsung Master can't be played back on the camera.

※ Refer to the [Help] menu in Samsung Master for further information.

■ Movie edit : You can get the still image, movie clip, narration, music files together in a movie clip.

File Edit Activity Manager - [Movie Preview 1] File Edit View Help Add View Help Add Views Add Image Add Text Remove Delete Add Subtract Add Subtract Add Subtract Add Subtract Add Subtract Add Subtract Add Subtract Add Subtract Add Subtract Add Subtract Add Subtract Add Subtract Add Subtract Add Subtract Add Subtract Add Subtract Add Subtract Add Subtract Add Subtract Add Subtract Add Subtract Add Subtract Add Subtract Add Subtract Add Subtract Add Subact Add Subact Add Subact Add Subact Add Subact Add Subact Add Subact Add Subact Add Subact Add Subact Add Subact Add Subact Add Subact Add Subact Add Subact Add Subact Add Subact Add Subact Add Subact Add Subact Add Subact Add Subact Add Subact Add Subact Add Subact Add Subect Add Subect Add Subect Add Subect Add Subect Add Subect Add Subect Add Subect Add Subect Add Subect Add Subect Add Subect Add Subect Add Subect Add Subect Add Subect Add Subect Add Subect Add Subect Add Subect Add Subect Add Subect Add Subect Add Subect Add Subect Add Subucts Add Subucts Add Subucts Add Subucts Add Subucts Add Subucts Add Subucts Add Subucts Add Subucts Add Subucts Add Subucts Add Subucts Add Subucts Add Subucts Add Subucts Add Subucts Add Subucts Add Subucts Add Subucts Add Subucts Add Subuct sps f1

- Movie clip edit functions are listed below.

① Edit menu : You can select the following menus.
[Add Media] : You can add other media elements to a movie.
[Edit Clip] : You can change the brightness, contrast, colour and saturation.
[Effects] : You can insert an effect.
[Set Text] : You can insert texts.
[Narrate] : You can insert a narration.
[Produce] : You can save the edited multi media as a new file name. You can select AVI, Windows media (wmv) and Windows media (asf) file types.

② Frame display window : You can insert multi media in this window.

※ Some movie clips that were compressed with a codec that is not compatible with the Samsung Master can't play back in the Samsung Master.
※ Refer to the [Help] menu in Samsung Master for further information.

Setting up the USB Driver for MAC

1. A USB Driver for MAC is not included with the software CD as MAC OS supports the camera driver.
2. Check the MAC OS version during start-up. This camera is compatible with MAC OS 10.3.
3. Connect the camera to the Macintosh and turn the camera power on.
4. A new icon will be displayed on the desktop after connecting the camera to the MAC.

Using the USB Driver for MAC

1. Double click a new icon on the desktop and the folder in the memory will be displayed.
2. Select an image file and copy or move it to MAC.

- First complete uploading from computer to camera and then remove the removable disk with the Extract command.

FAQ

Please check the following if the USB connection malfunctions.

Case 1 USB cable is not connected or it is not the supplied USB cable.

→ Connect the supplied USB cable.

Case 2 The camera is not recognised by your PC.

Sometimes, the camera may appear under [Unknown Devices] in Device Manager.

→ Turn off the camera, remove the USB cable, plug in the USB cable again, and then turn on the camera.

Case 3 There is an unexpected error during file transfer.

→ Turn the camera power off and on again. Transfer the file again.

Case 4 When using the USB hub.

→ There may be a problem in connecting the camera to the PC through the USB hub if the PC and the hub are not compatible. Wherever possible, connect the camera to the PC directly.

Case 5 Are other USB cables connected to the PC?

→ The camera may malfunction when it is connected to the PC at the same time as another USB cable. In this case, disconnect the other USB cable, and connect only one USB cable to the camera.

Case 6

When I open the Device Manager (by clicking Start → (Settings) → Control Panel → (Performance and Maintenance) → System → (Hardware) → Device Manager), there are Unknown Devices or Other Devices entries with a yellow question mark(?) beside them or devices with an exclamation mark(!) beside them.

→ Right-click on the entry with the question (?) or exclamation (!) mark and select "Remove". Restart the PC and connect the camera again.

Case 7

In some security programs (Norton Anti Virus, V3, etc.), the computer may not recognise the camera as a removable disk.

→ Stop the security programs and connect the camera to the computer. Refer to the security program instructions about how to temporarily disable the program.

Case 8

The camera is connected to the USB port located on the front of the computer.

→ When the camera is connected to the USB port located on the front of the computer, the computer may not recognise the camera. Connect the camera to the USB port located on the back of the computer.

FAQ

■ When the DirectX 9.0c or later is not installed

→ Install the DirectX 9.0c or later

1) Insert the CD provided with the camera
2) Run the windows explorer and select the [CD-ROM drive:\ DirectX] folder and click the DXSETUP.exe file.
The DirectX will be installed. Visit the following site for downloading the DirectX.http://www.microsoft.com/directx

■ If a PC connected with the camera stops responding while Windows is starting.

→ In this case, disconnect the PC and the camera and Windows will start. If the problem happens continuously, set the Legacy USB Support to disable and re-start the PC. The Legacy USB Support is in the BIOS setup menu. (The BIOS setup menu differs from the PC manufacturers and some BIOS menus don't have Legacy USB Support) If you can't change the menu by yourself, contact to the PC manufacturer or BIOS manufacturer.

If the movie clip can't be deleted, or the removable disk can't be extracted or an error message displays during the file transfer.

→ If you install only the Samsung Master, the problems mentioned above occasionally happen.

• Close the Samsung Master program by clicking the Samsung Master icon on the Taskbar.
• Install all the application programs included in the software CD.

Correct disposal of batteries in this product

Correct disposal of batteries in this product (Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

The rechargeable battery incorporated in this product is not user replaceable. For information on its replacement, please contact your service provider.

Correct Disposal of This Product

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household waste at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of waste and recycle it responsibly to promote the sustainable re-use of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial waste for disposal.

This Class [B] digital apparatus complies with Canadian ICES-003.

Eco RoHS compliant

Samsung Eco-mark

It is Samsung's own symbol mark is used to effectively communicate Samsung's environmental friendly product activities to the consumers. The mark represents Samsung's continuous effort on development of environmental conscious products.

SAMSUNG
