Product Type	Digital Photo Frame
Brand	Samsung
Model	SPF-83H
Screen Size	8 inches (20 cm) TFT
Resolution	800 x 600 pixels
Brightness	200 cd/m²
Contrast Ratio	500:1
Internal Memory	128 MB (FAT32)
Supported Image Formats	JPEG (Baseline, RGB) - max resolution 8000x8000
Compatible Memory Cards	CF, SD, MMC, MS, xD
USB Ports	1 upstream (Device 2.0) + 1 downstream (Host 1.1)
Power Supply	External DC power adapter 12V, 2A, 24W
Power Consumption	Normal: <12 W, Economy: <5 W, Off: <1 W
Dimensions (WxHxD)	230.5 x 182.4 x 120 mm
Weight	650 g
Tiltable Stand	360° rotation, horizontal and vertical installation
Main Functions	Slideshow with effects, clock, auto rotation, zoom x1/x2/x4, thumbnail display
Mini-Monitor (second screen)	Works via USB under Windows XP SP2 (Frame Manager software required)
Compatible Operating Systems	Windows 2000 (SP2), Windows XP, Mac OS X (10.x), Linux (2.6.x)
Maintenance and Cleaning	Unplug before cleaning. Use a soft dry cloth. Do not use chemical products (benzene, alcohol, thinner...).
Safety	Do not open or repair yourself. Avoid moisture. Unplug during storms. Do not insert metal objects into ports.
Spare Parts and Repairability	Power adapter (BN44-00133A) and USB cable (GK39-00013B) included. For repairs, contact an authorized Samsung service center.
General Information	Warranty: see manual. Firmware update available at www.samsung.com.

Frequently Asked Questions - SPF-83H SAMSUNG

How to turn on the photo frame?

Plug in the power adapter, then press the Power button (symbol ⏻) located on the right side of the frame.

What types of memory cards can I use?

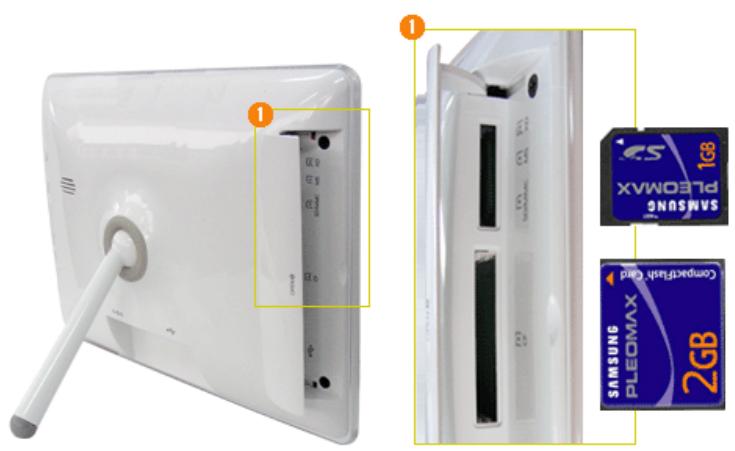

The frame accepts CF, SD, MMC, MS and xD cards formatted in FAT32. Insert them into the rear slot following the indicated direction.

Why doesn't the screen turn on?

Check the connection between the power adapter and the frame, as well as the wall outlet. Make sure the Power button has been pressed.

How to set the time and date?

From the menu, select Clock. Choose 12h or 24h format, then set the day, month, year, hour and minutes. Note that the time resets every time it is unplugged.

How to update the firmware?

Download the update file from www.samsung.com onto a USB drive or memory card (at the root). Plug it into the frame, go to Settings > Firmware Update and confirm. Do not unplug during the update.

What to do if the image is too dark or too bright?

Go to Settings > Brightness and adjust the brightness from 0 to 100 using the directional keys.

Can I use the frame as a second computer screen?

Yes, that is the Mini-Monitor function. Install Frame Manager software on a PC with Windows XP SP2, then connect the frame via the provided USB cable (upstream port). Follow the manual instructions.

What photo formats are supported?

The frame displays JPEG files in Baseline and RGB format. Progressive JPEG and YUV 422 are not supported. The maximum resolution is 8000 x 8000 pixels.

How to reset the frame to factory settings?

In the Settings menu, select Reset Settings then choose Yes. All settings will return to default values.

Why does the time reset to zero every time it is turned on?

The photo frame does not have an internal battery to keep time. Every time you unplug it, the clock resets. You must set it again after each power on.

USER MANUAL SPF-83H SAMSUNG

Close-up photo of a bee pollinating a pink flower, with no visible text or symbols on the main subject.

Frame manager

Frame Manager is a program needed to use Mini-Monitor. For information on using this, see the Applications section.

Click Frame Manager icon to run the install file.

You can find the installed Frame Manager in

C:/Program Files/Samsung/Frame Manager.

To run Frame Manager, click Start and point to Programs, and then click Samsung >Frame Manager >

Launch Frame Manager.

Safety Instructions

Safety Symbols

Power

Installation

Using and Cleaning

Overview

Features

Components

Front

Back

Side

Connecting

Power

USB

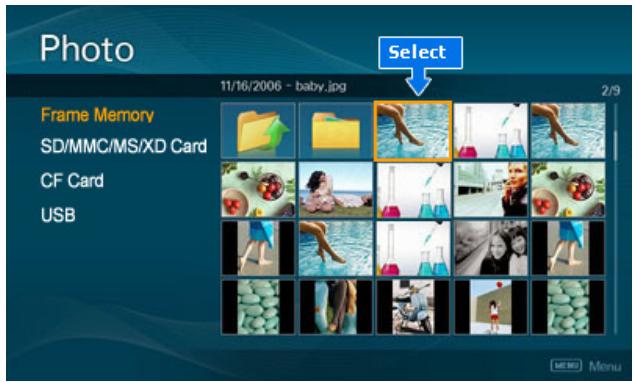

Memory Card

Using

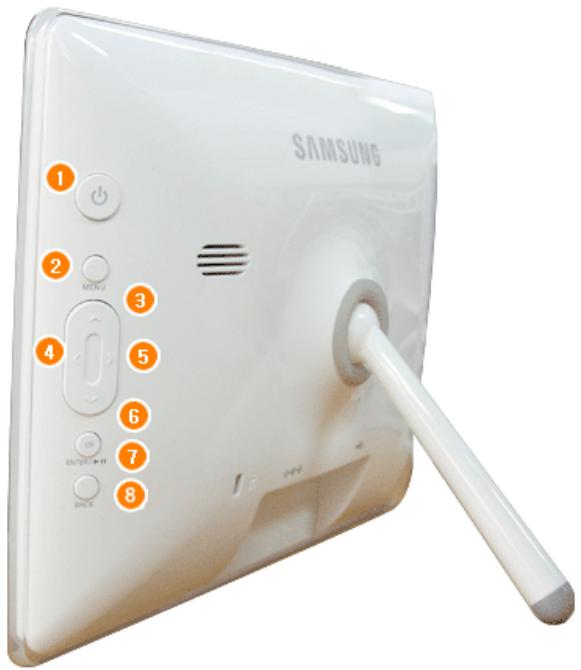

Buttons

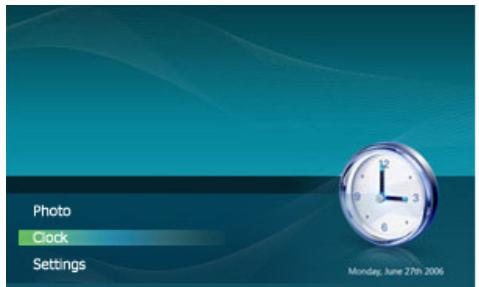

Clock

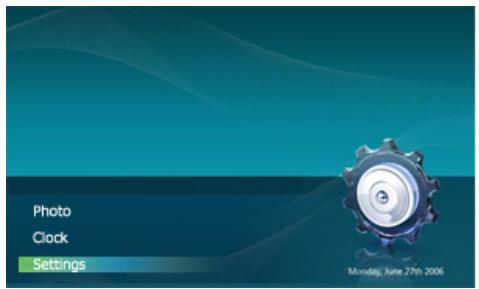

Settings

Applications

Mini-Monitor

Specifications

Specifications

Supported Files

Troubleshooting

Troubleshooting

Terminology

Service Centers

Acrobat

Reader

PDF

manual

Regulatory

Frame

Manager

PDF

manual

Using, copying or reproducing the whole or part of this manual without written permission from Samsung Electronic is prohibited.

The content of this manual is subject to change without prior notice.

©2007 All rights reserved. Samsung Electronics.

Digital Photo Frame

SPF-83H

Close-up of two bees on a pink flower, no text or symbols visible

Digital Photo Frame ○○○○○○○○○

SPF-83H

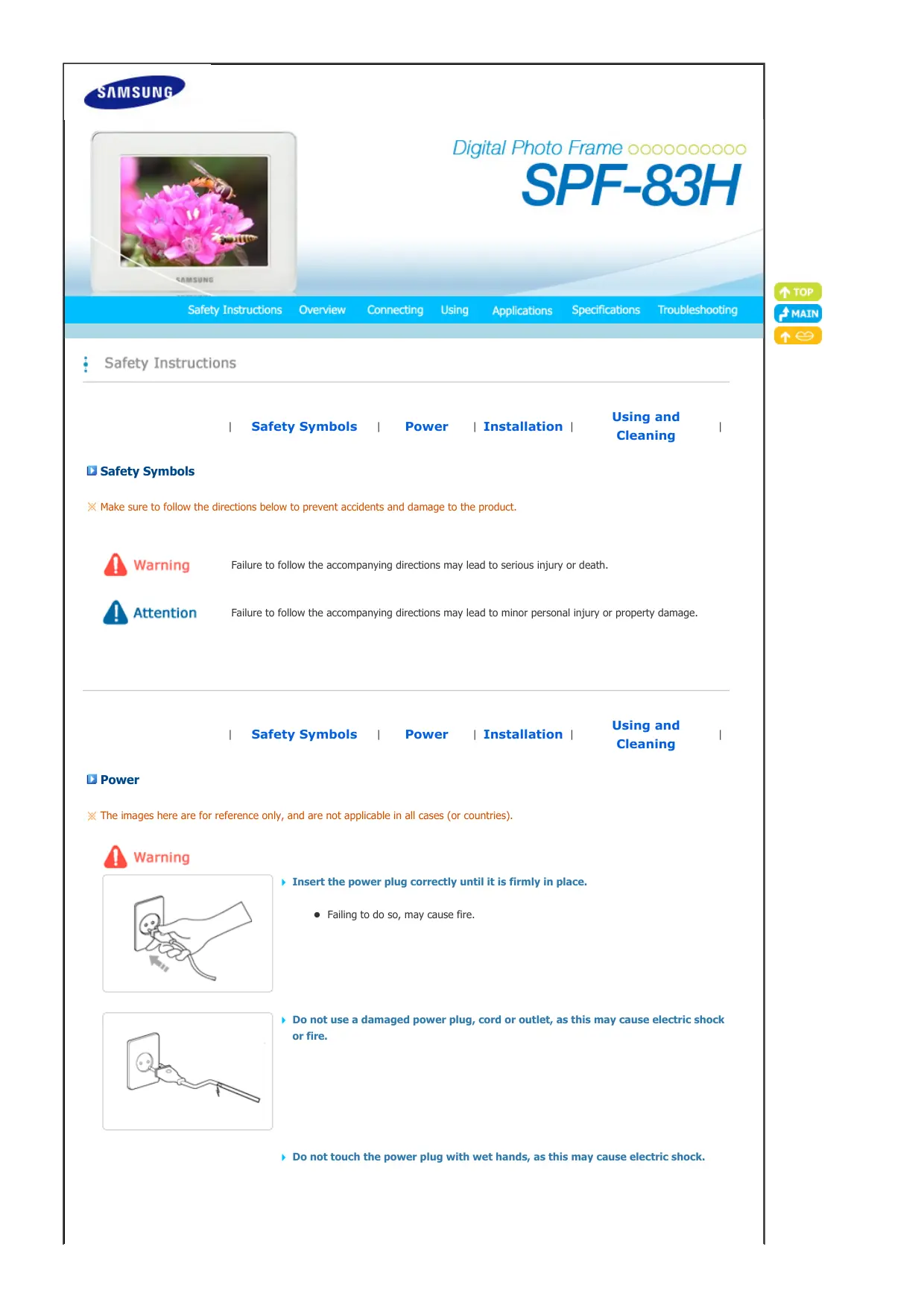

Safety Instructions Overview Connecting Using Applications Specifications Troubleshooting

Safety Instructions

| Safety Symbols | Power | Installation | Using and Cleaning

Safety Symbols

※ Make sure to follow the directions below to prevent accidents and damage to the product.

Warning

Failure to follow the accompanying directions may lead to serious injury or death.

Attention

Failure to follow the accompanying directions may lead to minor personal injury or property damage.

| Safety Symbols | Power | Installation | Using and Cleaning

Power

※ The images here are for reference only, and are not applicable in all cases (or countries).

Warning

Illustration of a hand holding a small electronic component with an arrow indicating direction (no text or symbols)

Insert the power plug correctly until it is firmly in place.

- Failing to do so, may cause fire.

Simple line drawing of a plug inserted into a wall socket (no text or symbols)

Do not use a damaged power plug, cord or outlet, as this may cause electric shock or fire.

Do not touch the power plug with wet hands, as this may cause electric shock.

TOP

MAIN

↑

Line drawing of a hand using a power tool to clean or store items (no text or symbols)

Pure electrical circuit lines without any symbols

Do not connect more than one appliance to a single outlet, as an overheated outlet may cause fire.

Cartoon illustration of a computer monitor with a sad face and power plug, emitting exhaust smoke (no text or symbols)

Do not use force to pull the power cord. Don't place anything heavy on the power cord, as this may cause electric shock or fire.

Illustration of a smiling computer monitor connected to a cable with a hand pointing at it (no text or symbols present)

Make sure to turn the power off and disconnect the power plug from the outlet before moving the product. Make sure to disconnect the connection cables from other devices as well.

- Moving the product without disconnecting the power cord may damage it while moving, and may cause electric shock or fire.

Attention

Line drawing of a hand holding a small plug or socket (no text or symbols)

Hold and pull out the plug by its body when disconnecting it from the outlet, as pulling the plug out by the cord may cause it to be damaged.

- Failing to do so, may cause fire, or the product may not turn on normally.

Illustration of a hand using a power tool to clean a digital tablet with a smiling face (no text or symbols)

Ensure that the power plug is disconnected before cleaning the product.

- Failing to do so, may cause electric shock or fire.

Illustration of a digital tablet with a smiling face and a battery connected to a glass (no text or symbols)

Do not let water come into contact with or enter the power adapter, as this may cause electric shock or fire.

• Do not use the product outdoors in snowy or rainy weather, or near any water.
• When cleaning the floor with water, avoid any water contact with the power adapter.

Illustration of a steaming heating unit with a cooling screen and a mounted device (no text or symbols)

Do not place the power adapter near a heater, as this may cause fire.

Installation

Warning

Simple line drawing of a box with a tablet and a door, no text or symbols present.

When installing the product on a cabinet or shelf, do not let the front end of the product project beyond its front edge.

- Failing to do so, may cause the product to fall, resulting in a product malfunction or personal injury.

Line drawing of a heating element with steam rising, connected to a plug (no text or symbols)

Do not place the power cord near a heater, as the power cord may melt, causing electric shock or fire.

Illustration of a computer with a speech bubble and a cartoon tablet showing a smiling face (no text or symbols present)

Do not install the product in a car or a location exposed to oil, smoke, moisture, water, or rainwater.

- Any contact of these materials with the product may cause electric shock or fire.

Simple line drawing of a house with a laptop and lightning bolts above it (no text or symbols)

Disconnect the power plug when there is thunder or lightning.

- Failing to do so, may cause electric shock or fire.

Attention

Illustration of a cartoon tablet with a sad face on its screen, surrounded by stars (no text or symbols)

Place the product down gently when installing it.

- Failing to do so may cause product damage or personal injury.

Cartoon illustration of a person holding a tablet with a smiling face (no text or symbols)

Avoid dropping the product when moving, as this may cause product damage or personal injury.

Illustration of a baby reaching toward a smartphone on a cabinet (no text or symbols)

Do not install the product in a location easily reached by children.

- As the product may fall and cause personal injury.

Using and Cleaning

Warning

Illustration of a tablet with a cartoon fish and five other tools including fork, plate, eraser, and pliers (no text or symbols)

Do not insert any metal objects such as forks, wire, or gimlets, or flammable items such as paper or matches into the ports at the back of the product, as this may cause electric shock or fire.

- If water or any foreign substance enters the product, make sure to turn the product off disconnect the power plug from the outlet, and contact a service center.

Cartoon illustration of a hand using a screwdriver to touch a tablet screen with a sad face (no text or symbols)

▶ Never disassemble, repair, or modify the product yourself.

- If you need to repair your product, contact a service center. An attempt at repairing this product may cause electric shock or fire.

Attention

Illustration of a person wearing a cap with 'AB' and a sad face on a computer monitor, no text or symbols present.

If you hear a strange sound, smell anything burning, or see smoke, disconnect the power plug immediately and contact a service center.

- Failing to disconnect the power plug may cause electric shock or fire.

Line drawing of a hand holding a cloth with a cord (no text or symbols)

Always remove dust and water from the pins and connections of the power plug.

- Failing to do so may cause electric shock or fire.

Illustration of a smiling tablet with a smiley face and a small phone connected to its screen (no text or symbols)

When cleaning the product, first disconnect the power plug and clean it with a soft, dry cloth.

- Do not use any chemicals such as benzene, alcohol, thinners, mosquito repellant, aromatic, lubricant, detergent or wax.

Illustration of a smiling tablet connected to a power cord (no text or symbols)

When not using the product for a long time, make sure to disconnect the power plug.

● Heavy accumulated dust may cause electric shock or fire.

AS SAMSUNG

If the product needs to be installed in a location that doesn't satisfy general conditions, make sure to contact one of our service engineers about the installation as the product may encounter serious quality problems due to its environment.

- This refers to locations exposed to conditions such as heavy fine dust, chemicals, high or low temperature, moisture, or when the product needs to be used continually without a break over a long time.

If the product has been dropped or the product casing is damaged, turn it off and

Illustration of a tablet with a smiling face and a glowing icon emitting a light (no text or symbols)

disconnect the power plug.

- Using the product without verifying that it has not been damaged may cause electric shock or fire. Please contact a service center.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment) - Europe only

Symbol of a trash bin crossed with diagonal lines and a black rectangular block below (no text or labels)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household waste at the end of its working life. To prevent possible harm to the environment or damage to health from uncontrolled waste disposal, please separate this from other types of waste and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Using, copying or reproducing the whole or part of this manual without written permission from Samsung Electronics is prohibited. The content of this manual is subject to change without prior notice. ©2007 All rights reserved. Samsung Electronics.

Digital Photo Frame

SPF-83H

Close-up of two bees on a pink flower, no text or symbols visible

Overview

Features

Components

Front

Back

Side

Digital Photo Frame 000000000

SPF-83H

Safety Instructions

Overview

Connecting

Using

Applications

Specifications

Troubleshooting

Overview

| Features

Components

Front

Back

Side

Features

01 Expand the memory capacity with a memory card. Enjoy stored images immediately.

By connecting a CF or SD/MMC/MS/xD memory card of your digital camera to your Digital Photo Frame, you can enjoy the images on your Digital Photo Frame quickly and easily. This also provides a way to expand the memory capacity of your Digital Photo Frame.

02 Stylish design

With its sleek and clean, high class design, your Digital Photo Frame doubles as an ornament for your desk or table.
A 360 degree rotating stand allows both horizontal and vertical installations.

| Features

Components

Front

Back

Side

Please check that all components are contained in the delivered package.

If anything is omitted, contact the local distributor where the product was purchased. For optional items, contact a service center.

Never use a power adapter other than the adapter provided with the product.

Components

Front view of a Samsung display panel with no visible text or symbols on the screen face

Digital Photo Frame

Manual

Quick Start

Warranty (Not available in all locations)

User Manual

Cables

Power cord U.S.A. : 3903-000192 (Part No. are not applicable in all countries.)

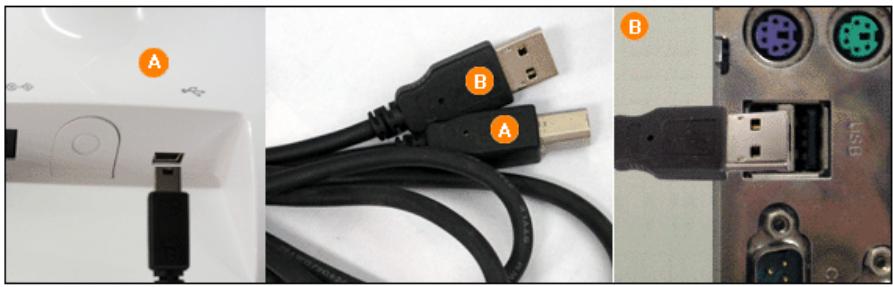

USB cable (A-B type) (GK39-00013B)

Black industrial electrical adapter with attached cable and power outlet (no visible text or symbols)

Power Adapter (BN44-00133A)

| Features | Components | Front | Back | Side |

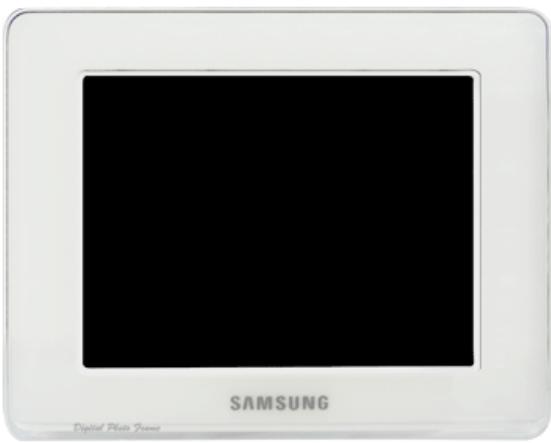

Front

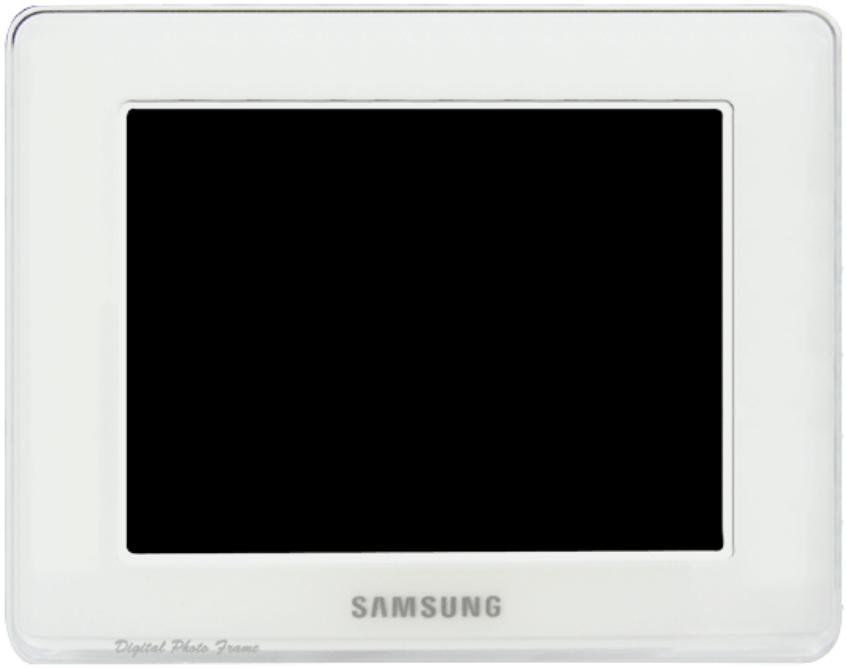

SAMSUNG Digital Photo Frame

Completely black image with no visible content, text, or symbols.

Features | Components | Front | Back | Side |

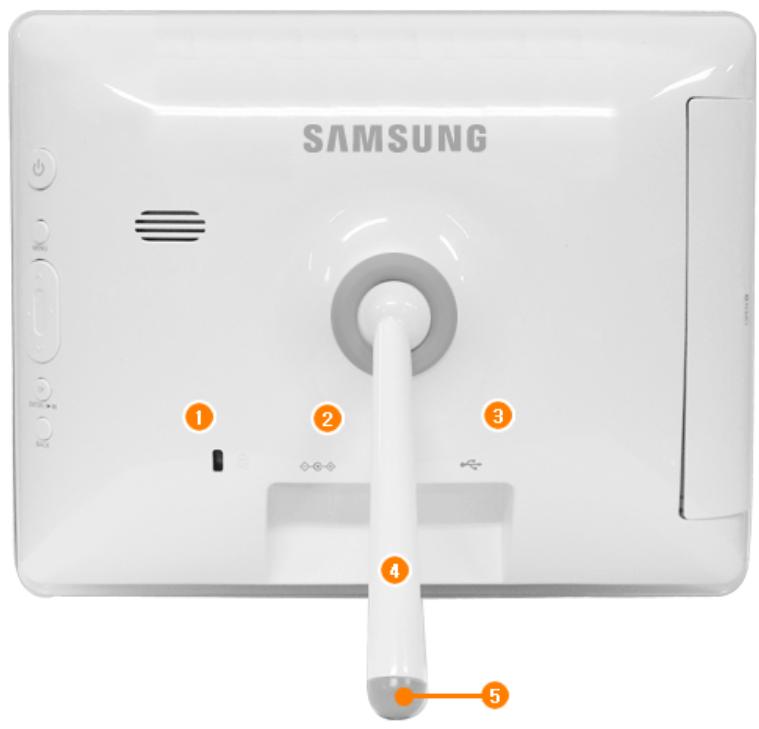

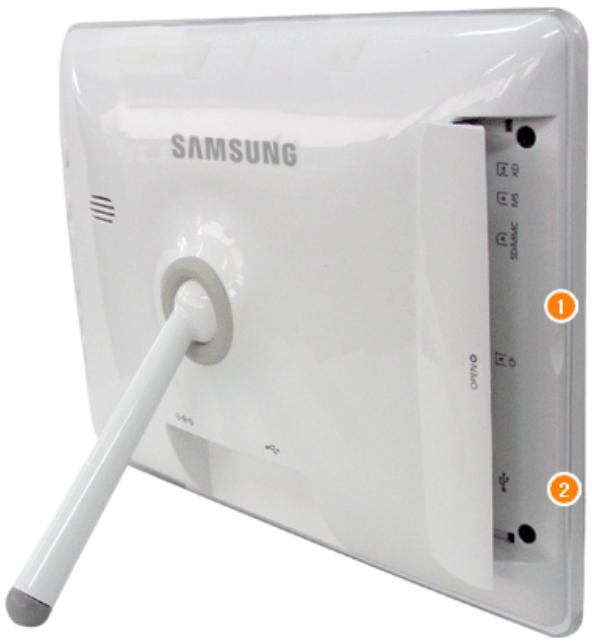

Back

SAMSUNG 1 2 3 4 5

Kensington lock

The Kensington lock is a device used to physically secure the system when using it in a public place. (The locking device has to be purchased separately.)

For using a locking device, please contact where you purchased it.

Power terminal

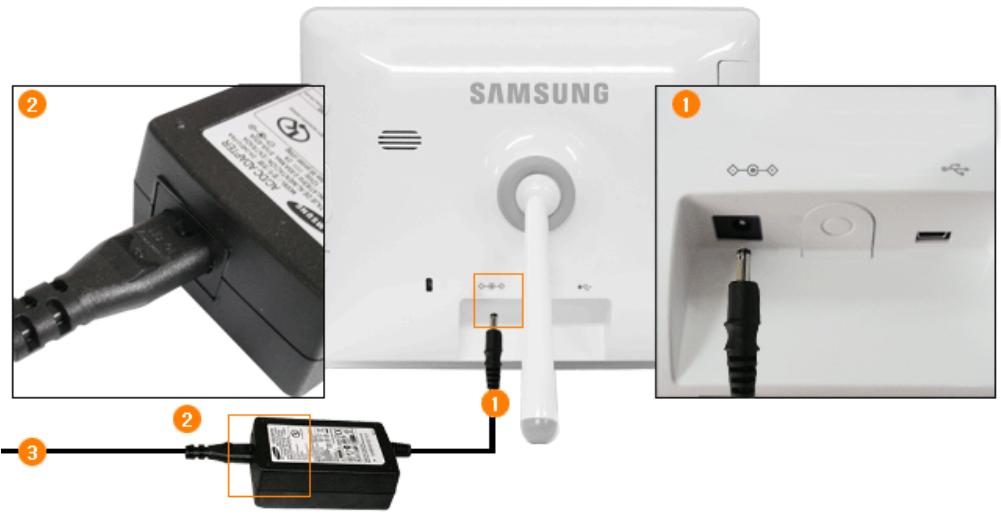

Connect the power adapter to this jack.

Connect the power cord to the power terminal of the power adapter.

USB connection

terminal

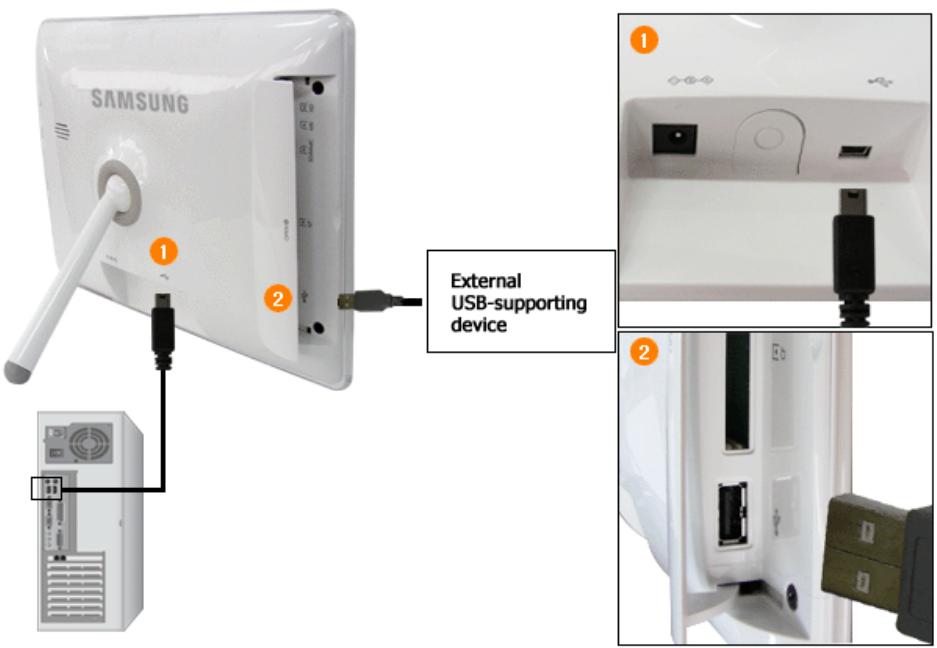

Connect a PC or an external device using a USB cable.

Up stream Terminal Connect your Digital Photo Frame to a PC's USB terminal with a USB cable. (Compatible with USB 2.0(device))

Make sure to use the USB cable (A-mini B type) provided with the product when connecting your digital photo frame to a PC through the up stream terminal.

Stand

A stand allows both horizontal and vertical installation.

If your Digital Photo Frame is installed vertically, you can rotate your photos using the rotation function to fit the vertical installation.

Sliding Prevention

Holder

Supports the product so that it stays firmly in place on slippery surfaces.

Features

Components

Front

Back

Side

Side

Front view of a Samsung smartphone with a blue screen and control knob (no visible text or symbols)

SAMSUNG 1 2 3 4 5 6 7 8 MENU ENTER BACK

1 [⏻] Power Button Power Indicator

Turns the product on or off.

Connect the power cord to the power terminal of the power adapter.

Shows the power status. When the product is powered on, the power light turns on.

2 [MENU] Menu Button

Displays the menu window at the bottom left corner of the screen.

3 [^] Up Button

Used for moving up.

4 [<] Left Button

Used for moving left.

5 [>] Right Button

Used for moving right.

6 [∨] Down Button

Used for moving down.

7 [ENTER(←)] Enter Button [▶II] Play / Pause Button

Used for selection Play / Pause during playback.

8 [BACK] Back Button

Returns to the previous menu.

White Samsung portable electronic device with a blue screen and handle (no visible text or symbols)

SAMSUNG 1 2

Allows you to insert an optional memory card. (Only applicable for CF/SD/MMC/MS/XD card)

Connect a PC or an external device using a USB cable.

Down stream terminal Connect your Digital Photo Frame to a USB-supported.

(Insert USB storage device)

Using, copying or reproducing the whole or part of this manual without written permission from Samsung Electronics is prohibited. The content of this manual is subject to change without prior notice. ©2007 All rights reserved. Samsung Electronics.

Digital Photo Frame

SPF-83H

Close-up of two bees on a pink flower, no text or symbols visible

Digital Photo Frame ○○○○○○○○○

SPF-83H

Safety Instructions Overview Connecting Using Applications Specifications Troubleshooting

Connecting

Power | USB | Memory Card

Power

SAMSUNG ① ② ③ ①

1 Connect the power adapter to the ◇◆◆ terminal at the back of the product.
2 Connect the power cord to the power adapter.
3 Plug the power cord for the product into a nearby outlet.
4 Press the ⏻ button at the right of the product to turn the product on.

Power | USB | Memory Card

USB

TOP

MAIN

SAMSUNG 1 2 External USB-supporting device 1 2

1 Up Stream Terminal

Used to connect your digital photo frame to a PC.

When connecting your digital photo frame to a PC through the up stream terminal, make sure to use the USB cable provided with the product.

2 Down Stream Terminal

Used to connect an external USB-supporting device to your digital photo frame.

※ If you connect your USB memory stick product to a USB hub or USB extension, it may not be recognized. Therefore, make sure that the USB memory stick is inserted directly into the USB port.

When connecting an external device to the down stream terminal, use the USB cable provided with the external device. (For more information on external devices and their cables, contact a relevant service center.)

Samsung carries no liability for external device malfunctions caused by using any cable except the standard cables specified for each device.

※ Some external products provide a cable that does not meet USB standards. Hence, they may cause a malfunction.

If an external storage device does not work normally when connected to your digital photo frame, try to connect it to your PC. If it still does not work normally when connected to your PC, contact a service center for that external device or your PC.

Close-up of three electronic devices: a USB connector, two USB cables with labeled ports (A and B), and an external circuit board with connectors (no readable text or symbols)

Connect to the up stream terminal of your digital photo frame.
B Connect the USB terminal of your PC.

Diagram showing front and back views of a tablet device with labeled components including Samsung PLEOMAX 168, Samsung PLEOMAX 2GB, and a USB port.

1 CF/SD/MMC/MS/xD CARD Slide the card in the direction marked on the top of the card.

When the power is turned on, the Photo menu screen appears automatically and a slide show starts with the photos in the Frame Memory. If external memory, such as a memory card or USB memory, is installed, it is selected first and a slide show starts with the photos in its root directory. If there are no photo files, a list of folders is displayed.

Using, copying or reproducing the whole or part of this manual without written permission from Samsung Electronics is prohibited. The content of this manual is subject to change without prior notice. ©2007 All rights reserved. Samsung Electronics.

Digital Photo Frame

SPF-83H

Close-up of a bee hovering above a vibrant pink flower (no text or symbols visible)

SAMSUNG

Using

Buttons


Clock

Settings

Digital Photo Frame ○○○○○○○○○

SPF-83H

Safety Instructions

Overview

Connecting

Applications

Specifications

Troubleshooting

TOP

MAIN

↑

Using

When turning on the power, a slide show starts with the photo files in the root directory of the installed external memory device. If there are no photo files or no external memory device is installed, the Photo menu screen is displayed.
If there are no key operations for five (5) minutes, the current mode changes to Clock mode to protect the screen. But Slide Show mode has no change. If you press the MENU button in Clock mode, a sub menu is displayed. Press the BACK button to return to the main screen.

Buttons


Clock

Settings

Buttons

→ Direct Functions

Button

MENU

$$ \wedge , \vee , < , > $$

ENTER

BACK

Description

Opens the on-screen menu and exits from the menu.

These buttons allow you to adjust items in the menu.

Activates a highlighted menu item.

Use this button to step one step back in the menu.

Buttons


Clock

Settings

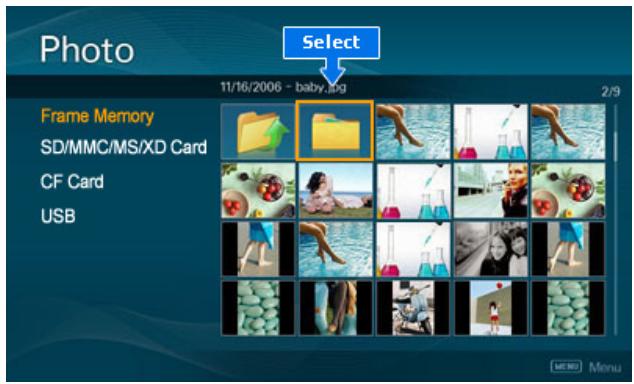

When a folder is selected

Photo 11/16/2006 - baby.jpg Select Frame Memory SD/MMC/MS/XD Card CF Card USB

※ When pressing the MENU, on-screen menu is displayed on the screen.

※

OSD

Description

Open

Open the folder.

Copy

Copy the folder.

Delete

Delete the folder.

When Thumbnail list is selected

Photo 11/16/2006 - baby.jpg 2/9 Frame Memory SD/MMC/MS/XD Card CF Card USB Select

※ When pressing the MENU, on-screen menu is displayed on the screen.

OSD

Description

Start Slide Show

Start slideshow.

Copy / Copy All files

Copy the file.

Delete / Delete All files

Delete the file.

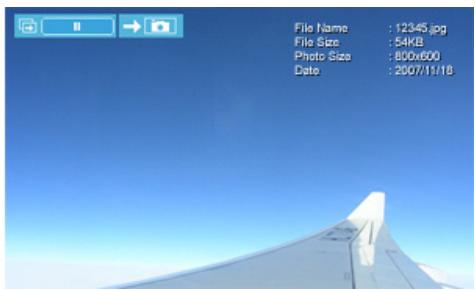

→ Slide Show

View of a jet aircraft wing against a clear blue sky (no visible text or symbols)

File Name : 12345.jpg File Size : 54KB Photo Size : 800x600 Date : 2007/11/18

※ When pressing the MENU, on-screen menu is displayed on the screen.

Only photos with a resolution of less than 8000 (width) * 8000 (height) pixels can be displayed on the screen.

Sub OSD

Detail OSD

Upper OSD

Description

Start Slide Show

Start slideshow

Slide Show Effect

Off, Fade, Shutter, Cross Comb, Mask, Brick, Dissolve, Bar, Expansion, Silk, Random

Select an effect to give when displaying images on the screen.

Slide Show Speed

Fast, Normal, Slow

Slide Show Settings

Select a mode among Fast, Normal, and Slow.

Slide Show Repeat

On, Off

Select the Repeat for displaying images.

Slide Show Shuffle

On, Off

Select whether to playback the files sequentially or in shuffle mode.

0\~100

Brightness

Adjust brightness from 0 to 100 levels.

	◆ On, Off
Auto Rotation	If a photo is to be displayed in portrait mode while your Digital Album is placed horizontally, it is automatically displayed rotated and fit to the width.
Rotate	◆ Original, 90°, 180°, 270°Select one among Original, 90°, 180°, and 270°.
Zoom	◆ Original, x1, x2, x4Select this if you want to zoom into a photo. You can magnify it to the x2 or x4 size.The x1 size is when the photo is set to Fit to Width.
Aspect Ratio	◆ Original, Fit To Width, Fit To ScreenSelect an aspect ratio for images to display.

→ Direct Functions (Slide Show)

Button	Status	Description
>	Pause slideshow	Play the next file in the list. Show the information on the file
<	Pause slideshow	Play the previous file in the list. Show the information on the file.
▶||	[ ▶ ] Play slideshow.	Show the information on the file
	[ || ] Pause slideshow.	Pause slideshow. Play slideshow.
MENU	Play slideshow	Pause slideshow. Show the menu on the file.
	Pause slideshow	Exit the menu. Play slideshow.

Buttons | Photo | Clock | Settings |

Clock

Photo Clock Settings Monday, June 27th 2006

1/1/2007 03:04 am

※ When pressing the MENU, on-screen menu is displayed on the screen.

Upper OSD

Detail OSD

Description

Time Format

12 Hours, 24 Hours

Enter and set 12 Hours, 24 Hours.

Date Format

◆ YYYY/MM/DD, MM/DD/YYYY, DD/MM/YYYY

Select a Date Format.

set to 12 Hours

set to 24 Hours

Day, Month, Date, Year, Hour, Minute am/pm

Day, Month, Date, Year, Hour, Minute

Date and Time

Enter and set Month, Day, Year, Hour, Minute or am/pm. Whenever the power plug is disconnected, the Date and Time information is lost. Therefore, you need to reset them each time.

On Timer

set to 12 Hours

set to 24 Hours

Activation, Hour, Minute, am/pm, Repeat

Activation, Hour, Minute, Repeat

Your product will turn on at the specified time automatically.

Off Timer

set to 12 Hours

set to 24 Hours

Activation, Hour, Minute, am/pm, Repeat

Activation, Hour, Minute, Repeat

Your product will turn off at the specified time automatically.

Settings

Photo Clock Settings Monday, June 27th 2006

Settings Language : English Auto Slide Show : Off Brightness : 100 Firmware Update System Information Reset Settings

Upper OSD

Detail OSD

Description

Language

English, Deutsch, Español, Français, Italiano, Nederlands, Polski, Português, Русский, Svenska, Türkçe, 简体中文, 繁體中文, 日本語, 한국어

Select a language to use for your product.

Off, On

Auto Slide Show

If On is selected, a slide show starts automatically when your monitor is turned on.

Brightness

0\~100

Adjust brightness from 0 to 100 levels.

Firmware Update

Update the product using an external memory(CF/SD/MMC/MS/xD, USB).

Please visit www.samsung.com for the latest firmware update.

System Information

Model, Firmware Version

View the product information.

Reset Settings

Yes, No

Reverts the product settings to factory defaults.

→ I want to update firmware.

01 Preparations

01 Digital Photo Frame
02 Firmware update file.
※ Please visit www.samsung.com for the latest firmware update.
03 USB memory card or external memory devices(CF/SD/MMC/MS/xD)

02 Connect USB memory card to PC

01 If you are ready, connect the USB memory card to your PC.
02 Copy the firmware update file you downloaded to the USB memory card.
※ (Make sure to copy the firmware update file to the root directory.)

03 Connect USB Memory Card to Digital Photo Frame

01 Remove the USB memory card from your PC, and connect it to your Digital Photo Frame.
※ If your Digital Photo Frame is off, turn it on.

04 Select Update

01 Select Firmware Update of Settings.

05 Updating

01 The update progression is displayed on the screen. When the update finishes, turn your Digital Photo Frame off, remove the USB memory card, and turn your Digital Photo Frame on again, for maximum safety.

Do not remove the USB memory card during the update operation.

Do not press any key during the update operation.

Do not insert any other card during the update operation.

Do not turn your Digital Photo Frame off during the update operation.

You can identify whether the update operation has finished successfully or not by checking the firmware version of your Digital Photo Frame is changed to the version of the firmware update.

Using, copying or reproducing the whole or part of this manual without written permission from Samsung Electronics is prohibited. The content of this manual is subject to change without prior notice. ©2007 All rights reserved. Samsung Electronics.

Digital Photo Frame

SPF-83H

Close-up of a bee pollinating a pink flower with visible stamens (no text or symbols)

Digital Photo Frame ○○○○○○○○○

SPF-83H

Safety Instructions

Overview

Connecting

Using

Applications

Specifications

Troubleshooting

Applications

To use your digital photo frame as a Mini-Monitor (the secondary monitor) using a USB cable.

Installing Frame Manager guide

Frame Manager User's Manual

Using your digital photo frame as a Mini-Monitor.

Using your digital photo frame as Mass Storage.

Changing the current mode to another mode

Adjusting the brightness

Updating the firmware

※ System Requirements

• OS : Windows XP SP2
  • USB : Extended Host Controller (EHCT) for USB 2.0
  • RAM : 256 MB or above

※ Caution

1. Windows XP Service Pack 2 must be installed.
   It might not operate with any operating systems other than Windows XP SP2. We are not liable for problems that may occur when installing it on an operating system other than Windows XP SP2.
2. We recommend a CPU speed of 2.4 GHz or higher.
   Your digital photo frame might not operate normally if the performance specifications of your PC are lower than the recommendations.
3. Make sure to install it correctly as directed in the Installation Guide.
4. Do not use your Mini-Monitor as a primary monitor.
   We are not liable for any problems that may occur if you do not follow the directions. If it is used as a primary monitor, the screen may be blank.
5. Make sure to use the provided USB cable.
6. When using your digital photo frame as a Mini-Monitor, all buttons except for the Power button will not operate.
7. Move the programs displayed and used on the Mini-Monitor to the primary monitor after you have finished using it.
8. The Mini-Monitor may not operate with some video cards. In this case, set the 'Hardware acceleration' value to 'None'.

To set Hardware acceleration to None: Right-click on the Windows Desktop and select Properties from the displayed menu. The Display Properties window appears. Click Settings > Advanced > Troubleshoot tab. Move the Hardware acceleration slide to None.

Close-up of a bee hovering over a vibrant pink flower (no text or symbols visible)

SAMSUNG

Specifications Digital Photo Frame

Specifications

Supported Files

SPF-83H

Safety Instructions

Overview

Connecting

Using

Applications

Specifications

Troubleshooting

Specifications

Specifications

Supported Files

Specifications

Items		Specifications
Model Name		SPF-83H
Panel	Type	8" (20 cm) TFT
	Resolution	800 x 600
	Brightness	200 cd/m^2
	Contrast Ratio	500 : 1
	Interface	RGB 6bit TTL
Supported Formats		JPEG (Baseline, RGB)
Operating System		Windows 2000(SP2), Windows XP, MAC OS X(10.x), Linx OS (2.6.x)
Built-in Memory		128 MB(FAT32)
USB		One upstream (device 2.0) and one downstream (host 1.1)
Memory Card		CF/SD/MMC/MS/xD (FAT32)
Power	Rating	External DC power adapter (12V, 2A, 24W)
	Consumption	Normal mode : under 12W, power saving mode : under 5W, Power off mode : under 1W
Content Files	Photo File	Slide show Run / Slide Show Effect / Rotate / Thumbnail View
General	Dimensions (WxHxD)	230.5 x 182.4 x 120 mm / 9.0 x 7.1 x 4.7 inch
	Weight	650 g / 1.4 lb

The product design may differ according to the model, and specifications are subject to change without prior notice for product performance enhancement.

Specifications

Supported Files

Supported Files

◆ Resolution : Less than 8000x8000
- Supported image file format : JPEG (not supported Progressive JPEG and YUV 422 V format)

Using, copying or reproducing the whole or part of this manual without written permission from Samsung Electronics is prohibited. The content of this manual is subject to change without prior notice. ©2007 All rights reserved. Samsung Electronics.

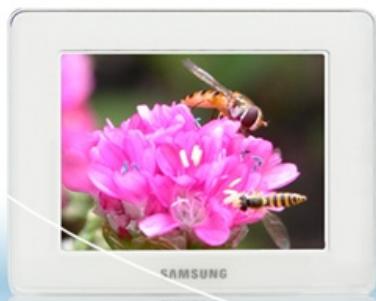

Digital Photo Frame

SPF-83H

Close-up of a bee hovering over a vibrant pink flower (no text or symbols visible)

SAMSUNG

Troubleshooting

ital Photo Frame 000000000

Troubleshooting

Terminology

Service Centers

SPF-83H

Safety Instructions

Overview

Connecting

Using

Applications

Specifications

Troubleshooting

Troubleshooting

| Troubleshooting | Terminology | Service Centers

Troubleshooting

This section lists various problems and solutions encountered by users while using the digital photo frame. When encountering a problem, first check the list below and follow the suggested action if one matches your problem. If the problem still persists, contact or visit the nearest service center.

Symptoms	Possible Causes and Suggested Actions
My Digital Photo Frame does not turn on.	Check the power connection between the product and the power adapter.
On Timer and Off Timer does not work.	If auto On Timer and Off Timer are set to the same time, they do not work. Please check these times. If both the On Timer and Off Timer are set to the same time, the Off Timer has priority and operates first.
It takes some time to display an image after the digital photo frame turns on.	Loading a file from an external memory card may take several seconds. (This depends on the file format and size.)
The aspect ratio of the screen looks abnormal.	Select one of the three values in the Photo>Aspect Ratio menu using the buttons on the right side of the product.(See Photo>Aspect Ratio)
The screen color is dimmed or too strong.	Adjust the brightness in the Settings>Brightness menu using the buttons on the right side of the product.(See Settings>Brightness)
I have connected an external device (USB memory device), but it does not work.	Check the cable connection between the product and the external device.Check whether the external device works as a standalone, and check the format of the files stored on it.For this product, the USB host operates using USB 1.1 specifications and the USB devices operate using USB 2.0 specifications.
Whenever I turn my Digital Photo Frame off and on, I find the time goes wrong.	This product has no built-in battery. When the power turns off, the time info disappears. Therefore, you need to reset the time whenever the Digital Photo Frame is turned on.
A menu is not displayed immediately when I press the menu button.	Displaying the menu and other operations may take some time while the product is loading an image to display on the screen.
Photos are automatically displayed as rotated.	Check if Auto Rotation is set to On.
The slide show does not start automatically.	Check if Auto Slide Show is set to Off.

I have connected a memory card, but it does not work.

- Check the file system on the memory card.

I have connected a USB memory device, but it does not work.

Check the type of the USB memory device. This product may not support the compound USB device.

| Troubleshooting | Terminology | Service Centers

Terminology

Terms	Description
JPEG (Joint Photographic Coding Expert Group)	♦ JPEG is an image compression technology. It provides the smallest loss of all image compression technologies. It is used widely to transmit multimedia files on the Internet and for other uses. An image file formatted in the JPEG format is called a JPEG or JPG file. Usually, a JPEG file is created by taking a picture with a digital camera, by drawing on a computer, or by a graphic package and then by compressing the graphics image into the JPEG format.
SD Card (Secure Digital Card)	♦ An SD card is a Flash memory card the size of a postage stamp. It provides high stability and high capacity. It is widely used in various digital products such as PDAs, digital cameras, MP3 players, cell phones, and notebook PCs. Its appearance is similar to that of MMC, but the number of pins and their thickness is different. It also has a password setting function for data security.
MMC (Multi Media Card)	♦ MMC is external Flash memory used for small mobile devices, as in the case of the SD card. Because it has smaller footprints than SD/MMC cards, it has become widely accepted as the standard for memory cards. It is usually used to save movies and photos.
USB Cable 1) A-B TYPE	♦ Use the up stream terminal when connecting to a PC. This product supports USB 2.0. An A-B type cable which is used to connect your digital photo frame to a PC is provided with the product. The A type is the USB connector used to connect to a PC. The B type is the USB connector used to connect to an external device. You can connect your digital photo frame to a PC using an A-B type USB cable.
USB Cable 2) Cable for Connecting Other Devices	♦ Use this type of cable when using the down stream terminal. This product supports USB 2.0. When connecting an external device to the down stream terminal, use the USB cable provided with the external device.

| Troubleshooting | Terminology | Service Centers

Service Centers

If you need a product service, contact or visit a Samsung service center.

For services for network connection and the Server.

Services

Contacts

Samsung Electronics web site

www.samsung.com

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

North America

U.S.A	1-800-SAMSUNG (726-7864)	http://www.samsung.com/us
CANADA	1-800-SAMSUNG (726-7864)	http://www.samsung.com/ca
MEXICO	01-800-SAMSUNG (726-7864)	http://www.samsung.com/mx

Latin America

ARGENTINE	0800-333-3733	http://www.samsung.com/ar
BRAZIL	0800-124-4214004-0000	http://www.samsung.com/br
CHILE	800-SAMSUNG (726-7864)	http://www.samsung.com/cl
COLOMBIA	01-8000112112	http://www.samsung.com.co
COSTA RICA	0-800-507-7267	http://www.samsung.com/latin
ECUADOR	1-800-10-7267	http://www.samsung.com/latin
EL SALVADOR	800-6225	http://www.samsung.com/latin
GUATEMALA	1-800-299-0013	http://www.samsung.com/latin
JAMAICA	1-800-234-7267	http://www.samsung.com/latin
PANAMA	800-7267	http://www.samsung.com/latin
PUERTO RICO	1-800-682-3180	http://www.samsung.com/latin
REP. DOMINICA	1-800-751-2676	http://www.samsung.com/latin
TRINIDAD & TOBAGO	1-800-SAMSUNG (726-7864)	http://www.samsung.com/latin
VENEZUELA	0-800-100-5303	http://www.samsung.com/latin

Europe

AUSTRIA	0800-SAMSUNG(726-7864)	http://www.samsung.com/at
BELGIUM	0032 (0)2 201 24 18	http://www.samsung.com/be
CZECH REPUBLIC	844 000 844	http://www.samsung.com/cz

Distributor pro Českou republiku:

Middle East & Africa

SOUTH AFRICA	0860-SAMSUNG(726-7864)	http://www.samsung.com/za
TURKEY	444 77 11	http://www.samsung.com.tr
U.A.E	800-SAMSUNG (726-7864)8000-4726	http://www.samsung.com/mea

Using, copying or reproducing the whole or part of this manual without written permission from Samsung Electronics is prohibited. The content of this manual is subject to change without prior notice. ©2007 All rights reserved. Samsung Electronics.

Digital Photo Frame SPF-83H
