Product type	Compact digital camera
Brand	Samsung
Model	S860
Sensor	1/2.5" CCD, 8.1 effective megapixels
Optical zoom	3x (35mm equivalent: 38-114mm)
Digital zoom	Up to 5x depending on image size
LCD screen	2.4" color TFT (230,000 dots)
Focus	TTL autofocus with face detection
Shutter	1 to 1/2000 second
Built-in flash	Range: 0.3-4.0m (wide-angle), 0.5-2.1m (telephoto)
Shooting modes	Auto, Program, Manual, DIS, Photo Help, Portrait, Scene (Night, Children, Landscape, etc.)
Video recording	640x480 or 320x240 at 30/15 fps with sound
Storage	11MB internal memory + SD/SDHC/MMC card (up to 4GB)
File formats	Image: JPEG (DCF, EXIF 2.2); Video: AVI (MJPEG); Audio: WAV
Power supply	2 AA alkaline batteries (included) or rechargeable Ni-MH battery SNB-2512 (optional)
Dimensions (W x H x D)	93 x 62 x 26.5 mm
Weight	Approx. 123g (without batteries or card)
Interface	USB 2.0, NTSC/PAL video output
Operating temperature	0 to 40 °C
Operating humidity	5 to 85%
Included accessories	AA alkaline batteries, USB cable, wrist strap, user manual, software CD (Samsung Master, Adobe Reader), warranty
Care and cleaning	Clean the exterior with a soft, dry cloth. Do not use solvents. Protect from dust and moisture.
Safety	Do not disassemble the device. Avoid exposure to extreme temperatures. Do not use the flash near eyes.
Spare parts and repairability	Batteries and memory cards available as options. For any repairs, contact an authorized Samsung service center.

Frequently Asked Questions - S860 SAMSUNG

How to turn on the Samsung S860 camera?

To turn on the camera, slide the mode selector to the desired position (Auto, Program, etc.). The screen will turn on.

How to insert the batteries?

Open the battery compartment on the back of the camera. Insert two AA alkaline batteries respecting polarity (+/-). Close the cover.

How to take a photo?

Select a shooting mode with the selector. Frame the subject, press the shutter button halfway to focus, then press fully to take the photo.

How to use the zoom?

Use the zoom button (usually marked T/W) to zoom in (T) or out (W). The zoom is available in photo mode, but not during video recording.

How to delete images?

In playback mode, select the image to delete using the left/right buttons. Press the Delete button (trash can). Confirm deletion by selecting 'Yes'.

How to transfer photos to a Windows computer?

Install the Samsung Master software from the included CD. Connect the camera to the computer with the USB cable. The computer will detect the camera and you can download the images.

What to do if the screen remains black?

Check that the batteries are correctly inserted and sufficiently charged. If the camera is in standby mode, press the shutter button halfway to wake it. If the problem persists, remove and reinsert the batteries.

How to recharge the rechargeable battery?

Use the SNB-2512 charger (optional) with two Ni-MH batteries. Charging time is approximately 300 minutes. You can also use non-rechargeable alkaline batteries.

What types of memory cards are compatible?

The camera accepts SD cards (up to 2GB), SDHC cards (up to 4GB), and MMC cards (up to 1GB). 11MB of internal memory is also available.

How to clean the lens?

Use a soft, dry cloth for optics. Gently blow to remove dust. Do not use liquids or harsh solvents.

USER MANUAL S860 SAMSUNG

Thank you for buying a Samsung Camera.
This manual has basic instructions for quick and easy picture taking.
For more information, refer to the user manual included in the supplied CD-Rom.

※ This manual is based on model S860.

ENGLISH/DEUTSCH/FRANÇAIS/ESPÁNOL
ITALIANO/NEDERLANDS/PORTUGUESE

Getting to know your camera

• Microsoft, Windows and Windows logo are registered trademarks of Microsoft Corporation incorporated in the United States and/or other countries
• All brand and product names appearing in this manual are registered trademarks of their respective companies.
• The contents and illustrations of this manual are subject to change without prior notice for upgrading the camera functions.
  Refer to the user manual included on the Software CD for more information.
• PDF documents of user manual are included in the Software CD-ROM supplied with this camera. Search the PDF files with Windows explorer. Before opening the PDF files, you must install the Adobe Reader included in the Software CD-ROM.

Contents

Getting to know your camera 1

Identification of features / Contents of camera 4

Battery life & Number of shots (Recording time) 5

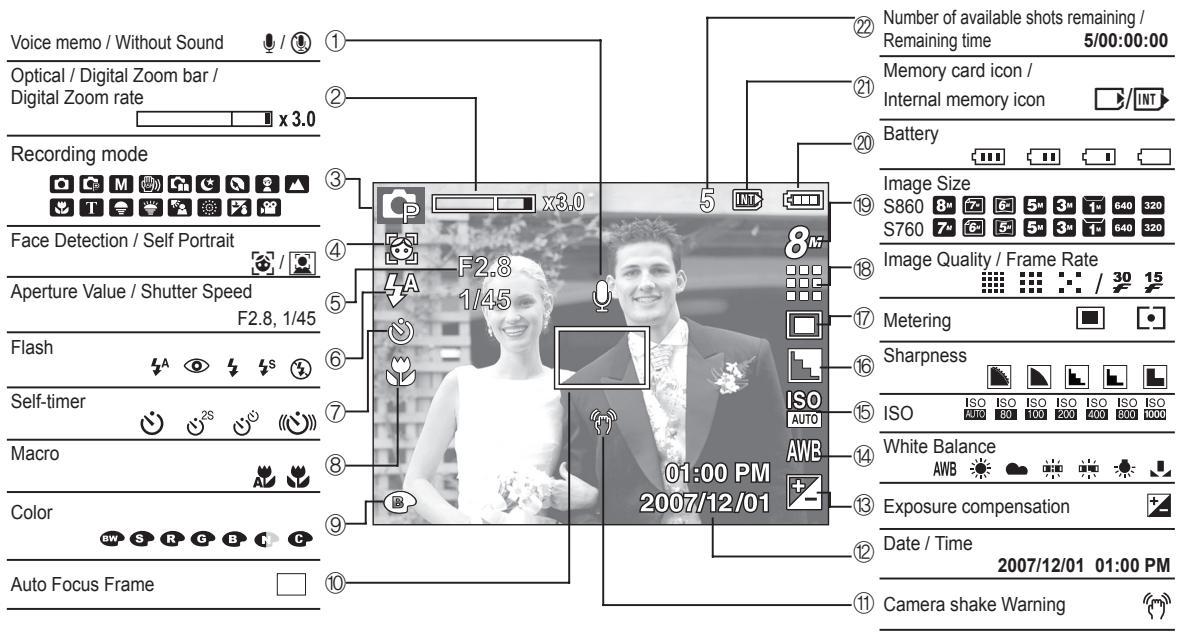

LCD monitor indicator 6

Mode dial 7

Taking a picture 8

Playing back / Deleting images 9

Downloading images 10

Specifications 11

FCC notice

■ NOTE :

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment.

Declaration of Conformity

Responsible Party : Samsung Opto-Electronics America, INC.

Address : 40 Seaview Dr. Secaucus,NJ 07094

Telephone No. : 201-902-0347

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Getting to know your camera

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Do not attempt to modify this camera in any way. To do so may result in fire, injury, electric shock or severe damage to you or your camera. Internal inspection, maintenance and repairs should only be carried out by your dealer or Samsung Camera Service centre.

Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the camera, and then disconnect the power source. You must contact your dealer or Samsung Camera Service centre. Do not continue to use the camera as this may cause a fire or electric shock.

Please do not use this product in close proximity to flammable or explosive gases, as this could increase the risk of explosion.

Do not insert or drop metallic or inflammable foreign objects into the camera through access points e.g. the memory card slot and battery chamber. This may cause a fire or electric shock.

Do not operate this camera with wet hands. This could pose a risk of electric shock.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Do not use the flash in close proximity to people or animals. Positioning the flash too close to your subject's eyes may cause eyesight damage.

For safety reasons keep this product and accessories out of reach of children or animals to prevent accidents e.g.:

• Swallowing battery or small camera accessories. If an accident should occur, please consult a doctor immediately.
• There is the possibility of injury from the camera's moving parts.

Battery and camera may become hot during prolonged use and it may result in camera malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it time to cool.

Do not leave this camera in places subject to extremely high temperatures, such as a sealed vehicle, direct sunlight or other places of extreme variances in temperature. Exposure to extreme temperatures may adversely affect the camera's internal components and could cause a fire.

When in use, do not cover the camera or Charger. This may cause heat to build up and distort the camera body or cause a fire. Always use the camera and its accessories in a well-ventilated area.

Getting to know your camera

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in a minor or moderate injury.

Remove the battery when not planning to use the camera for a long period of time.

Otherwise the battery may leak corrosive electrolyte and permanently damage the camera's components.

Leaking, overheating, or damaged battery could result in fire or injury.

• Use battery with the correct specification for the camera.
• Do not short circuit, heat or dispose of battery in fire.
• Do not insert the battery with the polarities reversed.

Do not fire the flash while it is in contact with hands or objects. Do not touch the flash after using it continuously. It may cause burns.

Take care not to touch the lens or lens cover to avoid taking an unclear image and possibly causing camera malfunction.

Using an AC adapter that doesn't match with the camera specification may cause camera malfunction. We recommend supplied battery or exclusive rechargeable battery.

※ Available AC adapter :

Voltage: 3.3V, Ampere: 2.0A, Diameter: 2.35
- After turning on the camera, Check whether the battery type and the camera setting set on the [Settings]

[Battery Type] menu are same.

Credit cards may be demagnetized if left near a camera case. Avoid leaving magnetic strip cards near the case.

Do not insert the memory card the wrong way round.

Be sure to format the memory card if you are using a newly purchased memory for the first time, if it contains data that the camera cannot recognise, or if it contains images captured with a different camera.

Before an important event or going on a trip, you should check the camera condition. Samsung cannot be held responsible for camera malfunctions.

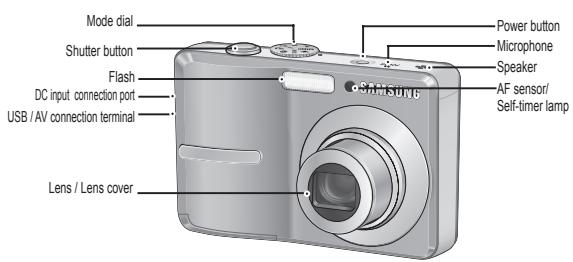

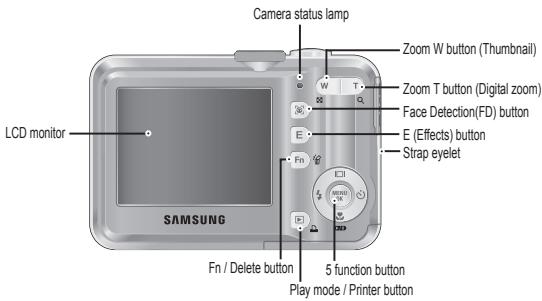

Identification of features / Contents of camera

Included items
Camera

AA Alkaline Batteries

USB Cable

Camera strap

User manual,
Product warranty

Software CD

Optional items
SD/SDHC memory card / MMC

Rechargeable Battery (SNB-2512)

Charger (SBC-N2)

AV Cable

AC Cord

Camera case

※ Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre.

Battery life & Number of shots (Recording time)

We recommend batteries for a digital camera (Within a year from the date of manufacture). The batteries are listed below.

• Non rechargeable batteries : 2 X AA Alkaline (High Capacity)
• Rechargeable batteries (Optional) : SNB-2512 (Ni-MH)

SNB-2512 rechargeable battery Specification

Model	SNB-2512
Type	Ni-MH
Capacity	2500mAh
Voltage	1.2V x 2
Charging time	Approximately 300 Minutes (Use for SBC-N2)

※ Included battery may vary depending on sales region.

• When using a 256MB MMC memory, the specified shooting capacity will be as follows. These figures are approximate as image capacities can be affected by variables such as subject matter and memory card type.

-S860

Recorded image size		Super Fine	Fine	Normal	30FPS	15FPS
Still image	6	About 58	About 83	About 118	-	-
	7	About 64	About 132	About 186	-	-
	8	About 76	About 151	About 195	-	-
	9	About 91	About 179	About 252	-	-
	10	About 140	About 269	About 372	-	-
	11	About 459	About 600	About 744	-	-
*Movie clip	20	-	-	-	About 2'3"	About 4'7"
	21	-	-	-	About 7'44"	About 13'24"

-S760

Recorded image size		Super Fine	Fine	Normal	30FPS	15FPS
Still image	7	About 65	About 130	About 190	-	-
	8	About 74	About 147	About 205	-	-
	9	About 88	About 173	About 248	-	-
	10	About 88	About 173	About 248	-	-
	11	About 140	About 274	About 372	-	-
	12	About 538	About 710	About 744	-	-
*Movie clip	340	-	-	-	About 2'3"	About 4'7"
	320	-	-	-	About 7'44"	About 13'24"

The zoom button doesn't use during the movie recording. The recording times can be changed by the zoom operation.

Refer to the user manual included on the Software CD for more information.

You can select a desired camera mode by using the Mode dial on the top of the camera.

AUTO

Selects this mode for quick and easy picture taking with minimal user interaction.

PHOTO HELP GUIDE

Helps the user to learn the correct picture taking method. This includes solutions for potential problems that may occur, and enables the user to practice shooting.

PROGRAM

Selecting the program mode will configure the camera with optimal settings. You can still manually configure all functions except the aperture value and shutter speed.

PORTRAIT

Use this menu to take a picture of a person.

MANUAL

You can manually configure all functions with the aperture value and shutter speed.

SCENE

Use the menu to easily configure optimal settings for a variety of shooting situations.

DIS

This mode will reduce the effect of camera shake and help you get a well-exposed image in dim conditions.

MOVIE CLIP

A movie clip can be recorded for as long as the available recording time.

Taking a picture

How to take a picture

1. Turn on the camera and select a camera mode by rotating the mode dial.

1. Take a picture.

Pressing halfway down Focus and Flash status are checked.

Pressing fully Image is taken

1. Hold the camera as shown

1. Confirm the composition

How to record a movie

Rotate the Mode dial and select ( ).

1. Confirm the composition

1. Start the recording Press the Shutter button and the recording starts and press the Shutter button again to stop the recording.

Playing back / Deleting images

Playingback the images

• The last image stored on the memory is displayed.

Press the play button (回)。

Select an image that you want to play back by pressing the Left/Right button

※Manner mode: Pressing the play mode button for more than 3 seconds changes the buzzer and start-up sound setting to OFF, even though you may have set these to ON.

- Deleting images

• This deletes images stored on the memory card.

• Select an image that you want to delete by pressing the Left / Right button and press the DELETE ( 合 ) button.

[Single Image]

[Thumbnail Image]

1. To add images to delete, press the T button.

2. Left / Right button : Selects images

3. T button : Checks for deletion
4. OK button : deletes the selected images.

1. Select the submenu values by pressing the Up / Down button and then press the OK button.

2. If [No] is selected : cancels "Delete Image".

3. If [Yes] is selected : deletes the selected images.

Downloading images

For Windows	For Macintosh
PC with processor better than Pentium 450MHz(Pentium 800MHz recommended)	Power Mac G3 or later
Windows 98SE / 2000 / ME / XP/Vista	Mac OS 9.2 ~ 10.4
Minimum 128MB RAM(Over 512MB recommended)200MB of available hard disk space (Over 1GB recommend)	Minimum 64MB RAM(Over 256MB recommended)110MB of available hard-disk space
USB port	USB port
CD-ROM drive	CD-ROM drive
1024x768 pixels, 16bit colordisplay compatible monitor(24bit color display recommended)MicroSoft DirectX 9.0C

PC connection mode

1. Install the supplied Software.

1. Download the images

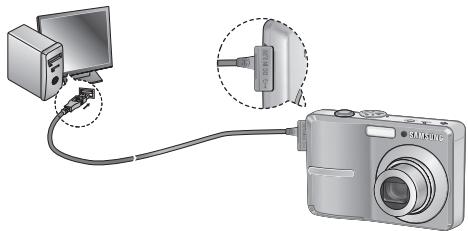

• Connect the camera and Computer with supplied USB cable and download the image on your computer to save them.

Specifications

Image Sensor -Type:1/2.5"CCD

• Effective Pixel : S860 : Approx. 8.1 Mega-pixel

S760:Approx.7.2 Mega-pixel

• Total Pixel : S860 : Approx. 8.3 Mega-pixel

S760 : Approx. 7.2 Mega-pixel

Lens - Focal Length : SHD Lens f = 6.3 ~ 18.9mm

(35mm film equivalent : 38 ~ 114mm)

-F No.: F2.8(W) ~ F5.2(T)

• Digital Zoom : - Still Image mode :1.0X ~ 3.0X

-Playmode:1.0X\~12.8X

(depends on image size)

LCD Monitor - 2.4" color TFT LCD (230,000 dots)

Focusing -Type:TTL auto focus (Multi AF,Center AF,Face Detection AF)
- Range

	Normal	Macro	Auto Macro
Wide	80cm ~ Infinity	10cm ~ 80cm	10cm ~ Infinity
Tele		50cm ~ 80cm	50cm ~ Infinity

Shutter - Speed 1~1/2,000 sec.

Manual/Night:8~1/2,000sec.,Firework:4sec.)

Exposure - Control: Program AE

-Metering:Multi,Spot,Face Detection AE
- Compensation : ±2EV (1/3EV steps)
-ISO：Auto,80,100,200,400,800,1000

Flash - Modes : Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash off

• Range: Wide: 0.3m 4.0m ,
  Tele: 0.5m 2.1m
• Recharging Time : Approx. 5.5 sec

Sharpness -Soft+, Soft, Normal, Vivid, Vivid+

Color Effect - Normal, B&W, Sepia, Red, Green, Blue, Negative, Custom Color

White Balance - Auto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom

Voice Recording - Voice Recording (max. 10 hours)

• Voice Memo in Still Image (max. 10 sec.)

Date Imprinting - Date, Date & Time, Off (user selectable)

Shooting - Still Image

-Mode : Auto, Program, Manual, DIS,

Photo Help Guide, Portrait, Scene

• Scene : Night, Children, Landscape,

Close-up, Text, Sunset, Dawn,

Backlight, Firework, Beach & Snow

-Self-timer : 10 sec., 2 sec., Double,

Motion Timer

Specifications

• Movie Clip

-With Audio (recording time : memory capacity dependent)
·Size:640x480,320x240
-Frame rate : 30 fps, 15 fps
-3X Optical Zoom and Mute in Zooming
- Movie Editing (Embedded): Pause during recording, Still Image Capture

Storage

• Media
  Internal memory : About 11MB flash memory
  -External Memory (Optional): MMC card (Up to 1GB guaranteed) SD card (Up to 2GB guaranteed) SDHC card (Up to 4GB guaranteed)
• File Format
  -Still Image : JPEG (DCF), EXIF 2.2, DPOF 1.1, PictBridge 1.0
  Movie Clip : AVI (MJPEG)
  Audio : WAV
• Image Size

·S860

• Capacity (256 MB Size)

·S860

	8M	7°	6°	5M	3M	1°
Super Fine	About 58	About 64	About 76	About 91	About 140	About 459
Fine	About 83	About 132	About 151	About 179	About 269	About 600
Normal	About 118	About 186	About 195	About 252	About 372	About 744

·S760

	7m	6m	5m	5m	3m	1m
Super Fine	About 65	About 74	About 88	About 88	About 140	About 538
Fine	About 130	About 147	About 173	About 173	About 274	About 710
Normal	About 190	About 205	About 248	About 248	About 372	About 744

These figures are measured under Samsung standard conditions and may vary depending on shooting conditions and camera settings.

"E" Button

• Effect : Color
• Editing : Resize, Rotate, Color

Image Play

• Type : Single image,-Thumbsils, Multi Slide Show, Movie Clip

Interface

• Digital output connector : USB 2.0
• Audio : Mono
• Video output: NTSC, PAL (user selectable)
• DC Adapter : 3.3V

Power Source - Primary Battery : 2 X AA Alkaline

• Rechargeable battery (Optional) :

SNB-2512B KIT ( 2xAA Ni-MH Battery & Charger )

※ Included battery may vary depending on sale region.

Dimensions (WxHxD) - 93 X 62 X 26.5mm

(excluding protrusions)

Weight -Approx.123g (without batteries and card)

Operating Temperature - 0 40^

Operating Humidity -5\~85%

Software - Samsung Master, Adobe Reader

※ Specifications are subject to change without prior notice.
※ All trademarks are the property of their respective owners.

Correct Disposal of This Product

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household

wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable re-use of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Samsung Techwin cares for the environment at all product manufacturing stages to preserve the environment, and is taking a number of steps to provide customers with more environment-friendly products. The Eco mark represents Samsung Techwin's will to create environment-friendly products, and indicates that the product satisfies the EU RoHS Directive.

MEMO

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

es nach seiner Lebensdauer nicht zusammen mit dem normalen Haushaltsmull entsorgt werden darf. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Pile rechargeable (SNB-2512)

Chargeur (SBC-N2)

Cable AV

Cable secteur

Étui

S760 :Environ 7,2 megapixels

Objectif -Distancefocale:

Objectif SHD f = 6,3 18,9mm

P. MULTI, M. AU P. CENTREE, AF

(Manuel / Nuit: 8 1 / 2,000 seconde,

Artifice: 4 seconde)

The CE Mark is a Directive conformity mark of the European Community (EC)

6806-4693
