Product Type	Air Purifier
Brand	Imarflex
Model	IAP-215SQ
CADR	60 CFM
Coverage Area	Up to 15 sqm
Filter Type	HEPA with Advanced Carbon Filter
Fan Speeds	Low, Medium, High, Auto Mode
Air Quality Sensor	Yes (Green, Yellow, Red)
Air Intake/Outlet	360° air intake and outlet
Power Supply	230V AC, 50/60Hz
Power Cord	DC connector (male)
Filter Replacement Interval	Approximately every 6 months
Filter Cleaning	Not washable; do not immerse in water
Housing Material	Plastic
Control Type	Power/Speed button
Standby Mode	Yes (flashing speed indicators)
Safety Features	Keep 0.5m from walls; do not immerse; child supervision
Usage	Household use only
Certifications	Not specified

Frequently Asked Questions - IAP-215SQ Imarflex

How do I assemble the Imarflex IAP-215SQ air purifier?

Remove all packaging materials, including the plastic bag from the HEPA filter. Remove the bottom cover by turning it clockwise, then lift it off. Take out the HEPA filter, remove its plastic bag, and mark the date of first use. Place the filter back inside, then align the cover tabs and turn counterclockwise to lock.

How do I replace the HEPA filter?

Unplug the unit. Remove the bottom cover by turning clockwise. Take out the old HEPA filter. Remove the plastic bag from the new filter and mark the date. Insert the new filter, then replace the cover and turn counterclockwise to lock. Replace approximately every 6 months.

How often should I replace the filter?

The HEPA filter should be replaced approximately every 6 months of use. Do not wash or immerse the filter in water.

How do I clean the air purifier?

Unplug the unit before cleaning. Wipe the surface with a damp cloth and polish with a soft, dry cloth. Do not use detergents or abrasive cleaners. Do not immerse the unit in water. Ensure the unit is completely dry before use.

What do the air quality indicator colors mean?

The air quality sensor uses three colors: Green for clean air, Yellow for moderate air, and Red for bad air quality.

How do I use the auto mode?

Press the Power/Speed button four times to enter Auto Speed mode. The moving light (o o o) will indicate auto mode. In this mode, the unit automatically adjusts fan speed based on air quality.

What is the coverage area of the IAP-215SQ?

The air purifier covers up to 15 sqm with a CADR of 60 CFM.

Is the HEPA filter washable?

No, the HEPA filter is not washable. Do not immerse it in water or any liquid. Replace it every 6 months.

What should I do if the unit malfunctions?

If a malfunction occurs, do not attempt to repair it yourself. Bring the unit to the nearest Imarflex Authorized Service Center. Refer to the warranty card for contact information.

What are the key safety precautions for this air purifier?

Keep the unit at least 0.5 meters away from walls. Do not block the air inlet. Do not use with a damaged cord or plug. Keep away from flammable materials. Do not immerse in water. Supervise children. Unplug after use.

USER MANUAL IAP-215SQ Imarflex

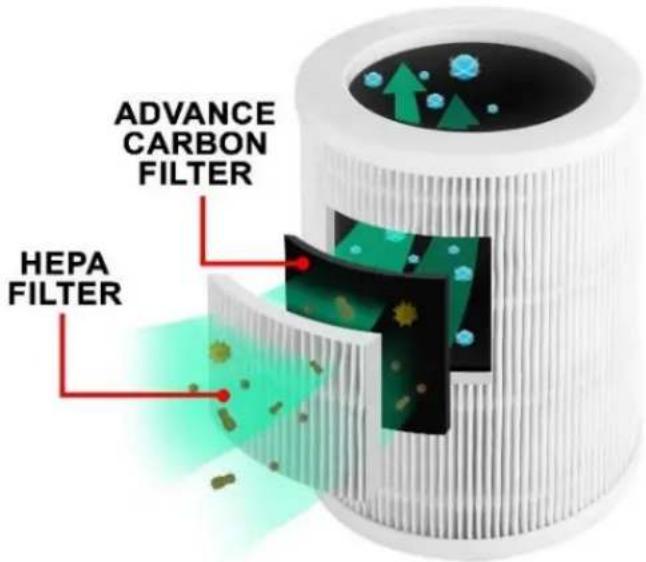

w/ ADVANCE CARBON FILTER

air lenizer Circulate fresh air

AIR

QUALITY

SENSOR

AUTO MODE

3 SPEED SETTINGS

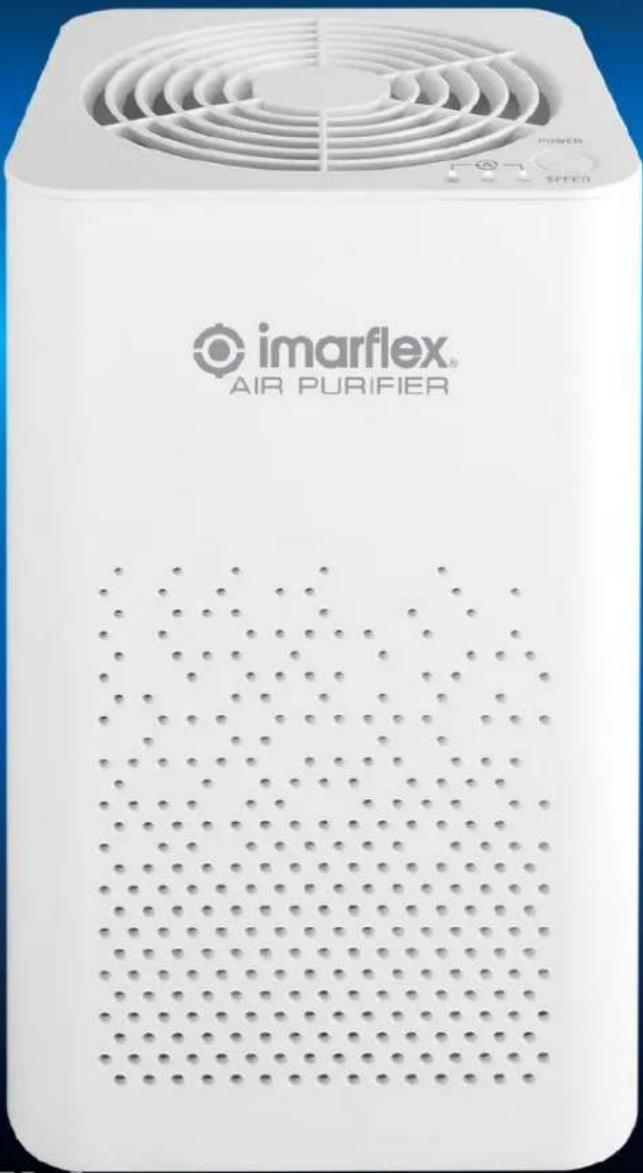

White air purifier with perforated ventilation grille and brand logo (imarflex) on top, no visible text or symbols on the device itself.

CADR : 60CFM

Covers up to 15 sqm!

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the air purifier, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it must be replaced with the same type and size or bring the unit to the nearest authorized service center.
4. Place the unit on a flat stable surface, keep it away from the edge of the counter or hang it on a safe place to avoid accidents.

5. Keep curtains, furniture, flammable materials, etc. away from the unit and from the convenience outlet where the unit is plugged in.

6. Do not place on or near a gas stove, an electric burner or in a heated oven.

7. Children should be supervised to ensure that they do not play with the appliance.

8. This appliance is not intended to be used by a person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

9. After using, switch OFF and unplug the unit from the convenience outlet.

10. Do not immerse the unit in water or in any other liquid.

11. Do not use this unit other than its intended use.

12. In case of malfunctions, please bring the unit to the nearest Imarflex Authorized Service Center.

13. Keep the appliance inlet clear of any items that can block the flow of air, like soft furnishings, curtains, or hanging blinds.

14. Air inlet should be kept a minimum of 0.5m away from any wall to allow adequate air flow and circulation.

15. Filter assembly is not washable. Do not immerse any part of the filter assembly in water as this can cause damage to the filter.

16. For household use only; not intended for any business purposes.

17. Save this instruction manual for future reference.

INTRODUCTION:

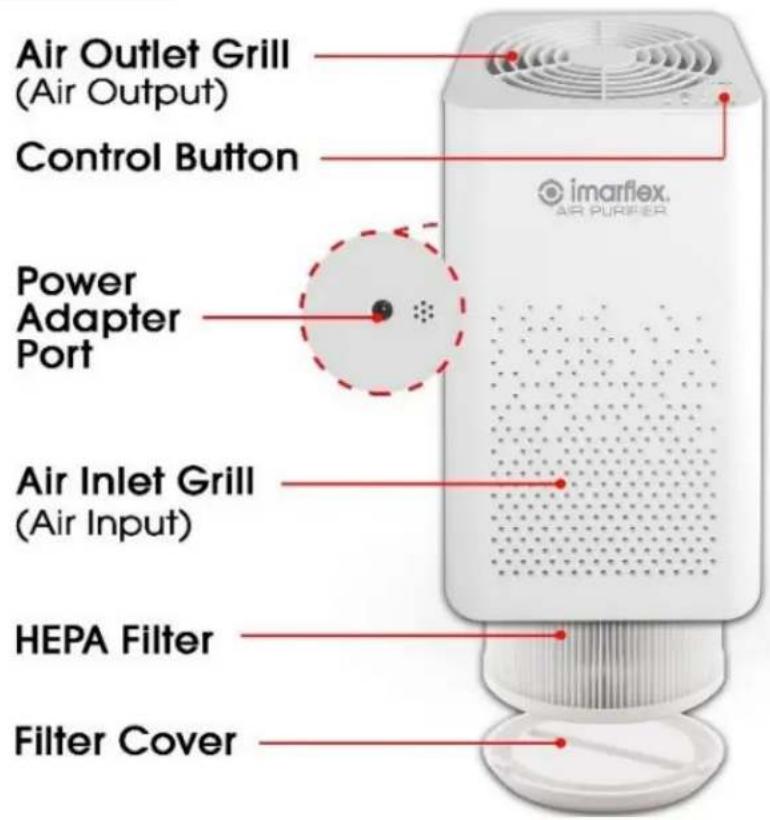

DESCRIPTION OF PARTS:

How to Assemble:

1. For Initial use, make sure to remove all packaging materials such as HEPA filter plastic bag and stickers.

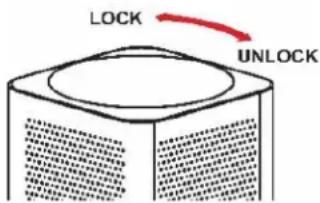

a. Remove Bottom Cover

- Take off the bottom cover.

- The bottom cover should face upwards then turn the filter cover clockwise.

- Lift and remove the cover from the base of the unit.

b. Replace HEPA Filter

- Remove the HEPA Filter from the unit.

- Take off the plastic bag and mark the date of first use on the blank space of the HEPA filter.

*Note: The power cord will be packed inside the HEPA Filter. Make sure to remove it accordingly.

Technical line drawing of a mechanical component with concentric rings and textured surfaces (no text or symbols)

c. Install the Bottom Cover

- Place the HEPA Filter inside the unit body.

- Place the filter cover by positioning the alignment tabs on the cover into the corresponding slots of the unit body.

- Turn the filter cover counterclockwise to lock.

*Note: Do not insert a finger or any other object inside the Air Outlet Grill to avoid any accident or injury.

How to Use:

1. Connect the Male DC connector into the cable port at the back of the unit.
2. Make sure that the filter is properly placed before turning ON the unit.
3. Plug the unit into the convenience outlet. A beep sound will be heard and the speed light indicators will be flashing slowly indicating that the unit is in standby mode.
4. Press Power / Speed button to select the desired speed.

a. Press the Power / Speed button once for \~ Low Speed.

- Low Speed light indicator will light up indicating that the unit is in Low Speed.

b. Press the Power / Speed button twice for ≈ Medium Speed.

- Medium Speed light indicator will light up indicating that the unit is in Medium Speed

c. Press the Power / Speed button (3) three times for ≈ High Speed.

- High Speed light indicator will light up indicating that the unit is in High Speed.

d. Press the Power / Speed button (4) four times for Auto Speed.

- Auto Speed light indicator will show the moving light (o o o) indicating that the unit is in auto mode.

e. Press the Power / Speed button (5) five times for Standby Mode.

- Speed light indicators will be flashing slowly indicating that the unit is in standby mode.

*Note: It collects air at 360^ from the air inlet grill and releases clean air at 360^ from the air outlet grill.

f. Unplug the unit after every use.

Air Quality Sensor Guide:

COLOR	AIR QUALITY
Green	Clean
Yellow	Moderate
Red	Bad

Cleaning and Maintenance:

1. Unplug the unit from the convenience outlet before moving or cleaning.
2. Wipe the surface with a damp cloth and polish with a soft, dry cloth.
3. Do not use detergents or abrasive cleaners.
4. Do not immerse the unit in water or in any other liquid.
5. Make sure that the unit is completely dry.
6. The HEPA Filter is replaceable and not washable. Do not immerse the filter in water or in any other liquid as this can cause damage to the filter.

*Note: The filter should be replaced approximately after 6 months of use.

REMINDER: Please do not forget to fill up and send the warranty card with a copy of the receipt to our email address [e-mail]

Distributed By: Sabretech Technology Inc.

103-113 Sen Gil Puyat Ave. Pasay

Made in China
