Product Type	Air Purifier
Brand	Imarflex
Model	AC-225i
Voltage	230 V a.c.
Filter Type	HEPA Filter (removes up to 99.97% of micro-particles ≥1 µm)
Fan Speeds	Low, Medium, High (3 speeds)
Timer Settings	1, 2, 4, or 8 hours
Ionizer	Yes (use after air is cleaned)
Installation Options	Table top or wall mount (upside down)
Filter Replacement Interval	Every 6 months or when airflow reduces, noisy, or filter turns brown
Cleaning - Body	Wipe with damp cloth; no abrasive materials
Cleaning - Air Vent	Wipe with dry cloth or use vacuum cleaner
Cleaning - Plastic Filter	Remove and clean with soap and water
Safety Features	Do not immerse in water; keep away from heat sources; do not cover air vent
Indicators	Speed indicator (L, M, H) and timer indicator (1, 2, 4, 8 hr)

Frequently Asked Questions - Air Purifier AC-225i Imarflex

How do I turn on the Imarflex AC-225i air purifier?

Press the SPEED/ON key to turn on the unit and select the fan speed. Press once for Low, twice for Medium, three times for High.

How do I set the timer on this air purifier?

Press the TIMER button repeatedly to cycle through 1, 2, 4, and 8 hours. The corresponding light indicator will show the selected time and then shift to indicate remaining time.

What type of filter does the AC-225i use and how often should it be replaced?

It uses a HEPA filter that removes up to 99.97% of micro-particles. Replace every 6 months or sooner if airflow reduces, the unit becomes noisy, or the filter turns brown.

Can I mount this air purifier on a wall?

Yes, the AC-225i can be wall-mounted. Install it upside down on a stable wall following the manual's instructions.

How do I clean the plastic filter?

Remove the plastic filter, then clean it with soap and water. Let it dry completely before reinstalling.

What should I do if the air purifier becomes noisy?

Noisy operation may indicate a dirty or clogged filter. Check the HEPA filter and replace if necessary. Also ensure the unit is on a level surface and not obstructed.

Is it safe to use the ionizer all the time?

The manual recommends pressing the IONIZER button only after the room air is already cleaned. Use it sparingly for best results.

Can I use the air purifier near a TV or computer?

Install the unit at least 1 meter away from TVs, air conditioners, and computers to avoid interference.

What does it mean if the light indicator shifts during timer operation?

The timer light indicator shifts to show the remaining time. For example, if you set 4 hours, the 4 hr light will turn on, then change to 2 hr halfway through, etc.

How do I clean the body of the air purifier?

Wipe the body with a damp cloth. Do not use abrasive materials to avoid scratches. Always unplug the unit before cleaning.

USER MANUAL Air Purifier AC-225i Imarflex

1. Read all instructions carefully.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230 V.a.c.).
3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.
4. Do not use two-way socket with other appliance.
5. Close supervision is necessary when any appliance is used by or near children.
6. To protect against electric shock, do not immerse the unit in water.
7. Do not use this unit on narrow spaces.

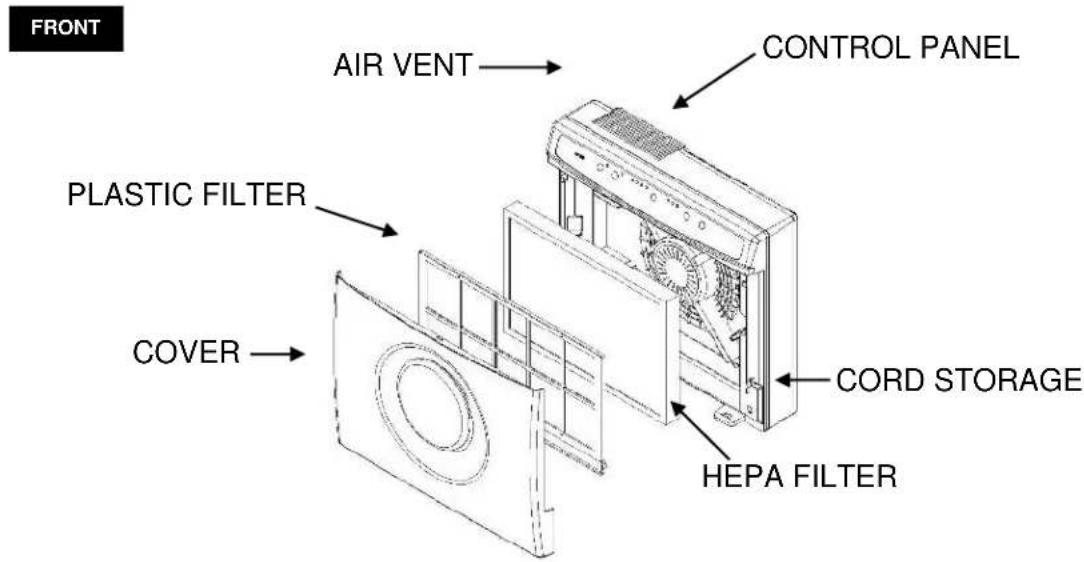

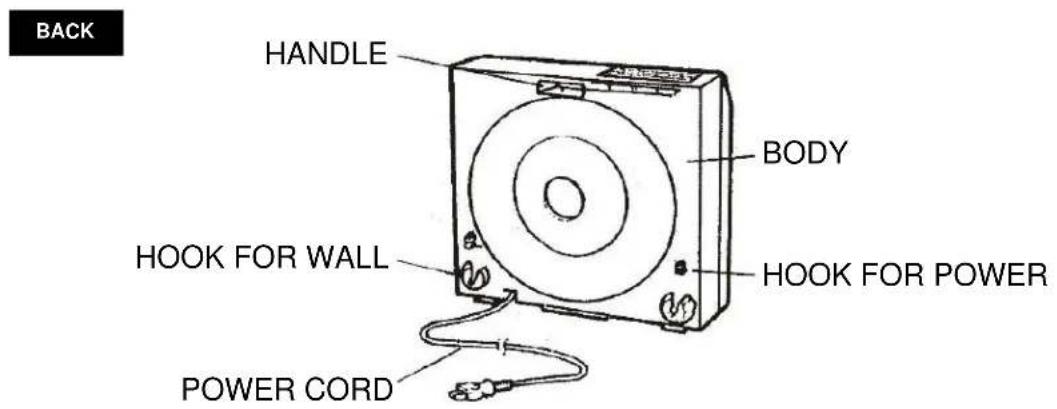

DESCRIPTION OF PARTS

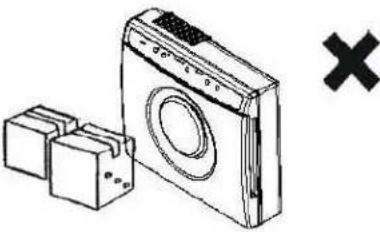

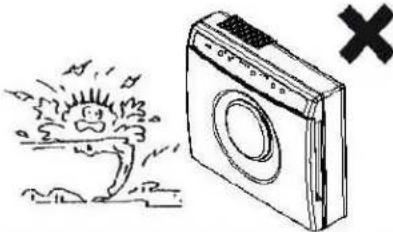

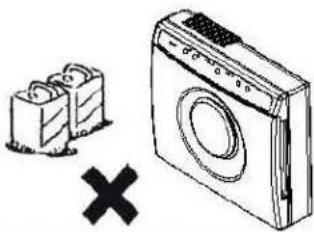

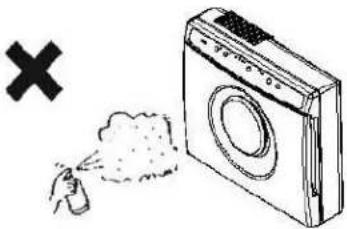

● Do not spray insecticide or flammable on the unit.	● Do not let unit be exposed to sun.

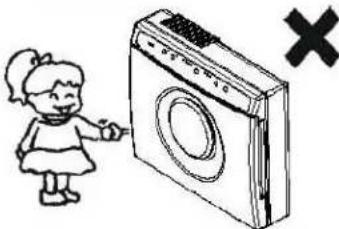

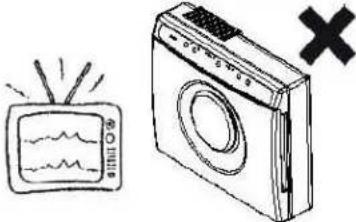

● Install the unit at least 1 meter away from TV, Air Conditioner and computer to avoid interference	● Do not touch or insert anything on the air vent.
● Do not place the unit on humid areas.	● Do not use alcohol or volatile matters in cleaning the unit.

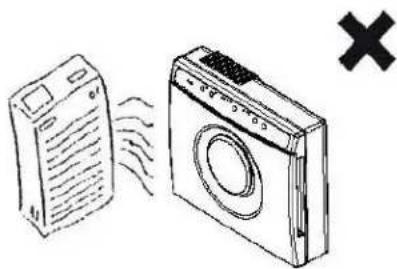

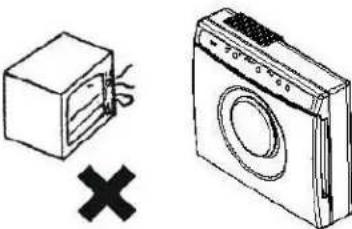

● Do not cover the air vent.	● Do not place the unit near exhaust fan or microwave oven.

FOR INITIAL USE

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

fig. 1

1. Pull the upper portion of the cover with both hands (fig. 1)

2. Take-out the cord (fig. 2).

Diagram of a roof drainage system with pipes and valves (no text or labels)

fig. 2

1. Slide down the plastic filter

2. Pull-out the HEPA Filter and take-off the plastic and return (fig. 3).

Illustration of hands folding a rectangular object into a larger container (no text or symbols)

fig. 3

1. Place the HEPA Filter to its original position.

2. Slide up the Plastic Filter and put the cover.

1. Plug IN the convenience outlet (fig. 4)

2. Press the SPEED/ON key to Turn ON the unit and to select speed.

a. Press once for LOW speed

- Press once, the M light indicator will initially turn ON and will turn to L light indicator after 2 seconds.

b. Press twice for MEDIUM speed

c. Press Trice for HIGH speed

• L, M or H light indicator will turn ON to determine chosen Speed

1. Press the TIMER Button to set the Timer.

a. Press once for 1 hour

b. Press twice for 2 hour

c. Press Trice for 3 hour

d. Press 4 times 8 hour

- 1, 2, 4 or 8 hr light indicator will turn ON to determine chosen time and as the set time runs, the hour light indicator (1, 2, 4 or 8) will shift to determine the remaining time.

- Do not set timer if you intend to use it for more than 8 hours.

1. Press the IONIZER Button only after the air in the room is cleaned.

HOW TO INSTALL

FOR TABLE TOP

FOR WALL MOUNT

1. Install the unit on a stable wall.

2. Mount the unit upside down.

HEPA FILTER is generally recognizes as the best air filter, it can remove up to 99.97% of micro-particles (1 u).

WHEN TO REPLACE THE HEPA FILTER

1. Replacement of filters depends on the usage but we advice to change it every 6 months.
2. Replace the HEPA FILTER if you encounter the following:

a. Reduce airflow
b. Noisy
c. If the surface of the HEPA FILTER turns into brown color

CLEANING AND MAINTENANCE

Before cleaning, turn OFF the unit and unplug the unit from convenience outlet.

1. BODY- wipe it with damp cloth. Do not use abrasive materials to avoid scratches.
2. AIR VENT- wipe it dry cloth or use a vacuum cleaner.
3. PLASTIC FILTER- remove, and clean it with soap and water.
