Product Type	Air Purifier
Brand	Imarflex
Model	IAP-205RD
Coverage Area	Up to 5 m²
CADR	25 CFM
Fan Speeds	3 (Low, Medium, High)
Airflow Direction	360° inlet and 360° outlet

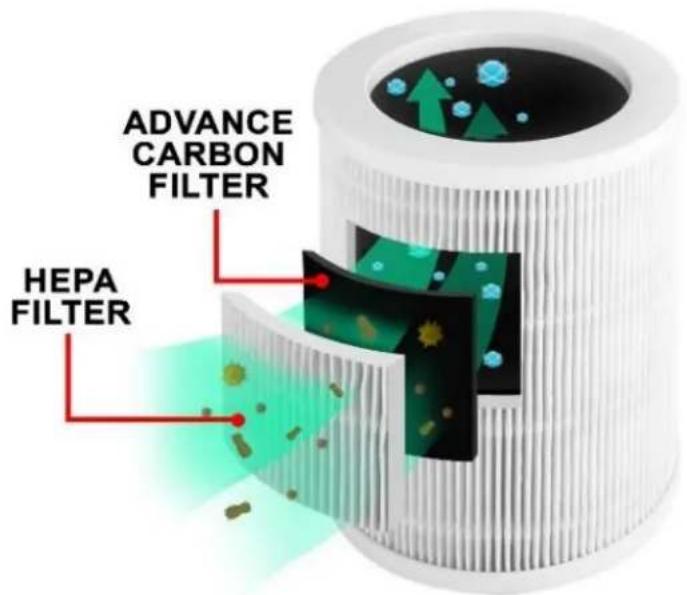

Filter Type	HEPA + Activated Carbon
Filter Replacement Interval	Approx. every 6 months
Power Supply	Micro USB (5V) with included adaptor
Input Voltage (Adaptor)	230 V a.c.
Suitable Environments	Office, Car, Room
Safety	Keep at least 0.5 m from walls; avoid flammable materials; do not immerse
Maintenance	Wipe with damp cloth, no detergents
Filter Care	Non-washable, replace only
Accessories Included	Micro USB cable, power adaptor, HEPA filter
Usage	Household use only

Frequently Asked Questions - IAP-205RD Imarflex

How do I replace the HEPA filter?

To replace the filter, remove the bottom cover by turning the filter cover counterclockwise. Take out the old filter, remove the plastic bag from the new filter, and mark the date of first use. Insert the new filter with the open end pointing downwards, then replace the cover and turn clockwise to lock. Replace the filter approximately every 6 months.

Can I wash the HEPA filter?

No, the HEPA filter is not washable. Do not immerse it in water or any liquid as this will damage the filter. Only replace it with a new one.

How do I clean the air purifier?

Unplug the unit first. Wipe the surface with a damp cloth and polish with a soft, dry cloth. Do not use detergents or abrasive cleaners. Do not immerse the unit in water.

What does the power/speed button do?

Press the button once for Low speed, twice for Medium, three times for High, and four times to turn off the unit. The indicator may show the speed level.

Can I use the air purifier in a car?

Yes, it is suitable for car use. Connect the micro USB cable to the unit and the other end to a USB car charger (not included). The unit can be placed on a flat surface in the car.

What is the CADR of this purifier?

The CADR (Clean Air Delivery Rate) is 25 CFM (cubic feet per minute). This indicates the volume of clean air the purifier can deliver per minute.

How long does the filter last?

The HEPA filter typically needs replacement approximately every 6 months, depending on usage and air quality. It is advisable to check the filter periodically.

What area does the air purifier cover?

The purifier covers up to 5 square meters (about 54 square feet). It is designed for small spaces like offices, cars, or small rooms.

Is the filter washable?

No, the filter is not washable. It is a disposable HEPA + carbon filter. Do not attempt to wash it; replace it when needed.

What should I do if the unit malfunctions?

If you experience any malfunctions, stop using the unit and contact the nearest Imarflex Authorized Service Center. Do not attempt to repair it yourself.

USER MANUAL IAP-205RD Imarflex

air lenizer Circulate fresh air

3 SPEED SETTINGS

CADR: 25CFM

Covers up to 5 sqm!

Suitable for: • Office • Car • Room

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the air purifier, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it must be replaced with the same type and size or bring the unit to the nearest authorized service center.
4. Place the unit on a flat stable surface, keep it away from the edge of the counter or hang it on a safe place to avoid accidents.
5. Keep curtains, furniture, flammable materials, etc. away from the unit and from the convenience outlet where the unit is plugged in.
6. Do not place on or near a gas stove, an electric burner or in a heated oven.
7. Children should be supervised to ensure that they do not play with the appliance.
8. This appliance is not intended to be used by a person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
9. After using, switch OFF and unplug the unit from the convenience outlet.
10. Do not immerse the unit in water or in any other liquid.
11. Do not use this unit other than its intended use.
12. In case of malfunctions, please bring the unit to the nearest Imarflex Authorized Service Center.
13. Keep the appliance inlet clear of any items that can block the flow of air, like soft furnishings, curtains, or hanging blinds.
14. Air inlet should be kept a minimum of 0.5m away from any wall to allow adequate air flow and circulation.
15. Filter assembly is not washable. Do not immerse any part of the filter assembly in water as this can cause damage to the filter.
16. For household use only; not intended for any business purposes.
17. Save this instruction manual for future reference.

INTRODUCTION:

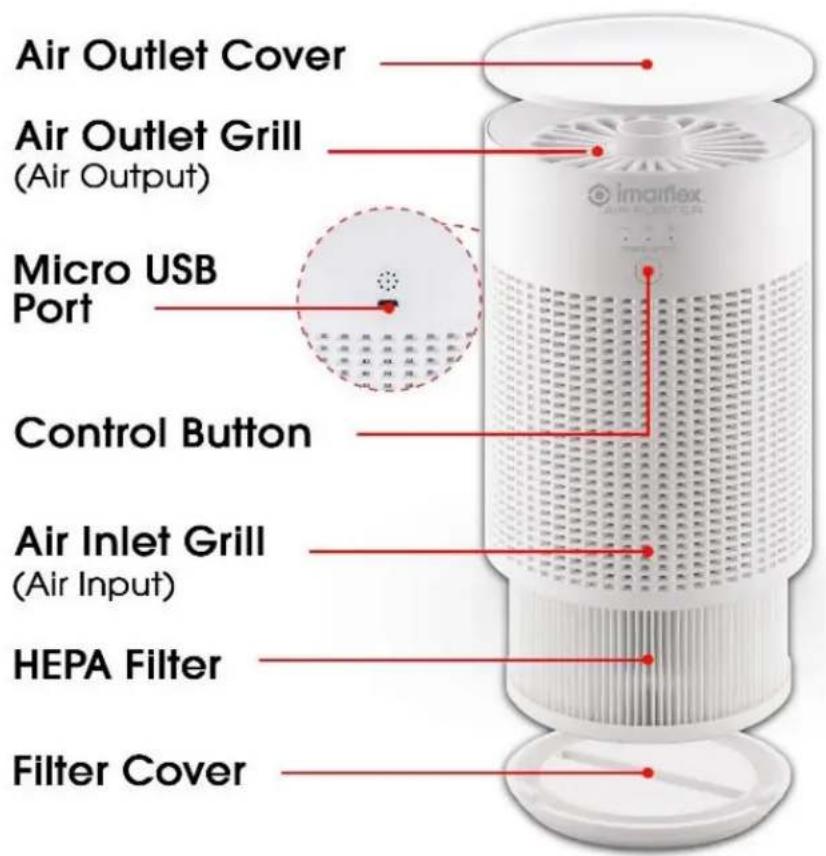

DESCRIPTION OF PARTS:

HOW TO ASSEMBLE:

1. For Initial use, make sure to remove all packaging materials such as HEPA filter plastic bag, foam packaging ring, and stickers.

a. Remove the Foam Packaging Ring

- Rotate the air outlet cover clockwise then lift the outlet cover and remove the foam packaging ring.

b. Install Air Outlet Cover

- Place the air outlet cover by positioning the alignment tabs in the center shaft of the outlet cover into the corresponding slots in the unit body.

- Rotate the outlet cover counterclockwise until properly secured.

*Note: Do not insert a finger or any other object inside the Air Outlet Grill to avoid any accident or injury.

c. Remove Bottom Cover

- Take off the bottom cover.

- The bottom cover should face upwards then turn the filter cover counterclockwise.

- Lift and remove the cover from the base of the unit.

d. Replace HEPA Filter

- Remove the HEPA Filter from the unit.

- Take off the plastic bag and mark the date of first use on the blank space of the HEPA filter.

*Note: The adaptor and USB Cord will be packed inside the HEPA Filter. Make sure to remove it accordingly.

e. Install the Bottom Cover

- Place the HEPA Filter inside the unit body.

- Make sure that the open end of the filter is pointing downwards, away from the base of the air purifier.

- Place the filter cover by positioning the alignment tabs on the cover into the corresponding slots of the unit body.

- Turn the filter cover clockwise to lock.

Hand pressing down on a white cylindrical device (no visible text or symbols)

Close-up of a hand pressing down on a cylindrical device with a small screen (no visible text or symbols)

How to Use:

1. Connect the Micro USB Cable into the Micro USB port at the back of the unit then connect the other end of the USB cable into the supplied power adaptor.

*Note: For car use, connect the Micro USB Cable into the Micro USB port at the back of the unit then connect the other end of the USB cable into the USB port car charger.

1. Plug the unit into the convenience outlet.

2. Make sure that the filter is properly placed before turning ON the unit.

3. Select the desired speed.

a. Press the Power / Speed button once for \~ Low Speed.
b. Press the Power / Speed button twice for ≈ Medium Speed.
c. Press the Power / Speed button (3) three times for ≈ High Speed.
d. Press the Power / Speed button (4) four times to turn off the unit.

*Note: It collects air at 360^ from the air inlet grill and release clean air at 360^ from the air outlet grill.

e. Unplug the unit after every use.

Cleaning and Maintenance:

1. Unplug the unit from the convenience outlet before moving or cleaning.
2. Wipe the surface with a damp cloth and polish with a soft, dry cloth.
3. Do not use detergents or abrasive cleaners.
4. Do not immerse the unit in water or in any other liquid.
5. Make sure that the unit is completely dry.
6. The HEPA Filter is replaceable and not washable. Do not immerse the filter with water or any other liquid as this can cause damage to the filter.
   *Note: The filter should be replaced in approximately 6 months.

REMINDER: Please do not forget to fill up and send the warranty card with a copy of the receipt to our email address [e-mail]

Distributed By: Sabretech Technology Inc.

103-113 Sen Gil Puyat Ave. Pasay

Made in China
