IAP-2130UV - Air purifier Imarflex - Free user manual and instructions

Product Type	Air Purifier with UV-C Sterilization
Brand	Imarflex
Model	IAP-2130UV
Dimensions (Approx.)	35 x 20 x 45 cm
Weight (Approx.)	4.5 kg
Power Supply	AC 220-240V, 50Hz
Power Consumption	50 W
Coverage Area	Up to 30 m²
Filtration System	Pre-filter + HEPA filter + Activated Carbon filter + UV-C lamp
UV-C Wavelength	253.7 nm
Fan Speeds	3 speeds (Low, Medium, High)
Timer Function	1-8 hours
Noise Level	≤ 55 dB (Max speed)
Control Type	Touch panel with remote control
Air Quality Indicator	Color-coded (Blue, Green, Red)
Filter Replacement Indicator	Yes
Child Lock	Yes
Maintenance	Clean pre-filter every 2 weeks; replace HEPA/carbon filter every 6-12 months; replace UV lamp every 8000 hours
Safety Features	Auto shut-off when front cover opened; UV-C lamp shielded to prevent exposure
Accessories Included	Remote control, user manual

Frequently Asked Questions - IAP-2130UV Imarflex

How often should I replace the filters?

The pre-filter should be cleaned every 2 weeks. The HEPA and activated carbon filters need replacement every 6 to 12 months, depending on usage and air quality. The UV-C lamp should be replaced after approximately 8000 hours of use.

Can I use the air purifier continuously?

Yes, the Imarflex IAP-2130UV is designed for continuous operation. However, it is recommended to turn it off during cleaning or when the room is unoccupied for extended periods to save energy.

Is the UV-C light safe?

Yes, the UV-C lamp is safely enclosed within the unit and automatically shuts off if the front cover is opened, preventing direct exposure to the UV radiation.

What does the air quality indicator mean?

The indicator uses colors: blue for good air quality, green for moderate, and red for poor. It helps you monitor the current air condition in real time.

How do I clean the pre-filter?

Remove the pre-filter from the back of the unit and vacuum it using a brush attachment, or wash it with mild soap and water. Allow it to dry completely before reinstalling.

What is the coverage area of this purifier?

The IAP-2130UV is effective for rooms up to 30 square meters (approximately 320 square feet). For larger spaces, consider using multiple units.

Does the purifier produce ozone?

No, this model does not generate ozone. It uses a UV-C lamp for sterilization without producing harmful ozone.

Can I control the purifier remotely?

Yes, the unit comes with a remote control for convenient operation. You can adjust fan speed, timer, and other settings from a distance.

What should I do if the filter replacement indicator lights up?

When the indicator illuminates, it's time to check and replace the filters. Reset the indicator after replacing by pressing and holding the filter reset button for 3 seconds.

Is the unit noisy during operation?

Noise levels vary by speed: Low speed is very quiet (around 30 dB), Medium is moderate (40 dB), and High speed can reach up to 55 dB, which is comparable to a conversation.

USER MANUAL IAP-2130UV Imarflex

Eliminates up to 99.9% of viruses & bacteria

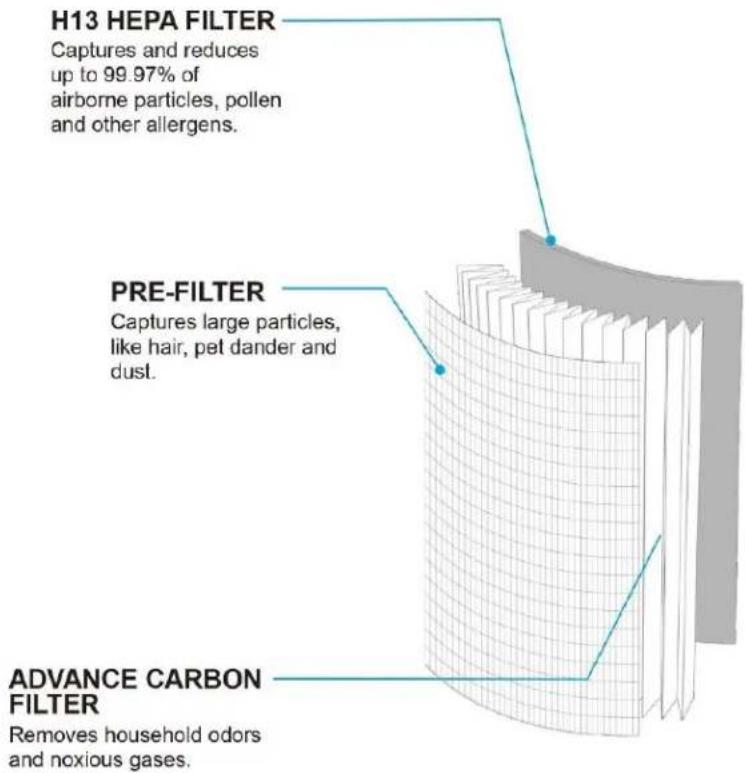

HEPA

H13 FILTER

with PRE-FILTER and ADVANCE CARBON FILTER

air lenizer Circulate fresh air

AIR QUALITY

DISPLAY

Wi-Fi

Enabled

Tuya Smart

CADR: 150CFM

• Filter Replacement Indicator
- Touch Sensitive Control Panel

• Child-lock Feature
  • Up to 12-hour Timer

• 3 Speed Settings w/ Sleep Mode & Auto Mode

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the air purifier, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it must be replaced with the same type and size or bring the unit to the nearest authorized service center.
4. Place the unit on a flat stable surface, keep it away from the edge of the counter or hang it on a safe place to avoid accidents.

5. Keep curtains, furniture, flammable materials, etc. away from the unit and from the convenience outlet where the unit is plugged in.

6. Do not place on or near a gas stove, an electric burner or in a heated oven.

7. Children should be supervised to ensure that they do not play with the appliance.

8. This appliance is not intended to be used by a person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

9. After using, switch OFF and unplug the unit from the convenience outlet.

10. Do not immerse the unit in water or in any other liquid.

11. Do not use this unit other than its intended use.

12. In case of malfunctions, please bring the unit to the nearest Imarflex Authorized Service Center.

13. Keep the appliance inlet clear of any items that can block the flow of air, like soft furnishings, curtains, or hanging blinds.

14. Air inlet should be kept a minimum of 38cm away from any wall to allow adequate air flow and circulation.

15. Filter assembly is not washable. Do not immerse any part of the filter assembly in water as this can cause damage to the filter.

16. For household use only; not intended for any business purposes.

17. Save this instruction manual for future reference.

INTRODUCTION:

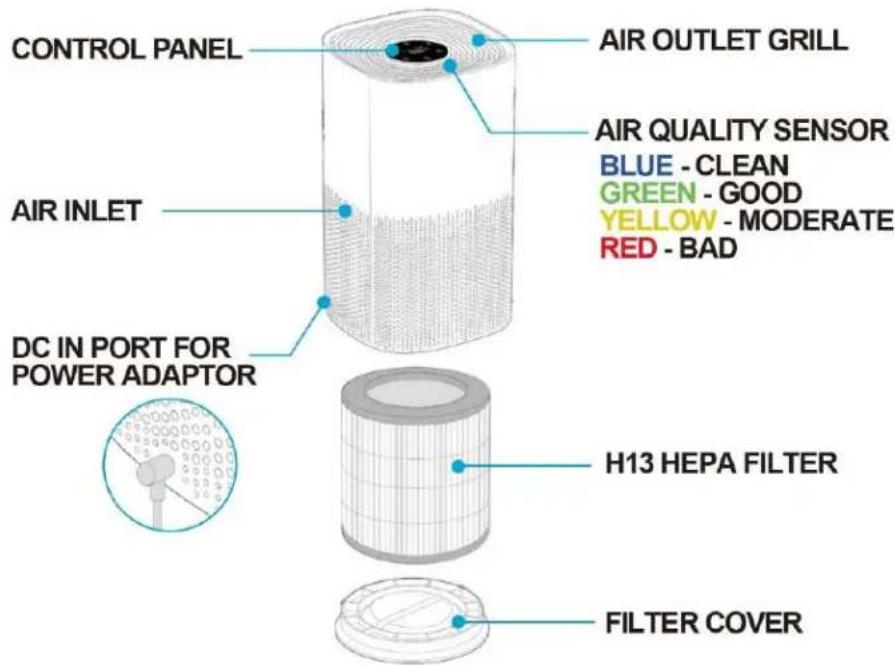

DESCRIPTION OF PARTS:

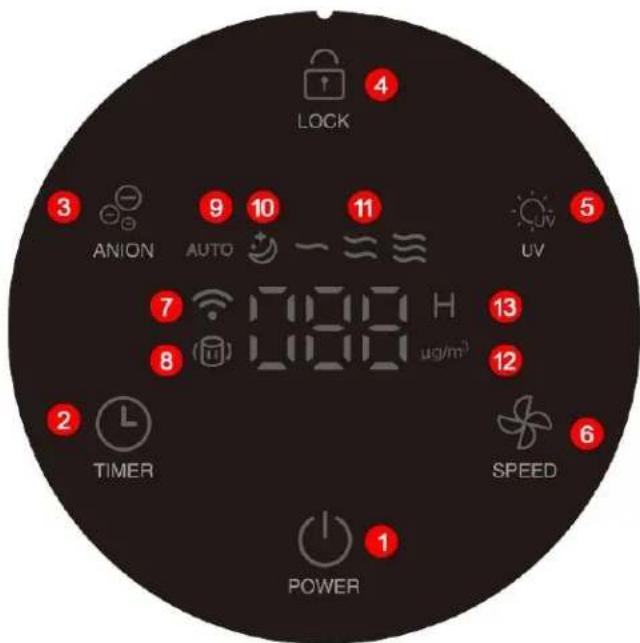

CONTROL PANEL:

1 - Power ON/OFF

2 - Auto-off Timer

3 - Anion

4 - Child-lock

5 - UV

6 - Speed Control

7-WIFI

8 – Filter Replacement Indicator

9 - Auto Mode

10 - Sleep Mode

11 – Low, Medium, High Speed

12 - Microgram per Cubic Meter of Air Display

13 - Timer (Hours) display

2+6 - Filter Reset

How to Assemble:

1. For Initial use, make sure to remove all packaging materials such as HEPA filter plastic bag and stickers.

a. Remove Bottom Cover

• Take off the bottom cover.
• The bottom cover should face upwards then turn the filter cover counterclockwise.
• Lift and remove the cover from the base of the unit.

b. Replace HEPA Filter

• Remove the HEPA Filter from the unit.
• Take off the plastic bag and mark the date of first use on the blank space of the HEPA filter.

*Note: The power cord will be packed inside the HEPA Filter. Make sure to remove it accordingly.

c. Install the Bottom Cover

• Place the HEPA Filter inside the unit body.
• Place the filter cover by positioning the alignment tabs on the cover into the corresponding slots of the unit body.
• Turn the filter cover clockwise to lock.

Illustration of a cylindrical object with a blue upward arrow, no text or symbols present

WIFI Set-up:

1. Scan the QR CODE to download the TUYA SMART app. You can also download it on Google Play or App Store.

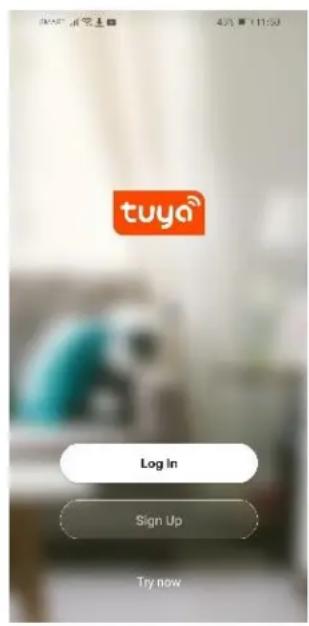

2. Go to the Home Page and tap Sign Up to create a new account.
3. Enter your email address to get the verification code.

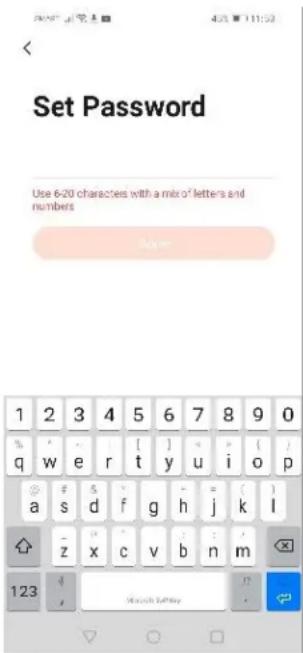

4. Input the verification code on the application, then set your password. Tap Done.

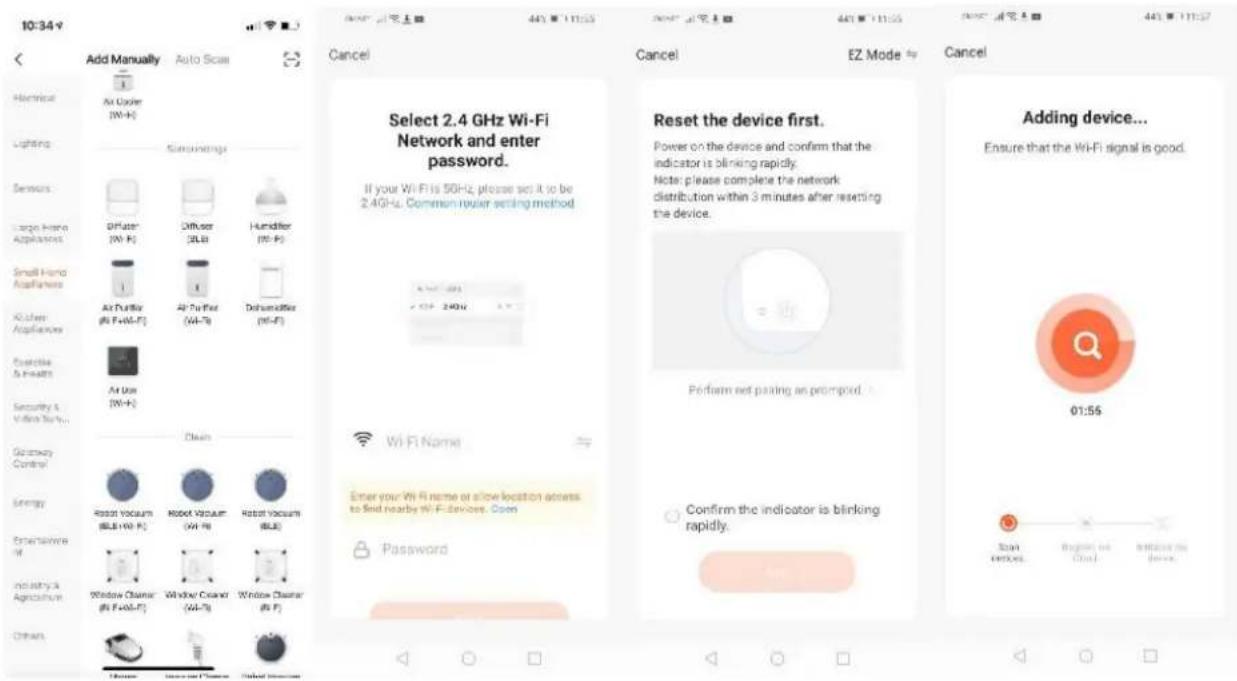

5. Tap + to manually add a device. Small Home Appliances > Surroundings > Air Purifier (WIFI).
6. Select 2.4GHz WIFI Network. Enter your WIFI password and tap Next.
7. Make sure that the machine is powered ON, then tap the O to confirm that the indicator is blinking rapidly. Tap Next.
8. Wait for 2 minutes to finish scanning the device.

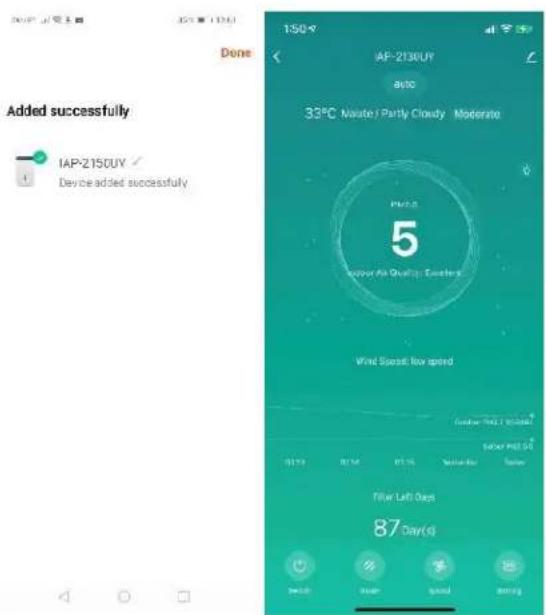

9. Once the device has been successfully added, tap Done.
10. You can now operate your air purifier through your mobile phone.

Procedure 2
Procedure 3
Procedure 4
Procedure 5

Procedure 5
Procedure 6
Procedure 7
Procedure 8

Procedure 9 Procedure 10

How to Use:

1. Connect the power adaptor into the DC IN port at the back of the unit.
2. Make sure that the filter is properly placed before turning ON the unit.
3. Plug the unit into the convenience outlet. A sound will be heard and the WIFI indicator will light up.
4. Press the Power button, the air quality sensor, light, and auto mode light indicators will light up.
5. Select the desired speed by pressing ⚙️.

a. Press the Speed button once for Sleep Mode.
b. Press the Speed button twice for Low Speed.
c. Press the Speed button ⚙ (3) three times for ≈ Medium Speed.
d. Press the Speed button ⚙ (4) four times for ≈ High Speed.
e. Press the Speed button ⚙ (5) five times for AUTO Mode.

*Note: It collects air at 360^ from the air inlet and releases clean air at 360^ from the air outlet grill.

6. AUTO MODE

a. When the air quality is less than 15 g/m^3 , the air quality sensor is blue and the speed setting is at low speed.
b. When the air quality is between 16 to 35 g / m^3 , the air quality sensor is green and the speed setting is at medium speed.
c. When the air quality is between 36 to 75 g / m^3 , the air quality sensor is yellow and the speed setting is at medium speed.
d. When the air quality is more than 75 g/m^3 , the air quality sensor is red and the speed setting is at high speed.

SPEED WATTAGE		WIND SPEED (m/s)	RPM	CADR (CFM)
High	29W	1.3m/s	2200RPM	150CFM
Medium	11W	1.9m/s	1550RPM	91CFM
Low	4.5W	3.1m/s	920RPM	47CFM
Sleep	3W	4.5m/s	800RPM	40CFM

7. AUTO-OFF TIMER

a. Select the desired auto-off time.
b. Press the Timer button once, 2 will appear on the display for 2hrs.
c. Press the Timer button ⓣ twice, 4 will appear on the display for 4hrs.
d. Press the Timer button Ⓤ (3) three times, 8 will appear on the display for 8hrs.
e. Press the Timer button Ⓤ (4) four times, 12 will appear on the display for 12hrs.
f. Press the Timer button Ⓤ (5) five times for OFF timer.
g. Timer display will flash (3) three times to confirm the setting. Once the timer display is on standby it will indicate that the auto-off timer will start the countdown.
h. When the timer reaches zero, the unit will be on standby mode.

8. CHILD-LOCK

a. Press and hold the Child-lock button ⏻ for 5 seconds to lock / unlock the function.

9. UV

a. Press the UV button ☐.

10. FILTER RESET INDICATOR

a. The filter reset indicator will be flashing indicating that the HEPA Filter needs to be replaced.
b. Turn OFF the unit and unplug the air purifier.
c. Follow the instruction on how to replace filter (How to Assemble – letter B)
d. Plug the unit into a convenience outlet and press the Power button to turn ON the unit.
e. Press and hold TIMER & SPEED buttons at the same time for 5 seconds to reset the filter.

11. WIFI RESET (How to Reset WIFI settings)

a. While the unit is OFF press and hold the speed button until the WIFI icon is blinking rapidly. This will confirm that the wifi settings have been reset.

12. ANION

a. Press the Anion button ☑.

1. Unplug the unit after every use.

*Note: The air purifier remembers the last settings except for the timer. Once you turn OFF the unit then turn it ON again, the last setting will resume.

Air Quality Sensor Guide:

COLOR AIR QUALITY μg/m3
Blue Clean Less than 15 μg/m3
Green Good 16-35 μg/m3
Yellow Moderate 36-75 μg/m3
Red	Bad	More than 75 μg/m3

Cleaning and Maintenance:

1. Unplug the unit from the convenience outlet before moving or cleaning.
2. Wipe the surface with a damp cloth and polish with a soft, dry cloth.
3. Do not use detergents or abrasive cleaners.
4. Do not immerse the unit in water or in any other liquid.
5. Make sure that the unit is completely dry.
6. The HEPA Filter is replaceable and not washable. Do not immerse the filter in water or in any other liquid as this can cause damage to the filter.

*Note: The filter should be replaced approximately after 6 months of use.

REMINDER: Please do not forget to fill up and send the warranty card with a copy of the receipt to our email address [e-mail]

Distributed By: Sabretech Technology Inc.

103-113 Sen Gil Puyat Ave. Pasay

Made in China
