IAP-300 - Air purifier Imarflex - Free user manual and instructions

Product Type	Air Purifier
Brand	Imarflex
Model	IAP-300
Power Consumption	50 W
Voltage	230 V AC

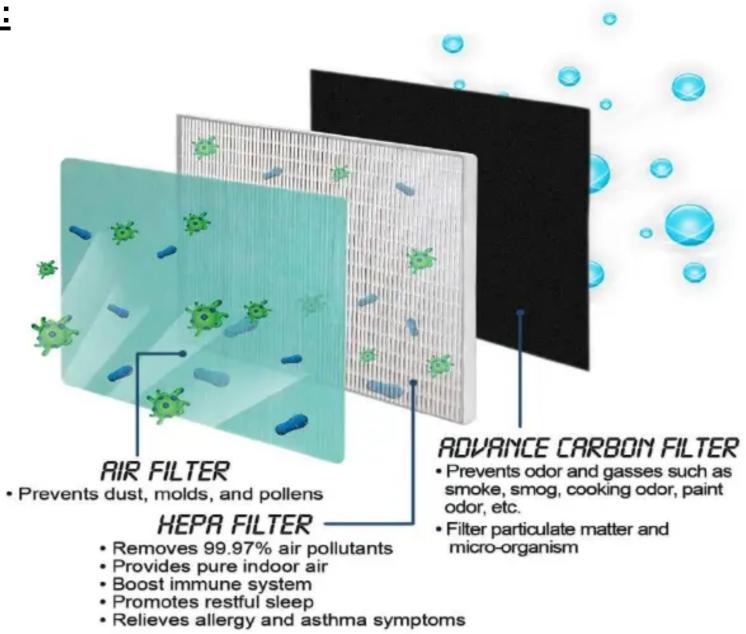

Filtration System	5-layer (Pre-filter, HEPA, Activated Carbon, Antiseptic, Ionizer)
HEPA Efficiency	99.97% removal of airborne pollutants
Carbon Filter	Absorbs odors and gases (smoke, smog, cooking odor, paint odor)
Fan Speeds	3 (Low, Medium, High)
Timer Settings	1, 2, 4, 8 hours
Ionizer	Yes, independently controlled
Mounting	Wall-mounted (upside down)
Pre-filter Replacement Interval	Every 2 months (depending on usage)
HEPA Filter Replacement Interval	Every 6-12 months (depending on usage)
Front Panel Cleaning	Washable with soap and water
Body Cleaning	Wipe with damp cloth
Safety	Do not immerse in water; keep away from heat sources
Intended Use	Household only
Warranty Registration	Email [e-mail] with receipt

Frequently Asked Questions - IAP-300 Imarflex

How do I turn on the Imarflex IAP-300 air purifier?

Plug the unit into a 230V outlet and press the ON/OFF button to turn it on.

How do I set the timer?

Press the Timer button repeatedly to cycle through 1, 2, 4, and 8 hours. The unit will automatically shut off after the set time.

How do I change the fan speed?

Press the Speed Control button to switch between Low (L), Medium (M), and High (H). The selected speed indicator will light up.

How does the ionizer work?

Press the Ionizer button to activate negative ions. The ionizer remains active even after turning off the unit until pressed again.

How do I wall-mount the unit?

Ensure the wall is stable and near a power socket. Measure the two holes (32.8 cm apart) on the back of the unit, drill holes, and mount the unit upside down for proper operation.

How often should I replace the filters?

The pre-filter should be replaced every 2 months (depending on area). The HEPA filter should be replaced every 6 to 12 months, depending on usage and air quality.

Can I wash the HEPA filter?

No, the HEPA filter is not washable. It must be replaced when dirty. Only the front panel cover and pre-filter can be washed with soap and water.

How do I clean the air purifier?

Unplug the unit. Remove the front panel cover and wash it with soap and water, then let it dry. Wipe the body with a damp cloth. Use a vacuum cleaner to clean the unit if needed.

What should I do if the unit doesn't turn on?

Check that the unit is plugged into a working 230V outlet. Press the ON/OFF button. If it still doesn't turn on, contact an authorized Imarflex service center.

How do I register my warranty?

Fill out the warranty card and send it along with a copy of the receipt to [e-mail].

USER MANUAL IAP-300 Imarflex

- 50 watts • 5-layer Filter • 3-speed Control • 8-hour Timer • Wall-mounted Feature

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the air purifier, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it must be replaced with the same type and size or bring the unit to the nearest authorized service center.
4. Put the unit on flat stable surface, keep it away from the edge of counter or hang it on a safe place to avoid accident.

5. Keep curtains, furniture, flammable materials, etc. away from the unit and from the convenience outlet where the unit is plugged in.

6. Do not place on or near gas stove, electric burner or in a heated oven.

7. Children should be supervised to ensure that they do not play with the appliance.

8. This appliance is not intended to use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliances by a person responsible for their safety.

9. After use, switch OFF and unplug the unit from the convenience outlet.

10. Do not immerse the unit in water.

11. Do not use this unit other than its intended use.

12. In case of malfunctions, please bring the unit to the nearest Imarflex Customer Service Center.

13. For household use only; not intended for any business purposes.

14. Save this instruction manual for future reference.

INTRODUCTION:

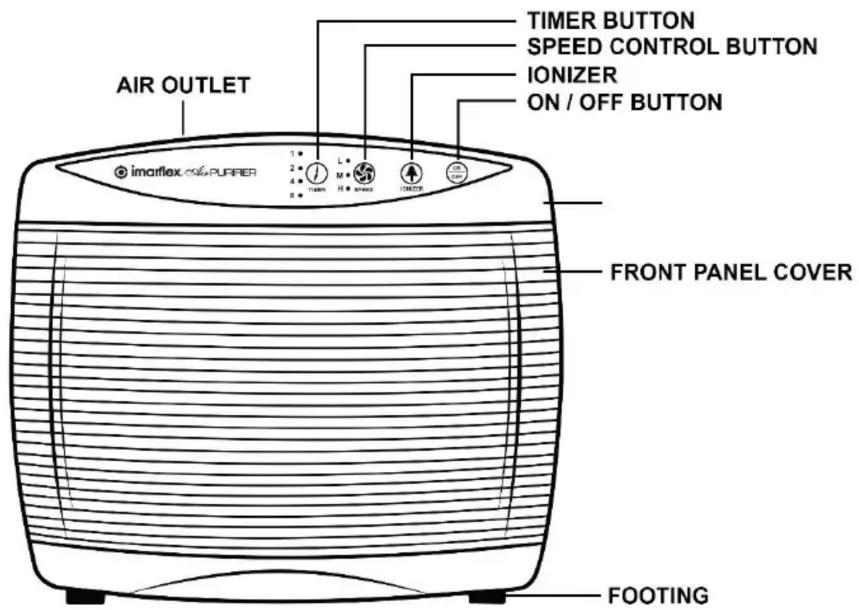

DESCRIPTION OF PARTS:

Installation:

1. Wall Mounting

• Make sure that the position for wall mounting is stable and near the power socket

• Precisely measure the size of the two holes (32.8cm) at the back portion of the unit. Use the brass nails or drilling holes

• The unit must be level and flat on the wall to avoid noise

• Unit must be wall mounted in upside down positioning

• Filter Replacement

• Make sure to unplug the unit before replacing the filter

• Detach the front panel to replace the filter
• Remove the filter into the panel. The green antiseptic filter is facing front and then put the replacement filter
• The filter must be replacing every after 2 months depends on the area where the unit was installed

HOW TO USE:

1. Remove the tapes located in the front panel cover.
2. Take out the filter and remove the plastic cover of the HEPA Filter.
3. Put the HEPA filter back into the unit followed by the front panel cover.
4. Plug the unit into the convenience outlet.
5. Press the ON/OFF button to turn ON the unit.
6. Press the lonizer button to activate the negative ion.
   Note: Once this button is press, even the ON/OFF button was turned off the ionizer function will still work unless it is press again.
7. Press the speed button to adjust the suction power from low, medium and high, the selected speed will light up.
8. Press the timer button to set the desired operation time. The time can be set from 1, 2, 4, 8 hours, the light indicator will light up. Note: The unit will automatically stop after the set time.
9. Press the ON/OFF button to stop the operation.
10. Unplug the unit every after use.

CLEANING AND MAINTENANCE:

1. Unplug the convenience outlet.
2. Remove the front panel cover and wash it by soap and water.
3. Let it dry and put it back to the unit.
4. Wipe the body with damp cloth or you can use vacuum cleaner to clean the unit.
5. Wipe and dry the parts and unit before reassembling.
6. HEPA Filter is replaceable and not washable. HEPA Filter needs to be replaced every after six months to one year depending on the area and frequency of use.

REMINDER: Please do not forget to fill up and send the warranty card with a copy of the receipt to our email address [e-mail]

Distributed By: Sabretech Technology Inc.

103-113 Sen Gil Puyat Ave. Pasay

Made in Taiwan
