Type	Electric Standing Desk
Model	MI-15009
Brand	Mount-It!
Overall Dimensions (W x D x H)	1200 x 600 x (720 - 1210) mm
Desktop Thickness	25 mm
Weight Capacity	80 kg (176 lbs)
Product Weight	25 kg (55 lbs)
Power Supply	AC 100-240V, 50/60Hz
Motor Type	Dual electric motors
Adjustment Speed	38 mm/s
Noise Level	< 50 dB
Memory Presets	4 programmable height positions
Anti-Collision Technology	Yes
Control Panel	LED display with touch buttons
Cable Management	Included cable tray
Material	Steel frame, Melamine desktop
Color	Black frame, various desktop colors
Assembly Required	Yes, with included tools and instructions
Warranty	5 years on frame, 2 years on electronics
Cleaning Instructions	Wipe with a soft, damp cloth; avoid harsh chemicals
Safety Features	Anti-collision system, child lock, overload protection
Spare Parts Availability	Contact Mount-It! customer support for replacements

Frequently Asked Questions - MI-15009 Mount-It!

What tools are needed for assembly?

All necessary tools are included in the package. You will only need a phillips screwdriver for some steps.

What is the maximum weight capacity of the desk?

The desk supports up to 80 kg (176 lbs) evenly distributed.

What is the height adjustment range?

The desk adjusts from 720 mm to 1210 mm (28.3 to 47.6 inches).

How do I set a height memory preset?

Press the M button on the control panel, then press a number (1-4) to save the current height. To recall, simply press the corresponding number.

What should I do if the desk does not move?

Check the power connection and ensure the desk is not overloaded. If the problem persists, perform a reset by pressing and holding the down button until the desk moves down slightly, then release.

Can I use the desk on carpet?

Yes, but ensure the floor is level. The desk includes adjustable leveling feet to compensate for uneven surfaces.

Is there a warranty on the desk?

The frame is covered by a 5-year warranty, and the electronics have a 2-year warranty. Contact Mount-It! for support.

How do I clean the desk?

Use a soft, damp cloth with mild soap if needed. Avoid abrasive cleaners or solvents that may damage the finish.

Can I attach a monitor arm to this desk?

Yes, the desktop is suitable for clamp-on monitor arms. Ensure the desk weight capacity is not exceeded.

What is the desk depth?

The desktop depth is 600 mm (23.6 inches), providing ample space for monitors and accessories.

USER MANUAL MI-15009 Mount-It!

Line drawing of a two-tiered desk chair with metal frame structure (no text or symbols)

Please scan this QR code to visit the product page

38 INCH WIDE STANDING DESK CONVERTER

HAVE QUESTIONS?

Monday - Friday from 8:00am - 4:00pm PST

[e-mail]

[phone]

www.mount-it.com

Thank you for choosing Mount-It!

EN

Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact Mount-It! for assistance.

CAUTION: Use with products heavier than the rated weights indicated may result in instability causing possible injury.
- Please closely follow the assembly instructions. Improper installation may result in damage or serious personal injury. - This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.
IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, contact Mount-It! for a replacement.
MAINTENANCE: Check that the product is secure and safe to use at regular intervals (at least every three months).

DE

Desktop Weight: (8.8-33lbs)

Keyboard Weight: (≤5lbs)

CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

PACKAGE CONTENTS

Line drawing of a flatboard table with a slot and side supports (no text or symbols)

A (x1)
DESK CONVERTER

B (x1)
KEYBOARD TRAY

C (x1)
KEYBOARD TRAY BRACKETS

D (x6)
M5x12 BOLT

E (x6)
M5x12 BOLT

F (x2)
RUBBER PADS

G (x2)
CABLE TIES

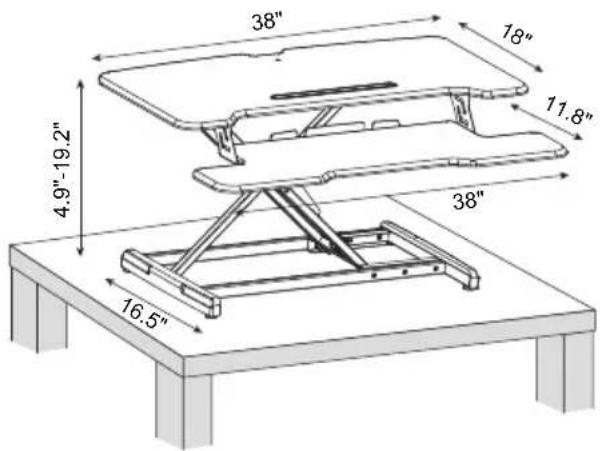

DIMENSIONS & WEIGHT CAPACITY

Total standing desk converter weight capacity is 33lbs* (desktop + keyboard tray.) Keyboard tray weight capacity 5lbs max.

*Maximum weight capacity is 45lbs. 33lbs capacity is the maximum recommended load considered safe for raising and lowering the standing desk converter. The desk is capable of handling heavier monitors and computers if the user is capable of lifting and lowering the converter.

WARNING

PINCH POINT

DO NOT place hands on or near support bars. Pinch points are created during lifting and lowering the worksurface. Failure to follow these instructions may result in serious personal injury.

Silhouette of a hand breaking a vertical line with a broken handle (no text or symbols)

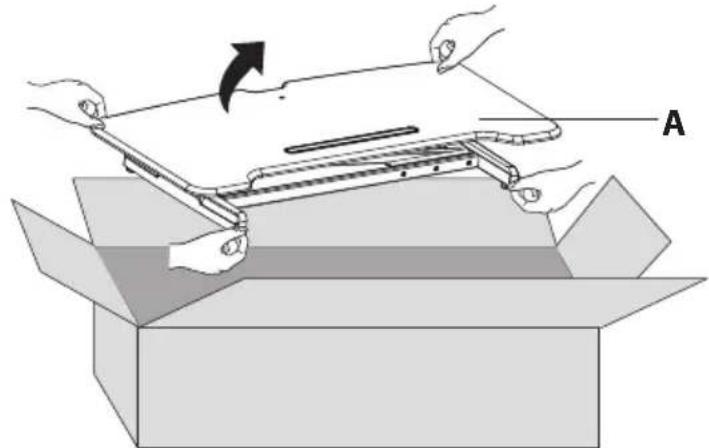

Step 1

Remove the Desk Converter from the Box

Remove the Desk Converter (#A) from the packaging.

Note: Two person lift recommended.

Illustration of hands assembling a mechanical component into an open box, with no visible text or symbols.

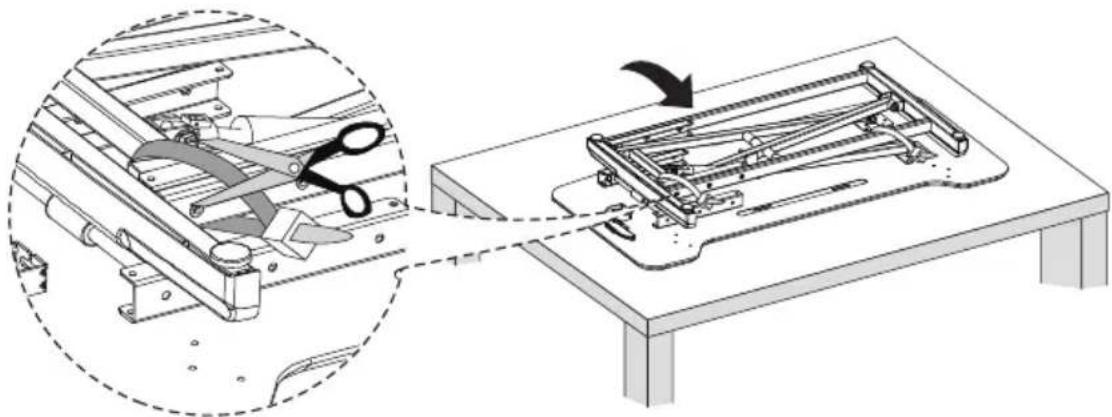

Step 2

Place the Desk Converter on a Level Surface

Place the desk converter on a level surface (such as a desk, table, or the floor.) Then, cut the cable tie.

Technical illustration of a mechanical assembly with a magnified inset showing a cutting tool interacting with a base plate (no text or symbols present)

NOTE: You may turn the desktop on its side or upside down to loosen cable tie.

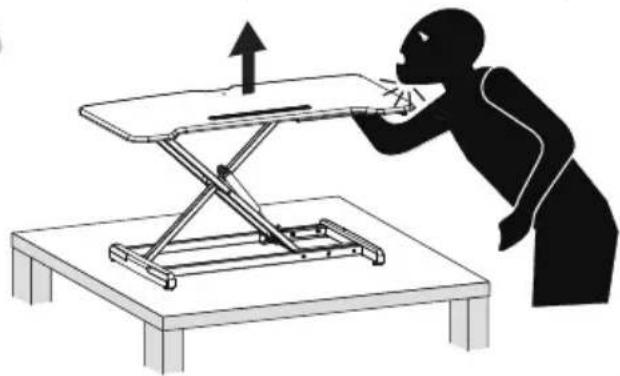

Take care not to stand or lean directly above the product, and ensure your hands and fingers stay clear of the mechanism, as the product may be under pressure and might rise suddenly.

Silhouette of a person using a folding table to lift or stand, with an upward arrow indicating motion (no text or symbols)

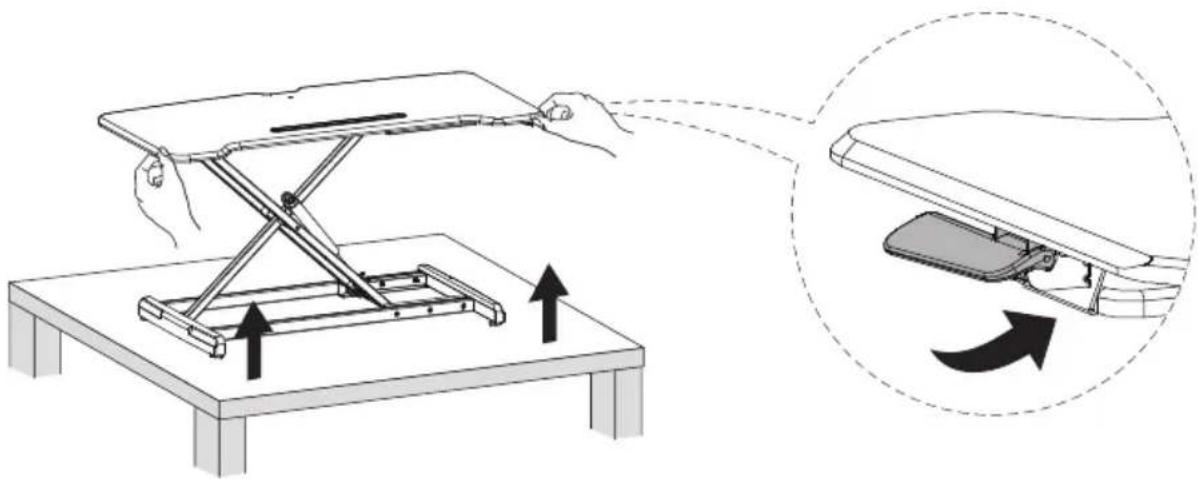

Step 3

Raise the Desk Converter

Squeeze the lever on the side of the Desk Converter and raise it to its highest position.

Step 4

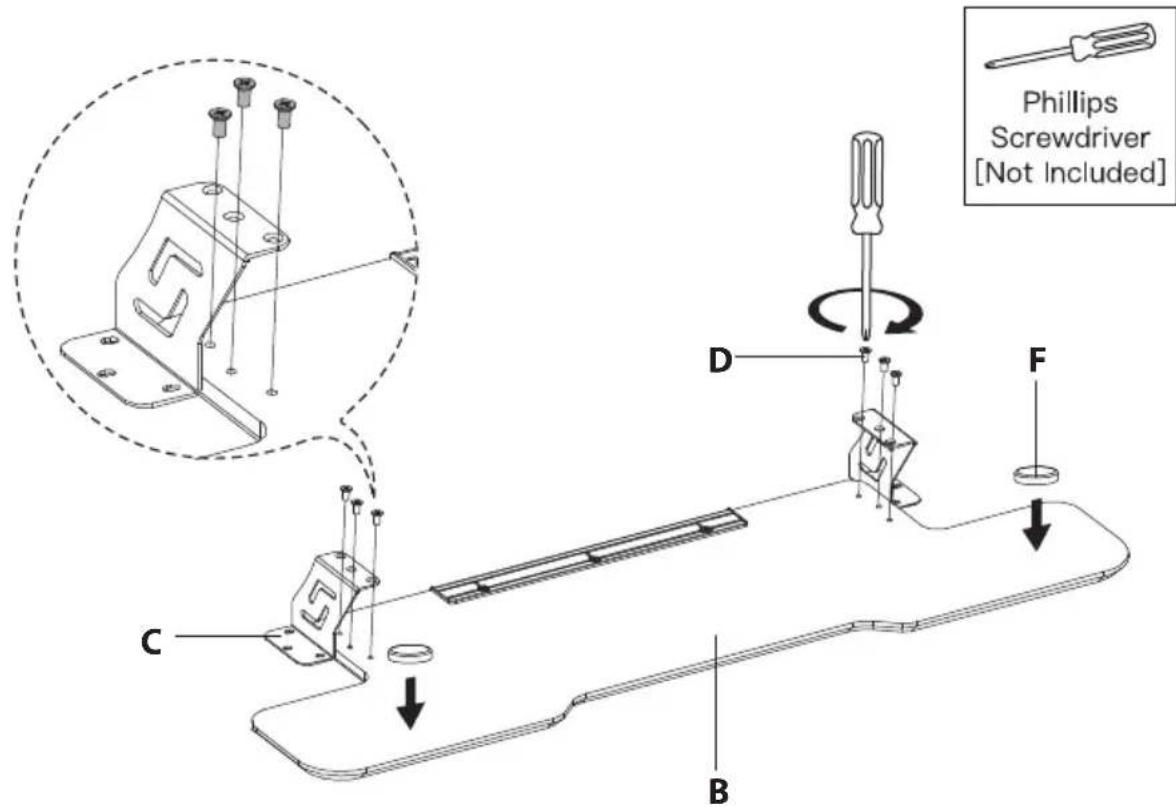

Attach the Keyboard Brackets

Attach the Keyboard Tray Brackets (#C) to the bolt holes on the underside of the Keyboard Tray (#B) as shown, using the Bolts (#D).

Attach the Rubber Pads (#F) on the underside of the Keyboard Tray (#B).

Step 5

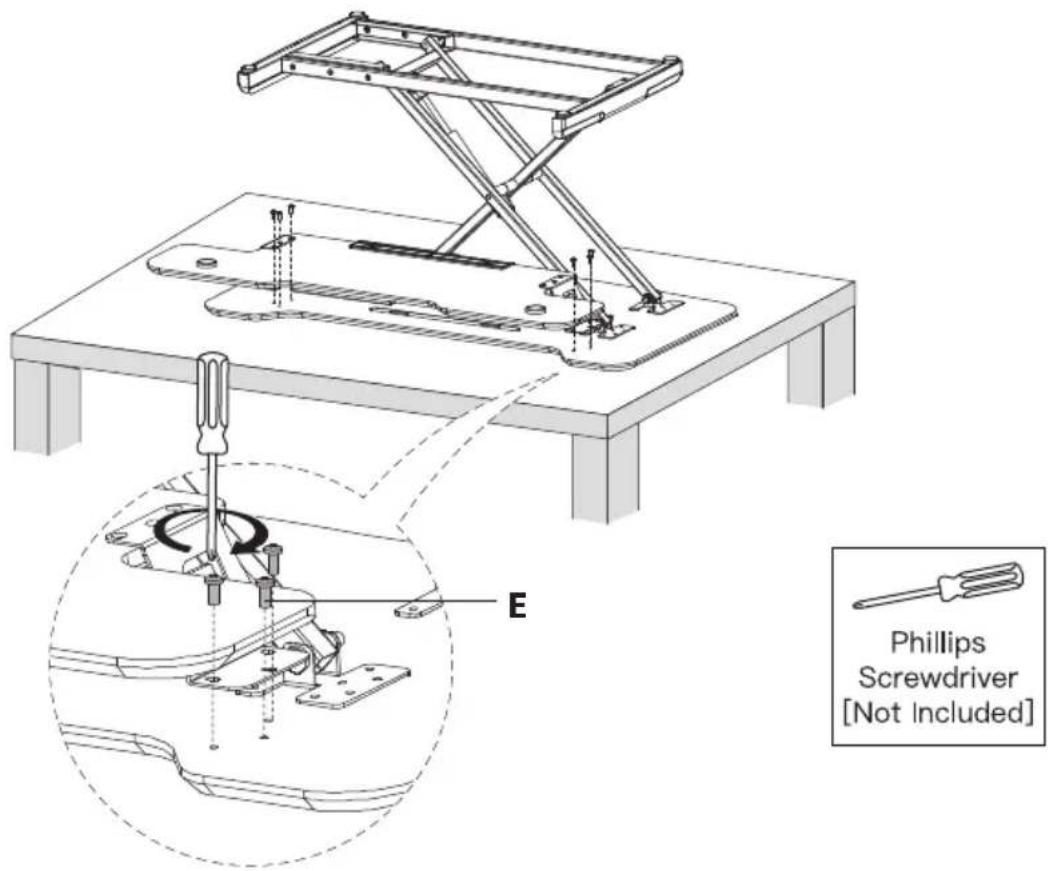

Attach the Keyboard Tray

Turn the desk converter upside down.

Attach the keyboard tray bracket (#C) to the desk converter (#A) using the bolts (#E).

Step 6

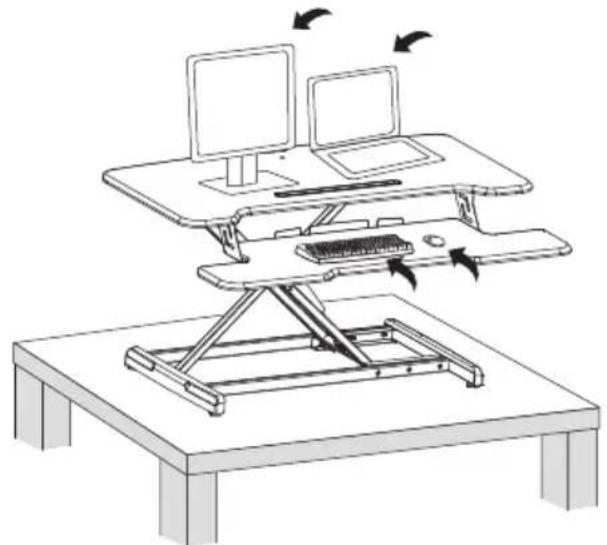

Place Items on the Desk Converter

Place all monitors, laptops, or other equipment on the desk. Ensure none of the equipment is hanging off the edge or otherwise unstable/unbalanced. Refer to the warnings section at the end of the manual for further information on equipment placement.

Line drawing of a desktop desk with two monitors and a keyboard, showing mechanical supports and directional arrows (no text or symbols)

Step 7

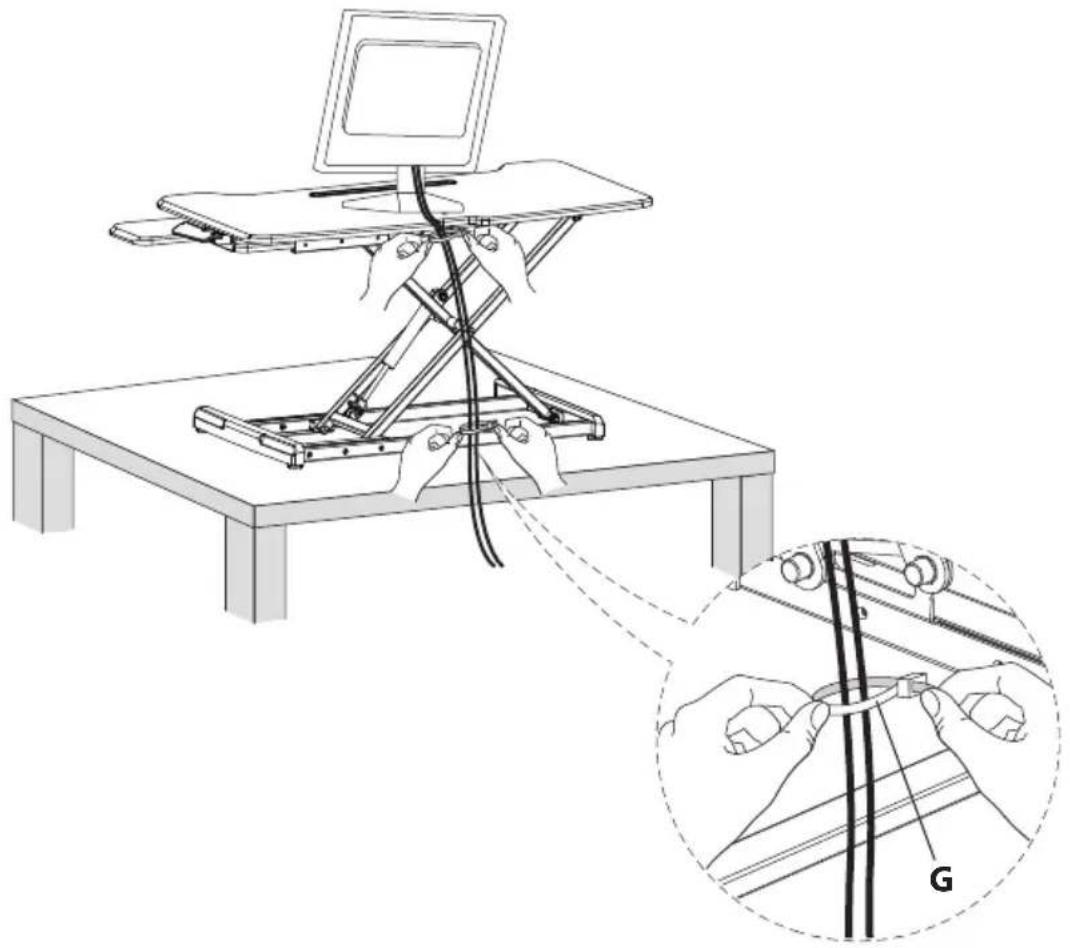

Worksurface Cable Management

(Optional Step) Use the provided Cable Ties (#G) to collect cables for all peripheral devices on the worksurface. Ensure that enough slack is left in the cables so that they do not pull any devices when raising or lowering the desk.

Warnings

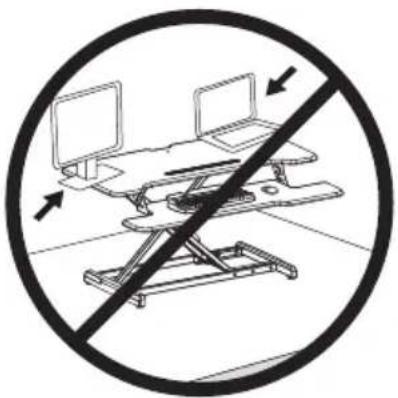

Diagram of a desktop workstation with two computers and a diagonal line indicating no movement or restriction (no text or symbols present)

Keep all monitors, laptops and other equipment fully on the work surface at all times. Allowing any part of these to hang off the edge may result in property damage and/or personal injury.

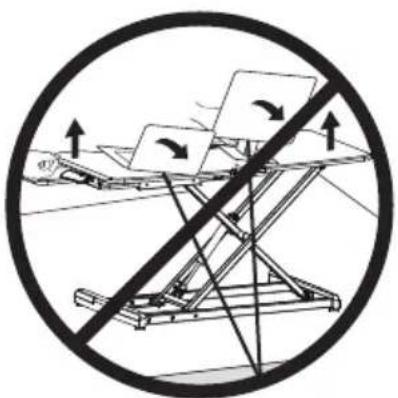

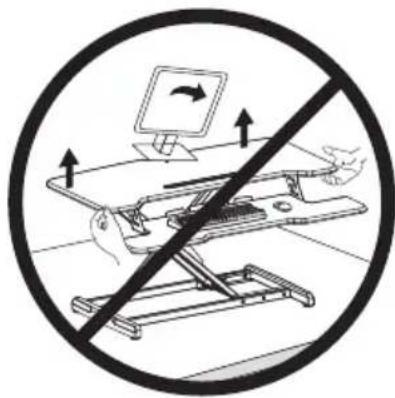

Raise the work surface slowly. Raising the work surface too quickly may cause monitors, laptops and other equipment to fall resulting in property damage and/or personal injury.

Diagram of a mechanical device with no visible text or symbols, featuring a diagonal line and directional arrows (no text or labels)

Ensure that enough slack is left in the cables so that they do not pull any devices when raising or lowering the desk and allow for the full range of vertical motion (19.2"). Failure to provide sufficient cable length may result in property damage or personal injury.

Diagram of a device with a diagonal line and arrows indicating no movement or prohibition (no text or symbols present)

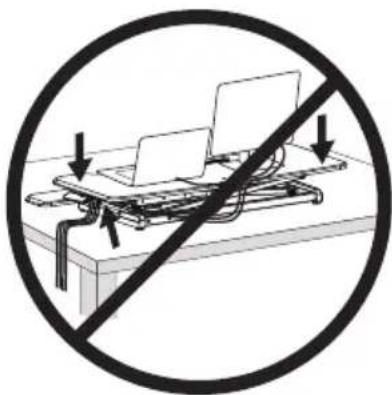

To avoid the potential to pinch cables in the mechanism it is important to follow the cable routing examples in this manual. Do not allow cables to pass through or rest upon the legs. Failure to follow these instructions may result in equipment damage or personal injury.
