USER MANUAL MI-15002 Mount-It!

Line drawing of a simple desk with two vertical supports and a curved top panel (no text or symbols)

Please scan this QR code to visit the product page

L-Shaped Sit Stand Desk

HAVE QUESTIONS?

Monday - Friday from 8:00am - 4:00pm PST

[e-mail]

[phone]

www.mount-it.com

Thank you for choosing Mount-It!

EN

Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact Mount-It! for assistance.

CAUTION: Use with products heavier than the rated weights indicated may result in instability causing possible injury.
- Please closely follow the assembly instructions. Improper installation may result in damage or serious personal injury. - This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.
IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, contact Mount-It! for a replacement.
MAINTENANCE: Check that the product is secure and safe to use at regular intervals (at least every three months).

DE

USING THE CONTROLLER
Please retain these instructions for future reference

	Short-press the [S] button, and the display will flash. Press the 1, 2, or 3 button to save the current height setting to that button.
	Press the 1 button, and the desk will move to the height that was previously set for that button.
	Press the 2 button, and the desk will move to the height that was previously set for that button.
	Press the 3 button, and the desk will move to the height that was previously set for that button.
[GDYS]	Press the button to raise the desk continuously until it reaches the highest position of 47.2" (120cm) or the button is released.
	Press the button to lower the desk continuously until it reaches the lowest position of 28.3" (72cm) or the button is released.
Settings
Change Display Height Units		Press and hold the S button until a flashing 'S-' is displayed. Press S again, and 'Un' is displayed. Press S to select it, press or switch between 'IN' (imperial) and 'SI' (metric), and press to save your choice.
Change Collision Detection Sensitivity		Press and hold the S button until a flashing 'S-' is displayed. Press S again, and 'Un' is displayed. Press or switch to 'CF' and press to select it. Press or switch between off, low, normal, and high sensitivity. Press to save your choice.
Reset		Press and hold the button for 5 seconds, and the screen will show 'RES.' Continue holding until the desk goes down to its lowest level and comes back up slightly.
Protection Mode Error Codes
Hot		Overheating Protection: When the motor has been working continuously for 2 minutes, it will stop operating to prevent damage from overheating. Wait for at least 18 minutes before making any further height adjustment.
E10		Sensor Malfunction Warning: Motor safety sensor can't be detected. Power off, check the connection between the motor and controller, and power back on again.
E20		Overloading Warning: Max load exceeded. If raising the desk, remove objects from the desk to reduce weight and try again. If lowering the desk, power off, take the things off the desk, power back on, and try again.
E02		Operation Status Warning: The desk stops moving if vibration, impact, or incline are detected. If this detection is incorrect, follow the reset instructions before continuing use.
E32		Overvoltage Protection: Input voltage too high. If the correct AC adapter is being used, power off the desk, check the connection between power and the controller, and power on again.
E31		Undervoltage Protection: Input voltage too low. If the correct AC adapter is being used, power off the desk, check the connection between power and the controller, and power on again.
E60		Unequal Leg Height Warning: Power off the desk and check whether the left and right legs are at the same height. Adjust if necessary by following the instructions. Power on again.
-		Cable Disconnection Warning: Check motor and controller cable connections. Normal operation should return once all connectors are properly connected.

PACKAGE CONTENTS

A (x1)

DESKTOP

E (x2)

LEGS

I (x1)

CROSSBAR

M(x2)

CLOTH DRAWER BRACKETS

Q (x1)
CONTROL PANEL

B (x1)

DESKTOP

F (x1)

CROSSBAR

J (x1)

CROSSBAR

N (x1)

CLOTH DRAWER

R (x1)
POWER ADAPTER

C (x1)

LONG SIDE PLATE

G (x1)

CROSSBAR

K (x1)

LONG FOOT

O (x1)

CABLE HOLDER TEMPLATE

S (x1)
MOTOR CONNECTION CABLE

HARDWARE CONTENTS

a (x32)

M5x16 SCREW

e (x1)
5mm
HEX WRENCH

b (x24)

M6x11 BOLT M3.5x19 SCREW

f (x1)
4mm
HEX WRENCH

c (x2)

g (x5)
CABLE MANAGEMENT CLIP

d (x8)

M6x10 BOLT

h (x2)
TABLETOP CONNECTORS

i (x12)
RUBBER PADS

j (x2)
HEADPHONE HOOKS

k (x3)
WOOD DOWELS

EXTRA PARTS

a (x2)
M5x16 SCREW

b (x2)
M6x11 BOLT

d (x2)
M6x10 BOLT

k (x1)
WOOD DOWELS

i (x2)
RUBBER PADS

Step 1

Assembling the Leg Sections

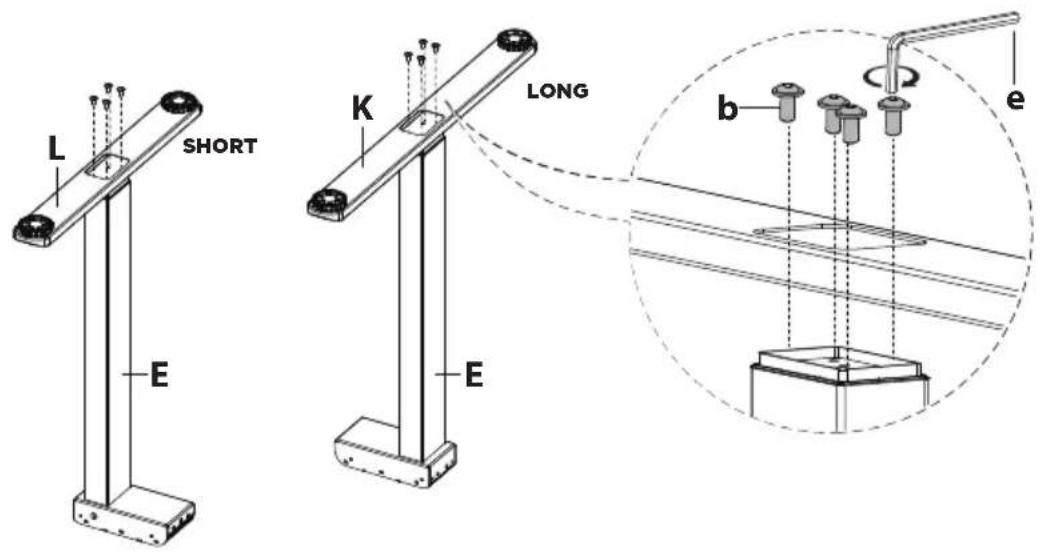

1-1 Assemble the Feet

Attach the Short Foot (#L) to one Leg (#E), using Bolts (#b) and tighten until secure using the 5mm Hex Wrench (#e).

Attach the Long Foot (#K) to the other Leg (#E), using Bolts (#b) and tighten until secure using the 5mm Hex Wrench (#e).

L SHORT E K LONG b e E

1-2 Assembling the Side Plates

Attach the Short Side Plate (#D) to the Leg (#E) with Short Foot (#L) using Bolts (#d). Attach the Long Side Plate (#C) to the Leg (#E) with Long Foot (#K) using Bolts (#d). Ensure that the Side Plates are oriented as shown in the image.

SHORT D C LONG L K SHORT LONG d f

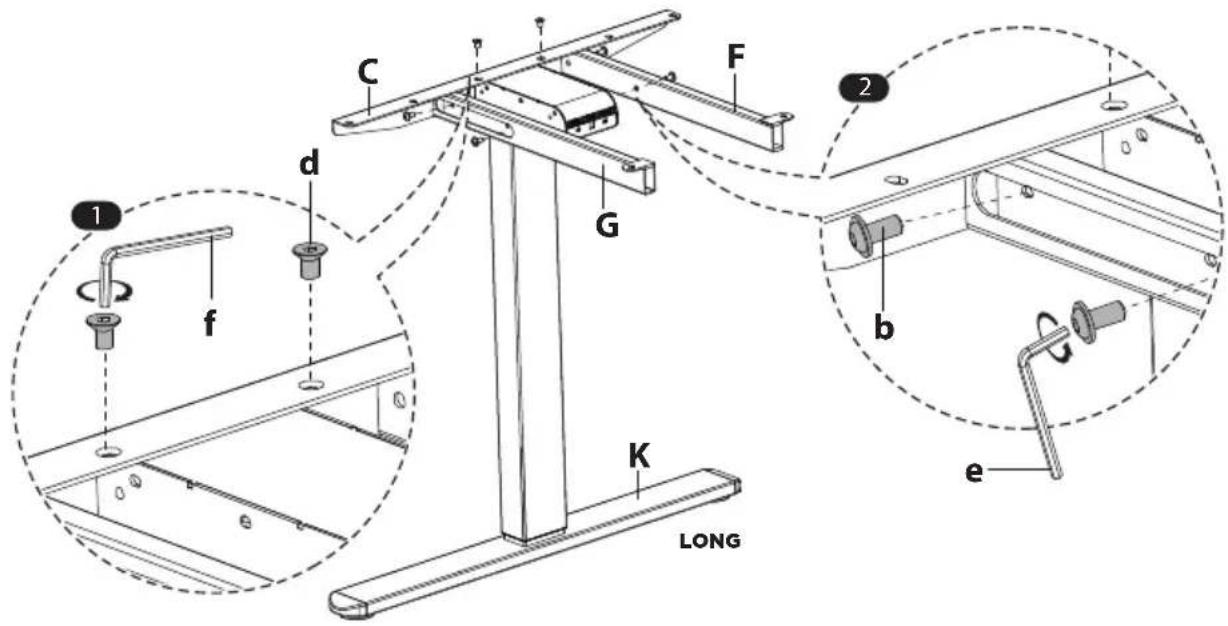

1-3 Assembling the Long Crossbar

As shown in magnification bubble1, tighten the Bolts (#d) using 4mm Hex Wrench (#f)

As shown in magnification bubble2, attach the Crossbar (#F and #G) to the leg with Long Foot using the Bolts (#b) and tighten until secure using the 5mm Hex Wrench (#e).

C F d G 1 f K LONG 2 b e

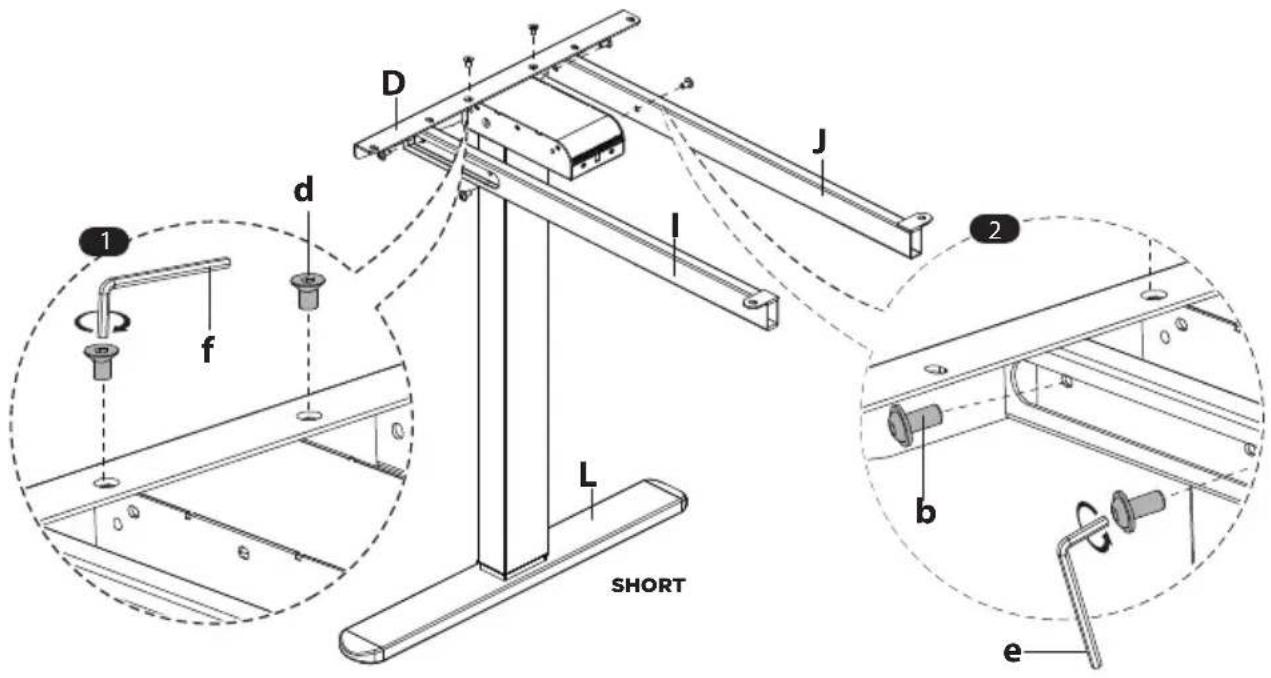

1-4 Assembling the Short Crossbar

As shown in magnification bubble1, tighten the Bolts (#d) using 4mm Hex Wrench (#f)

As shown in magnification bubble2, attach the Crossbar (#1 and #J) to the leg with Short Foot using the Bolts (#b) and tighten until secure using the 5mm Hex Wrench (#e).

1 f d D I J 2 SHORT b e

Step 2

Assembling the Legs and Crossbar

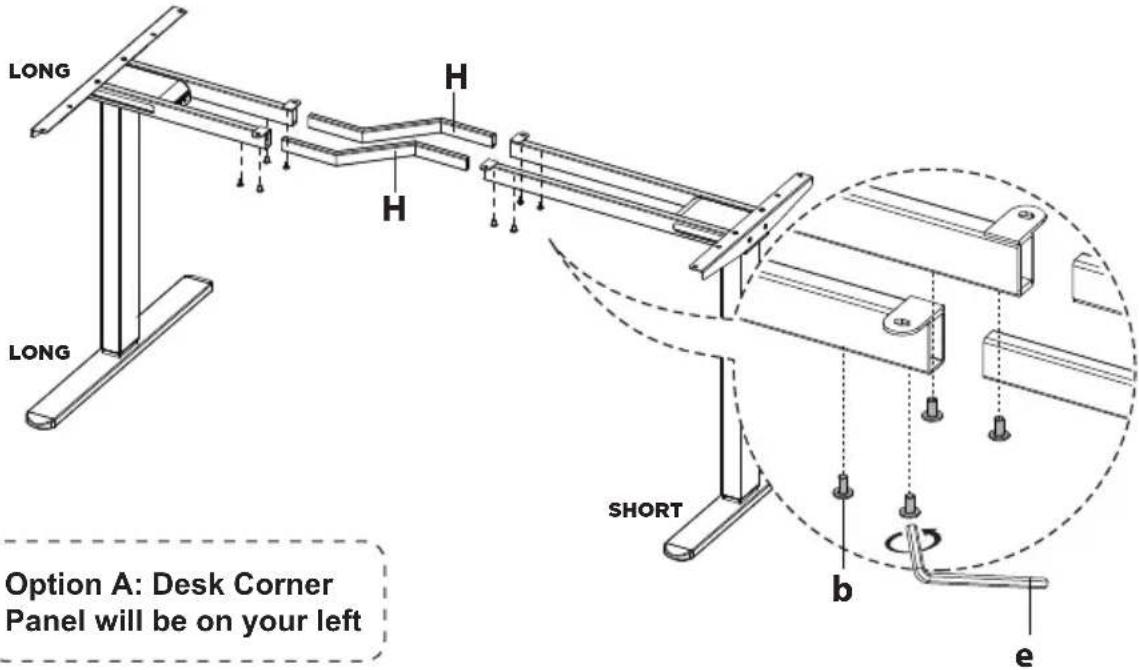

2-1 Attach the Connector

Attach the Connector (#H) to the left and right Crossbars as shown in the image, using Bolts (#b) and tighten until secure using the 5mm Hex Wrench (#e).

LONG LONG H H SHORT b e Option A: Desk Corner Panel will be on your left

2-2 Attach the Rubber Pad

Attach the Rubber Pads (#i) to the top of the Frame in the locations shown here. All 12 pads will be used.

Technical line drawing of a mechanical frame assembly with a magnified inset showing a circular component (no text or symbols)

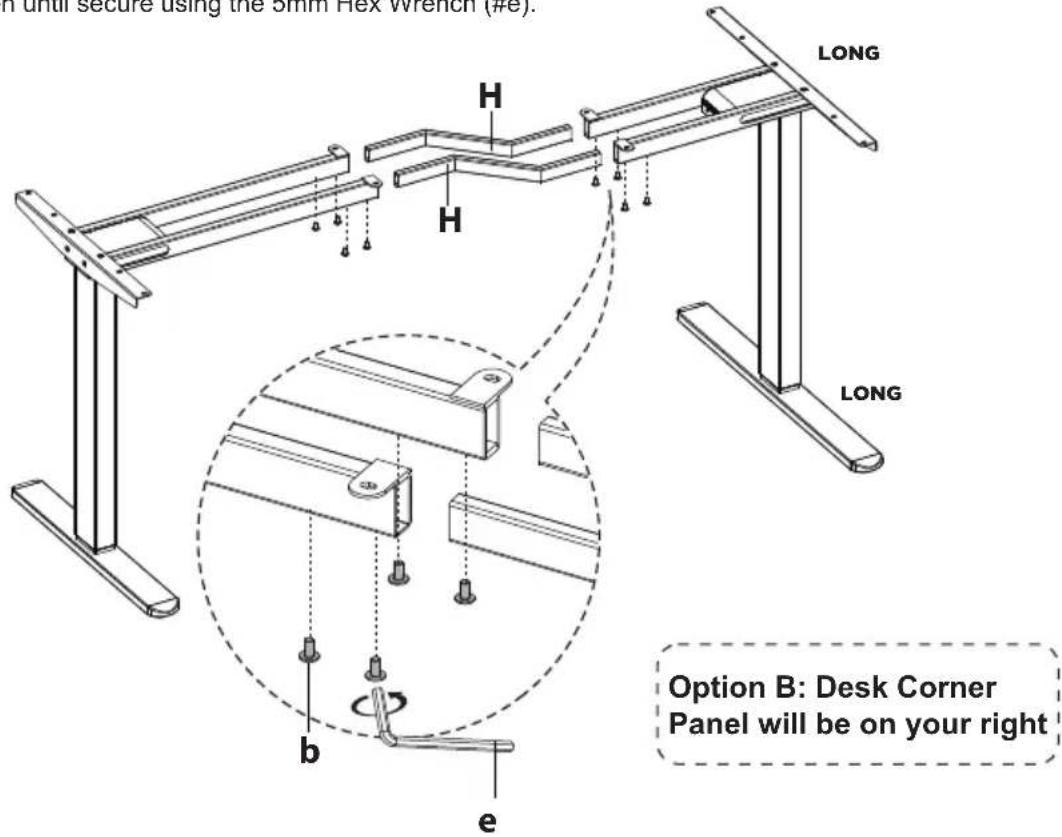

2-1 Attach the Connector

Attach the Connector (#H) to the left and right Crossbars as shown in the image, using Bolts (#b) and tighten until secure using the 5mm Hex Wrench (#e).

n until secure using the 5mm Hex Wrench (#e). LONG H H LONG Option B: Desk Corner Panel will be on your right b e

2-2 Attach the Rubber Pad

Attach the Rubber Pads (#i) to the top of the Frame in the locations shown here. All 12 pads will be used.

Technical line drawing of a mechanical assembly with a magnified inset showing a circular component (no text or symbols present)

Step 3

Assembling the Desktop

3-1 Mark the Locations for the Screws (Control Panel on the Left)

Lay the Desktop (#A) piece out in the configuration shown below.

Position the Template (#P) on the Desktop and use a pencil to mark all the locations for the screws through the template.

CAUTION: Before marking or installing screws ensure your desk frame has been assembled according to Option A so that the control panel will be on the left-hand side after assembly.

P

Hand holding a pen tip over a flat surface, no text or symbols present

Option A: Desk Corner Panel will be on your left

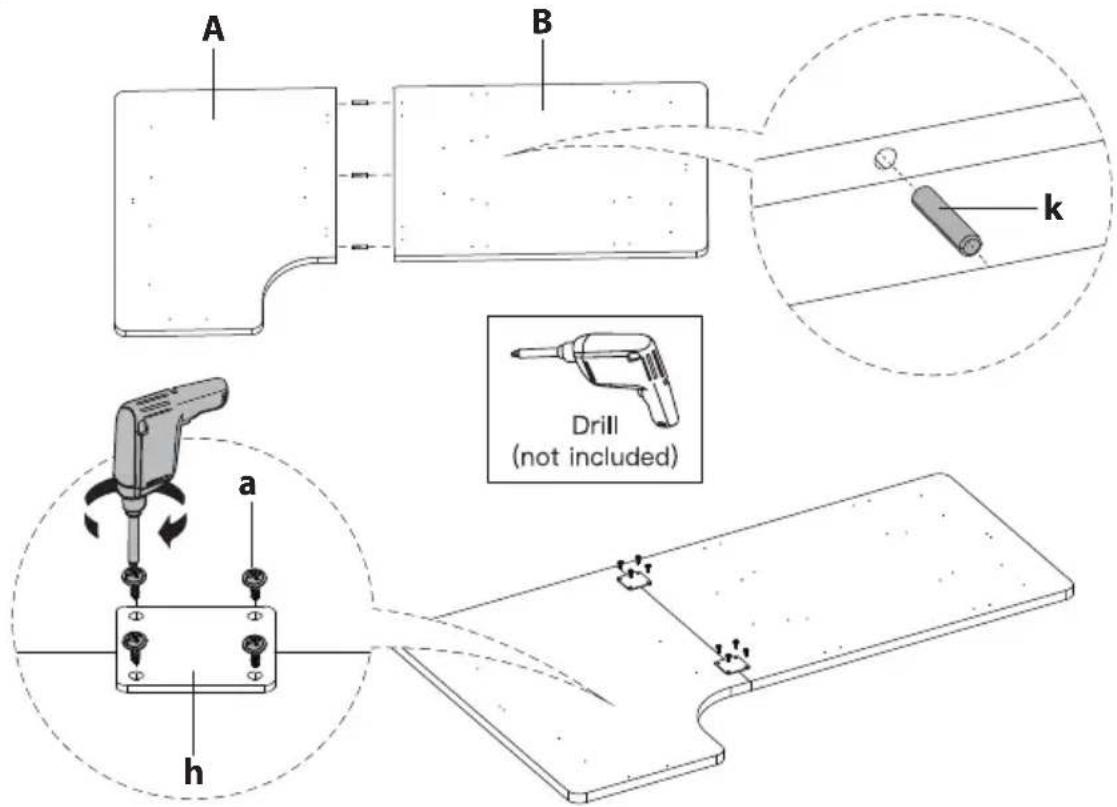

3-2 Assemble the Desktop together

Lay the Desktop (#A, B) pieces out upside-down in the configuration shown below.

Place the Wood Dowels (#k) into the holes on the edge of the desktop pieces and press the boards together over each end of the dowels.

Use the Tabletop Connectors (#h) in the locations shown and secure in place using Screws (#a). Tighten until secure.

B A k a h Drill (not included)

3-1 Mark the Locations for the Screws (Control Panel on the Right)

Lay the Desktop (#A) piece out in the configuration shown below.

Position the Template (#P) on the Desktop and use a pencil to mark all the locations for the screws through the template.

CAUTION: Before marking or installing screws ensure your desk frame has been assembled according to Option A so that the control panel will be on the left-hand side after assembly.

P

Illustration of a hand holding a pen over a flat surface, no text or symbols present

Option B: Desk Corner Panel will be on your right

3-2 Assemble the Desktop together

Lay the Desktop (#A, B) pieces out upside-down in the configuration shown below.

Place the Wood Dowels (#k) into the holes on the edge of the desktop pieces and press the boards together over each end of the dowels.

Use the Tabletop Connectors (#h) in the locations shown and secure in place using Screws (#a). Tighten until secure.

A B k a h Drill (not included)

Step 4

Attaching the Frame to the Desktop

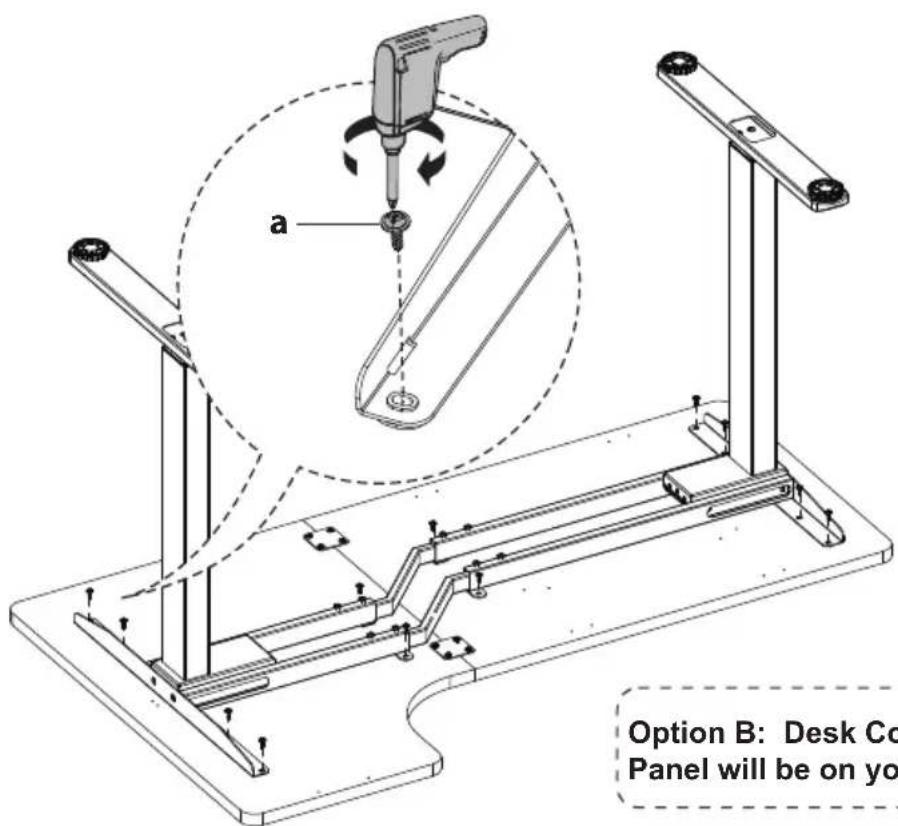

Turn the leg frames over and carefully place it upside down on the desktop.

Align the holes on the frame with the holes on the tabletop. Attach the Desk Frame to the Desktop using Screws (#a). Tighten until secure.

a Desk Corner be on your left

Option A: Desk Corner Panel will be on your left

a Option B: Desk Co Panel will be on you

Option B: Desk Corner Panel will be on your right

Step 5

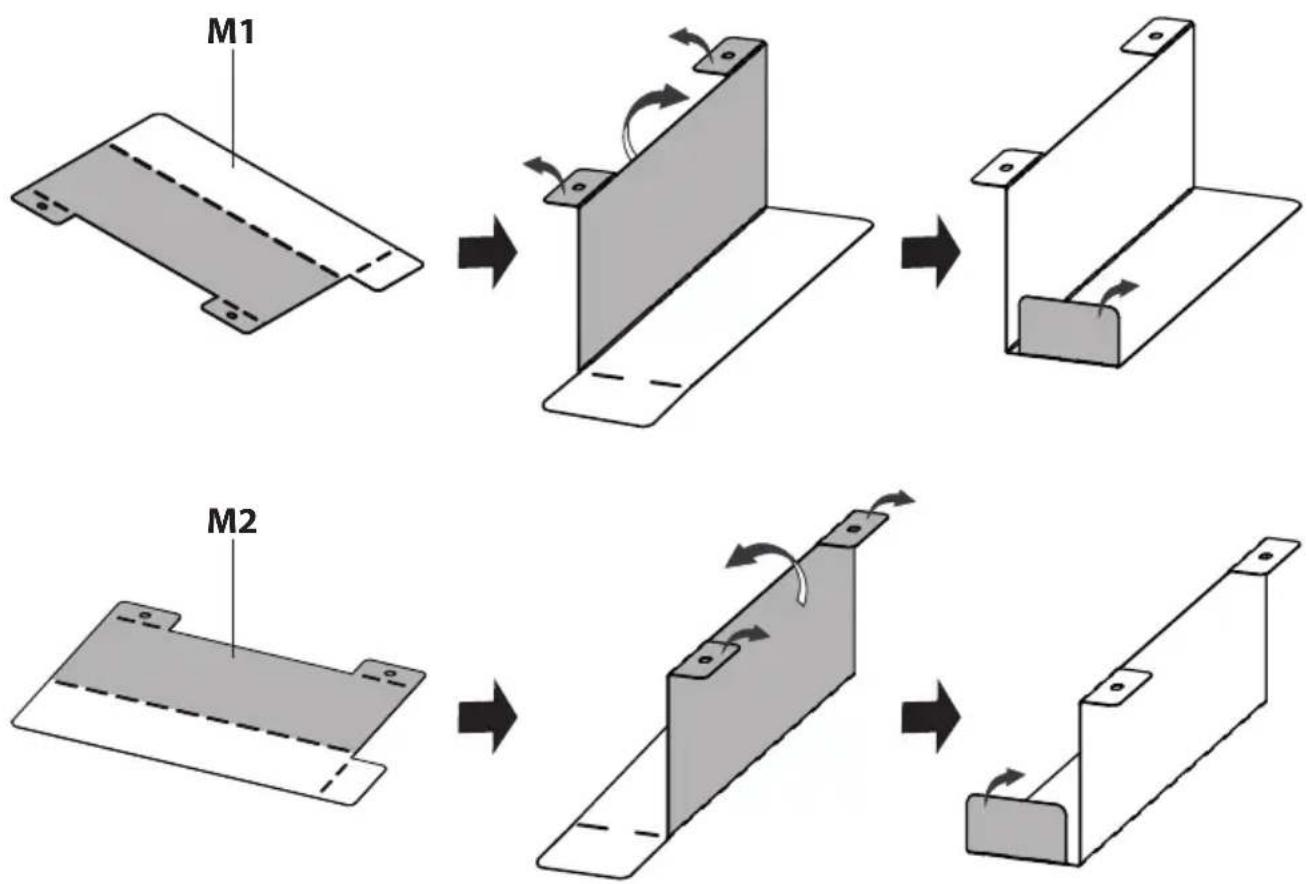

Fold the Cable Holder and Cloth Drawer Brackets

Fold the Cable Holder and Cloth Drawer Brackets into the shape shown in the image. Fold with care, do not fold and unfold. If needed use the edge of a table or other solid edge to assist with folding them.

Cable Holder B

Cloth Drawer Brackets

Step 6

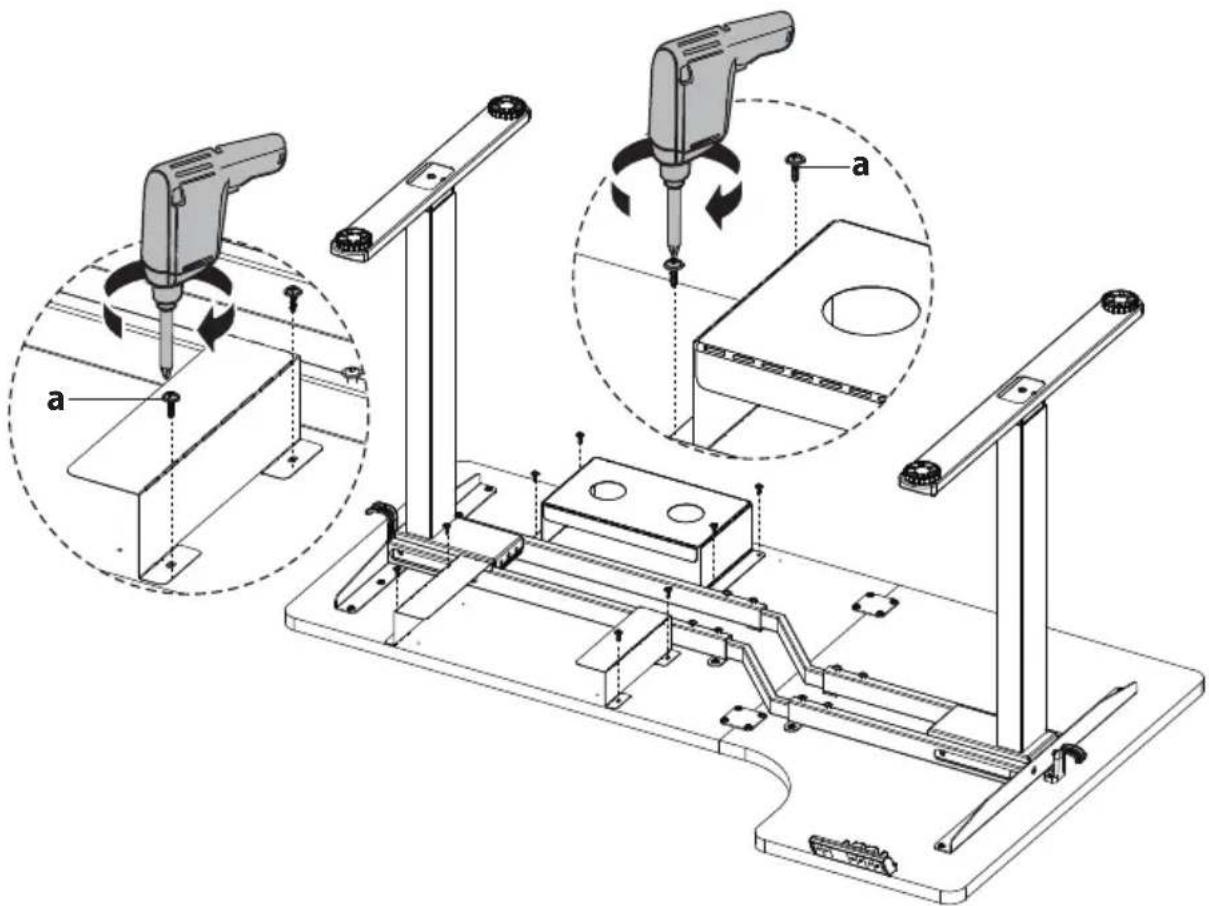

Assembling the Cable Holder / Headphone Hook / Controller and Cloth Drawer Brackets

Using Screws (#c) attach the Control Panel (#Q) to the locations shown. Using Screws (#a) attach the Headphone Hooks (#j) to the locations shown. Attach the Cloth Drawer Brackets (#M) as shown so that they face each other, then attach the Cable Holder (#O). Ensure the Drawer brackets are installed on the outer set of holes as shown below.

Option A: Desk Corner Panel will be on your left a j c Q

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or movement.

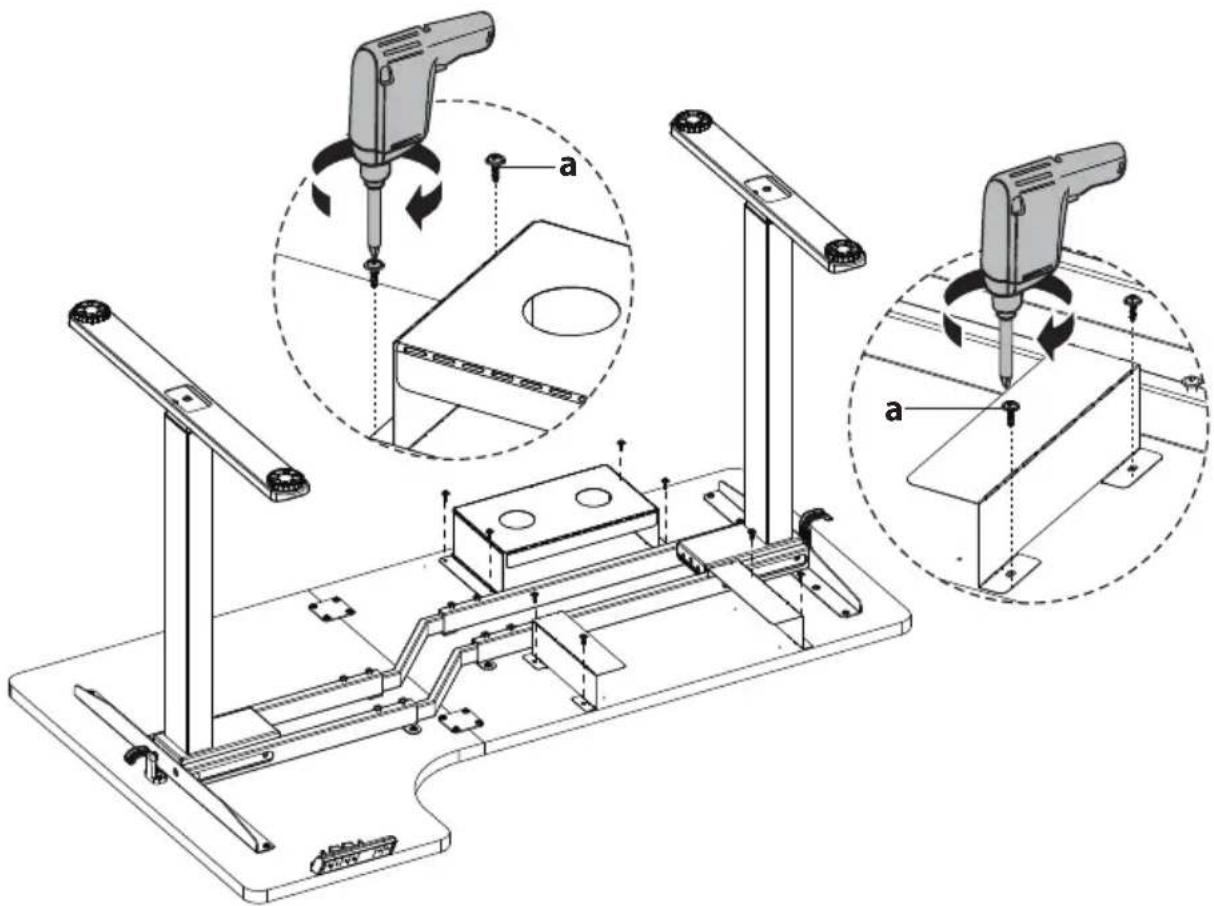

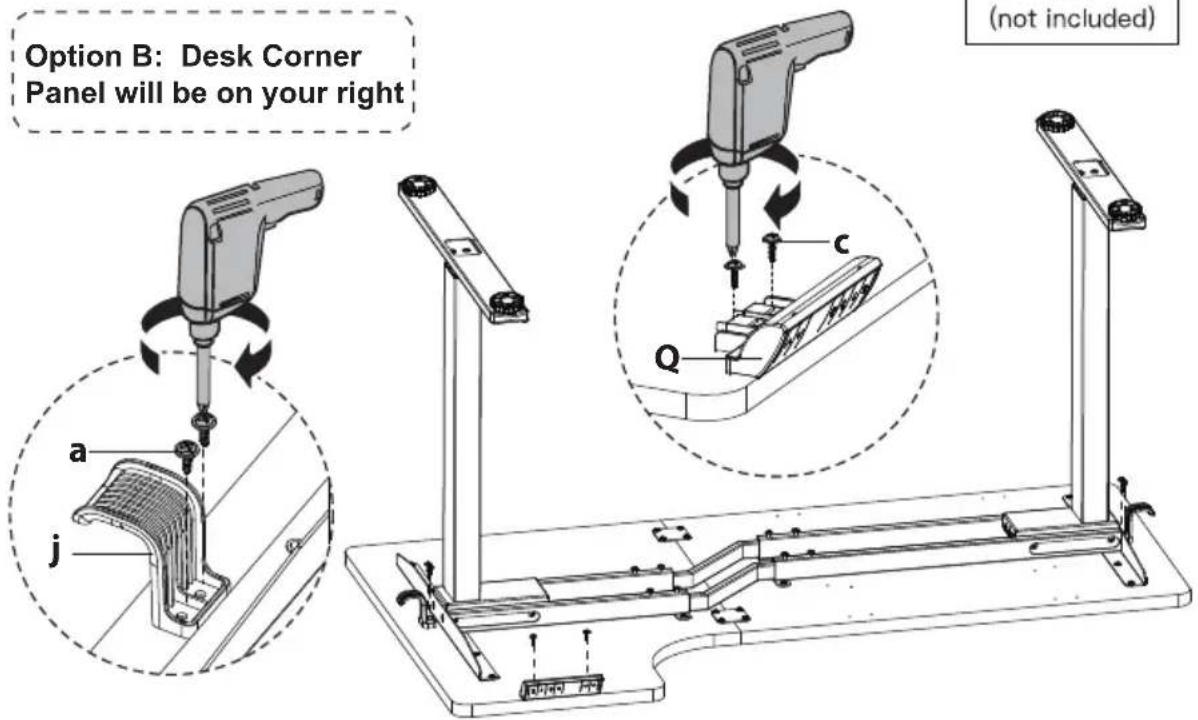

Using Screws (#c) attach the Control Panel (#Q) to the locations shown. Using Screws (#a) attach the Headphone Hooks (#j) to the locations shown. Attach the Cloth Drawer Brackets (#M) as shown so that they face each other, then attach the Cable Holder (#O). Ensure the Drawer brackets are installed on the outer set of holes as shown below.

Drill (not included)

Option B: Desk Corner Panel will be on your right (a) j (c) Q (not included)

Technical diagram showing mechanical assembly with labeled parts and motion arrows, including a tool and a component with circular annotations.

Step 7

Connect the Power Lines and Attach the Cable Clips

Connect the Power Lines

Connect the Power Lines as shown in the image.

Attach the Cable Clips

Attach the Cable Clips (#g) to the underside of the desktop as needed. It is recommended that they be placed approximately in the middle of each length of wire to prevent the cords from hanging too low. Open the Cable Clip as shown in the magnification bubbles, insert the cord and close the clip again.

Option A: Desk Corner Panel will be on your left

Technical diagram of a mechanical assembly with labeled components and three-view diagrams showing assembly steps.

Diagram of three connected electrical connectors inside a dashed circle (no text or symbols)

2-1 ① ②

Connect power

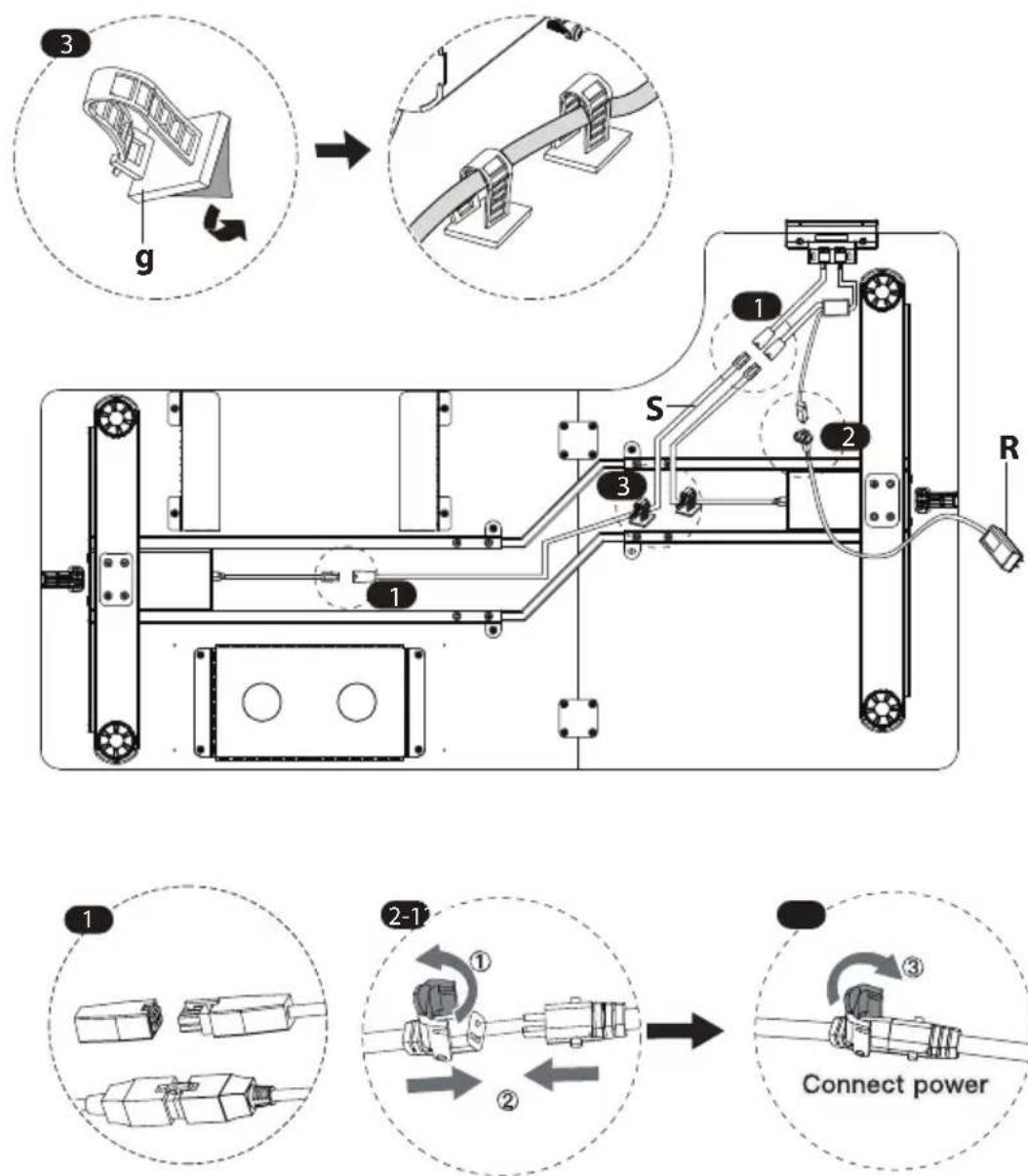

Connect the Power Lines

Connect the Power Lines as shown in the image.

Attach the Cable Clips

Attach the Cable Clips (#g) to the underside of the desktop as needed. It is recommended that they be placed approximately in the middle of each length of wire to prevent the cords from hanging too low. Open the Cable Clip as shown in the magnification bubbles, insert the cord and close the clip again.

Option B: Desk Corner Panel will be on your right

Step 8

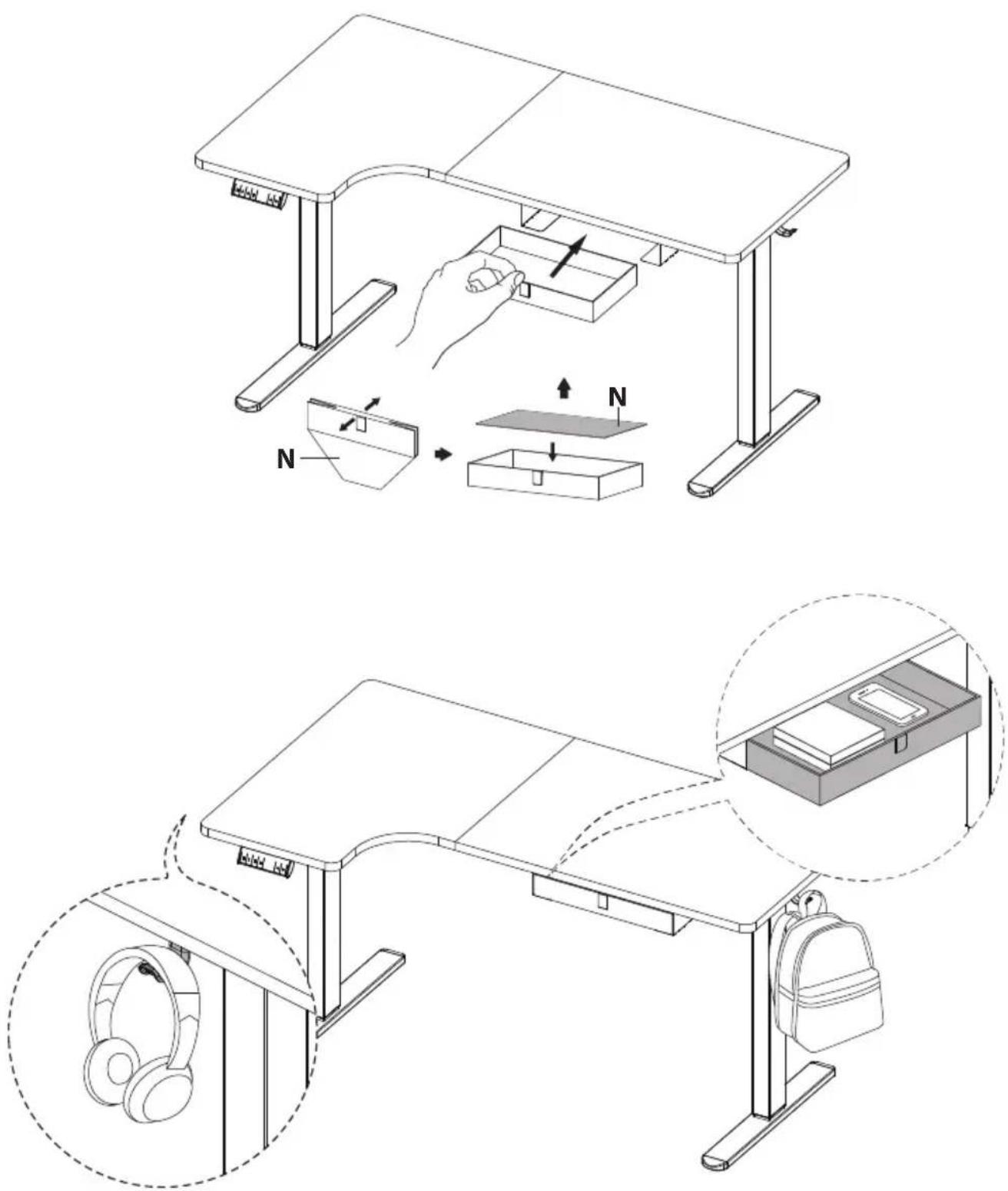

Insert the Cloth Drawer

Insert the Cloth Drawer (#N) into the Brackets (#M)

Step 9

Connect the Power

Flip the desk assembly over and connect the Power Adapter (#R) to a wall outlet.

57" 23.6" 33.4" 15.7" 28.3" -47.2" 28.9" 2.6" 16" 23"

Power Input 110V-240V

Speed 25 mm/s

Motion Noise <55dB

Load Capability 220 lbs / 100 kg

Warnings

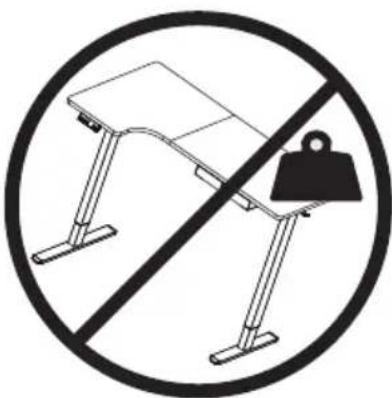

Prohibition sign showing a table with a weight and a diagonal line crossing it, no text or symbols present.

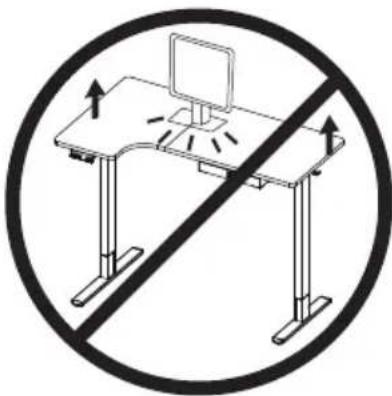

Do not exceed desk weight limit.

Simple line drawing of a desk with a computer and directional arrows, no text or symbols present.

Keep area of vertical motion free of obstacles.

Prohibition sign showing a table with a chair and a weight on a desk, crossed by a diagonal line (no text or symbols)

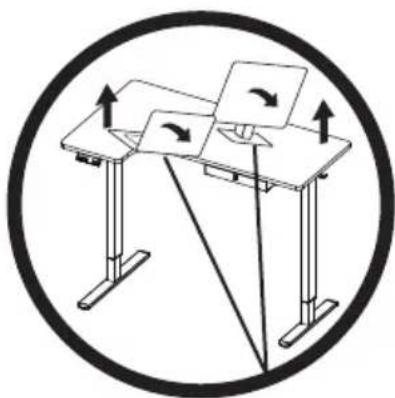

Keep weight on desk balanced for correct operation and longer life of components.

Diagram of a desk with two monitors and directional arrows indicating movement or orientation (no text or symbols)

Leave enough slack in cables to allow for full range of vertical motion.
