PIO6L07IX - Range hood VOX - Free user manual and instructions

Product Type	Range Hood
Brand	VOX
Model	PIO6L07IX
Installation Type	Built-in / Under-cabinet
Motor Power	210 W
Voltage / Frequency	220-240 V ~ 50 Hz
Light Type	LED (self-ballasted)
Light Power	1.5 W
Number of Motor Speeds	3
Control Type	Slide switch
Venting Modes	Extraction (ducted) and Recirculation
Minimum Distance from Hob	650 mm
Exhaust Connection Diameter	120 mm (with reducer flange for 150 mm)
Grease Filter Type	Metal self-supporting, washable
Grease Filter Cleaning Interval	Every 2 months (more often for heavy use)
Charcoal Filter (Optional)	Activated carbon, replace every 4 months
Maximum Hob Elements	4
Included Accessories	Hood body, metal filter, 2 optional charcoal filters, flange, screws, wall plugs

Frequently Asked Questions - PIO6L07IX VOX

What is the minimum distance required between the hob and the range hood?

The minimum distance is 650 mm between the supporting surface for the cooking vessels and the lowest part of the hood.

How do I clean the metal grease filters?

Clean the metal grease filters every 2 months (more often for heavy use). They can be washed in a dishwasher or by hand with neutral detergent. Ensure they are completely dry before reinserting.

How often should I replace the activated charcoal filter?

Replace the activated charcoal filter approximately every 4 months (more frequently with heavy usage). These filters are not washable and cannot be regenerated.

Can I replace the LED light myself?

Yes. Disconnect the appliance from the mains, remove the metal grease filters, lever out the old light fitting, disconnect the connector, and replace with a new 1.5W LED module of the same type. Reassemble in reverse order.

What are the two venting modes and how do I choose?

The hood can operate in extraction mode (air discharged outside via a duct) or recirculation mode (air purified and returned to the room using an activated charcoal filter). Select one mode during installation.

The light works but the motor does not. What could be wrong?

Possible causes: blades blocked, capacitor damaged, motor damaged, or internal wiring disconnected. Check and replace components as needed.

Why is the hood vibrating?

Vibration can be caused by a damaged blade, a loosely fastened motor, or the hood itself not being tightly fixed to the cabinet or wall. Inspect and tighten accordingly.

What should I do if oil leaks from the hood?

Oil leakage is often due to poor sealing of the outlet connection or the U-shaped section. Remove the outlet and seal with glue, or seal the U-shaped section with soap or paint.

Is it safe to use the hood with gas or other fuel-burning appliances?

Yes, but adequate ventilation of the room is required. The air must not be discharged into a flue used for exhausting fumes from gas or other fuel-burning appliances (unless the hood is recirculating only).

How do I ensure proper installation in a cabinet?

Use the 4 keyhole slots on top of the hood. Install 4 screws in the cabinet at the corresponding positions, hang the hood so the screws enter the narrow part of the keyholes, and tighten. Also install screws in the security holes to prevent movement.

USER MANUAL PIO6L07IX VOX

Technical line drawing of a rectangular mechanical component with a circular top and base plate (no text or symbols)

COOKER HOOD

INSTRUCT ON MANUALI

Read this manual carefully before operation

Pictures in this manual are for reference only, the product in kind prevail.

The instructions for Use apply to several versions of this appliance. Accordingly, you find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

● The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
- Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
- For Class I appliances, check that the domestic power supply guarantees adequate earthing.
● Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm.
● The route of the flue must be as short as possible.
- Do not connect the extractor hood to exhaust ducts carrying combustion flumes (boilers, fireplaces, etc.).
- If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account.
- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
● The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

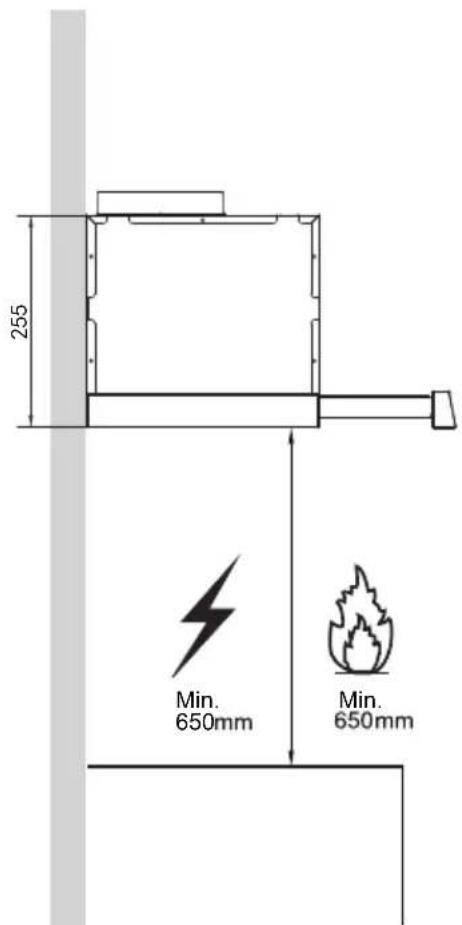

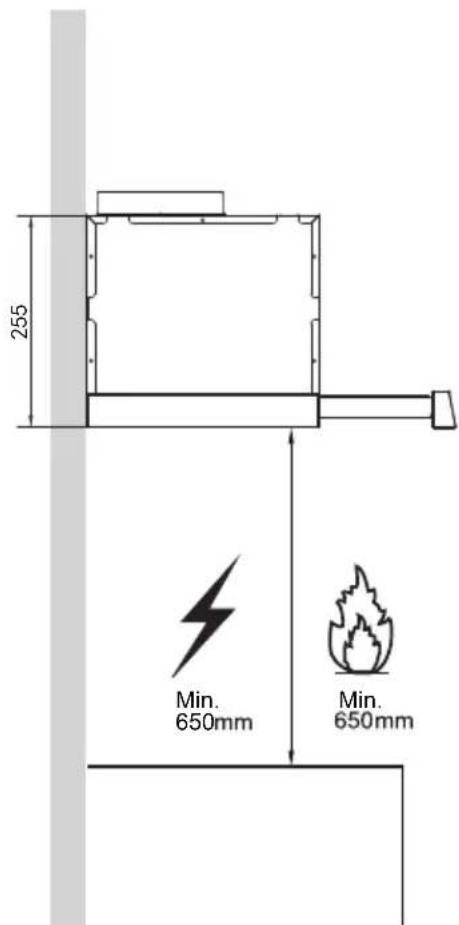

● The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood is 650 mm.
● Regulations concerning the discharge of air have to be fulfilled.

Simple line drawing of a laboratory setup with a funnel, lamp, and control panel (no text or symbols)

USE

● The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
● Never use the hood for purposes other than for which it has been designed.
● Never leave high naked flames under the hood when it is in operation.
- Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
- Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
● Children should be supervised to ensure that they do not play with the appliance.
- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
● There is a fire risk if cleaning is not carried out in accordance with the instructions.
● Do not flame under the range hood.
- "CAUTION: Accessible parts may become hot when used with cooking appliances".

MAINTENANCE

● The cooker hood and its filter should be cleaned regularly according to the instruction.
- Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
● Clean the hood using a damp cloth and a neutral liquid detergent.
● The appliance uses 4 hob elements at most.

Simple line drawing of a house with a stove and fire, no text or symbols present

The symbol is packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Rated Voltage and Frequency

220-240V\~50Hz Motor Input Power:210W

In certain circumstances electrical appliance may be a danger hazard.

COMPONENTS

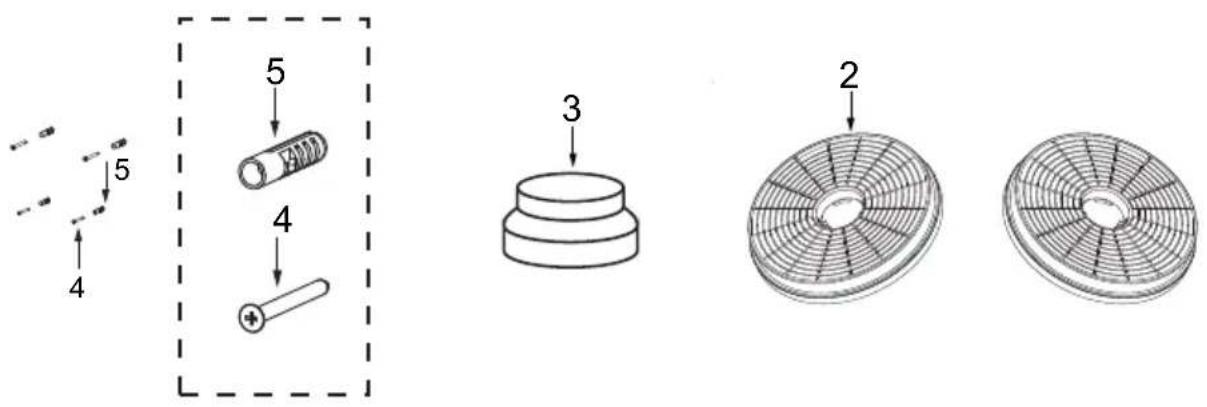

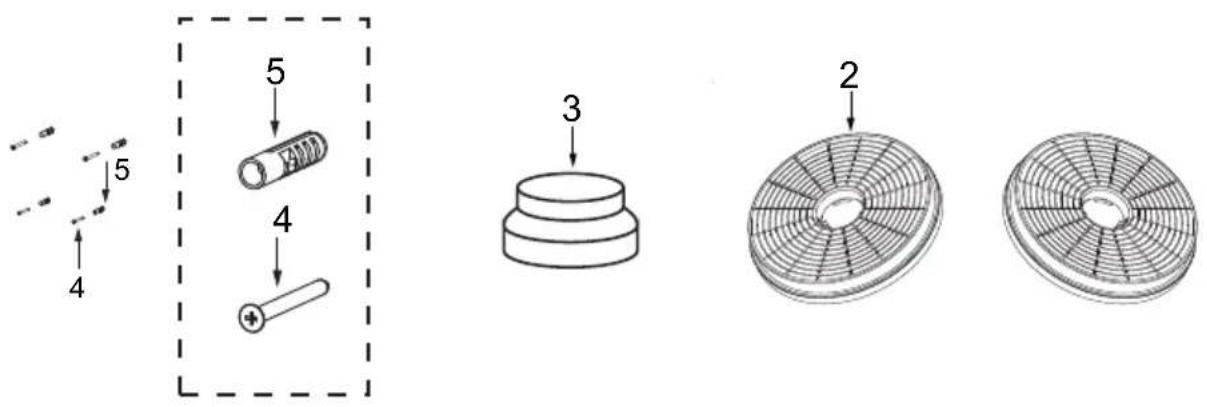

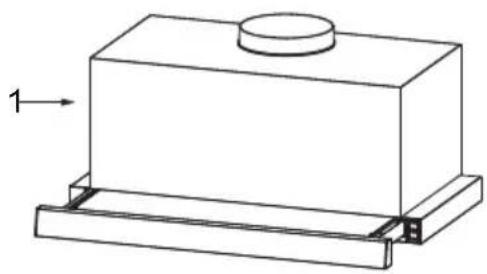

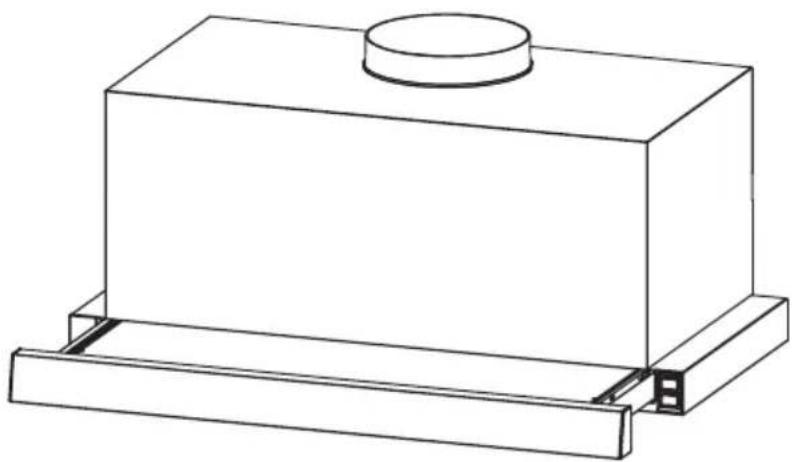

Ref. Qty. Product Components
1	1	Hood Body, complete with: Controls, Light, Blower, Filter.
2	2	The Activated Charcoal filter (2 optional)
3	1	Flange (optional)
4	4	Screws 5 x 50
5	4	Wall Plugs

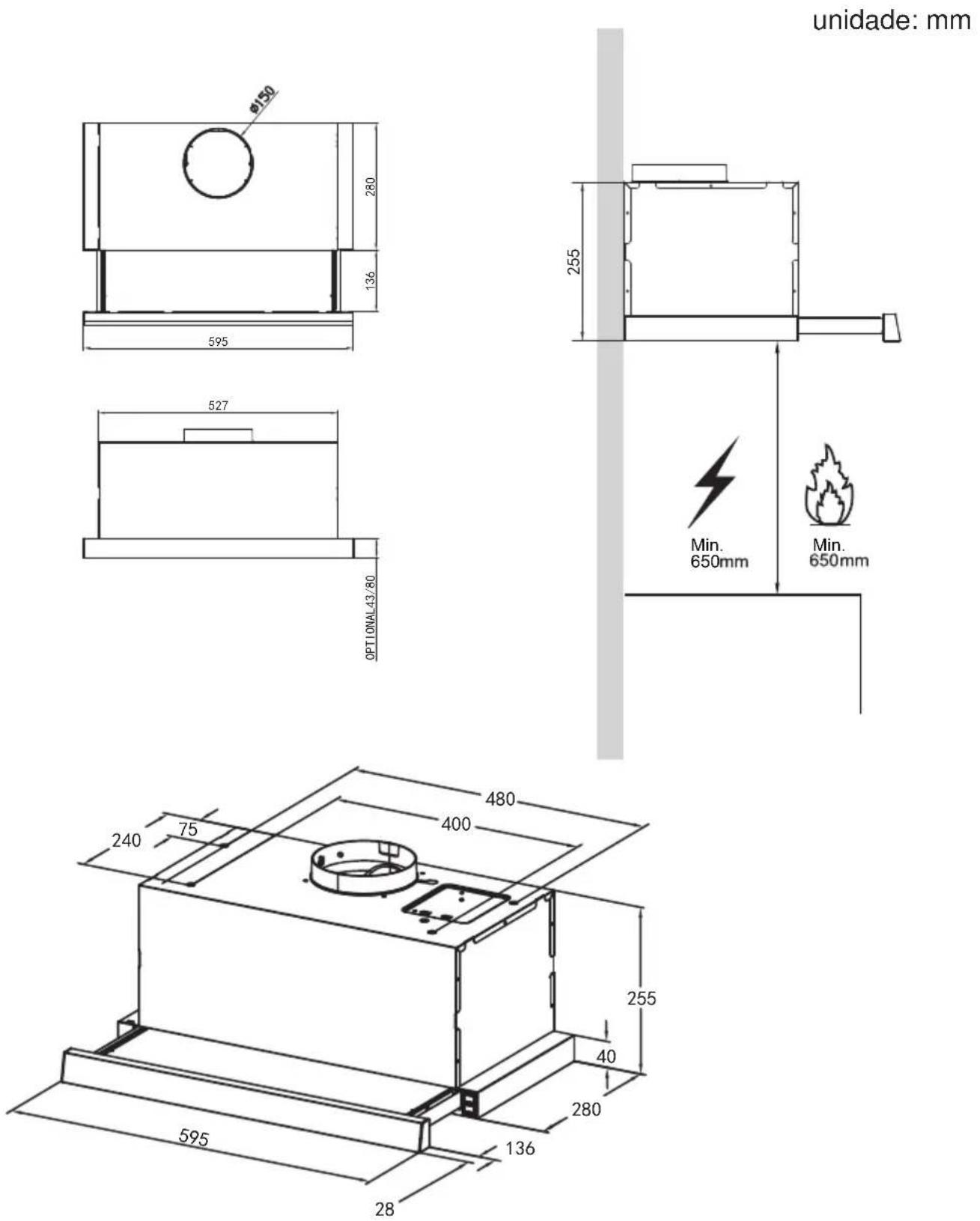

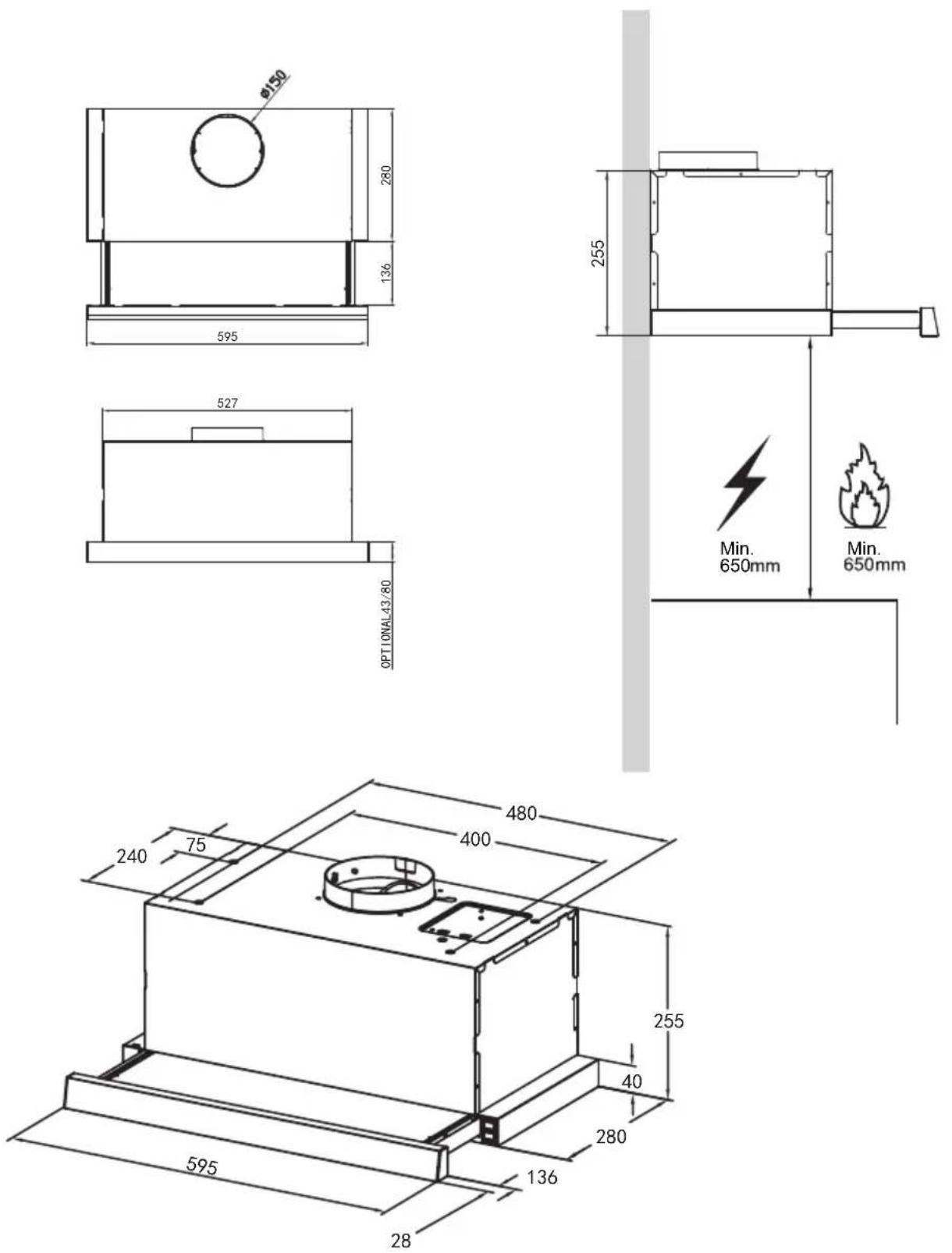

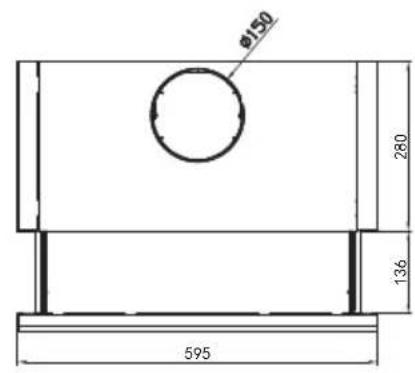

Simple line drawing of a rectangular block with a circular top and a side support, no text or symbols present.

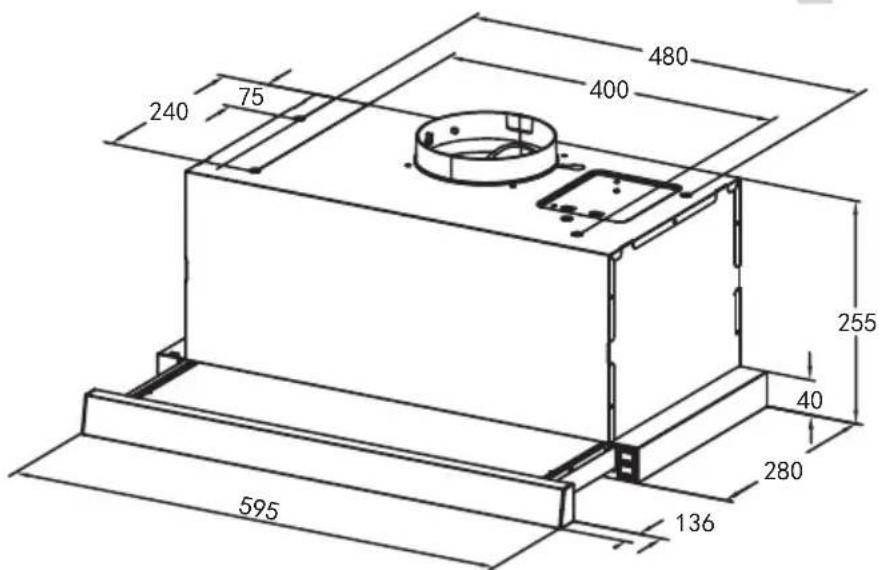

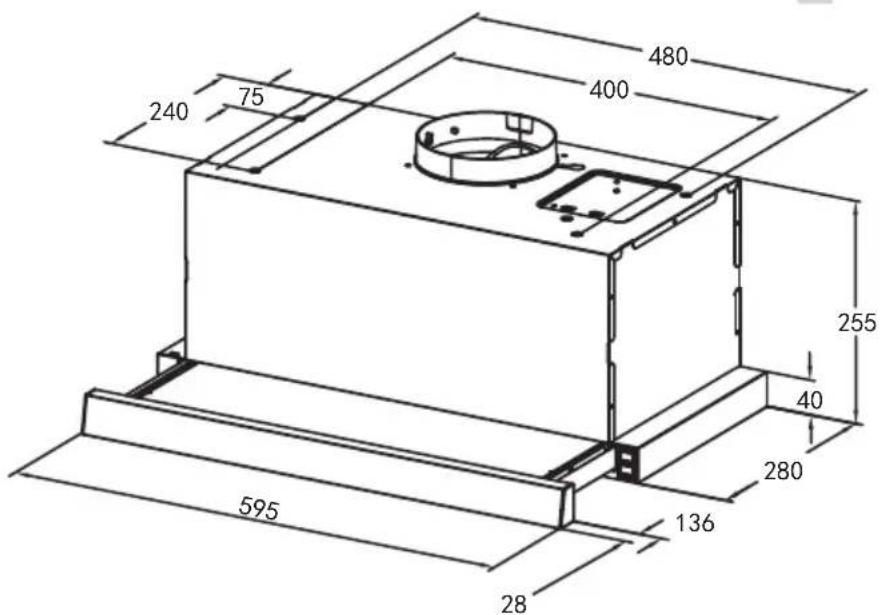

unit: mm

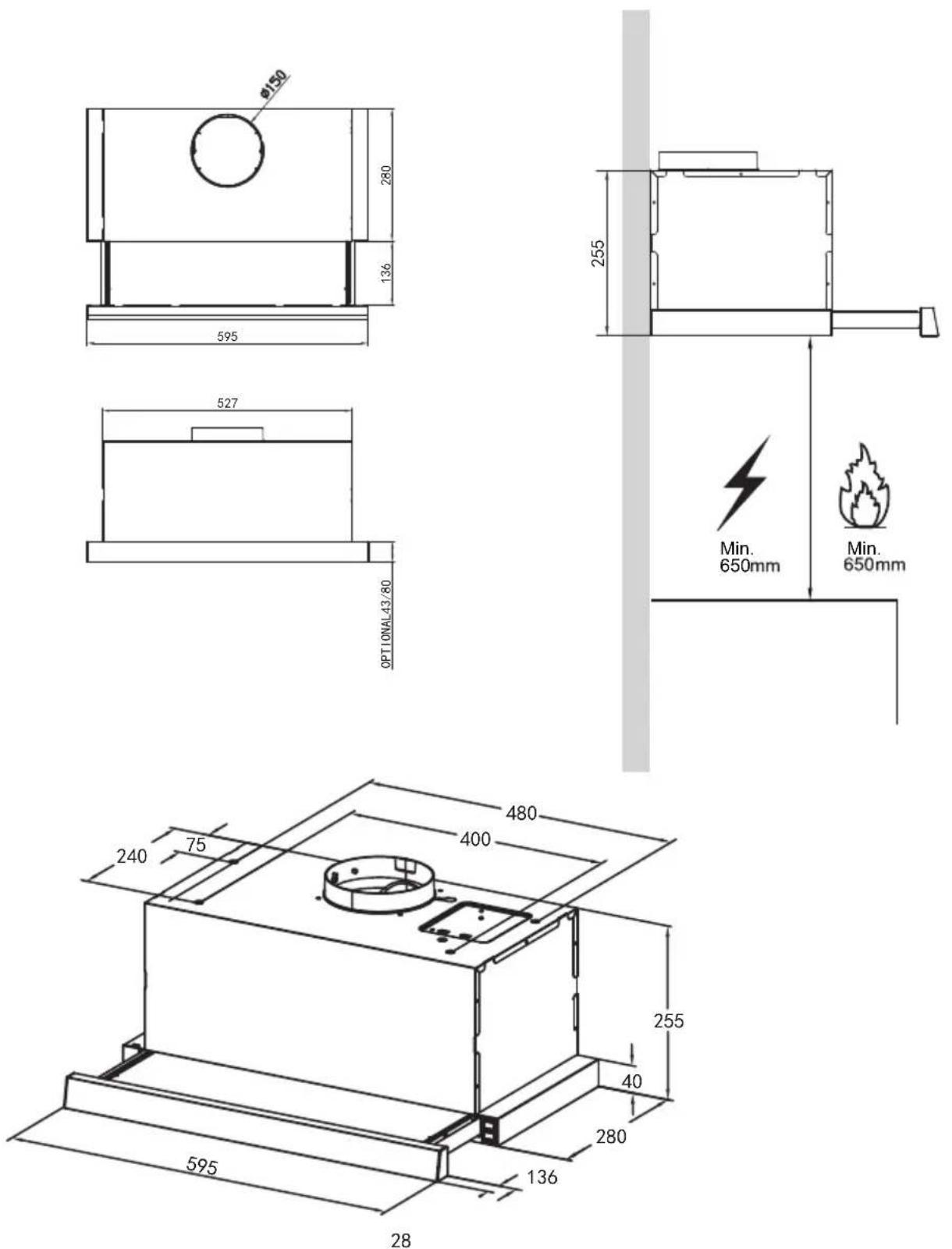

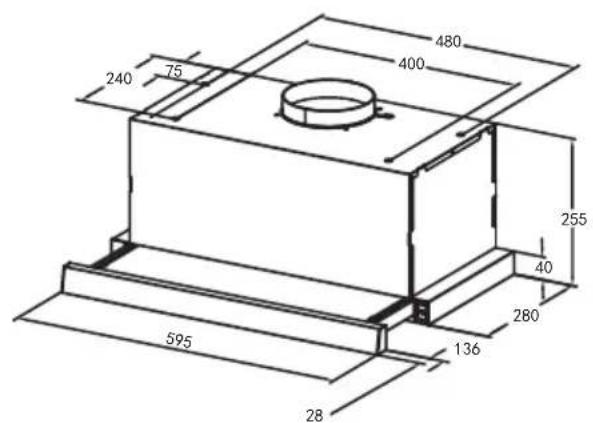

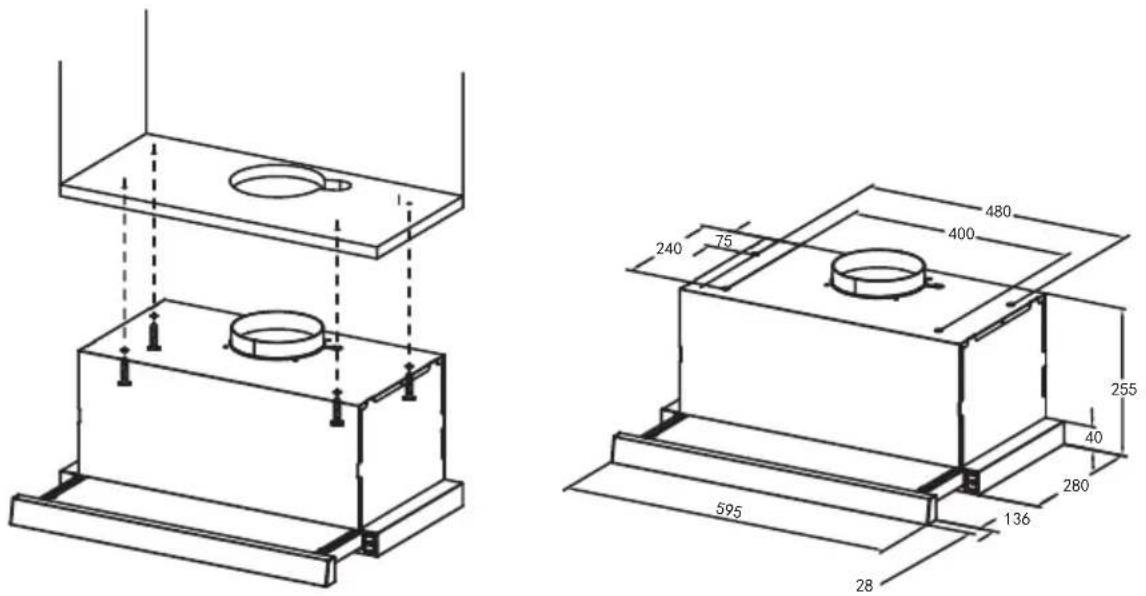

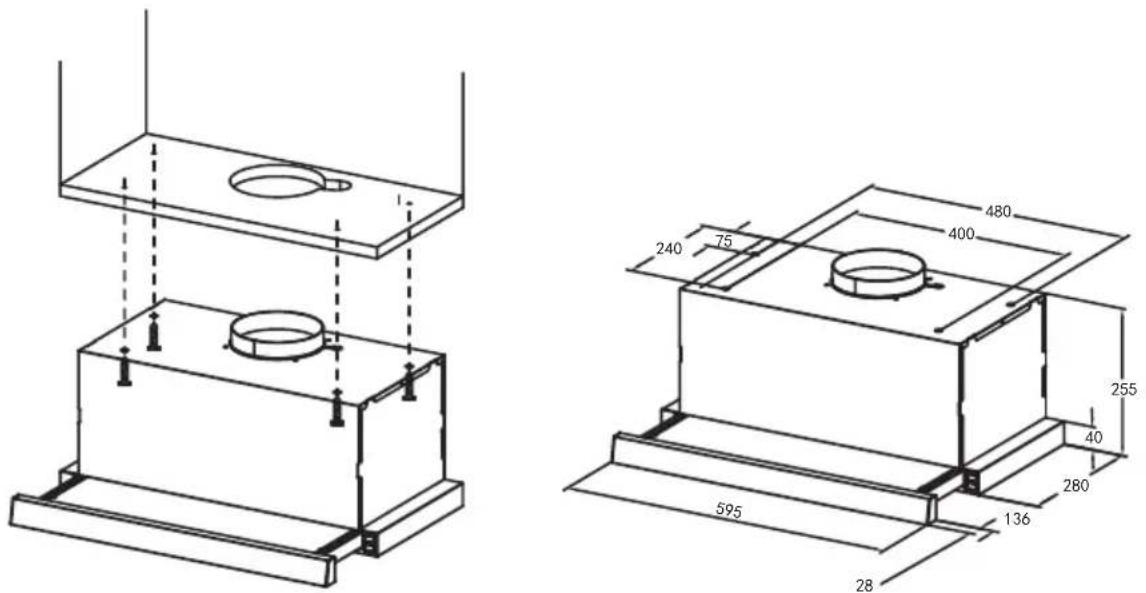

METHOD 1

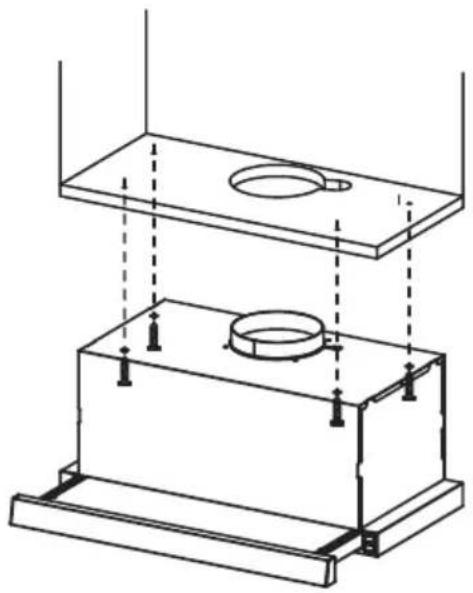

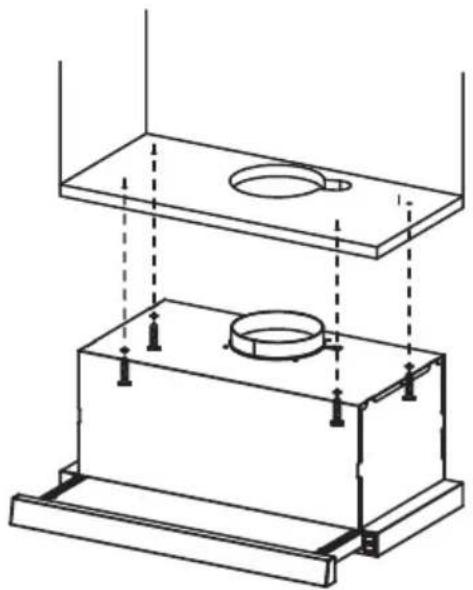

• According to the figure, make sure the position of hood in the cabinet. The wood strips should be line up with the 4 keyholes slots on the top of the range hood. On the cabinet, install 4 screws (supplied) according to the relative position of 4 key holes on the bottom of hood. The extent of screwing should be convenience to the next installation.
• Hang the hood and let it's 4 key holes aim at screws, the 4 screws should be in the narrow parts of key holes. Screws should be fasten firmly, make sure that the installation between the hood and cabinet is enough fasten.
• Install screws in the security holes, in case of front and back moving of hood, so that the using is safer.

Information

When cutting or drilling into wall or ceiling, do not damage electrical wiring or other hidden utilities.

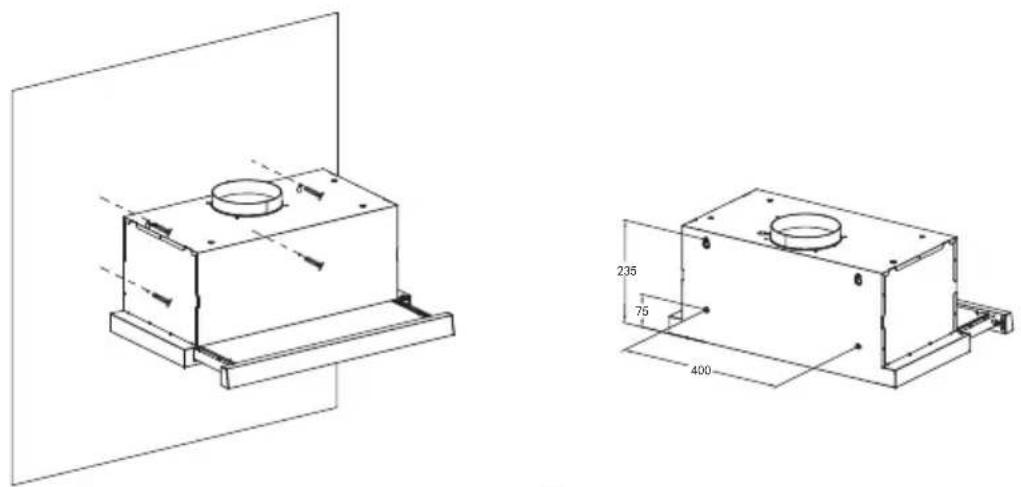

METHOD 2

z In the installation surface in cabinet don't adapt to install the cooker hood, then as per fig, fix the position of cooker hood on the wall.
z ☐ On the wall, install 2 screws ( supplied ) according to the relative position of 2 key holes on the back of hood.
z The extent of screwing should be convenience to the next installation.
z Also install screws in the security holes, in case of front and back moving of hood, so that the using is safer.

Installation of hoods built in combi cabinets is the same as previous method.

Information

Congratulations on the purchase our cooker hood which is designed to include many superior features that permit you the fullest expression of your living. Before installing and/or using the cooker hood carefully read all the instruction.

Pure mechanical part diagram showing a rectangular block with a central vertical dashed line (no text or symbols)

Simple line drawing of a rectangular frame with a vertical axis and a small rectangle on top (no text or symbols)

Right Wrong

Information

The cooker hood must not be installed and connected to flues where other appliances are installed and which run off other energy supplied different to electricity(water heater boiled cookers(range/agas)etc.).

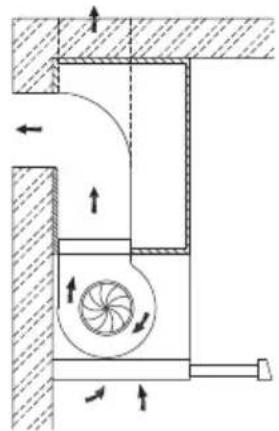

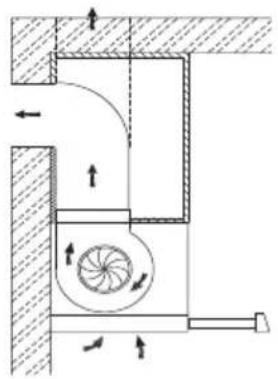

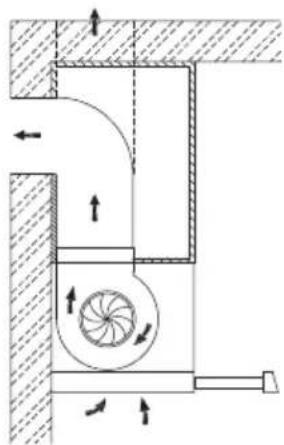

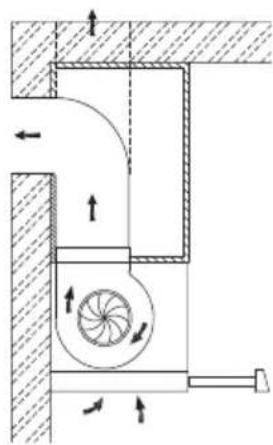

Here two venting modes, extraction-air mode and recirculation mode, before installing should be select one of them.

Extraction-air mode, the air is discharged out of the house by a pipe.

Recirculation mode, the air is purified and discharged into the house.

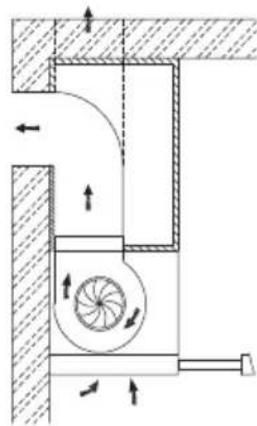

Technical diagram of a mechanical ventilation system with airflow arrows and fan components (no text or labels)

Recirculation mode Extraction-air mode

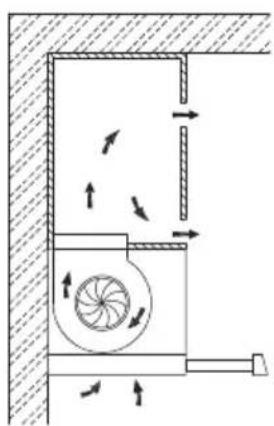

Cross-sectional diagram of a mechanical ventilation system with airflow arrows and component labels (no readable text or symbols)

Information

Recirculation mode, the cabinet needs an air vent.

Recirculation mode, always be with activated carbon filter.

Recirculation mode, when activated carbon filter attached, the suction power will be lowered.

CONNECTIONS

DUCTED VERSION AIR EXHAUST SYSTEM

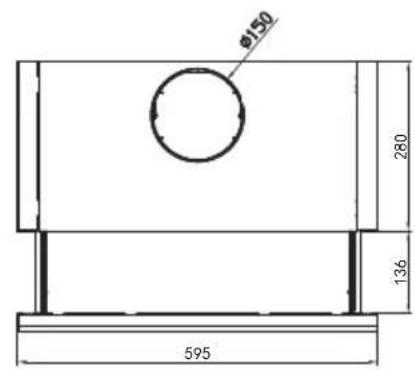

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120 mm, the choice of which is left to the installer.

- To install a 120 mm air exhaust connection, insert the reducer flange 3 on the hood body outlet.

● Fix the pipe in position using sufficient pipe clamps (not supplied).

- Remove possible charcoal filters.

Operation

Check beforehand

Check the safe condition of the appliance:

• Check whether there are visible defects.
• Check that all parts of the appliance have been securely fitted.

Switch A:

Switching on/off

• Slide the front part of the cooker hood. (For some models)

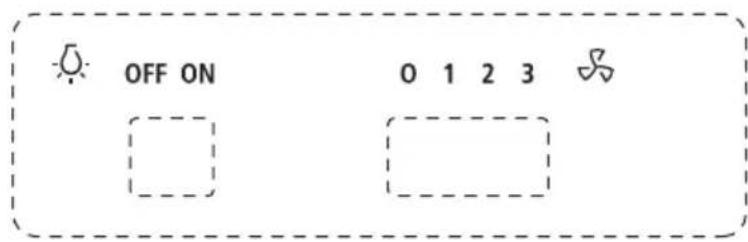

  ● There are 3 speeds for the motor and on off switch of the lamp.
• Slide the switch for operation.

Motor Operation

[0]=Off
● [1]=Low Power Setting
[2]=Mid Power Setting
● [3]=High Power Setting

Light Operation

● [OFF] = Off
[ON] = On

GREASE FILTERS

CLEANING METAL SELF-SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.

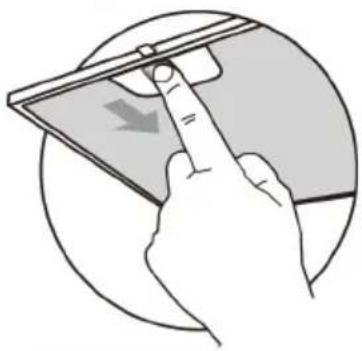

  ● Pull the comfort panels to open them.
• Remove the filters one by one pushing them towards the back side of the hood unit and simultaneously pulling downwards.
• Any kind of bending of the filters has to be avoided when washing them. Before fitting them again into the hood make sure that they are completely dry. (The color of the filter surface may change throughout the time but this has no influence to the filter efficiency).
• When fitting the filters into the hood pay attention that they are mounted in correct position the handle facing outwards.
• Close the comfort panel.

Illustration of a hand pressing down on a tablet device with a downward arrow (no text or symbols)

ACTIVATED CHARCOAL FILTER (RECIRCULATION VERSION)

REPLACING THE ACTIVATED CHARCOAL FILTER

These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

REPLACING THE ACTIVATED CHARCOAL FILTER

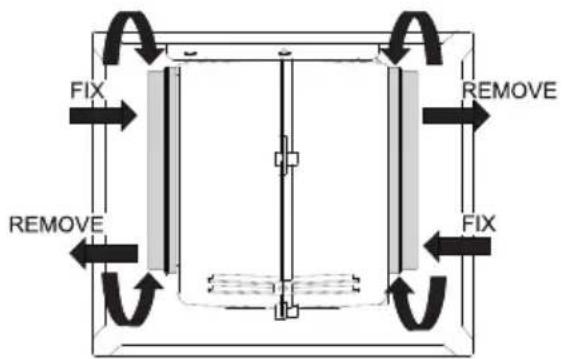

• Remove the metal grease filters
• Remove the saturated activated charcoal filter.
  ● Fit the new filters.
• Replace the metal grease filters.

LIGHT REPLACEMENT

Changing the light

Lightning inside the appliance is provided by a 1.5W LED light.

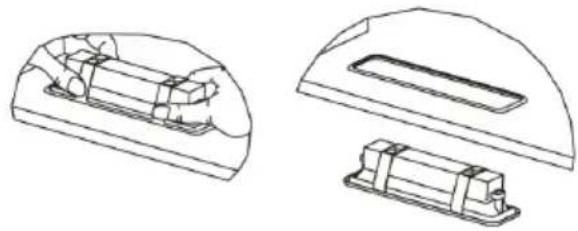

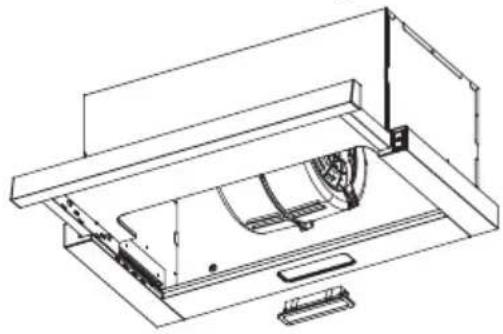

To replace the LED light, proceed as follows:

1. Disconnect the appliance from the mains or switch off the circuit breaker.
2. Remove the metal filters (see Cleaning and Replacing Filters).
3. Remove the light by levering its fitting from the hood body(this may require pressure or force to be applied) and disconnect the connector of the light.
4. Replace the light with a new one of the same type, making sure that you connect the light with the light cable correctly.
5. Install the metal filter back in place.

Technical line drawing of a mechanical assembly with no visible text or symbols

Two rectangular electronic components with mounting holes, shown in line drawing style (no text or symbols)

Technical line drawings of two mechanical components with internal mechanisms (no text or symbols)

	Max power	Voltage Picture	Lamp Cap ILCOS D code
Self-ballasted LED modules	1.5W 220V-240V		Square/Diameter:33.2mmx120mm	/	DBS-1.5-H-33.2/120

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Fault	Cause	Solution
Light on, but motor does not work	The blades are blocked.
	The capacitor is damaged.	Replace capacitor.
	The motor is damaged.	Replace motor.
	The internal wiring of motor is cut off/disconnected. An unpleasant smell may be produced.	Replace motor.
Both light and motor do not work	Apart from the above mentioned, check the following:
	Light damaged.	Replace lights.
	Power cord loose.	Connect the wires as per the electric diagram.
Oil leakage	Outlet and the air ventilation entrance are not tightly sealed.	Take down the outlet and seal with glue.
	Leakage from the connection of U-shaped section and cover.	Take U-shaped section down and seal with soap or paint.
Vibration	The blade, if damaged, can cause vibrating.	Replace the blade.
	The motor is not tightly fastened.	Fasten the motor tightly.
	The cooker hood is not tightly fixed.	Fixed the cooker hood tightly.
Insufficient suction	The distance between the cooker hood and the cooker top is too large.	Readjust the distance.
	Too much ventilation from open doors or windows.	Choose a new place to install the appliance or close some doors / windows.
The machine inclines	The fixing screws are not tight enough.	Tighten the fixing screw and make it horizontal.
	The hanging screws are not tight enough	Tighten the hanging screw and make it horizontal.

PIO6L07IX

PIO6L07W

Technical line drawing of a rectangular mechanical component with a circular top and base plate (no text or symbols)

ASPIRATOR

UPUTSTVO ZA UPOTREBU

Pre upotrebe proizvoda pažljivo pročitajte uputstvo

Slike u ovom uputstvu su samo za referencu, stvarni izgled proizvoda ima prednost.

Simple line drawing of a laboratory setup with a conical flask, heating element, and control panel (no text or symbols)

UPOTREBA

ODRŽAVANJE

• Aspirator i filter treba redovno čistiti prema uputstvima.
• Isključite utikač uređaja iz električne utičnice pre čišćenja uređaja.
• Očistite haubu aspiratora koristeći vlažnu krpu i neutralni tečni deterdžent.
• Uređaj koristi maksimalno 4 grejne zone na šporetu.

Simple line drawing of a house with a stove and fire, no text or symbols present

Simbol na ambalaži ukazuje na to da se ovaj proizvod ne sme tretirati kao kućni otpad. Umesto toga, treba ga predati odgovarajućem sakupljalištu za recikliranje električne i elektronske opreme. Osiguravajući pravilno odlaganje ovog proizvoda, pomažete sprečavanju potencijalno negativnih posledica po životnu sredinu i ljudsko zdravlje, koje bi inače mogle nastati usled neadekvatnog rukovanja otpadom ovog proizvoda. Za detaljnije informacije o reciklaži ovog proizvoda, obratite se lokalnoj gradskoj upravi, službi za odlaganje kućnog otpada ili prodavnici u kojoj ste kupili proizvod.

Napon i frekvencija: 220-240V\~ 50Hz

Ulazna snaga motora: 210W

U određenim okolnostima električni uređaj može biti opasan.

KOMPONENTE

Br. Kol. Delovi proizvoda
1	1	Telo aspiratora, zajedno sa: kontrolama, svetlom, ventilatorom, filterom.
2	2	Aktivni ugljeni filter (2 optiona)
3	1	Flanša (opciono)
4	4	Vijci 5 x 50
5 4		Tiplovi za zid

Simple line drawing of a rectangular block with a circular top and side supports, no text or symbols present.

jedinica: mm

NAČIN 1

Kao na slici, obratite pažnju na poziciju aspiratora u elementu. Drvene trake treba poravnati sa 4 ključne rupe na vrhu aspiratora. Na elementu, postavite 4 vijka (isporučena) u skladu sa položajem 4 ključne rupe na dnu aspiratora. Navijanje vijaka treba da bude odgovarajuće za sledeću instalaciju.
- Okačite aspirator tako da njegove 4 ključne rupe budu usmerene prema vijcima, a 4 vijka treba da budu u uskim delovima ključnih rupa. Vijci treba da budu čvrsto zategnuti i vodite računa da je instalacija između aspiratora i elementa dovoljno čvrsta.
- Postavite vijke u sigurnosne rupe, radi sprečavanja pomeranja aspiratora napred i nazad, kako bi korišćenje bilo sigurnije.

Informacija

Prilikom sečenja ili bušenja zida ili plafona, pazite da ne oštetite električne instalacije ili druge skrivene delove.

NAČIN 2

z I Ukoliko kuhinjski element nije odgovarajući za montažu aspiratora, onda kao na slici, postavite aspirator na zid.
z ☐ Postavite 2 vijka na zid (isporučena) u skladu sa položajem 2 ključne rupe na zadnjem delu aspiratora.
z ☐ Navijte vijke samo do položaja koji je odgovarajući za narednu insatalaciju.
z Takođe, postavite vijke u sigurnosne rupe, radi sprečavanja pomeranja aspiratora napred i nazad, kako bi korišćenje bilo sigurnije.

Instalacija ugradnih aspiratora u kombinovane elemente ista je kao u prethodno opisanom načinu.

Informacija

Čestitamo vam na kupovini našeg aspiratora koji je dizajniran sa mnogo superiornih funkcija koje vam olakšavaju život. Pre nego što instalirate i/ili koristite aspirator, pažljivo pročitajte sva uputstva.

Pure mechanical part diagram showing a stepped base with a central vertical dashed line (no text or symbols)

Ispravno

Simple line drawing of a mechanical component with a central axis (no text or symbols)

Pogrešno

Informacije

Aspirator se ne sme instalirati i povezivati sa dimnjacima gde su instalirani drugi uređaji i koji koriste drugačiji izvor energije od električne (bojleri na vodu, šporeti na plin i druge vrste goriva itd.).

Postoje dva režima ventilacije, režim izduvavanja vazduha i režim recirkulacije. Pre instalacije treba odabrati jedan od ova dva režima.

Diagram of a mechanical or fluidic system with directional arrows indicating flow or movement, no text or symbols present.

Technical schematic of a mechanical ventilation system with airflow arrows and component layout (no text or labels)

Illustration of a hand pressing a tablet with a finger, showing a download arrow (no text or symbols)

AKTIVNI UGLJENI FILTER (VERZIJA SA RECIRKULACIJOM)

ZAMENA AKTIVNOG UGLJENOG FILTRA

ZAMENA SIJALICA

Zamena sijalice

Unutar uređaja osvetljenje je LED svetlo snage 1,5W.

Technical line drawing of a mechanical assembly with no visible text or symbols

Two rectangular electronic components with mounting holes, shown in line drawing style (no text or symbols)

Technical line drawing of a mechanical component or housing (no text or symbols)

Technical line drawing of a mechanical component with a curved top and rectangular base (no text or symbols)

	Maks. snaga	Napon	Slika	Pokopac svetla	ILCOS D kod
LED moduli sa sopstvenim balastom	1.5W 220V-240V		Kvadrat/prečnik:33.2mmx120mm	/	DBS-1.5-H-33.2/120

ODLAGANJE ELEKTRIČNIH UREĐAJA

Technical line drawing of a rectangular mechanical component with a circular top and base plate (no text or symbols)

KUHINJSKA NAPA

NAVODILA ZA UPORABO

Simple line drawing of a laboratory setup with a lamp, control panel, and heating element (no text or symbols)

UPORABA

Simple line drawing of a house with a pot and fire, no text or symbols present

Nazivna napetost in frekvenca 220-240 V \~ 50/60 Hz

Simple line drawing of a rectangular block with a circular top and a side support, no text or symbols present.

enota: mm

NAČIN 1

Diagram of airflow around a fan-shaped structure with directional arrows, no text or symbols present

Način recirkulacije

Pure mechanical diagram showing airflow or fluid flow through a valve-like structure without any text, numbers, or symbols.

Illustration of a hand pressing a tablet with a finger, showing a download icon (no text or symbols)

AKTIVIRANI OGLENI FILTER (RAZLIČICA S PONOVNIM KROŽENJEM)

ZAMENJAVA FILTRA Z AKTIVNIM OGLJEM

Technical line drawing of a mechanical assembly with no visible text or symbols

Two rectangular electronic components with mounting holes, shown in line drawing style (no text or symbols)

Technical line drawings of two mechanical components with internal mechanisms (no text or symbols)

	Najv. moč	Napetost	Slika	Pokrov svetilke	Koda ILCOS D
LED moduli z ločenim balastom	1.5W 220V-240V		Kvadrat/premer:33.2mmx120mm	/	DBS-1.5-H-33.2/120

RAVNANJE Z ODSLUŽENIMI ELEKTRIČNIMI NAPRAVAMI

Technical line drawing of a rectangular mechanical component with a circular top and base plate (no text or symbols)

KUHINJSKA NAPA

UPUTE ZA UPORABU

Pažljivo pročitajte ove upute prije uporabe.

Simple line drawing of a laboratory setup with a conical flask, thermometer, and gas stove (no text or symbols)

Simple line drawing of a house with a stove and fire, no text or symbols present

Simple line drawing of a rectangular block with a circular top and a side support, no text or symbols present.

jedinica: mm

NAČIN 1

Pure mechanical diagram showing a rectangular block with a central vertical dashed line and a small rectangular block above it (no text or symbols)

Ispravno

Simple line drawing of a rectangular object with a vertical axis and horizontal base (no text or symbols)

Pogrešno

Informacija

Technical diagram of a mechanical ventilation system with airflow arrows and fan components (no text or labels)

Način recilkulacije

Cross-sectional diagram of a mechanical ventilation system with airflow arrows and internal components (no text or labels)

Način ekstrakcije zraka

Informacija

Način recirkulacije, kabinet treba ventilacijski otvor.

Illustration of a hand interacting with a tablet device, showing a finger pointing at the screen (no text or symbols present)

FILTAR S AKTIVNIM UGLJENOM (VERZIJA S CIRKULIRANJEM ZRAKA)

ZAMJENA FILTRA S AKTIVNIM UGLJENOM

Ovi filtri se ne mogu prati i ne mogu se regenerirati, te se moraju zamijeniti otprilike svaka 4 mjeseca rada ili češće kod veće upotrebe.

ZAMJENA FILTRA S AKTIVNIM UGLJENOM

• Uklonite metalne filtere za masnoću
• Uklonite zasićeni filtar s aktivnim ugljenom.
• Postavite nove filtere.
• Vratite na mjesto metalne filtere za masnoću.

ZAMJENA ŽARULJE

Mijenjanje svjetla

Technical line drawing of a mechanical assembly with no visible text or symbols

Two rectangular electronic components with mounting holes, shown in isometric line drawing without any text or symbols.

Line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with a curved top and rectangular base (no text or symbols)

	Maks. snaga	Napon	Slika	Pokopac svjetla	ILCOS D kod
LED moduli s vlastitim balastom	1.5W	220V-240V	Kvadrat/promjer:33,2mmx120mm	/	DBS-1.5-H-33.2/120

ODLAGANJE STARIH ELEKTRIČNIH UREĐAJA

Europska Direktiva 2012/19/EU o otpadnoj električnoj i elektroničkoj opremi (WEEE) zahtijeva da se stari električni kućanski uređaji ne smiju odlagati u uobičajeni nerazvrstani gradski otpad. Stari uređaji moraju se prikupljati odvojeno kako bi se optimizirala oporaba i recikliranje materijala koje sadrže i smanjio utjecaj na ljudsko zdravlje i okoliš. Simbol prekrižene "kante za otpad" na proizvodu podsjeća vas na vašu obvezu da kada želite zbrinuti uređaj, mora se skupljati odvojeno. Potrošači bi se trebali obratiti svojim lokalnim vlastima ili trgovcu za informacije o pravilnom odlaganju svojih starih uređaja.

Technical line drawing of a rectangular mechanical component with a circular top and base plate (no text or symbols)

АСПИРАТОР

Simple line drawing of a laboratory setup with a lamp, control panel, and heating element (no text or symbols)

Simple line drawing of a house with a pot and fire, no text or symbols present

Simple line drawing of a rectangular block with a circular top and side supports, no text or symbols present.

единица: mm

МЕТОД 1

Technical line drawing of a mechanical assembly with two rectangular components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with mounting base and cylindrical top (no text or symbols)

Pure technical line drawing of a mechanical part with no text or symbols

Точно

Simple line drawing of a rectangular object with a vertical axis and horizontal bar, no text or symbols present.

Погрешно

Информација

Technical diagram of a mechanical ventilation system with airflow arrows and fan components (no text or labels)

Cross-sectional diagram of a mechanical ventilation system with airflow arrows and internal components (no text or labels)

Illustration of a hand using a smartphone to interact with a device, showing a download icon (no text or symbols)

ФИЛТЕР СО АКТИВНИОТ ЈАГЛЕН (ВЕРЗИЈА СО КРУЖЕЊЕ)

ЗАМЕНА НА ФИЛТЕРОТ СО АКТИВЕН ЈАГЛЕН

Technical line drawing of a mechanical assembly with no visible text or symbols

Two rectangular electronic components with mounting holes, shown in line drawing style (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with a curved top and rectangular base (no text or symbols)

Technical line drawing of a rectangular mechanical component with a circular top and base plate (no text or symbols)

EXAUSTOR DE COZINHA

MANUAL DE INSTRUÇÕES

Simple line drawing of a laboratory setup with a lamp, control panel, and heating element (no text or symbols)

UTILIZAÇÃO

Simple line drawing of a house with a stove and fire, no text or symbols present

Simple line drawing of a rectangular block with a circular top and a side support, no text or symbols present.

MÉTODO 1

Technical line drawing of a mechanical assembly with two rectangular components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with mounting base and cylindrical top (no text or symbols)

Two simple line drawings of a mechanical component with no text or symbols

Correcto

Simple line drawing of a rectangular object with a vertical axis and horizontal base (no text or symbols)

Errado

Informações

Diagram of a mechanical ventilation system with airflow arrows and fan components (no text or labels)

Cross-sectional diagram of a mechanical ventilation system with airflow arrows (no text or labels)

Informações

Illustration of a hand pressing down on a tablet device with a downward arrow (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Two rectangular electronic components with mounting holes, shown in line drawing style (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with a curved top and rectangular base (no text or symbols)

Technical line drawing of a rectangular mechanical component with a circular top and base plate (no text or symbols)

АСПИРАТОР

РЪКОВОДСТВО ЗА УПОТРЕБА

Simple line drawing of a laboratory setup with a conical flask, heating element, and smokestack (no text or symbols)

УПОТРЕБА

Simple line drawing of a house with fire and smoke, no text or symbols present

Simple line drawing of a rectangular block with a circular top and a side support, no text or symbols present.

единица: mm

МЕТОД 1

Technical line drawing of a mechanical assembly with two rectangular components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with mounting base and cylindrical component (no text or symbols)

Pure mechanical diagram showing a rectangular block with a central vertical axis and a horizontal base (no text or symbols)

Simple line drawing of a rectangular object with a vertical axis and horizontal bar, no text or symbols present.

Правилно Неправилно

Информация

Technical diagram of a mechanical or fluidic device with directional arrows indicating flow or movement (no text or symbols present)

Technical schematic of a mechanical ventilation system with airflow arrows and component layout (no text or labels)

Illustration of a hand holding a tablet device with a finger pointing at it, showing a download arrow (no text or symbols present)

СМЯНА НА ЛАМПА

Technical line drawing of a mechanical assembly with no visible text or symbols

Two rectangular electronic components with mounting holes, shown in line drawing style (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with a curved top and rectangular base (no text or symbols)

Technical line drawing of a rectangular mechanical component with a circular top and base plate (no text or symbols)

ΑΠΟΡΡΟΦΗΤΗΡΑΣ

ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΗΣ

Simple line drawing of a house with a stove and fire, no text or symbols present

Simple line drawing of a rectangular block with a circular top and a side support, no text or symbols present.

μονάδα: mm

ΜΕΘΟΔΟΣ 1

Pure mechanical diagram showing a rectangular block with a central vertical bar and base, no text or symbols present.

Σωστό

Simple line drawing of a rectangular object with a vertical axis and horizontal base (no text or symbols)

Λάθος

Πληροφορίες

Technical diagram of a mechanical or fluidic device with directional arrows indicating flow or movement (no text or symbols present)

Illustration of a hand pressing a tablet with a finger, showing a download icon (no text or symbols)

Αλλαγή φωτός

Technical line drawing of a mechanical assembly or enclosure with no visible text or symbols

Two rectangular electronic components with mounting holes, shown in line drawing style (no text or symbols)

Technical line drawings of two mechanical components with internal mechanisms (no text or symbols)

Technical line drawing of a rectangular mechanical component with a circular top and base plate (no text or symbols)

CAMPANA EXTRACTORA

Simple line drawing of a lamp illuminating a steaming lamp (no text or symbols)

USO

Simple line drawing of a house with a stove and fire, no text or symbols present

Simple line drawing of a rectangular block with a circular top and side supports, labeled with number 1 (no text or symbols on the object itself)

Diagram of a circular fan or impeller with radial blades and a labeled arrow pointing to the center (no text or symbols present)

unidad: mm

METODO 1

Pure mechanical diagram showing a rectangular block with a central vertical dashed line and a horizontal base (no text or symbols)

Correcto

Simple line drawing of a mechanical component with a central dashed axis (no text or symbols)

Incorrecto

Información

Technical diagram of a mechanical ventilation system with airflow arrows and fan components (no text or labels)

Technical schematic of a mechanical ventilation system with airflow arrows and component layout (no text or labels)

Illustration of a hand pressing a tablet with a finger, showing a download arrow (no text or symbols)

REEMPLAZO DE LUZ

Cambiar la luz

Technical line drawing of a mechanical assembly with no visible text or symbols

Two rectangular electronic components with mounting holes, shown in line drawing style (no text or symbols)

Technical line drawing of a mechanical component or housing (no text or symbols)

Technical line drawing of a mechanical component with a flanged top and a rectangular base (no text or symbols)
