TRD601IX - Range hood VOX - Free user manual and instructions

Product Type	Built-in range hood
Brand	VOX
Model	TRD601IX
Width	60 cm
Minimum Installation Height	650 mm above hob
Voltage	220-240 V
Frequency	50/60 Hz
Power Consumption	Not specified
Motor Power	Not specified
Number of Speeds	3 (estimated)
Extraction Method	Ducted or recirculating (with charcoal filter)
Exhaust Diameter	120 mm
Lighting	1 x 4W E14 lamp
Grease Filters	Washable, clean every 2 months
Charcoal Filter	Replace every 4 months (not washable)
Control Type	Button/slider (estimated)
Noise Level	Not specified
Weight	Approx. 10 kg (estimated)

Frequently Asked Questions - TRD601IX VOX

What is the minimum distance between the hob and the range hood?

The minimum safety distance is 650 mm. Always check your hob's manual for specific requirements.

How do I clean the grease filters?

The grease filters can be washed in a dishwasher or by hand with mild detergent. They should be cleaned every 2 months (or more often with heavy use).

How often should I replace the charcoal filter?

The activated charcoal filter is not washable and should be replaced every 4 months of operation, or more frequently if used heavily.

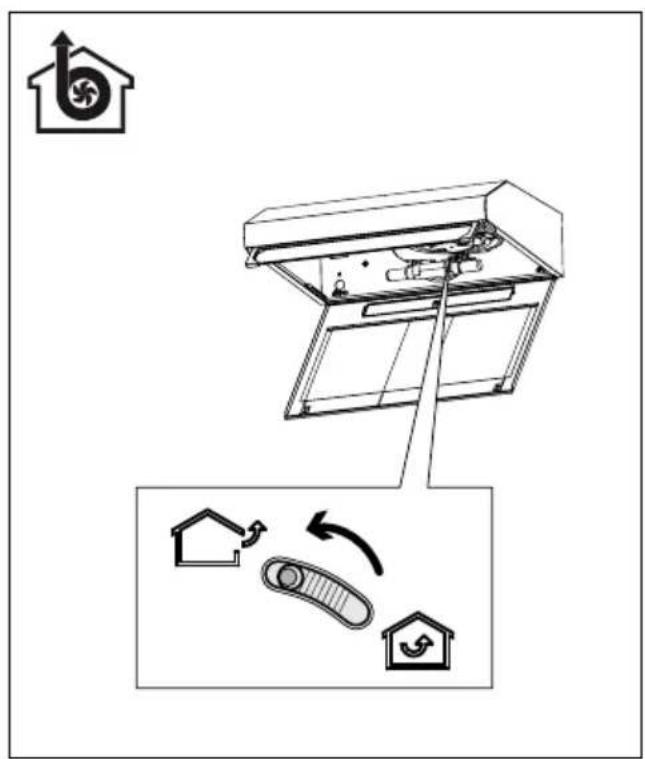

Can the hood be used in recirculation mode?

Yes, if a charcoal filter is installed. For ducted mode, connect the exhaust to a 120 mm flue.

What type of lamp does the hood use?

It uses an E14 lamp with a power of 4W. The recommended ILCOS code is DRBB/F-4-220-240-E14-35/100.

Is the hood safe to use over a gas hob?

Yes, but ensure the room is well ventilated and the negative pressure does not exceed 0.04 mbar to prevent backflow.

How do I install the hood?

Installation must be performed by a qualified technician. Follow the instructions for fixing screws and ensure proper earthing if Class I.

What should I do if the supply cord is damaged?

The cord must be replaced by the manufacturer or an authorized service agent to avoid hazards.

Can children use the hood?

Children aged 8+ can use the hood if supervised. Cleaning and maintenance must not be done by children without supervision.

How do I dispose of the hood at end of life?

Do not dispose as household waste. Take it to a collection point for recycling electrical and electronic equipment.

USER MANUAL TRD601IX VOX

Line drawing of a kitchen or oven unit with a circular vent and side panel (no text or symbols)

Libretto istruzioni

User manual

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.

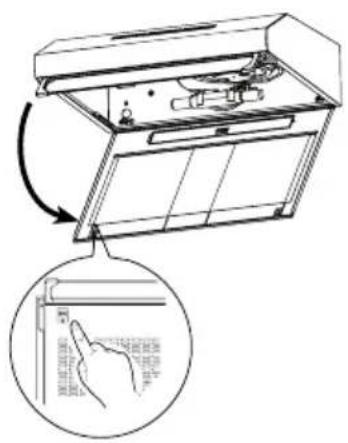

• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

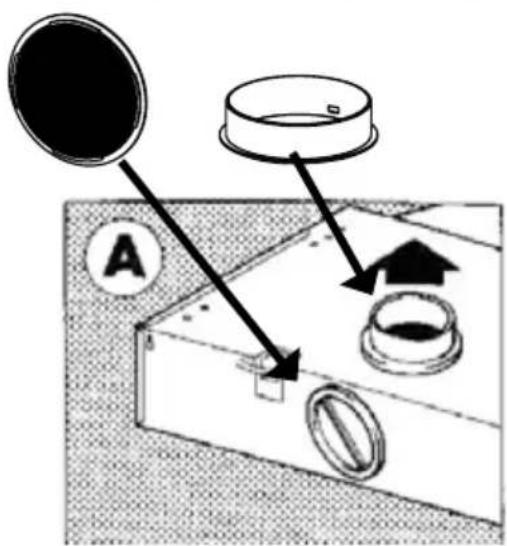

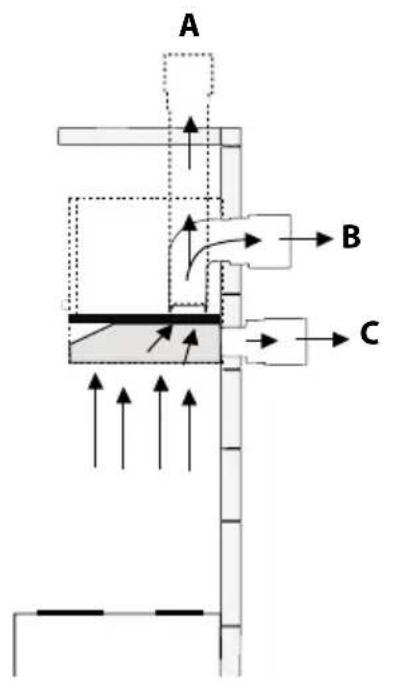

• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations,

located in an accessible place.

- With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambè under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children should be supervised to ensure that they do not play with the appliance.

- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

- Clean and/or replace the Filters after the specified time period (Fire hazard).

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• This filter cannot be washed and should be replaced every two months (H).

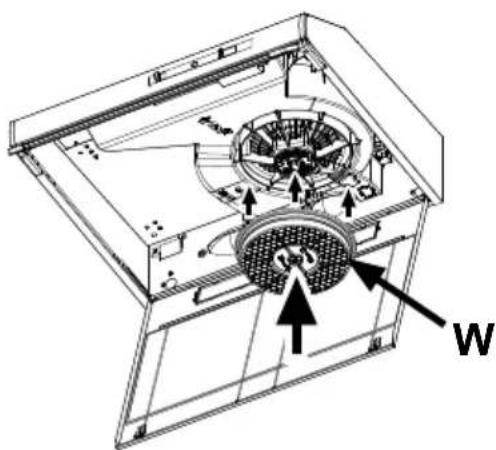

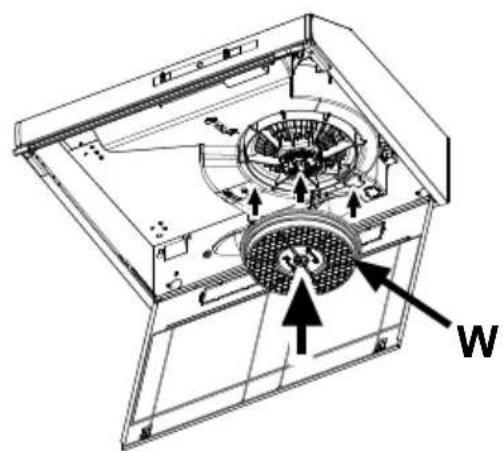

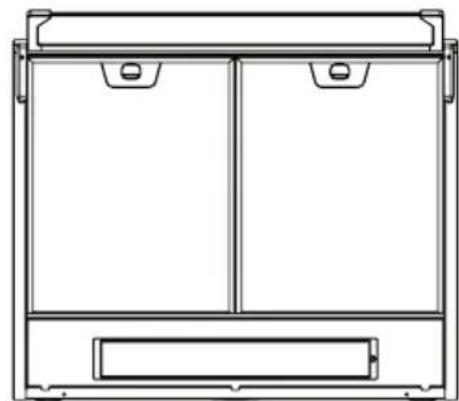

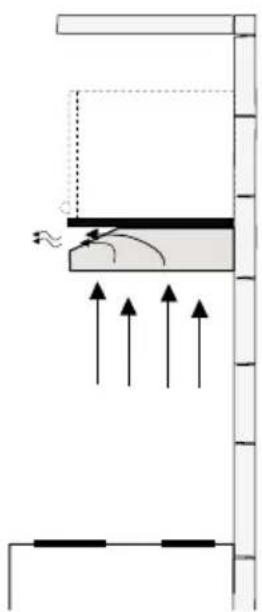

• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

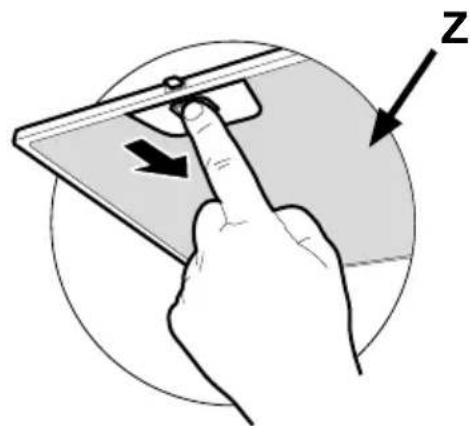

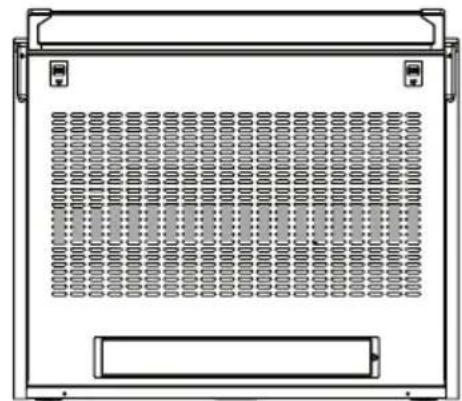

• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).
• Clean the hood using a damp cloth and a neutral liquid detergent.
• Some models may be equipped with visor.

Lamp	Power (W)	Socket	Voltage (V)	Dimension (mm)	ILCOS Code
	4	E14	220-240	107 x 37	DRBB/F-4-220-240-E14-35/100

SR - 1. БЕЗБЕДНОСНЕ ИНФОРМАЦИЈЕ

B

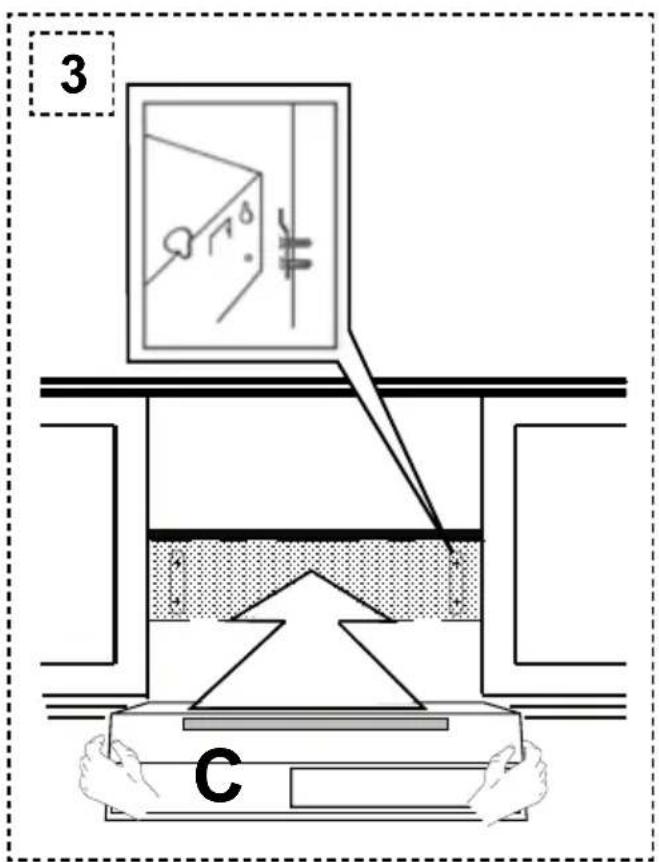

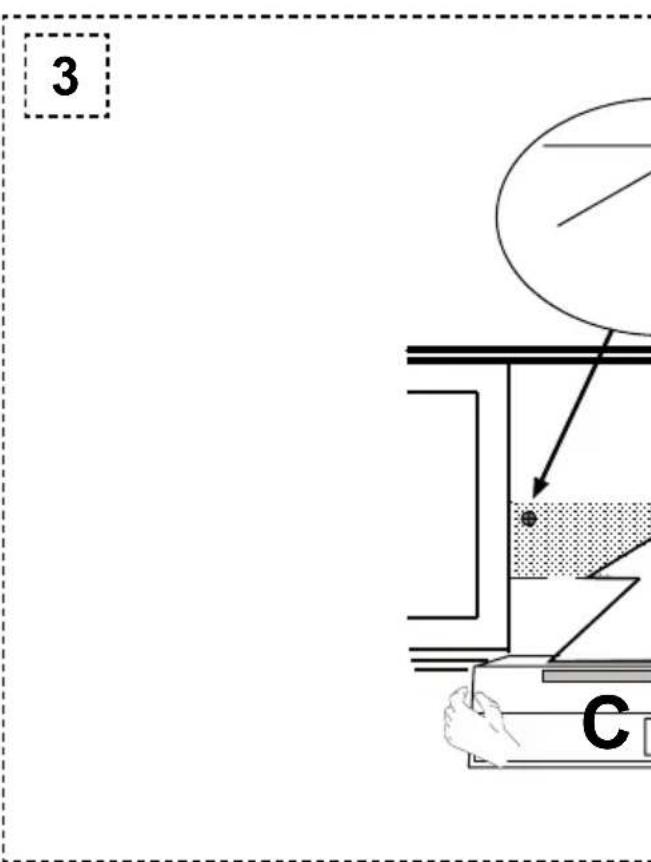

Line drawing of a kitchen or oven unit with a circular vent and side panel, labeled 'C' (no text or symbols on the device itself)

Three technical illustrations of mechanical components: a bolt, a circular component, and a cylindrical housing (no text or symbols)

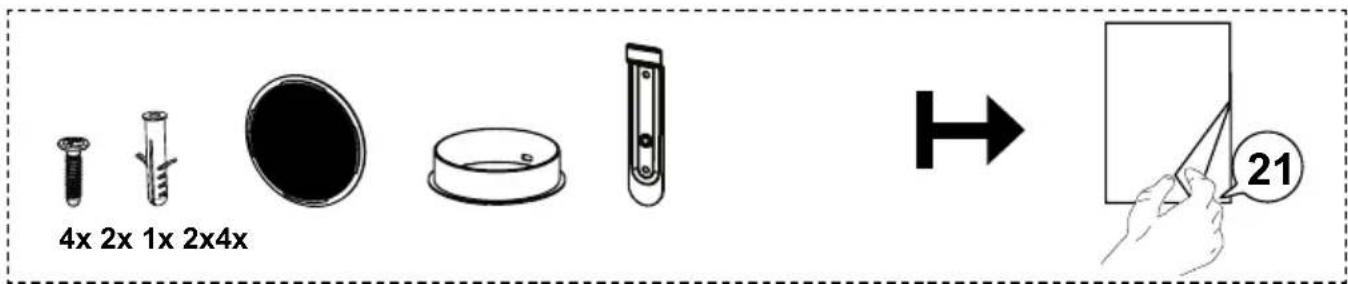

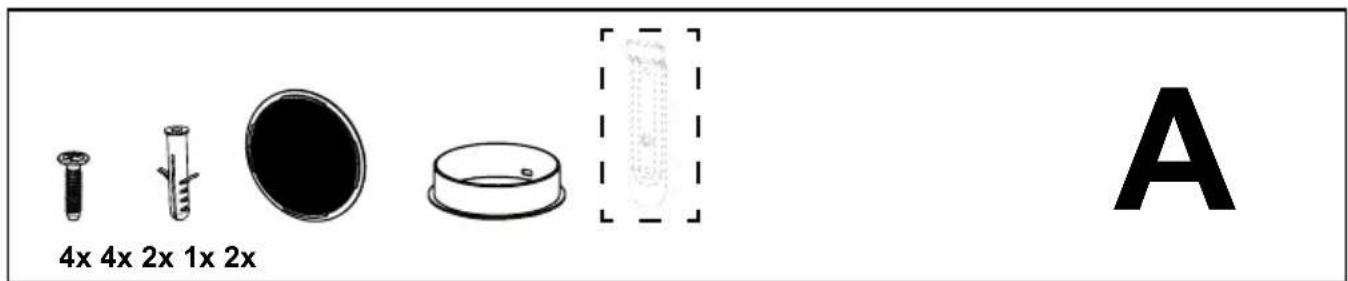

4x 2x 1x
