| Type of product | Hair Styler (Straightener and Curler) |
| Brand | Panasonic |
| Model | EH-HV11 |
| Dimensions (approx.) | 28 x 3 x 3 cm |
| Weight | 360 g |
| Power supply | AC 100-240V, 50/60Hz |
| Power consumption | 25 W |
| Maximum temperature | 230°C |
| Heat-up time | Approx. 60 seconds |
| Plate material | Ceramic with tourmaline coating |
| Cord length | 1.8 m with swivel |
| Auto shut-off | After 60 minutes |
| Color | Black / Silver |
| Accessories | Heat-resistant mat, storage case |
| Functions | Adjustable temperature, ionic technology |
| Cleaning and maintenance | Wipe with a damp cloth; do not use abrasive cleaners |
| Safety features | Overheat protection, auto shut-off |
| Repairability | Spare parts available: plates, heating element; professional repair recommended |
| General information | Ideal for straightening and curling; suitable for all hair types |
Frequently Asked Questions - EH-HV11 PANASONIC
User questions about EH-HV11 PANASONIC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Styler in PDF format for free! Find your manual EH-HV11 - PANASONIC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. EH-HV11 by PANASONIC.
USER MANUAL EH-HV11 PANASONIC
Operating Instructions
(Household) Straight & Curl Straightener
Model No. EH-HV11
English 3
中文....15
Iny....27
Tiếng Việt 39
Bahasa Indonesia 51


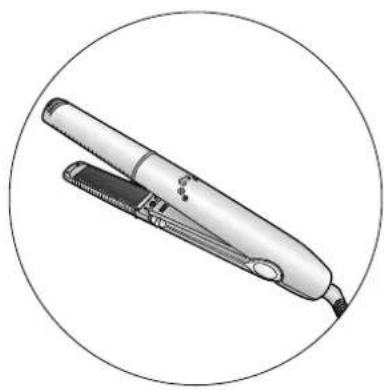

Illustration of a hair curling iron with a circular frame (no text or symbols)
Panasonic®
English
Operating Instructions
(Household) Straight & Curl Straightener
Model No. EH-HV11
Contents
Safety precautions.... 4 After Use....12
Parts identifi cation ....8 Maintenance....12
Tips for best styling results .....9 Troubleshooting .....13
Before Use....10 Specifi cations ....13
Using the straightener .....10
Thank you for purchasing this Panasonic product.
Before operating this unit, please read these instructions completely and save them for future use.
3
Safety precautions
To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.
Explanation of symbols
The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.
WARNING
Denotes a potential hazard that could result in serious injury or death.
CAUTION
Denotes a hazard that could result in minor injury or property damage.
The following symbols are used to classify and describe the type of instructions to be observed.
This symbol is used to alert users to a specific operating procedure that must not be performed.
This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.
Illustrations in "Safety precautions" may vary from the actual product.
WARNING
Do not store within the reach of children or infants. Do not let them use the appliance.
- Doing so may cause burn, electric shock, or injury.
Never modify, disassemble, or repair.
- Doing so may cause ignition or injury due to abnormal operation. Contact an authorized service center for repair.
Do not use in a way exceeding the rating of the household outlet or the wiring.
- Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating.
Do not damage the cord or plug. Do not damage, modify, or forcibly bend, pull, or twist the cord.
Also, do not place anything heavy on or pinch the cord. - Doing so may cause electric shock, burn or fire due to a short circuit.
Do not use with the cord bundled.
- Doing so may cause fi re or electric shock.
Do not wrap the cord around the main body when storing.
- Doing so may cause the wire in the cord to break with the load, and may cause electric shock, burn or fire due to a short circuit.
Do not use when the plug or cord is damaged (small cracks, inner wires visible, etc.) or hot.
- Doing so may cause burn, electric shock, or fire due to a short circuit.
WARNING
Never use the appliance if the plug fi ts loosely in a household outlet.
- Doing so may cause burn, electric shock, or fire due to a short circuit.
Do not connect or disconnect the plug to a household outlet with a wet hand.
- Doing so may cause electric shock or injury.
Do not use the appliance with a wet hand.
- Doing so may cause electric shock or fire due to a short circuit.
Do not leave the appliance unattended with the power connected or after use while the Iron Plate is still hot.
- Doing so may cause fire, burn, or discoloration or deformation of objects nearby.
Do not store the appliance in a bathroom or location with high humidity. Also, do not place in a location where water may spill (such as top of a vanity).
- Doing so may cause electric shock or fire.
Do not use in proximity of fl ammable materials (such as alcohol, benzine, thinner, spray, hair care product, nail polish remover).
Doing so may cause an explosion or fire.
Do not apply hair spray or fl ammable hair product to the main body or hair while using the appliance.
- Doing so may cause fire, electric shock, or burn.
Do not immerse the appliance in water.
Do not use the appliance near water.
Do not use the appliance near bathtubs, showers, basins or other vessels containing water.
- Doing so may cause electric shock or fire.
This symbol with prohibition sign in red on the appliance means “Do not use this appliance near water”.
Immediately stop using and remove the plug if there is any abnormality or malfunction.
- Failure to do so may cause fire, electric shock, or injury.
- The main body stops occasionally, or the cord or the plug is abnormally hot.
• The main body is deformed or smells of burning.
- Immediately request inspection or repair at an authorized service center.
Fully insert the plug.
Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the appliance.
- Failure to do so may cause fi re or electric shock.
WARNING
Regularly clean the plug to prevent dust from accumulating.
- Failure to do so may cause fi re due to insulation failure caused by humidity.
Disconnect the plug and wipe with a dry cloth.
When the appliance is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the appliance is switched off.
- Failure to do so may cause an accident or injury.
For additional protection, the installation of a residual current device (RCD) having a rated
residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.
- Failure to do so may cause an accident or injury.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
Failure to do so may cause an accident or injury.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
- Failure to do so may cause an accident or injury.
CAUTION
Do not store or use the cord in a twisted state.
- Doing so may cause the wire in the cord to break with the load, leading to electric shock or fire due to a short circuit.
Do not drop or subject to shock.
Doing so may cause electric shock or ignition.
Do not use on infants.
Doing so may cause burn.
Do not touch the shaded areas when in use or right after use since they will be hot.
- Doing so may cause burn.
Do not let the heated section touch the skin (ears, forehead, neckline, etc.).
Doing so may cause burn.
Do not use the appliance with permanent wave liquids applied to your hair.
Doing so may cause hair or skin trouble.
Do not use the appliance for any purpose other than the care of your own hair. (Do not use on pets, etc.)
Doing so may cause burn.
CAUTION
Do not use the appliance on the same bundle of hair for more than 2 times.
- Doing so may cause burn or damage your hair.
Do not touch the heated sections such as Iron Plates when attaching or removing the Storage Cap.
- Doing so may cause burn.
Do not turn ON the Power Switch if the Storage Cap is not fully removed.
- Doing so may cause burn.
Disconnect the plug from the household outlet after use.
- Failure to do so may cause electric shock or fi re due to electrical leakage resulting from insulation deterioration.
During use, be careful not to catch your hands or fingers in the shaded areas.
- Failure to do so may cause injury.
Disconnect the plug by holding onto it instead of pulling on the cord.
- Failure to do so may cause the wire in the cord to break, and may cause burn, electric shock, or fire due to a short circuit.
Slide the appliance down your hair without stopping.
Only use the appliance on clean, dry and tangle-free hair.
- Failure to do so may cause burn or damage your hair.
Always place the appliance on a heat-resistant, stable fl at surface.
- Failure to do so may cause fi re, burns or discoloration or deformation of surrounding objects.
Notes
• Styling will hold for 1 day only.
Hair will return to its normal condition after shampoo.
- Not suitable for those with extremely fi zzled or curly hair.
- Some types of wigs and hair extensions will be weakened by heat and may deform or deteriorate. Do not use the appliance on these items.

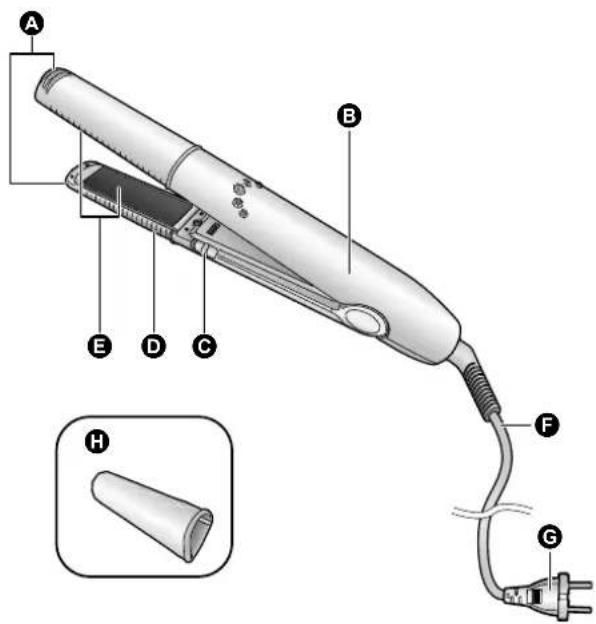

Parts identifi cation
English
A Holding Tip
B Grip
© Power Switch [0/1]
D Press Plate
E Iron Plate
F Cord
G Plug
(The shape of the plug differs depending on the area.)
Attachment
H Storage Cap (Cap)
Tips for best styling results
1 Brush your hair to ensure it is lying in the same direction.
2 Bundle and pin to hold your hair in the order shown in the illustration.
- If you have thick hair, separating the hair into more blocks will make the styling easier.
3 Practice with the power off.
- Please practice with the power off until you get used to it.
Styling order
Start styling from the bottom of the back of your head in the order of ① to ② and ③ to ④.
Hair types and styling guidelines
The hair styling effect may differ among individuals by the degree of curliness and hair type.
Hard-to-style hair Coarse hair, Kinked hair
About hair-straightening products
- Do not use the straightener immediately after a home straight perm liquid is used. Doing so may damage your hair. (The straightener may be used 3-4 days after a straight perm liquid. The straightener may also be used 3-4 days after having your hair treated at a beauty parlor.)
About dyeing products
- Dyeing places great stress on the hair. After dyeing please wait for 2 or 3 days before using the straightener. If you use a temporary dye, wash it out and dry your hair before use. - It takes some time after dyeing for the color to settle. In the case of the temporary dye, the dye can dirty the straightener if it is not fully washed out. Also, your hair cannot be straightened when it is wet.
Before Use
Heating the Iron Plate
1 Insert the plug into the household outlet.
2 Remove the Cap.
- Hold the tip of the Cap and pull it out.
3 Slide the Power Switch to turn on the straightener.
- It will be ready in about 40 seconds for straightening hair.
- It will be ready in about 60 seconds for curling hair.
- Note that the time taken to reach operating temperature may vary depending on the operating environment.
Notes
- Please use this product while keeping an eye on the condition of your hair to avoid damage, etc.
- Please be careful as your hair will be hot after using.
Using the straightener
Straightening
1 Hold a bundle of hair with a width of approximately 5 cm.
- Do not take much hair as it may be diffi cult to straighten your hair.
2 Clamp the bundle of hair with the Press Plate facing inwards.
- Clamp the bundle of hair in the center of the Iron Plate.
3 With the hair clamped, move the straightener straight toward the hair ends.
- Move the straightener slowly (at a speed slower than ordinary brushing).
• If you find the hair hard to straighten, slide the straightener while holding the Holding Tip.
• After straightening, style your hair using hair cream, wax, etc.
Curling
1 Hold a bundle of hair with a width of approximately 3 cm.
- Do not take much hair as it may be diffi cult to style your hair.
- Hold a bundle of hair in a square approximately 3 cm in width and 4 cm in length.
2 Tilt the main body 10^ and clamp the bundle of hair.
- Clamp the bundle of hair in the center of the Iron Plate. - Clamp the hair just above the point at which you want to make curls.
- Tilt the main body 10^ towards the back-of-the-head.
3 After clamping a bundle of hair, rotate the main body through an angle amounting to slightly more than a half-rotation (180°).
- Rotate the main body with both hands. - Rotate the main body inwards.
• After the half-rotation, ensure that the hair tips protrude towards the back-of-the-head.
Rotate the main body outwards.
- The only difference is the direction in which you rotate the main body. Otherwise, follow the steps for inward curls.
Keeping the straightener in the half-rotated position, slide it straight down towards the hair ends while clamping the bundle of hair.
- Move the straightener slowly (at a speed slower than ordinary brushing).
Recommended speeds (from scalp to hair ends)
Semi-long Approx. 4 - 5 sec.
Long Approx. 7 - 8 sec.
- For a more defined curl, make a full rotation (360°) of the main body and slide it towards the hair ends.
- For an effective curl, move the straightener slowly at a same speed while clamping a small bundle of hair.
- Grip the root of an already created curl with your hand. Then move it up and down. It will give you a more defi ned curl. Do not detangle the fi nished curls until the hair cools down.
• After curling, style your hair using hair cream, wax, etc.
After Use
1 Slide the Power Switch to turn off the straightener.
2 Remove the plug from the household outlet.
3 Attach the Cap.
- Hold the tip of the Cap. - Insert the Cap into the main body aligning the directions of the [▶][◀] marks.
- If you carry in your bag, please put it in after the appliance has cooled down.
Maintenance
Clean the straightener or cap after it has cooled and with the plug removed from the household outlet.
- When the straightener or cap has become dirty or styling product, etc. have gotten onto it, please soak a rag in soapy water, wring it out, and wipe the unit clean.
Notes
- Do not use alcohol, polish remover, or detergent (liquid hand soap, etc.).
Doing so may crack or discolor the surface of the straightener.
- Do not leave the appliance with hair care products or cosmetics still adhered on it.
Doing so may result in malfunction of part cracks or discoloration due to plastic deterioration.
Troubleshooting
| Problem Possible cause Action | ||
| During use, the unit gives off a burning smell. | Dust etc. are adhered to the Iron Plate. | Clean the Iron Plate to remove any adherents. |
| The Iron Plate does not get hot. | The cord is disconnected. Stop using immediately. | |
| The main body is partially deformed. | Contact an authorized service center for repair. | |
English
If problems still cannot be solved, contact the store where you purchased the unit or a service center authorized by Panasonic for repair.
Specifications
| Power source | 100 - 240 V~ 50 - 60 Hz |
| Power consumption 22 W | |
| Iron temperature Approx. | 210 °C |
This product is intended for household use only.
Panasonic®
使用說明書
(家用) 直髮捲燙器
型號：EH-HV11
中文
目錄
A 壓板前端
B 握柄
© 電源開關 [0/1]
D 按壓板
E 煙板
F 電源線
G 插頭
(插頭形狀會依地區而異。)
附件
H 收納蓋套（蓋套）
最佳造型訣竅
⑧ EN, TW, TH, VN, IND
Printed in Thailand
EH9210HV116052 Y0619-10619
EH-HV11_ASIA_EN.indb 15
11/6/2562 10:28:07
- Panasonic®
- Contents
- Safety precautions
- Explanation of symbols
- WARNING
- CAUTION
- Notes
- Tips for best styling results
- Styling order
- About hair-straightening products
- About dyeing products
- Before Use
- Heating the Iron Plate
- Using the straightener
- Straightening
- Curling
- Hold a bundle of hair with a width of approximately 3 cm.
- Tilt the main body 10° and clamp the bundle of hair.
- After clamping a bundle of hair, rotate the main body through an angle amounting to slightly more than a half-rotation (180°).
- Rotate the main body outwards.
- After Use
- Maintenance
- Troubleshooting
- Specifications
- 目錄
- 最佳造型訣竅
Brand : PANASONIC
Model : EH-HV11
Category : Styler
