EH-KA42 - Styler PANASONIC - Free user manual and instructions

Product Type	Hair Styler (Straightener / Curler)
Brand	Panasonic
Model	EH-KA42
Dimensions	Approx. 28.5 cm (L) x 3.5 cm (W) x 4.0 cm (H)
Weight	Approx. 290 g (without cord)
Power Supply	AC 100-240 V, 50/60 Hz, 25 W
Cord Length	1.8 m swivel cord
Plate Material	Ceramic coated floating plates
Temperature Range	130°C – 200°C (adjustable with dial)
Heat-Up Time	Approx. 30 seconds to maximum temperature
Ionic Function	Yes, nanoe™ technology for moisture balance
Auto Shut-Off	Yes, activates after 60 minutes of non-use
Safety Lock	Slide lock to close plates for storage
Overheat Protection	Yes, built-in thermostat
Heat-Resistant Tip	Yes, for safe styling near scalp
Maintenance	Wipe plates with a dry or slightly damp cloth after use; do not use chemicals
Cleaning Frequency	After each use
Spare Parts Available	None (non-replaceable plates); replace unit if damaged
Repairability	Not user-serviceable; contact Panasonic service center
Country of Origin	Japan
Certifications	CE, UL, etc.

Frequently Asked Questions - EH-KA42 PANASONIC

How do I adjust the temperature on the Panasonic EH-KA42?

Turn the temperature dial on the handle to select between 130°C and 200°C. The indicator light will show when the selected temperature is reached (ready in about 30 seconds).

Does the EH-KA42 have an automatic shut-off feature?

Yes, it automatically shuts off after 60 minutes of inactivity. To reset, simply unplug and plug it back in.

Can I use this styler on wet hair?

No, it is designed for use on dry hair only. Using it on wet hair can damage the hair and the device.

How should I clean the plates?

Unplug the device and let it cool. Wipe the plates with a dry or slightly damp cloth. Do not use abrasive cleaners or immerse in water.

What is the nanoe™ technology?

Panasonic's nanoe™ technology releases microscopic moisture ions to help reduce static and hydrate the hair, leaving it smooth and shiny.

Is the cord swiveling?

Yes, the 1.8 m cord has a 360° swivel base to prevent tangling and allow easy maneuvering.

How long does the warranty last?

Typically, Panasonic offers a 2-year limited warranty from the date of purchase. Check your local warranty card for details.

Can I straighten curly hair with this styler?

Yes, the ceramic plates and adjustable temperature make it suitable for straightening various hair types, including curly hair. Use lower temperatures for fine hair.

What should I do if the device stops heating?

Check if the power cord is properly plugged in and the temperature dial is not set to off. If it still doesn't heat, contact Panasonic customer support for assistance.

Are spare plates available for the EH-KA42?

No, the plates are not replaceable. If the plates are damaged, the entire unit should be replaced. Contact Panasonic for disposal instructions.

USER MANUAL EH-KA42 PANASONIC

Line drawing of a hair styling brush with a textured handle and comb (no text or symbols)

Panasonic

Operating Instructions

(Household) Hair Styler

Model No. EH-KA42/EH-KA22

English 2

Before operating this hair styler, please read these instructions completely and save this manual for future use.

Thank you for choosing a Panasonic hair stylist. Please read all instructions before use.

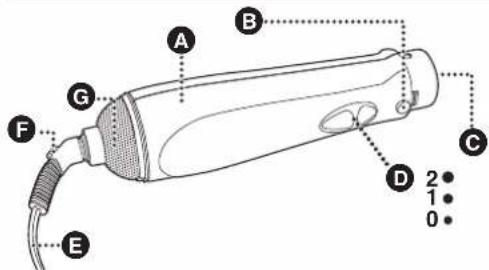

Parts identification

A Main Body

B Attachment Release

Button

© Air Outlet

Power Switch/Speed Selector

2: Dry mode

1: Set mode

0: Off

E Cord

F Hang Ring

© Air Inlet

Attachments	Blow Brush	Slim Roller Brush	Roller Brush	Nozzle
	[2WWA]
EH-KA42	√	√	√	√
EH-KA22 —	—		√	√

2

Important

Please read the safety instructions before using this hair styler. The safety instructions explained here are to help you use this hair styler safely and correctly, and also to prevent you from injuring yourself or others.

WARNING: Not following the instructions below may cause fire, burns, explosion, short circuiting or electric shock.

Electrical Conditions

WARNING: This symbol on the hair styler means "Do not use this hair styler near water". Do not use this hair styler near bathtubs, showers, basins or other vessels containing water.

- Always switch off the hair styler ("0" position) after use and before unplugging it from the power socket. Unplug it from the power socket when not in use. Always grasp the plug while unplugging. Failure to do so may lead to fire and/or an accident.

- Before connecting the hair styler, check that the voltage of the hair styler corresponds to the local voltage.

- Do not cut, damage or modify the cord. Do not pull, twist or bend the cord with unnecessary force. Do not place heavy objects on the cord or allow it to get pinched in between objects. Do not wrap the cord around the hair styler as it may cause fire and/or electric shock. If the cord is damaged or becomes hot, stop using it immediately.

- When the hair styler is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the hair styler is switched off.

- For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.

●Using the Hair Styler

• Stop using it immediately if the hair styler does not produce air constantly and the cord or plug is damaged or becomes hot, or the plug fits loosely in the outlet.
• Never insert foreign objects into either the air inlet or outlet.
• Do not use the hair styler near inflammable material such as benzine, paint thinner, sprays, etc.
• Do not use the hair styler while your hands are wet.
• Do not use or place the hair styler in an area with high humidity. Do not submerge the hair styler in water.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

● Repairing the Hair Styler

• Only qualified personnel should repair or disassemble the hair styler.
• If the cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• When the hair styler is blowing hot air, occasionally it may turn off or sparks may be seen. In such cases, dust may have accumulated at the air inlet and/or the air outlet. Also, the air inlet may be being blocked by your hair, hands, etc. (This phenomenon is the result of the hair styler's thermal switch. It is a protective device. The sparks do not pose a danger in and/or themselves.) Slide the main switch to the "0" position and remove the dust if dust has accumulated, or if air inlet was blocked by your hair or hand, cool down the hair styler for approximately 5 minutes before using it again.

CAUTION

• Do not put your hands on the air outlets or use them if they are damaged. You may get burned.
• Only use the hair styler for drying and styling human hair. Do not use it for children.
• Do not use the hair styler if it is damaged.
• Do not touch the attachments as they become hot during and after use.
  • Make sure hair does not get sucked into the air inlets.
• Do not use thinner, benzine or any other solvent to clean the hair styler.

- This hair styler is equipped with an automatic overheating protective device. If the hair styler overheats, it will be turned off. Switch off the hair styler and unplug it from the power socket. Allow it to cool down for approximately 5 minutes before using it again. Check that no dust, hair etc. is in the air inlets and outlets before switching it on again.

How to Use the Hair Styler

Fixing the Attachment

- Align the attachment with the hair styler as shown. Ensure that the groove of the attachment and the hook of the body are aligned with each other. Insert the hair styler in the attachment until it clicks.

- Press the attachment release button and pull out the attachment to remove it.

Do the following to prevent tangled hair while using the Roller Brush.

• Take only a small amount of hair when rolling and roll the hair at a right angle (90°) as shown.
- Do not do more than one and a half rolls at a time.
- Keep the roller as far away as possible from your head and unroll the roller at the same angle as your hair.
- Do not roll or unroll your hair at an incline angle.

Introduction of the Attachments

Blow Brush

Use for a natural hair style.

EH-KA42

Take a small amount of hair and brush from the inside pulling it down gently. Use your free hand to support the motion.

Slim Roller Brush

Use for volume and waves or curls.

EH-KA42

1

2

3

Take a small amount of hair and curl from the end of the hair.

Roller Brush

Use for natural straight hair or big curls.

EH-KA42 EH-KA22

1

2

...>

3

Blow dry the hair from the roots to the end and then curl the end of the hair.

Nozzle

Use for overall drying.

EH-KA42 EH-KA22

Repair and maintenance of the Hair Styler

Clean the air inlets and outlets to prevent blockages that may cause overheating.

The hair styler should be cleaned at least once a month.

To clean the hair styler, turn the power switch to [0] and unplug the hair styler from the power outlet.

- Clean the air outlet using a brush as shown.

- To clean the air inlet, remove the filter by turning it counterclockwise direction and pull the filter towards your direction.

Remove dust or hair by using a brush or a vacuum cleaner. To re-attach the filter, ensure that the groove of the connector and the projection of the filter are in line. Twist to fit.

Specifications

Model No.: EH-KA42/EH-KA22

Voltage	220 V~50-60 Hz	230 V~50-60 Hz	240 V~50-60 Hz	240 V~50 Hz*
Power consumption	550 W 6	00 W 650 W	650 W

*Only available in Kuwait and Qatar.

This product is intended for household use only.

MEMO

MEMO

Technical line drawing of a pipe joint with two cylindrical components and mounting holes (no text or symbols)

Line drawing of a hairbrush with a textured brush and comb (no text or symbols)
