Product Type	Hair Styler
Brand	Panasonic
Model	EH-HT40
Dimensions (L x W x H)	30 x 4 x 4 cm
Weight	300 g
Power Supply	100-240 V AC, 50/60 Hz
Power Consumption	25 W
Heating Element	Ceramic plates
Temperature Range	130°C - 200°C
Temperature Settings	5 levels with LED indicator
Auto Shut-Off	Yes, after 60 minutes
Swivel Cord	Yes, 1.8 m
Dual Voltage	Yes, for global use
Heat-Up Time	Approx. 60 seconds
Maintenance & Cleaning	Wipe with a damp cloth after use
Safety Features	Auto shut-off, overheat protection
Spare Parts Availability	Not available separately
Warranty	2 years
Country of Origin	China
General Information	Professional hair styling with even heat distribution

Frequently Asked Questions - EH-HT40 PANASONIC

How do I turn on the Panasonic EH-HT40 styler?

Press and hold the power button for 2 seconds. The LED will indicate the temperature level.

What is the maximum temperature of the EH-HT40?

The maximum temperature is 200°C, suitable for thick or coarse hair.

Can I use this styler on wet hair?

No, always use on dry hair to avoid damage or burns.

How do I clean the styler plates?

Unplug and let cool. Wipe plates with a damp cloth after each use.

Does the EH-HT40 have auto shut-off?

Yes, it automatically shuts off after 60 minutes of inactivity.

What voltage does the styler support?

It supports 100-240 V, making it suitable for travel worldwide.

How long does it take to heat up?

It reaches the selected temperature in about 60 seconds.

Are replacement plates available?

No, the plates are not replaceable. The unit must be replaced if damaged.

What type of hair can I use this on?

Suitable for all hair types, from fine to thick, with adjustable temperature settings.

Is the cord long enough for easy use?

Yes, the cord is 1.8 meters long with a swivel base for flexibility.

USER MANUAL EH-HT40 PANASONIC

Operating Instructions

( 家用 ) 卷烫梳

(Household) Styling Brush Iron

型号

Model No.

EH-HT40

中文....3

English......17

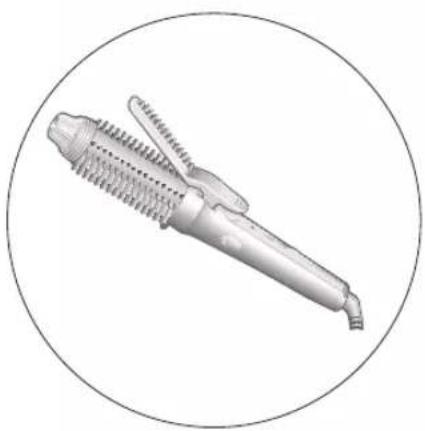

Illustration of a hair roller with threaded tip and body, enclosed in a circle (no text or symbols)

Panasonic®

权

使用说明书

(家用)卷烫梳

型号 EH-HT40

目录

安全注意事项....4

部件名称 8

使用前....9

使用卷烫梳....9

如何定型 10

使用后....15

清洁 15

规格 15

故障排除 16

感谢您购买这款Panasonic产品。

Illustration of a person styling hair with a brush (no text or symbols)

Illustration of a person styling their hair with a brush (no text or symbols)

最佳定型效果的技巧

Illustration of a person styling hair with a curling iron, showing a downward arrow (no text or symbols)

要点

Illustration of a person styling hair with a curling iron (no text or symbols)

Illustration of a person styling hair with a comb (no text or symbols)

5 松开梳子上的头发。

Illustration of a person using a hair curling iron, with a magnified inset showing the hair being curled (no text or symbols present)

向外：发夹面朝自己

Illustration of a person styling hair with a curling iron, showing a magnified inset (no text or symbols)

Illustration of a person styling hair with a brush (no text or symbols)

要点

Illustration of a person styling hair with a curling iron (no text or symbols)

4 向下滑到发梢。

Illustration of a person styling hair with a bandage, showing a downward arrow (no text or symbols)

5 剩余的头发按照步骤1-4操作。

如何定型（续）

增加头顶蓬松度

<不使用发夹>

Simple line drawing of a girl's face with long hair and a pointed hairstyle (no text or symbols)

定型刘海（呈现柔和效果）

<使用发夹>

Operating Instructions

(Household) Styling Brush Iron

Model No. EH-HT40

Contents

Safety precautions...... 18

Parts identification....22

Before use....23

Using the styling brush iron......23

How to style ....24

After use....29

Cleaning 29

Specifications 29

Troubleshooting ....30

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

WARNING

Denotes a potential hazard that could result in serious injury or death.

CAUTION

Denotes a hazard that could result in minor injury or property damage.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

WARNING

Do not store within the reach of children or infants. Do not let them use the appliance.

- Doing so may cause burn, electric shock, or injury.

Never modify, disassemble, or repair.

- Doing so may cause ignition or injury due to abnormal operation.

Contact an authorized service center for repair.

Do not use in a way exceeding the rating of the household outlet or the wiring.

- Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating.

Do not damage or modify, or forcefully bend, pull, or twist the cord.

Also, do not place anything heavy on or pinch the ord.

- Doing so may cause electric shock or fire due to a short circuit.

Do not use with the cord bundled.

- Doing so may cause fire or electric shock.

Do not wrap the cord around the main body when storing.

- Doing so may cause the wire in the cord to break with the load, and may cause electric shock or fire due to a short circuit.

Do not use when the plug or cord is damaged or hot.

- Doing so may cause burn, electric shock, or fire due to a short circuit.

WARNING

Never use the appliance if the plug fits loosely in a household outlet.

- Doing so may cause burn, electric shock, or fire due to a short circuit.

Do not connect or disconnect the plug to a household outlet with a wet hand.

- Doing so may cause electric shock or injury.

Do not use the appliance with a wet hand.

- Doing so may cause electric shock or fire due to a short circuit.

Do not leave the appliance unattended with the power connected or after use while the Barrel is still hot.

- Doing so may cause fire, burn, or discoloration or deformation of objects nearby.

Do not store the appliance in a bathroom or location with high humidity. Also, do not place in a location where water may spill (such as top of a vanity).

- Doing so may cause electric shock or fire.

Do not use in proximity of flammable materials (such as alcohol, benzine, thinner, spray, hair care product, nail polish remover).

- Doing so may cause an explosion or fire.

Do not apply hair spray or flammable hair product to the main body or hair while using the appliance.

- Doing so may cause fire, electric shock, or burn.

Do not immerse the appliance in water.

Do not use this appliance near water.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

- Doing so may cause electric shock or fire.

This symbol on the appliance means "Do not use this appliance near water".

Immediately stop using and remove the plug if there is an abnormality or malfunction.

- Failure to do so may cause fire, electric shock, or injury.

• The main unit stops occasionally, or the cord or the plug is abnormally hot.
  • The main unit is deformed or smells of burning.
• Immediately request inspection or repair at an authorized service center.

Fully insert the plug.

Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the appliance.

- Failure to do so may cause fire or electric shock.

Regularly clean the plug to prevent dust from accumulating.

- Failure to do so may cause fire due to insulation failure caused by humidity.

Disconnect the plug and wipe with a dry cloth.

WARNING

When the appliance is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the appliance is switched off.

- Failure to do so may cause an accident or injury.

For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.

- Failure to do so may cause an accident or injury.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- Failure to do so may cause an accident or injury.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

- Failure to do so may cause an accident or injury.

Properly dispose the package of the appliance, keep the package away from infants.

- Failure to do so may cause suffocation of infants from happening.

CAUTION

Do not store the cord in a twisted state.

- Doing so may cause the wire in the cord to break with the load, and may cause electric shock or fire due to a short circuit.

Do not drop or subject to shock.

- Doing so may cause electric shock or ignition.

Do not use on infants.

- Doing so may cause burn.

Do not touch the shaded areas when in use or right after use since they will be hot.

- Doing so may cause burn.

Do not let the heated section touch the skin (ears, forehead, neckline, etc.).

- Doing so may cause burn.

Do not bring near the face while the clip is shut.

- Opening the clip near your face may cause burn or injury.

Do not use the appliance with permanent wave liquids applied to your hair.

- Doing so may cause hair or skin trouble.

Do not use the appliance for any purpose other than the care of your own hair. (Do not use on pets, etc.)

- Doing so may cause burn.

CAUTION

Do not use the appliance on the same bundle of hair for more than 2 times.

Do not keep bundles of hair on the brush for longer than 10 seconds.

- Doing so may cause burn or damage your hair.

Do not wrap bundles of hair around the barrel more than 1.5 times, and do not curl up to your roots. Do not use the brush on any other section of hair other than the section currently being curled.

Do not curl and uncurl hair diagonally as shown in the diagram.

Do not curl large bundles of hair all at once.

- Doing so may cause hair to become tangled resulting in damage, or burns.

Disconnect the plug from the household outlet after use.

- Failure to do so may cause burn, electric shock, or fire due to electrical leakage resulting from insulation deterioration.

Place the appliance on a flat surface away from flammable objects or objects fragile to heat.

- Failure to do so may cause fire, burns or discoloration or deformation of surrounding objects.

Disconnect the plug by holding onto it instead of pulling on the cord.

- Failure to do so may cause the wire in the cord to break, and may cause burn, electric shock, or fire due to a short circuit.

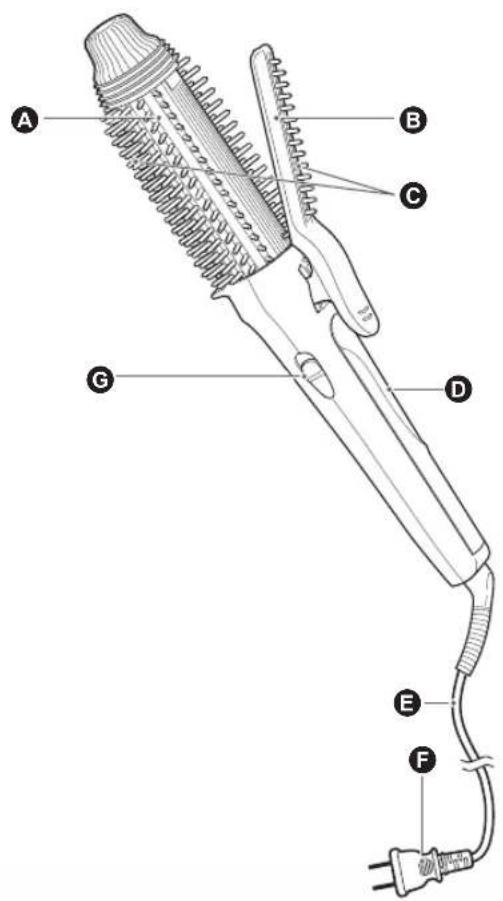

Parts identification

A Barrel
B Hair-Catching Clip (Clip)
© Brush
Power Lamp
E Cord
F Plug
Power Switch ([0], [1], [2]) (The appliance will not turn off automatically.)

Before use

1 Brush the hair.

Make sure it is detangled and lying in the direction of your desired style.

2 Slightly dampen the hair.

Lightly and evenly dampen the hair with styling products, water, or a steamed towel.

- Hair that is too damp will not style well so make sure the hair is only slightly damp.

Notes

• Hair may steam due to the heat generated from the barrel.
• Do not use styling products with ingredients similar to perm liquids (thioglycolic acid, cysteine) as they may damage the hair.

About hair-straightening products

- Do not use the styling brush iron immediately after a home straight perm liquid is used. Doing so may damage your hair. (The styling brush iron may be used 3-4 days after a straight perm liquid. The styling brush iron may also be used 3-4 days after having your hair treated at a beauty parlor.)

About dyeing products

• Dyeing places great stress on the hair. After dyeing please wait for 2 or 3 days before using the styling brush iron. If you use a temporary dye, wash it out and dry your hair before use.
• It takes some time after dyeing for the color to settle. In the case of the temporary dye, the dye can stain the brush if it is not fully washed out. Also, your hair cannot be curled when it is wet.

Using the styling brush iron

1 Insert the plug into the household outlet.

2 Slide the Power Switch to [1] or [2] to turn on.

The power lamp will glow red and the styling brush iron will heat up in about 1 minute.

- When using the styling brush iron for the first time, or if you are worried about heat damage, set the Power Switch to [1].

Temperature	Curling Style
[2]: Approx. 180 °C Stiff↓[1]: Approx. 140 °C Natural

- Select a temperature that suits your hair type and how you want the curls to turn out.

Using the styling brush iron (continued)

3

Style your hair:

▶ "Straightening hair with the brush" (P.24)

"Curling the Tips (for a large curl)" (P.25)

"Curling the Tips (for a tight curl)" (P.26)

▶ "Curling from Middle Section" (P.27)

▶ "Increasing Volume on Top" (P.28)

"Styling your Bangs (for a soft look)" (P.28)

"Styling Sideswept Bangs" (P.28)

How to style

Straightening hair with the brush

1 Lay the brush on top of the section of hair. Starting from the roots, slide the brush down at an even speed while holding the section of hair in place with your other hand.
2 Hold the brush under the section of hair. Slide the brush down using the method from Step 1.
2 Hold the brush under the section of hair.
Slide the brush down using the method from Step 1.

Illustration of a person styling hair with a brush (no text or symbols)

Illustration of a person brushing her hair with a downward arrow (no text or symbols)

Tips for best styling results

1 Use a brush to detangle the hair. 2 Separate and secure the hair into the sections shown in the illustration.

- If you have thick hair, separating the hair into smaller sections will make styling easier.

3 Start styling from the back of the head going from ① to ② [then ③ to ④].

Curling the Tips (for a large curl)

1 Gather a bundle of hair into a section 5 cm across.

2 Use the barrel to brush.

Slide the brush down from the roots at an even speed while holding your hair with your other hand.

• To curl inwards: brush under the section
• To curl outwards: brush on top of the section

POINT

Brushing your hair with the styling brush iron before curling it warms your hair and makes the curls hold better.

3 Shape the curls.

Rotate the brush in the direction you want the hair to curl, wrapping it around the barrel 1.5 times at the ends of the hair.

- To curl inwards: brush under the section - To curl outwards: brush on top of the section

Illustration of a person styling hair with a comb (no text or symbols)

4 Hold the brush in place for approx. 7 seconds.

If your curls do not hold, repeat Step 3.

- Do not hold the brush in one place for more than 10 seconds.

Illustration of a person styling hair with a bandage (no text or symbols)

5 Undo hair from the brush.

Undo the hair by rotating the brush at the same angle but opposite the direction used when making the curl.

6 Follow Steps 1-5 for the rest of your hair.

To prevent tangles

When curling

Take smaller bundles of hair and hold the iron perpendicular to the section of hair being curled, wrapping the hair around the barrel no more than 1.5 times.

When removing

Hold the brush as far away from your head as you can, and keeping the brush perpendicular to the section of hair, slowly undo the hair.

- If your hair gets caught in the brush, first set the Power Switch to [0], then unplug the styling brush iron. When untangling the hair, do not try to pull it all out at once. Instead, try removing the hair in small sections.

How to style (continued)

Curling the Tips (for a tight curl)

1 Gather a bundle of hair into a section 5 cm across. Make sure the bundle of hair fits into the clip.
2 Secure the ends and twist. Secure your ends with the Clip and wrap the hair around the barrel 1.5 times.

Inwards: clip facing away from you

Illustration of a person styling hair with a curling iron, showing a magnified inset (no text or symbols)

Outwards: clip facing toward you

Illustration of a person styling hair with a rolled-up tool, showing a magnified inset (no text or symbols)

3 Hold the brush in place for approx. 7 seconds. If your curls do not hold, repeat Step 2 again.

- Do not hold the brush in one place for more than 10 seconds.

4 Undo hair from the brush.

Undo the hair by rotating the brush at the same angle but opposite the direction used when making the curl. Open the clip to remove the hair.

5 Follow Steps 1-4 for the rest of your hair.

Curling from Middle Section

1 Gather a bundle of hair into a section 5 cm across.

2 Use the barrel to brush. While holding a section in one hand, use the brush on the barrel to brush your hair.

Illustration of a person styling hair with a curling iron, showing a downward arrow (no text or symbols)

POINT

Brushing your hair with the styling brush iron before curling it warms your hair and makes the curls hold better.

3 Once halfway down the section, wrap the hair around the barrel.

With the brush halfway down the section of hair, take the hand holding the ends of the section and use it to wrap the hair around the barrel once.

Illustration of a person styling hair with a curling iron (no text or symbols)

4 Slide down to the end.

Slide the brush down slowly, letting go of the ends of your hair before the brush reaches your hand.

- If your curls do not hold, repeat Steps 3-4 again.

Illustration of a person styling hair with a brush (no text or symbols)

5 Follow Steps 1-4 for the rest of your hair.

How to style (continued)

Increasing Volume on Top

1 Gather a bundle of hair where volume is desired.
These sections should be about 5 cm across and 2 cm thick.
2 Place the brush behind the section of hair, close to your roots.
3 Rotate the brush from the roots and slide slowly about 10 cm toward hair ends.

Simple line drawing of a girl's face with long hair and a pointed hairstyle (no text or symbols)

Styling your Bangs (for a soft look)

1 Hold your bangs away from your forehead and secure the ends with the Clip.
2 Rotate the barrel in toward the roots.

Clip

3 Undo the hair from the brush.

For a natural finish, try curling without the Hair Clip.

Styling Sideswept Bangs

1 Hold a section of the hair with the iron held upright, as shown in the diagram to the right. Ensure that the clip is facing toward you.

2 Start curling the hair away from your face.
3 Undo the hair from the brush.
2 Start curling the hair away from your face.

After use

1 Slide the Power Switch to [0] to turn off the styling brush iron.

2 Remove the plug from the household outlet.

Cleaning

Clean the styling brush iron after they have cooled and with the plug removed from the household outlet.

• To clean the styling brush iron, soak a cloth in soapy water and wring out the extra water and wipe down.
- Remove dirt, such as dust or hair, from the brush with a cotton swab.
- Do not use hand/body soaps, alcohol, thinner, benzine or remover.
Doing so may crack or discolor the surface of the styling brush iron.
- Do not leave residue from hair products or cosmetics on the styling brush iron.
Doing so may deteriorate the plastic and cause cracks or discoloration.

Specifications

Product name Styling Brush Iron
Product model EH-HT40
Place of origin Thailand
Date of production See engraving on the commodity.
Execution standard	GB4706.1, GB4706.15, GB4343.1, GB17625.1
Power source	220 V~ 50 Hz
Power consumption 41 W
Barrel temperature	[2]: Approx. 180 °C
	[1]: Approx. 140 °C

This product is intended for household use only.

Troubleshooting

Problem Possible cause Solution
During use, the styling brush iron gives off a burning smell.	Dust, dirt, hair styling products, etc. are stuck to the barrel, brush or clip.	Clean the styling brush iron to remove any adherents. (P.29)
The power lamp turns on and off when the cord is bent or rotated.		Request inspection or repair at an authorized service center.
The barrel does not heat up even though the power lamp is on.

If problems still cannot be solved, contact the store where you purchased the unit or a service center authorized by Panasonic for repair.

MEMO

MEMO

Panasonic

保修证

保修条款

Navanakorn Industrial Estate, Zone 3 No. 106 Moo 18, Khlong 1,

Khlong Luang, Pathum Thani 12120, Thailand

进口商：松下电器(中国)有限公司
