Product Type	Cordless Disc Grinder
Model	G3610DVE
Voltage	36 V
Rated Speed (No Load)	3200 – 10000 r/min (Transmission mode, 6 settings)
Auto Mode Speed (No Load)	5500 r/min (rises to 10000 r/min under load)
Wheel Outer Diameter	100 mm
Wheel Thickness	6 mm
Wheel Hole Diameter	16 mm
Max Wheel Peripheral Speed	72 m/s
Weight (with BSL36A18)	2.8 kg
Compatible Battery	BSL36A18 (Li-ion 36 V / 18 V, 2.5 Ah / 5.0 Ah, 10 cells) – not included
Charger Model	UC18YSL3 (14.4 – 18 V, 0.6 kg)
Electronic Features	Soft start, kickback protection, overload protection, rotation recovery control, overheat protection, restart prevention, electric brake, drop shut off
Mode Selection	Transmission mode (6 speed dial) and Auto mode (noise/vibration reduction)
LED Light	Always-on, SW interlocked, or always-off (auto-off after 60 min)

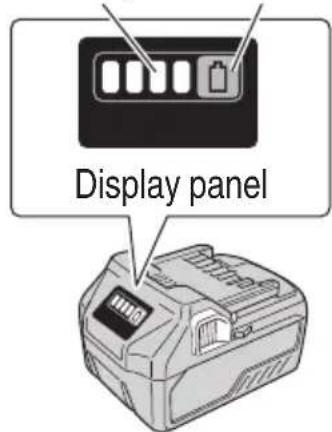

Remaining Battery Indicator	4 LEDs on battery (approximate)
Wheel Guard	Toolless adjustment (lever type) for grinding; separate guard for cutting wheel (sold separately)
Standard Accessories	Depressed center wheel (1), wrench (100 mm), 4 mm hex bar wrench, side handle, stackable case
Applications	Removal of casting fins, grinding of welds, grinding synthetic resins/stone/brick/marble, cutting concrete/stone/brick/marble
Maintenance	Inspect wheel for cracks, clean filter periodically, keep terminals free of swarf, store in cool dry place
Safety Warnings	Read manual, use eye/ear protection, ensure wheel guard attached, avoid kickback, do not use damaged wheels
Battery Care	Charge at 0-50°C, avoid deep discharge, store charged, do not short-circuit, do not incinerate
Warranty / Service	Contact HiKOKI Authorized Service Center for repairs

Frequently Asked Questions - G3610DVE HiKOKI

How do I change the grinding wheel on the HiKOKI G3610DVE?

First, ensure the switch is OFF and remove the battery. Turn the grinder upside down. Align the wheel washer with the spindle notch, place the depressed center wheel (protrusion onto washer), screw on the wheel nut, lock the spindle with the push button, and tighten the nut with the supplied wrench. Reverse to disassemble.

What battery can I use with the G3610DVE?

Only the HiKOKI BSL36A18 lithium-ion battery (36 V / 18 V, 2.5 Ah / 5.0 Ah, 10 cells) is compatible. Older BSL3660/3620/3626 or BSL18xx/14xx series batteries cannot be used.

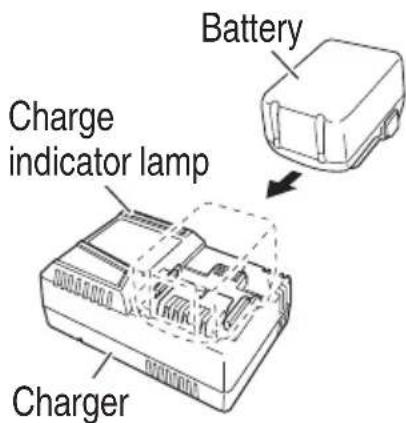

How do I charge the battery?

Connect the charger (UC18YSL3) to a power outlet. Insert the battery firmly. The indicator lamp blinks blue during charging and lights green when fully charged. Charging time approx. 32 min for a 5.0 Ah battery at 20°C. Do not charge above 50°C.

What do the different LED light modes do?

Press the light section switch to cycle: Always-ON (stays on for 60 min), SW interlocked (lights only when switch is ON, auto-off 10 sec after release), or Always-OFF. Use to save battery.

How do I use the speed control and auto mode?

Press the Auto mode switch to toggle between Transmission mode (6 dial settings from 3200 to 10000 r/min) and Auto mode (reduces noise/vibration at no load, increases under load). Adjust dial according to the material.

What safety features does the G3610DVE have?

It includes soft start, kickback protection (cuts power on sudden speed drop), overload protection, overheat protection, restart prevention (won't start if switch is ON when battery inserted), electric brake, and drop shut off.

Can I use cutting wheels with this grinder?

Yes, but you must attach the dedicated cutting wheel guard (sold separately) and the guard clip. Never use cutting wheels without the correct guard. For grinding, use the supplied grinding guard.

How do I maintain the grinder?

After use, clean the filter with a soft brush or air gun. Check wheel for cracks/deformation. Inspect mounting screws. Wipe exterior with a damp cloth (no solvents). Store in a dry place below 40°C.

What should I do if the battery indicator shows a problem?

If the battery indicator blinks rapidly, it may indicate overheating or malfunction. Remove the battery and let it cool. If problem persists, contact a HiKOKI service center. Do not use damaged batteries.

Is the G3610DVE suitable for heavy-duty grinding?

Yes, with a 100 mm wheel and 36 V battery, it's designed for heavy grinding of steel, welds, and concrete. Use the appropriate wheel and do not apply excessive pressure – the tool's weight is usually sufficient.

USER MANUAL G3610DVE HiKOKI

Cordless Disc Grinder

G 3610DVE·G 3610DVF

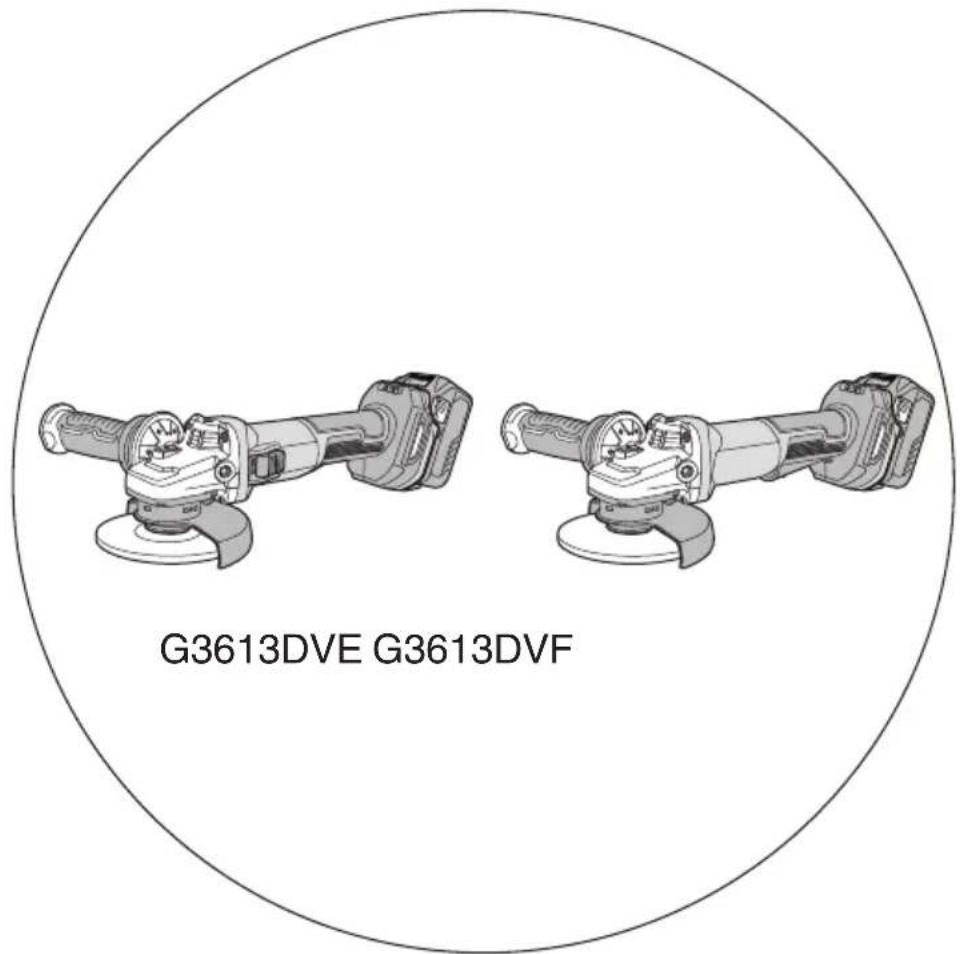

G 3613DVE·G 3613DVF

G 3615DVE·G 3615DVF

保留备用

Keep for future reference

目次

电动工具通用安全警告.....2

砂磨或砂磨切断操作的通用安全

警告....4

反弹和相关警告....6

砂磨或砂磨切断操作的专用安全

警告....6

对砂磨切断操作的附加安全警告……7

充电式角向磨光机的一般安全说明……7

其它安全警告....8

电池和充电器的使用注意事项……9

锂离子电池使用注意事项....9

锂离子电池运输....11

USB 设备连接器使用注意事项

(UC18YSL3) 11

符号....12

零件名称....12

标准附件....13

用途....14

规格....14

电池的拆卸 / 安装法.....15

充电....16

作业之前....18

磨光机的操作....22

砂轮的组装与分解....24

切割轮和金刚石砂轮的组装

和拆卸....25

LED 灯警示信号 26

USB 设备的充电方法 27

维护和检查....28

选择附件.... 30

电动工具通用安全警告

警告！

阅读所有警告和所有说明。

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

图 14

[G3610DVF、G3613DVF、G3615DVF]

Diagram showing a device connected to an electrical outlet with cable (no text or symbols)

a

Diagram of a mobile device connected to a wall-mounted cable, showing connections without any text or symbols.

b
图 19

Technical line drawing of a mechanical component with flanged base and central housing (no text or symbols)

(100mm)

产品编号：379416

免工具轮罩

(附螺丝)

Simple line drawing of a mechanical component with circular features (no text or symbols)

产品编号：375904(125mm)

产品编号：379447(150mm)

免工具轮罩

(100mm)

(125mm)

Diagram of concentric circular layers with dot patterns, no text or symbols present

产品编号：

316820 (A36Q)

砂轮

产品编号：339578

砂轮螺帽

(125, 150mm)

产品编号：371677

砂轮垫圈(C)

Diagram of concentric circular layers with dot patterns, no text or symbols present

产品编号：

316820 (A36Q) (125mm)

产品编号：

316823 (A36Q) (15mm)

砂轮

产品编号：339579

砂轮螺帽

产品编号：336865侧柄

Technical line drawing of a mechanical component with a curved top and flange (no text or symbols)

产品编号：302099 (100mm)

砂轮保护装置 (用于切割轮)

Pure technical line drawing of a curved mechanical component (no text or symbols)

产品编号：372701 (125mm)

产品编号：379593 (150mm)

防护夹

产品编号：329897 电池盖

Line drawing of a portable electronic device with control panel and display (no text or symbols)

BSL36A18 电池

Line drawing of a mechanical device casing with internal compartments (no text or symbols)

Isometric technical drawing of a mechanical housing or enclosure with internal components (no text or symbols)

产品编号：337108 电池盖

Technical line drawing of a mechanical housing component (no text or symbols)

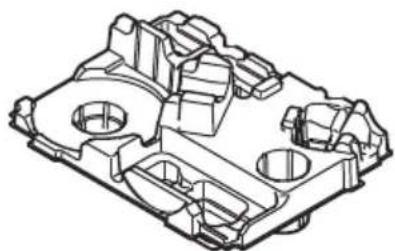

产品编号：379422 内托盘

产品编号：379591 过滤器

CONTENTS

GENERAL POWER TOOL SAFETY WARNINGS ....32

SAFETY WARNINGS COMMON FOR GRINDING OR ABRASIVE CUTTING-OFF OPERATIONS ....35

KICKBACK AND RELATED WARNINGS ....37

SAFETY WARNINGS SPECIFIC FOR GRINDING AND ABRASIVE CUTTING-OFF OPERATIONS ....37

ADDITIONAL SAFETY WARNINGS SPECIFIC FOR ABRASIVE CUTTING-OFF OPERATIONS ....38

GENERAL SAFETY INSTRUCTIONS FOR CORDLESS DISC GRINDERS ....39

ADDITIONAL SAFETY WARNINGS 40

PRECAUTIONS FOR BATTERY AND CHARGER 41

CAUTION ON LITHIUM-ION BATTERY 41

REGARDING LITHIUM-ION BATTERY TRANSPORTATION ....43

USB DEVICE CONNECTION PRECAUTIONS (UC18YSL3) 43

SYMBOL....44

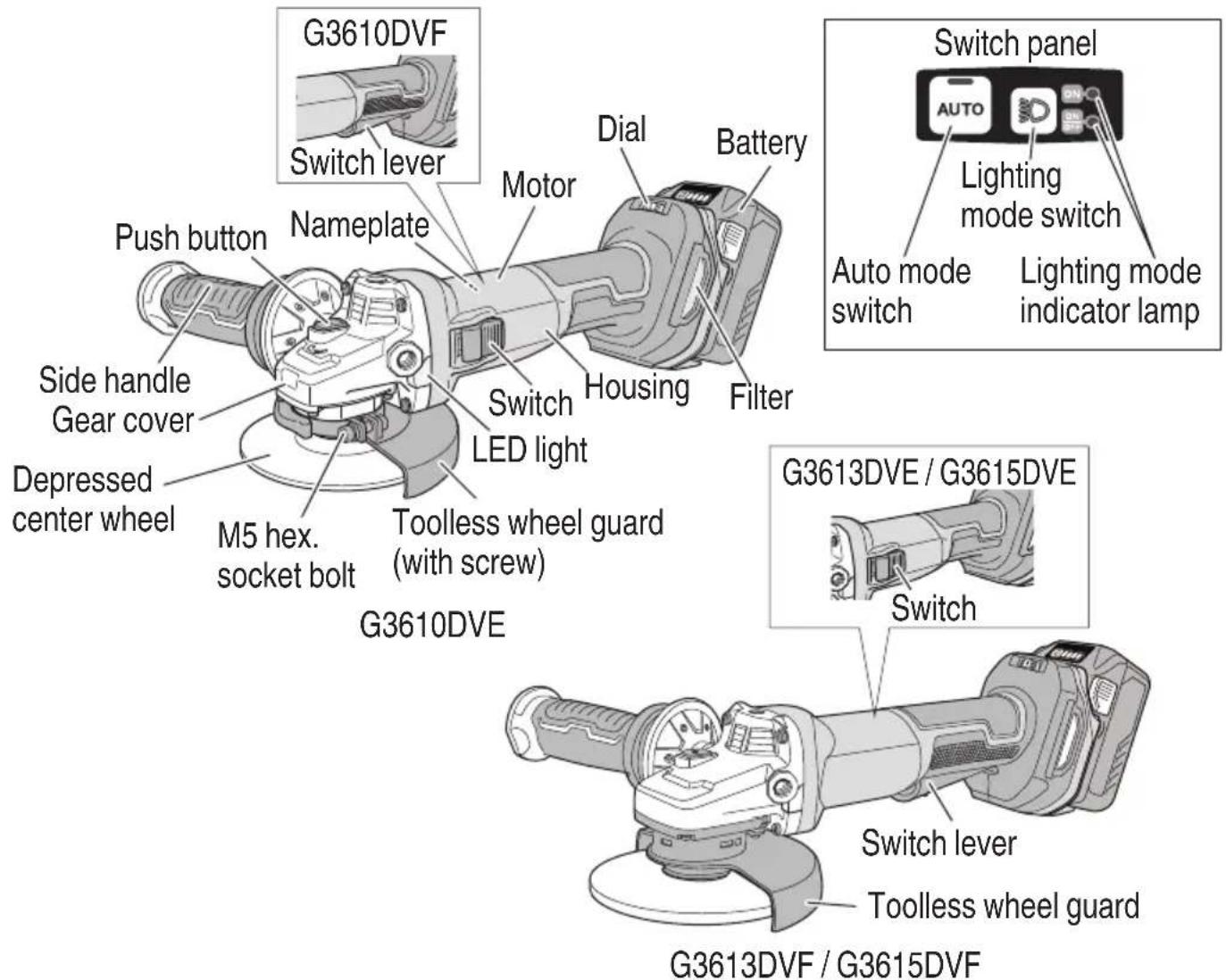

NAME OF PARTS....44

STANDARD ACCESSORIES 45

APPLICATIONS......46

SPECIFICATIONS......46

BATTERY REMOVAL/INSTALLATION 48

CHARGING 48

LED LIGHT WARNING SIGNALS ⑥

HOW TO RECHARGE USB DEVICE 61

MAINTENANCE AND INSPECTION 62

SELECTING ACCESSORIES 64

GENERAL POWER TOOL SAFETY WARNINGS

WARNING

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool.

Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

English

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.

If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifi cally designated battery packs.

Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation or burns.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

CAUTION

Keep children and infi rm persons away.

When not in use, tools should be stored out of reach of children and infirm persons.

SAFETY WARNINGS COMMON FOR GRINDING OR ABRASIVE CUTTING-OFF OPERATIONS

a) This power tool is intended to function as a grinder or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

b) Operations such as sanding, wire brushing or polishing are not recommended to be performed with this power tool.

Operations for which the power tool was not designed may create a hazard and cause personal injury.

c) Do not use accessories which are not specifically designed and recommended by the tool manufacturer.

Just because the accessory can be attached to your power tool, it does not assure safe operation.

d) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool.

Accessories running faster than their rated speed can break and fly apart.

e) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool.

Incorrectly sized accessories cannot be adequately guarded or controlled.

f) Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by flanges, the arbour hole of the accessory must fit the locating diameter of the flange.

Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.

English

g) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute.

Damaged accessories will normally break apart during this test time.

h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments.

The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

i) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment.

Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.

j) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting tool may contact hidden wiring.

Contact with a "live" wire will also make exposed metal parts of the power tool "live" and could give the operator an electric shock.

k) Position the cord clear of the spinning accessory.

If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.

I) Never lay the power tool down until the accessory has come to a complete stop.

The spinning accessory may grab the surface and pull the power tool out of your control.

m) Do not run the power tool while carrying it at your side.

Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.

n) Regularly clean the power tool's air vents.

The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.

o) Do not operate the power tool near fl ammable materials.

Sparks could ignite these materials.

p) Do not use accessories that require liquid coolants.

Using water or other liquid coolants may result in electrocution or shock.

KICKBACK AND RELATED WARNINGS

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding.

For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching.

Abrasive wheels may also break under these conditions.

Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

a) Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up.

The operator can control torque reactions or kickback forces, if proper precautions are taken.

b) Never place your hand near the rotating accessory.

Accessory may kickback over your hand.

c) Do not position your body in the area where power tool will move if kickback occurs.

Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.

d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory.

Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.

e) Do not attach a saw chain woodcarving blade or toothed saw blade.

Such blades create frequent kickback and loss of control.

SAFETY WARNINGS SPECIFIC FOR GRINDING AND ABRASIVE CUTTING-OFF OPERATIONS

a) Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel.

Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.

b) The grinding surface of centre depressed wheels must be mounted below the plane of the guard lip.

An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.

English

c) The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator.

The guard helps to protect the operator from broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing.

d) Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel.

Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.

e) Always use undamaged wheel flanges that are of correct size and shape for your selected wheel.

Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.

f) Do not use worn down wheels from larger power tools.

Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst.

ADDITIONAL SAFETY WARNINGS SPECIFIC FOR ABRASIVE CUTTING-OFF OPERATIONS

a) Do not “jam” the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut.

Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.

b) Do not position your body in line with and behind the rotating wheel.

When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you.

c) When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur.

Investigate and take corrective action to eliminate the cause of wheel binding.

d) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut.

The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.

e) Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback.

Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.

f) Use extra caution when making a “pocket cut” into existing walls or other blind areas.

The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.

GENERAL SAFETY INSTRUCTIONS FOR CORDLESS DISC GRINDERS

— Check that speed marked on the wheel is equal to or greater than the rated speed of the grinder;
— Ensure that the wheel dimensions are compatible with the grinder;
— Abrasive wheels shall be stored and handled with care in accordance with manufacturer's instructions;
— Inspect the grinding wheel before use, do not use chipped, cracked or otherwise defective products;
— Ensure that mounted wheels and points are fitted in accordance with the manufacturer's instructions;
— Ensure that blotters are used when they are provided with the bonded abrasive product and when they are required;
— Ensure that the abrasive product is correctly mounted and tightened before use and run the tool at no-load for 30 seconds in a safe position, stop immediately if there is considerable vibration or if other defects are detected. If this condition occurs, check the machine to determine the cause;
— If a guard is equipped with the tool never use the tool without such a guard;

— When using an abrasive cutting wheel, be sure to remove the standard accessory wheel guard and attach the wheel guard with side guard (sold separately) (Fig. 17 on page 59);

— When using an abrasive cutting wheel, be sure to attach the guard clip for cutting wheel (sold separately) over the standard-accessory wheel guard. (Fig. 18 on page 60);
— Do not use separate reducing bushings or adapters to adapt large hole abrasive wheels;
— For tools intended to be fitted with threaded hole wheel, ensure that the thread in the wheel is long enough to accept the spindle length;
— Check that the work piece is properly supported;
— Do not use cutting off wheel for side grinding;
— Ensure that sparks resulting from use do not create a hazard e.g. do not hit persons, or ignite fl ammable substances;
— Ensure that ventilation openings are kept clear when working in dusty conditions, if it should become necessary to clear dust, first disconnect the tool from the mains supply (use non metallic objects) and avoid damaging internal parts;
— Always use eye and ear protection. Other personal protective equipment such as dust mask, gloves, helmet and apron should be worn;
— Pay attention to the wheel that continues to rotate after the tool is switched off.
— Do not allow foreign matter to enter the hole for connecting the rechargeable battery.
— Never disassemble the rechargeable battery and charger.

English

— Never short-circuit the rechargeable battery.

Short-circuiting the battery will cause a great electric current and overheat. It results in burn or damage to the battery.

— Do not dispose of the battery in fire.

If the battery burnt, it may explode.

— Do not insert object into the air ventilation slots of the charger.

Inserting metal objects or inflammables into the charger air ventilation slots will result in electrical shock hazard or damaged charger.

— Bring the battery to the shop from which it was purchased as soon as the post-charging battery life becomes too short for practical use. Do not dispose of the exhausted battery.

WARNING

— When using a cutting-off wheel, be sure to attach the cutting-off guard.

— When using a grinding wheel, be sure to attach the grinding wheel guard.

ADDITIONAL SAFETY WARNINGS

1 Ensure that the depressed center wheel to be utilized is the correct type and free of cracks or surface defects. Also ensure that the depressed center wheel is properly mounted and the wheel nut is securely tightened.
2. Confirm that the push button is disengaged by pushing push button two or three times before switching the power tool on.
3. To prolong the life of the machine and ensure a first class finish, it is important that the machine should not be overloaded by applying too much pressure. In most applications, the weight of the machine alone is sufficient for effective grinding. Too much pressure will result in reduced rotational speed, inferior surface finish, and overloading which could reduce the life of the machine.
4. The wheel continues to rotate after the tool is switched off.
After switching off the machine, do not put it down until the depressed center wheel has come to a complete stop. Apart from avoiding serious accidents, this precaution will reduce the amount of dust and swarf sucked into the machine.
5. Be sure to switch OFF and pull out the battery to avoid a serious accident before the depressed center wheel is assembling and disassembling.
6. Be careful of brake kickback.
This cordless disc grinder features an electric brake that functions when the switch is released. As there is some kickback when the brake functions, be sure to hold the main body securely.
7. Do not use the product if the tool or the battery terminals (battery mount) are deformed.
Installing the battery could cause a short circuit that could result in smoke emission or ignition.

1. Keep the tool's terminals (battery mount) free of swarf and dust.

○ Prior to use, make sure that swarf and dust have not collected in the area of the terminals.
During use, try to avoid swarf or dust on the tool from falling on the battery.
When suspending operation or after use, do not leave the tool in an area where it may be exposed to falling swarf or dust.

Doing so could cause a short circuit that could result in smoke emission or ignition.

PRECAUTIONS FOR BATTERY AND CHARGER

1. Always charge the battery at an ambient temperature of -10–40°C. A temperature of less than -10°C will result in over charging which is dangerous. The battery cannot be charged at a temperature greater than 40°C.

The most suitable temperature for charging is that of 20–25°C.

1. Do not use the charger continuously.

When one charging is completed, leave the charger for about 15 minutes before the next charging of battery.

1. Do not allow foreign matter to enter the hole for connecting the rechargeable battery.
2. Never disassemble the rechargeable battery or charger.
3. Never short-circuit the rechargeable battery.

Short-circuiting the battery will cause a great electric current and overheat. It results in burn or damage to the battery.

1. Do not dispose of the battery in fire.
   If the battery is burnt, it may explode.
2. Using an exhausted battery will damage the charger.
3. Bring the battery to the shop from which it was purchased as soon as the post-charging battery life becomes too short for practical use. Do not dispose of the exhausted battery.
4. Do not insert objects into the air ventilation slots of the charger.

Inserting metal objects or flammable into the charger air ventilation slots will result in an electrical shock hazard or damage to the charger.

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output.

In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out, the motor stops.

In such case, charge it up immediately.

1. If the tool is overloaded, the motor may stop. In this case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.

English

1. If the battery is overheated under overload work, the battery power may stop. In this case, stop using the battery and let the battery cool. After that, you can use it again.

Furthermore, please heed the following warning and caution.

WARNING

In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the battery.

During work make sure that swarf and dust do not fall on the battery.

○ Make sure that any swarf and dust falling on the power tool during work do not collect on the battery.

○ Do not store an unused battery in a location exposed to swarf and dust.

Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).

1. Do not pierce battery with a sharp object such as a nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.

2. Do not use an apparently damaged or deformed battery.

3. Do not use the battery for a purpose other than those specified.

4. If the battery charging fails to complete even when a specified recharging time has elapsed, immediately stop further recharging.

5. Do not put or subject the battery to high temperatures or high pressure such as into a microwave oven, dryer, or high pressure container.

6. Keep away from fire immediately when leakage or foul odor are detected.

7. Do not use in a location where strong static electricity generates.

8. If there is battery leakage, foul odor, heat generated, discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.

9. Do not immerse the battery or allow any fluids to flow inside. Conductive liquid ingress, such as water, can cause damage resulting in fire or explosion. Store your battery in a cool, dry place, away from combustible and flammable items. Corrosive gas atmospheres must be avoided.

CAUTION

1. If liquid leaking from the battery gets into your eyes, do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately.

If left untreated, the liquid may cause eye-problems.

1. If liquid leaks onto your skin or clothes, wash well with clean water such as tap water immediately.

There is a possibility that this can cause skin irritation.

1. If you find rust, foul odor, overheating, discolor, deformation, and/or other irregularities when using the battery for the first time, do not use and return it to your supplier or vendor.

WARNING

If an electrically conductive foreign object enters the terminals of the lithium ion battery, a short-circuit may occur resulting in the risk of fi re. Please observe the following matters when storing the battery.

○ Do not place electrically conductive cuttings, nails, steel wire, copper wire or other wire in the storage case.
☐ Either install the battery in the power tool or store Fig. 1 by securely pressing into the battery cover until the ventilation holes are concealed to prevent short-circuits (See Fig. 3 on page 45).

Fig. 1

REGARDING LITHIUM-ION BATTERY TRANSPORTATION

When transporting a lithium-ion battery, please observe the following precautions.

WARNING

Notify the transporting company that a package contains a lithium-ion battery, inform the company of its power output and follow the instructions of the transportation company when arranging transport.

● Lithium-ion batteries that exceed a power output of 100 Wh are considered to be in the freight classification of Dangerous Goods and will require special application procedures.
- For transportation abroad, you must comply with international law and the rules and regulations of the destination country.

USB DEVICE CONNECTION PRECAUTIONS (UC18YSL3)

When an unexpected problem occurs, the data in a USB device connected to this product may be corrupted or lost. Always make sure to back up any data contained in the USB device prior to use with this product.

Please be aware that our company accepts absolutely no responsibility for any data stored in a USB device that is corrupted or lost, nor for any damage that may occur to a connected device.

WARNING

○ Prior to use, check the connecting USB cable for any defect or damage.
Using a defective or damaged USB cable can cause smoke emission or ignition.
○ When the product is not being used, cover the USB port with the rubber cover.
Buildup of dust etc. in the USB port can cause smoke emission or ignition.

English

NOTE

○ There may be an occasional pause during USB recharging.
○ When a USB device is not being charged, remove the USB device from the charger.

Failure to do so may not only reduce the battery life of a USB device, but may also result in unexpected accidents.

It may not be possible to charge some USB devices, depending on the type of device.

SYMBOLS

WARNING

The following show symbols used for the machine. Be sure that you understand their meaning before use.

To reduce the risk of injury, user must read instruction manual.

NAME OF PARTS

1. POWER TOOL


Fig. 2

2. Battery (Optional accessories) 3. Battery Charger (Optional accessories)

Fig. 3

Fig. 4

STANDARD ACCESSORIES

In addition to the main unit (1 unit), the package contains the accessories listed in the below.

Table 1

		G3610DVE, G3610DVF	G3613DVE, G3613DVF, G3615DVE, G3615DVF
		(NNP) (NNP)
	Depressed center wheel 1	1
	Wrench (100 mm) 1 —
	Wrench (125, 150 mm) —	1
	4 hex. bar wrench 1 —
	Side handle 1 1
	Stackable case 1 1

APPLICATIONS

○ Removal of casting fin and finishing of various types of steel, bronze and aluminum materials and castings.
○ Grinding of welded sections or sections cut by means of a cutting torch.
○ Grinding of synthetic resins, slate, brick, marble, etc.
○ Cutting of synthetic concrete, stone, brick, marble, and similar materials.

SPECIFICATIONS

POWER TOOL

Model		G3610DVE, G3610DVF	G3613DVE, G3613DVF	G3615DVE, G3615DVF
Voltage 36 V
Rated Speed	Transmission mode	3200–10000 r/min 3200–8000 r/min
	Auto mode 55	00 r/min
Wheel	Outer dia. thickness hole dia.	100 mm 6 mm 16 mm	125 mm 6 mm 22.23 mm	150 mm 6 mm 22.23 mm
	peripheral speed	72 m/s 80 m/s
Battery*		BSL36A18: Li-ion 36 V / 18 V (2.5 Ah / 5.0 Ah 10 cells)
Weight		2.8 kg (BSL36A18) 3.0 kg (BSL36B18)	3.0 kg (BSL36A18) 3.3 kg (BSL36B18)	3.1 kg (BSL36A18) 3.4 kg (BSL36B18)

* Existing batteries (BSL3660/3620/3626, BSL18xx and BSL14xx series) cannot be used with this tool.

NOTE

Due to HiKOKI's continuing program of research and development, the specifications herein are subject to change without prior notice.

Electronic control

○ Soft start

Reduces recoil against the operator by managing the number of rotations during startup.

○ Kickback Protection

The kickback protection feature cuts off the power to the motor and stops the power tool in the event of a sudden drop in the rotational speed of the wheel during operation (for example, if the wheel locks during cutting operation, etc.).

○ Overload protection

While working, if a load exceeding a certain level is applied, or if the grinding disc is stopped for a certain amount of time, the motor will be stopped to protect the tool and for safety.

Turn off the switch once, then turn it on again to start up the tool.

○ Rotation recovery control function

While working, if the tool is pressed too forcefully against the surface and the motor stops, if you lift up the tool and lighten the load, rotation will resume.

Depending on the grinding disc used and the working conditions, the rotation recovery control may be stopped by overload protection.

CAUTION

When using ET36A, this function does not operate.

○ Overheat protection

This protection feature cuts off the power to the motor and stops the power tool in the event of overheating of motor during operation.

When the overheat protection feature has been activated, the motor may stop.

In this case, release the tool switch and cool it down in a few minutes.

After that you can use it again.

○ Restart prevention function

When the power is still switched on, the tool will not restart when a battery is installed. This function can be canceled once the tool is switched off.

○ Brake function

Brake activates when the switch is off.

CAUTION

When using ET36A, this function does not operate.

○ Drop shut off function

When the drop shut off function has been activated, the motor may stop.

In this case, release the tool switch.

After that you can use it again.

CHARGER

Model UC18YSL3
Charging voltage 14.4 V–18 V
Weight 0.6 kg

BATTERY REMOVAL/INSTALLATION

1. Battery removal

Hold the handle tightly and push the battery latches to remove the battery (see Fig. 5).

CAUTION

Never short-circuit the battery.

2. Battery installation

Insert the battery while observing its polarities (see Fig. 5).

Fig. 5

CHARGING

Before using the power tool, charge the battery as follows.

1. Connect the charger's power cord to the receptacle.

When connecting the plug of the charger to a receptacle, the charge indicator lamp will blink in red (At 1-second intervals).

2. Insert the battery into the charger.

Firmly insert the battery into the charger as shown in Fig. 6.

Fig. 6

3. Charging

When inserting a battery in the charger, the charge indicator lamp will blink in blue.

When the battery becomes fully recharged, the charge indicator lamp will light up in green.

(See Table 2)

(1) Charge indicator lamp indication

The indications of the charge indicator lamp will be as shown in Table 2, according to the condition of the charger or the rechargeable battery.

Table 2

Indications of the charge indicator lamp
Charge indicator lamp (RED / BLUE / GREEN / PURPLE)	Before charging	Blinks (RED)	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)	Plugged into power source*1
	While charging	Blinks (BLUE)	Lights for 0.5 seconds. Does not light for 1 second. (off for 1 second)	Battery capacity at less than 50%
		Blinks (BLUE)	Lights for 1 second. Does not light for 0.5 seconds. (off for 0.5 seconds)	Battery capacity at less than 80%
		Lights (BLUE)	Lights continuously	Battery capacity at more than 80%
	Charging complete	Lights (GREEN)	Lights continuously(Continuous buzzer sound: about 6 seconds)
	Overheat standby	Blinks (RED)	Lights for 0.3 seconds. Does not light for 0.3 seconds. (off for 0.3 seconds)	Battery overheated. Unable to charge. (Charging will commence when battery cools)*2
	Charging impossible	Flickers (PURPLE)	Lights for 0.1 seconds. Does not light for 0.1 seconds. (off for 0.1 seconds)■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■ ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□○□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□ □□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□口□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□×□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□△□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□√□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

*1 If the red lamp continues to blink even after the charger has been attached, check to confirm that the battery has been fully inserted.

*2 Although charging will start once the battery has cooled down even when left in situ, the best practice is to remove the battery and allow it to cool down in a shaded, well-ventilated location before charging.

*3

○ Fully insert the battery.

☐ Check to confirm that no foreign matter is stuck to the battery mount or terminals.

English

○ Charging will take longer at extremely low ambient temperatures. Charge the battery in a warm location (such as indoors).
- Do not block the air vent. Otherwise the interior will overheat, reducing the charger's performance.
○ If the cooling fan is not operating, contact a HiKOKI Authorized Service Center for repairs.

(2) Regarding the temperatures and charging time of the rechargeable battery

The temperatures and charging time will become as shown in Table 3.

Table 3

Battery\Charger		UC18YSL3
Type of battery Li-ion
Charging voltage 14.4–18 V
Temperatures at which the battery can be recharged 0°C–50°C
Charging time, for battery capacity, approx. (At 20°C)	1.5 Ah 15 min
	2.0 Ah 20 min
	2.5 Ah 25 min
	3.0 Ah	20 min(BSL1430C, BSL1830C: 30 min)
	4.0 Ah	26 min(BSL1840M: 40 min)
	5.0 Ah 32 min
	6.0 Ah 38 min
	8.0 Ah 52 min
Multi volt battery	1.5 Ah (×2 unit) 20 min
	2.5 Ah (×2 unit) 32 min
	4.0 Ah (×2 unit) 52 min
Number of battery cells 4–10
Charging voltage for USB 5 V
Charging current for USB 2 A
Weight 0.6 kg

NOTE

The recharging time may vary according to the ambient temperature and power source voltage.

1. Disconnect the charger's power cord from the receptacle.
2. Hold the charger firmly and pull out the battery.

NOTE

Be sure to pull out the battery from the charger after use, and then keep it.

Regarding electric discharge in case of new batteries, etc.

As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the first and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2–3 times.

How to make the batteries perform longer.

(1) Recharge the batteries before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

(2) Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

CAUTION

☐ If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the charge indicator lamp of the charger lights for 0.3 seconds, does not light for 0.3 seconds (off for 0.3 seconds). In such a case, first let the battery cool, then start charging.
When the charge indicator lamp flickers (at 0.2-second intervals), check for and take out any foreign objects in the charger's battery connector. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

PRIOR TO OPERATION

1. Power switch

Ensure that the switch is in the OFF position.

1. Check your work environment

Ensure the following before operation:

○ No fl ammable gas, liquid, or object at worksite.
When grinding thin steel sheet it may cause a high booming noise.
To avoid such noise, place a rubber mat under the workpiece.
○ Clear the area of children or unauthorized personnel.

1. Fitting and adjusting the wheel guard

The wheel guard is a protective device to prevent injury should the depressed center wheel shatter during operation. Ensure that the guard is properly fitted and fastened before commencing grinding operation.

English

[How to attach and adjust the wheel guard]

[G3610DVE, G3610DVF] (Fig. 7)

○ Set the wheel ass'y to the packing gland.
○ Tighten M5 hex. socket bolt to secure the wheel guard while the lever is in closed position.
○ Perform the adjustment of the wheel guard while the lever is released. (Loosen M5 hex. socket bolt and readjust if the wheel guard does not rotate smoothly.)
○ After adjustment, if grinder operation is required, perform the operation only after setting the lever in closed position.
○ Lubricate the sliding section of the set piece (B) and the lever if the lever does not move smoothly.

[G3613DVE, G3613DVF, G3615DVE, G3615DVF] (Fig. 8)

○ Open and hold the lever, then install the wheel guard so that the projection on the wheel guard aligns with the recess in the packing gland.
○ Rotate the wheel guard to an angle suitable for use, then release your finger from the lever.
○ Rotate the wheel guard left or right until it locks into place.

WARNING

If the wheel guard is not attached properly, a broken wheel may result in and cause death or serious injury.

Fig. 7

Fig. 8

1. Thoroughly check that the depressed center wheel is free of cracks, splits and other abnormalities before mounting. Make sure it is firmly clamped and has been properly mounted. Refer to page 58 of this manual for ASSEMBLING AND DISASSEMBLING THE DEPRESSED CENTER WHEEL.
2. Test the grinder before using. Before actually beginning the grinding work, test the grinder by first clearing the area of all other personnel. Make sure the wheel guard is in place and that you are wearing eye protection. Turn the grinder “on”, and make sure the grinder runs smoothly and shows no abnormalities.

Duration of the trial run is as follows:

When depressed center wheel is replaced ....3 minutes or more

When starting daily work ....1 minute or more

1. Use only properly rated depressed center wheels.

Use only depressed center wheels rated at 13300 r/min or more.

Using a depressed center wheel rated less can lead to wheel disintegration during operation and cause serious bodily injury.

1. Check the push button.

Make sure that the push button is disengaged by pushing push button two or three times before turning on the grinder. (Fig. 9)

Fig. 9

1. Remaining battery indicator

You can check the battery's remaining capacity by pressing the remaining battery indicator switch to light the indicator lamp. (Fig. 10, Table 4)

The indicator will shut off approximately 3 seconds after the remaining battery indicator switch is pressed.

It is best to use the remaining battery indicator as a guide since there are slight differences such as ambient temperature and the condition of the battery.

Also, the remaining battery indicator may vary from those equipped to a tool or charger.

(A battery is not included with this product.)

Remaining battery indicator lamp Remaining battery indicator switch

Fig. 10

Table 4

State of lamp Battery Remaining Power
	Lights;The battery remaining power is over 75%
	Lights;The battery remaining power is 50%-75%.
	Lights;The battery remaining power is 25%-50%.
	Lights;The battery remaining power is less than 25%
	Blinks;The battery remaining power is nearly empty. Recharge the battery soonest possible.

English

	Blinks;Output suspended due to high temperature. Remove the battery from the tool and allow it to fully cool down.
	Blinks;Output suspended due to failure or malfunction. The problem may be the battery so please contact your dealer.

As the remaining battery indicator shows somewhat differently depending on ambient temperature and battery characteristics, read it as a reference.

NOTE

Do not give a strong shock to the switch panel or break it. It may lead to a trouble.

9. About the mode change function

The unit has "Transmission mode" and "Auto mode".

The mode can be switched by pressing the Auto mode switch.

Adjust the number of revolutions in Transmission mode using the dial, while referring to the Table 5. (Fig. 11)

With Transmission mode, the grinder's number of revolutions can be set at one of six stages.

When operating in Transmission mode, the set number of revolutions will be maintained regardless of changes in load.

With Auto mode, you can lower noise and vibration by lowering the maximum number of revolutions while in a no-load state.

While in Auto mode, the number of revolutions will be raised if the load becomes greater during operation.

On the other hand, the number of revolutions will be lowered if the load decreases during operation. (Table 5)

○ Set the mode and dial according to work application.

NOTE

Do not give a strong shock to the switch panel or break it. It may lead to a trouble.

Fig. 11

Table 5

Mode Status			Number of Revolutions (r/min)		Use
			G3610DVE G3610DVF G3613DVE G3613DVF	G3615DVE G3615DVF
Transmission	Dial Settings	1 3200 3200			Grinding stainless steel Rust or paint removal Grinding, fi nishing Rough grinding, cutting
		2 3900 3600
		3	5300	4600
		4 7400 5600
		5 8500 7200
		6 10000 8000
Auto A			5500 5500	Light work, Standby state
			10000 8000	Grinding, cutting

10. How to use the LED light

By pressing the light section switch on the switch panel, the LED light mode changes as

Table 6. It is indicated by green lamp. (Fig. 12)

To prevent the battery power consumption, turn off the LED light frequently.

Table 6

	Always-ON mode	SW interlocked mode	Always-OFF mode
Panel display
State	Always ON (turn off after 60 minutes)	Light only SW-ON (Automatically goes out approximately 10 seconds after the switch is released)	Always OFF

Fig. 12

English

CAUTION

○ Do not expose directly your eye to the light by looking into the light.

If your eye is continuously exposed to the light, your eye will be hurt.

○ Wipe off any dirt or grime attached to the lens of the LED light with a soft cloth, being careful not to scratch the lens.

Scratches on the lens of the LED light can result in decreased brightness.

NOTE

To prevent the battery power consumption caused by forgetting to turn off the LED light, the light goes off automatically in about 60 minutes.

GRINDER OPERATION

CAUTION

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output. Therefore, if the tool is overloaded, the motor may stop. However, this is not the trouble but the result of protection function. In this case, release the switch of tool and eliminate the causes of overloading.

NOTE

To prevent injuries, this product has a function that prevents unexpected motor rotation when the battery is inserted. The motor will not run if the battery is inserted while the switch is still ON. After installing the battery, turn the switch off and then back on again.
These models are equipped with a protection function that will shut down the tool in the event of an overload.

Should the tool shut down due to an overload, turn the power off and then turn it back on again.

An overload that stops tool operation and lasts more than 10 seconds may not be released by turning the power off and on. Should this happen, remove the battery from the tool and reinstall it before turning on the power switch.

1. Hold the grinder firmly by its housing and side handle (Fig. 13).

The grinder produces a counterforce which must be controlled by firmly holding onto the grinder.

Fig. 13

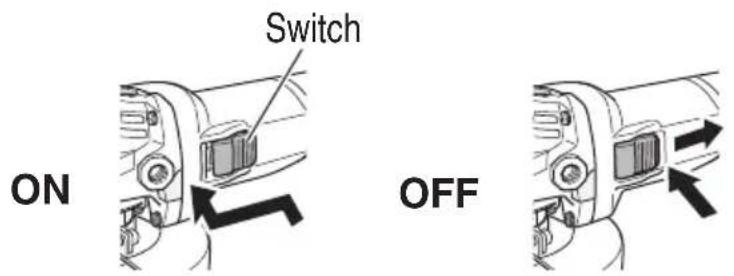

1. Turn the grinder "on".

[G3610DVE, G3613DVE, G3615DVE] (Fig. 14)

When you start the tool, firstly push the rear part of switch, then push the switch forward.

When you need to keep switch in ON position, push the head of switch to latch in ON position.

When release the switch to OFF position, push the rear part of switch.

Fig. 14

[G3610DVF, G3613DVF, G3615DVF]

To switch on, slide the off -lock lever in the direction of Ⓐ and press the switch lever (2 locations) in the direction of Ⓑ as shown in Fig. 15. Release the switch lever to switch off.

Fig. 15

1. Use light grinding pressure.

There is no need to press hard when grinding. Usually the grinder's own weight is sufficient to allow the required light contact with the surface to be ground.

WARNING

Do not press the grinder forcibly against the surface to be ground. Heavy pressure can result in wheel breakage and serious injury. It can also damage the surface being ground or damage the grinder's motor.

English

4. Use proper grinding angle.

Grind only with the wheel's edge by lifting the grinder 15^ to 30^ , as shown in Fig. 16.

CAUTION

Do not use the entire surface of the depressed center wheel. Use only the edge of the depressed center wheel.

5. Move the grinder in the proper direction.

When using a new depressed center wheel in

direction A (Fig. 16), the wheel edge may cut into the workpiece. In this case, grind in direction B (Fig. 16). Once the wheel edge is worn, the workpiece can be ground in both directions.

NOTE

The wheel provided (resinoid wheel) is rated as Class A grain and # 36 grain size. It is most suitable for heavy grinding of steel and other types of materials.

6. Adjust operation to desired fi nish.

For a fine finish, decrease pressure by lifting slightly. Grind slowly and at the appropriate speed.

CAUTION

The revolving depressed center wheel will create air turbulence.

Do no lay the grinder down in areas of dust or dirt until it has come to a complete stop.

ASSEMBLING AND DISASSEMBLING THE DEPRESSED CENTER WHEEL (Fig. 17)

WARNING

Be sure to turn off the switch and pull out the battery.

1. Assembling

(1) Turn the disc grinder upsidedown so that the spindle is facing upward.
(2) Align the across flats of the wheel washer (A) (G3610DVE, G3610DVF) or the wheel washer (C) (G3613DVE, G3613DVF, G3615DVE, G3615DVF) with the notched part of the spindle, then attach them.
(3) Fit the protuberance of the depressed center wheel onto the wheel washer (A) or (C).
(4) Screw the wheel nut onto the spindle.
(5) While pushing the push button with one hand, lock the spindle by turning the depressed center wheel slowly with the other hand.

Tighten the wheel nut by using the supplied wrench as shown in Fig. 17.

Fig. 16

English

Fig. 17

2. Disassembling

Follow the above procedures in reverse.

CAUTION

Confirm that the depressed center wheel is mounted firmly.

ASSEMBLING AND DISASSEMBLING THE CUTTING WHEEL AND DIAMOND WHEEL (Fig. 18)

WARNING

Be sure to turn off the switch and pull out the battery.

1. Assembling

(1) Turn the disc grinder upsidedown so that the spindle is facing upward.
(2) Align the across flats of the wheel washer (A) (G3610DVE, G3610DVF) or the wheel washer (C) (G3613DVE, G3613DVF, G3615DVE, G3615DVF) with the notched part of the spindle, then attach them.
(3) Fit the cutting wheel and diamond wheel onto the wheel washer (A) or (C).
(4) Screw the wheel nut onto the spindle.
(5) While pushing the push button with one hand, lock the spindle by turning the depressed center wheel slowly with the other hand.

Tighten the wheel nut by using the supplied wrench as shown in Fig. 18.

English

Fig. 18

2. Disassembling

Follow the above procedures in reverse.

CAUTION

Confirm that the cutting wheel or diamond wheel is mounted firmly.

NOTE

○ Avoid using excessive force by modifying the feed rate when operating the tool.
○ The wheel guard for the cutting wheel will heat up to high temperatures from grind sparks.
Do not touch the wheel guard during operation.

LED LIGHT WARNING SIGNALS

This product features functions that are designed to protect the tool itself as well as the battery. While the switch is pulled, if any of the safeguard functions are triggered during operation, the LED light will blink as described in Table 7. When any of the safeguard functions are triggered, immediately remove your finger from the switch and follow the instructions described under corrective action.

Table 7

Safeguard Function LED Light Display Corrective Action
Overburden Protection	On 0.1 second/off 0.1 second	Remove the cause of the overburdening.
Kickback Protection
Temperature Protection	On 0.5 second/off 0.5 second	Allow the tool and battery to thoroughly cool.

HOW TO RECHARGE USB DEVICE

WARNING

○ Prior to use, check the connecting USB cable for any defect or damage.
Using a defective or damaged USB cable can cause smoke emission or ignition.
○ When the product is not being used, cover the USB port with the rubber cover.
Buildup of dust etc. in the USB port can cause smoke emission or ignition.

NOTE

○ There may be an occasional pause during USB recharging.
○ When a USB device is not being charged, remove the USB device from the charger.
Failure to do so may not only reduce the battery life of a USB device, but may also result in unexpected accidents.
- It may not be possible to charge some USB devices, depending on the type of device.

(1) Select a charging method

Depending on the charge method selected, either the battery is inserted into the charger or the power cord is plugged into an outlet.

○ Charging a USB device from a electrical outlet (Fig. 19-a).

○ Charging a USB device and battery from a electrical outlet.(Fig. 19-b)

Diagram showing a device connected to an electrical outlet with cable (no text or symbols)

a

Diagram of a mobile device connected to a wall-mounted cable, showing connections without any text or symbols.

b
Fig. 19

(2) Connect the USB cable. (Fig. 20) Pull back the rubber cover and firmly plug in a commercially available USB cable (appropriate to the device being charged) into the USB port.

Fig. 20

English

(3) When charging is completed
○ To verify charge status, check the USB device.
○ Unplug the power cord from the electrical outlet. (Fig. 21)
○ Place the rubber cover over the USB port.

Fig. 21

MAINTENANCE AND INSPECTION

WARNING

○ Be sure to turned off the switch and pull out the battery.
○ Using cracked, deformed or damaged wheels can lead to wheel breakage and resulting serious injury.

1. Inspecting the depressed center wheel

Ensure that the depressed center wheel is free of cracks and surface defects.

1. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

CAUTION

Using this power tool with loosened screws is extremely dangerous.

1. Inspection of terminals (tool and battery)

Check to make sure that swarf and dust have not collected on the terminals.

On occasion check prior, during and after operation.

CAUTION

Remove any swarf or dust which may have collected on the terminals. Failure to do so may result in malfunction.

1. Cleaning on the outside

When the cordless disc grinder is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, for they melt plastics.

5. Filter cleaning and inspection

WARNING

Wear protective glasses and a dust mask when cleaning the fi Iter with an air gun. Failure to do so may result in inhalation or exposure of the eyes to debris or dust.

After use, remove any debris or dust adhered to the filter using a soft brush. (Fig. 22)

Check the filter periodically to ensure that it is free of scratching, chipping, or tearing. Replace with a new filter if the filter is damaged in any way.

NOTE

○ If the mesh is clogged and the debris or dust cannot be removed, detach the filter and clean it with an air gun, etc. (Fig. 23)
○ After cleaning, make sure to securely attach the filter.

Fig. 22

Fig. 23

6. Maintenance of the motor

The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

NOTE

In order to expel debris and dust, periodically run the motor with no load.

7. Storage

Store the cordless disc grinder in a place in which the temperature is less than 40^ C, and out of reach of children.

NOTE

Storing lithium-ion batteries.

Make sure the lithium-ion batteries have been fully charged before storing them.

Prolonged storage (3 months or more) of batteries with a low charge may result in performance deterioration, significantly reducing battery usage time or rendering the batteries incapable of holding a charge.

However, significantly reduced battery usage time may be recovered by repeatedly charging and using the batteries two to five times.

If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries.

CAUTION

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

Important notice on the batteries for the HiKOKI cordless power tools

Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modified (such as disassembly and replacement of cells or other internal parts).

SELECTING ACCESSORIES

Select accessories that are suited to a specific task. For details contact HiKOKI Authorized Service Center.

Technical line drawing of a mechanical component with flanged base and central mounting bracket (no text or symbols)

(100 mm) Part Number: 379416 Toolless wheel guard (with screw)

Technical line drawing of a mechanical component with circular features (no text or symbols)

Part Number: 375904 (125 mm)

Part Number: 379447 (150 mm)

Toolless wheel guard

(100 mm) Part Number: 313933 Wrench

(125, 150 mm) Part Number: 938332Z Wrench

(100 mm)

Part Number: 373072

Wheel washer (A)

Diagram of concentric circular layers with dot patterns, no text or symbols present

Part Number: 316820 (A36Q)

Depressed center wheel

Part Number: 339578

Wheel nut

(125, 150 mm)

Part Number: 371677

Wheel washer (C)

Diagram of concentric circular layers with dot patterns, no text or symbols present

Part Number: 316820 (A36Q) (125 mm) Part Number: 316823 (A36Q) (150 mm) Depressed center wheel

Part Number: 339579

Wheel nut

Part Number: 336865 Side handle

Technical line drawing of a mechanical component with a curved top and flange (no text or symbols)

Part Number: 302099 (100 mm) Wheel guard (for cutting wheel)

Pure technical line drawing of a curved mechanical component (no text or symbols)

Part Number: 372701 (125 mm) Part Number: 379593 (150 mm) Guard clip

Part Number: 329897 Battery cover

Line drawing of a portable electronic device with a digital display (no text or symbols)

BSL36A18 Battery

Line drawing of a 3D mechanical component with internal slots and housing (no text or symbols)

UC18YSL3 (14.4 V–18 V) Charger

Isometric technical drawing of a mechanical housing or enclosure with internal components (no text or symbols)

Part Number: 337108 Stackable case

Technical line drawing of a mechanical housing component (no text or symbols)

Part Number: 379422 Inner tray

Part Number: 379591 Filter

Line drawing of a quill pen in an inkwell (no text or symbols)

Line drawing of a quill pen in an inkwell (no text or symbols)

服务中心

高壹工机商业(上海)有限公司
