Product Type	Video Encoder / Server
Brand	Axis
Model	M7116
Dimensions (W x H x D)	440 x 44 x 250 mm
Weight	4.5 kg
Power Supply	AC 100-240 V, 50-60 Hz, 1.5 A
Power Consumption	45 W (max)
Video Inputs	16 BNC composite video inputs
Video Compression	H.264, MJPEG
Network Interface	1x 10/100/1000 Mbps RJ-45
Main Functions	Analog-to-IP video encoding, motion detection, event management, streaming
Storage	Supports NAS and microSD card (optional)
Operating Temperature	0 to 50 °C
Humidity	10-85% RH (non-condensing)
Maintenance	Clean with a soft dry cloth; avoid liquids
Security	Password protection, IP address filtering, HTTPS, IEEE 802.1X
Spare Parts	Power supply unit, cooling fan, BNC connectors
Repairability	Field replaceable power supply and fan; refer to service manual
Compliance	CE, FCC, RoHS
Package Contents	Server unit, power cord, quick start guide, mounting brackets

Frequently Asked Questions - M7116 AXIS

How do I assign an IP address to the Axis M7116?

Use the Axis IP Utility software or assign a static IP via the web interface (default IP: 192.168.0.90). Press the reset button for 10 seconds to restore factory defaults.

How to reset the Axis M7116 to factory settings?

Press and hold the reset button on the front panel for about 10 seconds until the status LED flashes amber. Release the button; the unit will reboot with default settings.

What video formats does the M7116 support?

The encoder supports H.264 and MJPEG compression for efficient streaming and recording.

Can I connect analog cameras to the Axis M7116?

Yes, the M7116 has 16 BNC composite video inputs for connecting analog cameras.

How to access the web interface of the Axis M7116?

Enter the device's IP address in a web browser. The default username is 'root' with no password. For security, set a password on first login.

What is the maximum resolution supported?

The M7116 supports 4CIF (704x576) at 25/30 fps for PAL/NTSC analog inputs.

Does the M7116 support Power over Ethernet (PoE)?

No, the M7116 requires an external power supply (AC 100-240V). It does not support PoE.

How do I update the firmware on the Axis M7116?

Download the latest firmware from the Axis website. In the web interface, go to Administration > Firmware Upgrade and upload the file. Do not power off during update.

Can I record video locally on the M7116?

The M7116 supports microSD card (up to 64 GB) and NAS recording for edge storage.

What is the warranty period for the Axis M7116?

Axis offers a 3-year limited warranty for the M7116. Register the product on the Axis website for extended warranty options.

USER MANUAL M7116 AXIS

Line drawing of a rectangular electronic device with multiple ports and ventilation slots (no text or symbols)

InstallationGuide

Readthisfirst

ReadthroughthisInstallationGuidecarefullybefore installingtheproduct.KeeptheInstallationGuidefor futuristicreference.

Legalconsiderations

Thisproductincludesthefollowinglicences:

• one(1)H.264decoderlicense

• one(1)H.265decoderlicense

Topurchasefurtherlicenses,contactyourreseller.

Thisproductissubjecttoexportcontrolregulations. Youshouldalwaysconsultandcomplywiththe regulationsoftheappropriatelocalexportcontrol authorities.

Liability

Everycarehasbeentakeninthepreparationofthis document.PleaseinformyourlocalAxisofficeof anyinaccuraciesoromissions.AxisCommunications ABcannotbeheldresponsibleforanytechnical or typographicalerrorsandreservestherighttomake changestotheproductandmanualswithoutprior notice.AxisCommunicationsABmakesnowarranty ofanykindwithregardtothematerialcontained withinthisdocument,including,butnotlimitedto, theimpliedwarrantiesofmerchantabilityandfitness foraparticularpurpose.AxisCommunicationsAB shallnotbeliablenorresponsibleforincidental orconsequentialdamagesinconnectionwiththe furnishing,performanceoruseofthismaterial.This productisonlytobeusedforitsintendedpurpose.

Intellectualpropertyrights

AxisABhasintellectualpropertyrightsrelating to technologyembodiedintheproductdescribedinthis document.Inparticular,andwithoutlimitation,these intellectualpropertyrightsmayincludeoneormoreof thepatentslistedataxis.com/patentandoneormore additionalpatentsorpendingpatentapplicationsin theUSandothercountries.

Thisproductcontainslicensedthird-partysoftware. Seethemenuitem"About"intheproduct'suser interfaceformoreinformation.

Thisproductcontainssourcecodecopyright AppleComputer,Inc.,undertheterms ofApplePublicSourceLicense2.0(see opensource.apple.com/apsl).Thesourcecode isavailablefromdeveloper.apple.com/bonjour/.

Equipmentmodifications

This equipment must be installed and used in strict accordance with the instructions given in the user documentation. This equipment contains no user-serviceable components. Unauthorized equipment changes or modifications will invalidate all applicable regulatory certifications and approvals.

Trademarkacknowledgements

AXISCOMMUNICATIONS, AXIS, ARTPECandVAPIX areregisteredtrademarksofAxisABinvarious jurisdictions. All other trademarks are the property of their respective owners.

Apple, Apache, Bonjour, Ethernet, Internet Explorer, Linux, Microsoft, Mozilla, Real, SMPTE, QuickTime, UNIX, Windows, and WWWareregistered trademarks of therespectiveholders. Java and all Java-based trademarks and logos are trademarks or registered trademarksofOracleand/oritsaffiliates.TheUPnP WordMarkandUPnPLogoaretrademarksofOpen ConnectivityFoundation,Inc.intheUnitedStatesor othercountries.

microSD, microSDHC, and

microSDXCLogosaretrademarksofSD-3CLLC. microSD,microSDHC,microSDXCaretrademarkorsor registeredtrademarksofSD-3C,LLCintheUnited States,othercountriesorboth.

Regulatoryinformation

Europe

ThisproductcomplieswiththeapplicableCEmarking directivesandharmonizedstandards:

• Electromagnetic Compatibility (EMC) Directive 2014/30/EU. See Electromagnetic compatibility (EMC) on page 2.
• LowVoltageDirective(LVD)2014/35/EU.See Safetyonpage3.
• RestrictionofHazardousSubstances(RoHS) Directive201 1/65/EUand2015/863,including anyamendments,updatesorreplacements.See Disposalandrecyclingonpage3.
  Acopyoftheoriginaldeclarationofconformity maybeobtainedfromAxisCommunicationsAB.See Contactinformationonpage4.

Electromagneticcompatibility(EMC)

This equipment has been designed and tested to fulfill applicable standards for:

- Radiofrequencyemissionwheninstalled accordingtotheinstructionsandusedinits intendedenvironment.

- Immunitytoelectricalandelectromagnetic phenomenonawheninstalledaccordingtothe instructionsandusedinitsintendedenvironment.

USA

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.
   Thisequipmenthasbeentestedusinganunshielded networkcable(UTP)andfoundtocomplywiththe limitsforaClassAdigitaldevice,pursuanttopart15 oftheFCCrules. Thisequipmenthasalsobeentested usingashieldednetworkcable(STP)andfoundto complywiththelimitsforaClassAdigitaldevice, pursuanttopart15oftheFCCrules.Theselimitsare designedtoprovidereasonableprotectionagainst harmfulinterferencewhentheequipmentisoperated inacommercialenvironment. Thisequipment generates,uses,andcanradiateradiofrequency energyand,ifnotinstalledandusedinaccordance withtheinstructionmanual,maycauseharmful interferencetoradiocommunications.Operationof thisequipmentinaresidentialareaislikelytocause harmfulinterferenceinwhichcasetheuserwillbe requiredtocorrecttheinterferenceathisownexpense.

Contactinformation

AxisCommunicationsInc.

300ApolloDrive

Chelmsford, MA01824

UnitedStatesofAmerica

Tel:[phone]

Canada

Thisdigitalapparatuscomplieswith CANICES-3(ClassA).Theproductshallbe connectedusingashieldednetworkcable(STP)that isproperlygrounded.Cetappareilnumériqueest conformeàlanormeCANNMB-3(classeA).Leproduit doitêtreconnectéàl'aided'uncâbleréseaublindé (STP)quiestcorrectementmisàlaterre.

Europe

ThisdigitalequipmentfulfillstherequirementsforRF emissionaccordingtotheClassAlimitofEN55032. Theproductshallbeconnectedusingashielded networkcable(STP)thatisproperlygrounded.Notice! ThisisaClassAproduct.Inadomesticenvironment thisproductmaycauseRFinterference,inwhichcase theusermayberequiredtotakeadequatemeasures.

Australia/NewZealand

Thisdigitalequipmentfulfillstherequirements forRFemissionaccordingtotheClassAlimitof AS/NZSCISPR32.Theproductshallbeconnected usingashieldednetworkcable(STP)thatisproperly grounded.Notice!ThisisaClassAproduct.Ina domesticenvironmentthisproductmaycauseRF interference,inwhichcasetheusermayberequired totakeadequatemeasures.

Japan

Ifitsconnectingcablesareroutedoutdoors, the productshallbegroundedeitherthroughshielded networkcable(STP)orotherappropriatemethod.

Thepowersupplyusedwiththisproductshallfulfill oneofthefollowingrequirements:

- SafetyExtraLowVoltage(SELV)accordingto clause2.2ofIEC/EN/UL60950-1andLimited PowerSource(LPS)accordingtoclause2.5of IEC/EN/UL60950-1orCEC/NECClass2source ofsupplyasdefinedintheCanadianElectrical

Code, CSAC22.1 and National Electrical Code, ANSI/NFPA70

- Class1electricalenergysource(ES1)and Class2powersource(PS2)ratedoutput powerlimitedto≤100Waccordingto IEC/EN/UL62368-1

Disposalandrecycling

Whenthisproducthasreachedtheendofits usefullife, disposeofitaccordingtolocallawsand regulations. For information about your nearest designatedcollectionpoint, contact your local authority responsible for wasted disposal. In accordance with local legislation, penalties maybe applicable for incorrect disposal of this waste.

Europe

Thissymbolmeansthattheproductshallnotbe disposedoftogetherwithhouseholdorcommercial waste.Directive2012/19/EUonwasteelectrical andelectronicequipment(WEEE)isapplicable in theEuropeanUnionmemberstates.Toprevent potentialharmtohumanhealthandtheenvironment, theproductmustbedisposedofinanapproved andenvironmentallysaferecyclingprocess.For informationaboutyournearestdesignatedcollection point,contactyourlocalauthorityresponsiblefor wastedisposal.Businessesshouldcontacttheproduct supplierforinformationabouthowtodisposeofthis productcorrectly.

Thisproductcomplieswiththerequirements of Directive201 1/65/EU and 2015/863 on therestriction of the use of certain hazardous substances in electrical and electronicequipment (RoHS).

China

Thisproductcomplieswiththerequirements of SJ/T11364-2014, Markingfortherestrictionof hazardoussubstancesinelectricalandelectronic products.

ForinformationaboutAxis'productwarrantyand theretorelatedinformation,gotoaxis.com/warranty.

Support

Shouldyourequireanytechnicalassistance,please contactyourAxisreseller.Ifyourquestionscannotbe answeredimmediately,yourresellerwillforwardyour queriesthroughtheappropriatechannelstoensurea rapidresponse.Ifyouareconnectedtothelnternet, youcan:

• downloaduserdocumentationandsoftware updates
  •findanswerstoresolvedproblemsintheFAQ database,searchbyproduct,category,orphrase
  • reportproblemstoAxissupportstaffbylogging intoyourprivatesupportarea
• chatwithAxissupportstaff
• visitAxisSupportataxis.com/support

Learnmore!

VisitAxislearningcenteraxis.com/academyforuseful trainings,webinars,tutorialsandguides.

Simple line drawing of an open box with no text or symbols

Isometric line drawing of a rectangular object with four rounded square cutouts (no text or symbols)

1x

2x

1x

8x

Line drawing of a rectangular device with attached cable and port ports (no text or symbols)

1x

Line drawing of a multi-pin electrical plug with coiled cable (no text or symbols)

1x

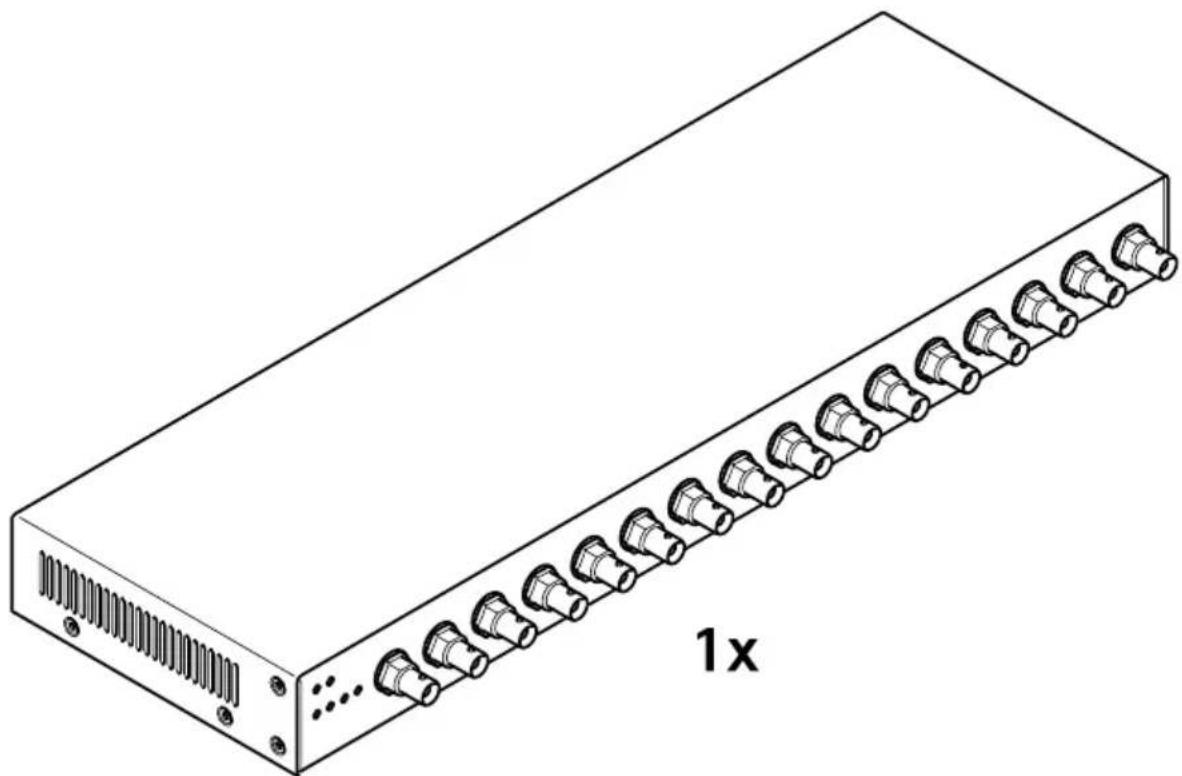

Isometric line drawing of a rectangular electronic device with multiple ports and ventilation slots, labeled '1x' (no text or symbols on the device itself)

1.1

Isometric illustration of a rectangular electronic component with a coiled spring on top, mounted on a stand (no text or symbols)

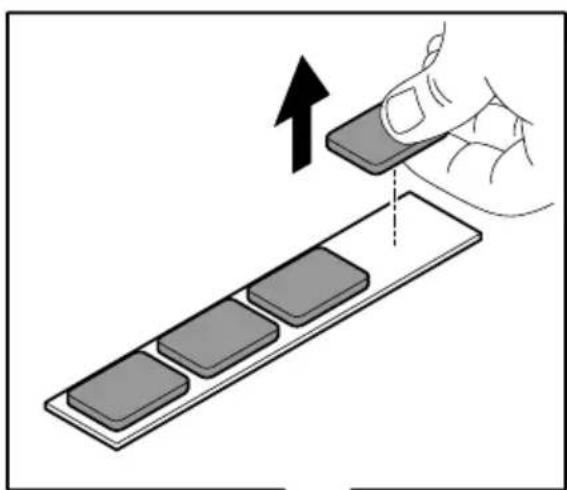

Illustration of a hand pressing down on a slide with an upward arrow (no text or symbols)

2.1

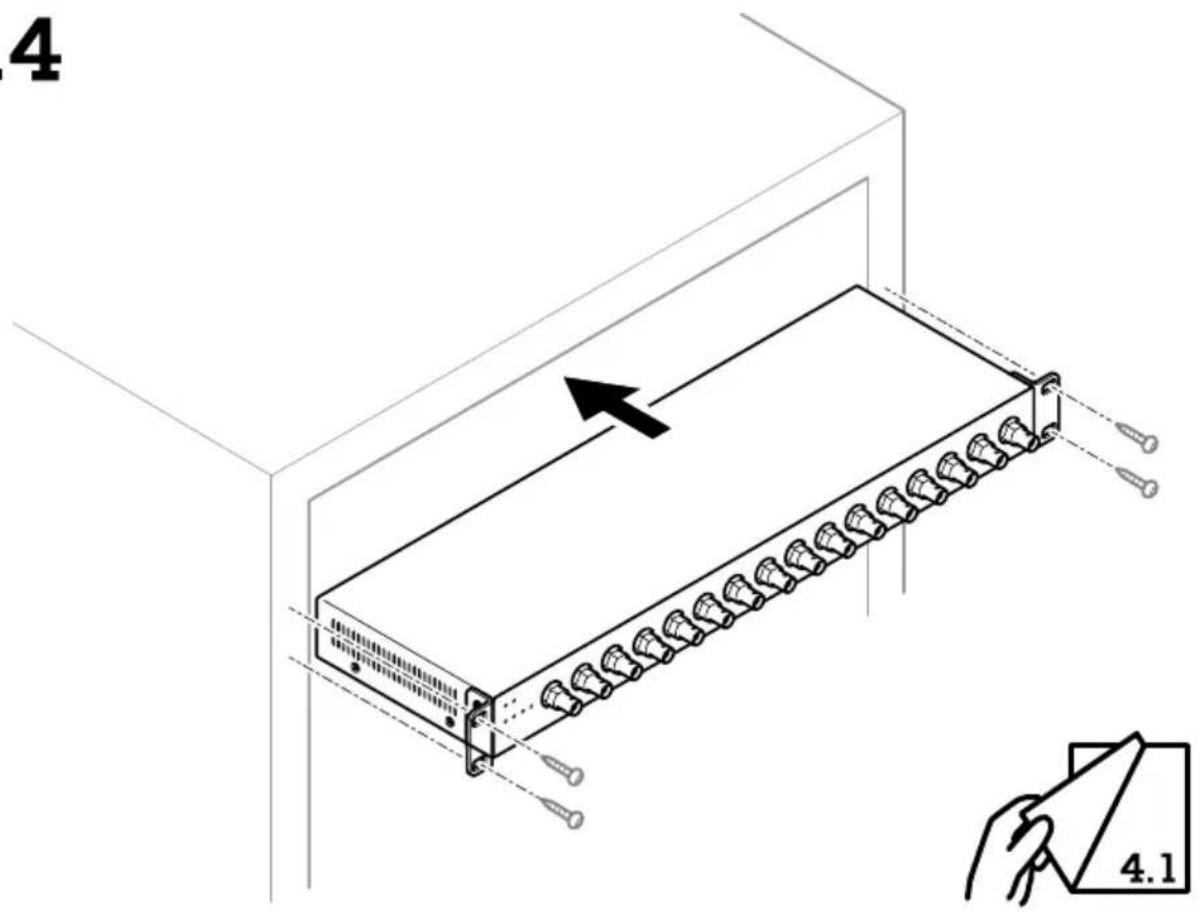

Diagram of a cabinet or storage unit with a diagonal rack and a rectangular opening (no text or symbols)

2.2

2.3

2.4

3.1

Isometric line drawing of a rectangular electronic device with a coiled cable or connector (no text or symbols)

3.2

3.3

3.4

4.1

Illustration of a rectangular electronic component with multiple pins and a camera icon, showing signal flow without any text or symbols.

4.2

4.3

English

Safetyinformation

Hazardlevels

DANGER

Indicatesahazardoussituationwhich,ifnotavoided, willresultindeathorseriousinjury.

WARNING

Indicatesahazardoussituationwhich,ifnotavoided, couldresultindeathorseriousinjury.

CAUTION

Indicatesahazardoussituationwhich,ifnotavoided, couldresultinminorormoderateinjury.

NOTICE

Indicatesasituationwhich,ifnotavoided,couldresult indamagetoproperty.

Othermessagelevels

Important

Indicatessignificantinformationwhichisessentialfor theproducttofunctioncorrectly.

Note

Indicatesusefulinformationwhichhelpsingetting themostoutoftheproduct.

Safetyinstructions

NOTICE

• TheAxisproductshallbeusedincompliancewith localawsandregulations.
• StoretheAxisproductinadryandventilated environment.
• Avoid exposing the Axis product to shocks or heavy pressure.
• UseonlyapplicabletoolswheninstallingtheAxis product.Usingexcessiveforcewithpowertools couldcausedamagetotheproduct.
• Donotusechemicals, causticagents, or aerosol cleaners.
• Useacleanclothdampenedwithpurewaterfor cleaning.
• Useonlyaccessories that comply with the technical specification of your product. These can be provided by Axis or third party. Axis recommends using Axis powersource equipment compatible with your product.
• Useonly spare parts provided by or recommended by Axis.
• Donotattempttorepairtheproductyourself. ContactAxissupportoryourAxisresellerfor servicematters.

Transportation

NOTICE

- WhentransportingtheAxisproduct, use the original packagingorequivalenttopreventdamage totheproduct.

Battery

TheAxisproductusesa3.0VCR2032lithiumbattery asthepowersupplyforitsinternalreal-timeclock

(RTC). Undernormalcondition this battery will last for a minimum off five years.

CAUTION

Donotreplacethebatteryyourself.ContactAxis supportifthelogmessagerequestsabatterychange.

Lithiumcoincell3.0Vbatteriescontain

1,2-dimethoxyethane;ethyleneglycoldimethylether (EGDME), CASno. 110-71-4.
