GCSTBS4901R013 - Iron OSTER - Free user manual and instructions

Product Type	Steam Iron
Brand	Oster
Model	GCSTBS4901R013
Voltage	120 V
Frequency	60 Hz
Power	1200 W
Cord Type	360° Swivel Cord
Soleplate Material	Non-Stick Colored Soleplate
Steam Control	Adjustable Steam Select Switch
Spray Mist Function	Powerful water spray mist
Temperature Settings	Dial with fabric guide (synthetic, silk, wool, cotton, linen)
Indicator Light	Heating indicator light
Auto Shut-Off	Limited auto shut-off (safety feature)
Water Tank	See-through water window
Cleaning Soleplate	Wipe with water and vinegar solution
Cleaning Housing	Damp cloth
Storage	Empty water, wind cord, upright position
Warranty	1 Year Limited
Country of Origin	China
Repairs	Authorized Service Center only

Frequently Asked Questions - GCSTBS4901R013 OSTER

How do I use the steam function?

Fill the water reservoir, set temperature to high (●● or ●●●), and turn the steam select switch to the desired level. Steam will be released through the soleplate vents.

What type of water should I use?

Normal tap water is acceptable. If your water is very hard, use distilled water to prolong the life of the iron. Do not use chemically desalinated water.

How do I clean the soleplate?

Unplug and cool the iron. Wipe residue off the soleplate with a cloth soaked in a solution of equal parts water and vinegar. Do not use abrasives or chemical solvents.

Why does the indicator light turn on and off?

The indicator light cycles on and off as the thermostat maintains the set temperature. It is normal for the light to turn on when heating and off when the temperature is reached.

Can I use an extension cord with this iron?

Yes, but use a cord with the same or higher amperage rating as the iron to avoid overheating. Ensure the cord is arranged so it cannot be pulled or tripped over.

How do I store the iron?

Turn off and unplug the iron, let it cool completely in an upright position. Empty the water reservoir, set steam switch to closed, and wind the power cord around the heel rest. Store upright.

What does the spray mist button do?

The spray mist releases a powerful fine water spray to dampen fabrics, helping to remove wrinkles from heavy fabrics and set creases. Press the button firmly to activate.

What temperature should I use for different fabrics?

Use low temperature (●) for synthetics like acrylic, nylon, polyester. Medium (●●) for silk and wool. High (●●●) for cotton and linen. Always check garment labels first.

Is it normal for the iron to smoke on first use?

Yes, a small amount of smoke or odor may occur during the first use as manufacturing residues burn off. This is normal and will stop shortly. Test on an old cloth first.

Where can I get repairs if needed?

Do not attempt to repair the iron yourself. Take it to the nearest Authorized Oster Service Center for examination and repair to avoid risk of electric shock.

USER MANUAL GCSTBS4901R013 OSTER

MODELOS - MODELS

GCSTBS4901L - GCSTBS4901P - GCSTBS4901R

GCSTBS4901S - GCSTBS4901W

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

PRECAUCIONES IMPORTANTES

Line drawing of an Oster air iron with a handle and spout, labeled as Figure 2 (no text or symbols on the diagram itself)

PLANCHANDO CON VAPOR

ROCÍO FINO

When using electrical appliances, basic safety instructions should always be followed, including the following:

1. READ ALL INSTRUCTIONS, PRODUCT LABELS AND WARNINGS BEFORE USING THE STEAM IRON.
2. The steam iron should always be turned to the off "Apagado" position before plugging or unplugging from outlet. Never yank power cord to disconnect from outlet; grasp plug and pull to disconnect.
3. Before connecting steam iron, make sure the voltage in your outlet is the same as the voltage indicated on the appliance's rating label. Use it with wall receptacle only. If the iron contains a Schuko plug, the male plug should be plugged in only to a female plug of the same technical specifications as the male plug referenced.
4. To protect against risk of electrical shock, do not immerse the power cord, plug or the steam iron in water or other liquid.
5. Never use the steam iron if you have wet hands.
6. This appliance should not be used by children.
7. The iron must be used and rested on a stable surface.
8. Never leave the steam iron unattended while it is turned on or is on top of the ironing board.
9. Unplug from outlet while not in use.
10. Let steam iron completely cool off in the upright position before storing it. Wind the power cord around the heel rest before storing.
11. Burns may occur by touching hot parts, the hot water or the steam. Be careful if you have to turn the steam iron upside down, since there still may be hot water in the reservoir.
12. DO NOT operate Iron with a damaged cord or if the Iron has been dropped, if there are visible signs of damage or if it is leaking. To avoid the risk of electric shock, do not disassemble the iron. Take it to the nearest Authorized Oster® Service Center for examination and repair. Incorrect reassembly can cause a risk of electric shock when the iron is used.
13. DO NOT use it outdoors.
14. DO NOT let the power cord come in contact with hot surfaces.
15. This steam iron is intended for household use only.
16. Use the steam iron only for the purpose intended.
17. DO NOT leave steam iron unattended while using it. Be careful; if you leave the steam iron unattended, always turn it off, disconnect the unit from the electric outlet and set the iron in an upright position.

18. Only trained personnel may carry out repairs to the appliance. As a result of incorrect repairs considerable dangers for the user may result. Please contact the nearest Authorized Service Center in the event of repairs being necessary.

19. Always disconnect the steam iron from the wall electrical outlet when filling it with water or emptying it out.

20. Avoid overfilling the reservoir. Never fill it above the maximum water level. The water reservoir should not be open during use.
21. In order to avoid overloading the circuits, never use another appliance with high wattage on the same circuit.
22. The manufacturer is not liable for any damages, which are caused by using the appliance incorrectly or for any other purpose than that intended.
23. If an extension cord is absolutely necessary, a cord with the same amperage or higher than that of your iron should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.
24. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
25. Close supervision is necessary when any appliance is used by or near children, or incapacitated individuals.

THIS UNIT IS FOR HOUSEHOLD USE ONLY.

SAVE THESE INSTRUCTIONS

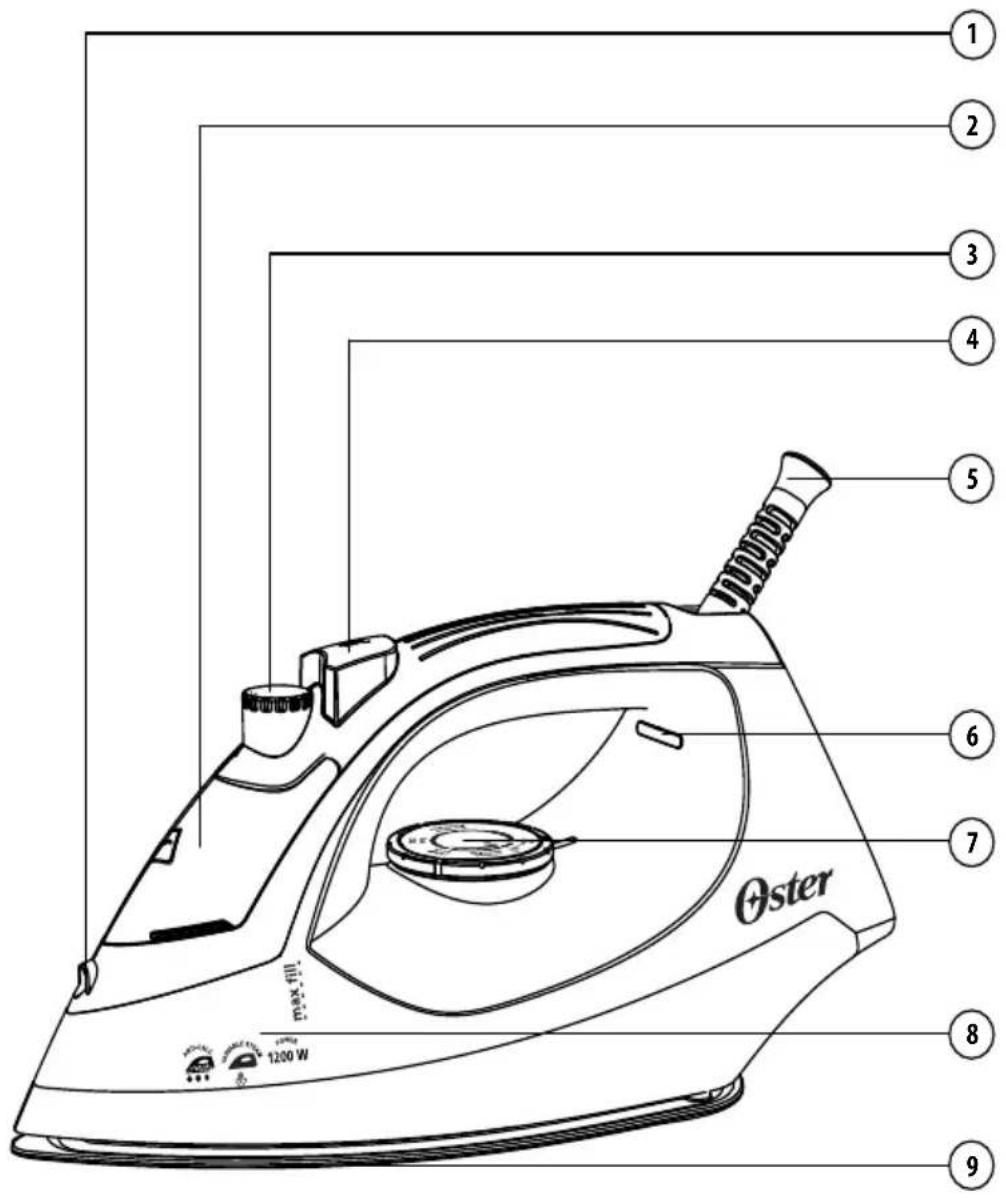

DESCRIPTION OF THE APPLIANCE

GCSTBS4901

1. Spray Mist Nozzle
2. Water Reservoir Lid
3. Steam Select Switch
4. Spray Mist Button

5. Power Cord 180°

6. Indicator Light

7. Temperature Control Dial
8. See Through Water Window
9. Non-Stick Colored Soleplate

PREPARING FOR FIRST TIME USE

• When using the iron for the first time, test it on a piece of old cloth to be sure that the soleplate and the water reservoir are clean.
• It is possible that the iron will discharge some smoke or give off a slight odor during its first usage. This is due to the initial heating of the materials used. This is completely normal and will stop shortly afterwards.
• When not ironing, always have the steam select switch turned to the closed position.

USING YOUR APPLIANCE

Set the steam iron in an upright position and insert the plug into the wall electrical outlet.

For Steam Iron Model GCSTBS4901

1. The indicator light will go on.
2. Select the desired temperature on the temperature control dial.
3. Once the selected temperature is reached, the indicator light will go off and you can begin to iron. The indicator light will be on every time the iron is heating. The light will turn on and off from time to time while you are ironing since the thermostat automatically maintains the soleplate at the same temperature.

Another important feature of your steam iron is the 360^ swivel cord, which prevents tangling and allows for easy use by both right and left handed people.

DRY IRONING

1. Insert the plug in the electrical wall outlet.
2. Make sure the steam select switch is in the closed position.
3. Select the desired temperature on the temperature control dial
4. Follow instructions from section "Using Steam Your Iron" for your iron model.
5. Start dry ironing.

STEAM IRONING

Choosing the Right Water

This steam iron may be used with normal tap water. However, if the water of the region in which you live is especially hard, it is recommended to use distilled water to prolong the life of your iron.

Do not use water that has been desalinated with chemicals.

FILLING WITH WATER

1. Turn off the iron and disconnect the plug from the electrical wall outlet before filling the iron with water.
2. Turn the steam select switch to the closed position.

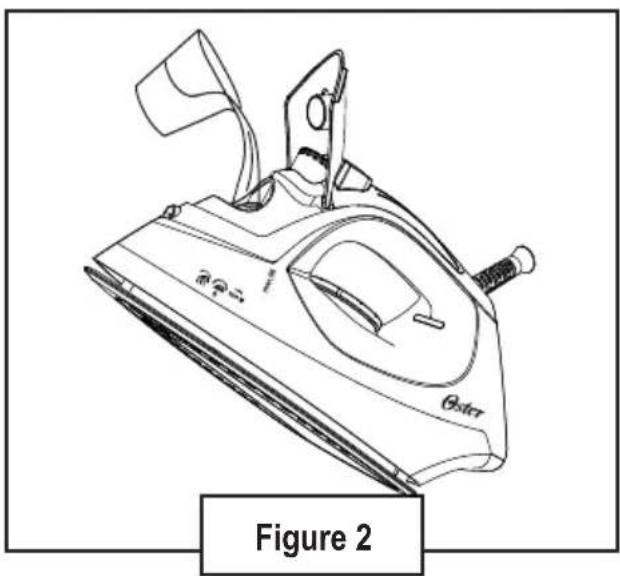

3. Set iron in the position indicated below (figure 2) and fill it with

Line drawing of an electric iron with a label 'Figure 2' at the bottom (no technical diagram or text on the iron itself)

STEAM IRONING

Steam ironing is only possible at high temperatures ("●"), "●"), as indicated on the temperature control dial.

Be sure there is enough water in the reservoir.

Follow the instructions from the section "Using Steam Your Iron" for your iron model.

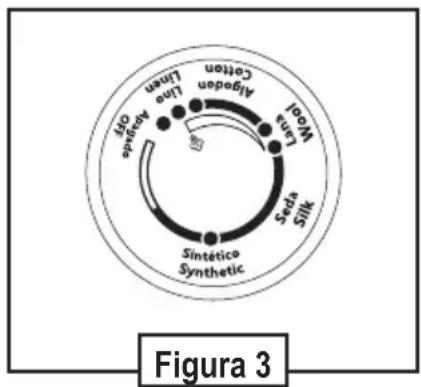

Set the steam select switch to the desired steam level position (figure 3). You are now ready to start steam ironing. The steam will be released evenly through vents located in the soleplate for easier ironing.
    note bottom of I: Figura 3

SPRAY MIST

The spray mist feature is a powerful water spray mist that dampens the fabric to help remove wrinkles from heavy fabrics and to set creases.

Press the spray mist button firmly to start the spray.

WARNING: The limited auto shut-off is a safety feature, not a recommended means for turning your iron off. See the “Storing the Iron” section for information on turning off your iron and storing it safely between uses.

WARNING: To prevent risk of burns, keep your hand away from area being steamed.

WARNING: DO NOT steam garments while wearing them; this may result in injuries.

IRONING TEMPERATURE

Check ironing instructions on label of item that you wish to iron. Check temperature settings table for further instructions.

Should specific ironing instructions not appear on label, follow instructions on temperature settings table. This table is only valid for fabrics indicated and does not apply to special textiles with a gloss finish, etc. Textiles with special coatings (such as gloss, relief wrinkles, etc.) are best ironed at very low temperatures. If textile consists of several different types of fibers, always select lowest temperature, i.e. temperature recommended for most delicate fiber in composition (for example, if composition consists of 60% polyester and 40% cotton, you should iron at temperature indicated for polyester).

SETTING TEMPERATURE

• Set the Iron in an upright position.
• Connect the Iron to an electrical wall socket.
• Set the Temperature Control Dial (figure 4) to the correct ironing temperature as indicated on the label or the temperature settings table.

TEMPERATURE SETTINGS TABLE

Temperature Control Dial K		nd of Textile	Fiber Material
	●	DRY	synthetic	Acrylic, modacryl polypropylene, polyurethane
			synthetic	acetate, triacetate
			synthetic	metalized, cupro, polyamide (nylon), polyester
	●●	STEAM	silk	silk
			wool	wool
			cotton	cotton
	●●●		linen linen
	on the label means: This article cannot be ironed (e.g. chlorofiber, elastodiene)

NON-STICK COLORED SOLEPLATE

• Residue on soleplate can be wiped off with a cloth soaked in a solution of equal parts water and vinegar.
• Provides a smoother glide for quick and easy ironing with superior resistance.
• The non-stick coating prevents fabrics and starch residue from sticking to soleplate.
• Avoid all contact of soleplate with metal objects.

NOTE: Scratches in non-stick soleplate do not affect performance of iron.

CARE AND CLEANING

Before cleaning the iron, always make sure that it is disconnected from electrical wall socket and is completely cool.

SOLEPLATE

• Residue on soleplate can be wiped off with a cloth soaked in a solution of water and vinegar.
• Do not use scouring pads, abrasives or chemical cleaning solvents as they may damage finish.

HOUSING

• Housing can be cleaned with a moist cloth and then wiped dry.
- Other than the recommended cleaning, no further user maintenance should be necessary. If for any reason your steam iron should require repairs, do not try to fix it yourself. Take it to nearest Authorized Service Center.

STORING YOUR APPLIANCE

1. Turn off iron and disconnect plug from wall electrical outlet.
2. Set iron in an upright position and let it cool down completely.
3. Set steam select switch to closed position.
4. Empty out all water remaining in water reservoir by opening its lid and inverting iron over sink.
5. Power cord can be wound around heel rest for easier and tidy storing once unit has cooled down. Iron should always be stored in an upright position.

Oster®

Características eléctricas de los modelos de la serie:Electric characteristics of series models:GCSTBS4901-XXX
Características eléctricas dos modelos da série:
Voltaje/Voltage/ Voltagem Frecuencia/Frequency/Frequência Potencia/Power/ Potência
120 V 60 Hz		1 200 W

XXX where X is any number between 0 and 9 or any letter between A and Z.

The following information is intended for Mexico only.

PLANCHA DE VAPOR OSTER®

MODELOS: GCSTBS4901L, GCSTBS4901P,

GCSTBS4901R, GCSTBS4901S, GCSTBS4901W.

IMPORTADOR: SUNBEAM MEXICANA, S.A. DE C.V.

AV. JUÁREZ No. 40-201

© 2016 Sunbeam Products, Inc. All rights reserved. Distributed by Sunbeam Latin America, LLC,

5200 Blue Lagoon Drive, Suite 860, Miami, FL 33126.

One year limited warranty – please see insert for details.

www.oster.com

Impreso en China

Printed in China

P.N. 187984 REV A
