Product Type	Portable Electric Cooler
Brand	Makita
Model	DCW180RTE
Cooling Capacity	Up to 20°C below ambient temperature
Temperature Range	-18°C to 10°C (adjustable)
Interior Volume	31.5 liters
Dimensions (W x D x H)	658 x 461 x 433 mm
Weight	12.4 kg (without battery)
Power Source	Makita 18V LXT Li-ion battery (sold separately)
Battery Compatibility	BL1815N, BL1820B, BL1830B, BL1840B, BL1850B, BL1860B
Rated Input	DC 18V, 5.0A
Cooling Technology	Thermoelectric (Peltier)
Insulation	High-density polyurethane foam
Construction Material	Polyethylene exterior, stainless steel hinges
Carrying Capacity	Up to 45 cans (330 ml)
Battery Life (approximate)	6 hours with BL1850B (5.0Ah) at 20°C ambient
Charging Time	45 minutes with DC18RC charger (sold separately)
Additional Features	USB power outlet, LED display, adjustable thermostat
Maintenance	Clean with damp cloth; avoid water immersion
Safety Features	Low battery protection, overheat protection
Spare Parts Availability	Thermoelectric module, fan, control board available
Repair Index	7.9/10 (modular design, easy disassembly)
General Information	Part of Makita's outdoor power equipment line

Frequently Asked Questions - DCW180RTE MAKITA

What batteries are compatible with the Makita DCW180RTE cooler?

The cooler works with all Makita 18V LXT Li-ion batteries, including BL1815N, BL1820B, BL1830B, BL1840B, BL1850B, and BL1860B. Batteries are sold separately.

What is the cooling performance of the DCW180RTE?

It can cool up to 20°C below ambient temperature and maintain a temperature range of -18°C to 10°C, depending on ambient conditions.

How long does the cooler run on a single battery?

Runtime varies by battery capacity and ambient temperature. With a BL1850B (5.0Ah) battery at 20°C ambient, expect approximately 6 hours of continuous operation.

Can the cooler be powered by AC or car adapter?

The DCW180RTE is designed for battery power only. No AC or DC adapter is included or supported. However, you can use multiple batteries for extended use.

What is the interior capacity and how many cans can it hold?

The interior volume is 31.5 liters, enough for up to 45 standard 330 ml cans.

How do I clean and maintain the cooler?

Clean the interior and exterior with a damp cloth and mild detergent. Avoid immersing the unit in water. Ensure the ventilation grills are free of dust.

What safety features does the cooler have?

It includes low battery protection to prevent deep discharge, and overheat protection that shuts off the unit if internal temperatures exceed safe limits.

Is the cooler repairable and are spare parts available?

Yes, the thermoelectric module, fan, control board, and other components are available as spare parts. The design is modular, making disassembly straightforward.

What is the weight of the cooler without battery?

The cooler weighs approximately 12.4 kg (27.3 lbs) without a battery installed.

Can the cooler be used as a food warmer?

No, the DCW180RTE is a cooling-only unit. It does not have a heating function. It is designed to keep items cold.

USER MANUAL DCW180RTE MAKITA

Line drawing of a portable air conditioner unit with ventilation slots and control panel (no text or symbols)

Technical line drawing of a mechanical component with 30-degree angle标注 (no text or symbols beyond the angle indicator)

B-1B-2

Technical line drawing of a mechanical component with a 40-degree angle标注 (no text or symbols beyond the angle indicator)

Fig.5

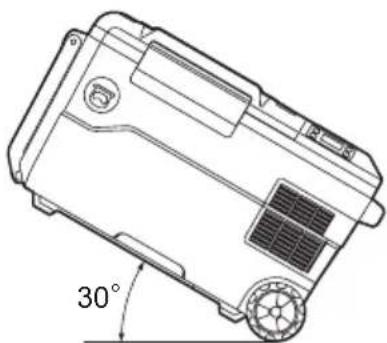

Technical line drawing of a mechanical component with a 30-degree angle标注 (no text or symbols beyond the angle indicator)

C-1C-2

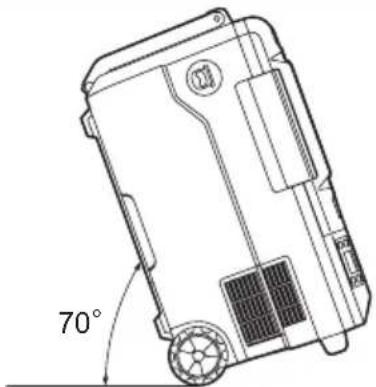

Technical line drawing of a mechanical component with a 70-degree angle标注 (no text or symbols beyond the angle indicator)

Fig.6

Technical line drawing of a vehicle chassis with a 30-degree angle标注 (no text or symbols beyond the angle indicator)

D-1D-2

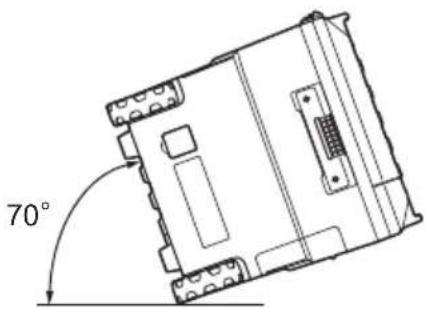

Technical line drawing of a vehicle's rear view showing a 70-degree angle and solar panel (no text or symbols)

Fig.7

Line drawing of a robotic device with wheels and control panel (no text or symbols)

Line drawing of a robotic device with wheels and control panel (no text or symbols)

WARNING

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

SPECIFICATIONS

Model: DCW180
Capacity 20L
Input Battery cartridge	D.C. 18V
	AC adaptor Refer the indication on the AC adaptor.(Input voltage varies depending on the country.)
	Cigarette lighter adaptor D.C. 12V / 24V
Anti-shock protection class III
Climate type SN/N/ST/T
Insulation material / Foaming material Polyurethane foam / Cyclopentane (C 5H10 )
Refrigerant R-1234yf (26 g)
Operating power cooling power 90W, heating power 42W
Dimensions External dimensions		623(L)mm X 341(W)mm X 371.5(H)mm
		Inside of the chamber	323(L)mm X 240(W)mm X 261(H)mm
Net weight		14.3kg (with two batteries)/13.0kg (without battery)
Protection degree		IPX4 (only powered by battery pack)
Operating time * (with BL1860B x1)	30°C (85°F) ambient temperature	-18°C (0°F) control temperature	2.5 hours
		5°C (40°F) control temperature	8.5 hours
	0°C (30°F) ambient temperature	60°C (140°F) control temperature	2 hours
Applicable battery cartridge		BL1815N / BL1820 / BL1820B / BL1830 / BL1830B / BL1840 / BL1840B / BL1850 / BL1850B / BL1860B
Applicable charger		DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF /DC18SH

* Operating times are approximate and may differ depending on battery type, charging status, and usage condition.

• Due to our continuing program of research and development, the specifications herein are subject to change without notice.

• Specifications may differ from country to country.

• Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.

⚠ WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges and chargers may cause injury and/or fire.

Symbols

The followings show the symbols which may be used for the appliance. Be sure that you understand their meaning before use.

Read instruction manual.

Only for EU countries

Do not dispose of electric equipment or battery pack together with household waste material! In observance of the European Directives, on Waste Electric and Electronic Equipment and Batteries and Accumulators and Waste Batteries and Accumulators and their implementation in accordance with national laws, electric equipment and batteries and battery pack(s) that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

Caution: risk of fire.

SAFETY WARNINGS

1. This appliance is suitable for camping use only when the appliance powered by battery pack.
2. Keep ventilation openings in the appliance clear of obstruction.
3. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
4. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
5. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
7. When positioning the appliance, ensure the power cord is not tapped or damaged.
8. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
9. Do not damage the refrigerant circuit.

IMPORTANT NOTICES

1. Read the instruction manual carefully before use.

2. Check if the voltage range used is the same as that marked on the nameplate, whether the power cord plug is match the socket, and ensure that the socket is well grounded.

3. When the power cord or socket is damaged, or any other electrical components are faulty, do not continue to use this product. Send it to the dealer or local special maintenance network for replacement or repair.

4. Do not place the product upside down, or tilt it above 15^irc .
5. Do not immerse the appliance in water or other liquid to prevent electric shock. Do not expose to rain.
6. When not in use or clean, remove the battery and unplug the power plug.
7. When operating the appliance, the inlet of the power cord and outlet should be kept a certain distance (about 15cm) from other items, so as not to affect the heat dissipation effect of the machine.
8. Any accessories not recommended by the manufacturer may not be used.
9. Do not allow children or the persons with physical disability to operate without any guidance or supervision.
10. Do not place the appliance next to a high-temperature gas or electric stove to avoid accidents.
11. Do not start the power button frequently (at least 5 minutes each time) to avoid damage to the compressor.
12. Do not insert metal foil or other conductive materials into the appliance to prevent fire or short circuit.
13. Do not use chemical washing liquids and hard tools to clean the product.
14. Insert the plug completely into the "DC IN" inlet. Failure to do so may deform the plug or cause a fire.
15. Clean the cigarette lighter socket before inserting the plug. Failure to do so may deform the plug or cause a fire.
16. Do not operate the appliance while driving. Doing so may cause an accident.
17. When the remaining automobile battery capacity gets small, use the appliance with the engine running. After using the appliance, unplug the cigarette lighter socket to prevent the loading on the automobile battery.
18. Do not abuse the AC adaptor and cigarette lighter adaptor.
19. Clean the plug of the AC adaptor and cigarette lighter adaptor. Dirt such as water or salt adhering to the plug may cause rust and result poor conductivity, deformation or fire.
20. Do not touch the plug of the AC adaptor and cigarette lighter adaptor immediately after operation. They may be extremely hot and could burn your skin.
21. Do not disassemble the appliance.
22. Do not charge the car battery while using the appliance. Unacceptable voltage may be applied to the product, resulting in failure or fire.

23. Do not use flammable sprayer near the appliance. Otherwise it may cause fire.

24. During operation, do not touch the contents, especially those made of metal, inside the appliance with wet hands. Doing so may cause frostbite.

25. Do not handle the plug with wet or greasy hand. Doing so may cause electric shock.

26. Do not put such as medicines or academic materials in the appliance. This appliance cannot storage the materials that require strict temperature control.

27. Do not use this product as a stepstool or chair. It may cause falls and injuries.

28. Do not leave this appliance in hot places, such as in a car under the sun. Doing so may cause fire.

29. Do not allow small children and pets to play with this appliance. Keep the appliance out of reach of children when storing.

30. Do not overfill food and drink in the appliance. Cooling performance may be reduced, causing food and drink to rot.

31. Be careful not to run out of battery power while keeping food and drink cool or warm. Do not store opened foods for a long time. Food and drink may rot.

32. Do not use near heating materials or gas appliances. Cooling performance may be reduced, or a gas leak may cause a fire.

33. Do not use a knife or a screwdriver to remove ice or frost from the appliance. Doing so may damage the inside of the appliance and cause a malfunction, or the enclosed gas or oil may squirt.

34. Do not use the DC output (DC) of the engine generator as the power supply. Doing so may cause a failure.

35. Do not put water etc. directly in the appliance. Water may get inside the appliance and cause a malfunction. If water has accumulated in the chamber, wipe it off with a soft cloth.

36. Be careful not to pinch your finger when closing and opening the upper cover.

37. Do not put things that are easily perishable when operating heating mode. Food and drink may rot.

38. When operating heating mode, do not touch the inside of the appliance with your hand for a long time. Risk of low-temperature burns.

39. Do not use this appliance in the refrigerator vehicle or refrigerator chamber. Dew condensation easily occurs in the refrigerator vehicle and refrigerator chamber, causing water droplets to fall on the appliance and result in malfunctions.

40. Do not put creatures such as pets in the appliance. This appliance cannot save creatures.

41. Do not put a cold agent in a broken bag. If the cold agent leak in the appliance, the metal part of the appliance may be corroded. If the cold agent leaks, wipe it off with a damp soft cloth and then wipe dry with a soft cloth.

42. Attach the shoulder band securely so that it does not drop off due to the weight of the appliance. Otherwise the appliance may fall and cause injury.

43. When putting food and drink in the appliance, put a cold or hot thing in advance. This appliance cannot cool or heat in a short time.

44. When using the appliance in a car, be sure to install the appliance in a stable place such as the luggage space or the feet of the rear seats, and fix it. Do not place the appliance on the seat in an unstable state. If the car suddenly starts or stops during driving, the appliance may fall over and move, causing injury.

45. Hold the appliance firmly when carrying. Otherwise the appliance may fall and cause a malfunction, or falling on your feet may cause injury.

46. Disposal of the appliance.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resource. The insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal centre. Do not expose to flame.

Safety warnings for battery-operated appliance

Battery-operated appliance use and care

1. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.

2. Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

3. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

4. Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

5. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

6. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

7. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
8. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
9. Follow all charging instructions and do not charge the battery pack or appliance outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
10. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
11. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.

Important safety instructions for battery cartridge

1. Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.
4. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.
5. Do not short the battery cartridge:

(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc.
(3) Do not expose battery cartridge to water or rain.

A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

1. Do not store and use the appliance and battery cartridge in locations where the temperature may reach or exceed 50 °C (122 °F).

2. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.

3. Be careful not to drop or strike battery.
4. Do not use a damaged battery.
5. The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements.

For commercial transports e.g. by third parties, forwarding agents, special requirement on packaging and labeling must be observed.

For preparation of the item being shipped, consulting an expert for hazardous material is required. Please also observe possibly more detailed national regulations.

Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging.

1. When disposing the battery cartridge, remove it from the appliance and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.
2. Use the batteries only with the products specified by Makita. Installing the batteries to non-compliant products may result in a fire, excessive heat, explosion, or leak of electrolyte.
3. If the appliance is not used for a long period of time, the battery must be removed from the appliance.

SAVE THESE INSTRUCTIONS.

CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury and damage. It will also void the Makita warranty for the Makita appliance and charger.

Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely discharged. Always stop appliance operation and charge the battery cartridge when you notice less appliance power.
2. Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.
3. Charge the battery cartridge with room temperature at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.
4. Charge the battery cartridge if you do not use it for a long period (more than six months).

PARTS DESCRIPTION

▶ Fig.1

1	Control panel	2	Battery cover	3	Upper cover hook
4	Upper cover	5	Handle	6	Carrying Handle
7 Opener 8 Filter cover 9 Wheel
10	“DC IN” socket	11	Temperature plus button	12	Power button
13	Cool / heat switch button	14	Temperature display	15	Battery indicator
16	Temperature reduction button	-	-	-	-

OPERATION

1. Connecting the power supply

A) Battery

⚠️CAUTION: Always switch off the tool before installing or removing of the battery cartridge.

⚠️CAUTION: Hold the tool and the battery cartridge firmly when installing or removing battery cartridge. Failure to hold the tool and the battery cartridge firmly may cause them to slip off your hands and result in damage to the tool and battery cartridge and a personal injury.

To install the battery cartridge, open the battery cover.

Align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click.

Then close the battery cover.

To remove the battery cartridge, slide it from the appliance while sliding the button on the front of the cartridge.

▶ Fig.2

▶ 1. Red indicator 2. Button 3. Battery cartridge

⚠CAUTION: Always install the battery cartridge fully until the red indicator cannot be seen. If not it may accidentally fall out of the tool causing injury to you or someone around you.

⚠️CAUTION: Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly.

NOTE: Up to two battery cartridges can be installed, although the appliance uses one battery cartridge for operation.

B) AC adaptor (Only use for Recreational vehicle)

When using the appliance with AC power, use the AC adaptor supplied with the appliance. Insert the plug to "DC IN" inlet of the appliance and then insert the other end to an outlet.

C) Cigarette lighter adaptor

When using the appliance with the cigarette lighter socket, use the cigarette lighter adaptor supplied with the appliance. Insert the plug to "DC IN" inlet of the appliance and then insert the other end to the cigarette lighter socket.

CAUTION: Insert the plug completely into the "DC IN" inlet. Failure to do so may deform the plug or cause a fire.

⚠️ CAUTION: Always close the “DC IN” socket cover firmly when the power cord is not plugged.

NOTICE: When the appliance has been operated for about 24 hours with the battery cartridge installed, battery cartridge may shut down its own power to protect the battery cartridge. In this case, the appliance can not operate with the battery power supply and the battery indicator also goes off.

To resume the battery power supply, remove and re-install the battery cartridge.

NOTE: When the appliance shifts power supply, the compressor will stop for about 3 minutes to protect the compressor.

NOTE: After turning off the appliance, it takes about 3 minutes to restart the compressor because of the protection of the compressor.

2. Turning on the appliance

Press the power button to turn on the appliance. Press the power button again to turn off the appliance.

3. Switching cooling / heating mode

Press the cool / heat switch button to switch the operating mode.

The temperature display flashes the control temperature.

- When the appliance operates in cooling mode, the control temperature is -18^ircC , -10^ircC , 0^ircC , 5^ircC or 10^ircC ( 0^ircF , 15^ircF , 30^ircF , 40^ircF or 50^ircF ).

- When the appliance operates in heating mode, the control temperature is 55°C or 60°C (130°F or 140°F).

4. Selecting the control temperature

Press the temperature plus button or the temperature reduction button to select the control temperature.

The appliance starts cooling / heating 5 seconds after without any operation, then the control temperature stop flashing and the temperature display shows the current temperature.

The appliance stops cooling / heating when the current temperature reaches the control temperature.

Tips for efficient cooling

Opening the upper cover for long periods can cause significant increase of the temperature in the chamber.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the chamber, so that it is not in contact with or drip onto other food.
• If the chamber is left empty for long periods:
• Switch off the appliance.
• Defrost the chamber.
• Clean and dry the chamber.
• Leave the upper cover open to prevent mould developing within the chamber.

FUNCTION

Indicating the remaining battery capacity

The battery indicator shows the remaining battery capacity.

The remaining battery capacity is shown as the following table.

Battery indicator status Remaining		battery capacity
On Off
		50% to 100%
		20% to 50%
		0% to 20%
(Blinking)		Charge the battery

(Only for battery cartridges with the indicator)

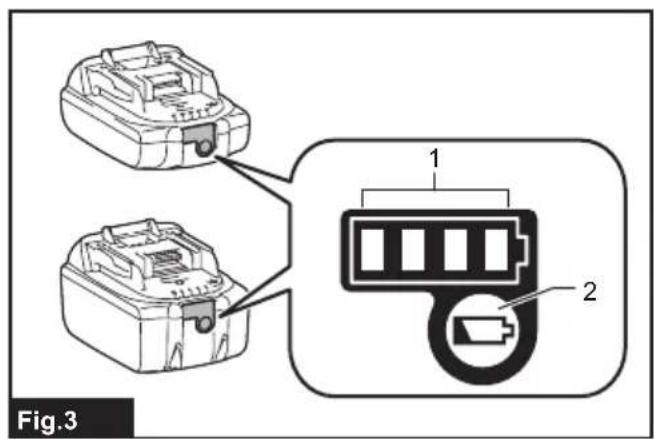

Press the check button on the battery cartridge to indicate the remaining battery capacity. The indicator lamps light up for a few seconds.

▶ Fig.3

▶ 1. Indicator lamps 2. Check button

Indicator lamps Remaining			capacity
Lighted Off	Blinking
			75% to 100%
			50% to 75%
			25% to 50%
			0% to 25%
			Charge the battery.
*			The battery may have malfunctioned.

NOTE: Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity.

Appliance / battery protection system

The appliance is equipped with the protection system. This system automatically cuts off power to extend appliance and battery life. The appliance will automatically stop during operation if the appliance or battery is placed under one of the following conditions.

1. Battery overdischarge protection

When the battery capacity becomes low, the appliance stops automatically. The battery indicator prompts that the battery should be charged. Remove the batteries from the appliance and charge the batteries.

2. Overcurrent protection

When the appliance is operated in a manner that causes it to draw an abnormally high current, the appliance automatically stops. In this situation, stop the application that caused the appliance to become overloaded. Then turn the appliance on to restart.

3. Car input protection

When the car input voltage is lower than 10.7V (12V input), or 22.6V (24V input), this protection system turns off the appliance and the temperature display shows "F3" with beep sound.

4. Overvoltage protection

When the input voltage is higher than 15V (12V input), or 30V (24V input), this protection system turns off the appliance and the temperature display shows "F4" with beep sound.

5. Short circuit protection

The circuit has short circuit protection function in case of short circuit. In this situation, take the appliance to Makita Authorized or Factory Service Centers.

Tilt protection function

The appliance is equipped with the tilt protection function. When operating the appliance in cooling mode, the appliance will automatically shuts down if the appliance is placed under one of the following angles.

A) When the appliance get greater than 30^irc from level angle as shown A-1 in the figure, the appliance shuts down and the temperature display shows “F1” for a while. It takes 3 minutes to restart after the appliance back in level position.
When the appliance get greater than 70^irc from level angle as shown A-2 in the figure, the appliance shuts down and the temperature display shows “F6” until restart. It takes 2 hours to restart after the appliance back in level position.

▶ Fig.4

B) When the appliance get greater than 30^irc from level angle as shown B-1 in the figure, the appliance shuts down and the temperature display shows “F1” for a while. It takes 3 minutes to restart after the appliance back in level position.
When the appliance get greater than 40^irc from level angle as shown B-2 in the figure, the appliance shuts down and the temperature display shows “F6” until restart. It takes 2 hours to restart after the appliance back in level position.

▶ Fig.5

C) When the appliance get greater than 30^irc from level angle as shown C-1 in the figure, the appliance shuts down and the temperature display shows “F1” for a while. It takes 3 minutes to restart after the appliance back in level position.

When the appliance get greater than 70^irc from level angle as shown C-2 in the figure, the appliance shuts down and the temperature display shows “F6” until restart. It takes 2 hours to restart after the appliance back in level position.

▶ Fig.6

D) When the appliance get greater than 30^irc from level angle as shown D-1 in the figure, the appliance shuts down and the temperature display shows “F1” for a while. It takes 3 minutes to restart after the appliance back in level position.

When the appliance get greater than 70^irc from level angle as shown D-2 in the figure, the appliance shuts down and the temperature display shows “F6” until restart. It takes 2 hours to restart after the appliance back in level position.

▶ Fig.7

E) When the appliance turns 180° from level angle, the appliance shuts down and the temperature display shows "F6" until restart. It takes 2 hours to restart after the appliance back in level position.

USB charging

There is the USB port in the battery compartment. The USB port continuously outputs 5V voltage in operation state.

Memory function

After setting the control temperature, if the user does not operate within 5 seconds, the current setting will be memorized. Next time, the appliance starts in the same setting.

Switching the unit of temperature

You can switch the unit of temperature ^ircC (degree Celsius) or ^ircF (degree Fahrenheit) by following procedure.

1. Turn on the appliance.
2. Press the cool / heat switch button until the unit (°C or °F) starts flashing.
3. Press the temperature plus button or the temperature reduction button to select unit.
4. Press the cool / heat switch button, or leave the appliance 5 seconds without any operation. The unit selection is completed.

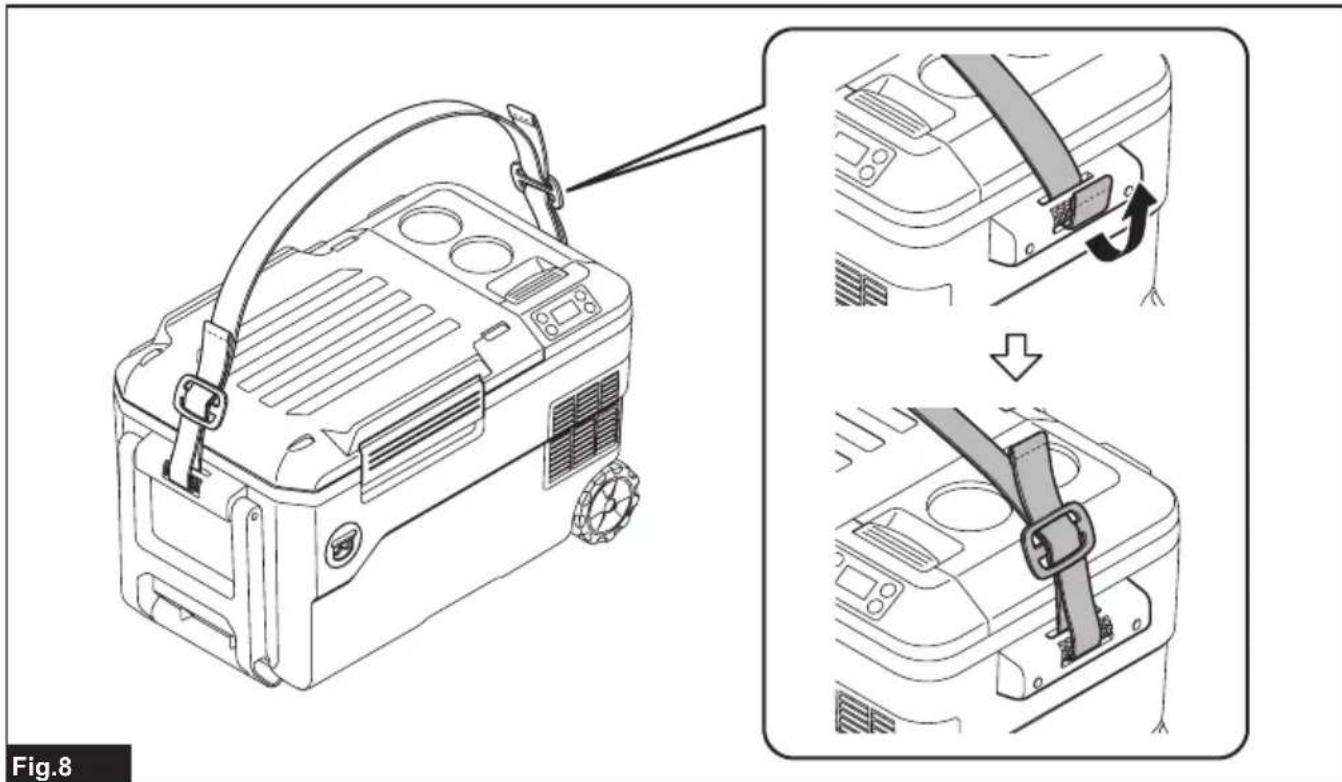

Shoulder belt

1. Put the belt through left and right handles.
2. Buckle the belt.

▶ Fig.8

Error code

For the specific errors, the temperature display shows following code.

Error code Matter

F1 Tilt protection is active.Refer the section for the tilt protection function.

F2 Running out of battery.

F3 Input voltage is low.Refer the paragraph for the car input protection.

F4 Input voltage is high.Refer the paragraph for the overvoltage protection.

F5 Something is wrong with the sensor in the appliance. Take the appliance to Makita Authorized or Factory Service Centers.

F6 Tilt protection is active.Refer the section for the tilt protection function.

MAINTENANCE

⚠CAUTION: Always be sure that the appliance is switched off, unplugged, and the battery cartridge is removed before attempting to perform inspection or maintenance.

NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.

Cleaning

• Clean the oil stain in the chamber regularly.
• Clean around the interior of the chamber to prevent odor.
• Clean the dust on the filter regularly to improve the refrigeration efficiency.
• The sealing strip of the upper cover is easy to get dirty, clean it in time.

Defrosting

To defrost, turn off the power and wait until the frost has melted. Then wipe off the water.

Cleaning the filter

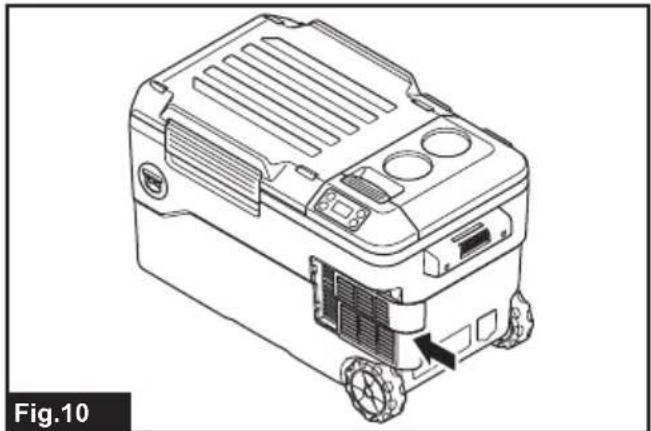

1. Push the slide cover in the direction of the arrow shown in the figure, and then take the filter cover off.
   ▶ Fig.9
2. Take off the filter, clean the filter, and then install the filter back in the filter cover.
3. Install the filter cover back.
   ▶ Fig.10

OPTIONAL ACCESSORIES

CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

- Makita genuine battery and charger

NOTE: Some items in the list may be included in the tool package as standard accessories. They may differ from country to country.

AVISO

.3. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. لترا Chronic Disease (العربية) 40 degrees. لترا Chronic Disease (العربية) 50 degrees. لترا Chronic Disease (العربية) 104 degrees. لترا Chronic Disease (العربية) 104 degrees. لترا Chronic Disease (العربية) 104 degrees. لترا Chronic Disease (العربية) 104 degrees. لترا Chronic Disease (العربية) 104 degrees. لترا Chronic Disease (العربية) 104 degrees. لترا Chronic Disease (العربية) 104 degrees. لtrا Chronic Disease (العربية) 104 degrees. لtrا Chronic Disease (العربية) 104 degrees. لtrا Chronic Disease (العربية) 104 degrees. لtrا Chronic Disease (العربية) 104 degrees. لtrا Chronic Disease (العربية) 104 degrees. لtrا Chronic Disease (العربية) 104 degrees. لtrا Chronic Disease(العربية) 104 degrees. لtrا Chronic Disease (العربية) 104 degrees. لtrا Chronic Disease (العربية) 104 degrees. لtrا Chronic Disease (العربية) 104 degrees. لtrا Chronic Disease (العربية) 104 degrees. لtrا Chronic Disease (العربية) 104 degrees. لtrا Chronic Disease (العربية) 4. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. لtrا Chronic Disease (العربية) 40 degrees. لtrا Chronic Disease (العربية) 50 degrees. لtrا Chronic Disease (العربية) 104 degrees. لtrا Chronic Disease (العربية) 104 degrees. لtrا Chronic Disease (العربية) 104 degrees. لtrا Chronic Disease (العربية) 104 degrees. لtrا Chronic Disease (العربية) 104 degrees. لtrا Chronic Disease (العربية) 104 degrees. لtl 4. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. لtrا Chronic Disease (العربية) 40 degrees. لtrا Chronic Disease (العربية) 50 degrees. لtrا Chronic Disease (العربية) 104 degrees. لtrا Chronic Disease (العربية) 104 degrees. لtl 4. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. لtrا Chronic Disease (العربية) 40 degrees. لtrا Chronic Disease (العربية) 50 degrees. لtrا Chronic Disease (الغربية) 104 degrees. لtl 4. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. لtrا Chronic Disease (العربية) 40 degrees. لtrا Chronic Disease (العربية) 50 degrees. لtl 4. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. لtrا Chronic Disease (العربية) 40 degrees. لtrا Chronic Disease (العربية) 50 degrees. لtl 4. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. لtrا Chronic Disease (العربية) 20 degrees. لtrا Chronic Disease (العربية) 50 degrees. لtl 4. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. لtrا Chronic Disease (العربية) 20 degrees. لtl 4. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. لtl 4. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 5. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 6. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 7. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 8. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 9. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 10. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 11. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 12. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 13. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 14. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 15. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 16. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 17. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 18. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 19. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 20. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 21. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 22. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 23. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 24. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 25. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 26. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 27. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 28. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 29. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 30. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 31. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 32. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 33. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 34. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 35. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 36. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 37. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 38. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 39. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 40. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 41. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 42. اشن Concentrational Departure in Degree of the Geography in 100-104 degrees. 43. اشن Concentrational Departure in Degree of the Geography in 10

ستة أشهر.
