Product Type	Portable Radio
Brand	Sven
Model	SRP-500
Dimensions (WxHxD)	200 x 120 x 50 mm
Weight	300 g
Power Supply	3 x AA batteries (not included) or DC 5V via micro USB
Frequency Range FM	87.5 – 108 MHz
Frequency Range AM	522 – 1620 kHz
Display	LCD with backlight
Speaker	Built-in 3W mono
Headphone Jack	3.5 mm stereo
Antenna	Telescopic for FM, built-in ferrite for AM
Memory Presets	20 stations (10 FM, 10 AM)
Clock	Digital with alarm and snooze
Timer	Sleep timer (15/30/60/90/120 min)
Volume Control	Rotary knob
Carrying Handle	Foldable handle
Body Material	ABS plastic
Accessories Included	Micro USB cable, user manual
Maintenance	Clean with dry soft cloth; avoid moisture and high temperatures
Spare Parts Availability	Contact Sven customer service for replacement parts

Frequently Asked Questions - SRP-500 Sven

How do I set the clock on the Sven SRP-500?

Press and hold the Clock button for 2 seconds. The hour will flash. Use the Tuning Up/Down buttons to set the hour. Press Clock again; the minutes flash. Set minutes, then press Clock to confirm.

Can I use rechargeable batteries?

Yes, the radio works with rechargeable AA batteries (NiMH). You can also power it via the micro USB port (5V).

How to improve FM reception?

Extend the telescopic antenna fully. Rotate the radio for best signal. If indoors, move near a window.

How to set the alarm?

Press the Alarm button. Use Tuning Up/Down to set alarm time. Press Alarm again to select wake-up source (buzzer or radio). Press Power to save.

Why is my radio not turning on?

Check that batteries are inserted correctly or the micro USB cable is connected. Try fresh batteries or a different USB power source.

How to store radio stations?

Tune to the desired station, then press and hold one of the Preset buttons (1-5) until a beep sounds. Up to 10 presets per band.

Does the radio have a backlight?

Yes, the LCD display has a backlight that turns on briefly when any button is pressed. It can be set to stay on via a menu option.

How to clean the radio?

Wipe the exterior with a soft, dry cloth. Do not use abrasive cleaners or immerse in water. Keep away from dust and moisture.

What is the sleep timer and how to use it?

The sleep timer automatically turns off the radio after a set time. Press the Sleep button repeatedly to choose 15/30/60/90/120 minutes. The radio will shut off after the selected time.

Where can I find spare parts or service?

For spare parts or repair, contact Sven customer support via their website or authorized service centers. Provide the model SRP-500.

USER MANUAL SRP-500 Sven

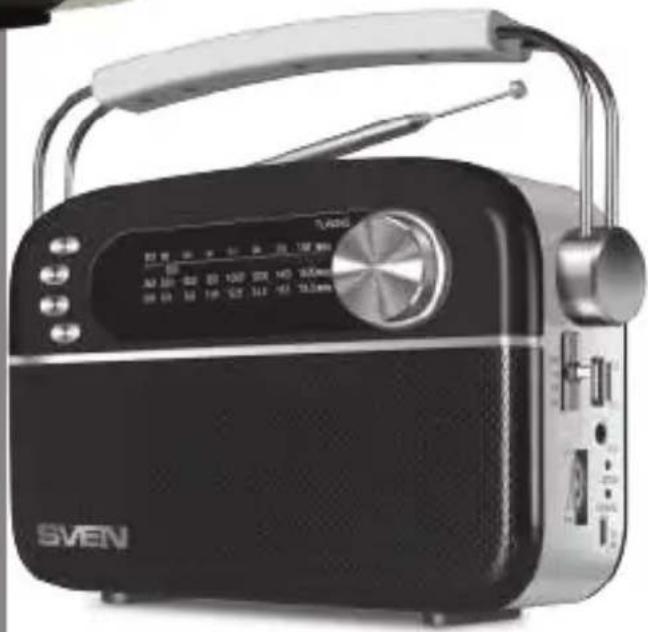

Black and silver SVEN radio with external earphones and control knobs (no visible text or symbols on device body)

SRP-500

SRP-505

Black SVEN portable radio with analog keypad and external antenna (no visible text or symbols on device body)

Congratulations on your purchase of the Sven portable radio!

COPYRIGHT

© 2021. SVEN PTE. LTD. Version 1.0 (20.05.2021).

This manual and information contained in it are copyrighted. All rights reserved.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted efforts to make this manual more exact, some discrepancies may occur. The information in this manual is given on «as is» terms. The author and the publisher do not bear any liability to a person or an organization for loss or damage which has arisen from the information contained in this manual.

CONTENTS

ENG 2

RUS....6

UKR 11

BUYER RECOMMENDATIONS

• Unpack the device carefully. Make sure there are no accessories left in the box. Check up the device for damage; if the product was damaged during transportation, address the firm which carried out the delivery; if the product functions incorrectly, address the dealer at once.
• Check up the package contents and availability of the warranty card. Make sure the warranty card has a shop stamp, a legible signature or the seller's stamp and purchase date, and the goods number corresponds to that in the warranty card. Remember: in case of warranty card loss or discrepancy of numbers you forfeit the right for warranty repairs.
• Before installing and using the speaker system, read this manual carefully and keep it for future reference.
  • Shipping and transportation equipment is permitted only in the original container.
• Does not require special conditions for realization.
• Dispose of in accordance with regulations for the disposal of household and computer equipment.

PACKAGE CONTENTS

• Portable radio — 1 pc
  • USB to micro USB power cable — 1 pc
  • User Manual — 1 pc
  • Warranty card — 1 pc

Technical support is on www.sven.fi.

APPLICATION

SRP-500, SRP-505 portable radios are designed to receive radio stations in the FM/AM/SW band, play MP3 files from USB/microSD media formatted in FAT32 format.

SPECIAL FEATURES

• Bluetooth wireless signal transmission
  • Built-inlithium-ion 1200 mAh battery
  • Built-in audio files player from USB-flash and microSD card storage devices
  • Reception of radio stations in the range FM, AM, SW
  • Telescopic swivel antenna

Description

① previous track (in Player mode); Navigation on the track (long pressing)
② ▶: next track (in Player mode);
Navigation on the track (long pressing)
③ MODE: switch mode button: BT/USB/microSD (short pressing);
The previous folder when pressed and held in USB/microSD mode
④ ▶: Play/Pause (in Player mode);
The following folder when pressed and held in USB/microSD mode; Disconnecting from the sound source (long pressing in Bluetooth mode)
⑤ Station tuning knob
⑥ Mode selector knob: BT/MP3/FM/AM/SW
⑦ On/off knob and volume control
⑧ USB flash connector

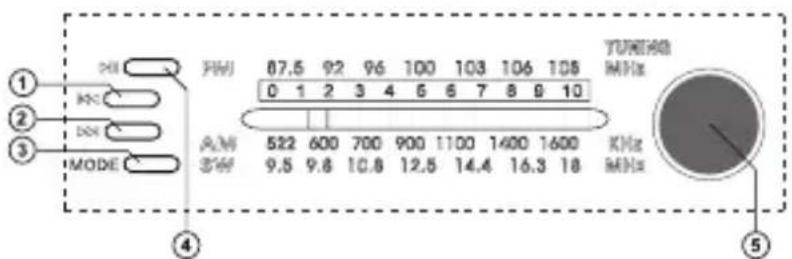

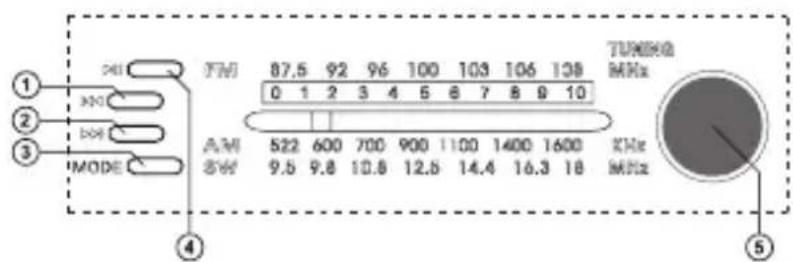

Control panel SRP-500

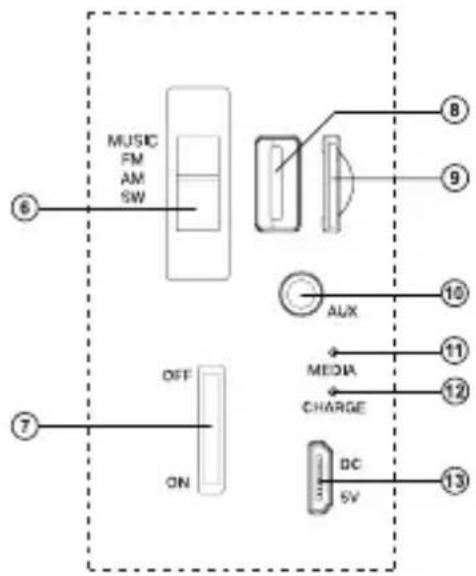

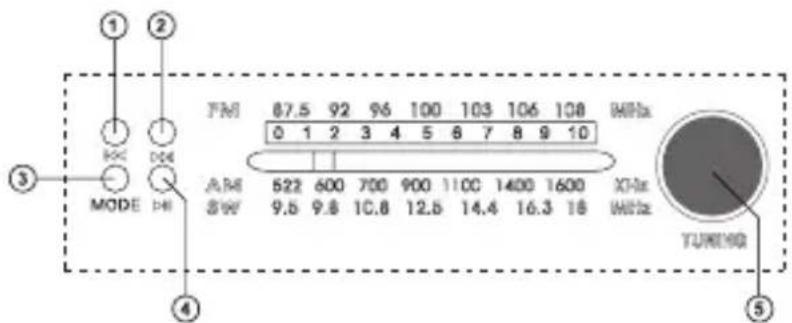

Control panel SRP-505 Side view
Fig. 1.

SVEN®

Portable Radio

⑨ Micro SD card slot
⑩ AUX: 3.5 mm mini-jack for audio signal connecting (phone, MP3 player, etc.)
⑪ Player indicator
⑫ Battery charge process indicator
⑬ DC 5V: micro USB jack for charger connecting radio to laptop/PC USB port

Attention! The built-in battery must be charged completely prior to the application.

Battery charging

• Connect radio to a USB port of PC or USB charger using micro USB to USB cable (included). During battery charging the indicator ⑫ is red. Indicator ⑫ goes out when the battery is charged.
• The battery is used in the radio as an integral part of the device, therefore do not try to extract or replace it, because this can result in the warranty cancellation or the device damage.

OPERATION MODES

Bluetooth mode

• Wireless data transfer via the Bluetooth protocol enables to connect radio to compatible devises. Maximum radius of action of data transfer is 10 m. Such obstacles as walls or other electronic devices can interfere with the signal transfer.
• Turn on the radio and select Bluetooth mode. To do this, move the mode selection knob ⑥ to the highest position. If necessary (switching from USB/microSD), additionally press the MODE ③ button on the front panel, a sound confirmation of the selected mode will be heard.
• It is necessary to select the search mode of devices with Bluetooth on a signal source (telephone, notebook, smartphone, etc.). «SVEN SRP-500/SRP-505» massage will be displayed on the screen which is to be connected to*.
• When connection is successful, there will be a short beep**.

Player mode

Attention! The file system of a micro SD carrier is FAT32. Maximum volume is 32 GB. It is not recommended to use the micro SD Ultra Speed.

- Insert the USB flash or micro SD carrier into appropriate slot, if the radio is in turned on position and MUSIC mode is on, the playback will start automatically. Playback/Pause modes are switched over with the help of the button ④. Tracks can be controlled by buttons ① (previous track) and ② (next track).

Radio mode

- Turn on device. Select the desired range with switch ⑥. When receiving an SW/FM band expand the telescopic antenna. Use the tuning knob ⑤ to select the desired station.

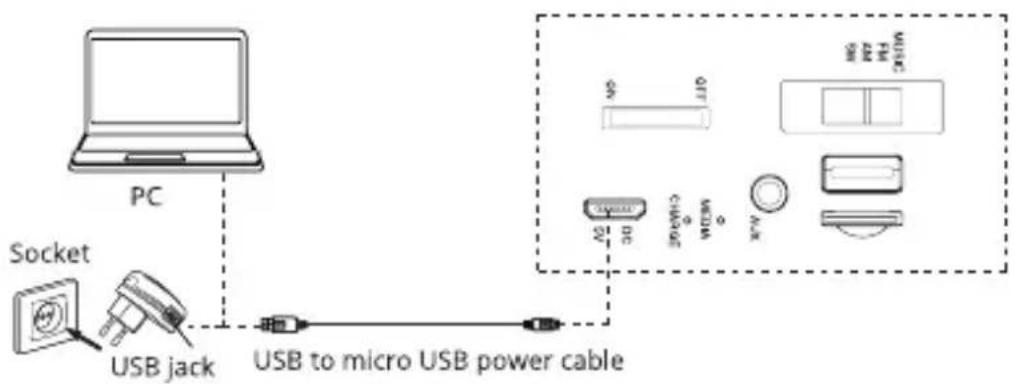

Fig. 2. Connection diagram

TECHNICAL SPECIFICATIONS

Parameter, measurement unit Value
Frequency range, H 100 - 12 000
Output power (RMS), W 3
Speaker diffuser diameter, mm ∅ 90
Power supply, V lithium-ion battery,	mAh - 1200 USB/ ——5V
Radius of operation Bluetooth, m up to 10
Rated current, A 0.075
Color black, white
Dimensions, mm 230 × 147 × 110
Weight, kg 0.838

Notes:

- Technical specifications given in this table are supplemental information and cannot give occasion to claims.

- Technical specifications and package contents are subject to change without notice due to the improvement of SVEN production.

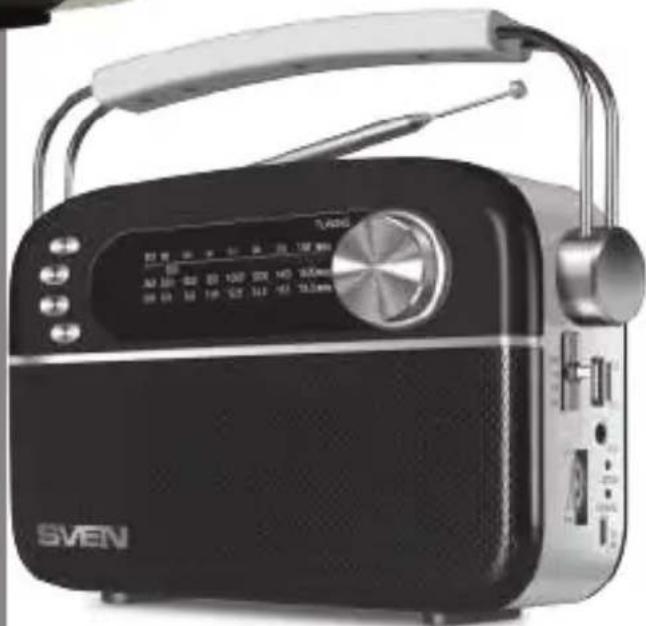

Black SVEN portable radio with control knobs and speaker grille (no visible text or symbols on device body)

SRP-500 SRP-505

Black SVEN portable radio with digital display and antenna (no visible text or symbols on device body)

Black SVEN portable radio with external earphones and control knobs (no visible text or symbols on device body)

SRP-500

SRP-505

Black SVEN portable radio with antenna and control knobs (no visible text or symbols on device body)
